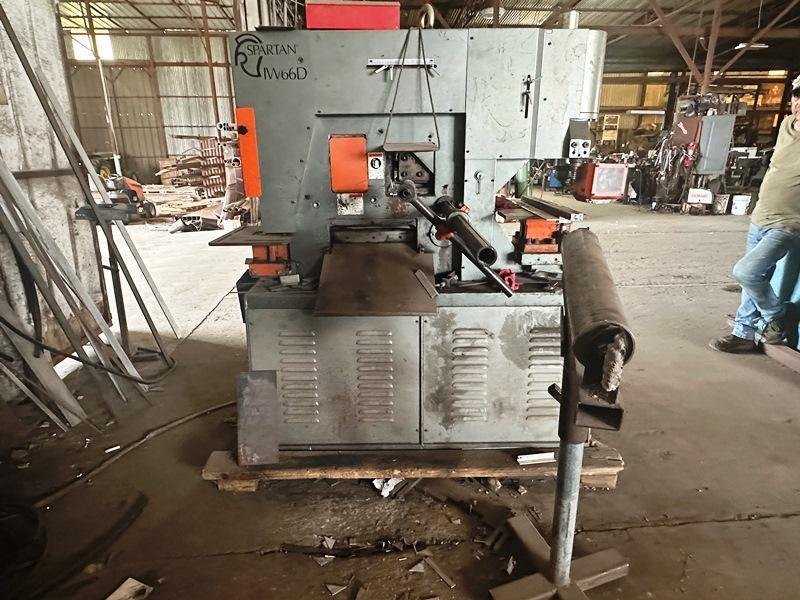

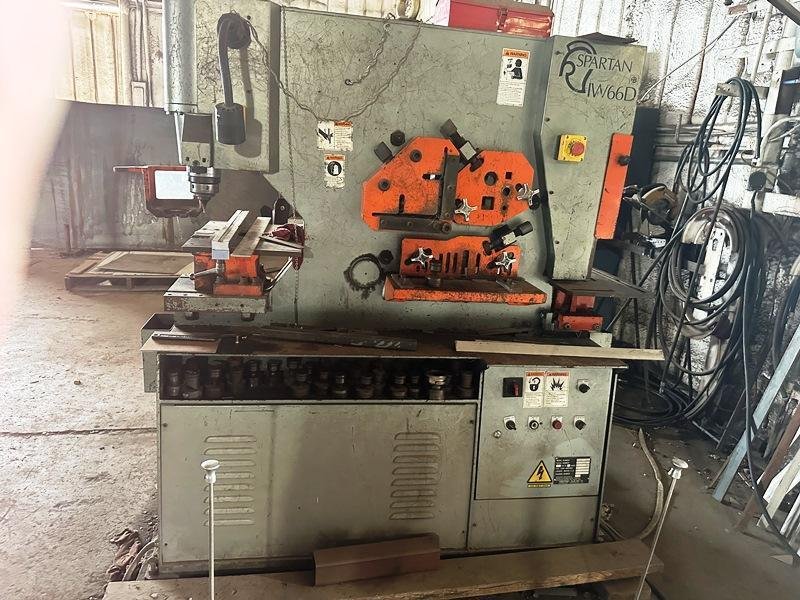

66 TON MARVEL SPARTAN (ARMSTRONG-BLUM MFG) MODEL IW66D IRONWORKER

                                                                           12" in 3/4"
Angle Fange Trim                                               4"

ANGLE SHEAR:
    at 90 degrees                                                 9" x 5" x 1/2"
    at 45 degrees                                                 2½" x 2½" x 5/162"
ROUND and SQUARE BAR SHEAR:
   Round thru                                                      ½"
   Squares thru                                                    1½" x 1½"
   Channels and H-Beams                                   5"
RECTANGULAR NOTCHER CAPACITY:
   90 degree Notcher                                           3½" x 3½" x 3/8"
   Pipe Notcher                                                    1½" – 40
   Squaring Guide
SPECIAL TOOLING: “CAPACITY ONLY"
   V-Press Brake                                                   10" x ⅝"    Multi Vee 20" x 3/16"
   Pipe Notcher                                                      4",
   Angle Bending                                                    4" x ¼

MOTOR DRIVE:
Wired                                                                      230 volts, 3-phase
   Hydraulic Pump                                                    7½ HP
CONTROLS:
Wired Low Voltage
   Two Full Controls Foot Pedals.
   Pump Start/Stop Buttons.
   Auto Manual Switch.   Normal / Jog Switch.
   Shear / Notch Switch.  Main On/Off
Approximate Dimensions                                    68" L x 31" W x 67" H
Approximate Weight                                            3,969 Lbs.
