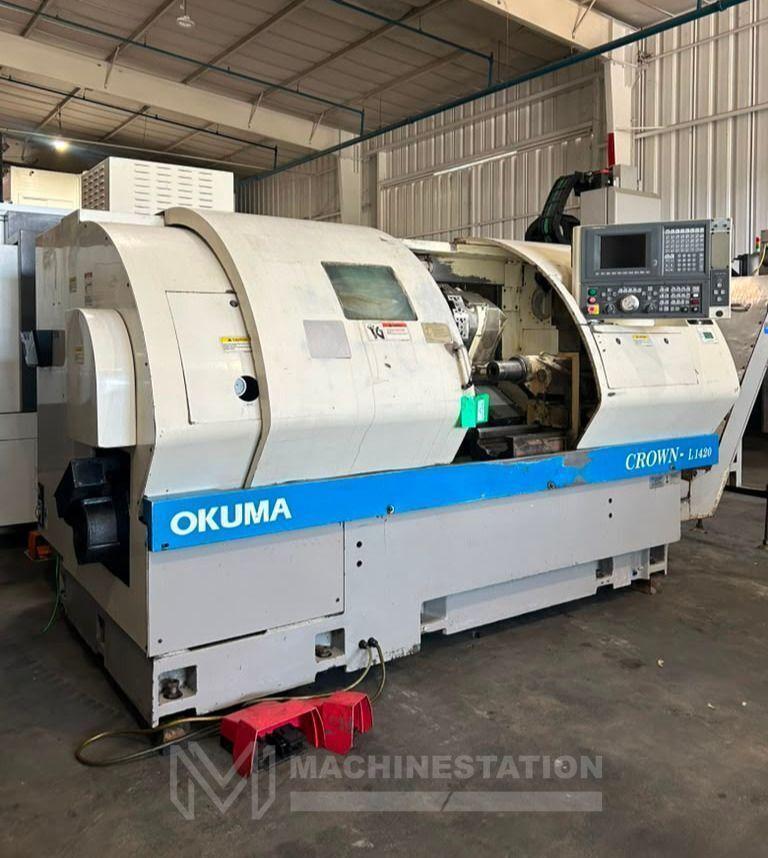

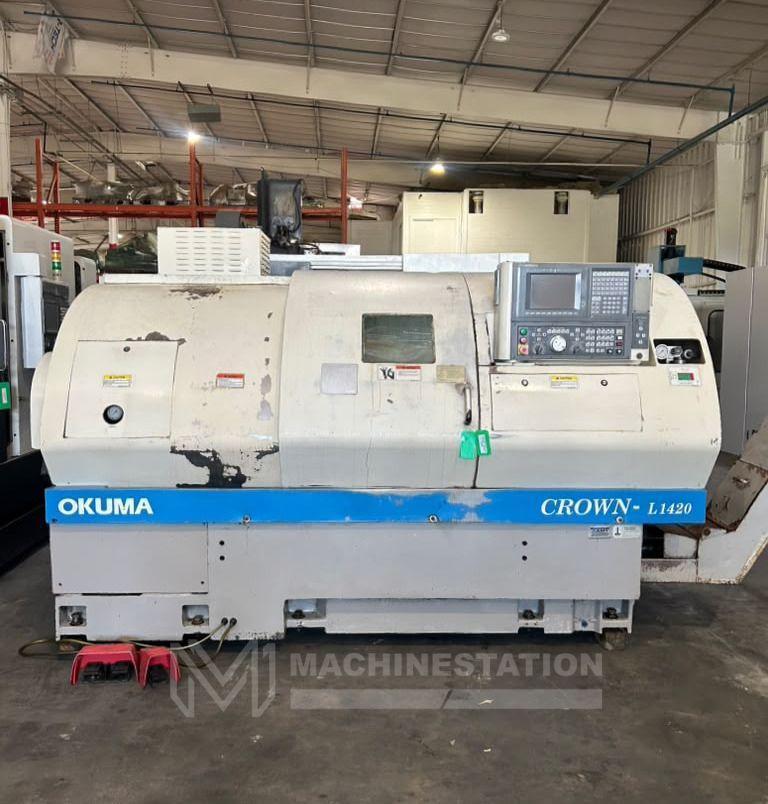

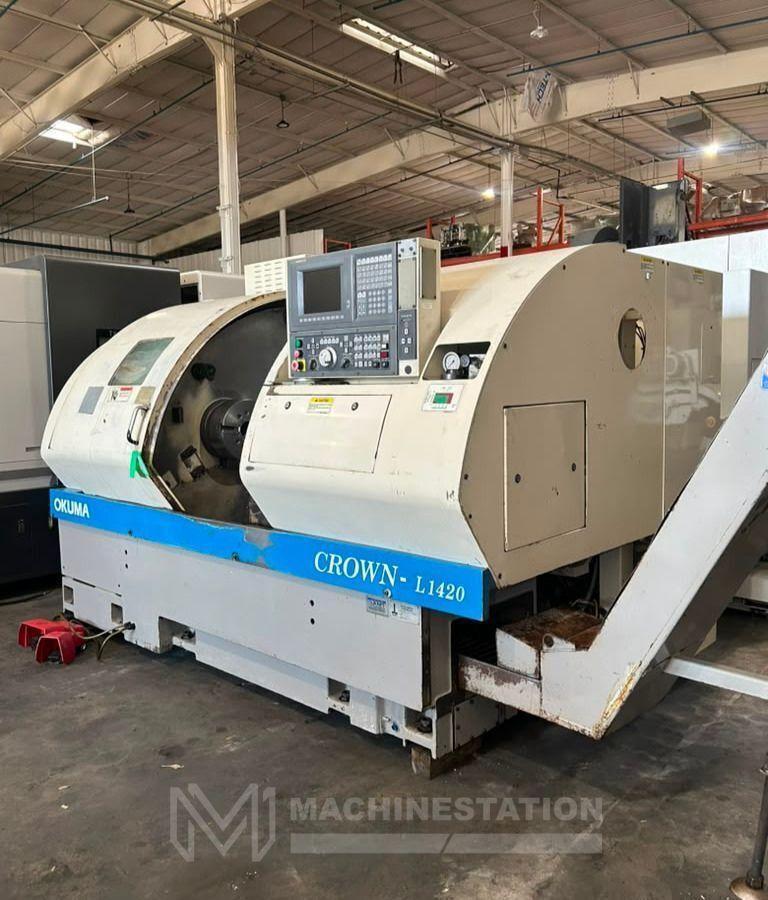

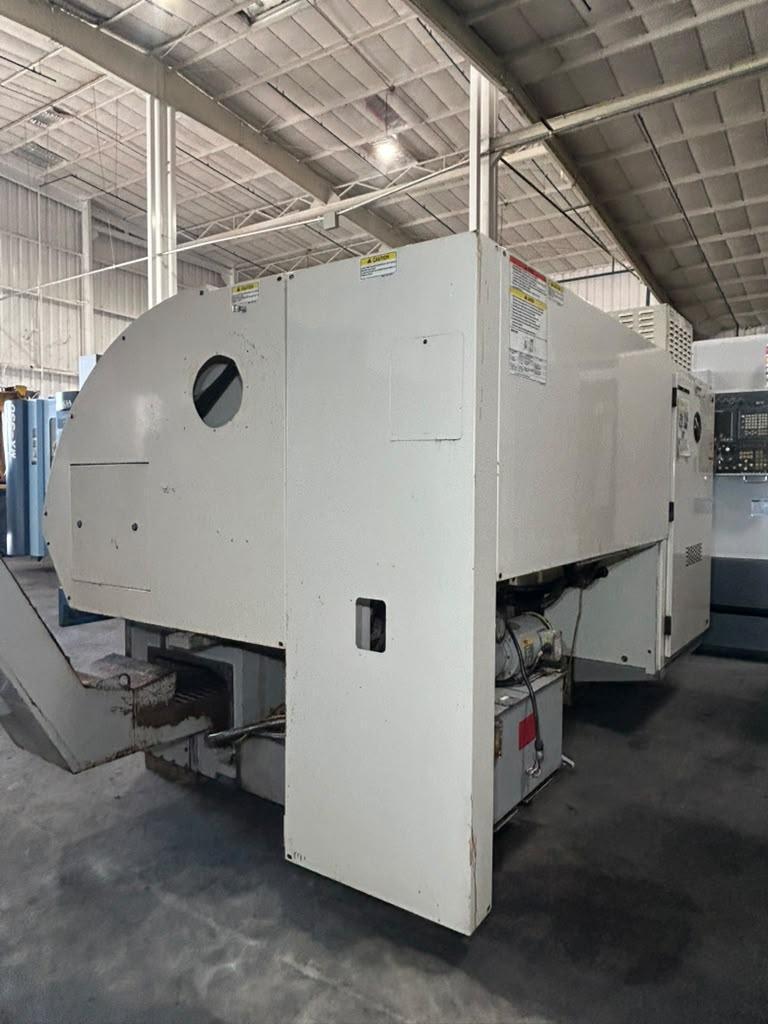

Okuma Crown 769S L1420/650 CNC Turning Center – 12″ Chuck Lathe

Brand
OKUMA
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Okuma Crown 769S L1420/650
Stock #
113548
Year
2001
Condition
Not specified

Location

Not specified

All specifications are approximations and are subject to verification.



Make Okuma
Model No. Crown 769S L1420/650
Year 2001
Equipped With:

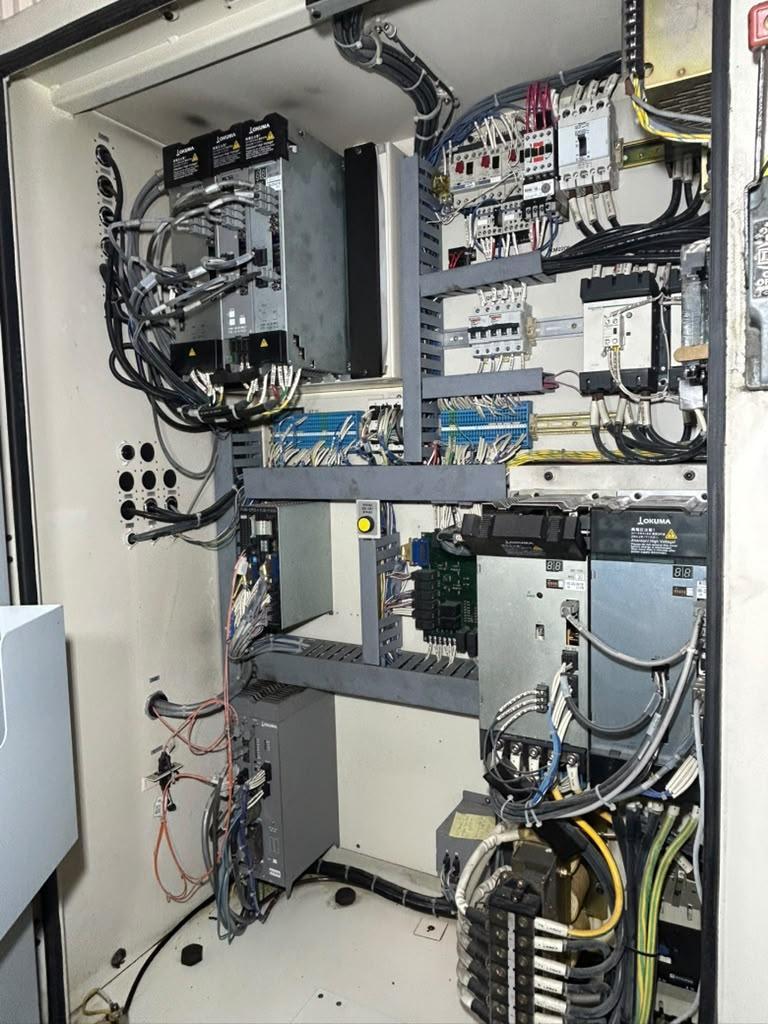

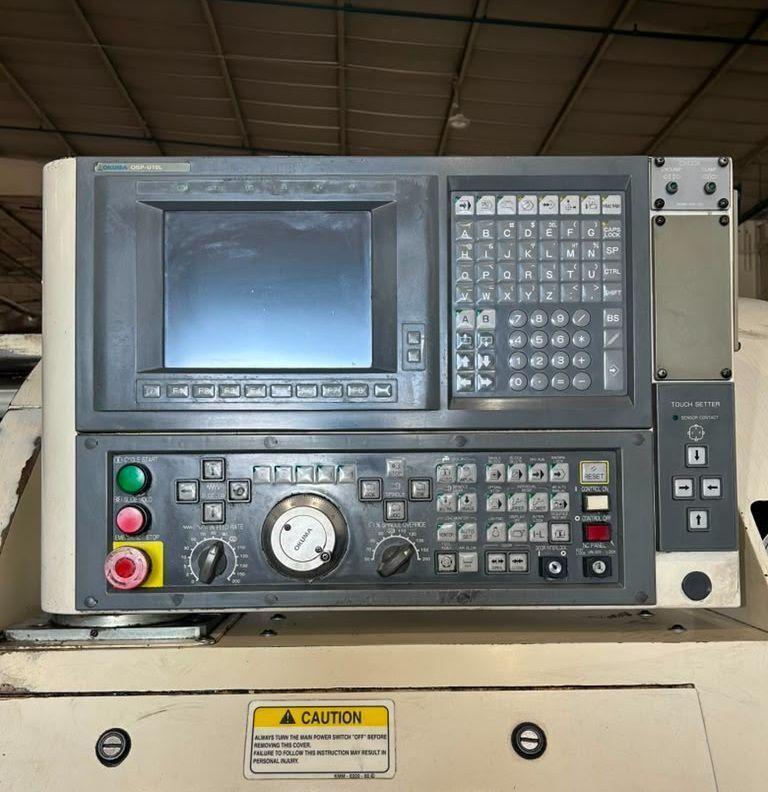

OSP-U10L CNC Control

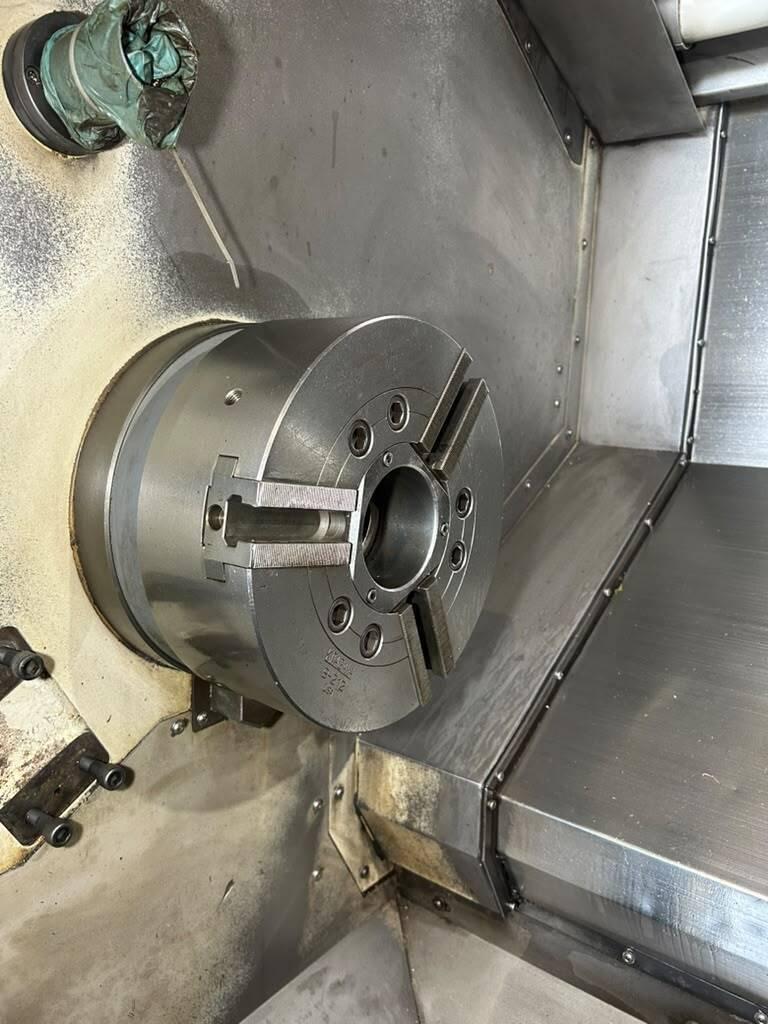

12″ 3-Jaw Kitagawa B-212 Hydraulic Chuck

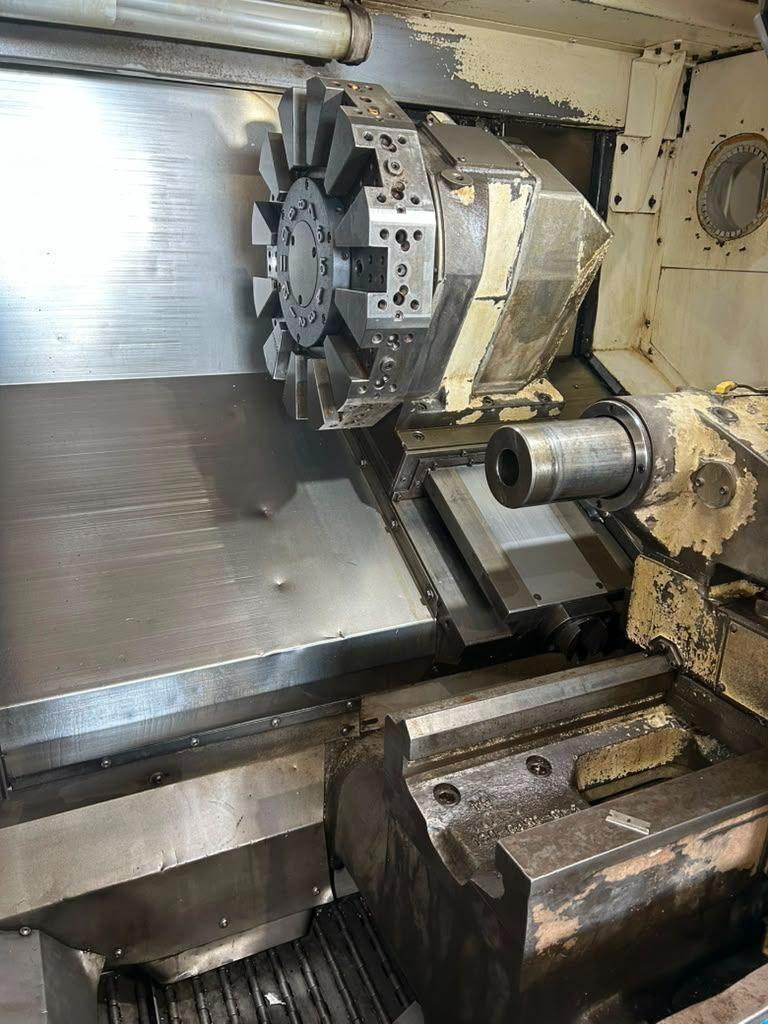

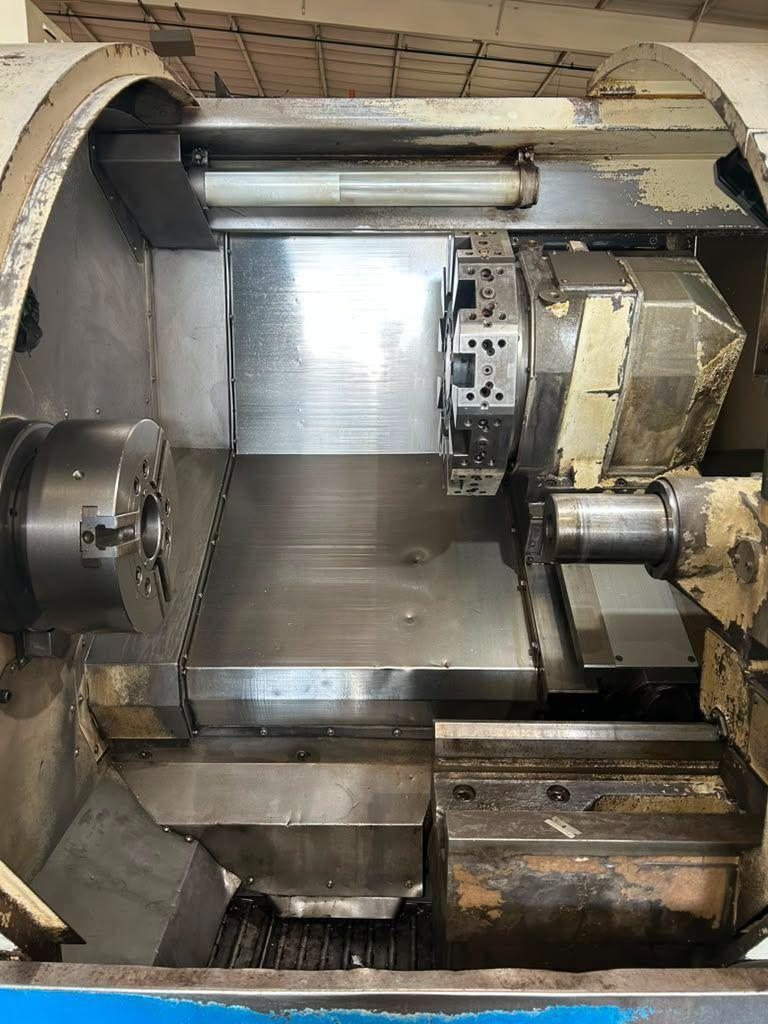

12-Station Automatic Turret
Hydraulic Tailstock with Power Quill

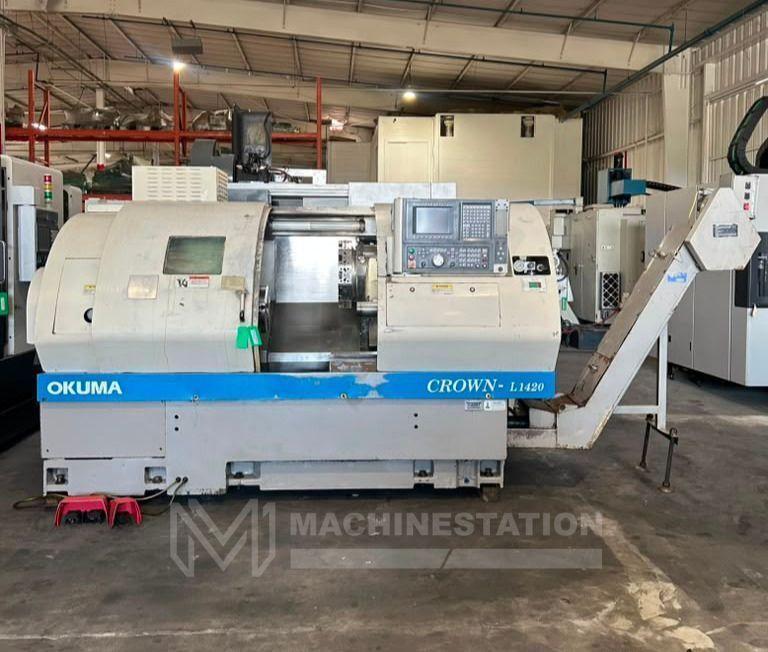

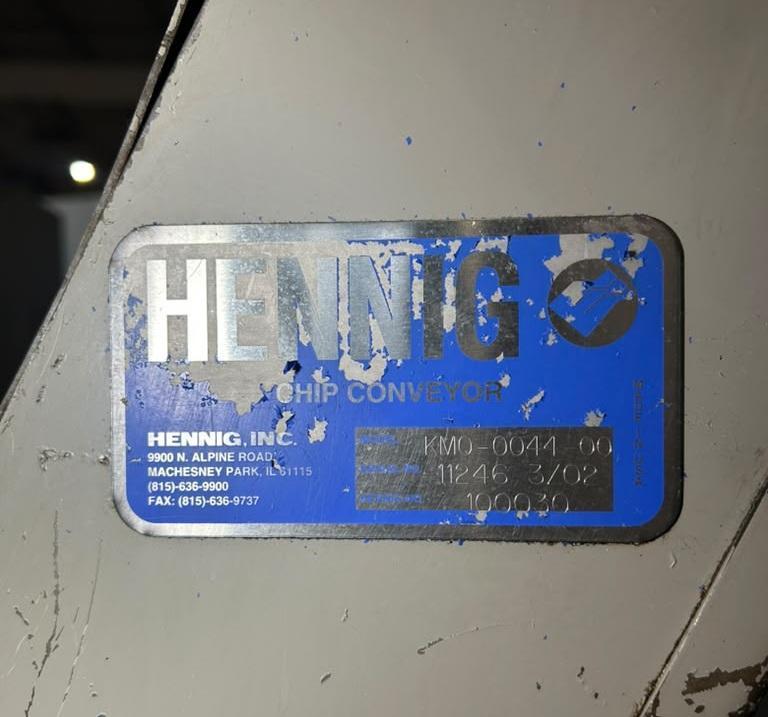

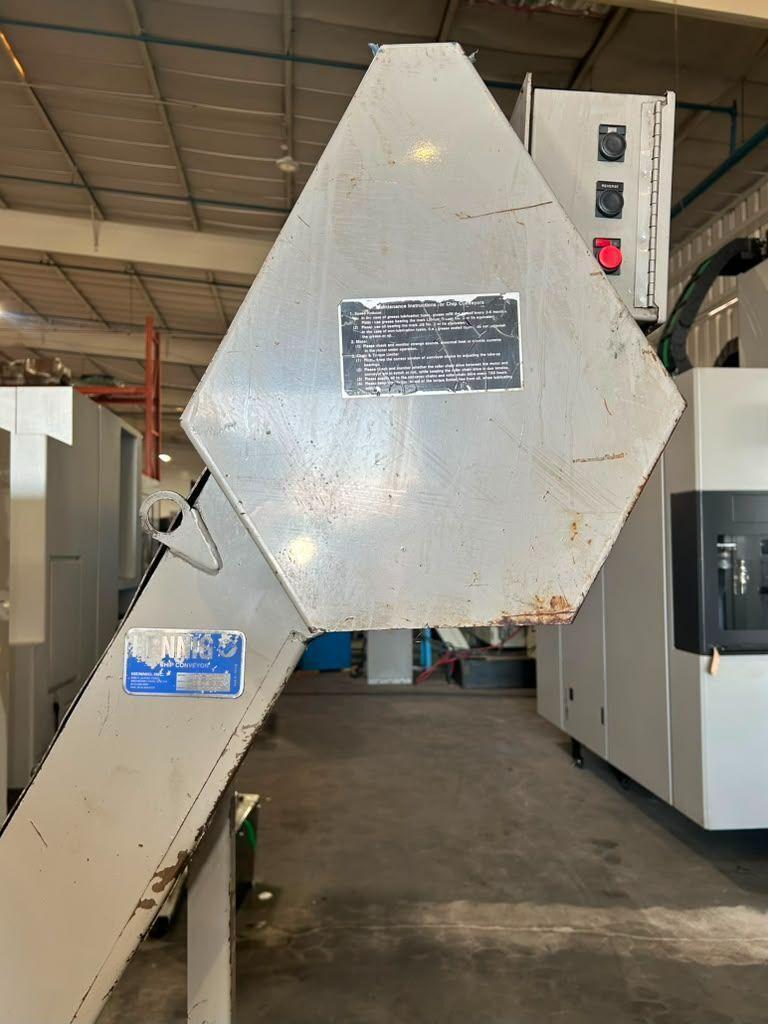

Chip Conveyor
Foot Switches
Capacity:
Max Turning Diameter: 14.17″
Max Turning Length: 25.59″
Swing Over Bed: 28.41″
Max Bar Capacity: 2.99″
Travel:
X Axis Travel: 9.1″
Z Axis Travel: 25.59″
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Z Axis: 591 IPM
Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.58″
Spindle Speed: 65-3500 RPM
Spindle Motor: 30 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second
Tailstock:
Tailstock Body Travel: 14.3″
Tailstock Quill Dia.: 3.54″
Tailstock Quill Stroke: 4.72″
Tailstock Taper: MT-4
General:

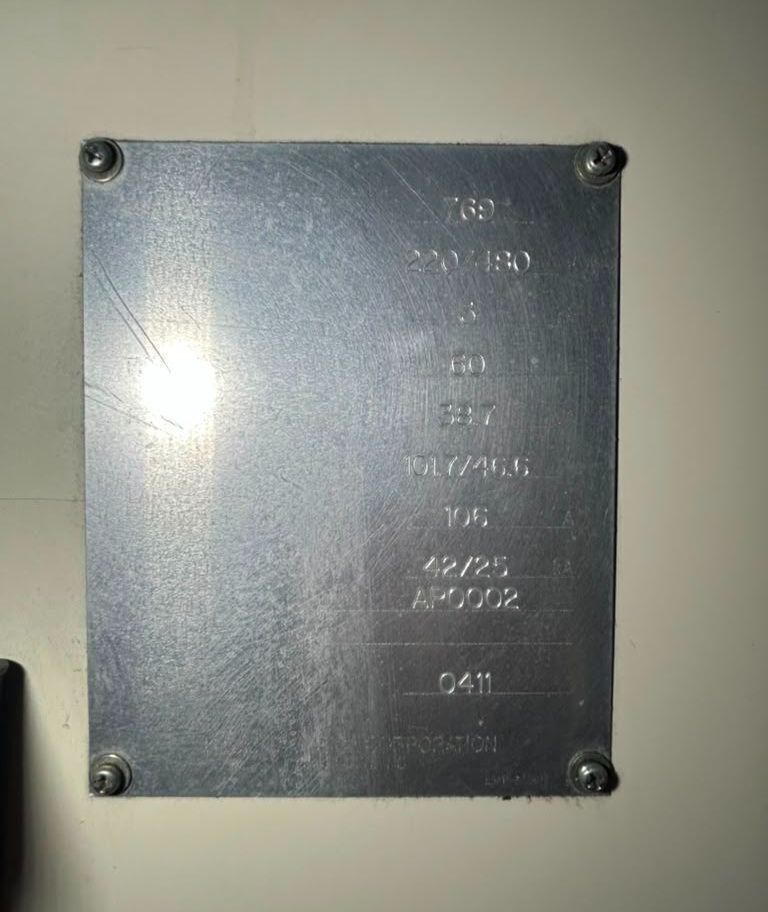

Power Source: AC 220V/480v, Three Phase, 60 Hz
Power Requirement: 38.7 kva
Overall Dimensions: 150″ x 68″ x 80″ High with Chip Conveyor
Weight : 15000 lbs Approx.
No files or videos to display

Want to request a quote from the owner of this listing?

Similar Listings to - Okuma Crown 769S L1420/650 CNC Turning Center – 12″ Chuck Lathe

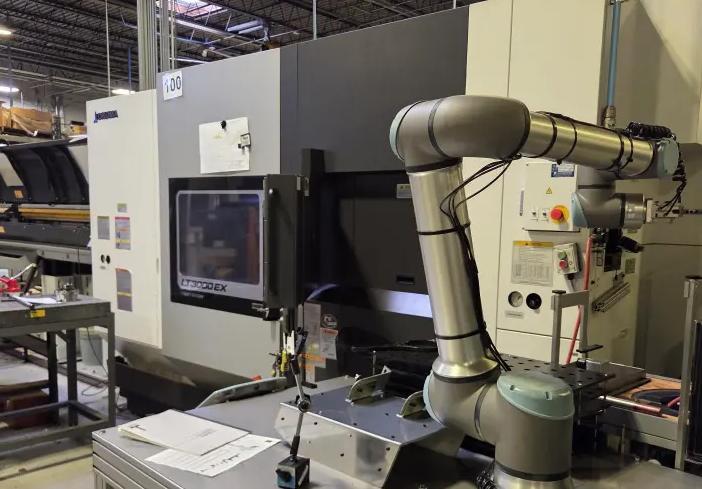

2021 Okuma LT3000-EX-3TMY CNC Turning Center (#5945)
OKUMA

Turning Centers

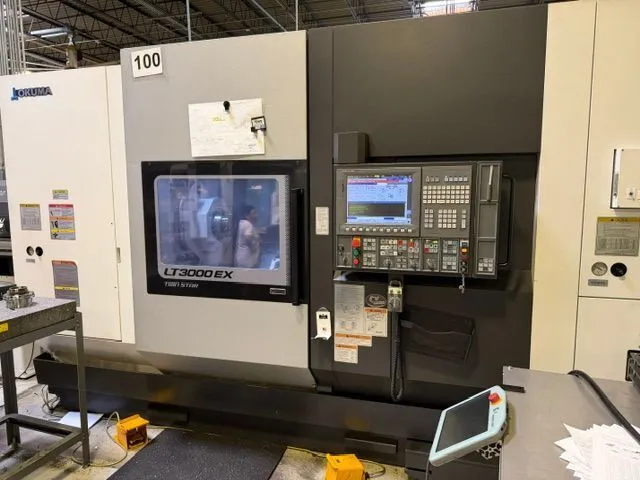

2021 Okuma LT3000-EX-3T3MY | 3-Turret, Twin Spindle CNC Turning Center w/ Live Tooling and Y-Axis
