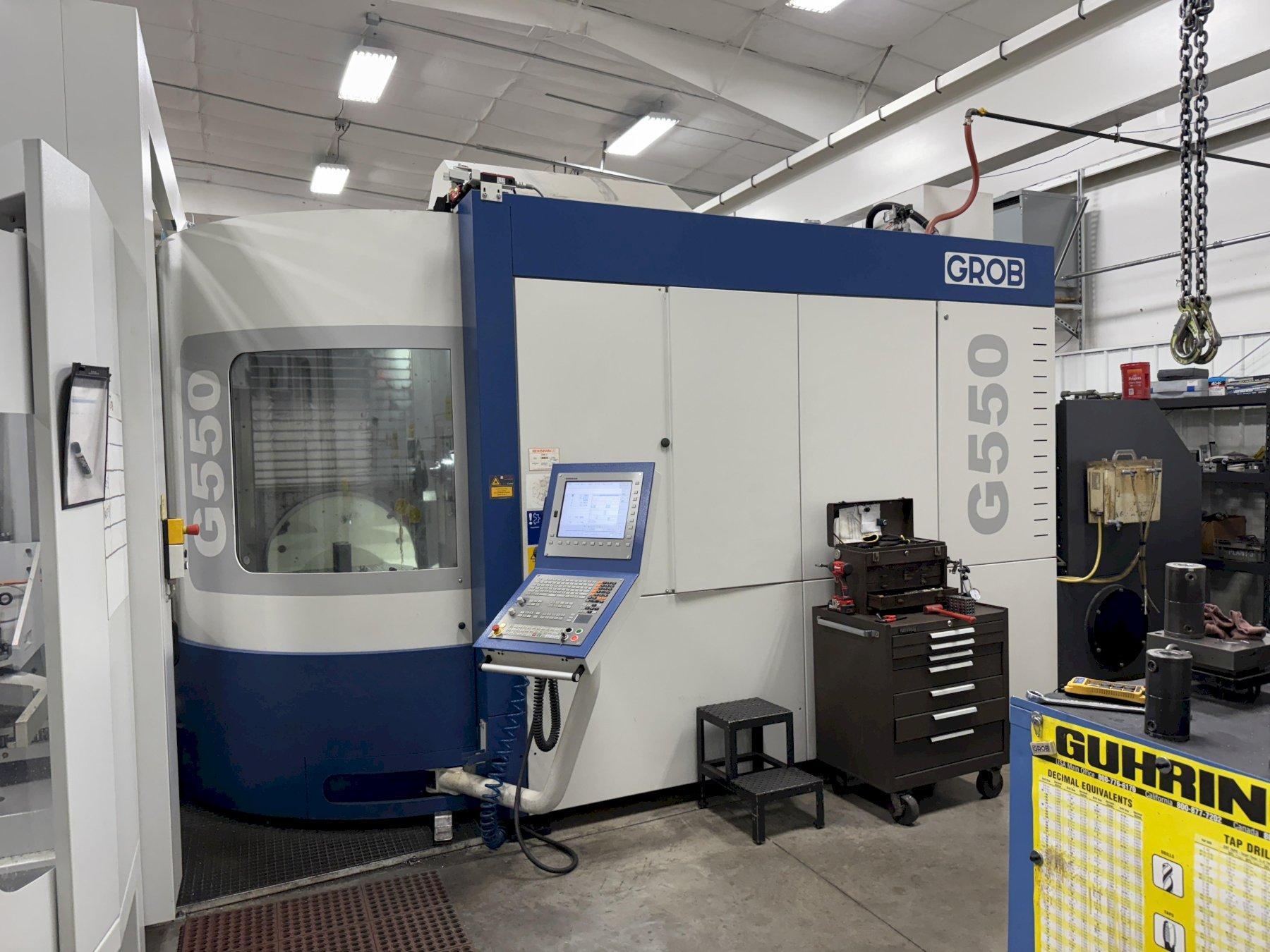

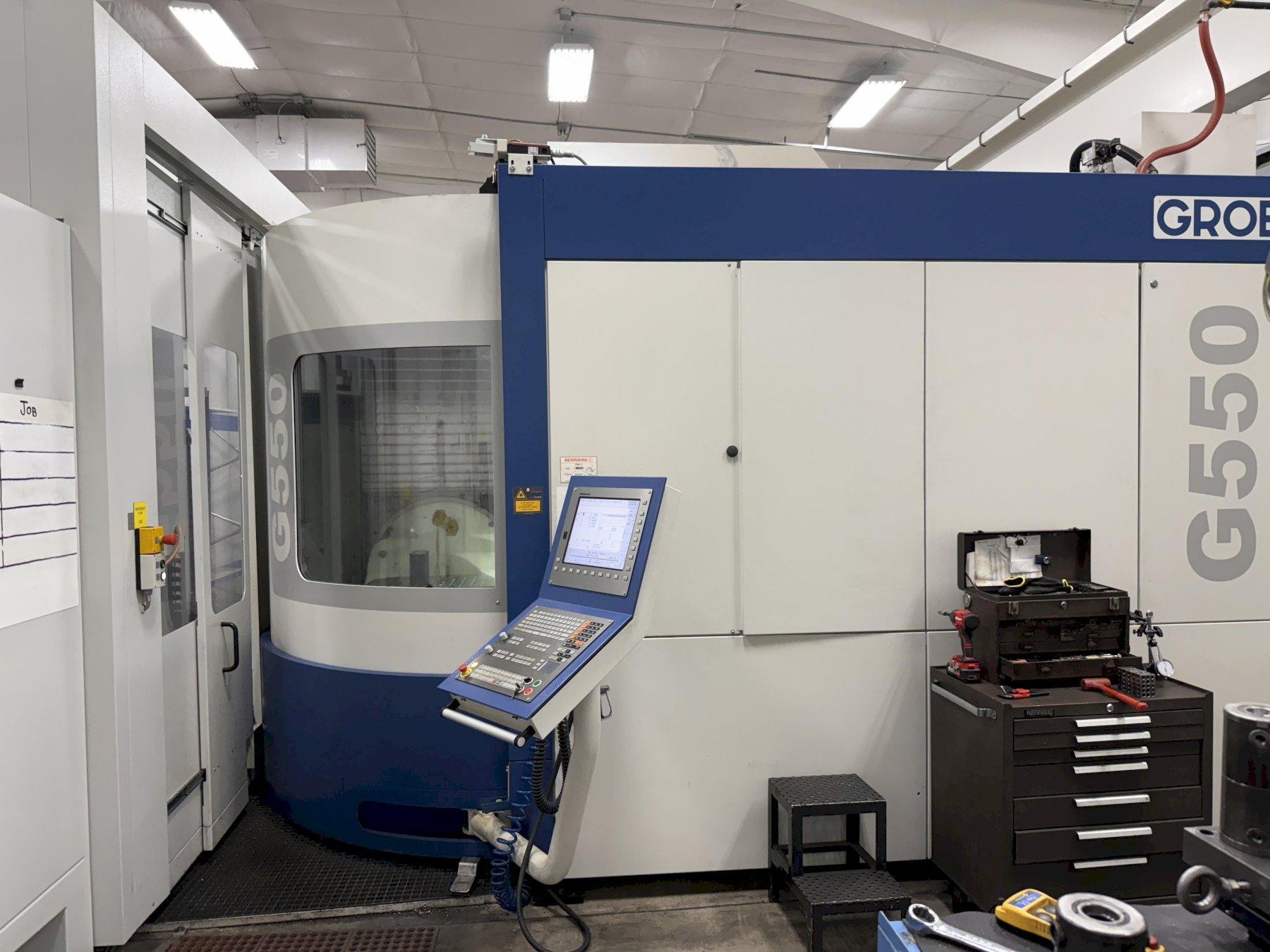

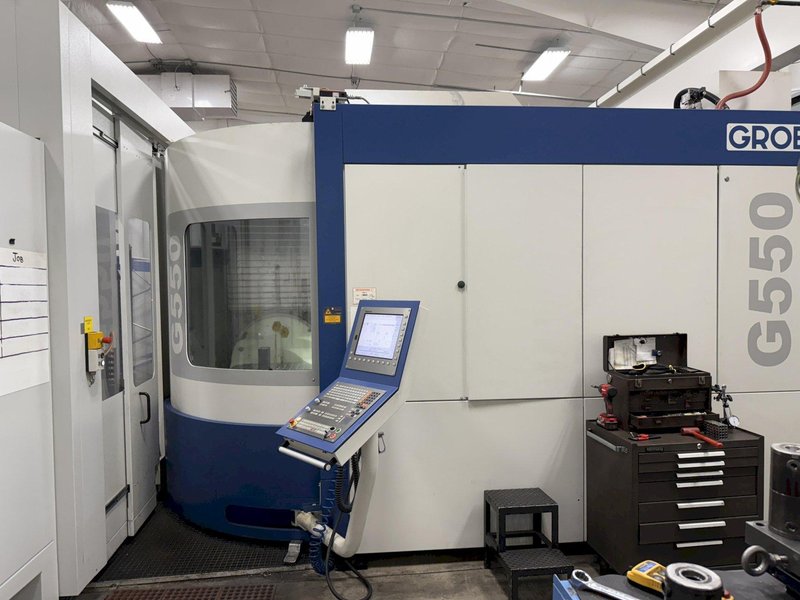

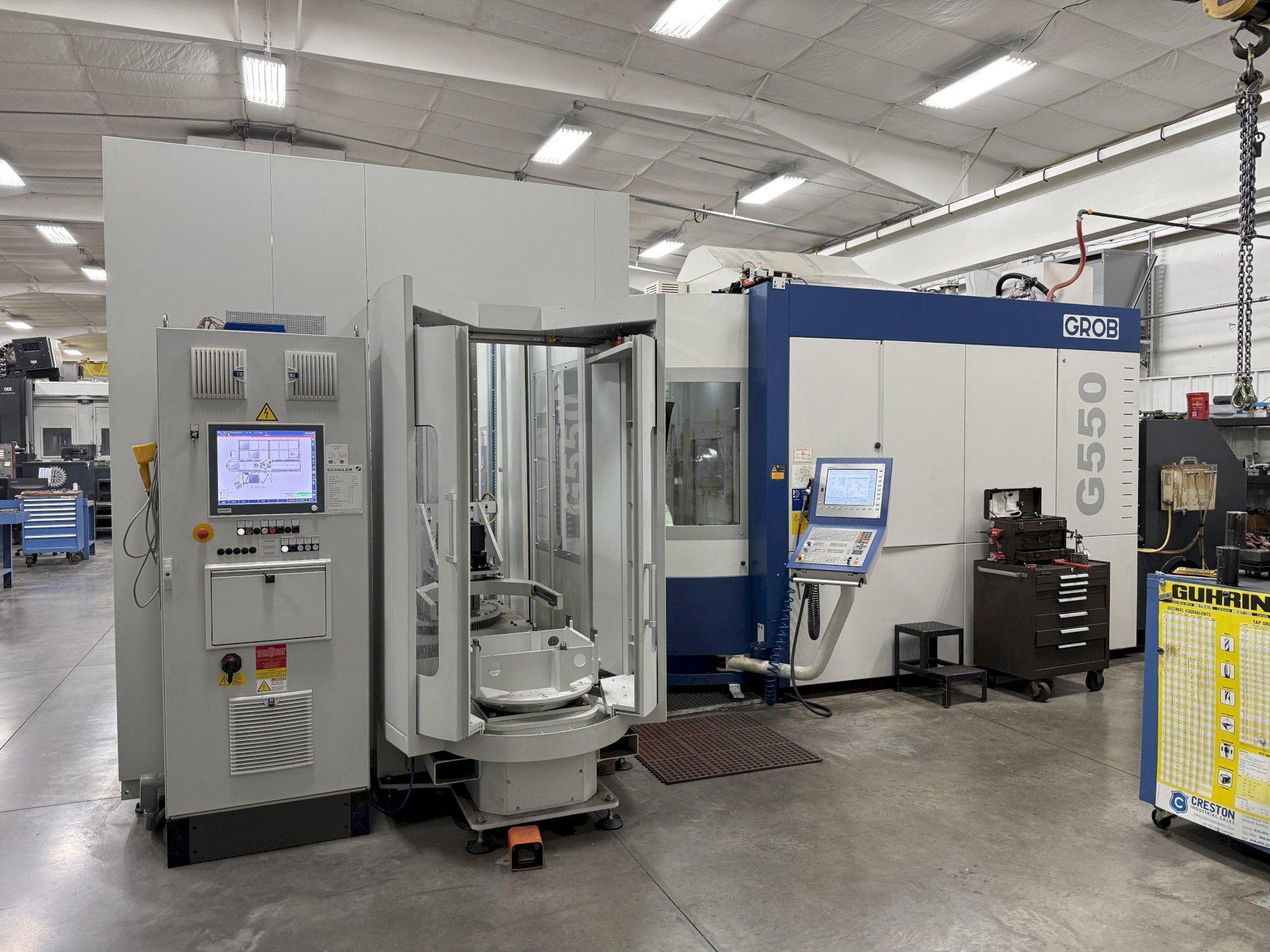

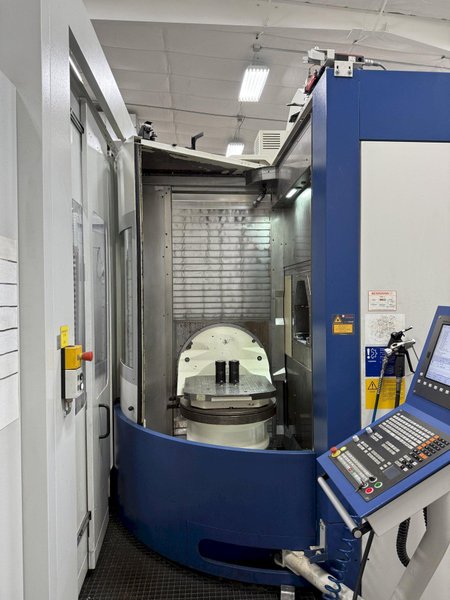

Used 2015 Grob G550 5-Axis CNC Horizontal Machining Center For Sale with 10 Station Pallet Pool

Used 2015 Grob G550 5-Axis CNC Horizontal Machining Center For Sale with 10 Station Pallet Pool

Name: Used 2015 Grob G550 5-Axis CNC Horizontal Machining Center For Sale with 10 Station Pallet Pool
Brand: GROB
SKU: MD25053
Availability: InStock

Brand

GROB

Location

Not specified

Specifications
Files & Videos

CNC Control	yes

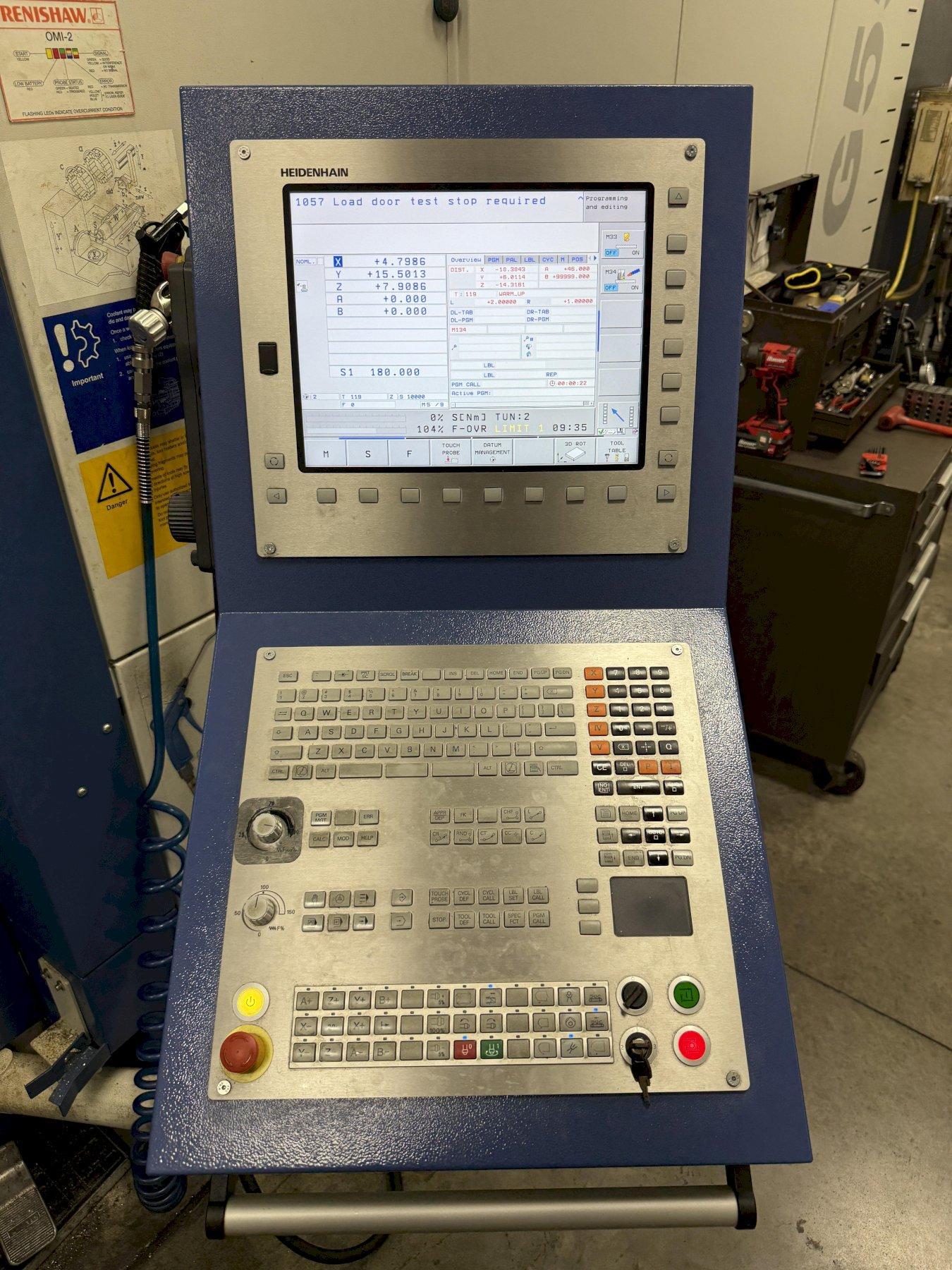

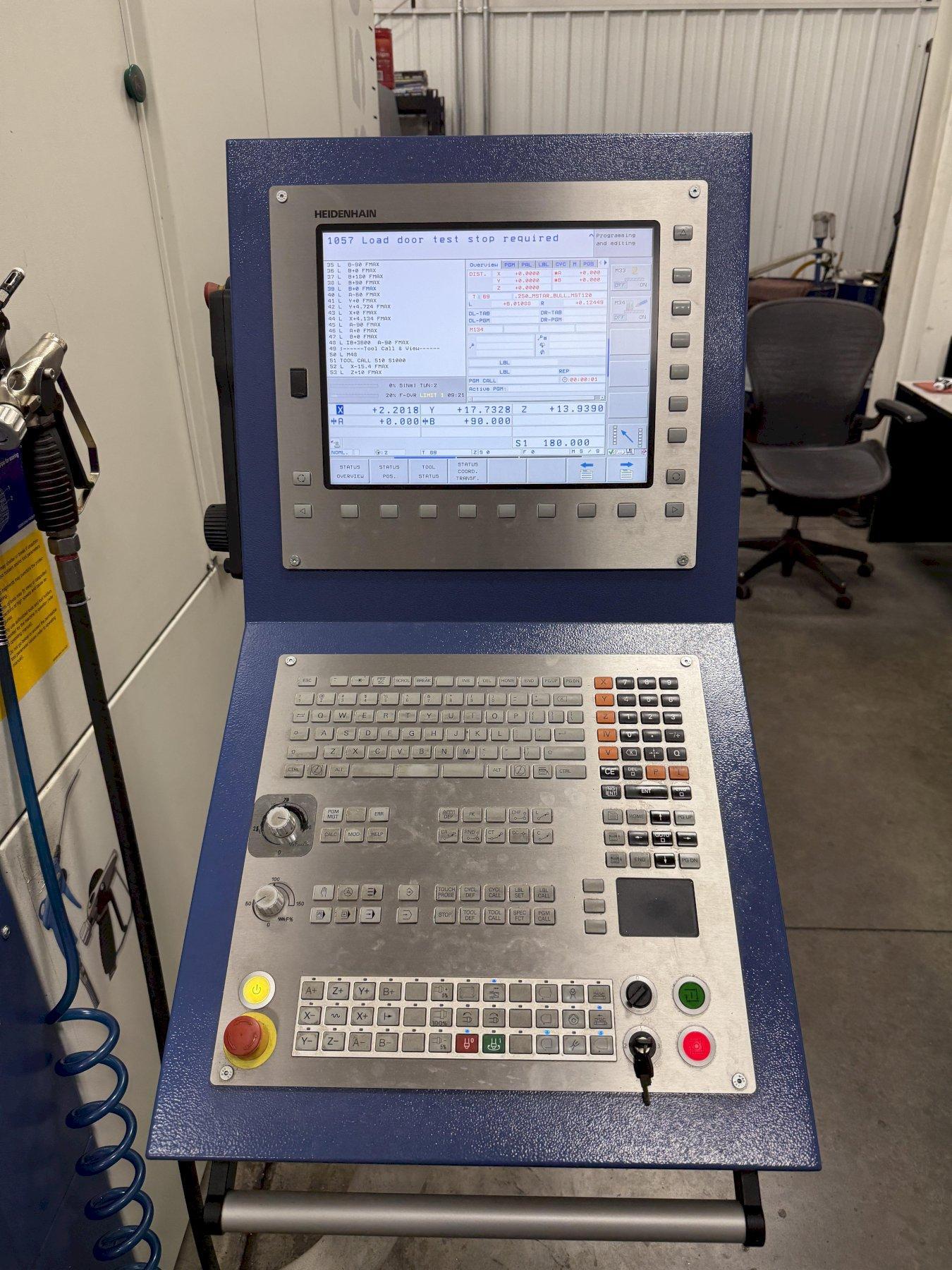

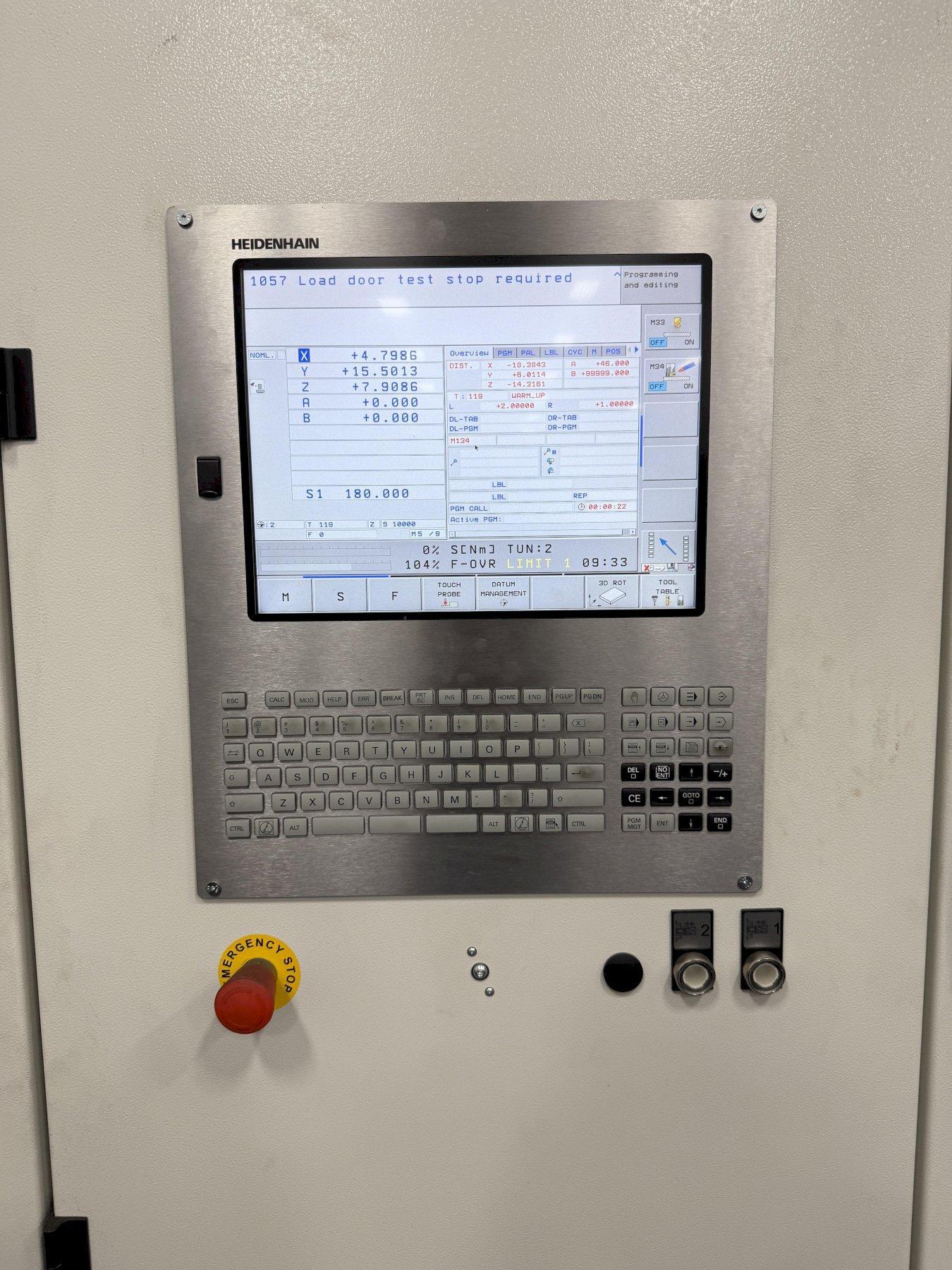

Type Of CNC Control	Heidenhain iTNC 530
# Axis	5
Pallet Load Capacity	1653 pounds

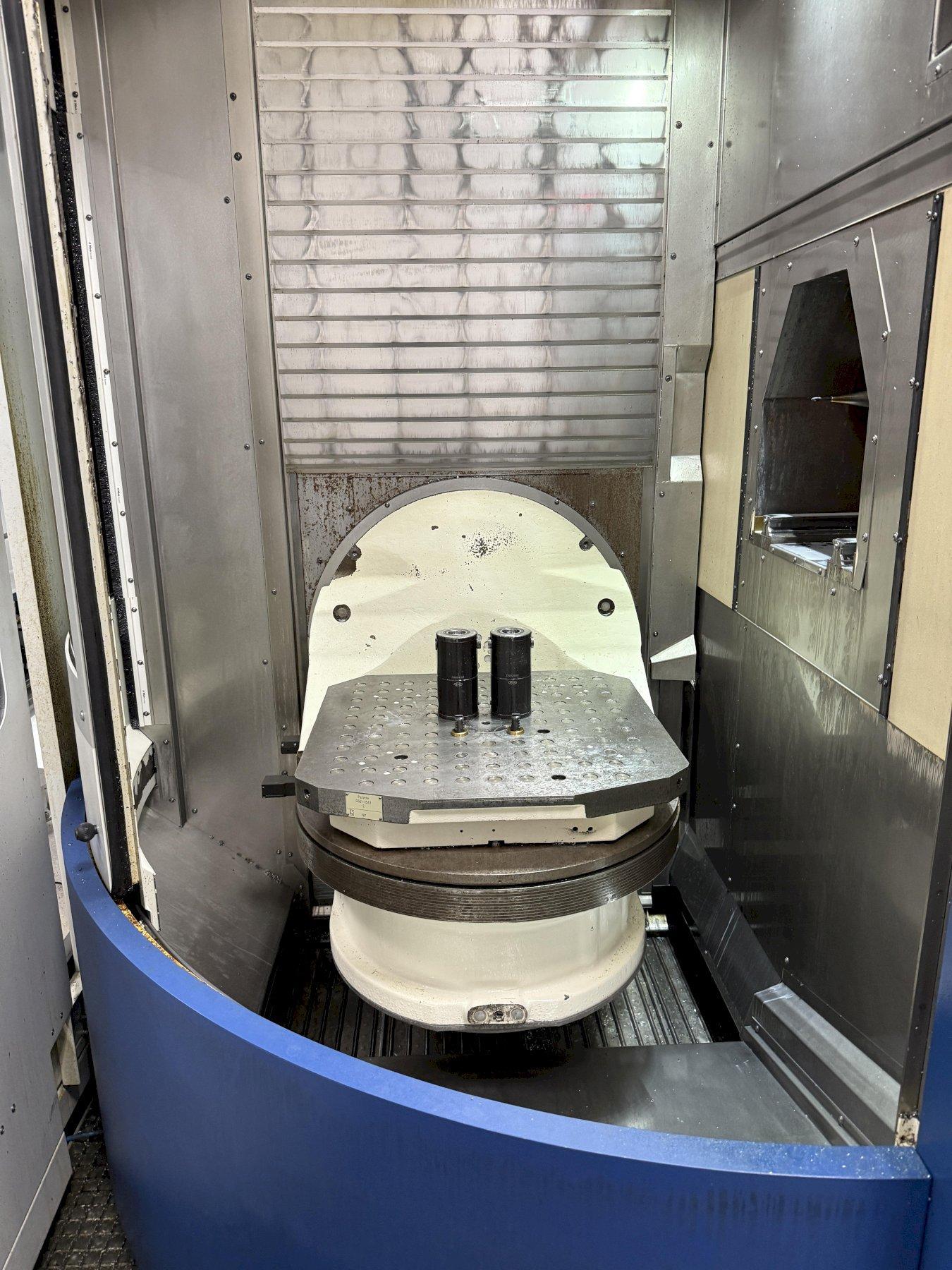

Table Diameter	30.31"
X-Axis Travel	31.5 inches
Y-Axis Travel	40.2 inches
Z-Axis Travel	38.2 inches

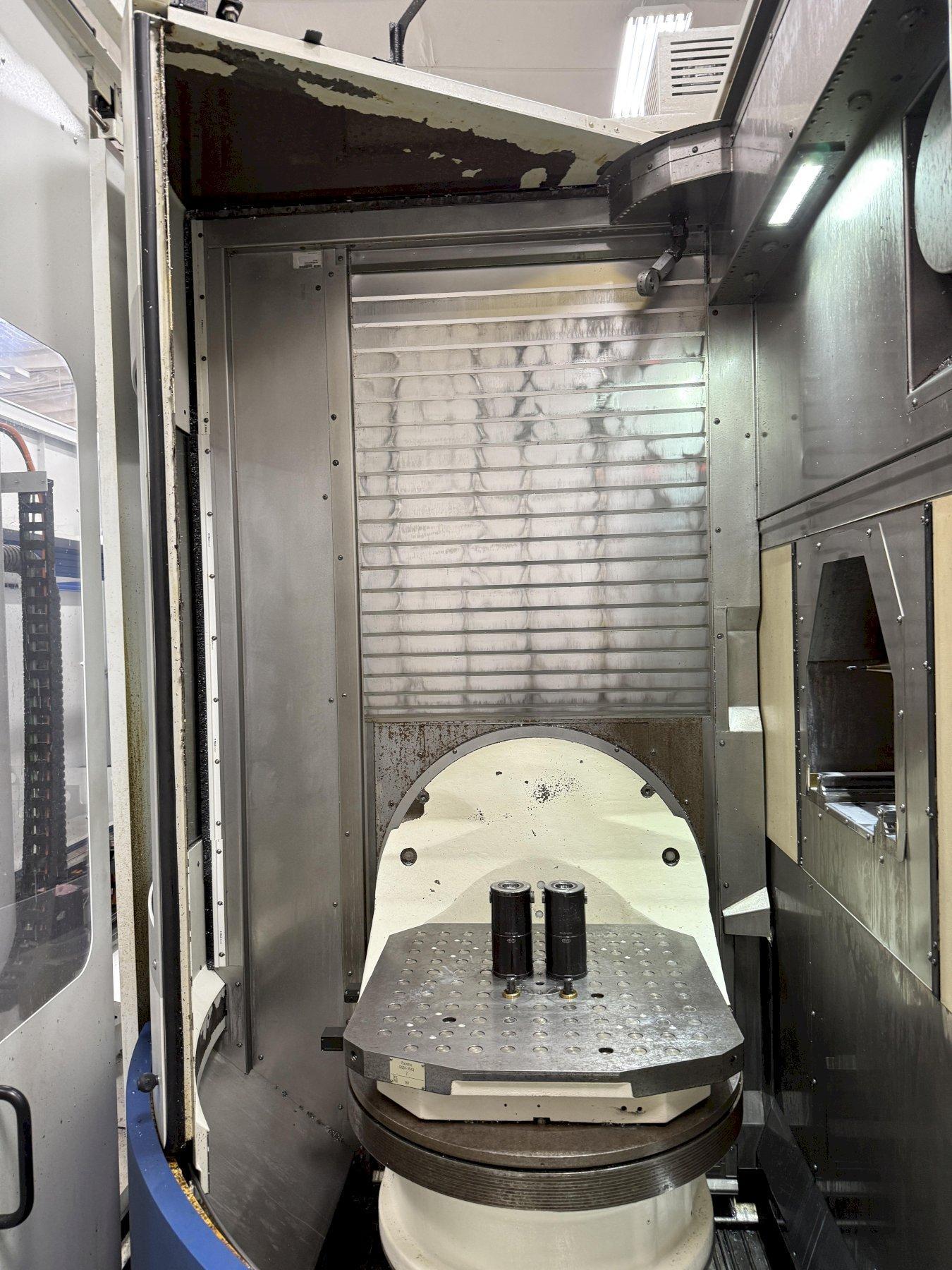

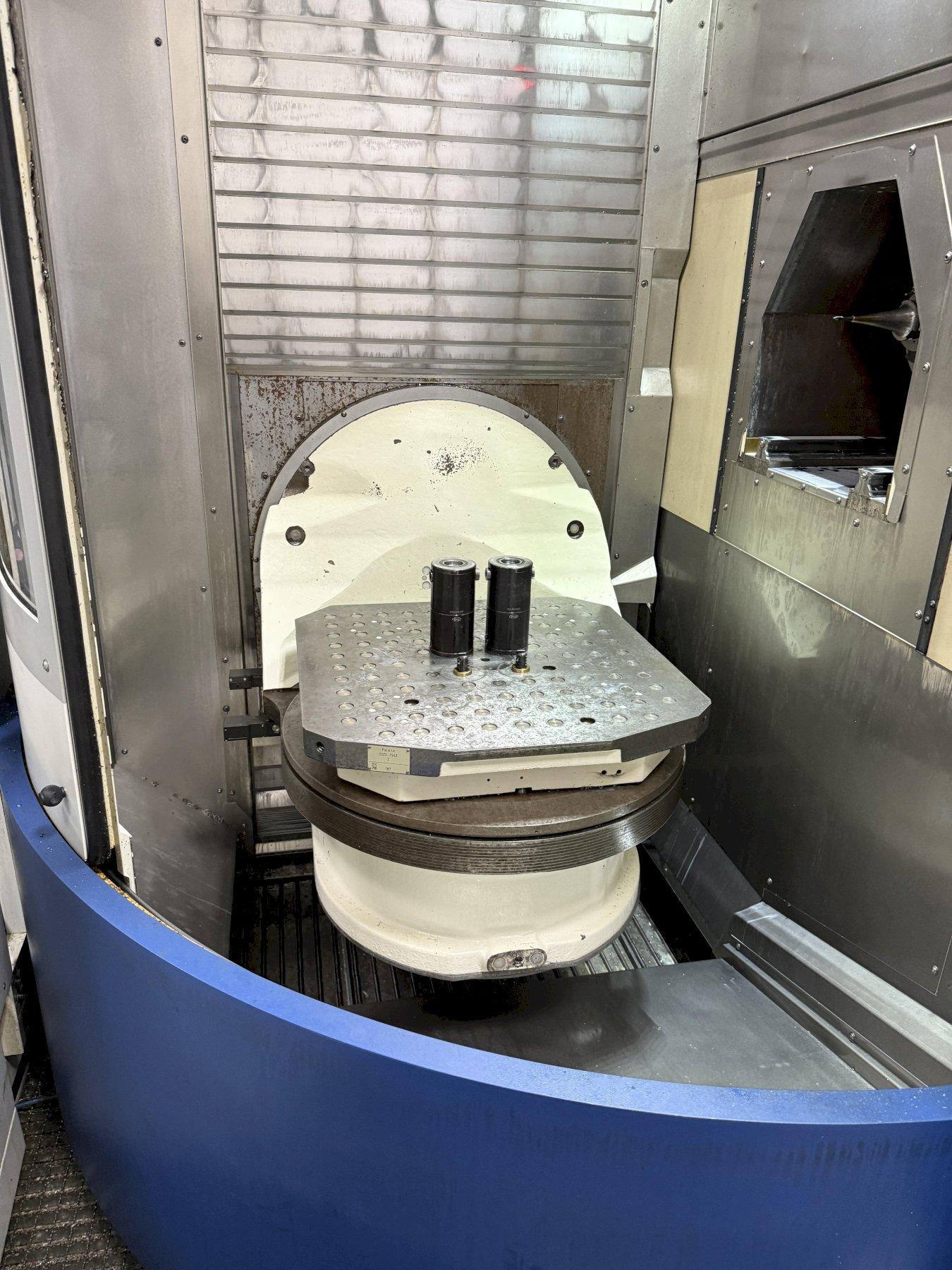

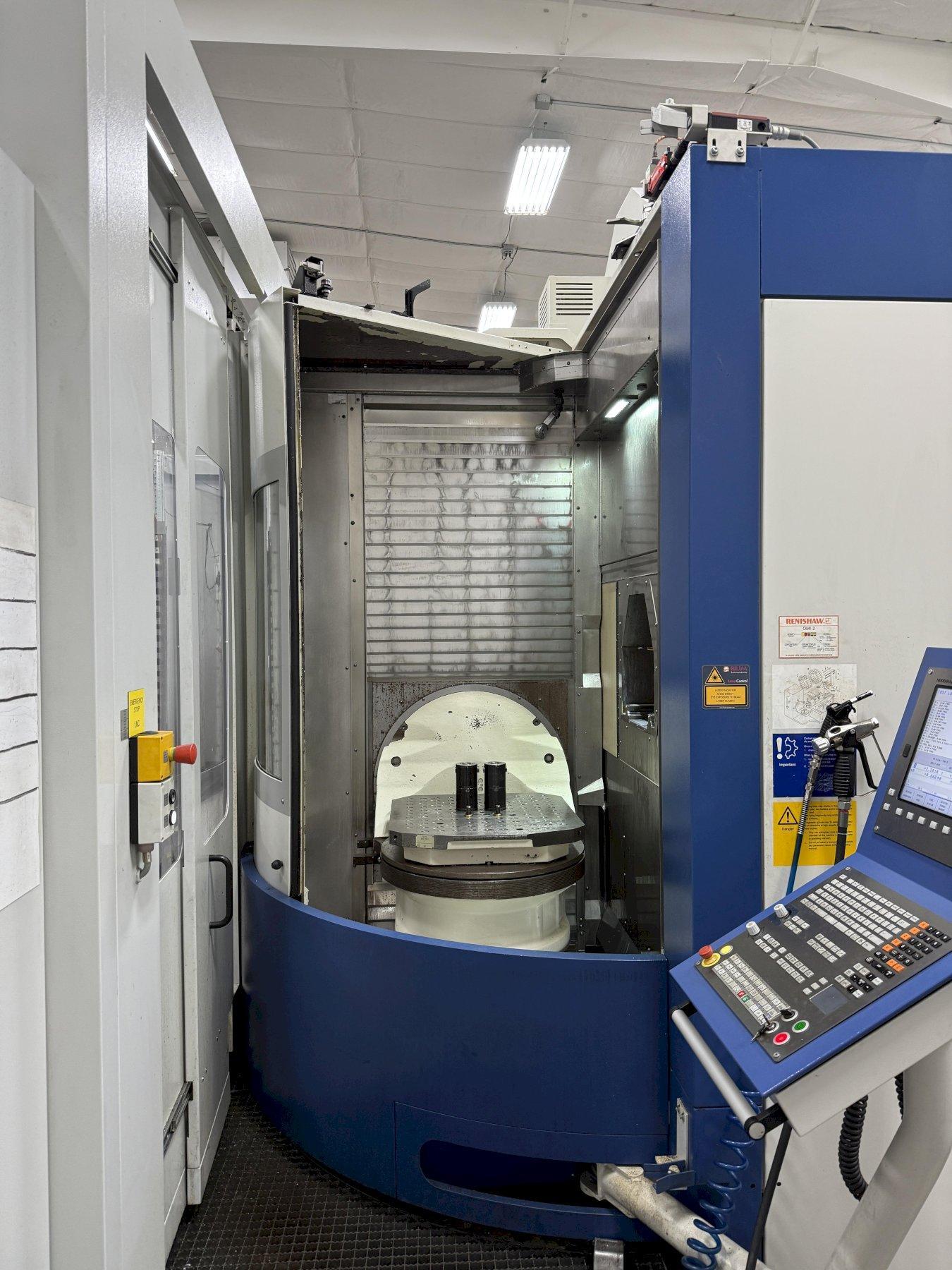

A Axis Swivel	-185° to + 45°
B Axis Indexing	0.001°
Spindle Taper	HSK 63A
Spindle Speed	30,000 RPM
Spindle Motor (HP)	43 hp

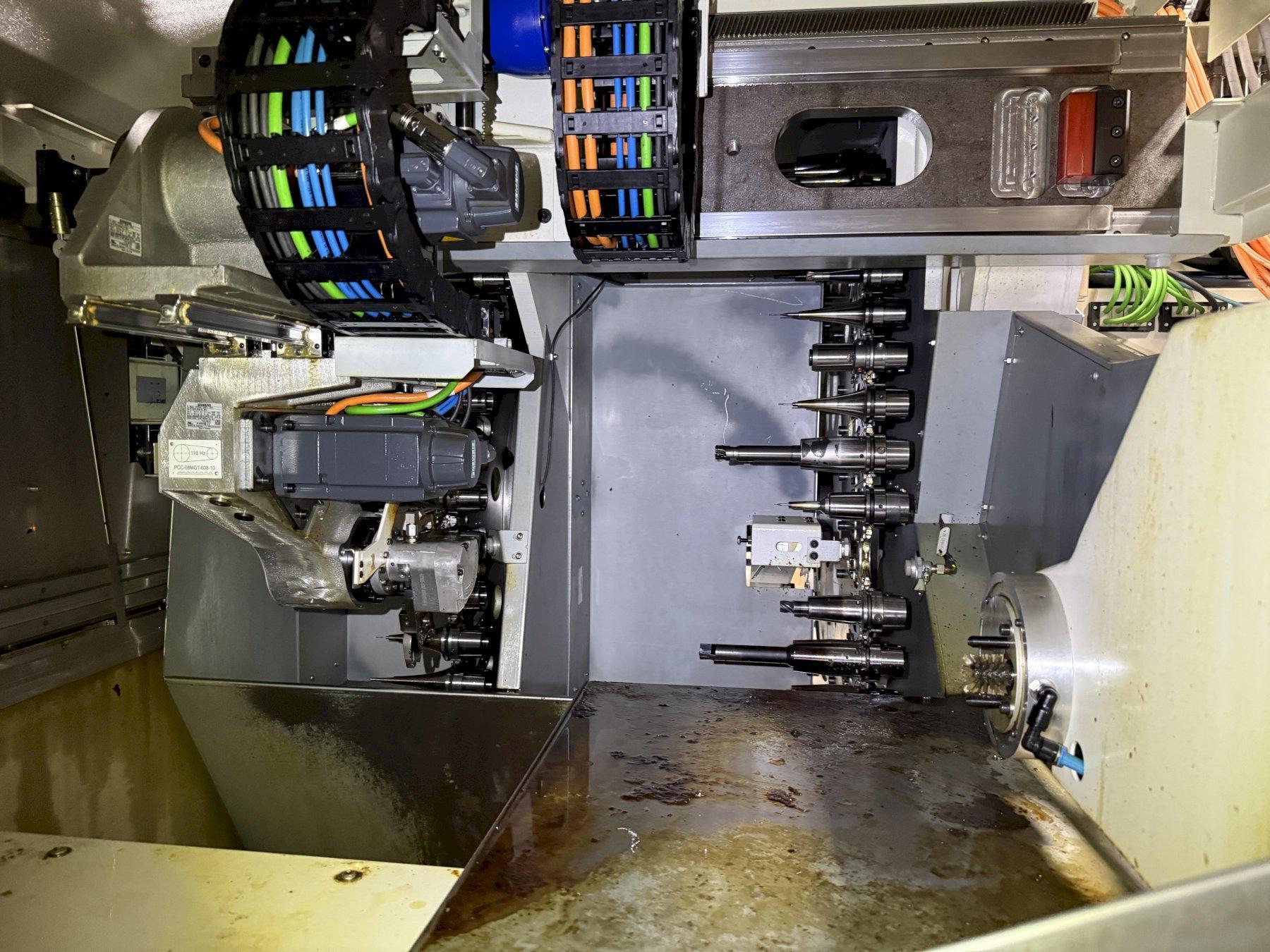

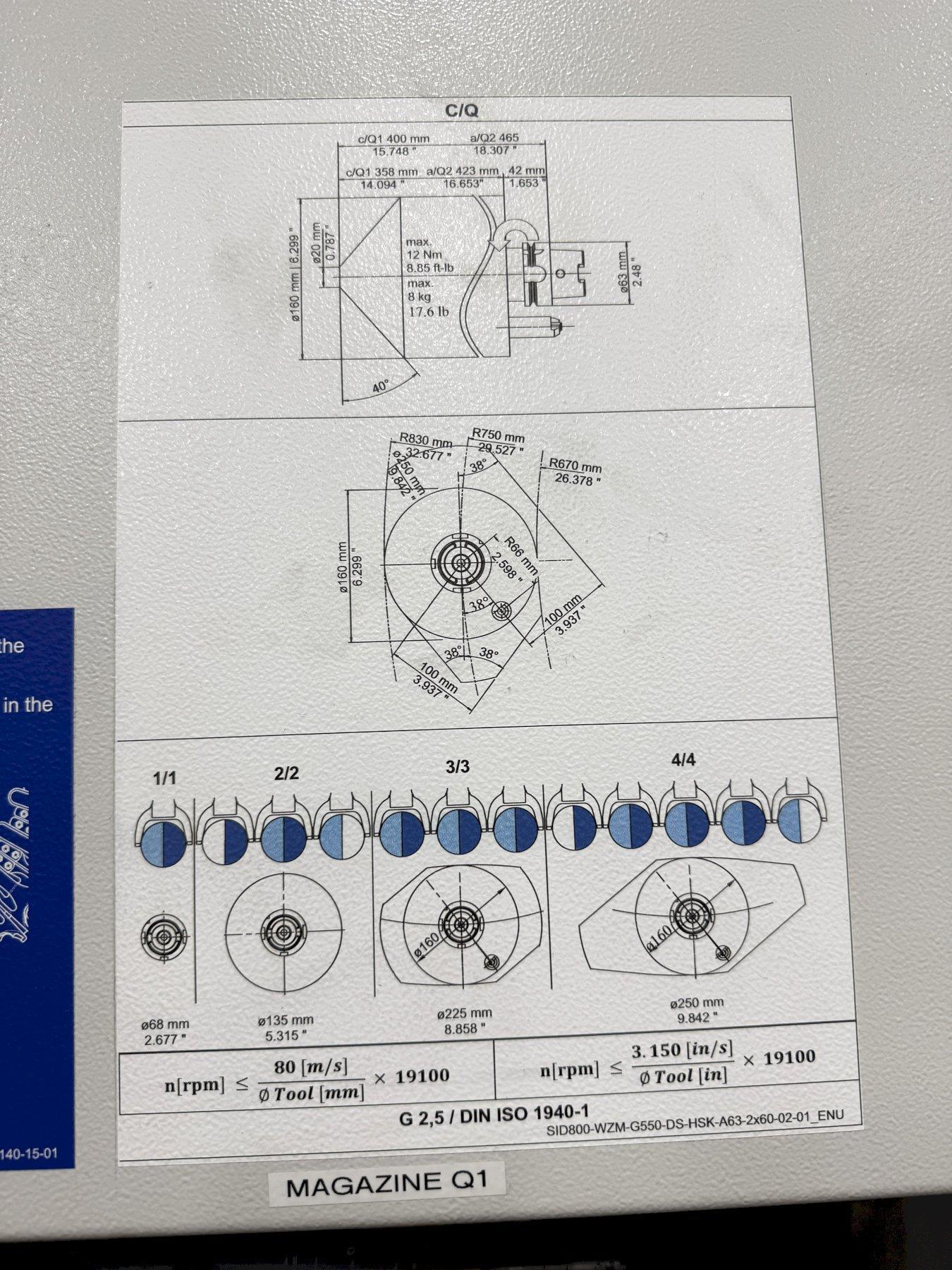

Tool Changer Capacity	120
Coolant Through Spindle	yes
Machine Dimensions	253" x 114" x 131"
Machine Weight	57000 pounds

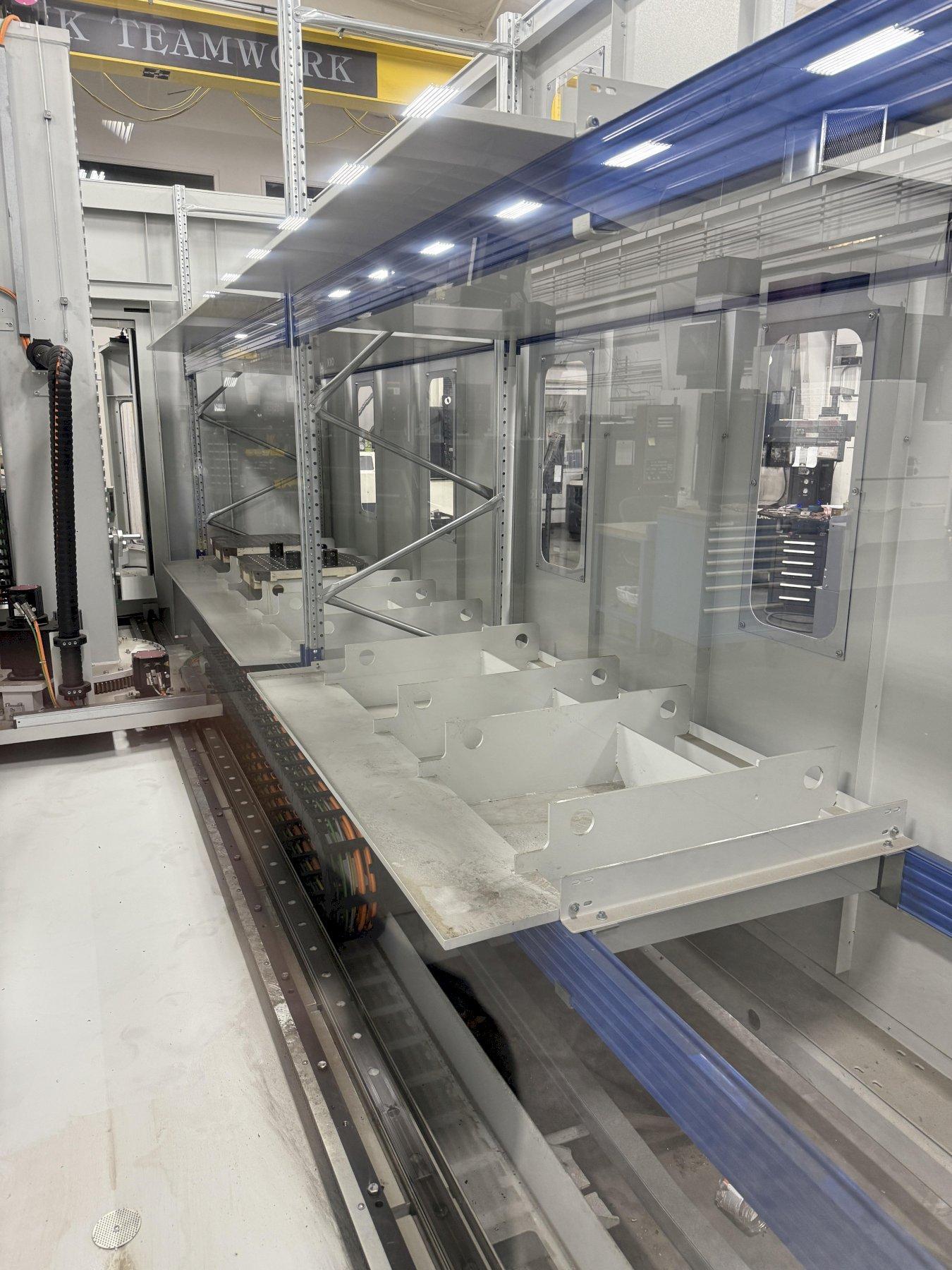

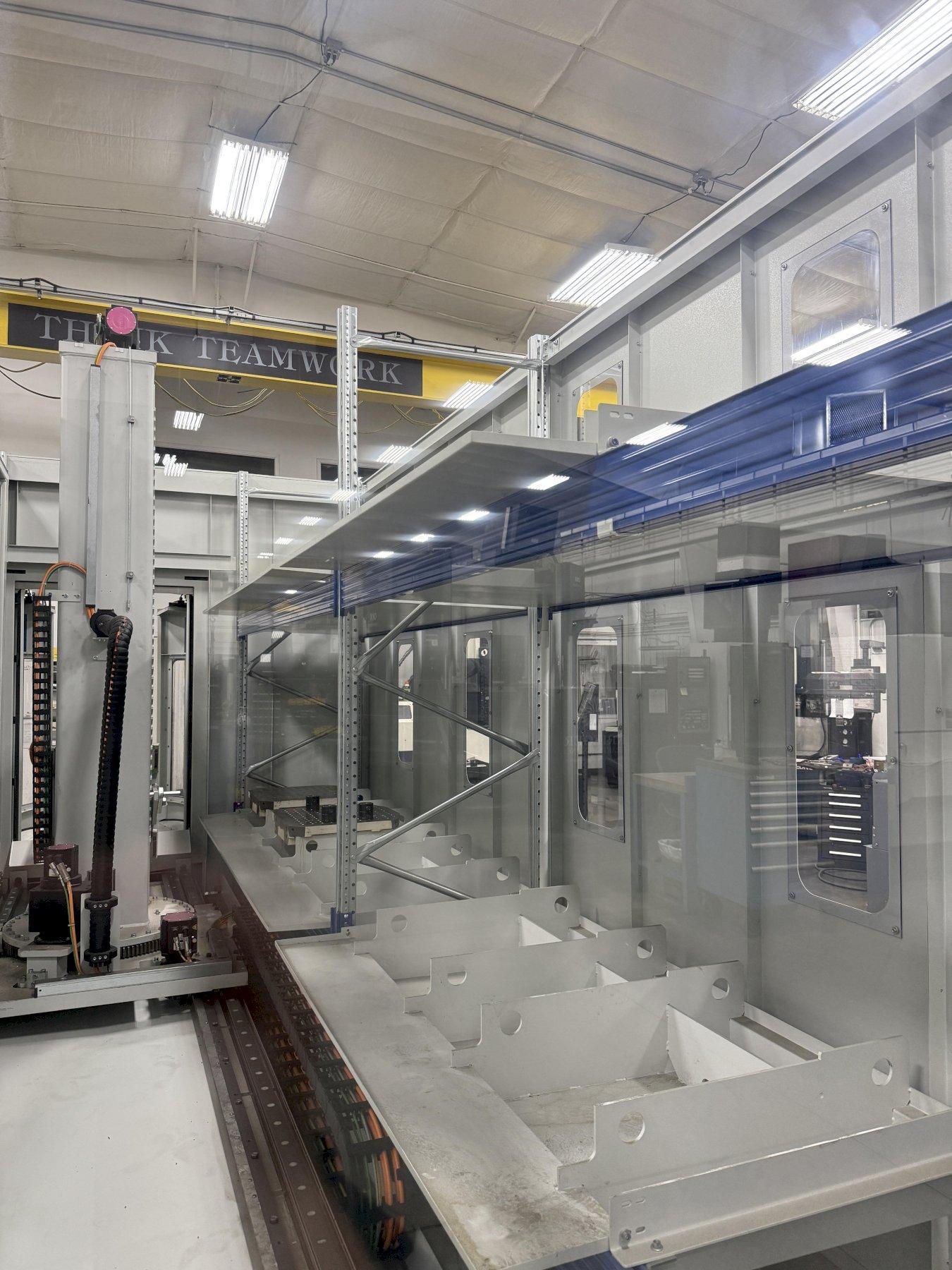

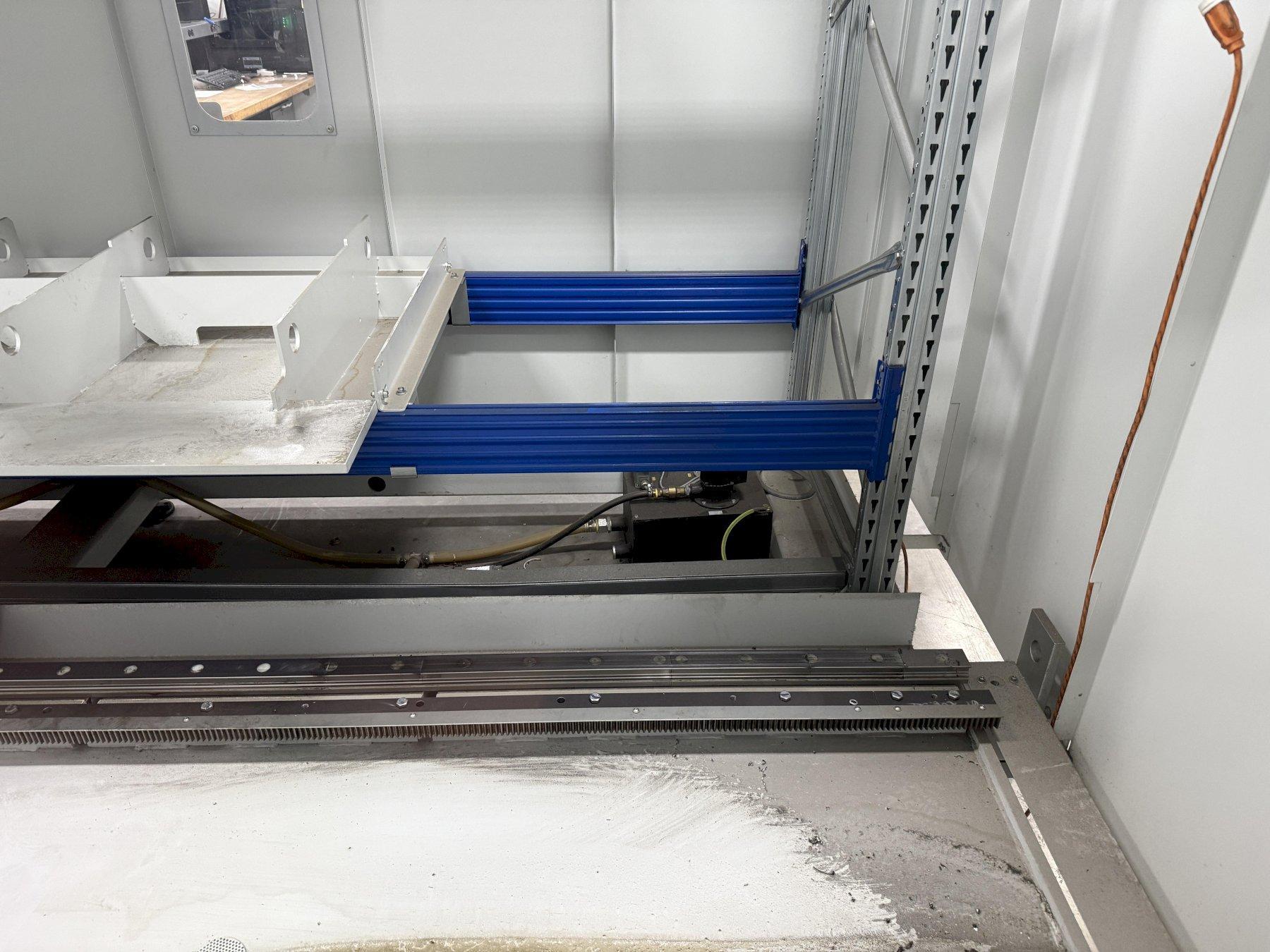

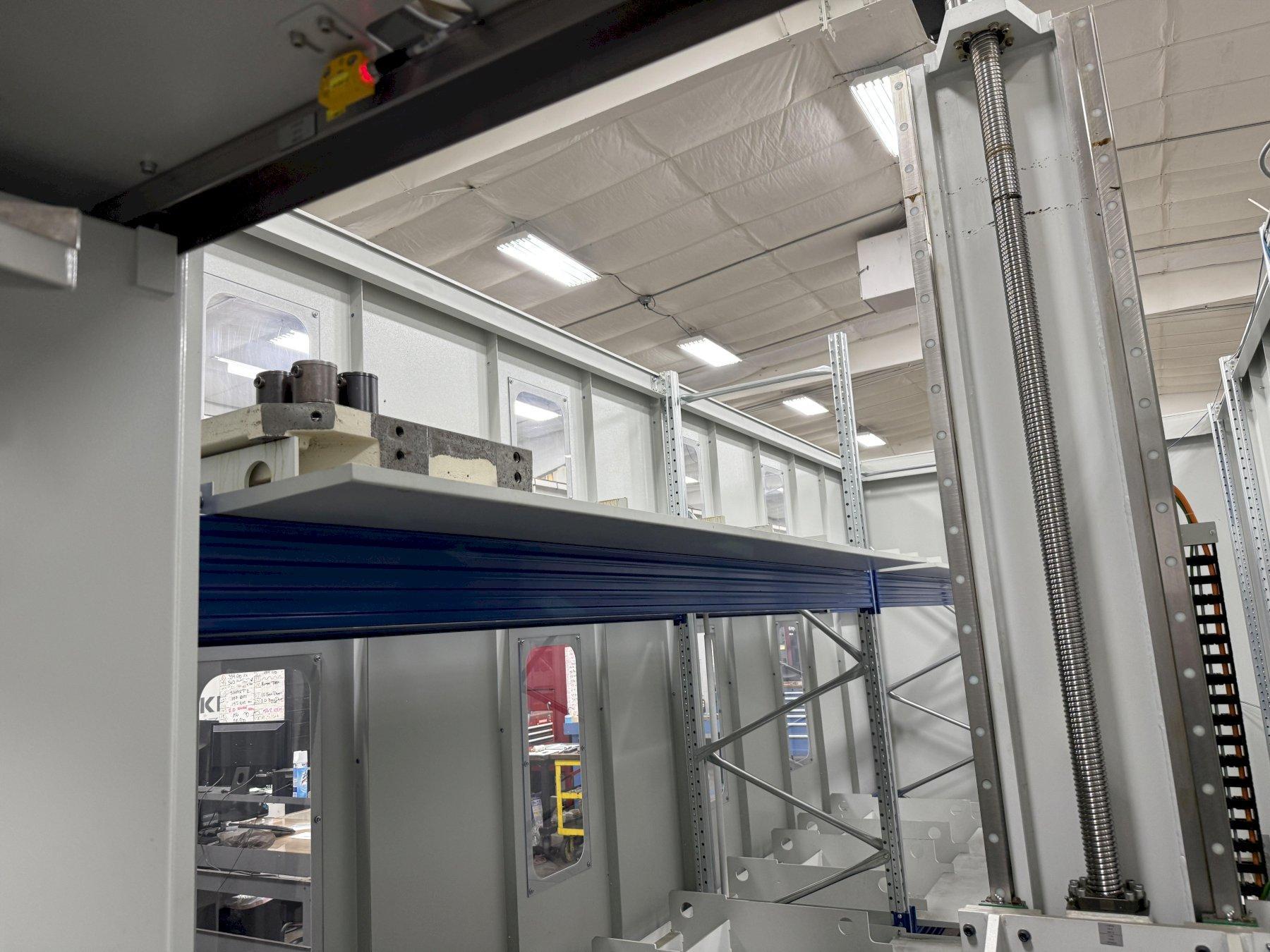

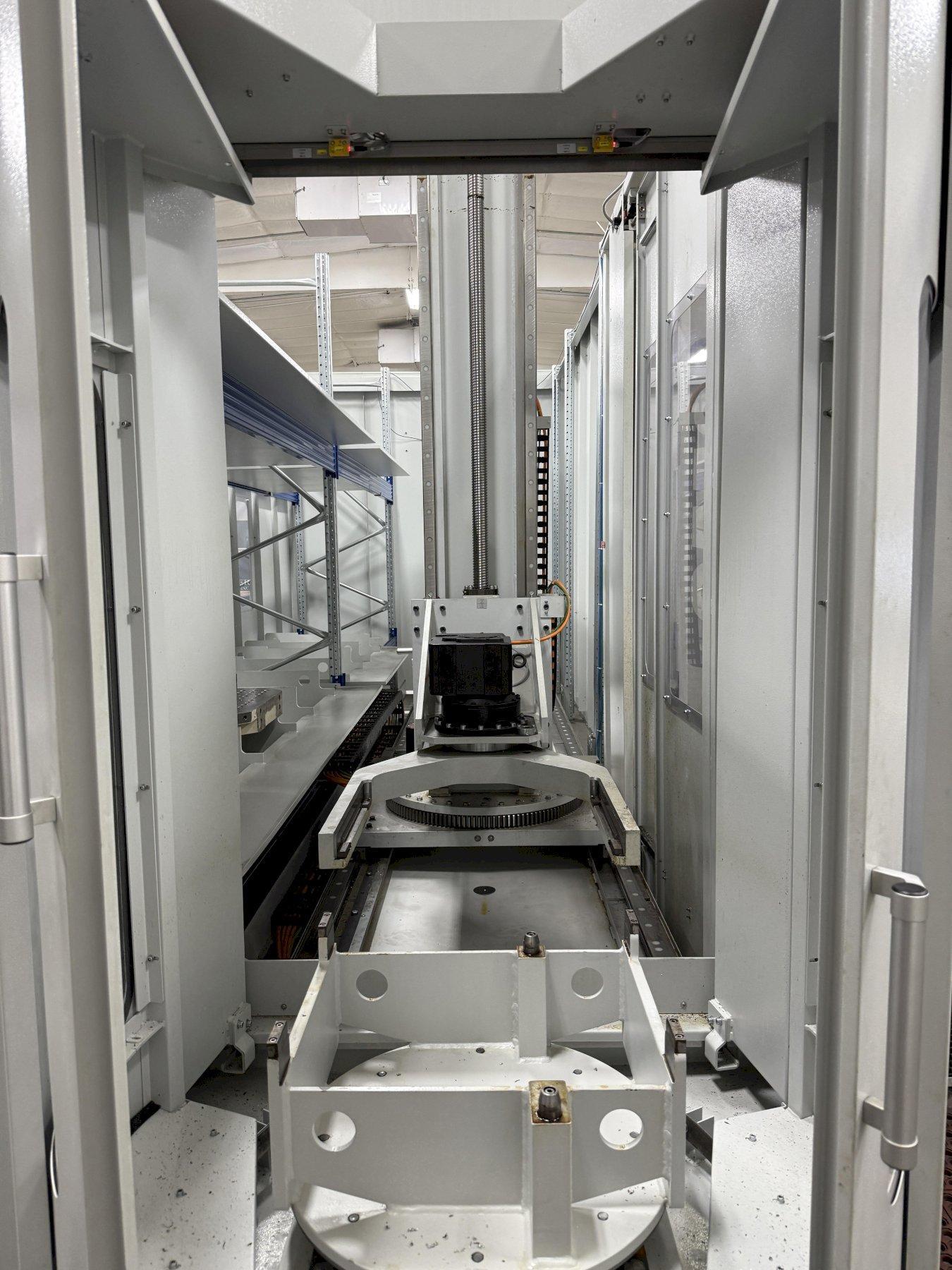

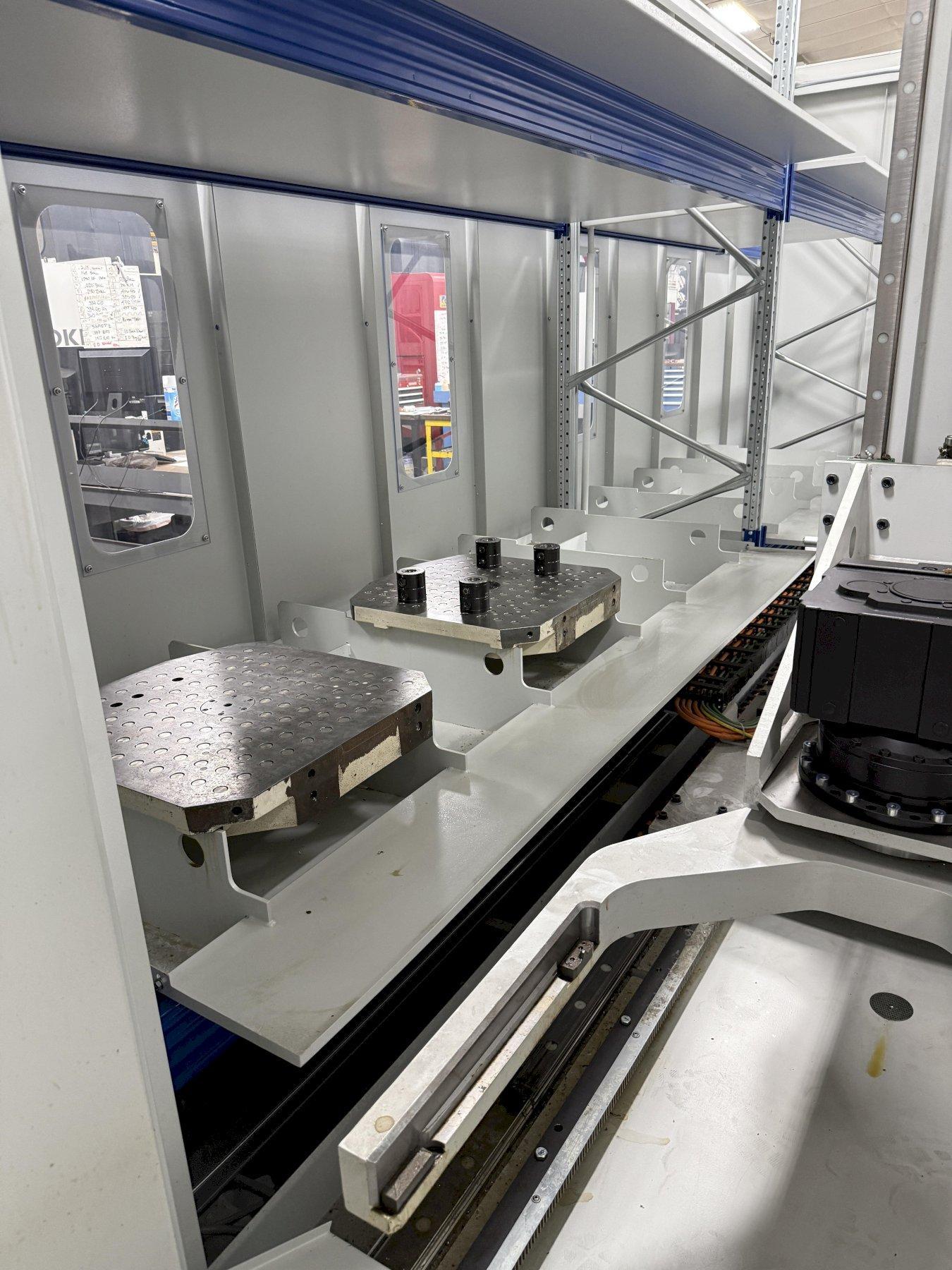

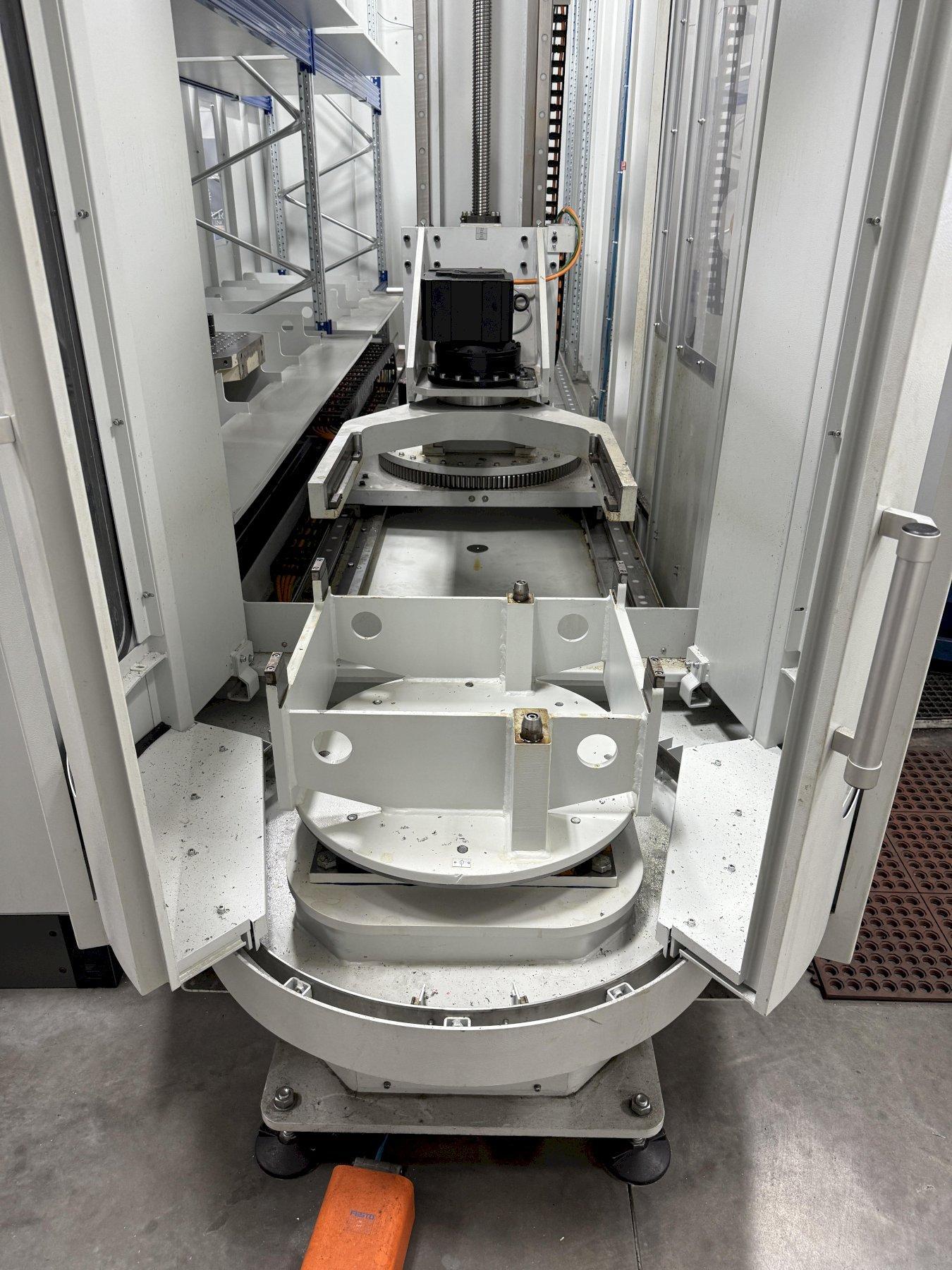

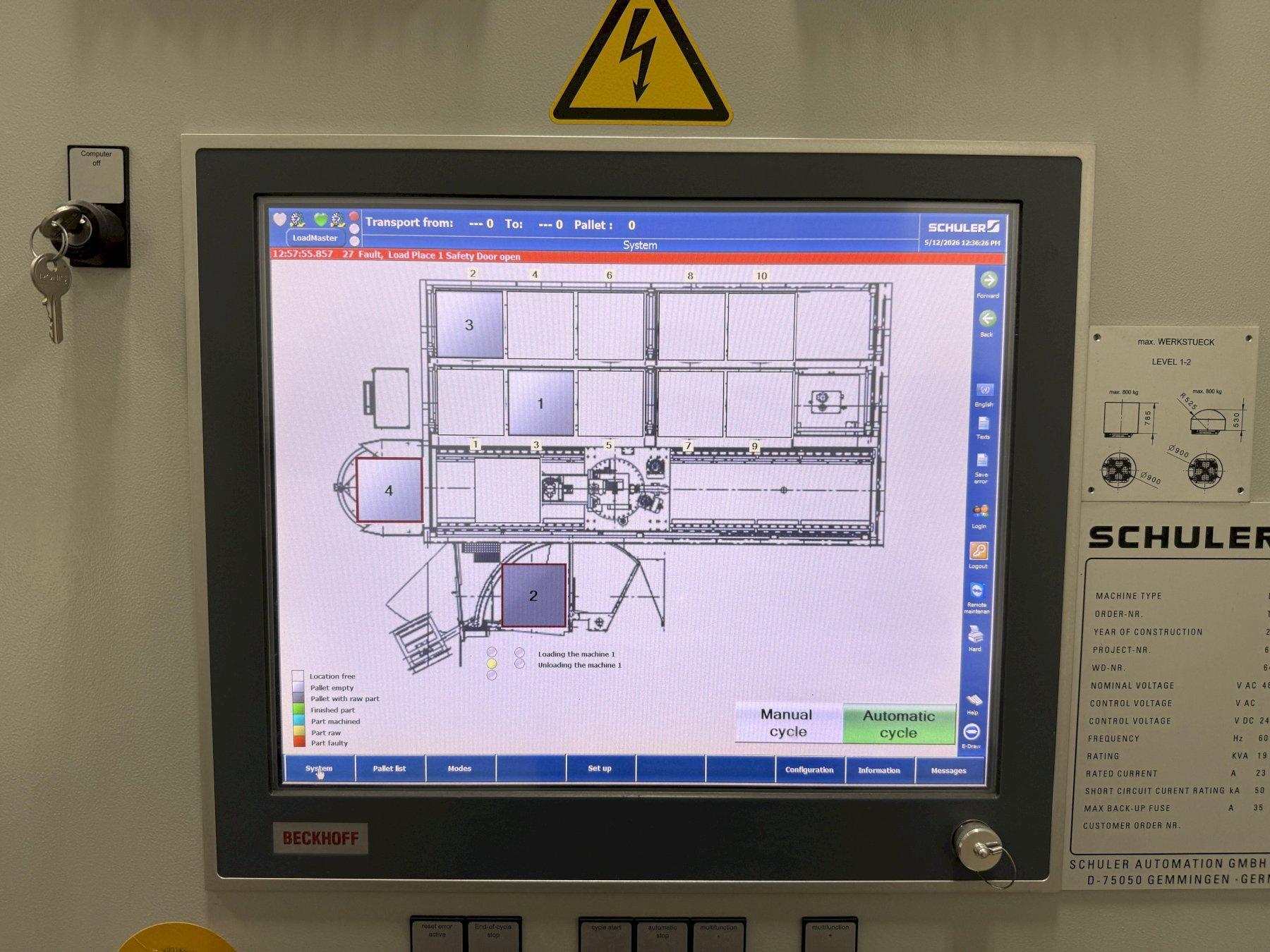

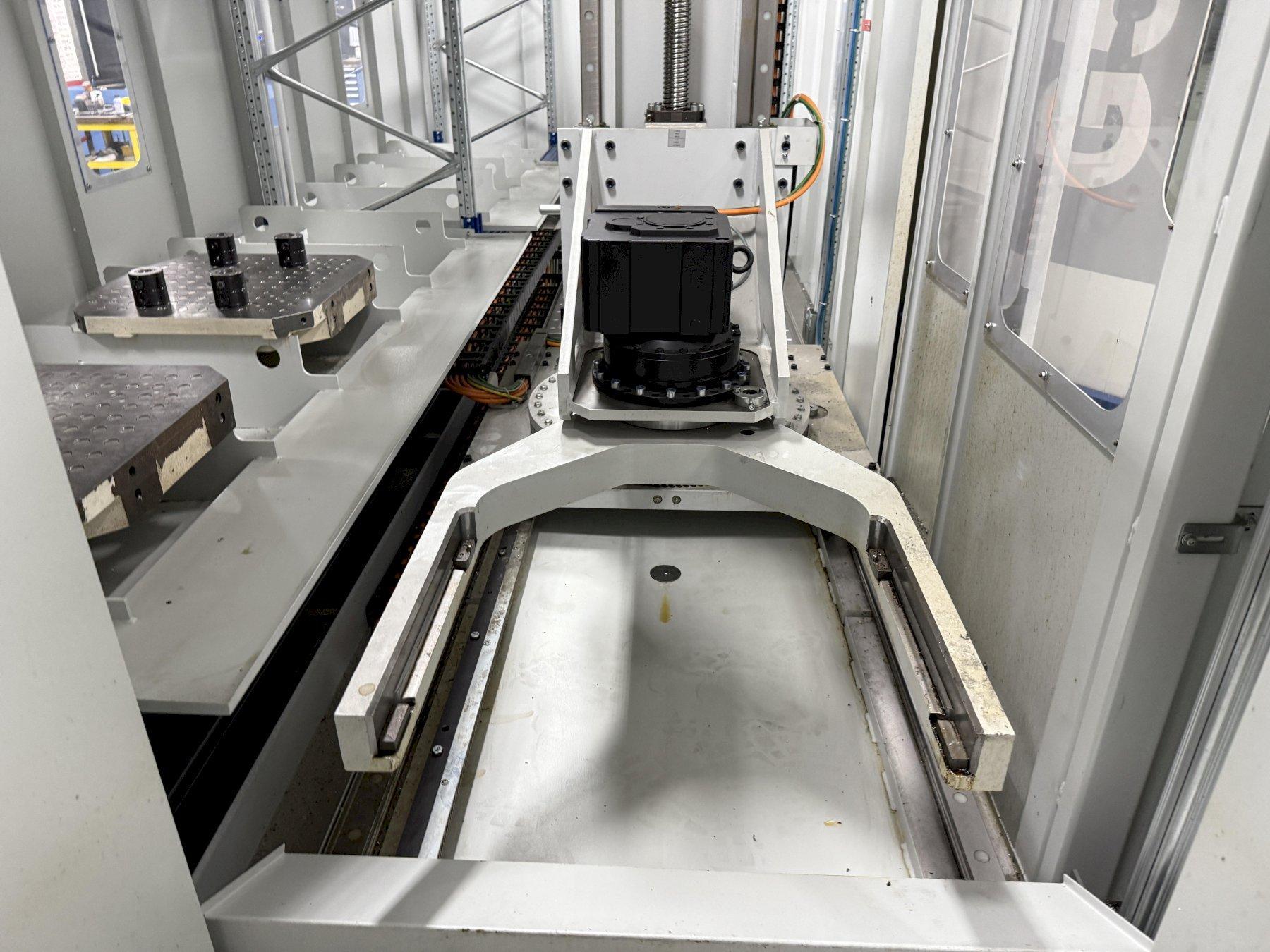

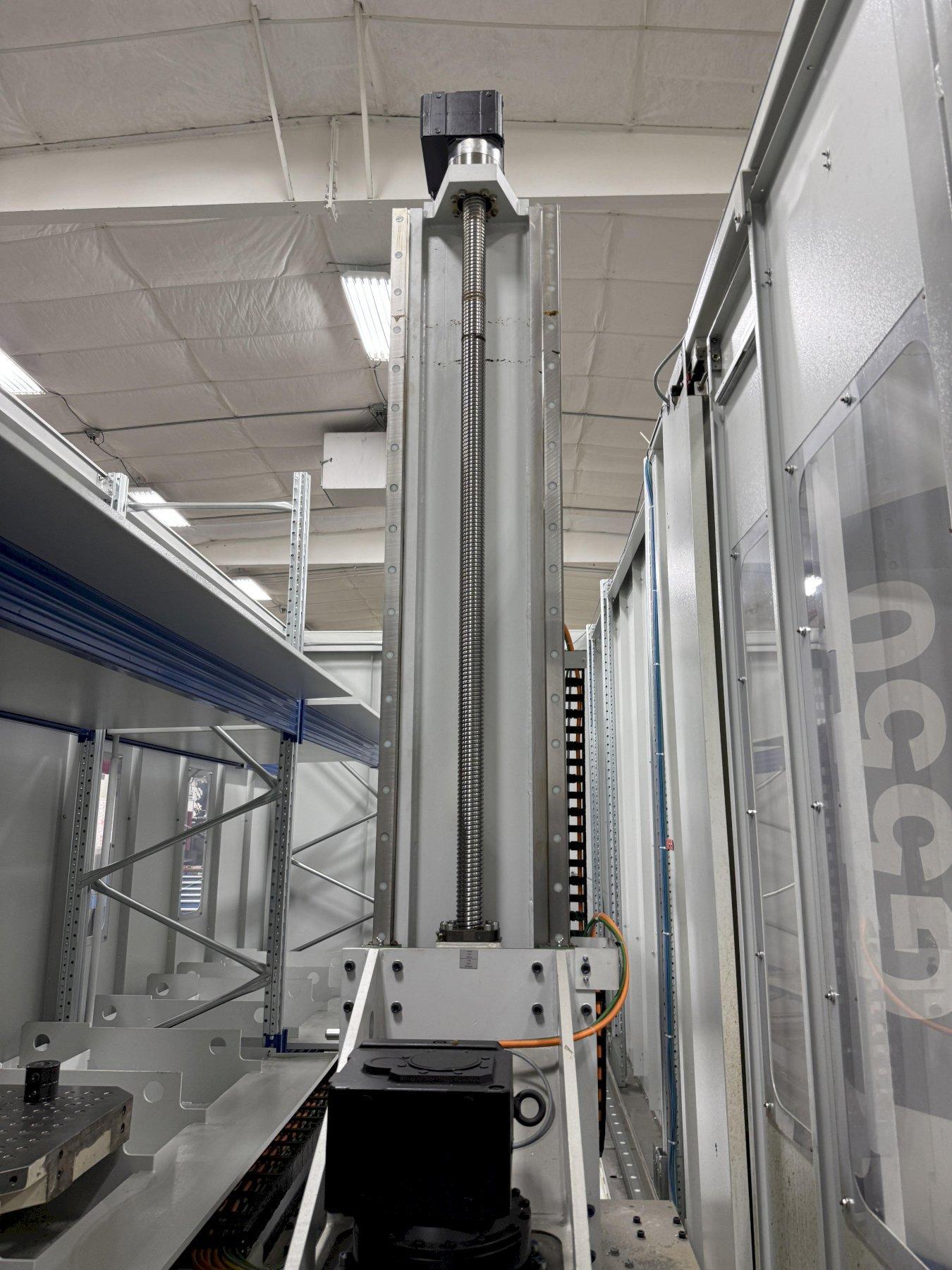

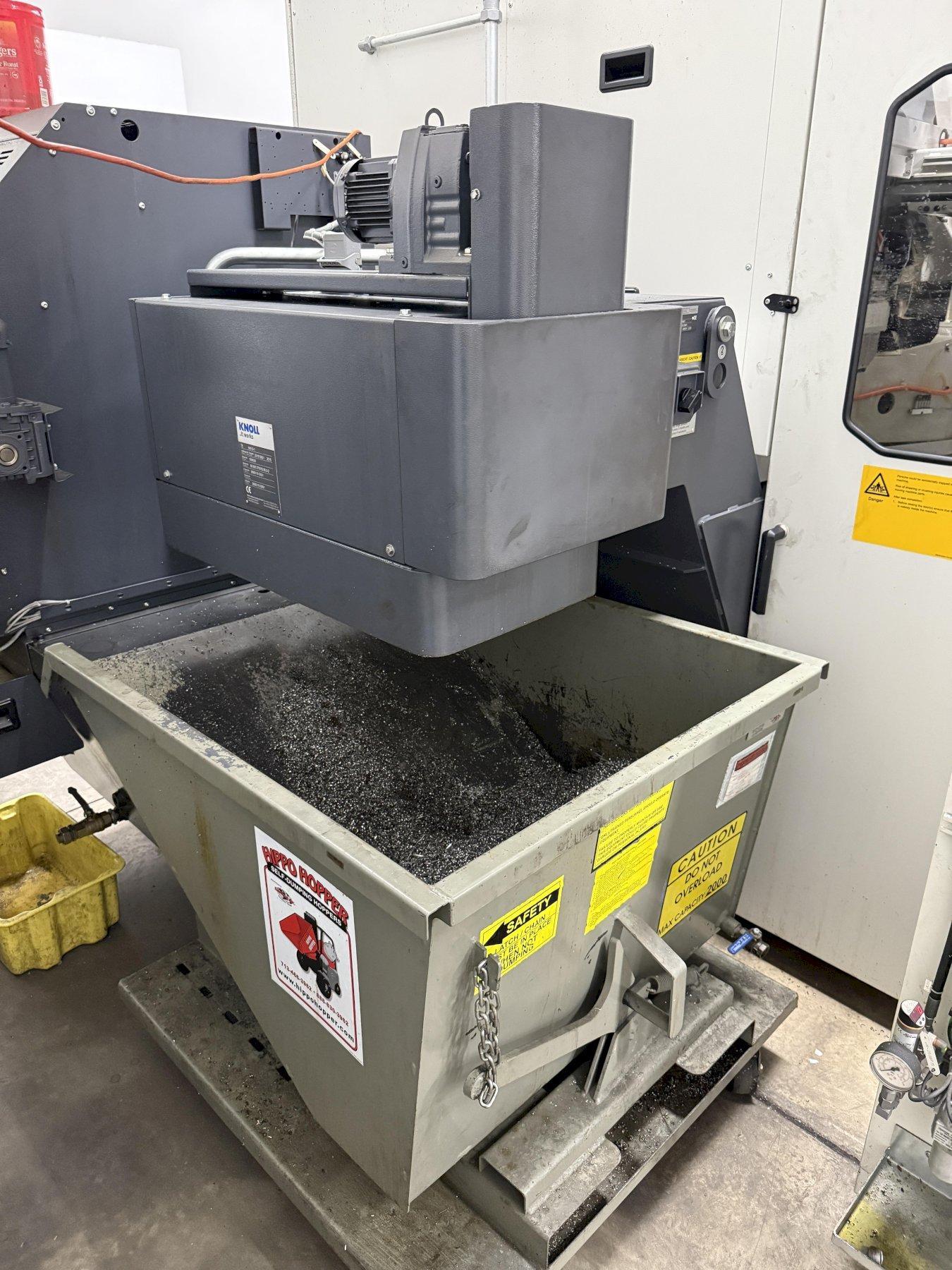

- Heidenhain iTNC 530 CNC Control - A/B Axis Tilting Rotary Table - High Pressure Coolant Thru Spindle - Grob Special Diagnostics - Mist Collector - Oil Skimmer - Chip Conveyor - Coolant Flush - Auto Door - Grid Hole Pattern Pallet Design - 10 Pallet Pool System (4 Pallets Available) - Pallet Clamping on Roarty Table - DCM (Dynamic Collision Monitoring) - Smart. NC for iTNC 530 - KinematicOpt - 5 Axis Kinematic-Set Premium - Blum Laser Tool Monitoring - Grob Tool Breakage Detection Device - Renishaw Probe interface (Probe not Included)
