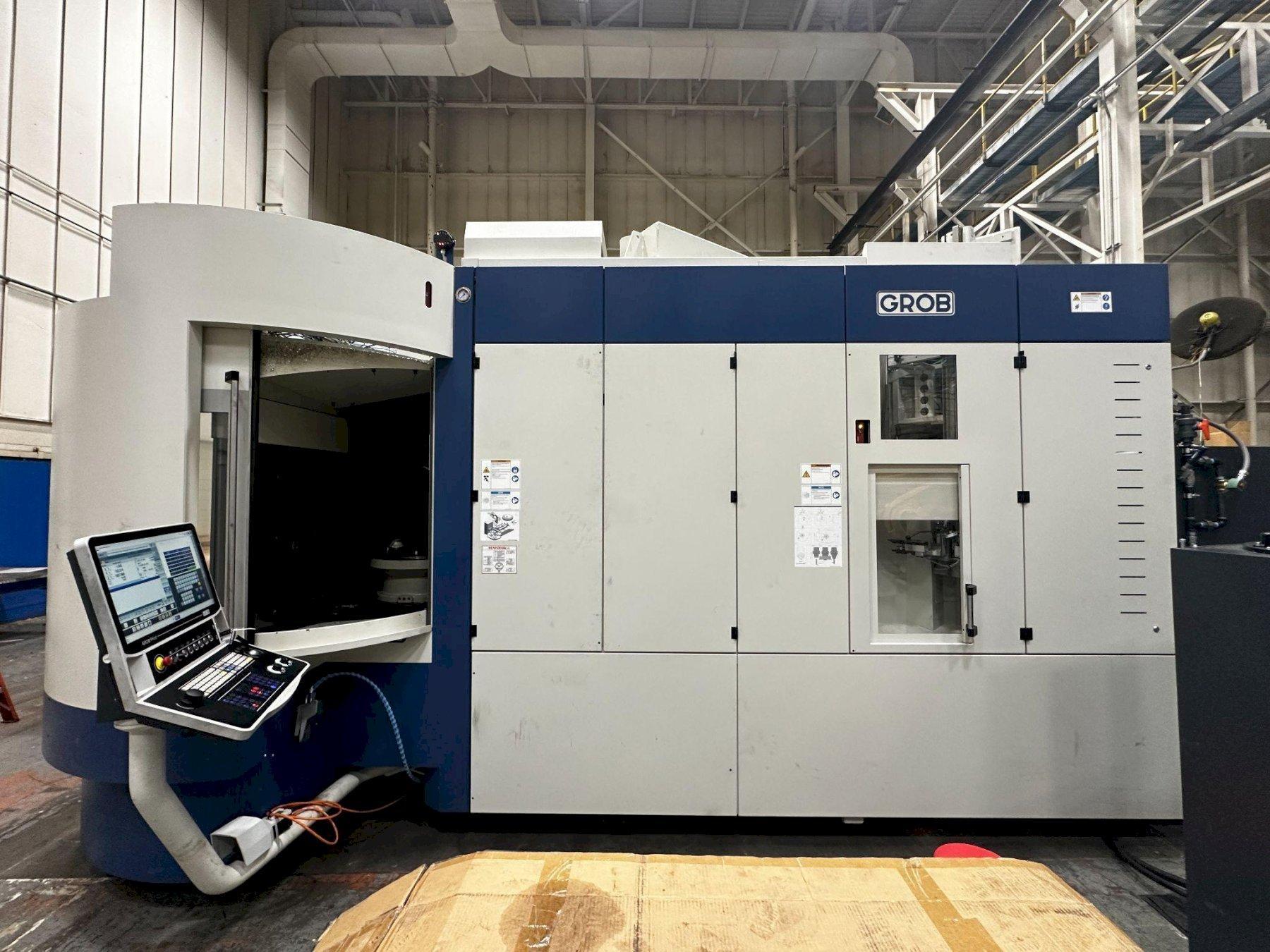

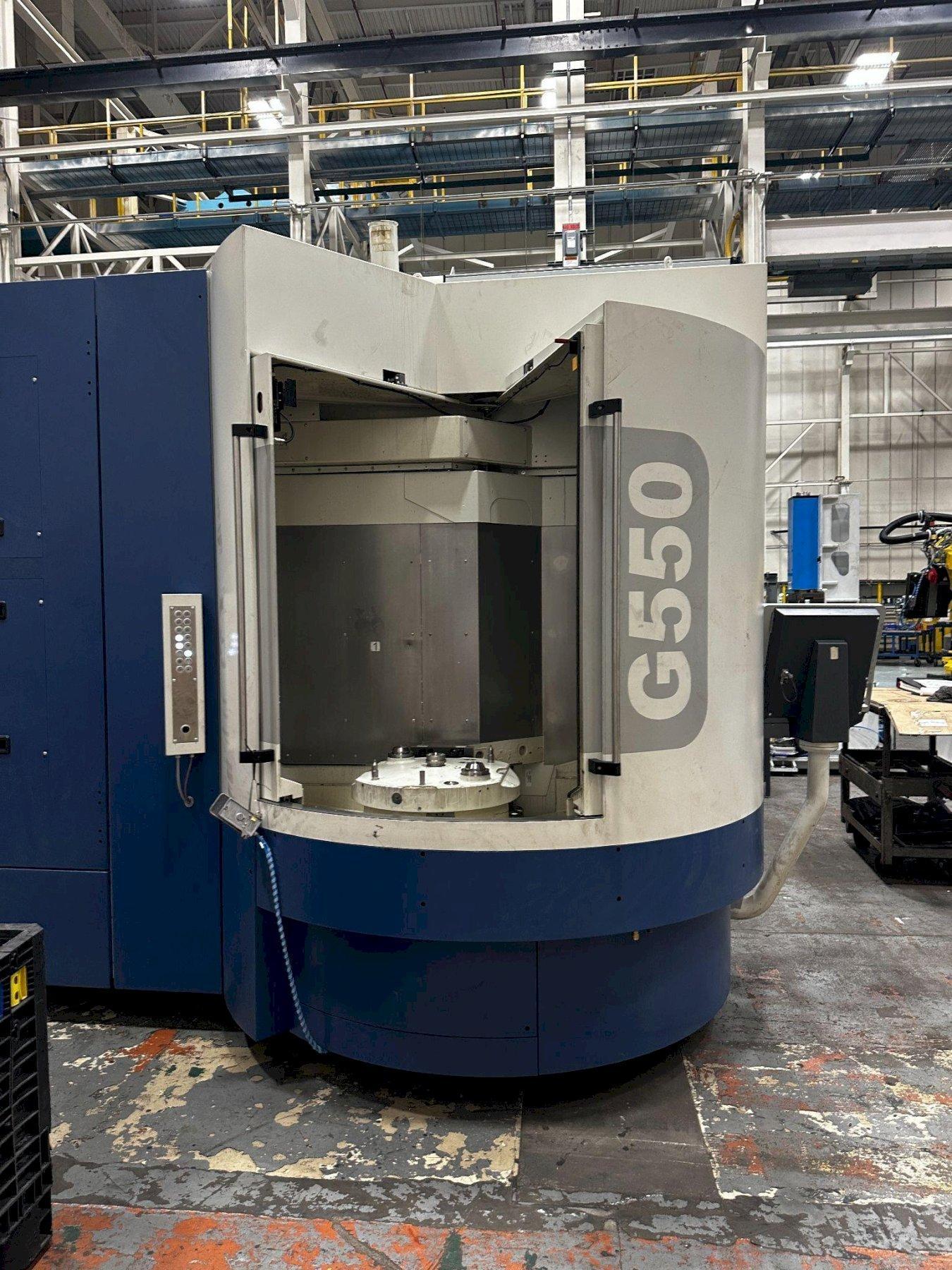

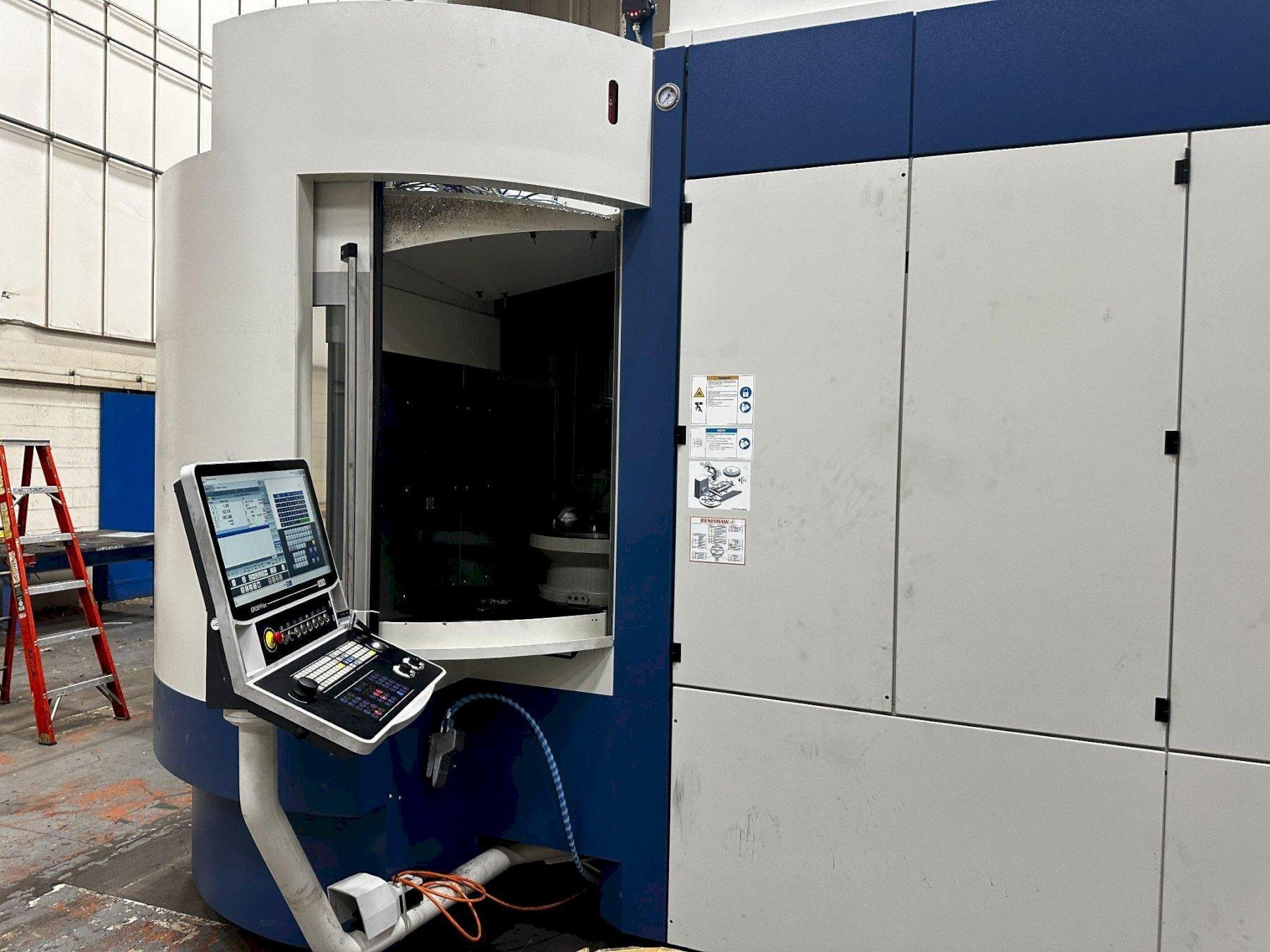

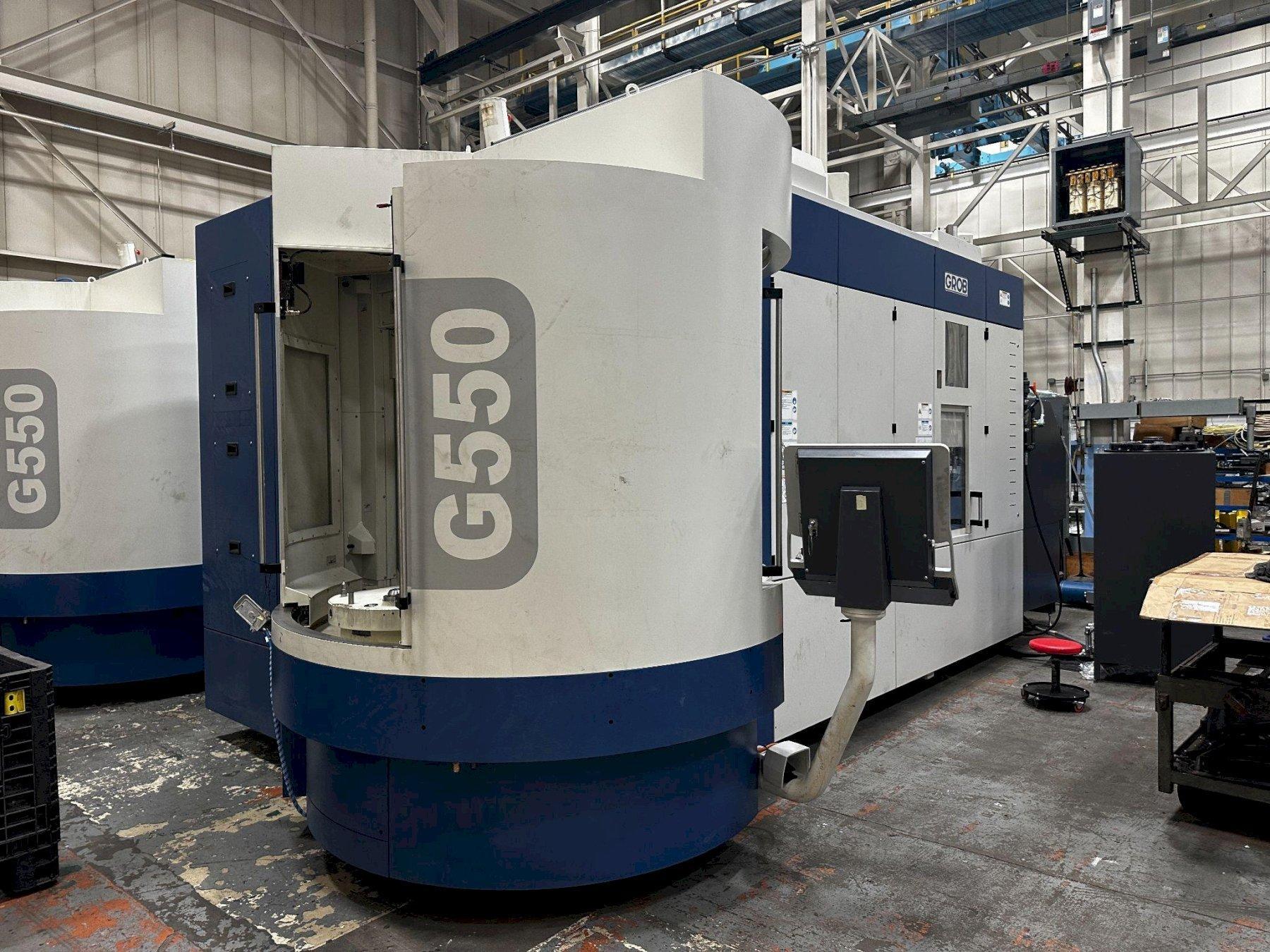

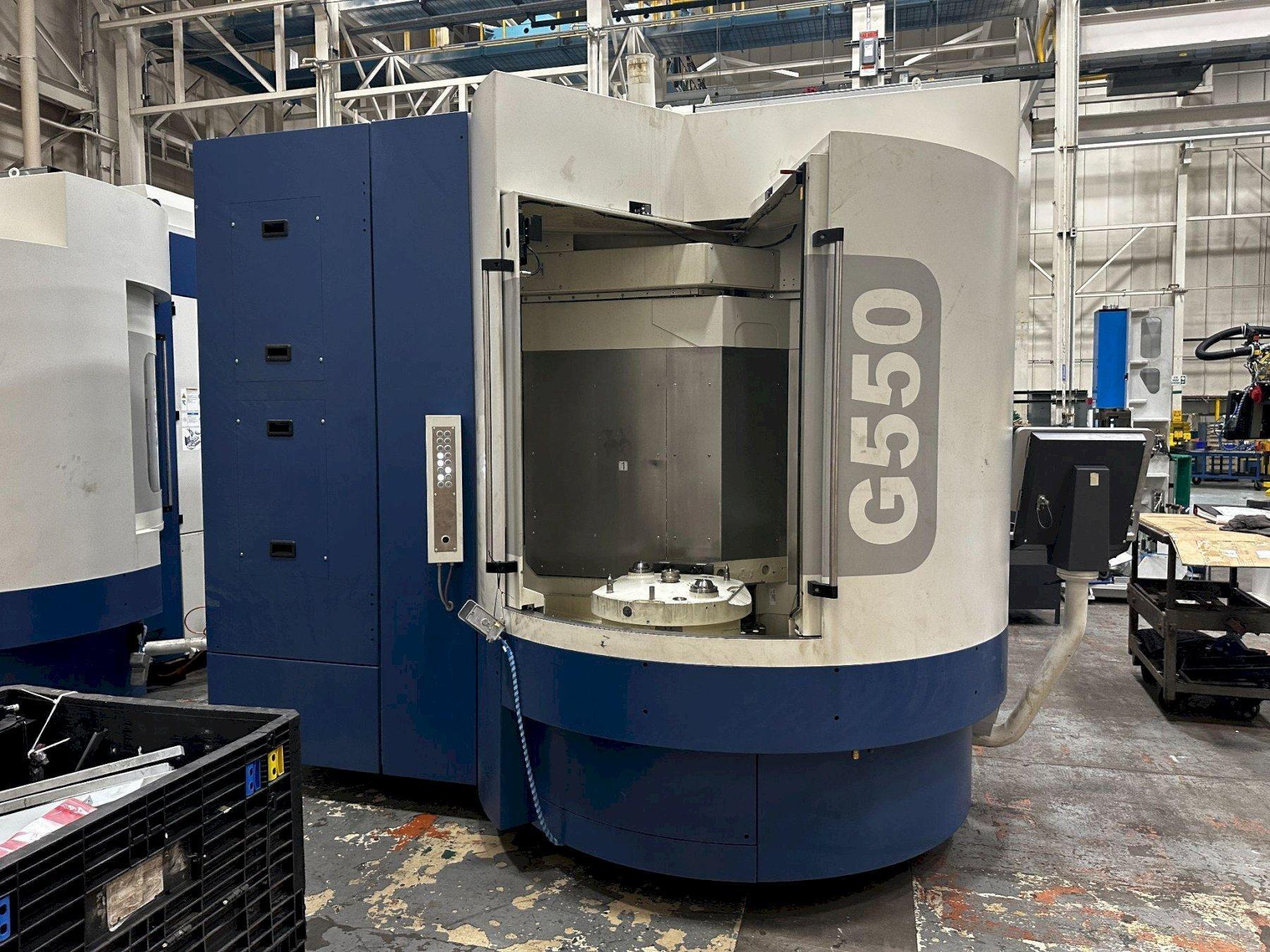

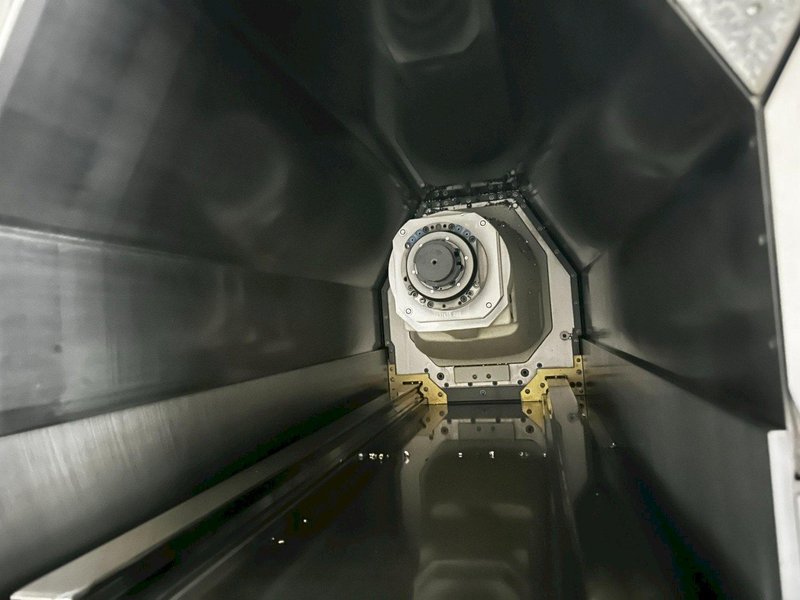

2022 Grob G550 5-Axis CNC Horizontal Machining Center with Pallet Changer

2022 Grob G550 5-Axis CNC Horizontal Machining Center with Pallet Changer

Name: 2022 Grob G550 5-Axis CNC Horizontal Machining Center with Pallet Changer
Brand: GROB
SKU: IGAM0210001-1
Availability: PreOrder

Brand

GROB

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

2022 GROB G550 5-axis CNC Horizontal Machining Center with Pallet Changer option. Features include X: 31.49″, Y: 40.15″, Z: 40.15″, HSK-63A, 12,000 rpm spindle, 70 Station ATC. Excellent choice for precision machining needs.

Specification Table

CNC Control	Siemens 840D SL
# Axis	5

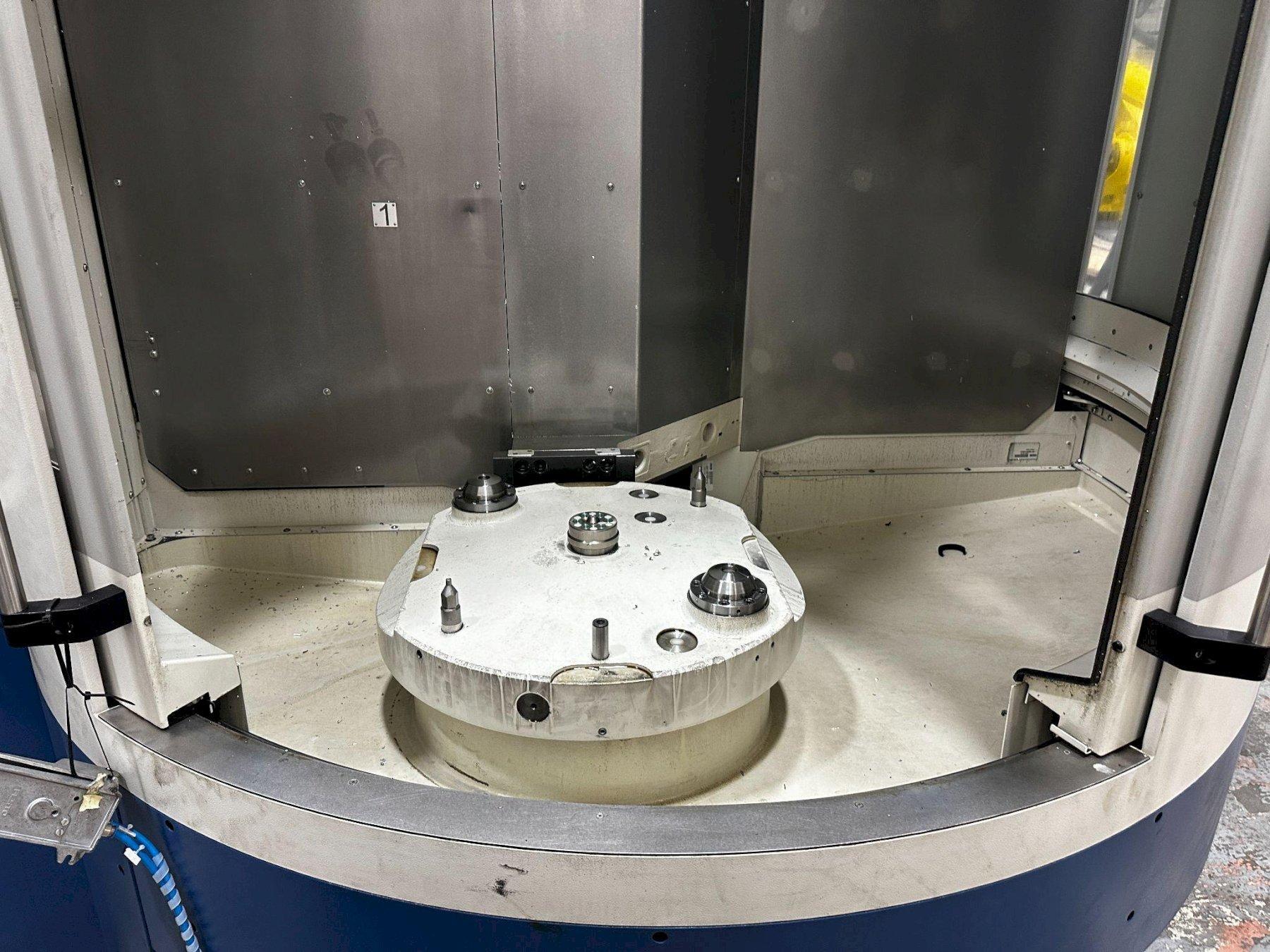

Max Pallet Load	1543 lbs
Pallet Indexing (B-axis)	0.001°
Table Diameter	30.31″
X-axis Travel	31.5″
Y-axis Travel	40.1″
Z-axis Travel	38.2″
A-axis Travel	-185° to +45°
Spindle Speed	12,000 RPM
Spindle Taper	HSK-63A
Spindle Motor	43 hp

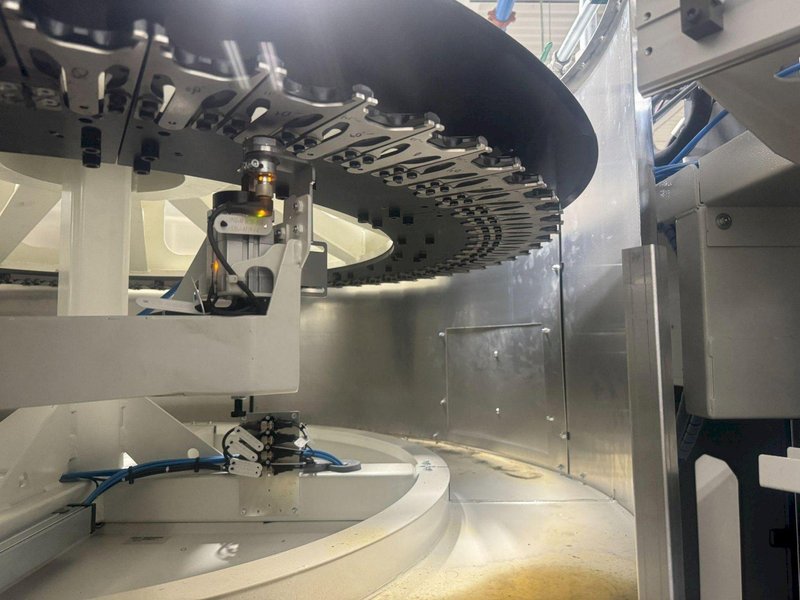

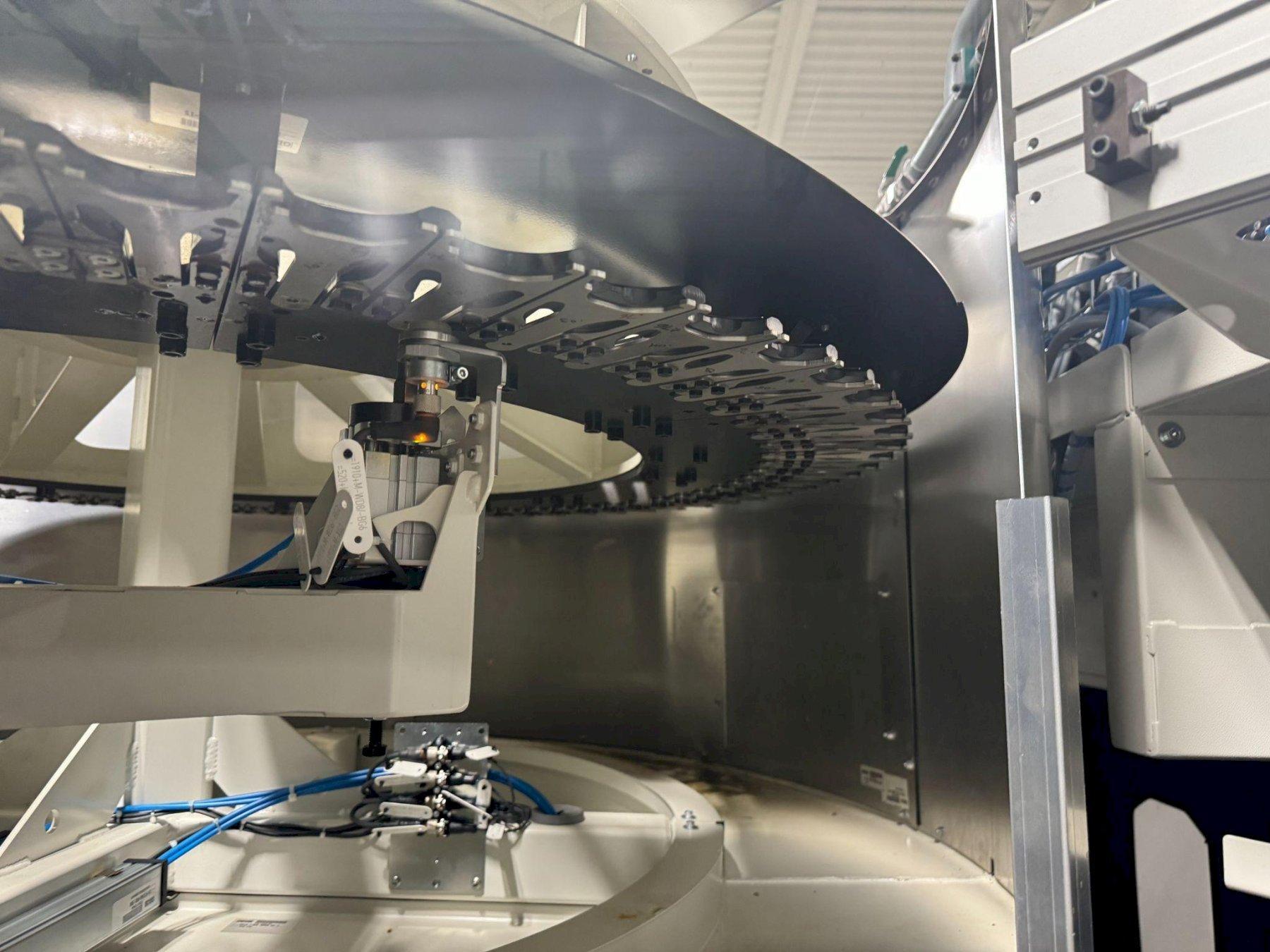

# ATC	70
Coolant Thru Spindle	Yes

Equipped With

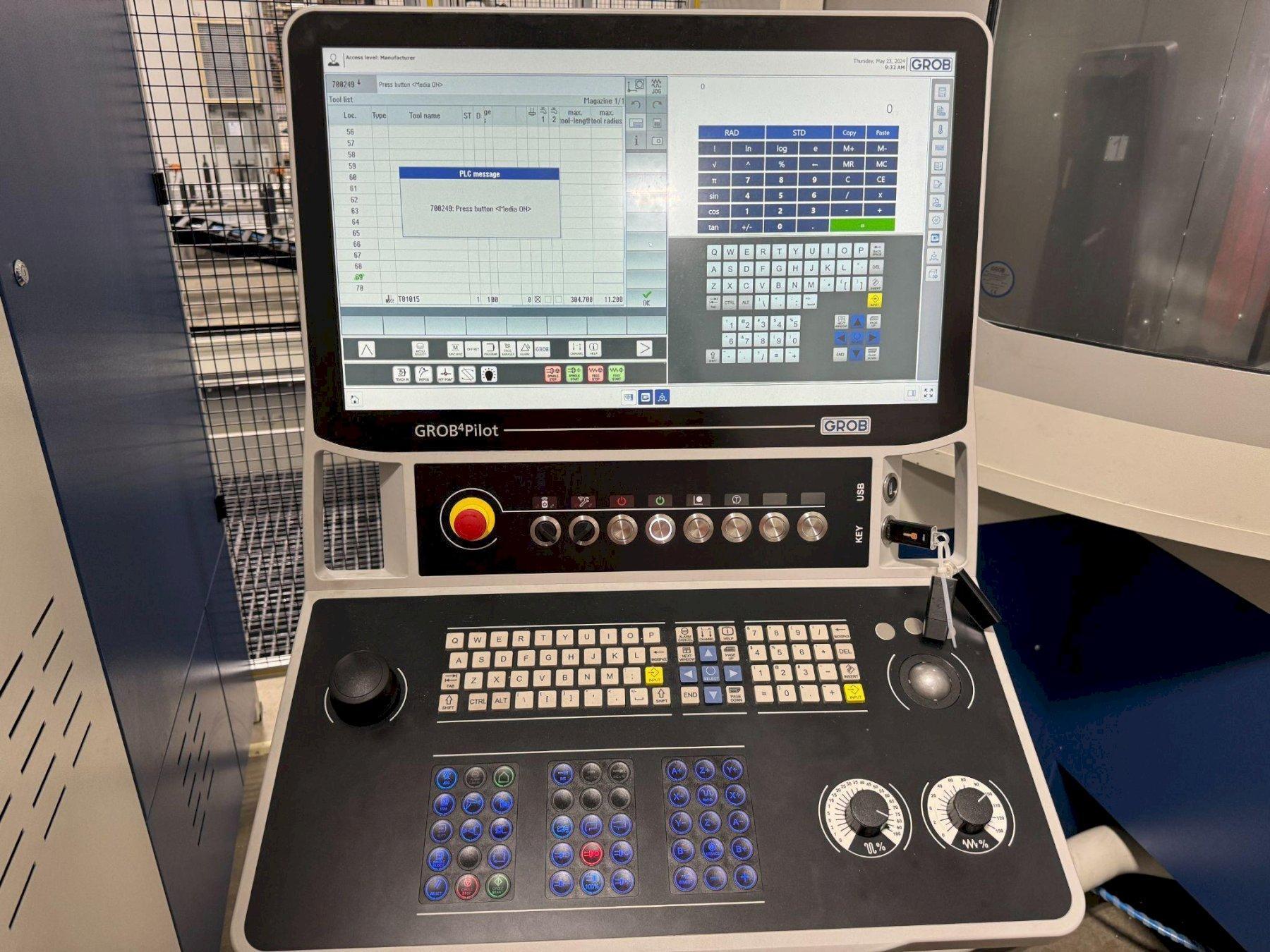

– Siemens 840D SL CNC Control
– Grob 4 Pilot Software
– Chip Conveyor
– Coolant Tank & Pumps
– Spindle Chiller
– Renishaw RMI-Q Receiver
– 5-axis Simultaneous Machining
– Pallet Changer Option
– Coolant Thru Spindle

Specifications:

CNC Control	Siemens 840D SL
# Axis	5
Max Pallet Load	1543 lbs
Pallet Indexing (B-axis)	0.001°
Table Diameter	30.31″
X-axis Travel	31.5″
Y-axis Travel	40.1″
Z-axis Travel	38.2″
A-axis Travel	-185° to +45°
Spindle Speed	16,000 RPM
Spindle Taper	HSK-63A
Spindle Motor	43 hp
# ATC	70
Coolant Thru Spindle	Yes

Equipped With:

– Siemens 840D SL CNC Control- Grob 4 Pilot Software- Chip Conveyor- Coolant Tank & Pumps- Spindle Chiller- Renishaw RMI-Q Receiver- 5-axis Simultaneous Machining- Pallet Changer Option- Coolant Thru Spindle

No files or videos to display
