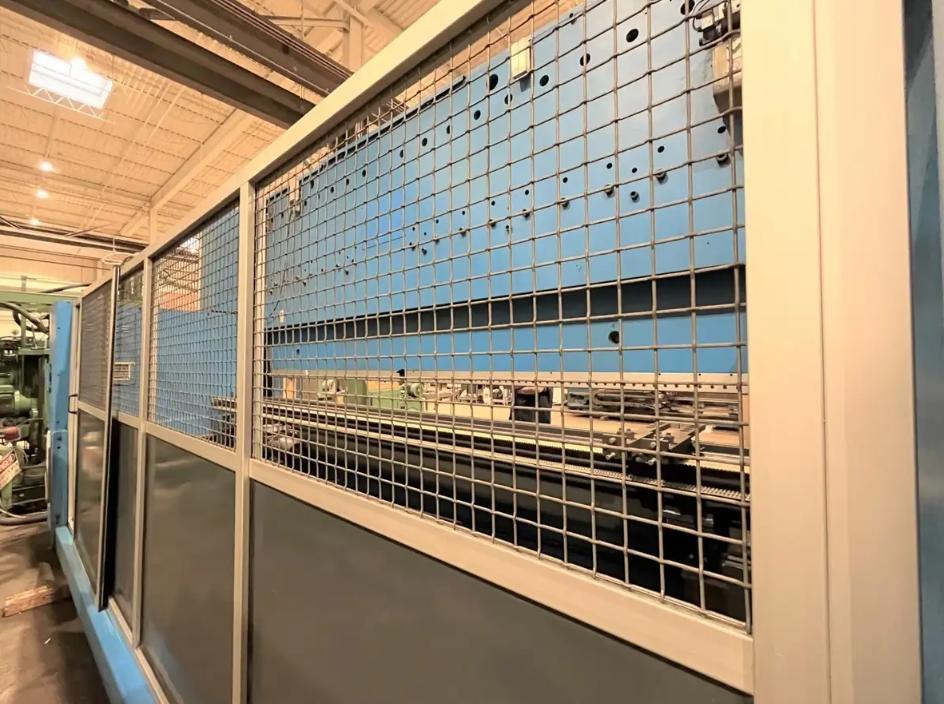

14’ X 200 Ton Press Brake with Windows Based TS3 7 - Axis CNC Control, (5) Axxis Backgauge (X, R, Z1, Z2, X1), Hydraulic Clamping and Upper Ram is Set up for American Style WILA Dies

GENERAL SPECIFICATIONS
Tonnage:                            200 Tons
Overall Length:                        161”
Distance Between Housings:                144”
Stroke:                            11.81”
Approach Speed:                        77mm / Sec
Bending Speed:                        10mm / Sec
Dimensions:                            81” X 210” X 115”
Weight:                            37,000 Lbs


INCLUDES: Windows Based TS3 7 - Axis CNC Control, (5) Axxis Backgauge (X, R, Z1, Z2, X1), Hydraulic Clamping and Upper Ram is Set up for American Style WILA Dies

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
