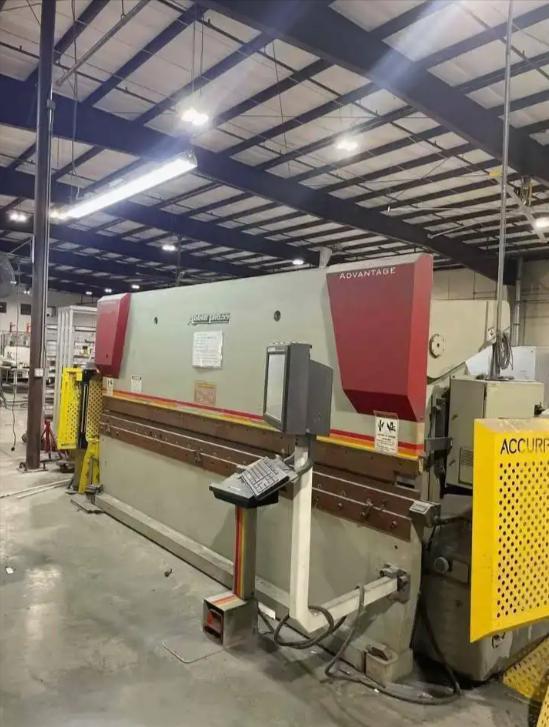

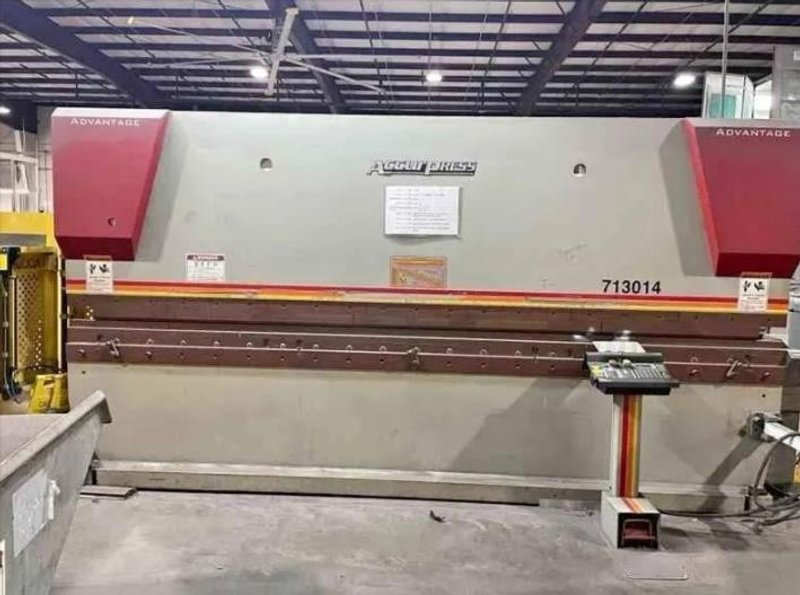

130 Ton X 14’ Hydraulic Press Brake with ETS 3000 Control and CNC Backgauge (Y1, Y2, X & R).

GENERAL SPECIFICATIONS
Capacity:                            130 Tons
Overall Length of Bed:                    14’
Distance Between Housings:                148”
Stroke:                            8”
Throat Depth:                        10”
Open Height:                            14”
Closed Height:                        6”
Bed Height:                            34”
Bad Cap Width:                        4.5”
Approx. Fast Approach Speed:                115 IPM
Approx. Slow Bend Speed:                    24 IPM
Approx. Fast Return Speed:                180 IPM
Motor:                                15 HP
Approx. Dimensions:                    191” X 56” X 92”
Approx. Shipping Weight:                    21,000 Lbs

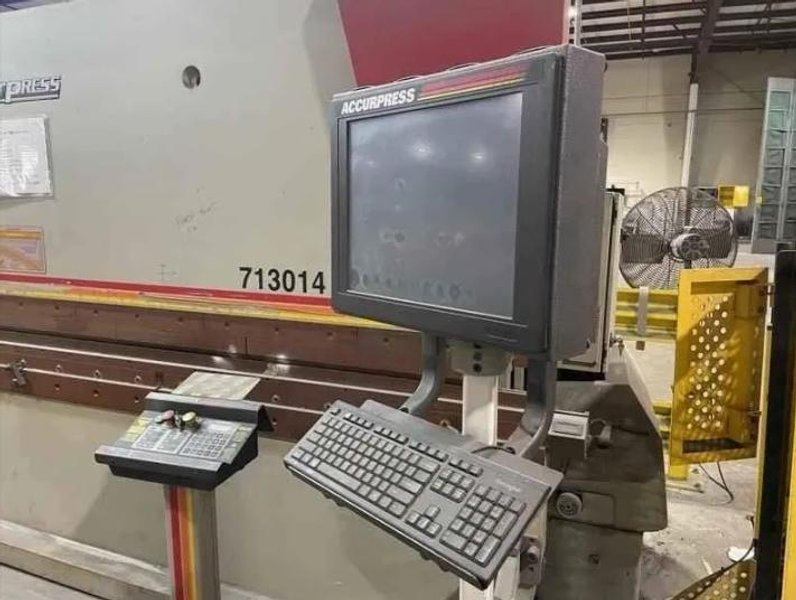

INCLUDES: ETS 3000 Control and CNC Backgauge (Y1, Y2, X & R).

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
