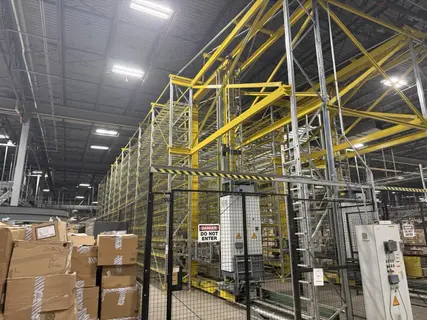

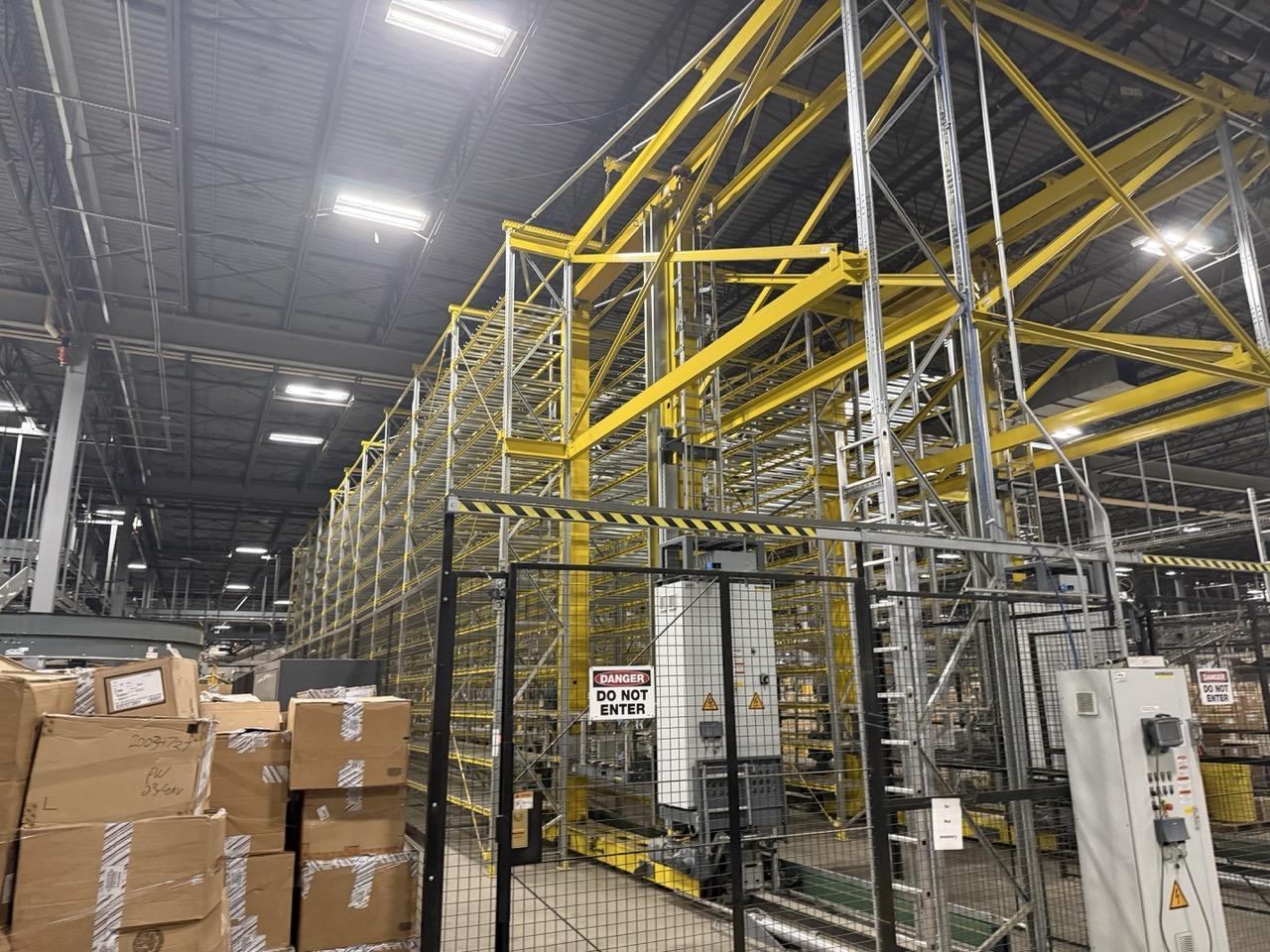

Dambach MINI-LOAD ZSA 20-20/8 Automated Storage & Retrieval Machine (ASRS) – 40 lb Capacity

Type: Automated Storage & Retrieval Machine (ASRS)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Configuration: Twin Mast Miniload Crane

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum Load Capacity: 40 lbs (18 kg)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Minimum Container Size: 10″ x 10″ x 4″ With Bulge: 11.5″ x 11.5″ x 4.75″ 324 x 292 x 140 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum Container Size: 30.5″ x 21″ x 15.25″ With Bulge: 32″ x 22.5″ x 16″ 813 x 572 x 406 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Travel Speed: 210 m/min (689 ft/min)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Lift Speed: 120 m/min (394 ft/min)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fork Speed: 90 / 60 m/min (295 / 197 ft/min)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Travel Drive: (2) 15 kW AC Motors

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Lift Drive: 29 kW AC Motor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fork Drive: AC Motor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Travel Acceleration: 1 m/s²

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Lift Acceleration: 2 / 1 m/s²

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fork Acceleration: 3 / 1 m/s²

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Clear Aisle Height: 7,790 mm (306.7″)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Clear Aisle Width: 900 mm (35.5″)

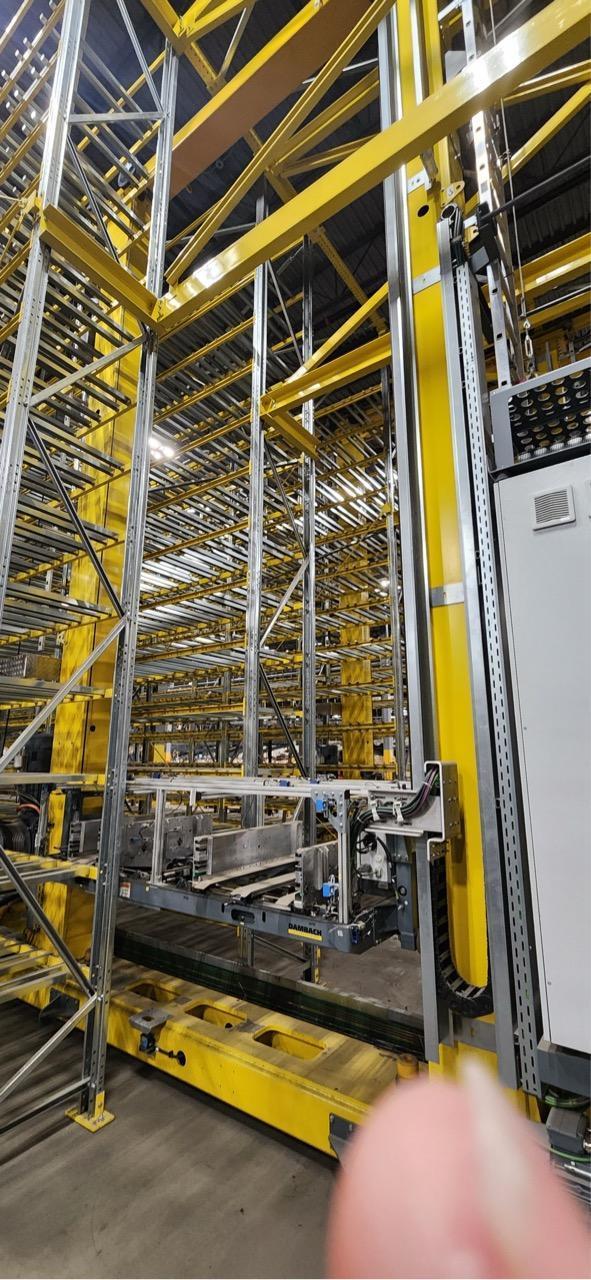

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Load Handling Device: Telescopic Extraction Fork Maximum Fork Stroke: 1,080 mm (42.5″)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Approach Dimensions: Top Approach Dimension: 900 mm (35.5″) Bottom Approach Dimension: 650 mm (25.5″) Front Approach Dimension: 3,683 mm (145″) Rear Approach Dimension: 3,835 mm (151″)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Features: Twin Mast Design Rail Guided Operation Laser Distance Measurement System Automated Positioning Controls High-Speed Carton and Tote Handling Telescopic Load Handling Device AC Drive System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
