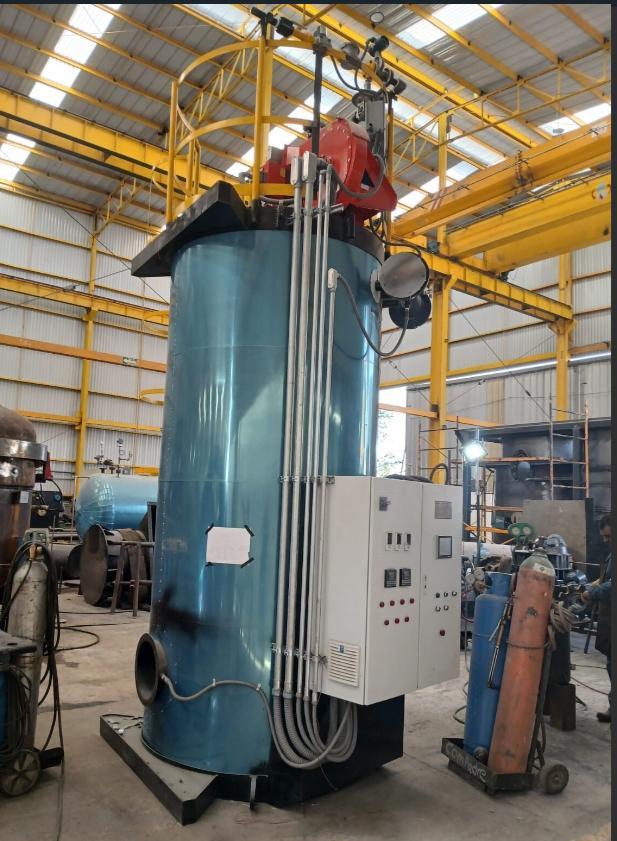

Ecovis CAT-V90 G Natural Gas-Fired Thermal Oil Heater System, 2024 – 765,000 kcal/hr, 350°C Maximum Operating Temperature

Heater Specifications Hydrostatic Test Pressure: 10.4 kg/cm² Maximum Working Temperature: 350°C Design Temperature: 330°C Fuel Type: Natural Gas Heating Surface Area: 35 m² Outlet Thermal Capacity: 765,000 kcal/hr Thermal Efficiency: 89% Fuel Thermal Requirement: 859,550 kcal/hr

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Burner

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manufacturer: Limpsfield Model: LCN15 Capacity: 500,000 – 900,000 kcal/hr

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Construction

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Shell Material: ASTM SA-36 Tubing Material: ASTM A-106 Grade B Insulation: 2″ Mineral Wool with Painted Steel Cover

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Thermal Fluid System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Oil Capacity: 444 Liters Inlet/Outlet Nozzle Diameter: DN80 (3″)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
