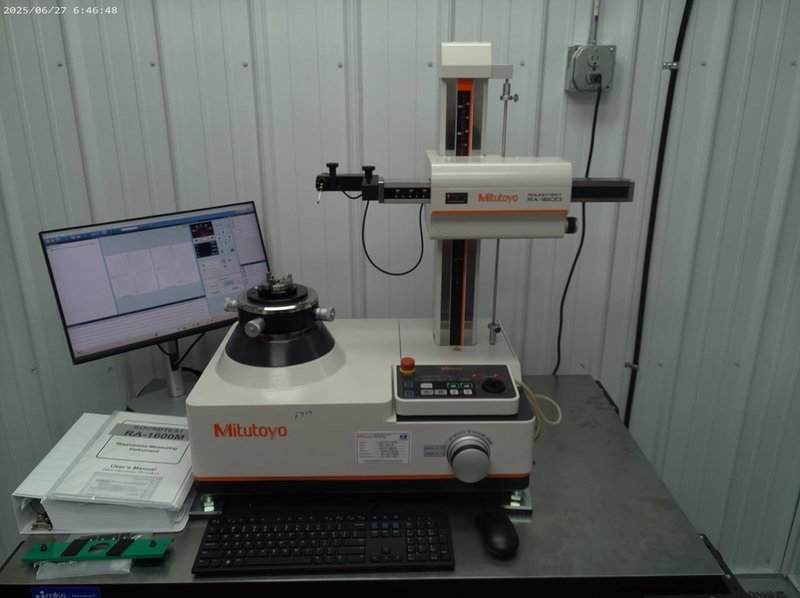

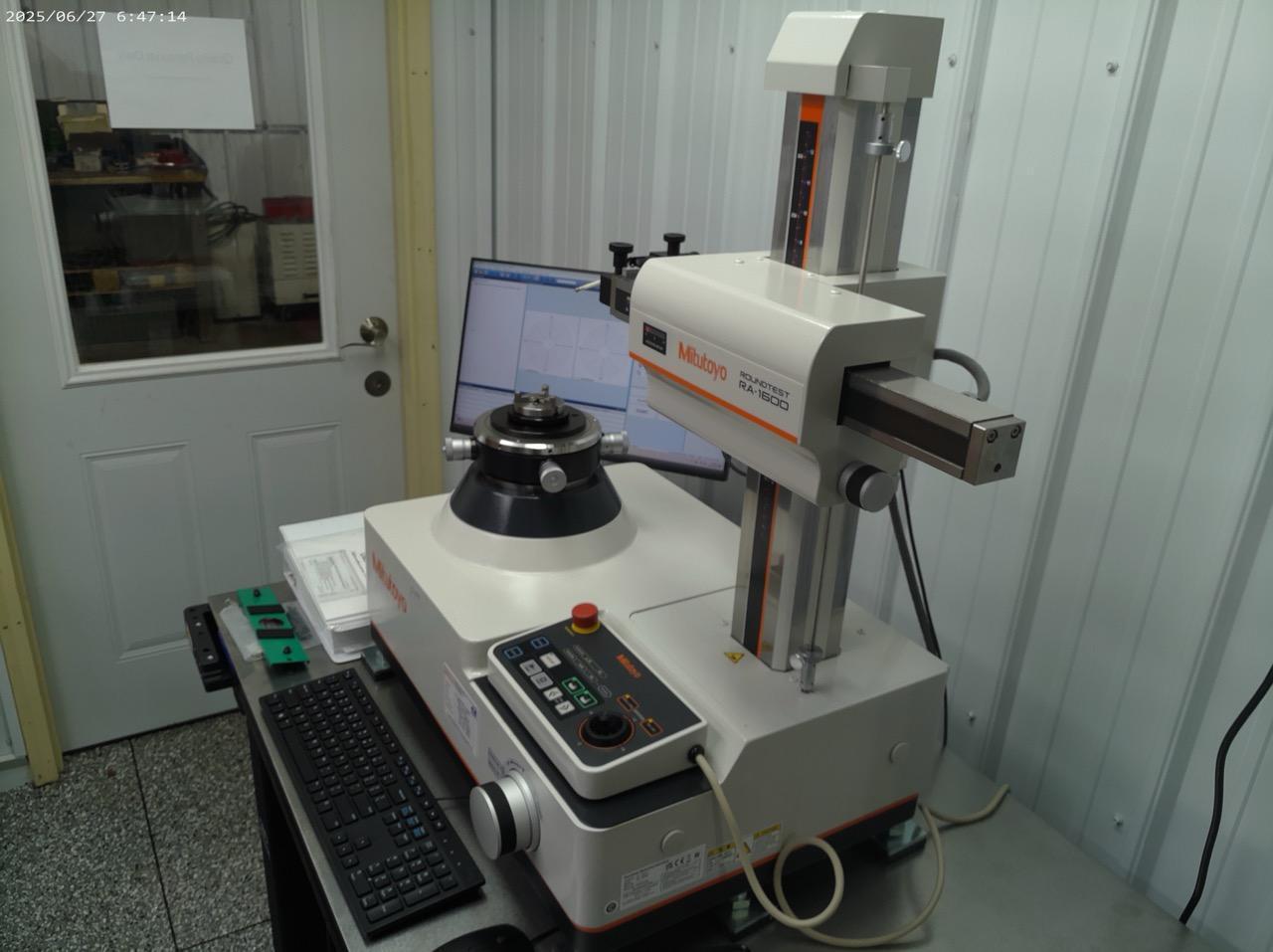

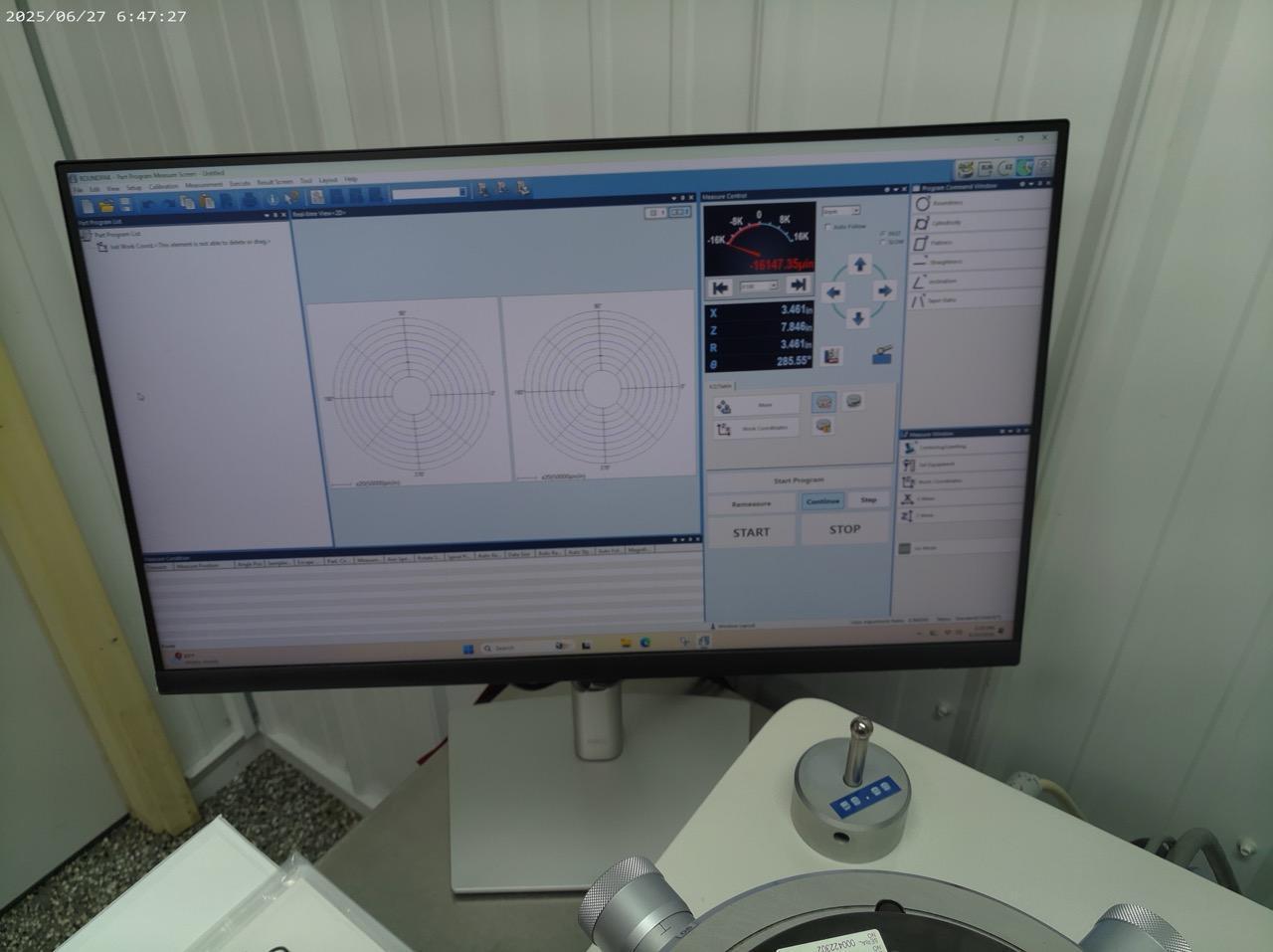

Mitutoyo Roundtest RA-1600M Roundness Measuring System, 2024

Turntable: Rotational accuracy (radial) H: Probing height (mm): (0.02+6H/10000)μm Rotational accuracy (axial) X: Probing radius (mm): (0.02+6X/10000)μm Table top diameter: ø5.9″ (150mm) Centering range: ±3mm (with DAT function) Leveling range: ±1° (with DAT function) Maximum probing diameter: ø11″ (ø280mm) Maximum workpiece diameter: ø22″ (ø560mm) Maximum table loading: 55 lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Vertical Column (Z-axis) Vertical travel: 300mm (11.8″) Straightness (narrow range): 0.20 µm / 100mm Straightness (entire range): 0.30 µm / 300mm Parallelism with turntable axis: 1.5 µm / 300mm Positioning speed: max 15 mm/s; Measuring speed: 0.5, 1, 2, 5 mm/s Max probing height (ID/OD): 300mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Horizontal Arm (X-axis) Horizontal travel: 165mm Positioning speed: max 15 mm/s; Measuring speed: 0.5, 1, 2, 5 mm/s

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Probe/Stylus Measuring range: ±400 µm / ±40 µm / ±4 µm Measuring force: 10–50 mN (5-level switching) Standard stylus: carbide ball ø1.6mm Stylus angle adjustment: ±45° (with graduations) Bi-directional measurement

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
