Working Area: 60″ X 120″
Laser Power: 6 KW

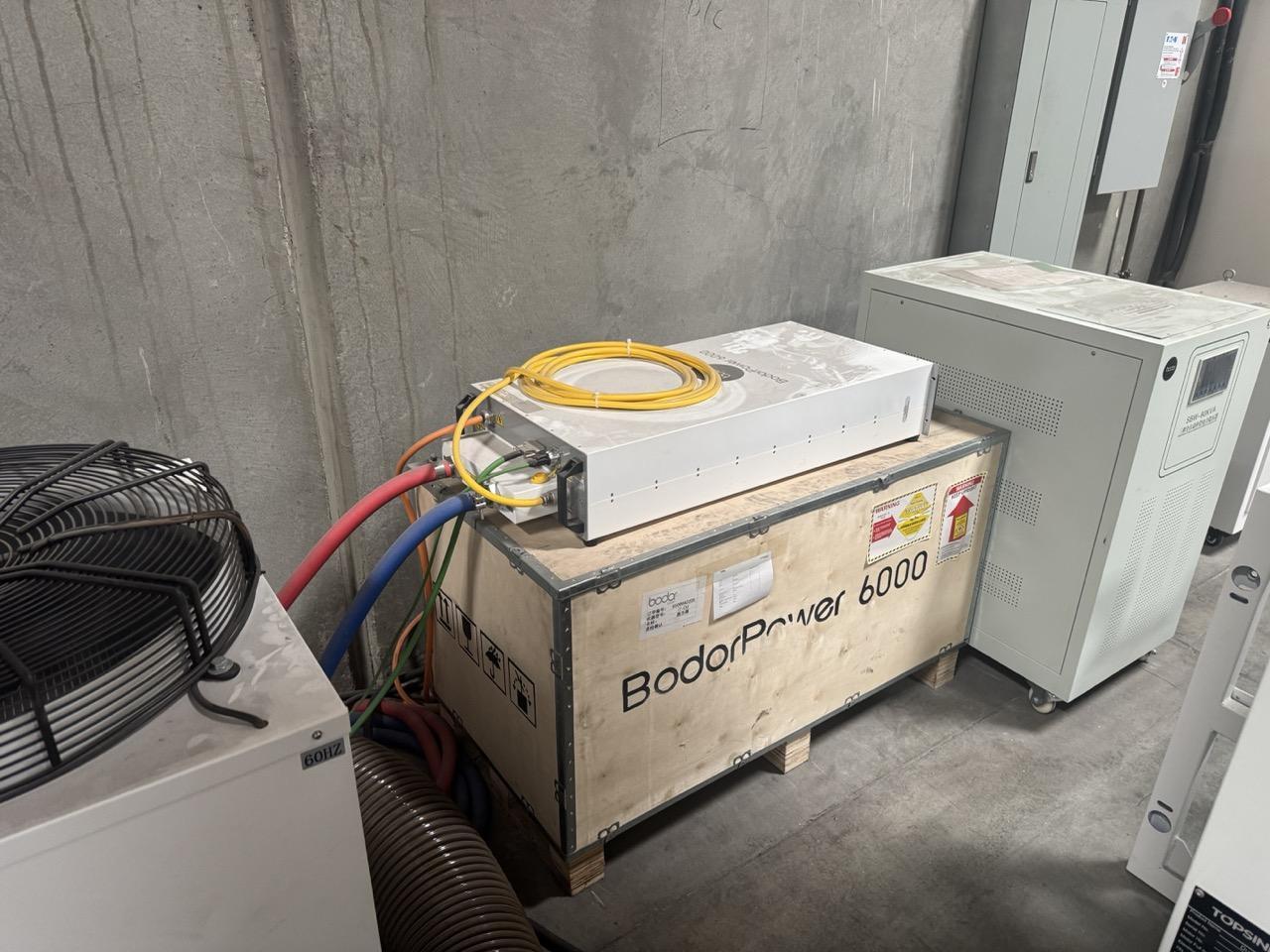

Laser Source: BodorPower Fiber Laser
Laser Head: Bodor Genius Autofocus
Control: Bodor Thinker
Table Capacity: 1,984 Lbs.
Max Linkage Speed: 298 FPM
Max Acceleration: 1.5 G
Positioning Accuracy: ±0.05 Mm/M
Repeat Positioning Accuracy: ±0.03 Mm
Z-Axis Travel: 4.7″
Display Size: 21.5″
Machine Dimensions: 18.25′ X 7.45′ X 7.83′
Machine Weight: 9,259 Lbs.
Electrical Requirement: 480V, 3 Phase

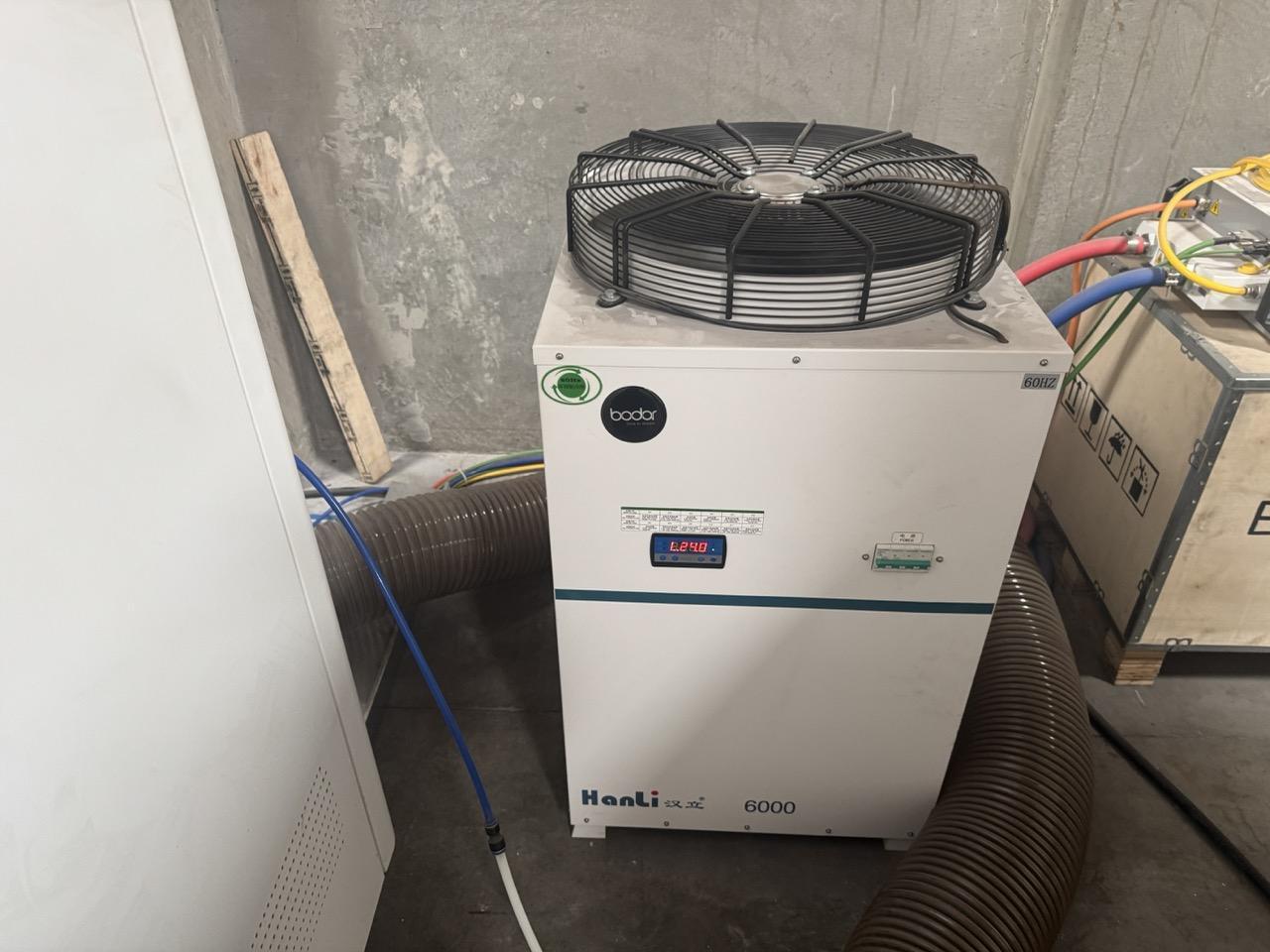

Cooling System: Water Chiller
Protective Enclosure: Full Enclosure

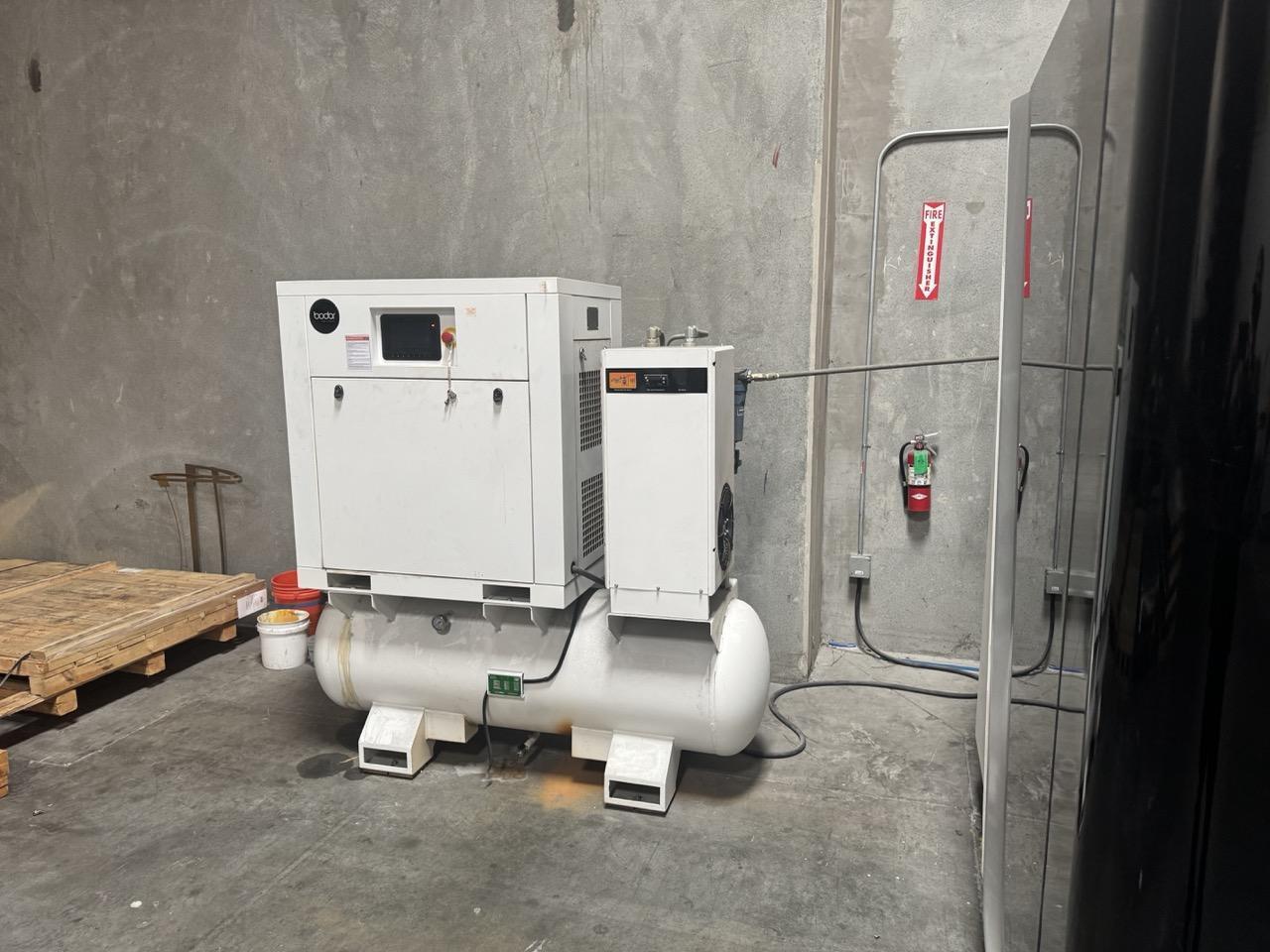

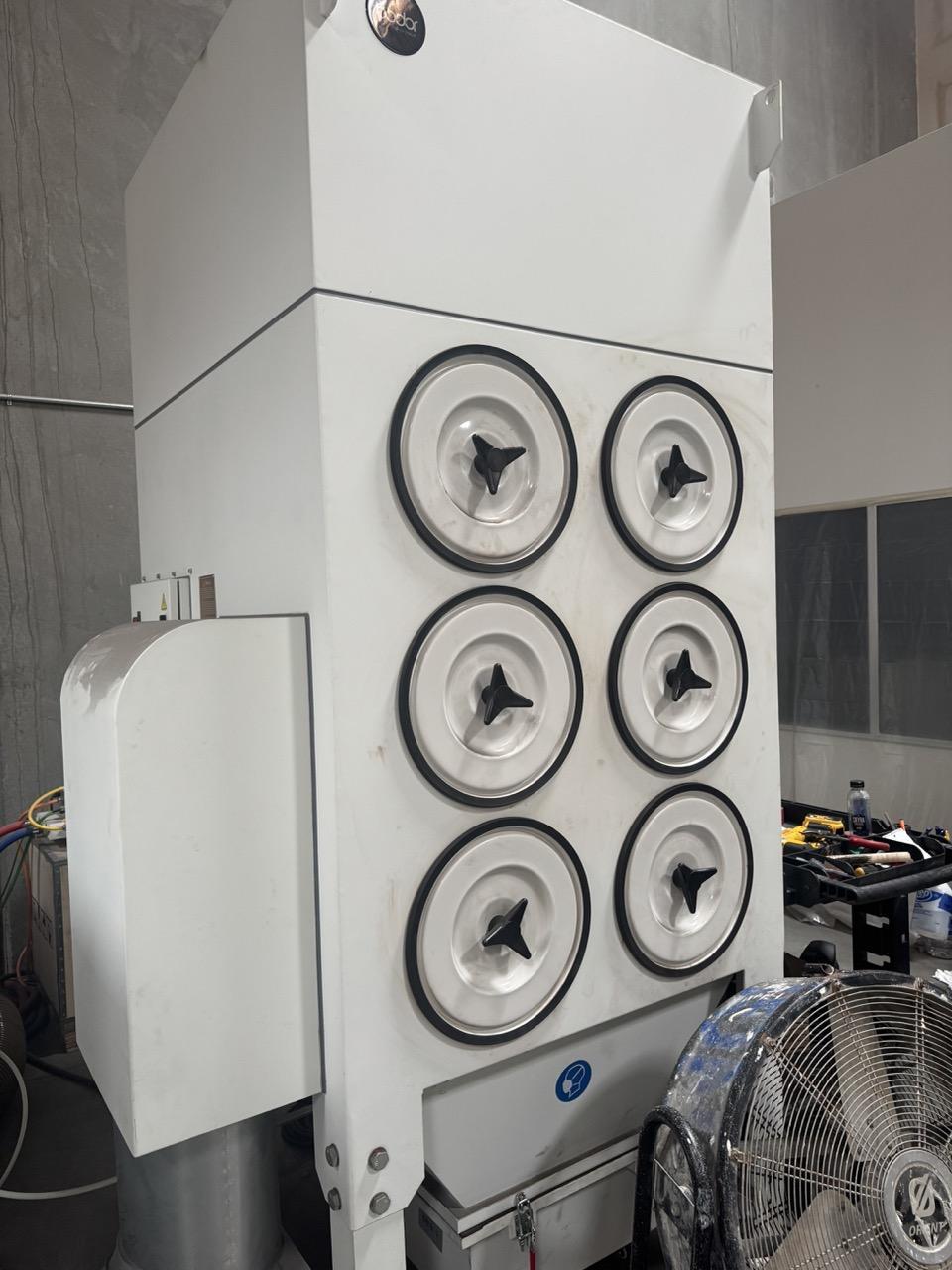

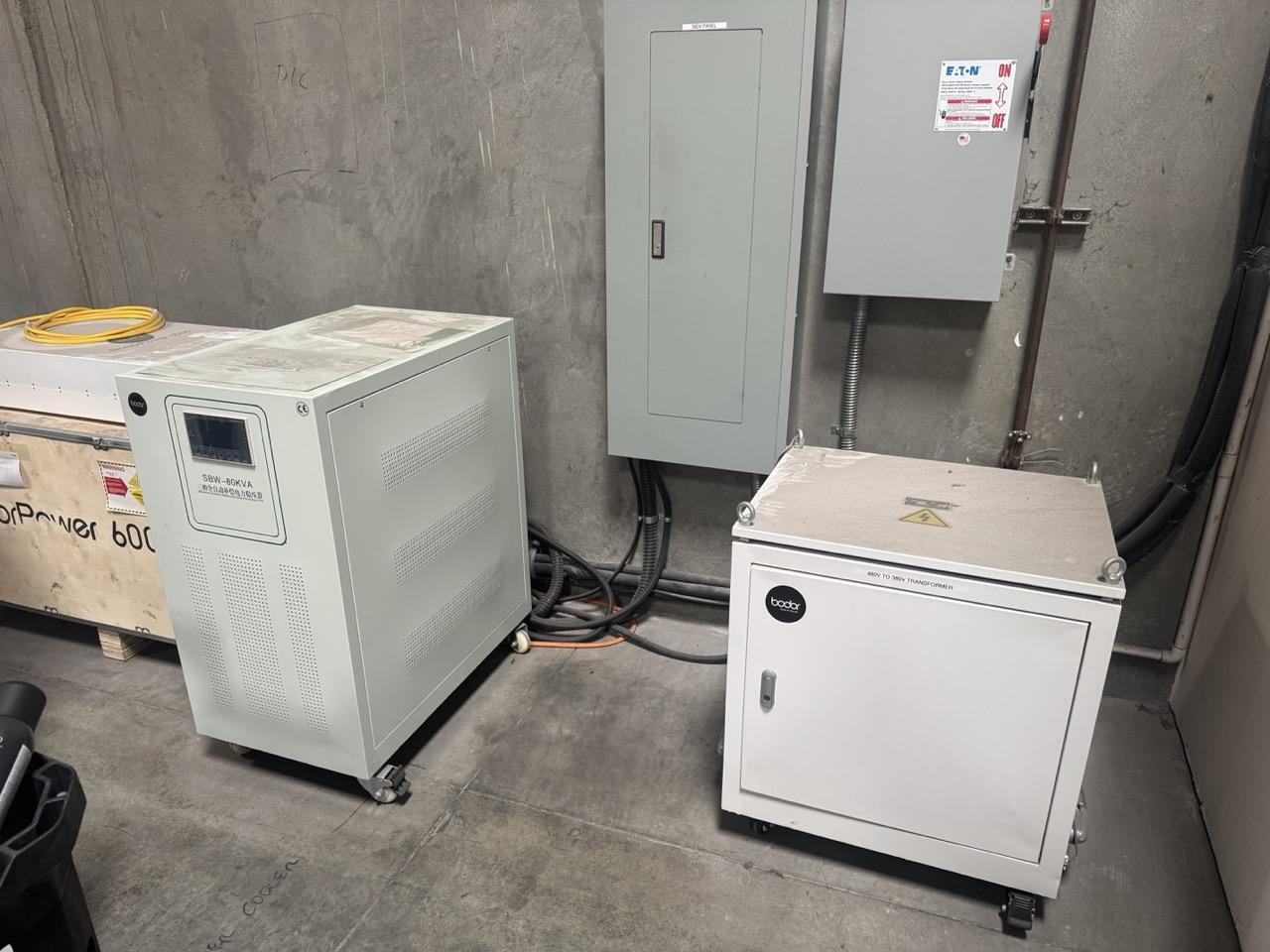

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Flow Box Air Compressor Fume Filter Voltage Regulator Transformer Spare Laser Head Laser Protective Glasses Bodor Genius Autofocus Cutting Head Bodor Thinker Control System Water Chiller Full Protective Enclosure Active Anti Collision Function Automatic Gas Pressure Adjustment Intelligent Maintenance Reminder WiFi Connectivity Bodor Mango Remote Control All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
