Laser Power: 3 kW Fiber Laser
Cutting Capacity: 5′ x 10′ (60″ x 120″)
Working Area: 120″ x 60″
Positioning Accuracy: ±0.03 mm
Repeat Positioning Accuracy: ±0.02 mm
Maximum Rapid Traverse: 100 M/Min.
Maximum Acceleration: 1.5 G
Control: CNC Controller
Drive System: Servo Driven
Linear Guides: Precision Linear Guideways
Rack And Pinion Drive: Helical Rack And Pinion
Automatic Height Control: Yes
Materials: Mild Steel, Stainless Steel, Aluminum, Brass, Copper
Electrical: 460V, 3 Phase (Verify)

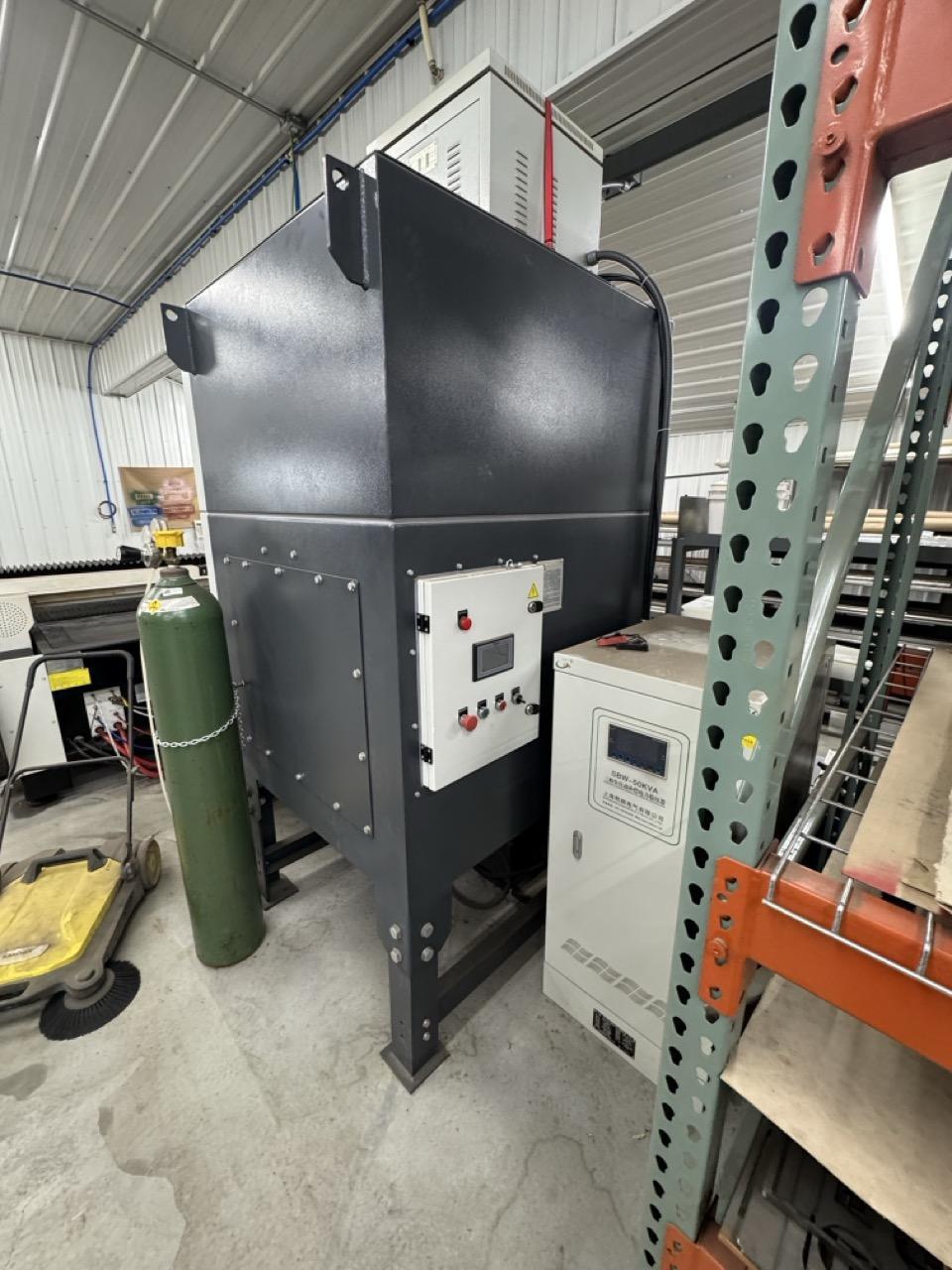

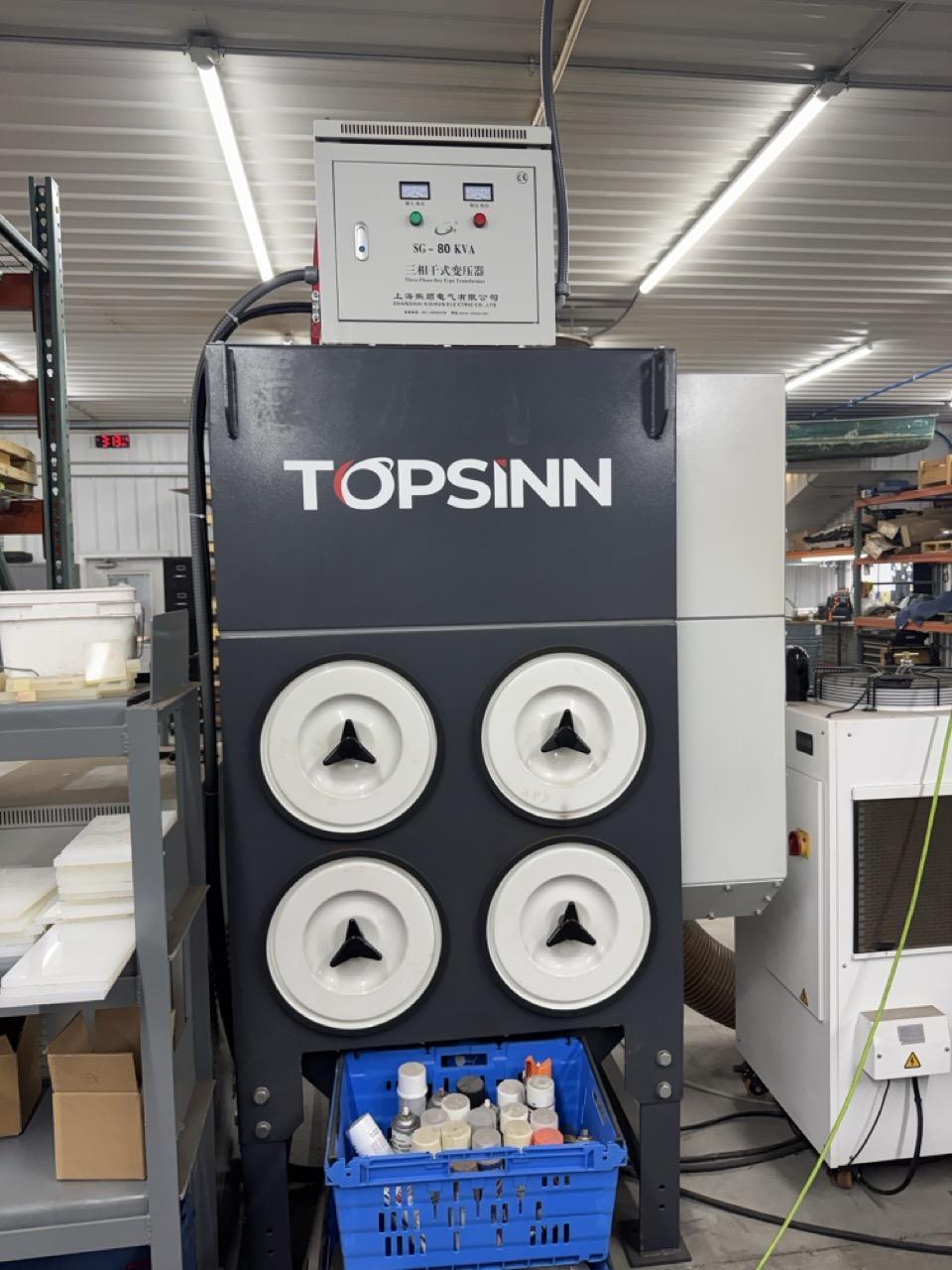

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: All specifications are assumed to be correct but must be confirmed by the purchasing entity.,3 kW Fiber Laser Source 5′ x 10′ Cutting Table CNC Control Automatic Capacitive Height Control Servo Drive System Dust Collector Air Compressor Precision Linear Guideways Helical Rack And Pinion Drive All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
