60" x 0.140" x 30,000# Rowe/Voss Cut-to-Length Line STOCK# 4230

Brand
Not specified
Category
Coil Handling Equipment
Type
Cut To Length Lines
Model
Not specified
Stock #
4230
Year
Not specified
Condition
Not specified

Location

Ohio
60" x 0.140" x 30,000# Rowe/Voss Cut-to-Length Line

Material Thickness:    0.020" - 0.140" Mild Steel
Coil Weight Capacity:  30,000#
Coil Width:            60"
Coil O.D.:             80"
Line Direction:        Left to Right

Consisting of:

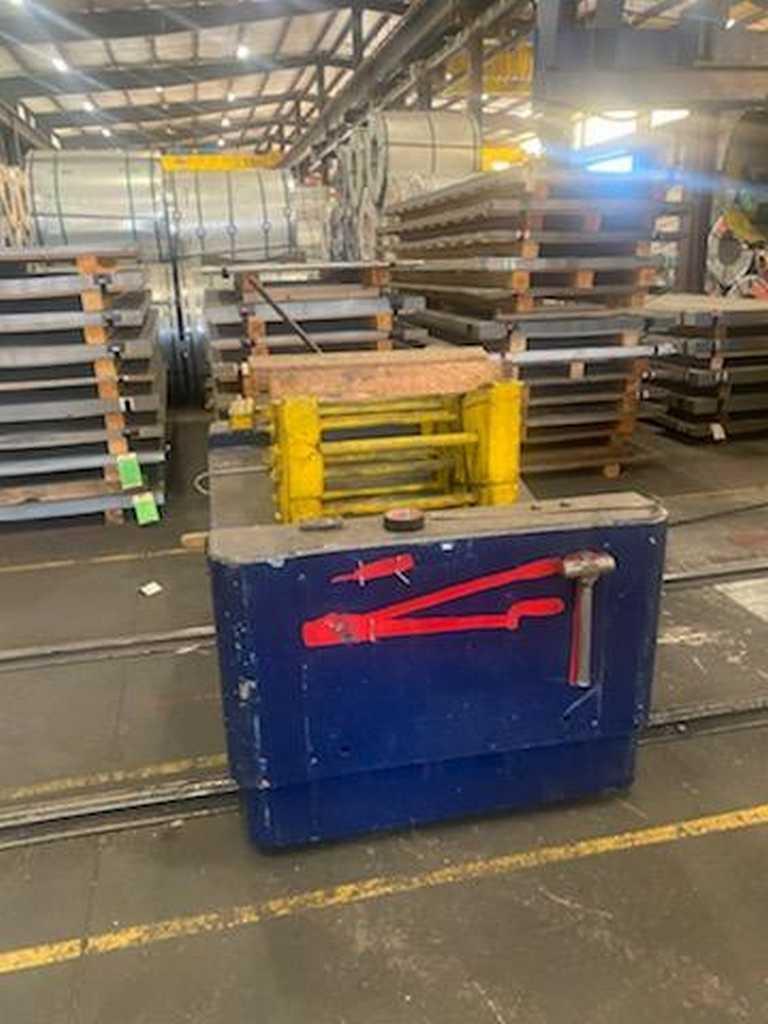

-Entry Coil Car:
  AC Motor Powered

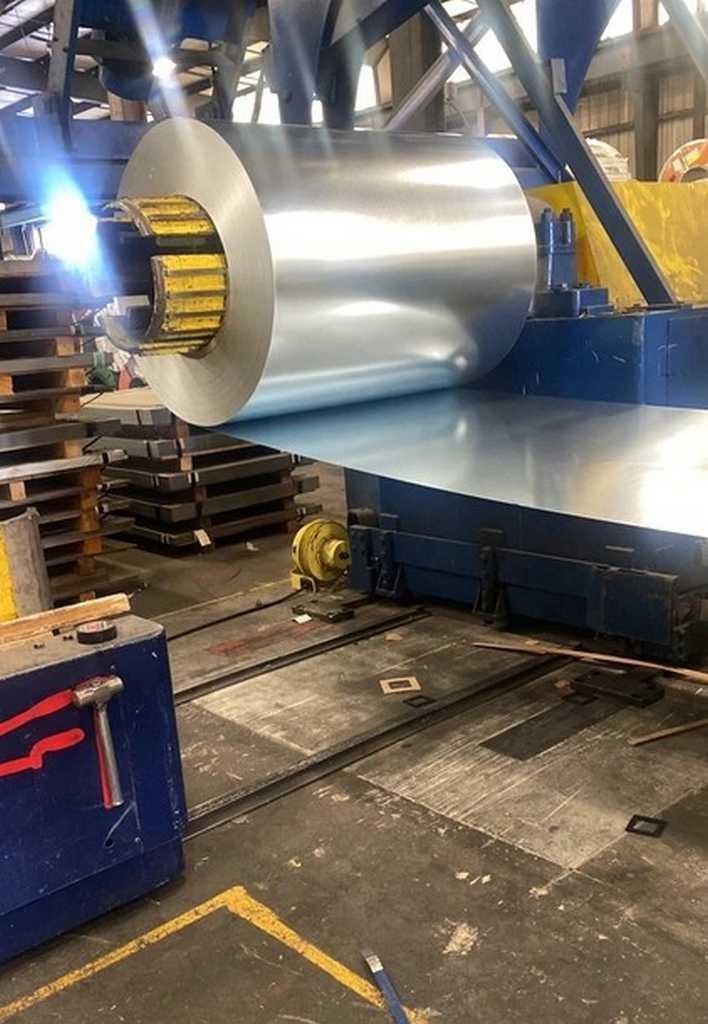

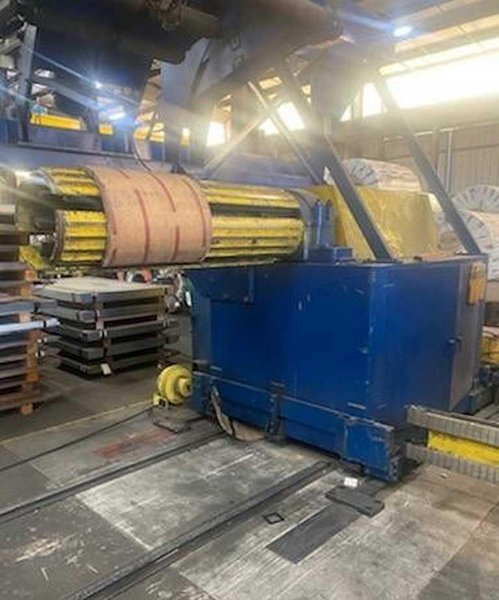

-Uncoiler:
  Model: 30060 DSV
  Powered Expansion
  Threading Drive
  Brake
  Sliding Base
  Holddown Roll
  Sabina DC Drive

-Threading Table:

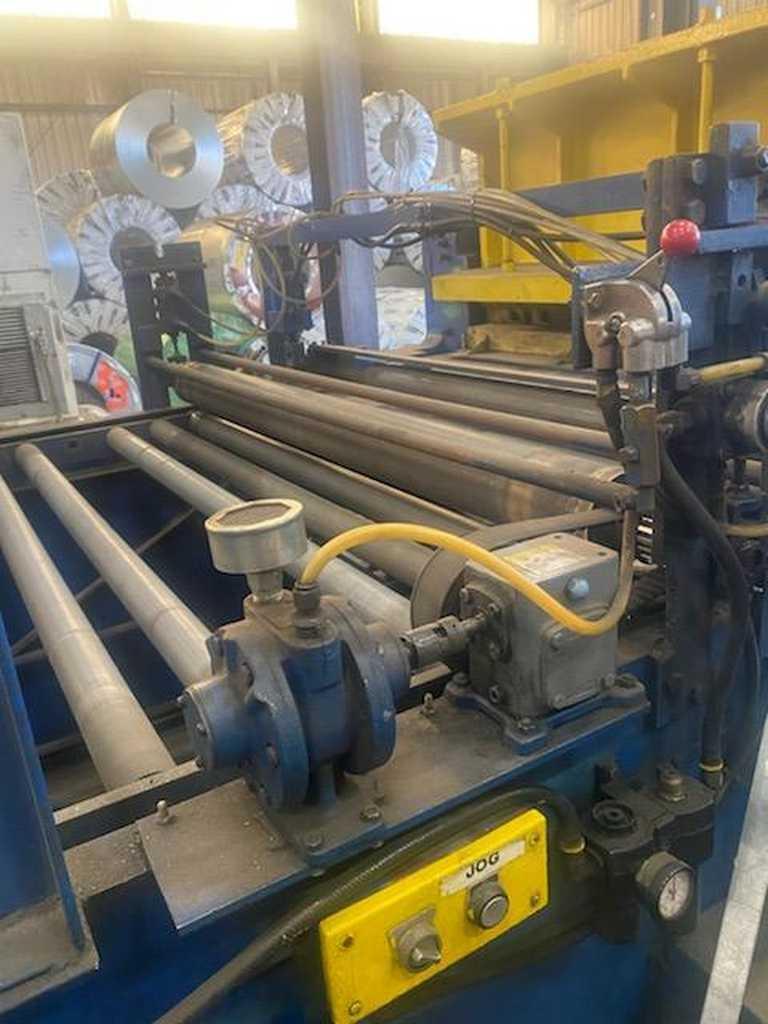

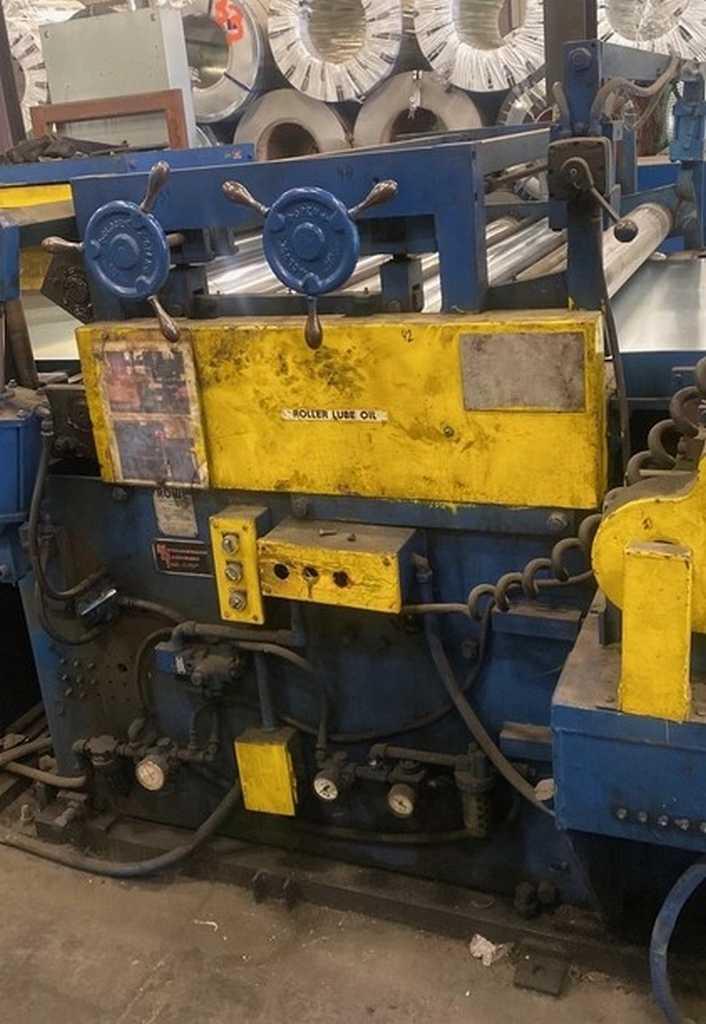

-Straightener:
  Model: VET 60-12-5
  Entry Side Guides
  Entry Coil Breaker
  Entry Pinch Rolls
  Straightening Rolls
  Exit Pinch Rolls

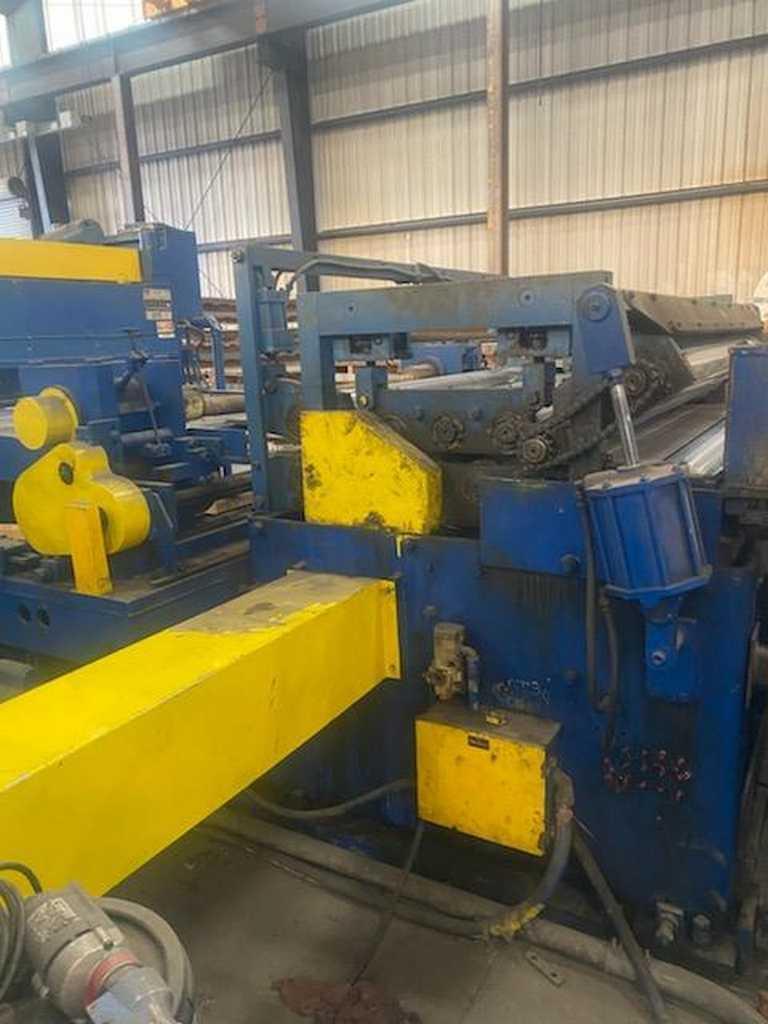

-Double-Stub Edge Trimmer:
  (2) Adjustable Heads
  Scrap Chopper

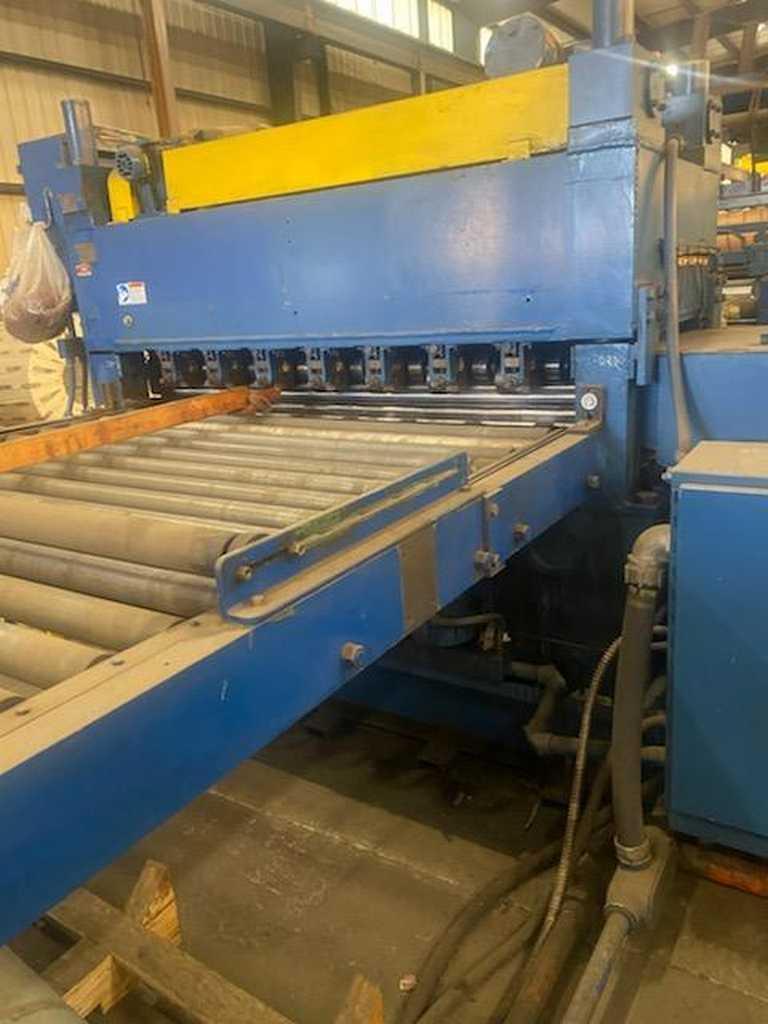

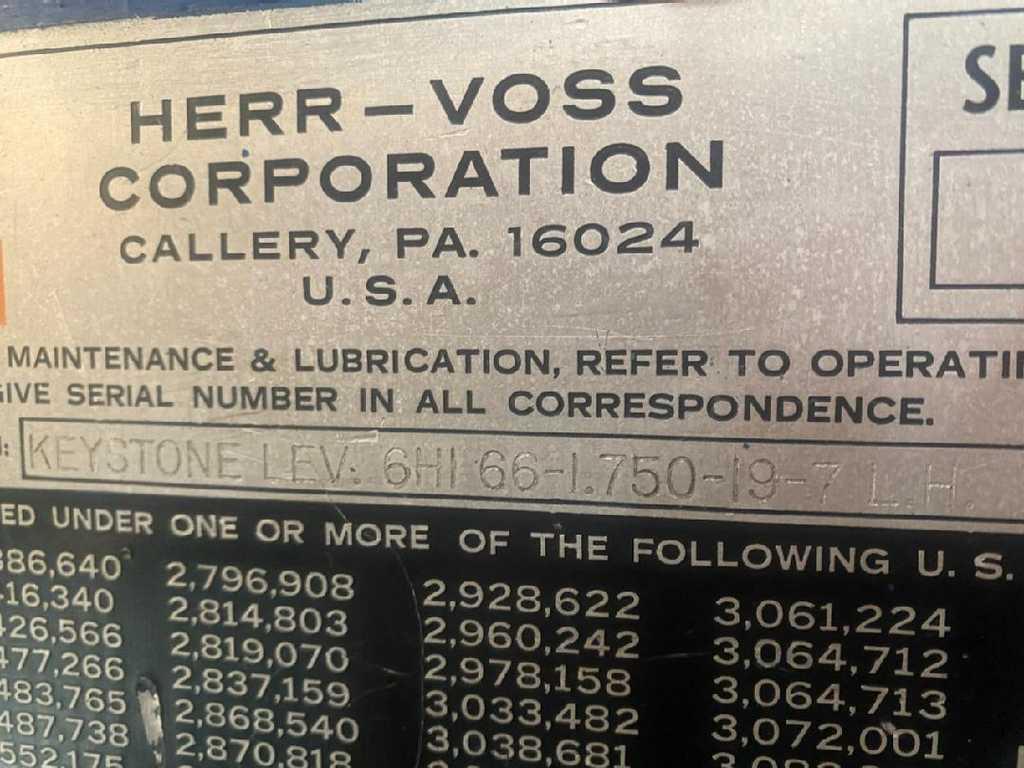

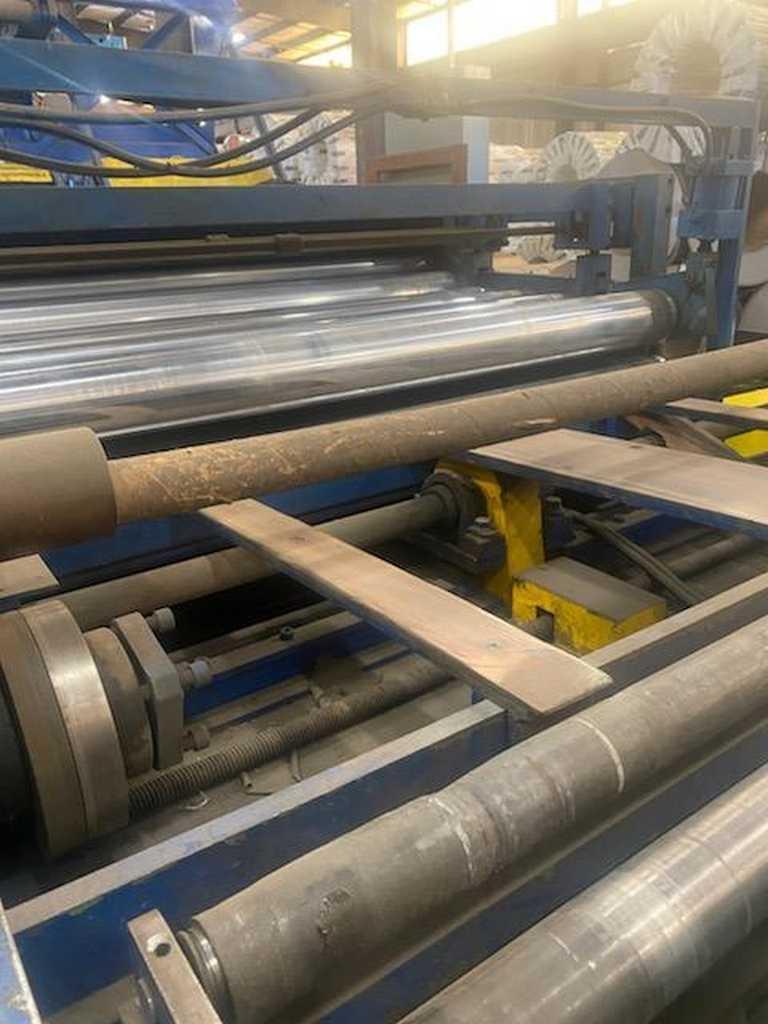

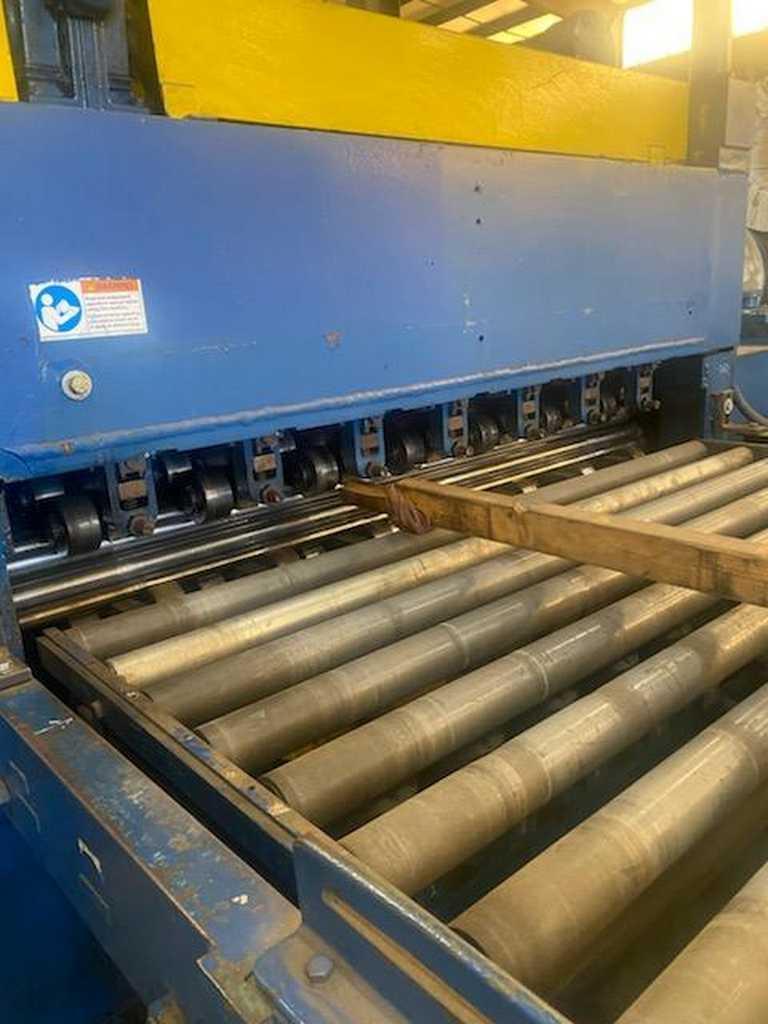

-Herr Voss Precision Leveler: 6 HI
  Model: Keystone 66-1.750-19-7 LH
  19 Work Rolls, 9 over 10
  1.75" Dia. x 66" Face
  7 Flights of Backups, 5 Flights Motorized

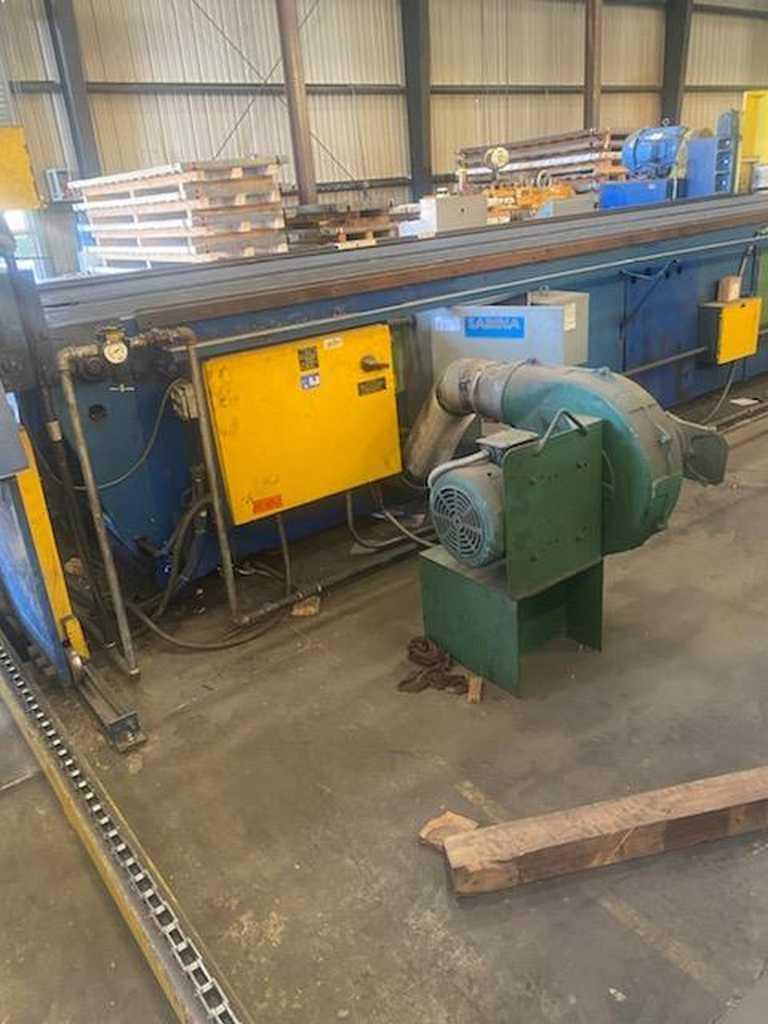

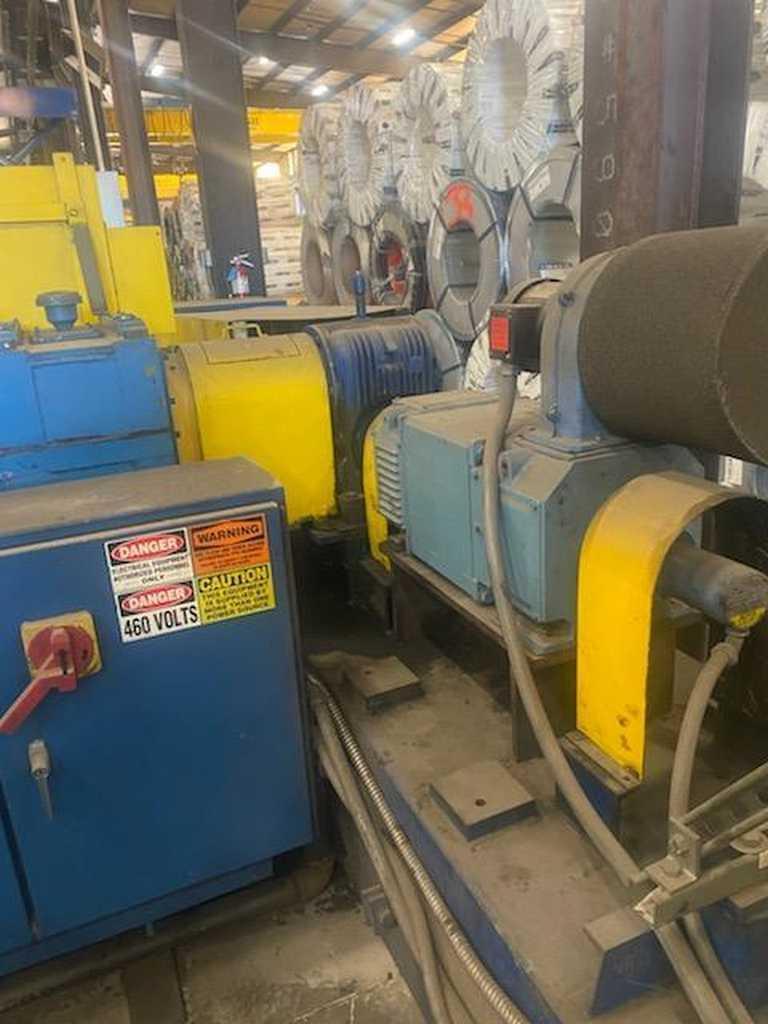

  DC Drive Motor w/Blower
  Common Drive with Straightener

-Conveyor Section:
  Driven Pinch Rolls
  Air Motor drive thru Reducer

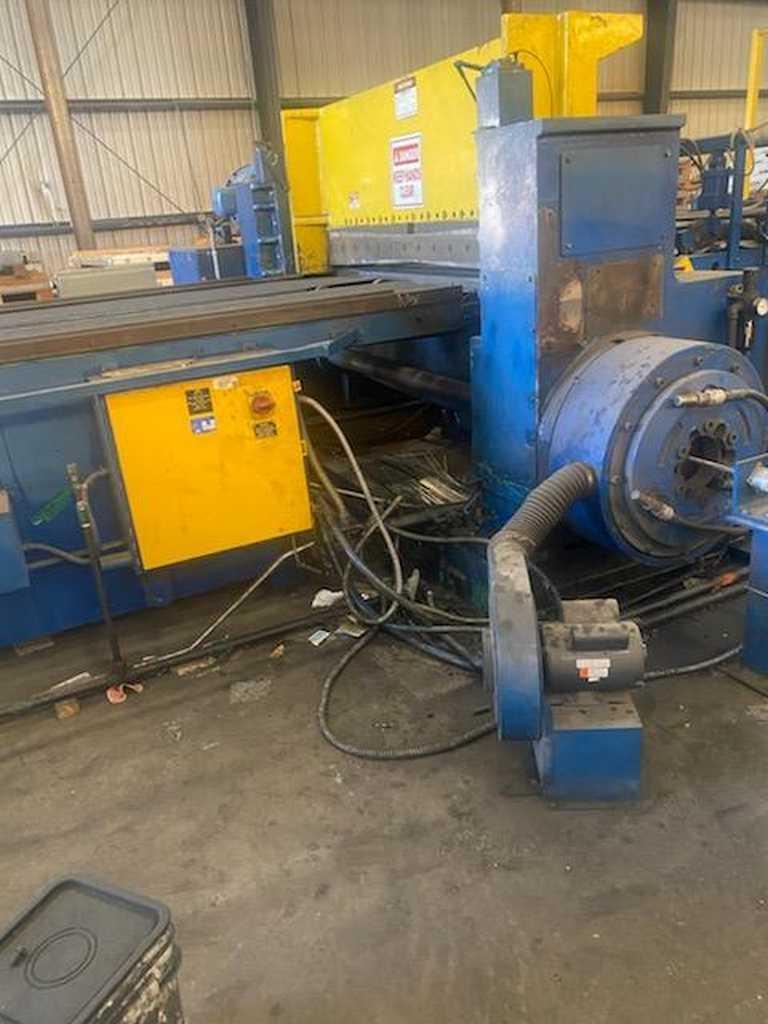

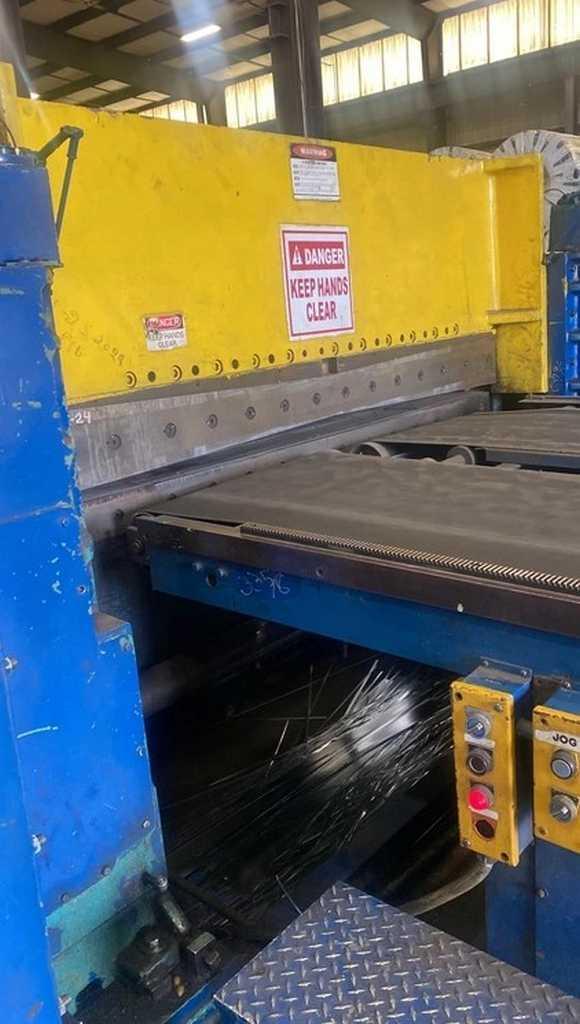

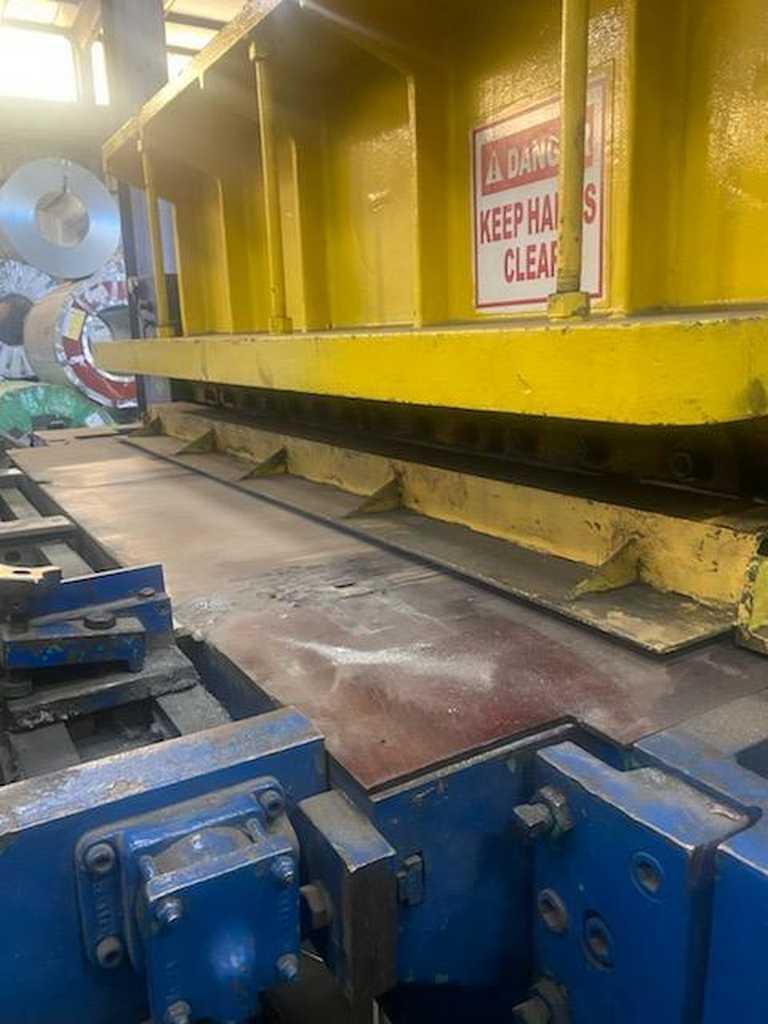

-High Speed Shear: Wysong
  Model: HS625-RKB
  Capacity: 72" x 0.250" (Mild Steel)
  Bow-Tie Top Blade
  300 Strokes/Min.
  45 Cuts/Min.
  40 HP AC Motor
  Air Clutch/Brake
  Weight: 20,600 lbs.
  Shear Rebuilt in 2023

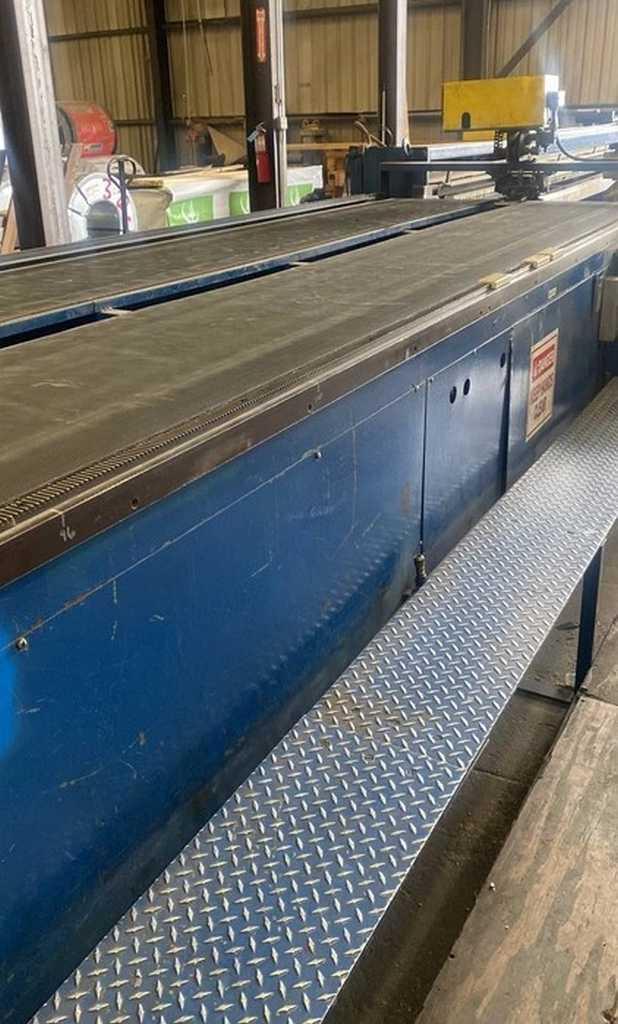

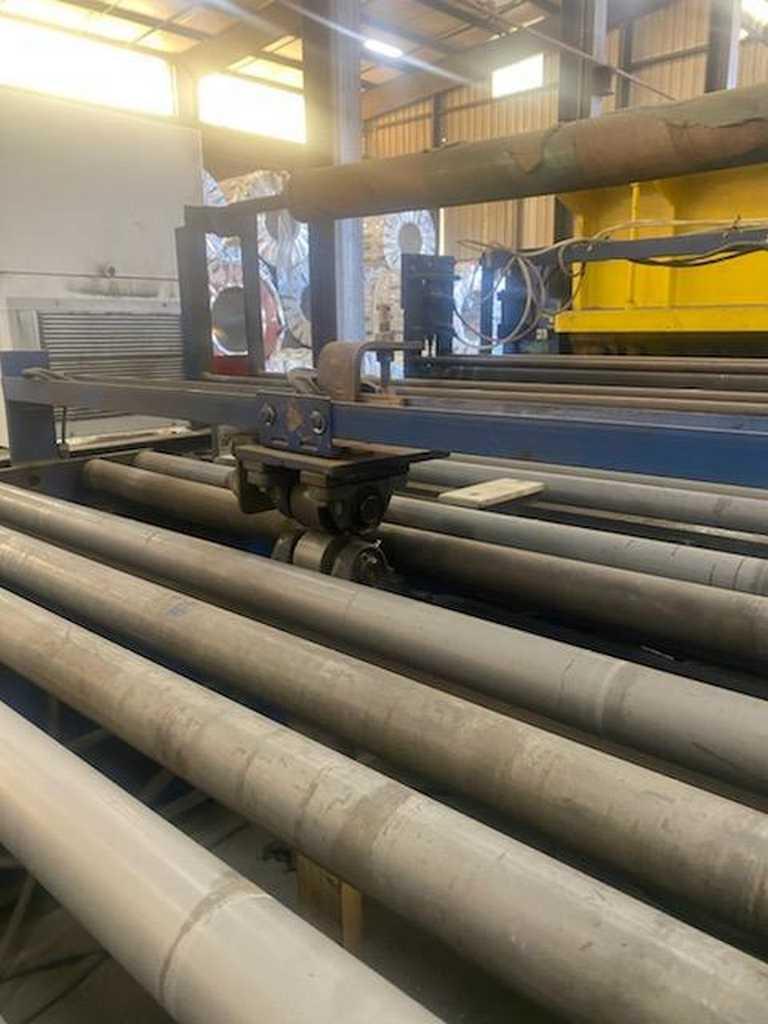

-Belt Runout Conveyor:
  Twin Driven Belts

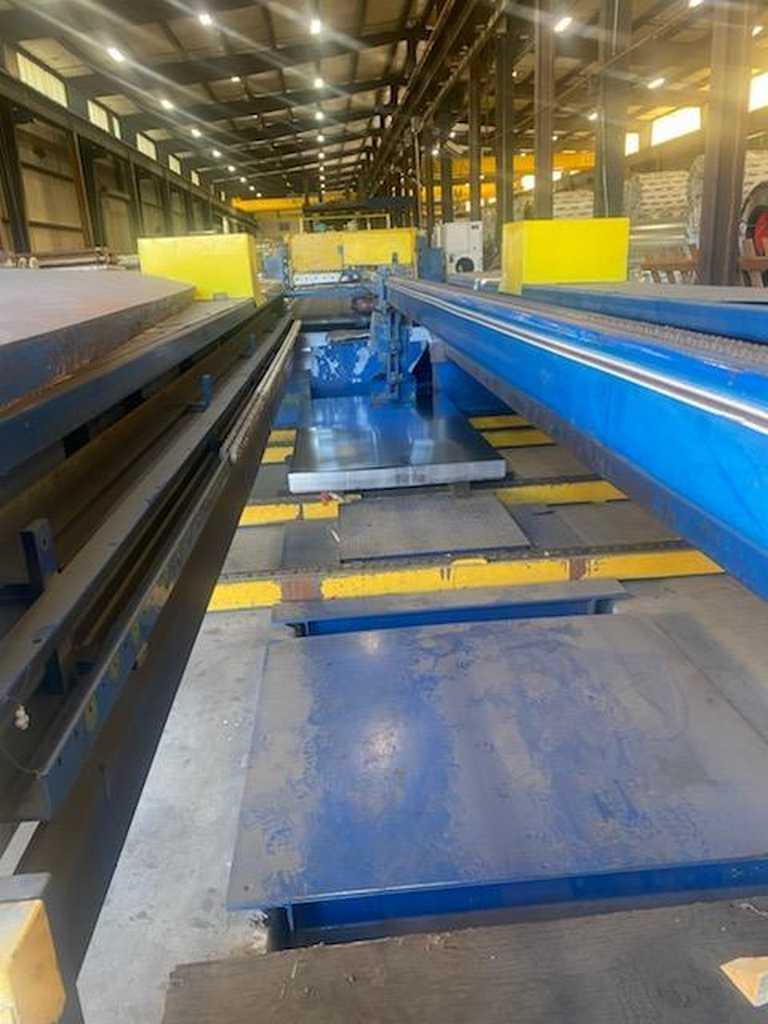

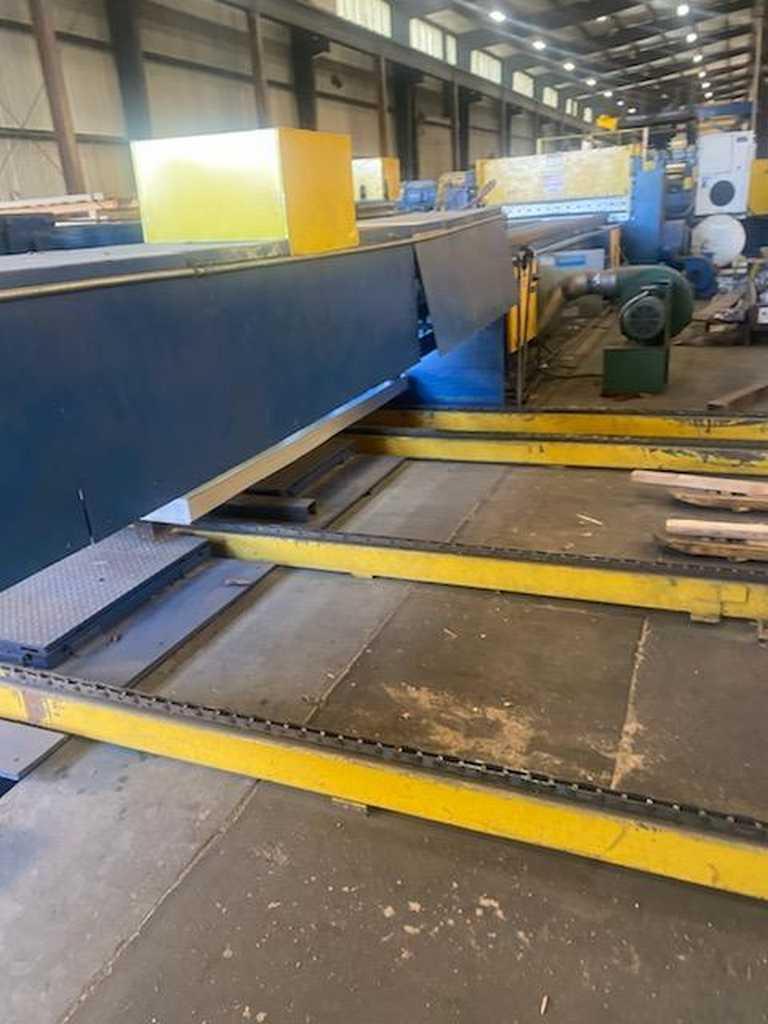

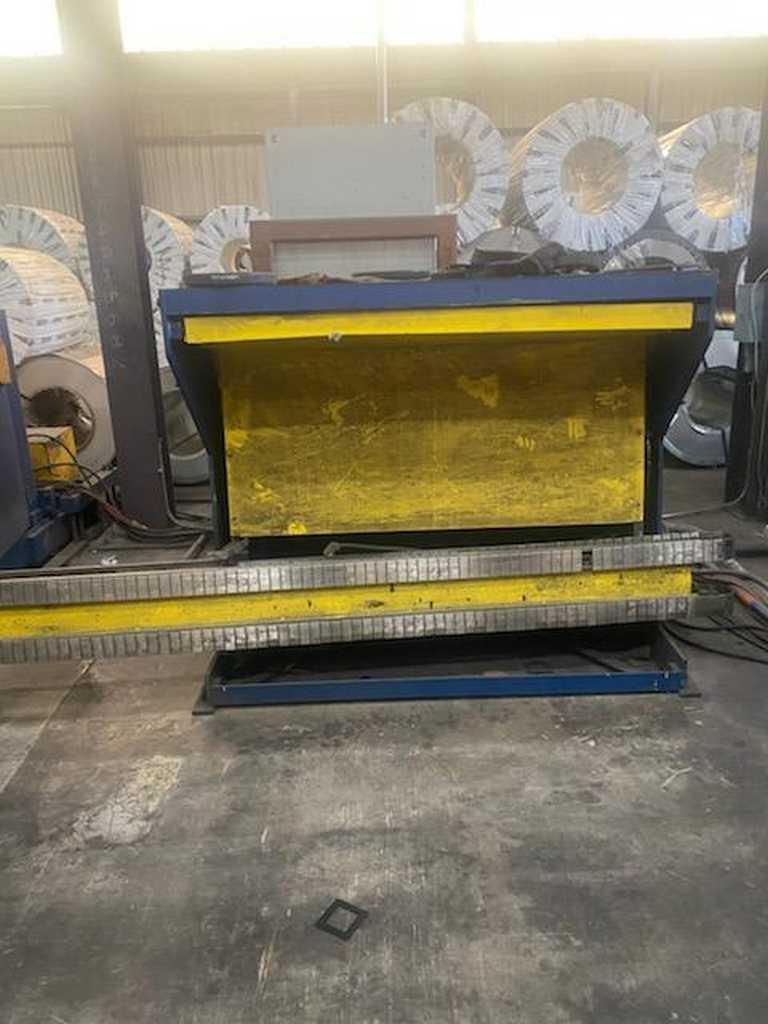

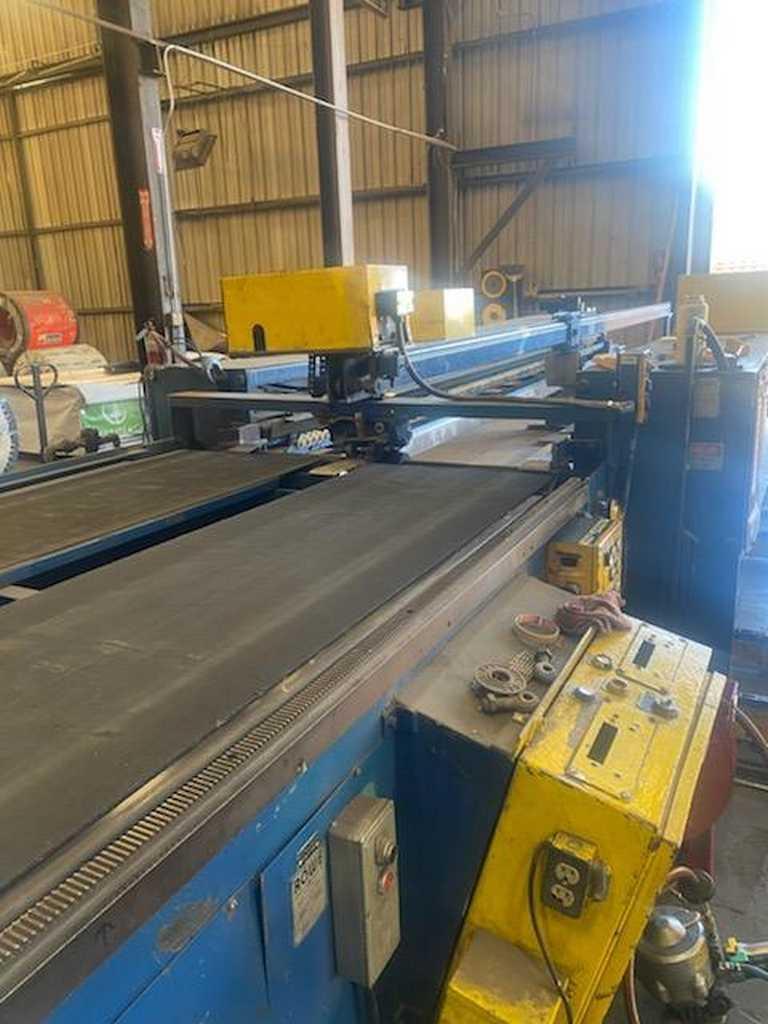

-Stacker:
  Powered Length Adjustment
  Powered Width Adjustment
  Side Discharge Chain Conveyor
  Air Blower

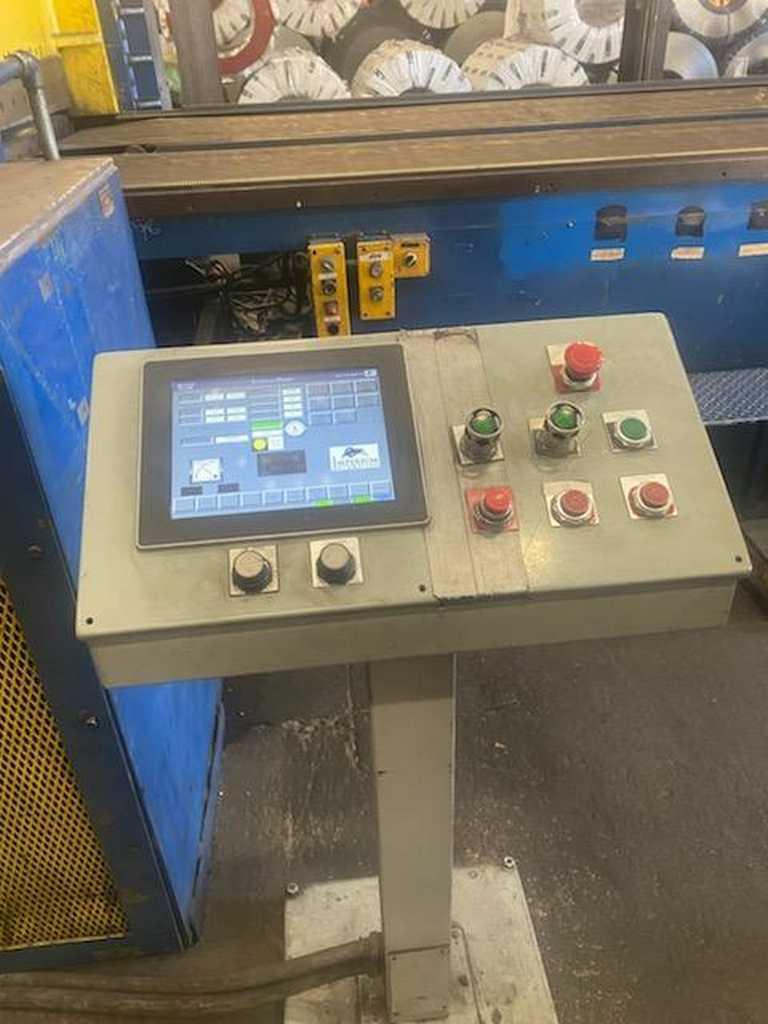

-Operators Control Panel:
  Touch Screen Panel

-New Electrics added in 2024

-Line is Removed and in Storage
