60" x 0.125" x 40,000# Paxson Cut To Length Line STOCK# 4233

Brand
Not specified
Category
Coil Handling Equipment
Type
Cut To Length Lines
Model
Not specified
Stock #
4232
Year
Not specified
Condition
Not specified

Location

Ohio

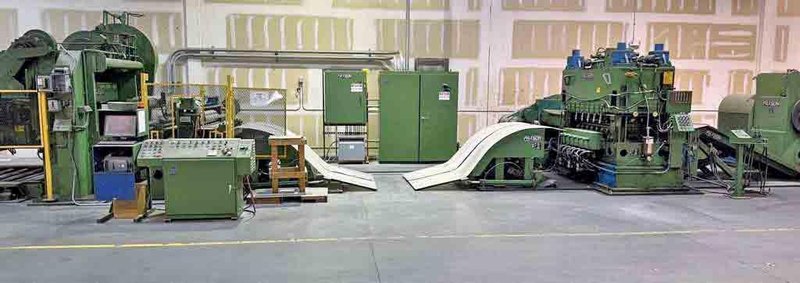

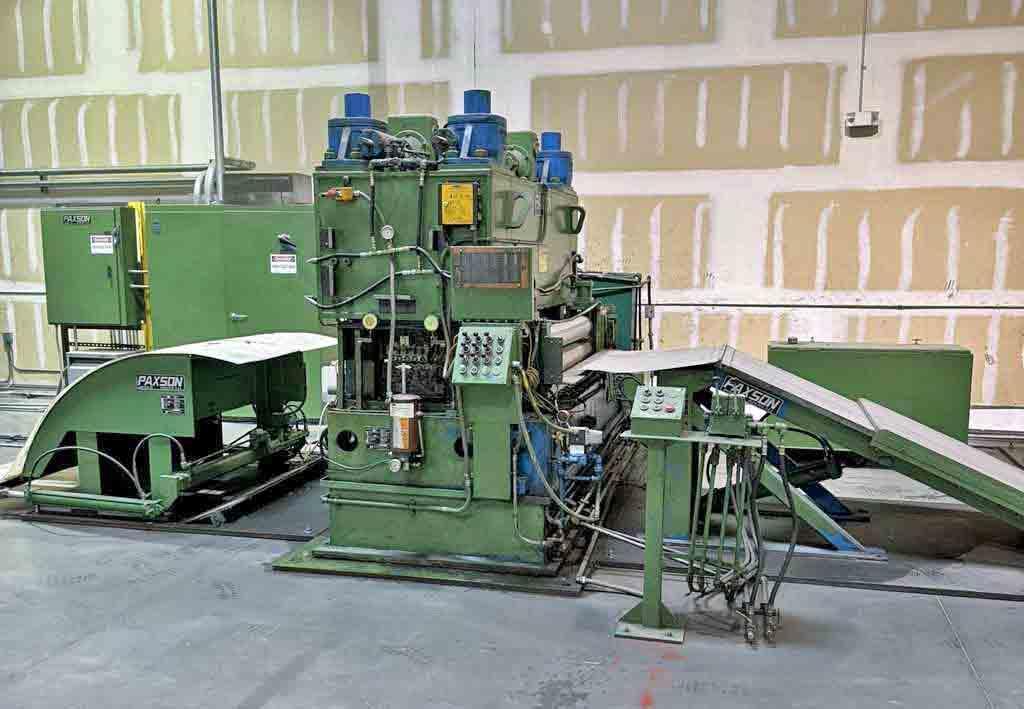

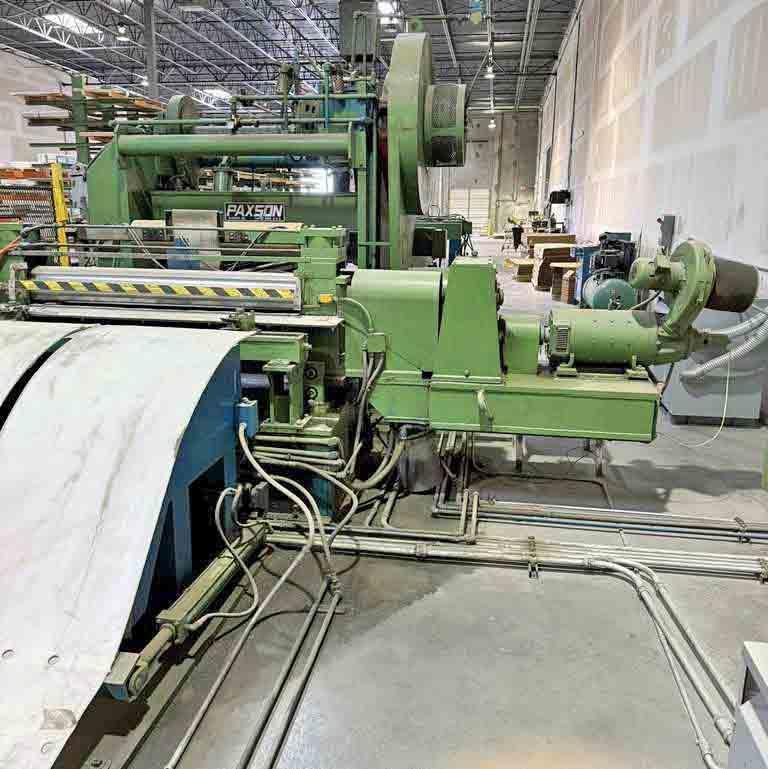

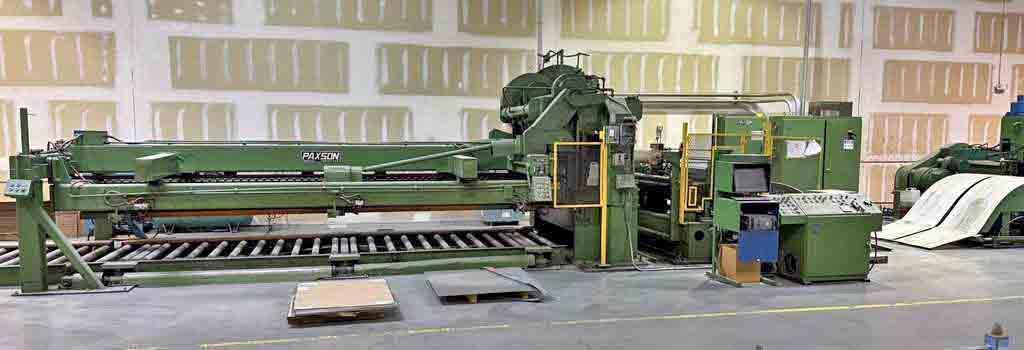

Paxson Cut to Length Line

-Width:                     60"
-Thickness:                 0.020" - 0.125" @ 50,000 PSI Shear Strength
-Coil I.D.:                 20" - 24"
-Coil Weight:               40,000 lbs.
-Line Speed:                30 - 300 FPM
-Line Direction:            Right to Left

Consisting of the following:

-Entry Coil Car:
  Above Floor Type
  48" Wide Bed
  Distance from Floor to bottom of "V" Cradle: 10" approx.
  Hand Pendant Control
  Self-Contained Hydraulic Power Unit
  Overall Size: 94" L x 52" W x 56" High

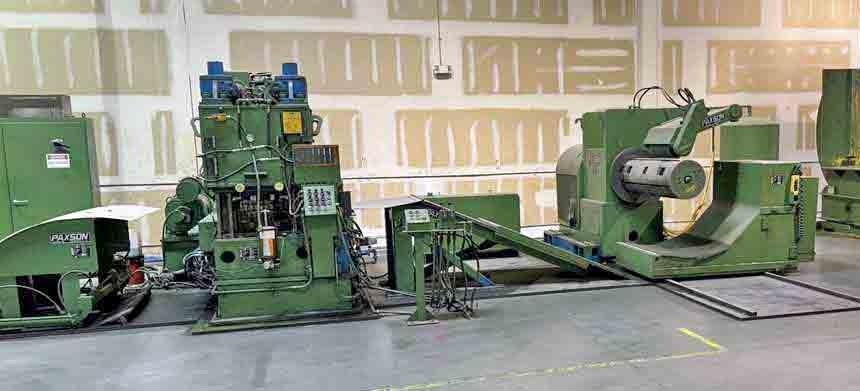

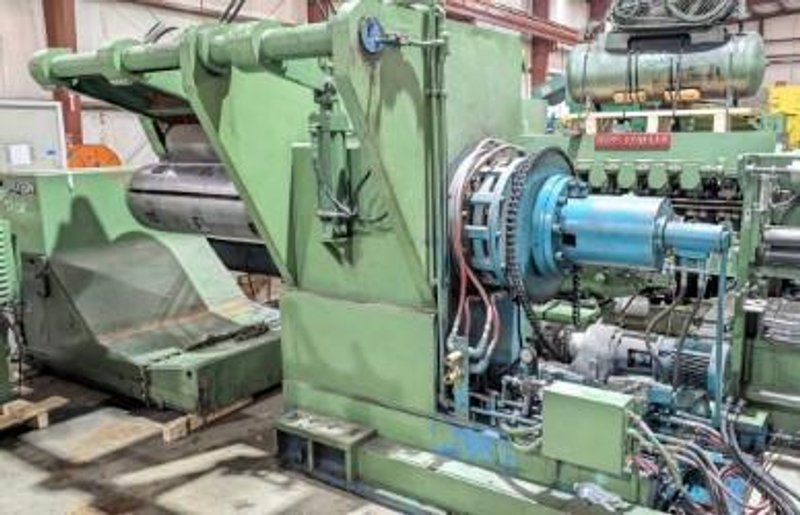

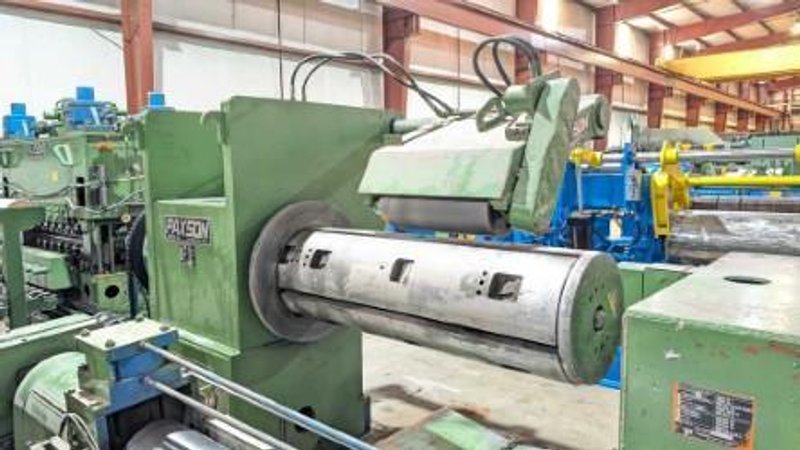

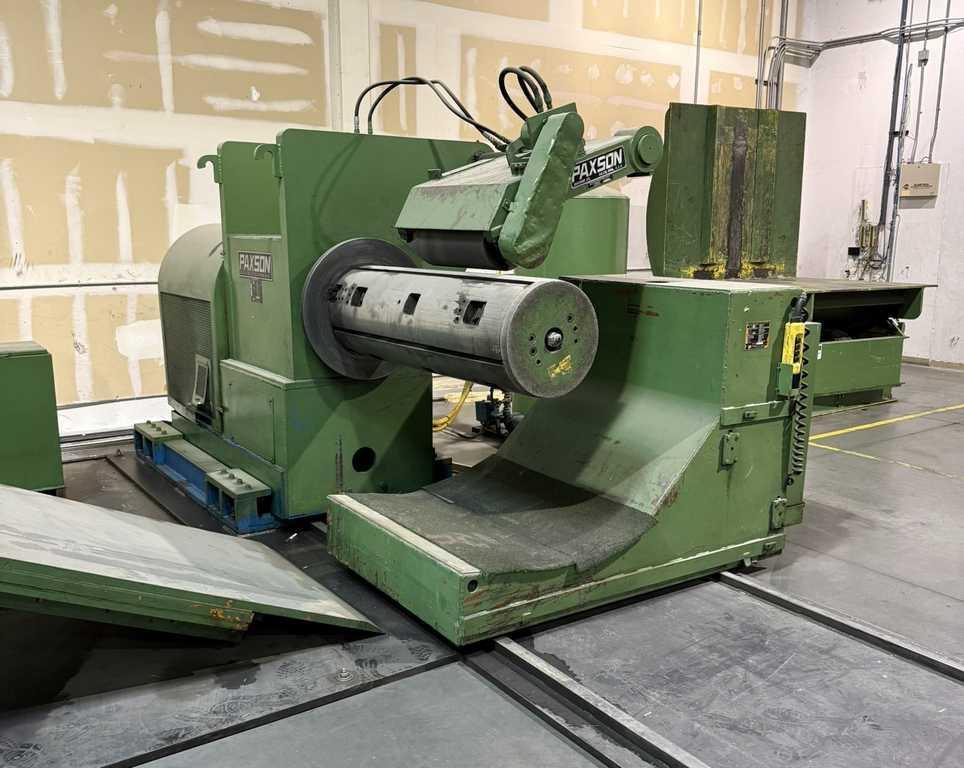

-Uncoiler:
  Mandrel Type
  60" Face Mandrel
  Hydraulic Expansion
  Powered Overarm Holddown
  Slide Base
  Water Cooled Brake
  Hydraulic Motor Feedup
  Distance from Floor to center of Mandrel: 48"
  Overall Size: 166" L x 95" W x 65" High

-Peeler Table:
  Hydraulic Lift & Extend

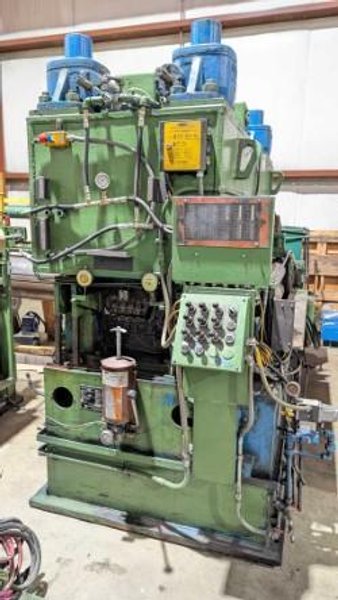

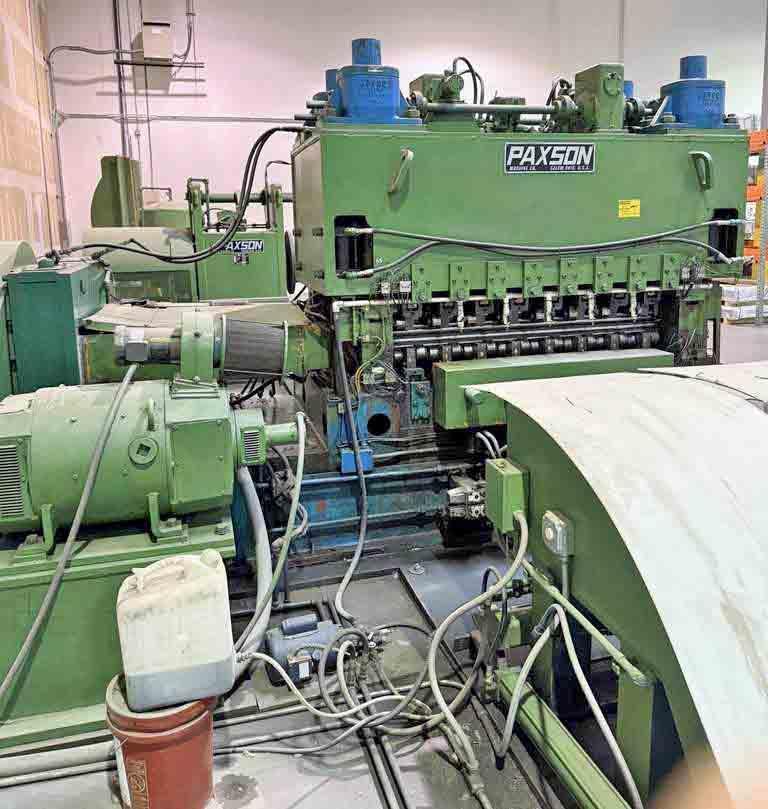

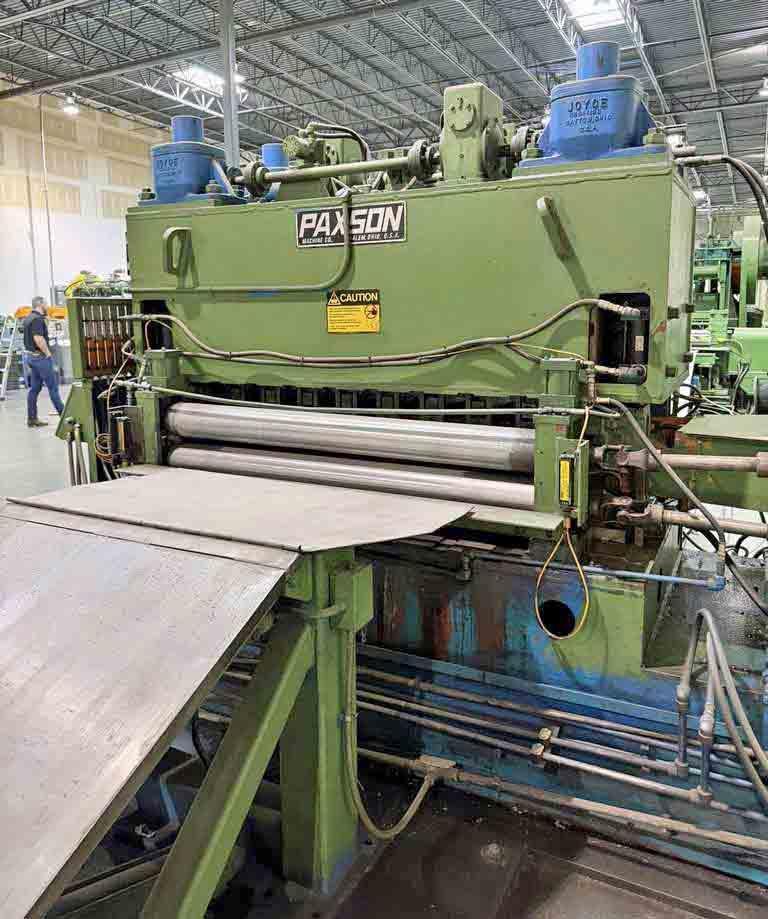

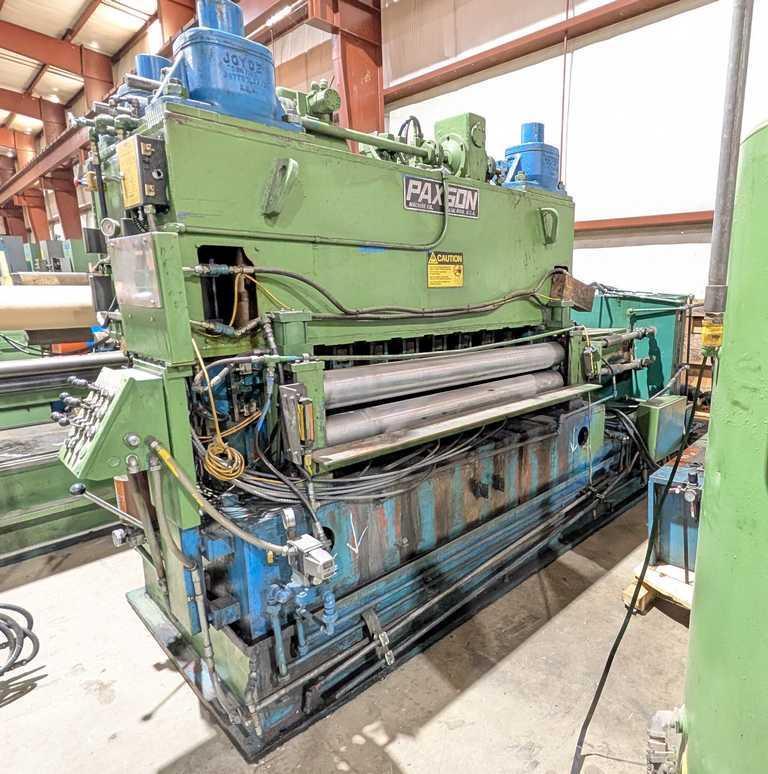

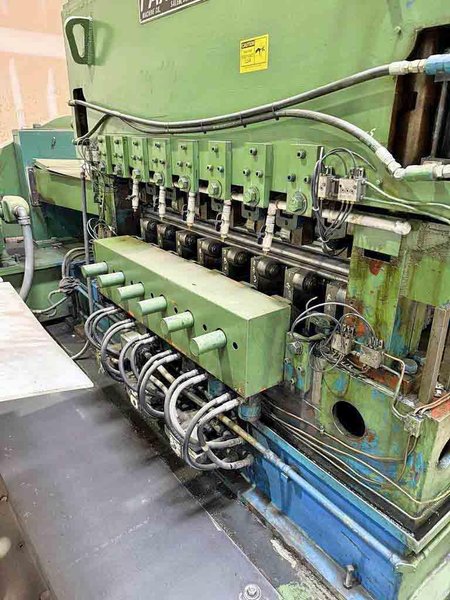

-Paxson Precision Leveler: 6 HI
  S/N: 11558-36-8-76

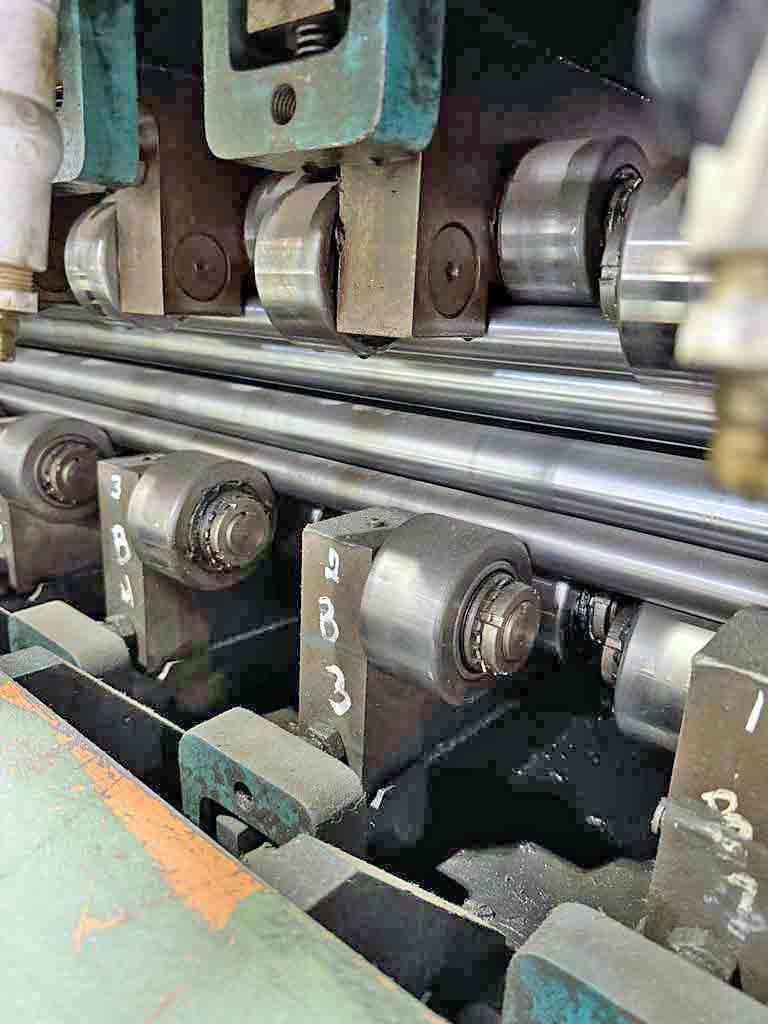

  1.750" Diameter x 74" Face Rolls
  Entry Pinch Rolls, Powered

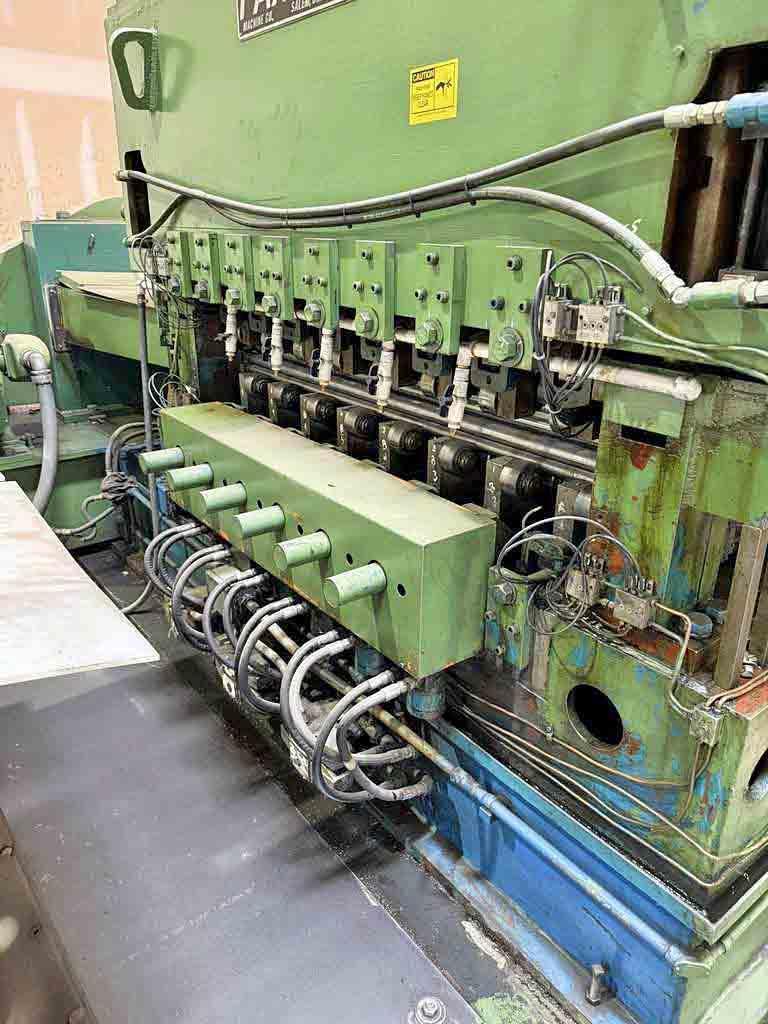

  8 Flights of Backups, (6 Flights Motorized)
  125 HP WER DC Motor, 1750/2000 RPM, 500 V
  Overall Size: 181" L x 75" W x 100" High

-Cascade - Loop Table:

-Roll Feed:
  Entry Side Guides
  Full Width Rolls
  Paper/Vinyl Applicator
  30 HP Emerson DC Motor

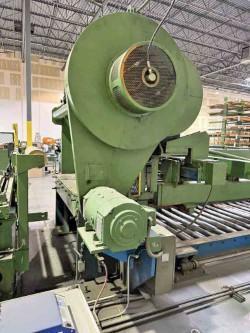

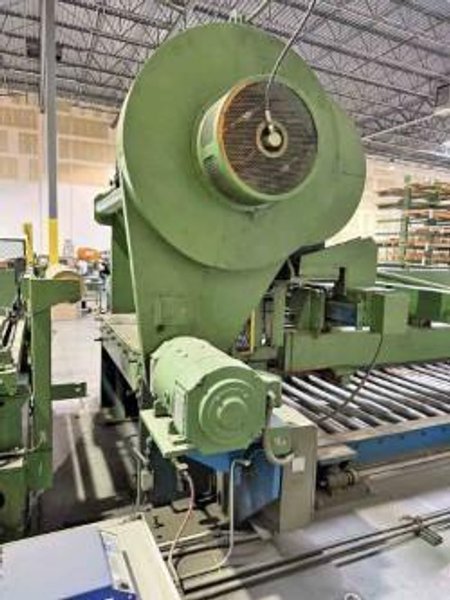

-High Speed Shear:
  Over Driven, Mechanical
  Manual Blade Gap Adjust
  30 HP WER DC Drive Motor, 1750 RPM, 500 V
  Air Clutch/Brake

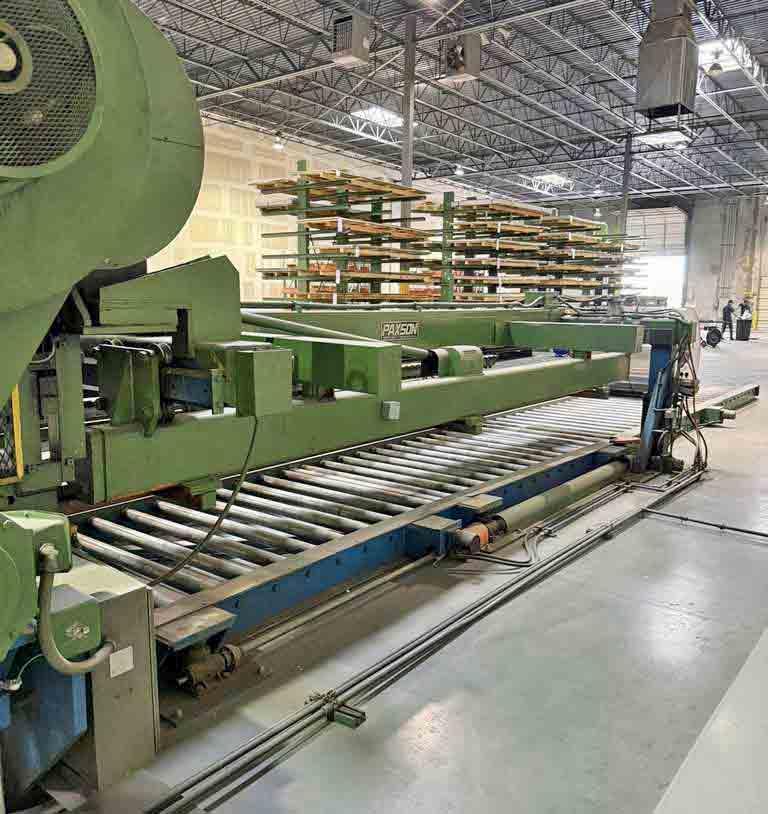

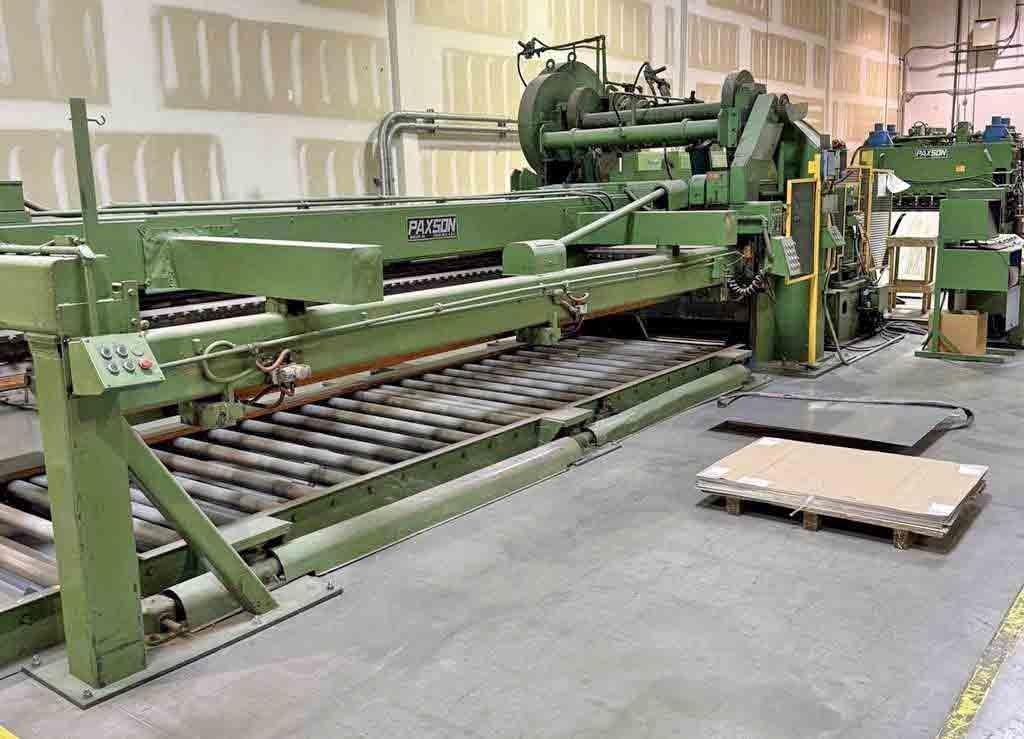

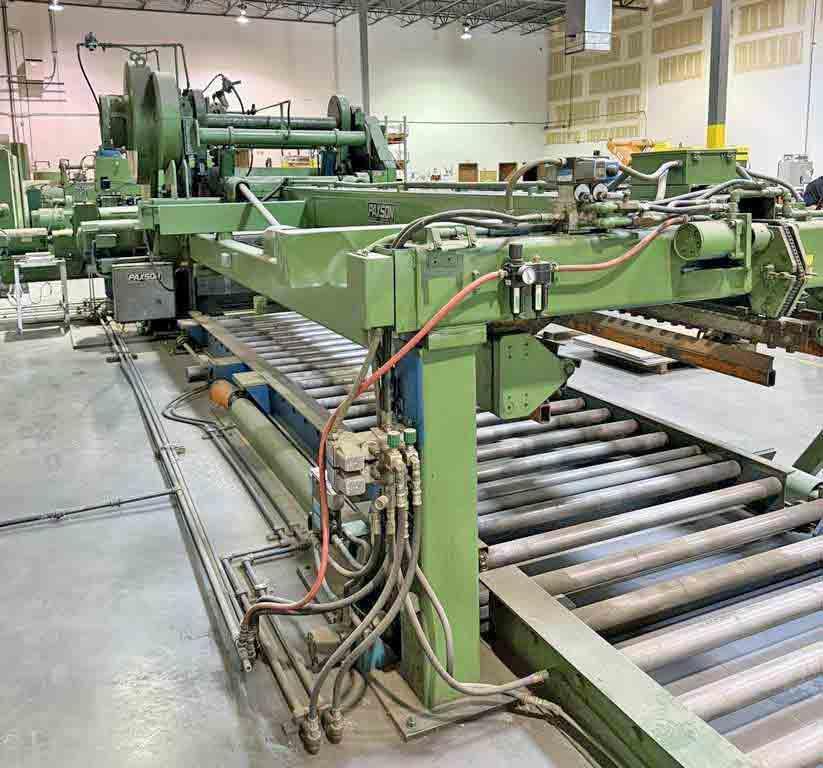

-Automatic Stacker:
  Flipper Arm Type
  Powered Width Adjustment
  Powered Length Adjustment
  Non Scratching Roller Supports
  20' Maximum Length
  Mechanical Screw Jack Lift Table
  Powered In-Line Eject Conveyor

-Exit Runout Conveyor:
  Powered Rolls

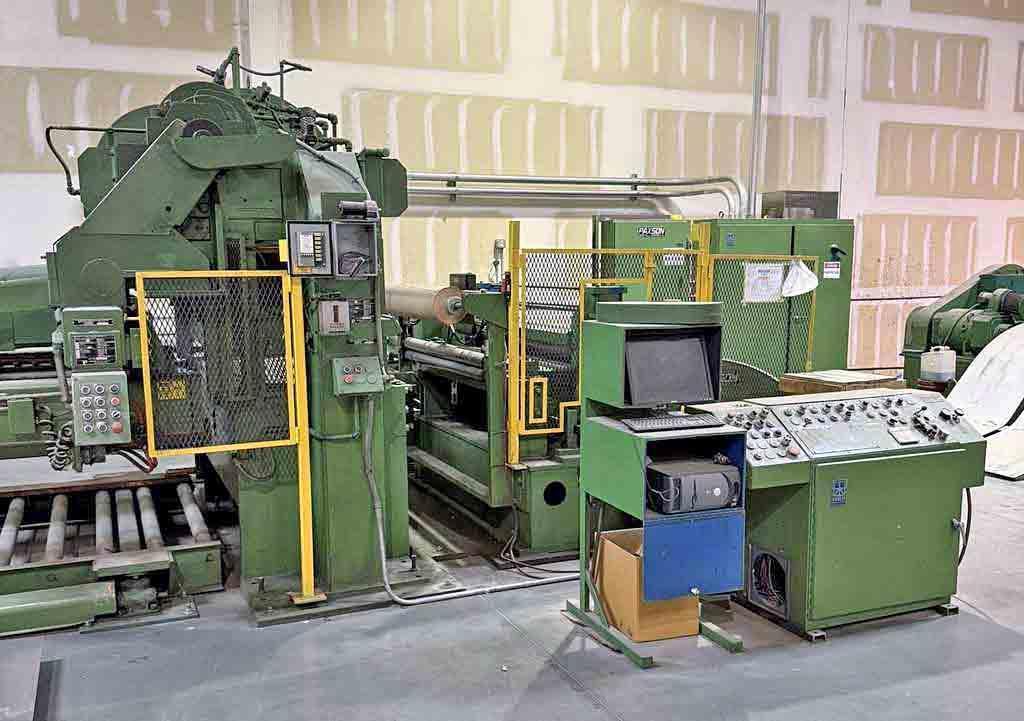

-Main Operators Control Panel:

-Water Cooler:

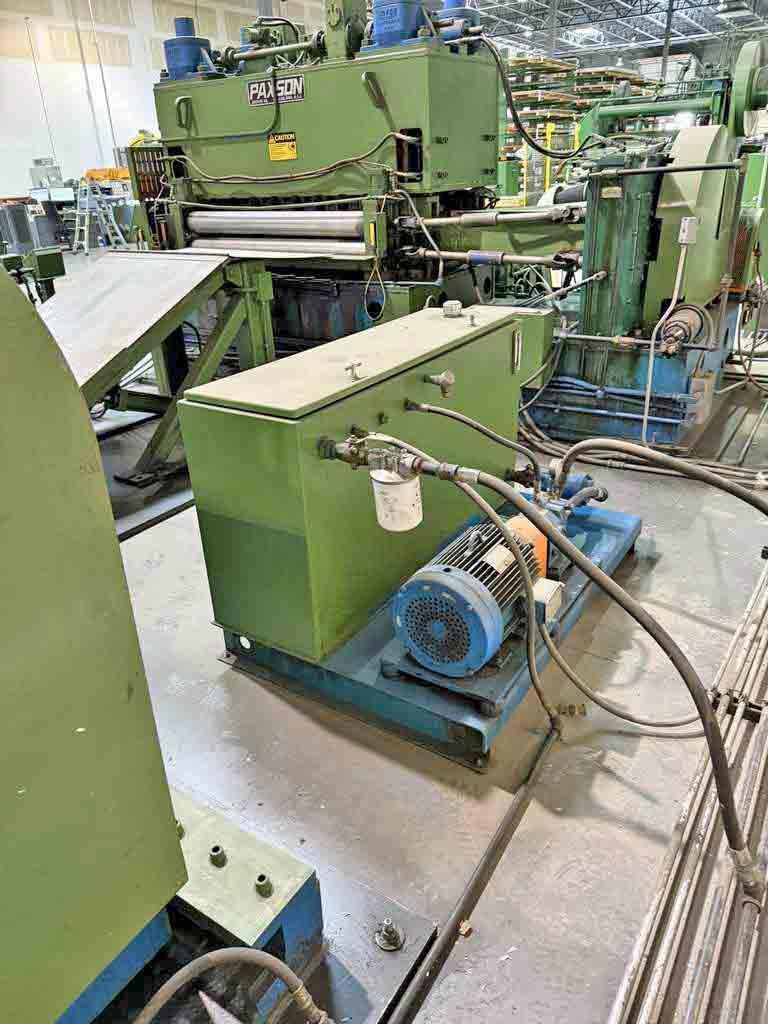

-Main Hydraulic Power Unit:

-Electrical Controls and Drives:

-Line is in Storage: Toledo, OH.
