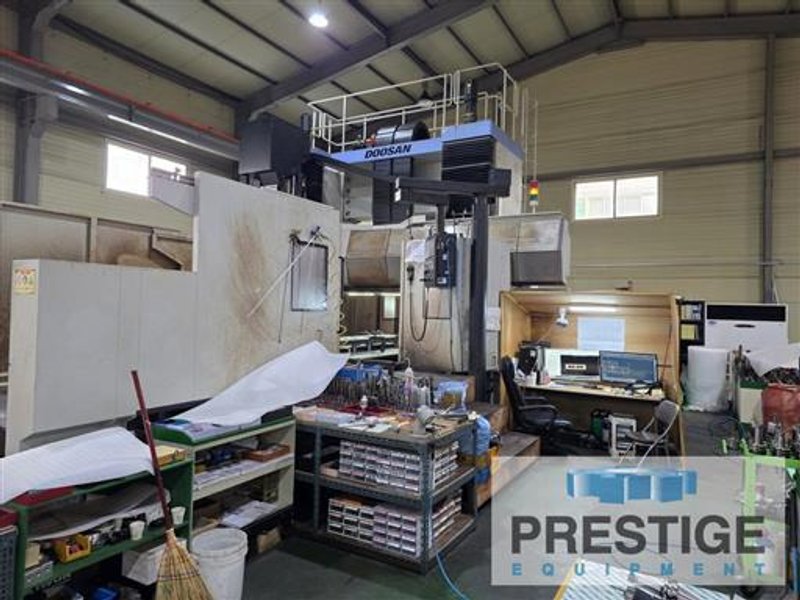

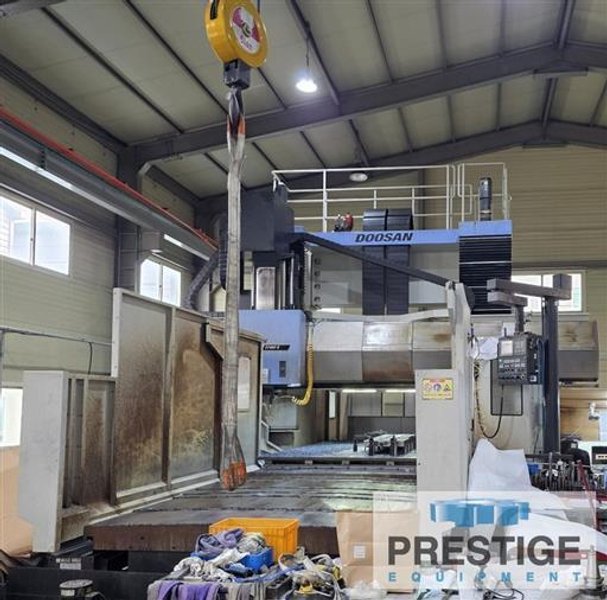

Machining Centers Vertical Bridge Type CNC

Brand
DOOSAN
Category
Machining Centers
Type
Gantry Machining Centers (incld. Bridge & Double Column)
Model
DCM 2740F 5-Face
Stock #
44889
Year
2019
Condition
Not specified

Location

Not specified
SPECIFICATIONS:
X-Axis Table Travel 167.32"
Y-Axis Head Cross Travel 125.98"
Z-Axis Ram Vertical Travel 27.55"
W-Axis Cross Rail Vertical Travel 43.31"
Distance From Table to Spindle Nose 78.74"
Width Between Columns 106.29"
Working Surface 86.61" x 161.41"
Table Load Capacity 44,000 Lbs.
Spindle Speeds (2-Range) 0-6,000 RPM
Spindle Taper BT-50
Spindle Drive Motor 33.5 HP



Equipped With:

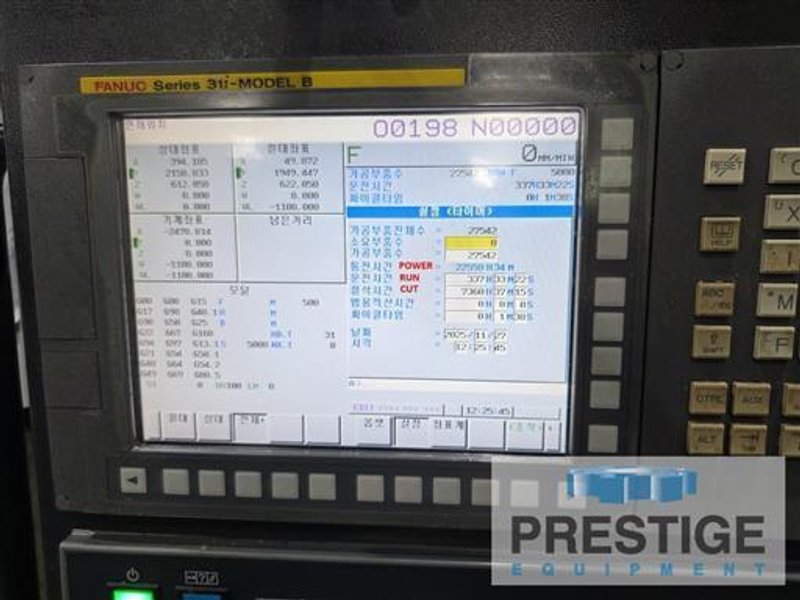

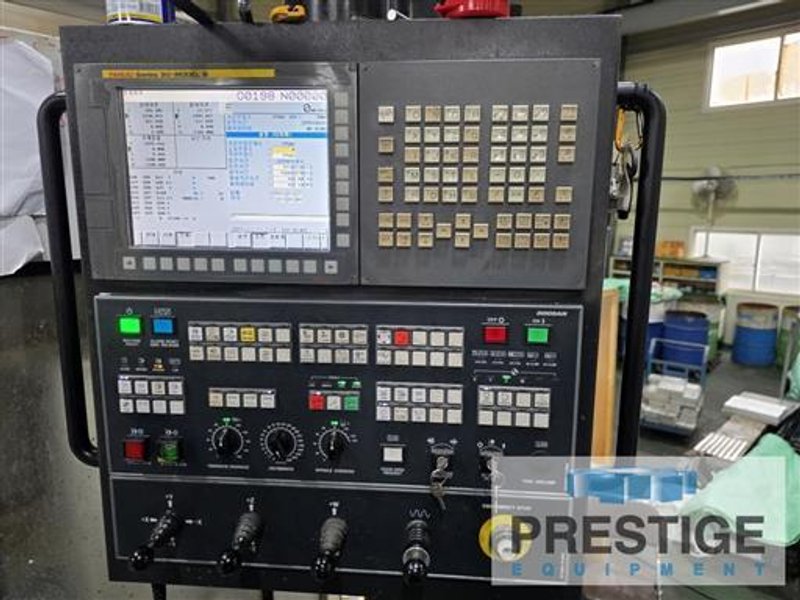

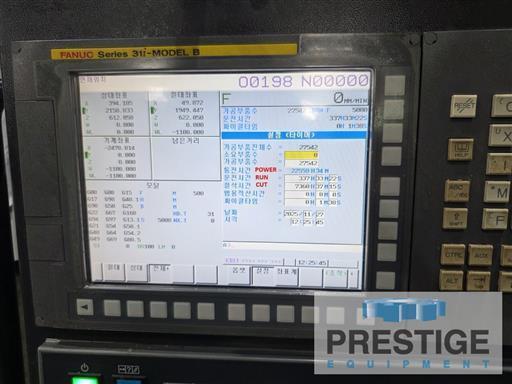

Fanuc 31i-MB CNC Controls
60-Station Automatic Tool Changer
90 Degree Right Angle Head with 1-Degree Indexing
4-Station AAC
Scales on X,Y,Z & W Axes
Chip Conveyor
No files or videos to display
