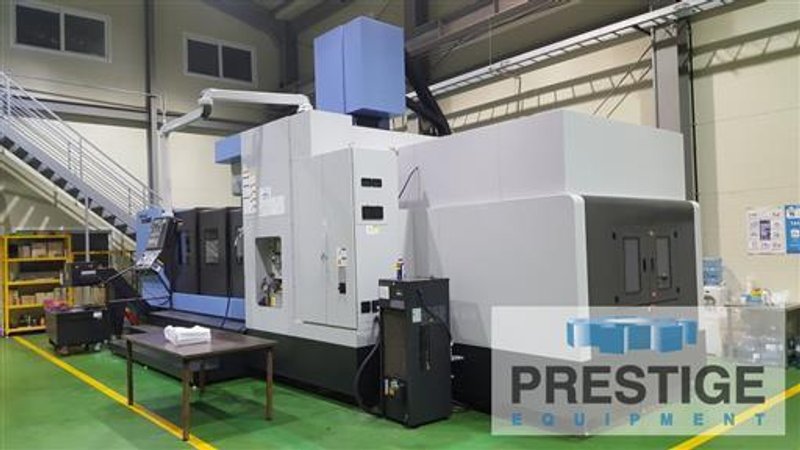

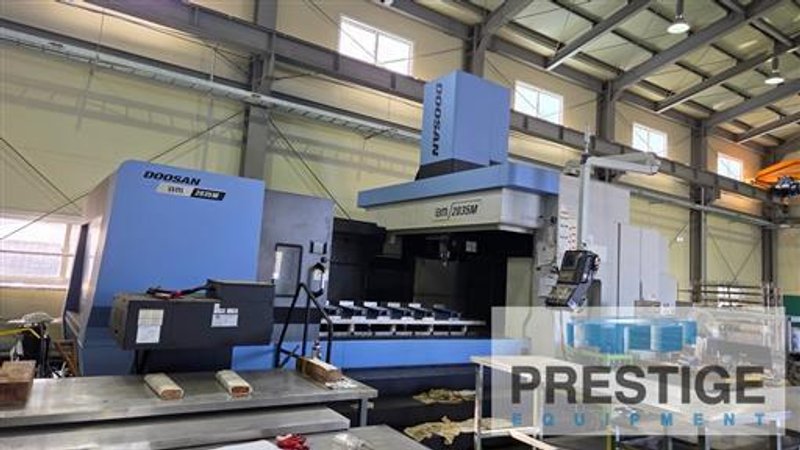

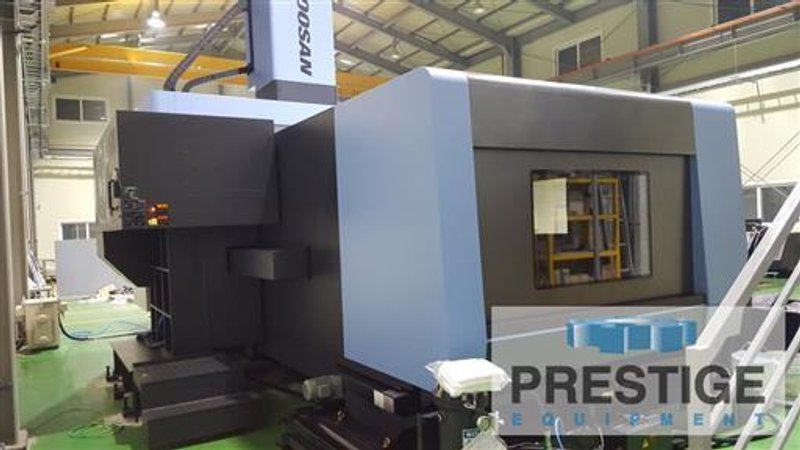

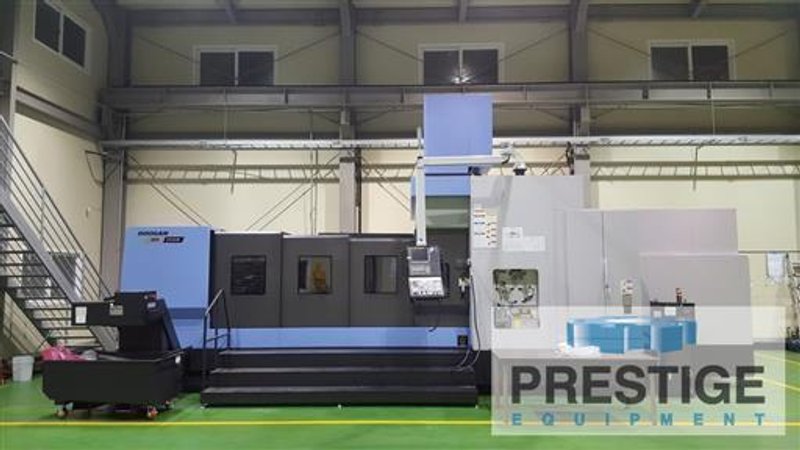

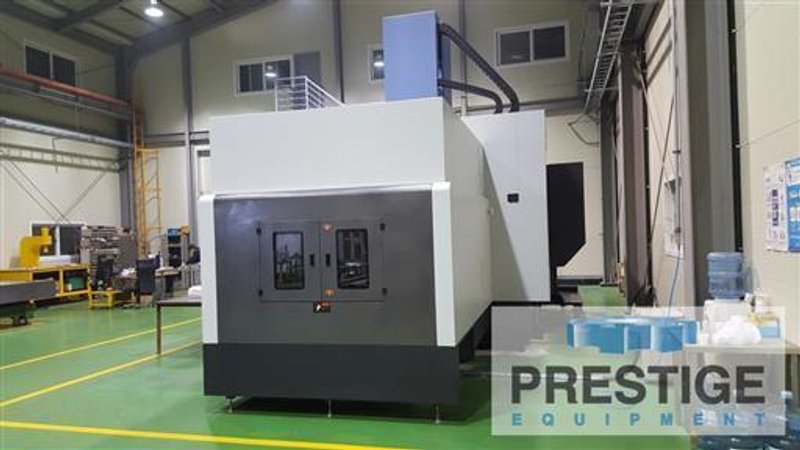

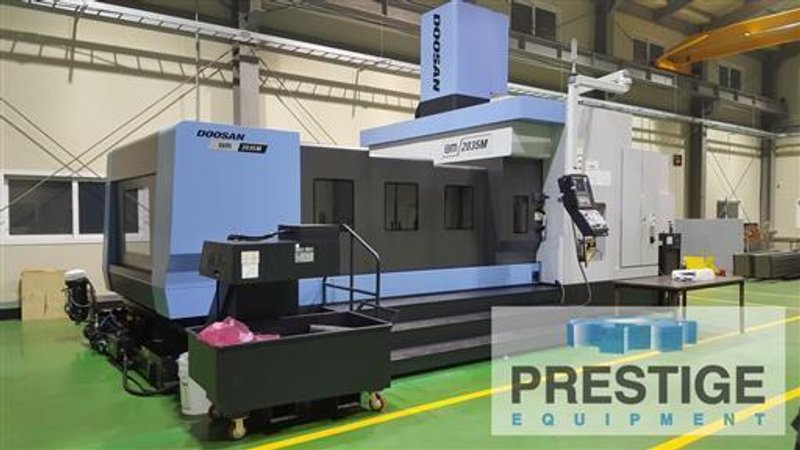

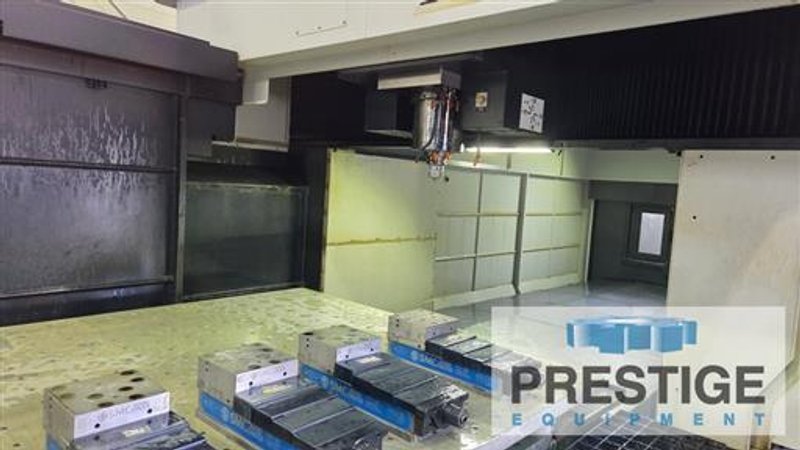

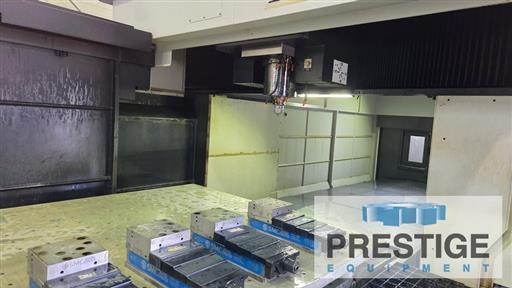

Machining Centers Vertical Bridge Type CNC

Brand
DOOSAN
Category
Machining Centers
Type
Gantry Machining Centers (incld. Bridge & Double Column)
Model

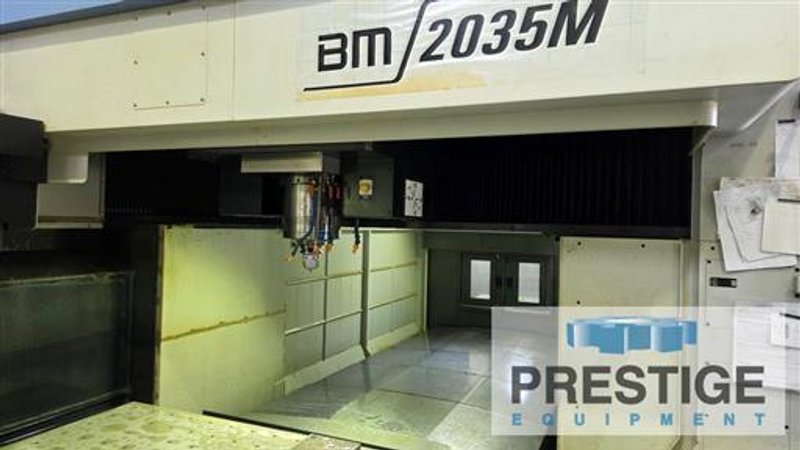

BM2035M
Stock #
44775
Year
2019
Condition
Not specified

Location

Not specified
REQUEST FINANCING
SPECIFICATION:
X-Axis Travel 137.79"
Y-Axis Travel 80.70"
Z-Axis Travel 31.49"

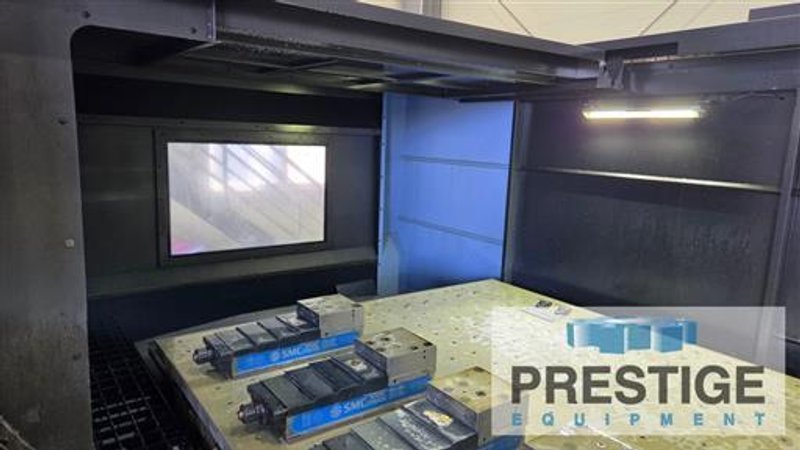

Table Dimensions 72.83" x 137.79"
Table Capacity 22,000 Lbs.
Distance Between Columns 86.61"
Distance Spindle Nose - Table 7.87" - 39.37"
Spindle Speed 12,000 RPM
Spindle Taper Big Plus BT-50
Main Motor 40 HP
Approximate Machine Weight 78,100 Lbs.



Equipped With:
Fanuc 31iB CNC Control
40-Station Automatic Tool Changer
Helical Interpolation

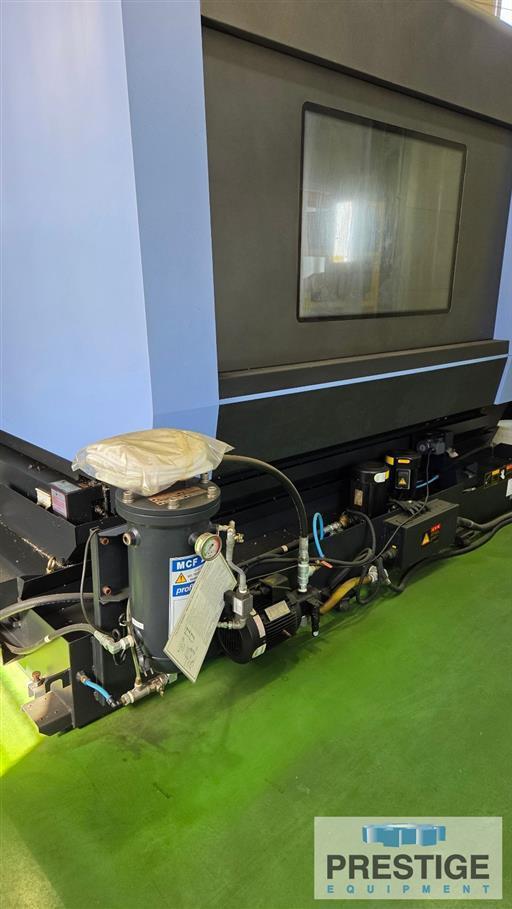

Thru Spindle Coolant
Linear Scales on X/Y/Z Axes
Flood Coolant
40 HP Motor
Spindle Thermal Compensation
Full Enclosure
Chip Conveyor
220 Volt/3/60

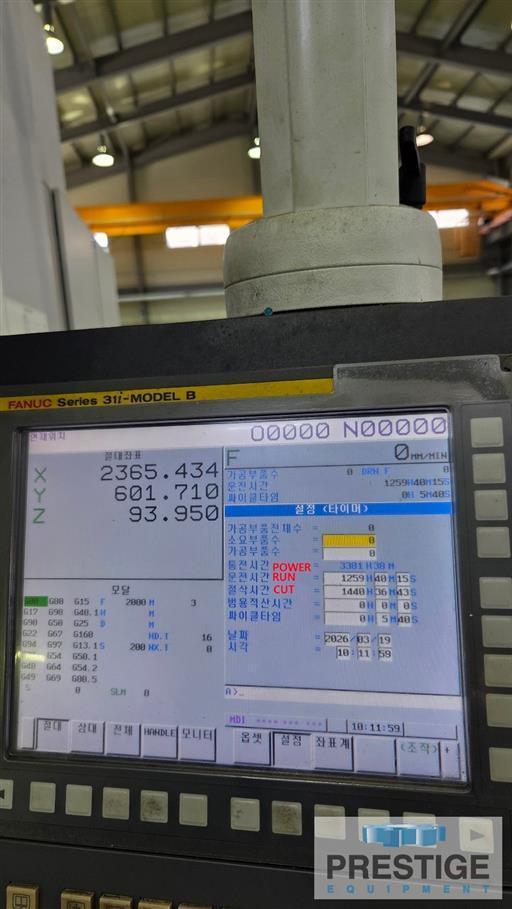

HOURS: Power On: 3,381
Cutting Hours: 1,440
No files or videos to display
