Lasers Fiber CO2 Tube

CAPACITY:
Rated Laser Output 3000 Watts
Maximum Diameter of Round Tubes 6"
Maximum Diameter of Rectangular Tubes 6.7"
Maximum Tube Material Length Loading 315"
Maximum Finished Part Length Unloading 252"
Mild Steel .375"
Stainless Steel .236"
Aluminum .196"



Equipped With:
Siemens Operator Control Panel
Bevel/Rapid Cut Technology Package
Adaptive Clamping System for Angles, Channels and Flats

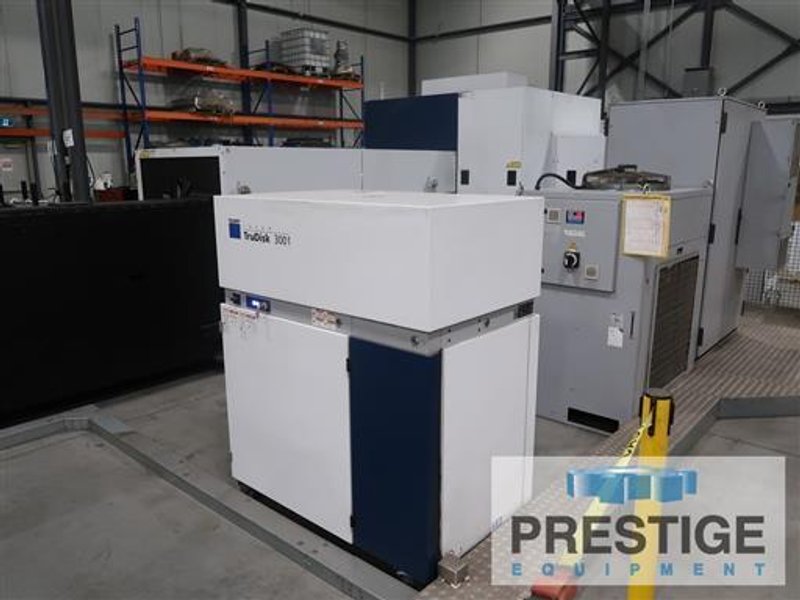

Trumpf TruDisk 3001 Resonator
Weld Seam Detection, Inner and Outer

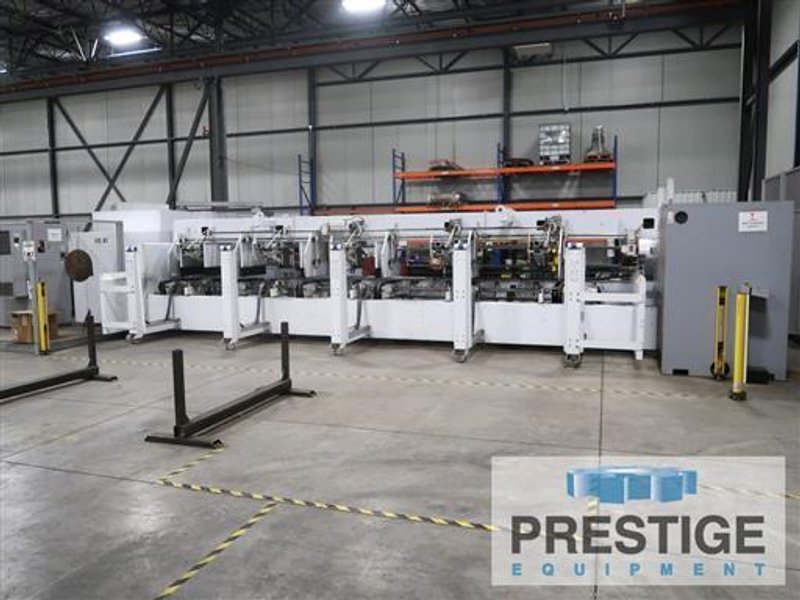

LoadMaster Tube 26' with Bundle Support

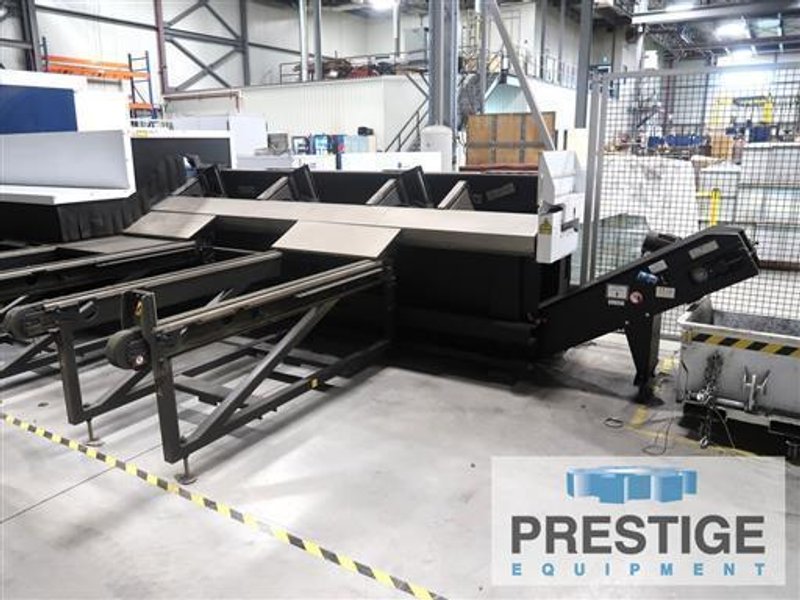

Finished Part Length for Unloading 21' with Scrap Conveyor
Dust Extractor
Riedel Chiller


LASER HOURS: Operating Hours:28,297
Laser On Hours:14,776


NOTE: Inspect Under Power in Plant
