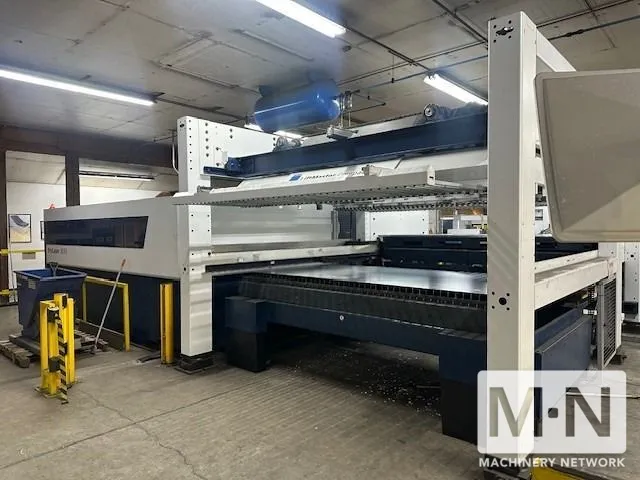

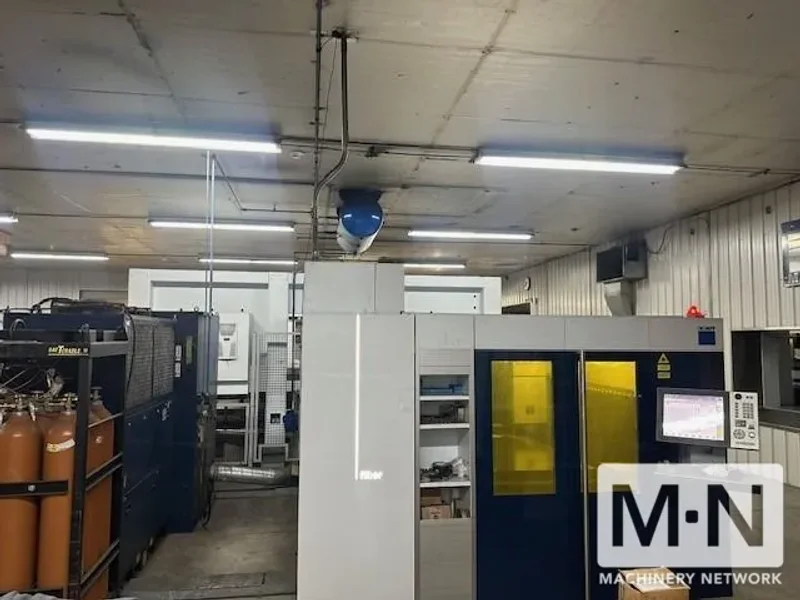

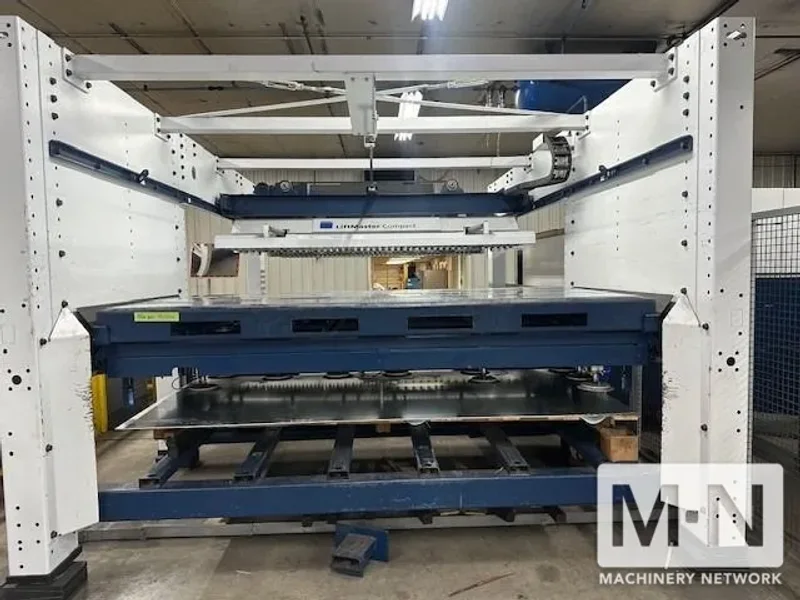

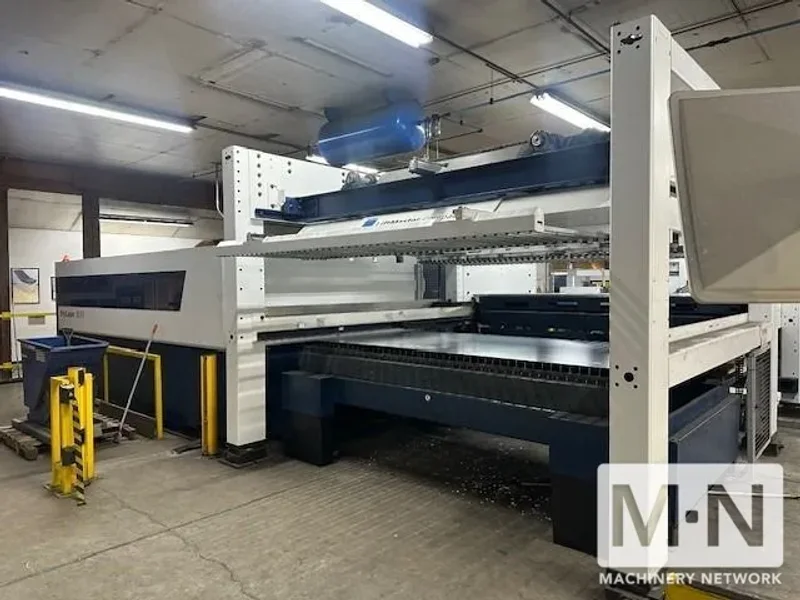

5016 TRUMPF TRULASER L3030 4KW FIBER W/LMC

Laser Source (4 kW Fiber)
Laser type: TruFiber solid-state fiber laser
Power: 4,000 watts
Wavelength: ~1.03 µm (fiber standard)
Advantages:
Cuts reflective metals (copper, brass, aluminum)
Faster thin-gauge cutting vs CO₂
Lower maintenance (no mirrors/turbines)
🔩 Cutting Capacity (4 kW)

(Real-world ranges depend on material quality & assist gas)

Mild steel:
~7/8" (22 mm) standard
Up to ~1" (25 mm) with thick-sheet package
Stainless steel:
~3/4" (20 mm) standard
Up to ~1.4" (35 mm) with options
Aluminum:
~3/4" (20 mm)
Copper:
~5/16" (8 mm)
Brass:
~1/2" (≈12.7 mm typical upper range for higher configs)
🚀 Motion & Performance
Max simultaneous speed: ~170 m/min (≈6,700 ipm)
Acceleration: High dynamic linear drives (TRUMPF standard)
Positioning accuracy: ±0.001"–0.002" typical
Repeatability: ±0.0008" range
