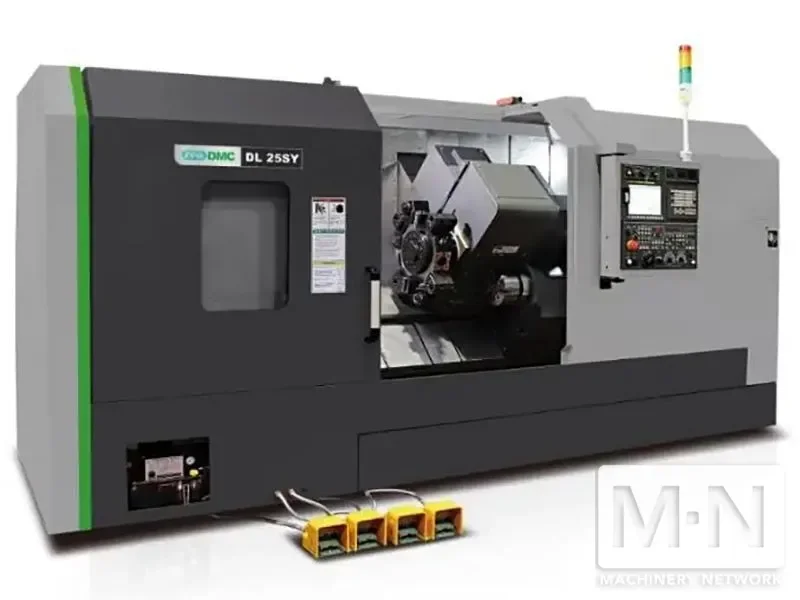

DMC DL25SY CNC Lathe w/ Milling (2) Available - BRAND NEW IN CRATE

Name: DMC DL25SY CNC Lathe w/ Milling (2) Available - BRAND NEW IN CRATE
Brand: DMC
SKU: 53193
Availability: InStock

Brand

DMC

Location

Not specified

Specifications
Files & Videos

Overview

Type:

CNC Lathes

Manufacturer:

DMC

Model:

DL 25SY

Stock #:

53193

Status:

For Sale

ImperialMetric

Swing	27.95"	709.93 mm
Machining Length	39.37"	1,000 mm
Max. Turning Length	39.37"	1,000 mm
Max. Turning Diameter	15.75"	400.05 mm
X-Axis	8.27"	210.06 mm
Y-Axis	±2.16"	±2.16"
Z-Axis	41.34"	1,050 mm
Chuck Size	8"	203.2 mm
Bar Capacity	2.99"	75.946 mm
Spindle Bore	3.39 in
Spindle Nose	A2-8	A2-8
Power	29.5 hp	22 kW
Max RPM	4,000 RPM	4,000 RPM
Turret Stations	12	12
Sub Spindle Power	20.12 hp
Sub Spindle Max RPM	6000 rpm	6,000 RPM
Sub Spindle Chuck	6 in
Sub Spindle Bar Capacity	2.56 in
Sub Spindle Bore	2.99 in
Sub Spindle Nose	A2-6	A2-6
Weight	17,196 Lbs	17,196 Lbs

Fanuc 0i-T CNC Control
X/Z Box Way
Chip Conveyor
Bar Feeder Interface
Tool Presetter
Parts Catcher/Parts Catcher
Parts Ejector

No files or videos to display
