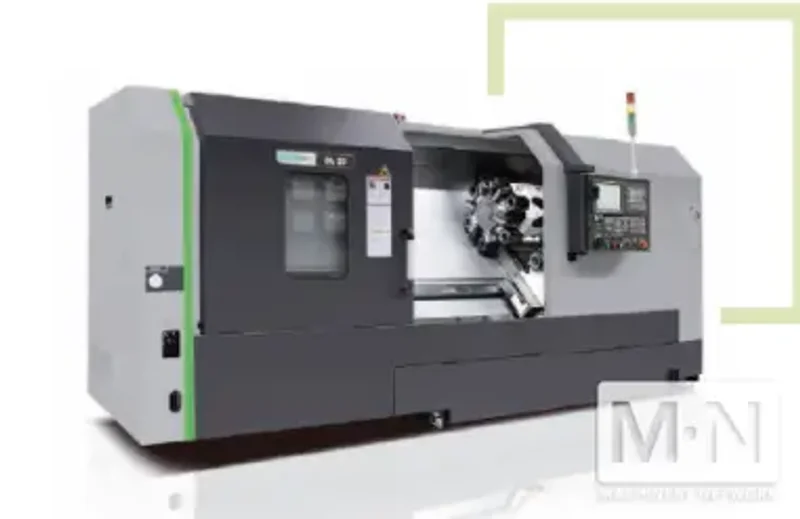

DMC DL25M CNC Lathe w/ Milling (2) Available - BRAND NEW IN CRATE

Name: DMC DL25M CNC Lathe w/ Milling (2) Available - BRAND NEW IN CRATE
Brand: DMC
SKU: 53186
Availability: InStock

Brand

DMC

Location

Not specified

Specifications
Files & Videos

Overview

Type:

CNC Lathes

Manufacturer:

DMC

Model:

DL 25M

Stock #:

53186

Status:

For Sale

ImperialMetric

Swing	24.02"	610.11 mm
Machining Length	42.52"	1,080 mm
Max. Turning Length	42.52"	1,080 mm
Max. Turning Diameter	15.75"	400.05 mm
X-Axis	9.06"	230.12 mm
Z-Axis	44.49"	1,130 mm
Spindle Taper	A2-8	A2-8
Chuck Size	10"	254 mm
Bar Capacity	2.99"	75.946 mm
Spindle Bore	3.39 in
Spindle Nose	A2-8	A2-8
Power	24.8 hp	18.5 kW
Max RPM	3,500 RPM	3,500 RPM
Turret Stations	12	12
Tailstock	Yes	Yes
Dimensions	154.33" x 71.26" x 80.71"	154.33" x 71.26" x 80.71"
Weight	15,652 Lbs	15,652 Lbs

Fanuc 0i-T CNC Control
X/Z Box Way
Programmable Tailstock
Programmable Quill
Chip Conveyor
Bar Feeder Interface
Tool Presetter
