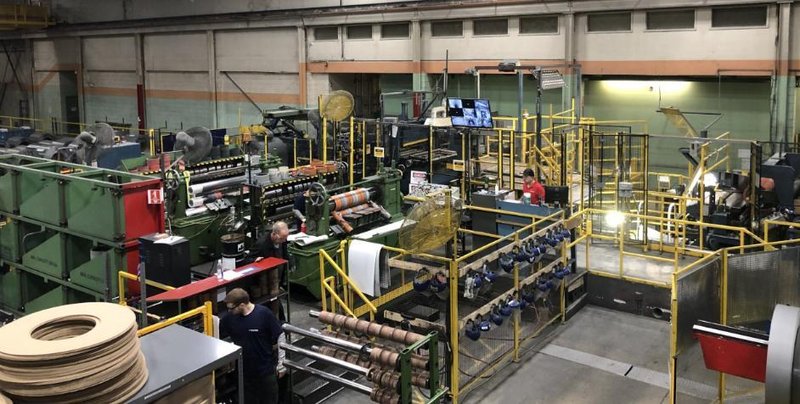

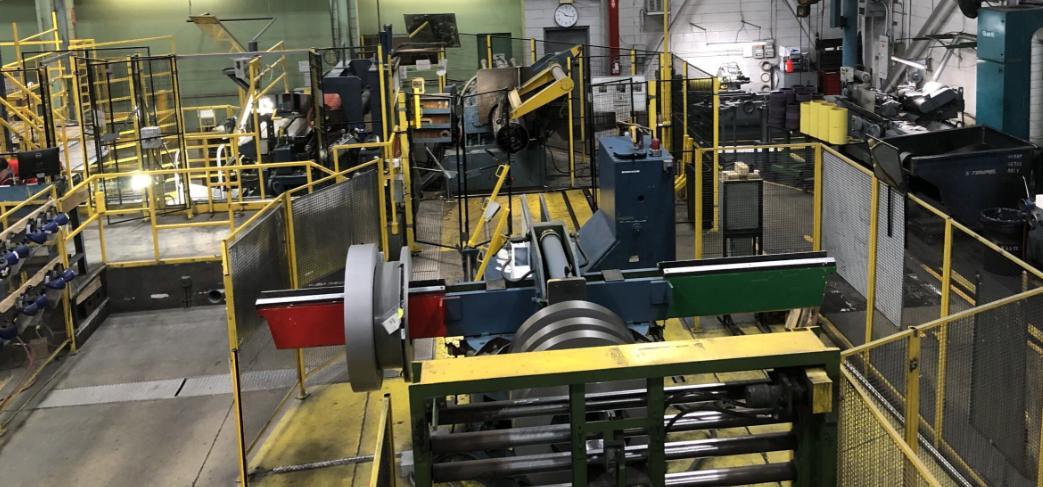

50" x .050" x 50,000# PRO-ECO SILICON STEEL DOUBLE LOOP PRECISION SLITTING LINE

MANUFACTURER – PRO-ECO

TYPE – PRECISION DOUBLE LOOP SLITTING LINE

MATERIAL – GRAIN ORIENTED, NON-GRAIN ORIENTED, SILICON STEEL, COLD ROLLED STEEL

SHEAR STRESS – 100,000 PSI – SILICON STEEL | 60,000 COLD ROLLED STEEL

MAX YIELD STRESS – 80,000 PSI

MIN YIELD STRESS – 30,000 PSI

MAX COIL WEIGHT – 50,000 LBS ENTRY/EXIT

MAX COIL WIDTH – 48” NOMIMAL (50” MAXIMUM) ENTRY/EXIT

MIN COIL WIDTH – 8” ENTRY / 1” EXIT

MAX COIL OD – 72” ENTRY / EXIT

MIN COIL OD - 36” ENTRY / EXIT

MAX STRIP THICKNESS – 0.025” IN – SILICON STEEL / 0.050” CRS

MIN STRIP THICKNESS – 0.010”

MAX CUTS - 32

LINE SPEED – 1200 FPM

ELECTRICAL – 575 V, 3 PH, 60 CYCLE

AIR SUPPLY – 80 PSI

LINE DIRECTION – LEFT TO RIGHT

MODE OF OPERATION – FULL LOOP DRIVE-SLIT, DOUBLE LOOP

LINE COMPONENTS:

COIL CAR

MANDREL UNCOILER

PEELER TABLE

ENTRY PIT

GUIDE TABLES

INTERMEDIATE GUIDES

FELT STAND BEFORE ENTRY SHEAR

ENTRY SHEAR

SIDE GUIDES

SLITTING HEAD

BUTECH SCRAP CHOPPERS

EXIT TABLE

PRESSURE & TENSION ROLL STAND

EXIT SHEAR

RECOILER WITH OVERARM SEPARATOR

EXIT COIL CAR

ALSO AVAILABLE:

INTEGRATED PACKAGAING LINE, INCLUDING:

EXIT TURNSTILE

DOWNENDER

WEIGHT SCALE UNDER SEMI-AUTOMATED BANDING LINE

5/8” STEEL BANDING

PICK AND PLACE STACKER

MAX CAPACITY 6000 LBS PER SLIT COIL

ROTATING CAROUSEL

EXIT CONVEYOR

SEMI-AUTOMATIC STRETCH WRAPPING MACHINE

WEIGHT STATION

CONTROLS, HYDRAULICS AND ELECTRICS FOR LINE
