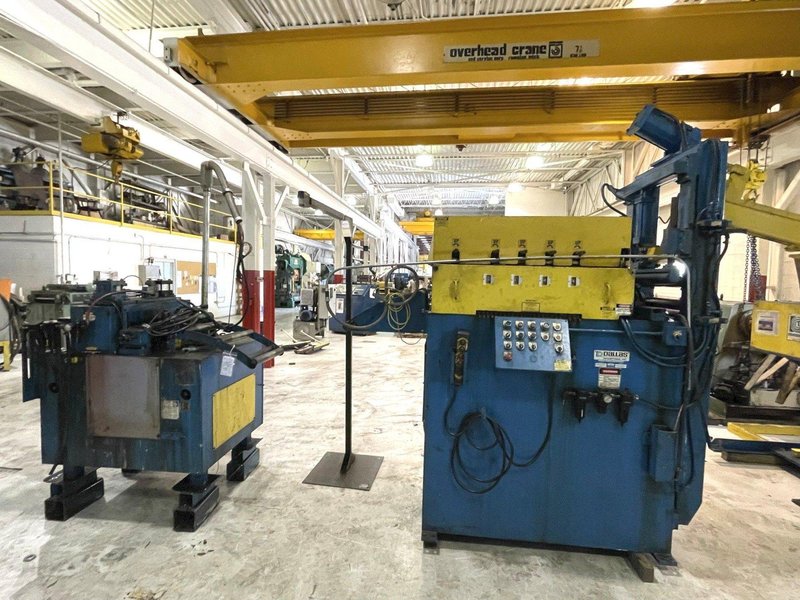

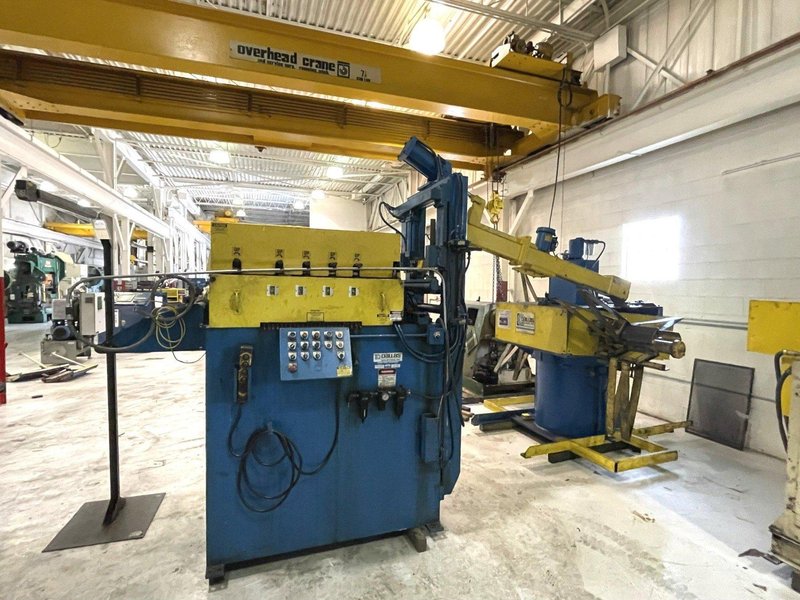

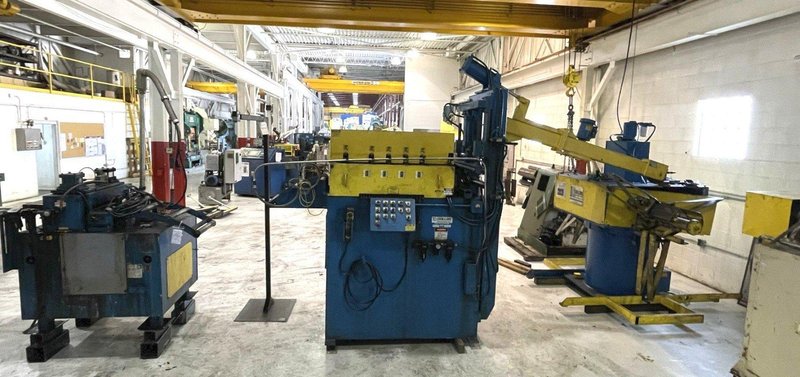

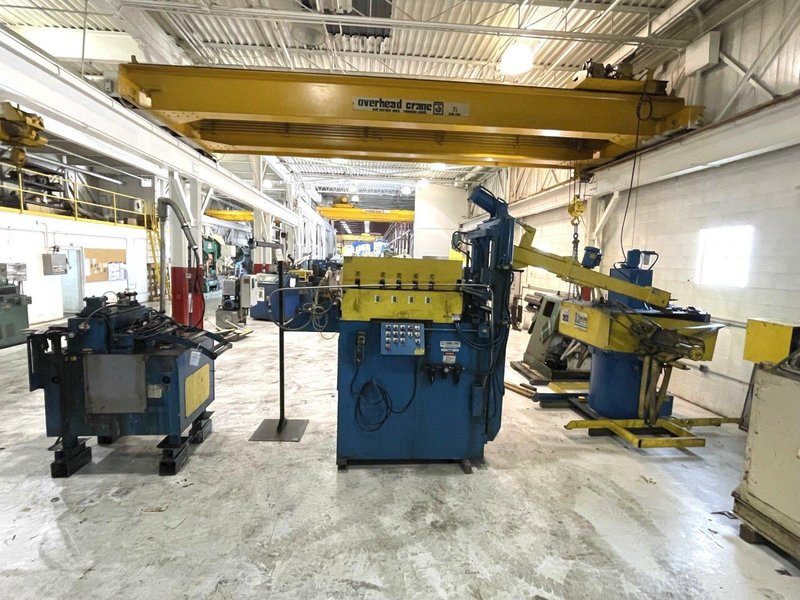

6,000 lbs. x 18" Wide Dallas Double End Servo Conventional Coil Feed Line, New 1998

6,000 lbs. x 18" Wide Dallas Double End Servo Conventional Coil Feed Line, New 1998

Name: 6,000 lbs. x 18" Wide Dallas Double End Servo Conventional Coil Feed Line, New 1998
Brand: DALLAS
SKU: 2770
Availability: InStock

Brand

DALLAS

Location

Michigan

Specifications
Files & Videos

Coil Weight	6000 pounds
Coil Width	18 inches
Coil Thickness	.125 inches
Standard Specifications 6,000 lbs. Max. Coil Capacity (per Side) 18" Max. Coil Width .125" @ 18" Coil Capacity at full width .250" @ 6" Maximum Coil Capacity 16-21" Coil I.D. Range 72" Maximum Coil O.D. Equipment and Features Double End Coil Reel Model No. DDCR-6000#-18-RH Three leaf mandrels Hydraulic mandrel expansion Thread drives for jog forward and reverse Powered mandrel rotation (indexing) Air brakes mounted on main spindles Adjustable Tensioning Dallas Powered Straightener Model No. 3-9-18-RH Entry and exit pinch rolls with air operated adjustments Nine straightening rolls x 3" diameter 7 ½ HP AC Motor Motorized individual upper straightening roll adjustments Coil hold down arms with motorized end wheel Heavy duty hand crank edge guides Variable speed drive system Automatic lubrication system Exit cascade loop support rollers Ultrasonic variable speed loop control Dallas Servo Roll Feed Model No.: DRF-418 Four inch diameter upper and lower feed rolls Matte chrome finish on feed rolls Air operated upper roll adjustment / pilot Solenoid controlled pilot release Dual adjustable edge guides – motorized Adjustable Cabinet Base (+/- 5”) Centralized lubrication points Yaskawa Servo Drive and Motor Can be seen under power in the S&G Press Livonia Michigan Warehouse! Dallas Industries Conventional Coil Feed Line For Sale
