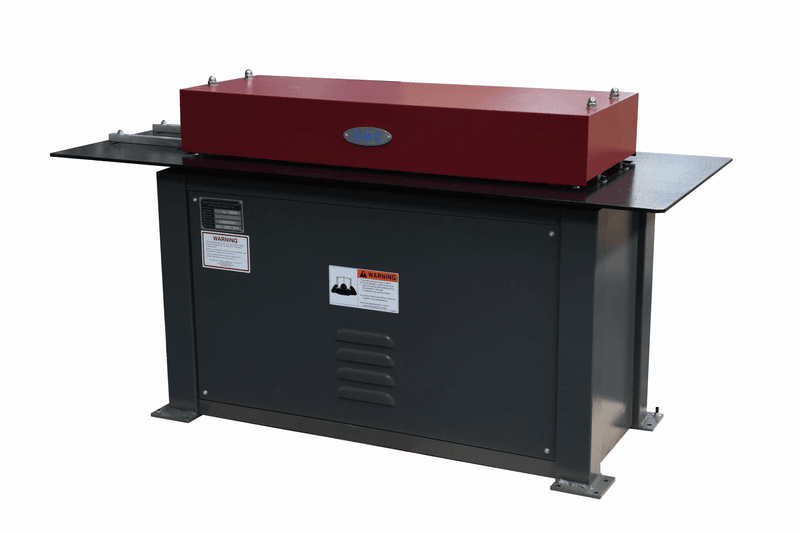

Hemming Forming Machine

Brand
GMC
Category
Sheet Metal Equipment
Type
Sheet Metal Forming Machinery
Model
PL-18HEM
Stock #
PL-18HEM
Year
Not specified
Condition
New

Location

Not specified
  • ISO 9001 certified
  • 4HP Heavy Duty AC main motor, 220V, 3 phase
  • Heavy welded all steel construction for maximum rigidity
  • One side forms Flattened Hem
  • One side forms Open Hem
  • One year warranty for parts

    Specifications

    GMC PL-18HEM

    Capacity: Galvanized sheet

    Flattened Hem

    Open Hem

    Teardrop Hem

    Rope Hem

    Pittsburgh lock , 5/16” width

    Double seam

    Drive Cleat



    Max hemming width



              24 Ga. to 18Ga.

              24 Ga. to 18Ga.

              24 Ga. to 18Ga.

              24 Ga. to 18Ga.

              24 Ga. to 18Ga.

              24 Ga. to 18Ga.

              24 Ga. to 18Ga.



                        3/8"

    Station numbers

    9 stations with 9 pairs of rolls on each side

    Feeding speed

              21 FPM

    Main motor

    Amperage draw

        4 HP, 220V, 3PHASE

          15Amp

    weight, approx

                  685 LBS

    Machine dimensions, LxWxH

    Machine shipping dimensions, LWH

            60”x25”x40”

          62” x 27” x43”
No files or videos to display
