PL-20E, Pittsburgh Lockformer Machine: High-Quality and Efficient Solution

ith its advanced features and robust construction, the Lockformer Pittsburgh Machine PL-20E is an excellent choice for sheet metal fabrication professionals looking for a reliable, versatile, and efficient machine.

• 20 gauge capacity: The PL-20E can handle sheet metal up to 20 gauge, making it suitable for a wide range of applications.
• Creates tight, interlocking joints between two pieces of sheet metal
• Made with high-quality materials and construction for durability and longevity
• Maintenance-friendly design: The machine is designed for easy maintenance, with quick-access panels that allow for easy cleaning and lubrication.
• Compact and portable design for easy storage and transport
• Compatible with a variety of Lockformer accessories and attachments for added versatility and functionality
• ISO 9001 certified
• 1.5 HP Heavy Duty AC main motor, 110V
• Standard Pittsburgh Attachment
• Standard Round Power Flange Attachment, Double Seam Roll and Drive Cleat Roll  (power flange attachment can only do radius parts)
• ACME side can be operated at same time
• Heavy duty caster wheels for easy moving

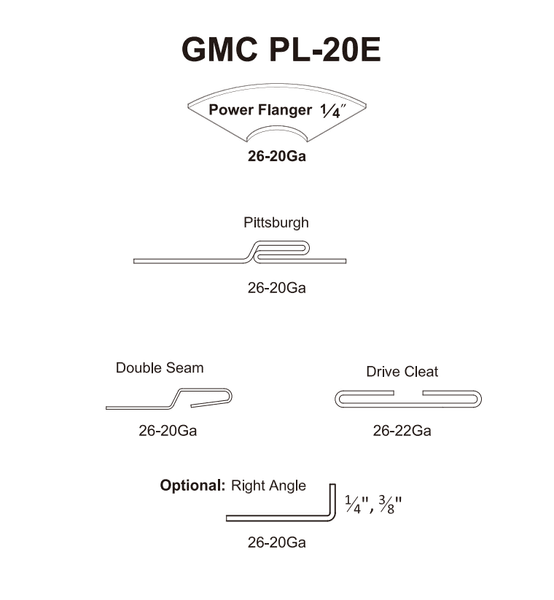

  Capacity: Pittsburgh Lock	26 Ga. - 20 Ga.
  Double Seam Lock	26 Ga. - 20 Ga.
  Drive Cleat Lock	26 Ga. - 22 Ga.
  Power Flanger 1/4"	26 Ga. - 20 Ga.
  Depth of pocket	1/2"
  Feeding speed	32 FPM
  Main Motor	1.5 HP, 10 AMP Prewired: 110VAC
  Weight	458 LBS
  Machine Dimensions (LxWxH): Shipping Dimensions:	36" x 23" x 43"  38" x 25" x 42"
