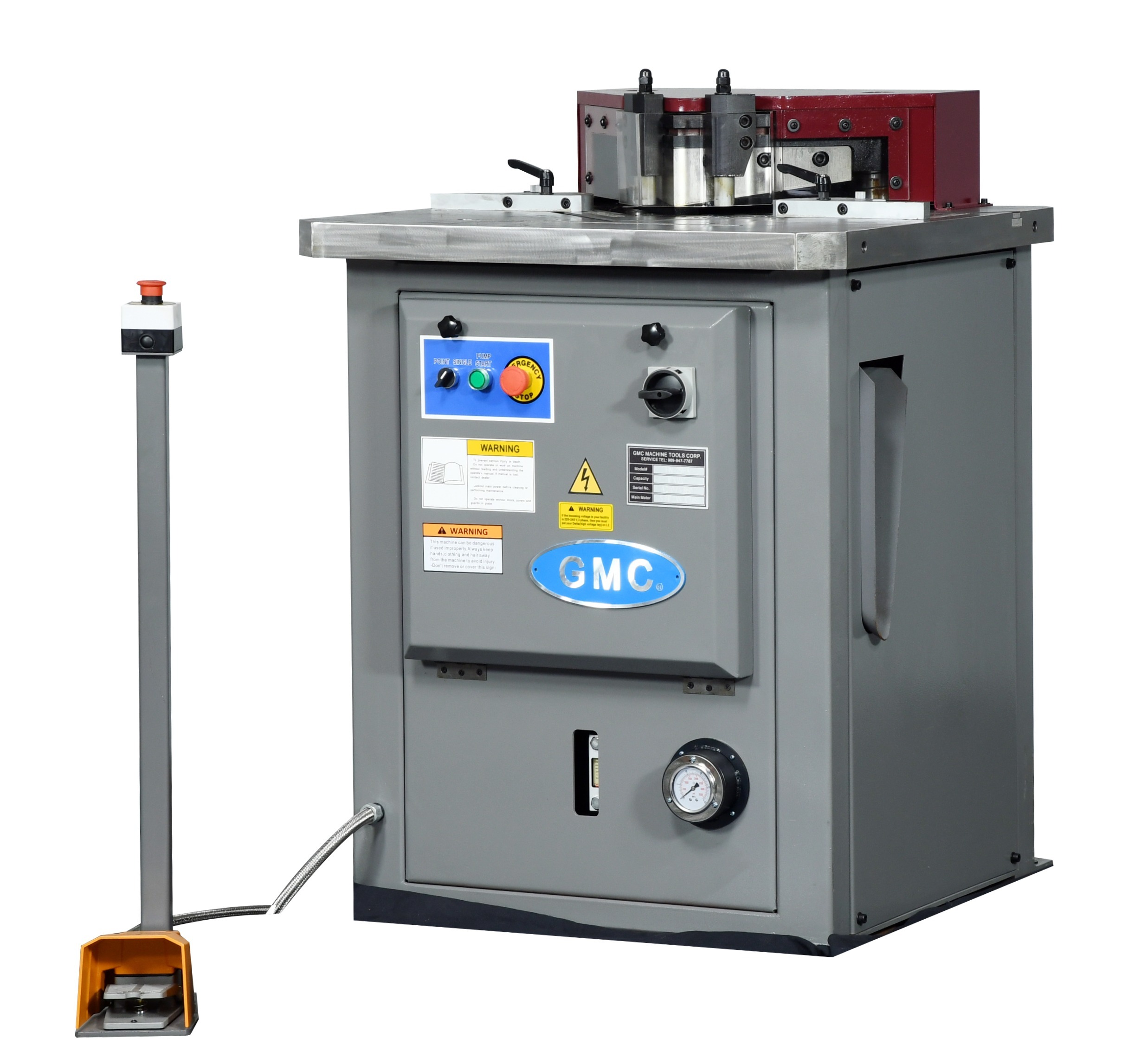

HN-25HA, 1/4" x 10" Hydraulic Sheet Metal Notcher with Fixed Angle

HN-25HA, 1/4" x 10" Hydraulic Sheet Metal Notcher with Fixed Angle

Name: HN-25HA, 1/4" x 10" Hydraulic Sheet Metal Notcher with Fixed Angle
Brand: GMC
SKU: HN-25HA
Availability: InStock

Brand

GMC

Location

Not specified

Specifications
Files & Videos

ISO 9001 certified
Super large table

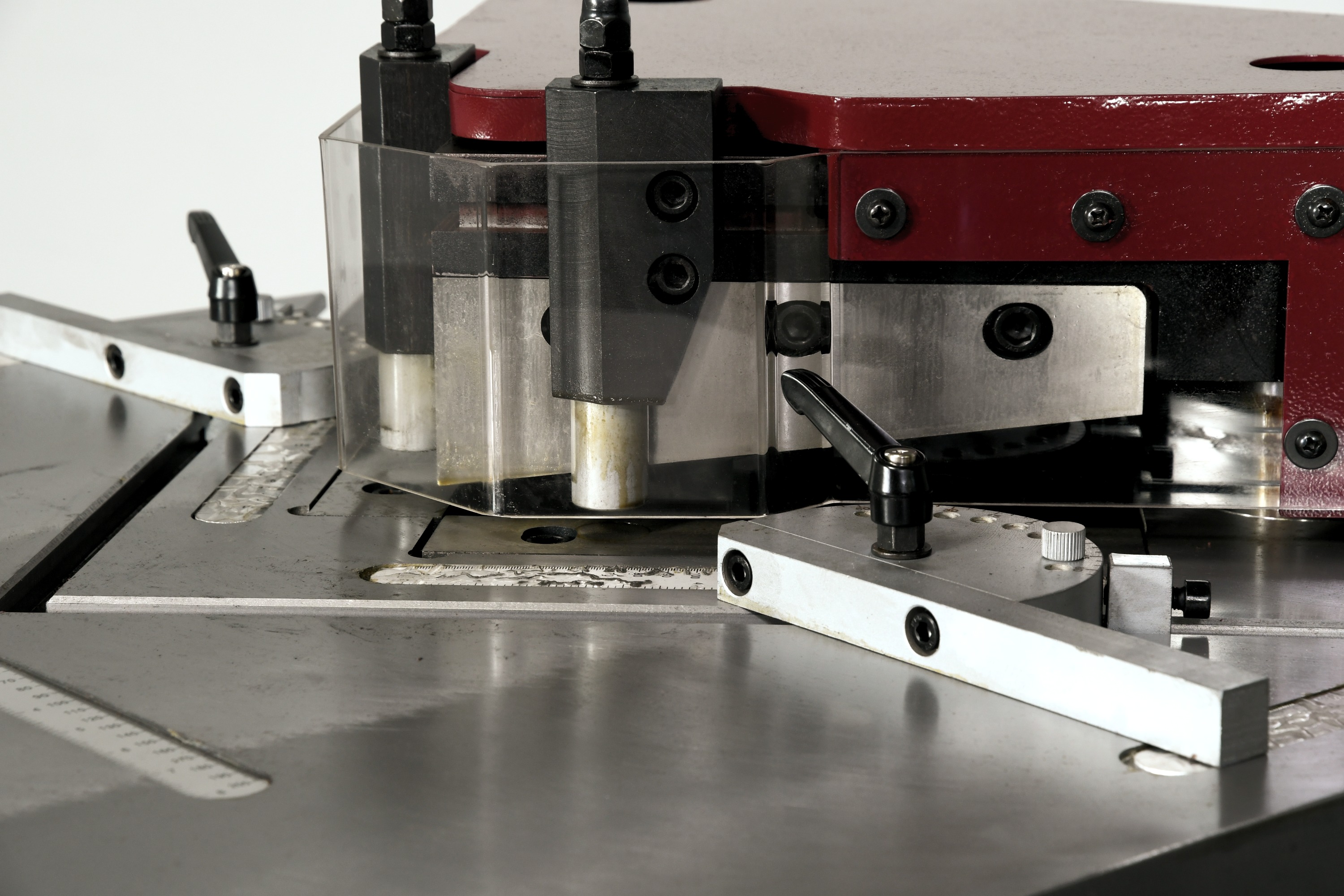

Milled table surface with engraved scales on left and right side of the table top
12” combination hold down and stop bars
All steel construction

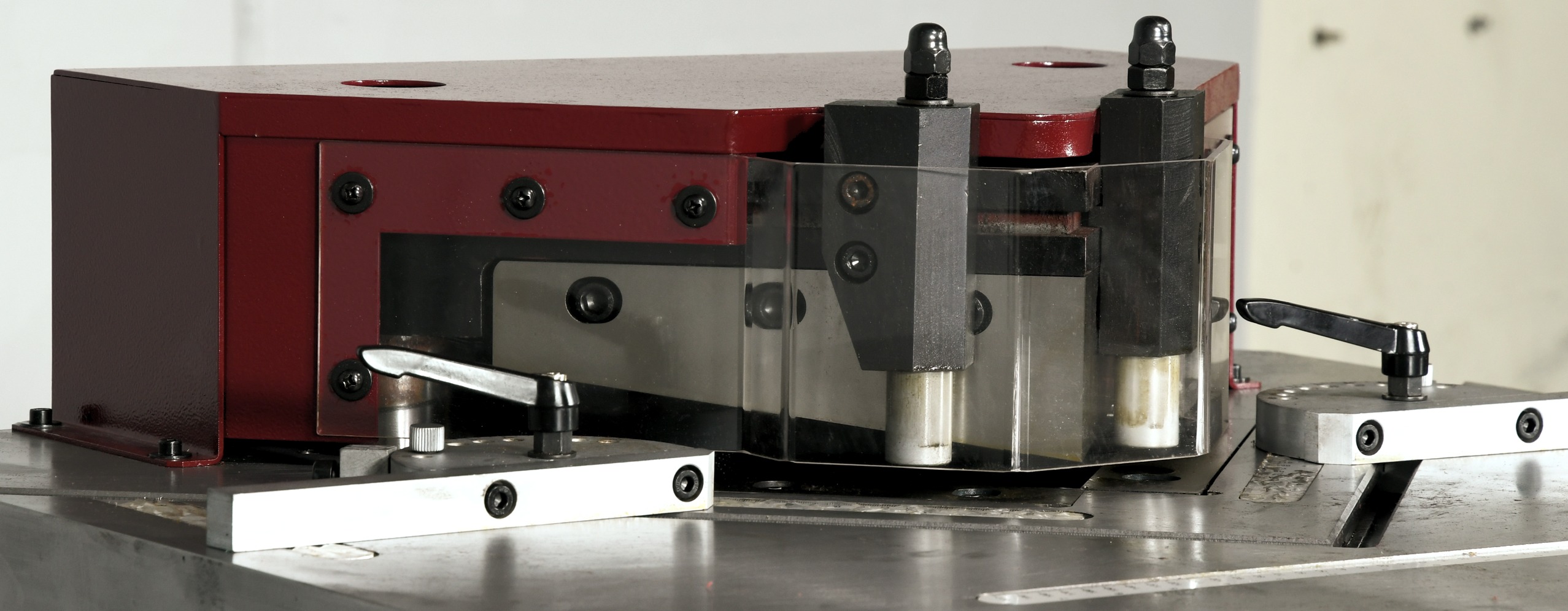

Safety finger guards
(2) quick change gauges
Foot pedal control
Quiet hydraulic system

One year warranty

This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.

Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.

Max. capacity: Mild Steel (C.R.S.) Max. capacity: Stainless Steel Min. notching thickness Notching angle, fixed angle	1/4" 3/16" 22 Ga. 90 degree
Max. cutting lenth	10"
Stroke per minute	27
Table dimensions, L x W	33" x 27"
Hydraulic oil tank capacity	9 Gal. Shell #68HD
Main Motor	7 1/2 HP, 3 Phase, 25A Prewired: 220VAC Optional: 440VAC 220V 15A
Machine Weight	2650 LBS
Machine Dimensions, (LxWxH): Shipping Dimensions, (LxWxH):	39" x 38" x 49" 47" x 41" x 56"
