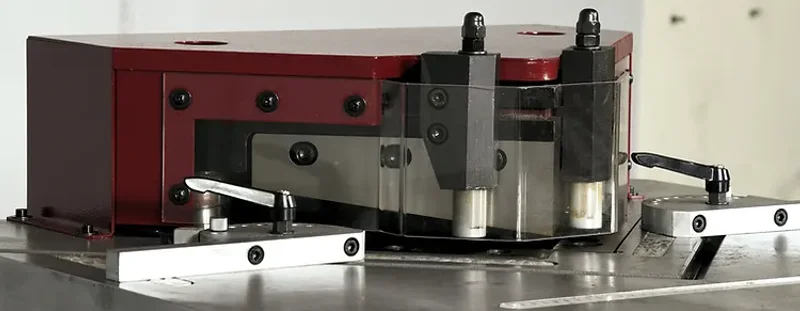

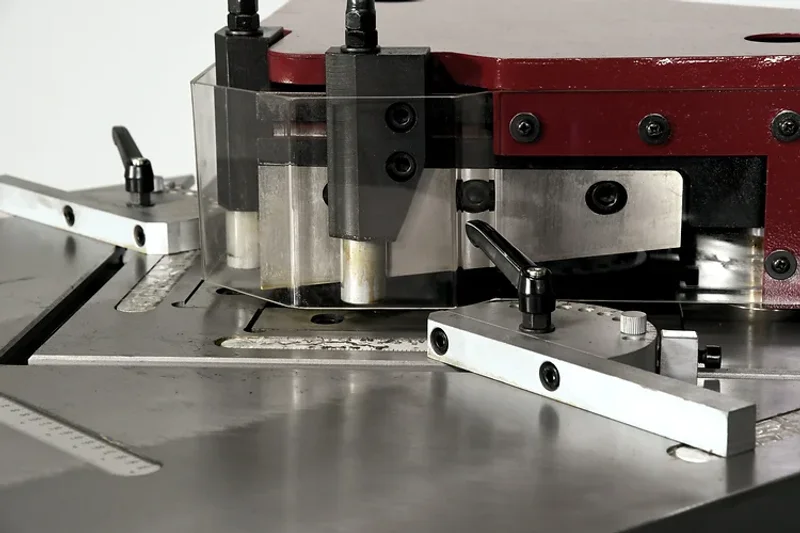

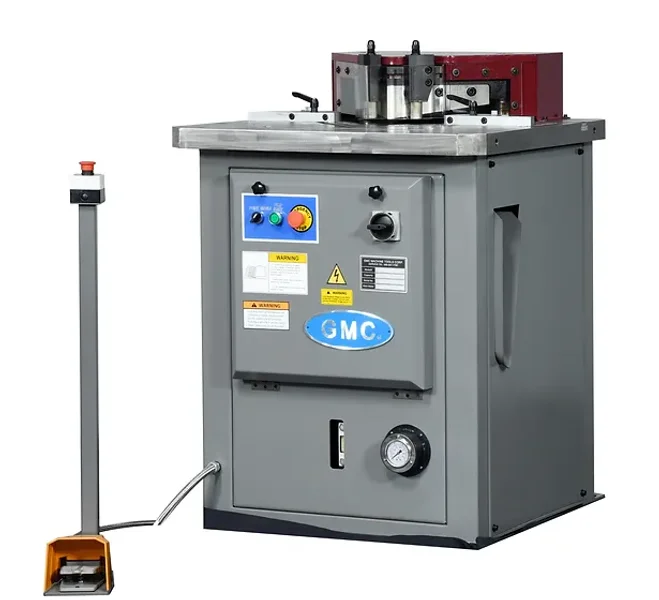

NEW 1/4" x 10" GMC MODEL HN-25HA HYDRAULIC SHEET METAL NOTCHER WITH FIXED ANGLE

Brand
GMC
Category
Punching Equipment
Type
Notching Machines
Model
HN-25HA
Stock #
19105
Year
Not specified
Condition
New
Location
Not specified
NEW 1/4" x 10" GMC MODEL HN-25HA HYDRAULIC SHEET METAL NOTCHER WITH FIXED ANGLE


STANDARD FEATURES
  • ISO 9001 certified
  • Super large table
  • Milled table surface with engraved scales on left and right side of the table top
  • 12” combination hold down and stop bars
  • All steel construction
  • Safety finger guards
  • (2) quick change gauges
  • Foot pedal control
  • Quiet hydraulic system
  • One year warranty

SPECIFICATIONS

Max. capacity: Mild Steel (C.R.S.)

Max. capacity: Stainless Steel

Min. notching thickness

Notching angle, fixed angle

1/4"

3/16"

22 Ga.

90 degree
Max. cutting lenth 10"
Stroke per minute 27
Table dimensions, L x W 33" x 27"
Hydraulic oil tank capacity 9 Gal. Shell #68HD
Main Motor

7 1/2 HP, 3 Phase, 25A

Prewired: 220VAC

Optional: 440VAC 220V 15A
Machine Weight 2650 LBS

Machine Dimensions, (LxWxH):

Shipping Dimensions, (LxWxH):

39" x 38" x 49"

47" x 41" x 56"
