Wet dust collection systems offer more safe and efficient method for collection of hazardous grinding/sanding/cutting dust generated by a variety of processes.

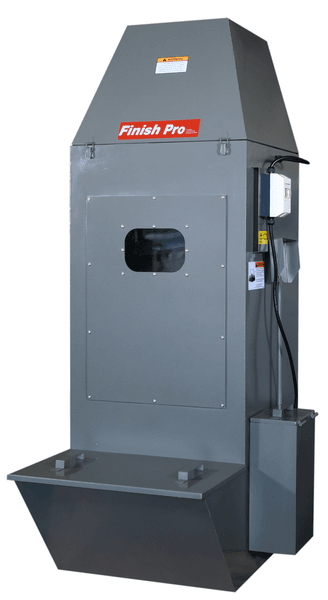

The GMC wet dust collector offers many superior features.
CABINET -Made of welded stainless steel construction
FRONT DOOR - easily removed for maintenance & cleaning and equipped with an explosion relief flap.
MOTOR - T.E.F.C. 220/440 volt, 3-phase, 60 Hz Amp draw 30A/220VAC and 20A/440VAC
ELECTRICAL CONTROL - push button motor starter with thermal overloads
IMPELLER - standard, precision balanced, direct coupled to the motor for maximum CFM with minimum vibration (also stainless steel)
INTERNAL INDUCERS - a system of internal spray inducers remove dust particles from air flow and causes them to settle in water tank
SOUND SUPRESSOR - the unique motor cover design keeps noise level to a minimum.
CLEANING TOOL -Made of stainless steel and provided for the easy removal of grinding dust from the water tank.
DISCLAIMER: : Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer. This DISCLAIMER: is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported. Specifically made to partner up with our wide belt sanders.STANDARD UNIT Model Inlet CFM Inlet Opening Motor HP WDC-FP40 2100 8” 5(WDC-2100)
For more complete information: https://www.gmcmachinetools.com/catalog
|
