Wet dust collection systems offer more safe and efficient method for collection of hazardous grinding/sanding/cutting dust generated by a variety of processes.

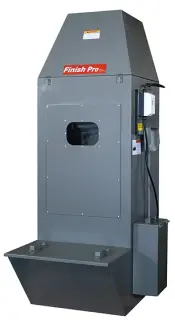

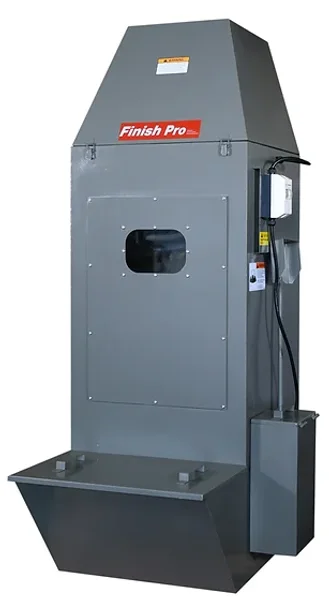

The GMC wet dust collector offers many superior features.

CABINET - made of welded stainless steel construction

FRONT DOOR - easily removed for maintenance & cleaning and equipped with an explosion relief flap.

MOTOR - T.E.F.C.  208-230/460 volt, 3-phase, 60 Hz (other voltages also available) Amp draw 20A/220VAC and 10A/440VAC

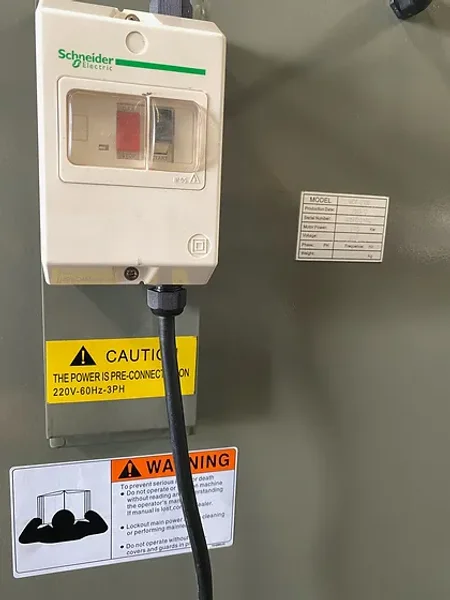

ELECTRICAL CONTROL - push button motor starter with thermal overloads

IMPELLER - standard, precision balanced, direct coupled to the motor for maximum CFM with minimum vibration (also stainless steel)

INTERNAL INDUCERS - a system of internal spray inducers remove dust particles from air flow and causes them to settle in water tank

SOUND SUPRESSOR - the unique motor cover design keeps noise level to a minimum.

AUTOMATIC WATER LEVEL CONTROL - allows for user’s connection to a water supply line for automatic maintenance of proper operating water level.

CLEANING TOOL - made of stainless steel and provided for the easy removal of grinding dust from the water tank.


OPTIONAL EQUIPMENT
Ducting package for GMC WDC-2100- $950.00

STANDARD UNIT

   Model                 Inlet CFM             Inlet Opening              Motor HP

  WDC-FP40                 2100                      8”                                 5

(WDC-2100)
