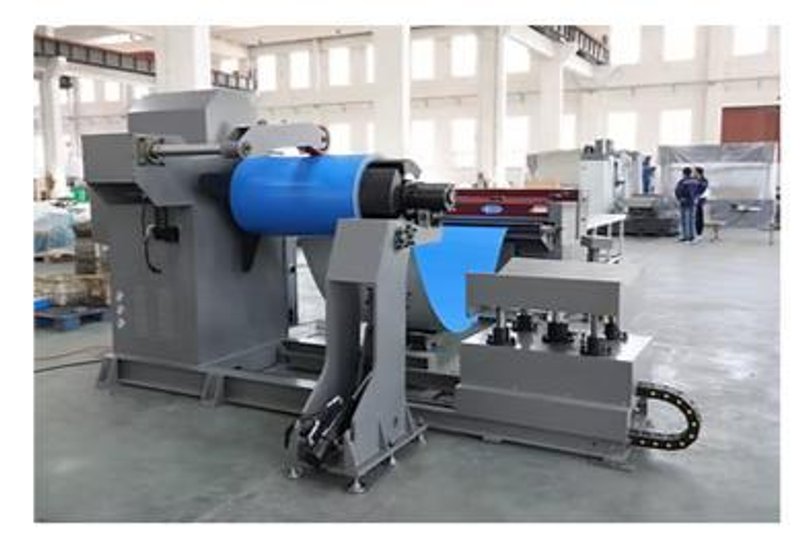

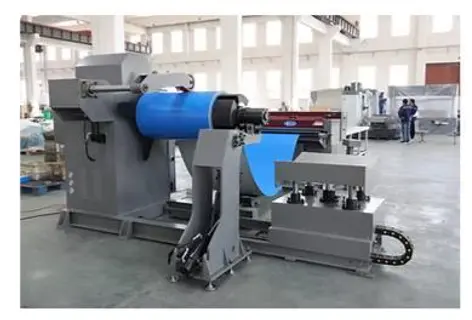

GMC Hydraulic Decoiler Machine - HDC-4820-6T
Brand
Category
Type
Model
HDC-4820-6T
Stock #
HDC-4820-6T
Year
Not specified
Condition
New
Location
Not specified
|
ISO 9001 certified
American design and Taiwan quality machine
Hydraulic clamping for coil
Hydraulic coil feeding table with height control
With sensors to avoid the sheet metal touches the floor.
Hydraulic front support arm
Hydraulic top support arm
One year warranty for parts
Specifications
Coil size 48” wide
Coil ID 20” , hydraulic clamping range from 18-1/2” to 20-3/4”
Max coil OD 47”
Max coil weight 6Tons = 13,200 LBS
Speed: 0-100’/min.
Hydraulic system pressure: 0-15Mpa
Main motor: 7-1/2HP, 220V, 3phase
Hydraulic motor: 4HP, 220V, 3 phase
Machine net Weight, LBS, approx.10,150 LBS
Machine shipping weight, LBS: 11,310 LBS
Machine Dimensions: 166” x 95” x 85”
Packing dimensions: 170” x 71” x 94”
For more complete information: https://www.gmcmachinetools.com/catalog
|
