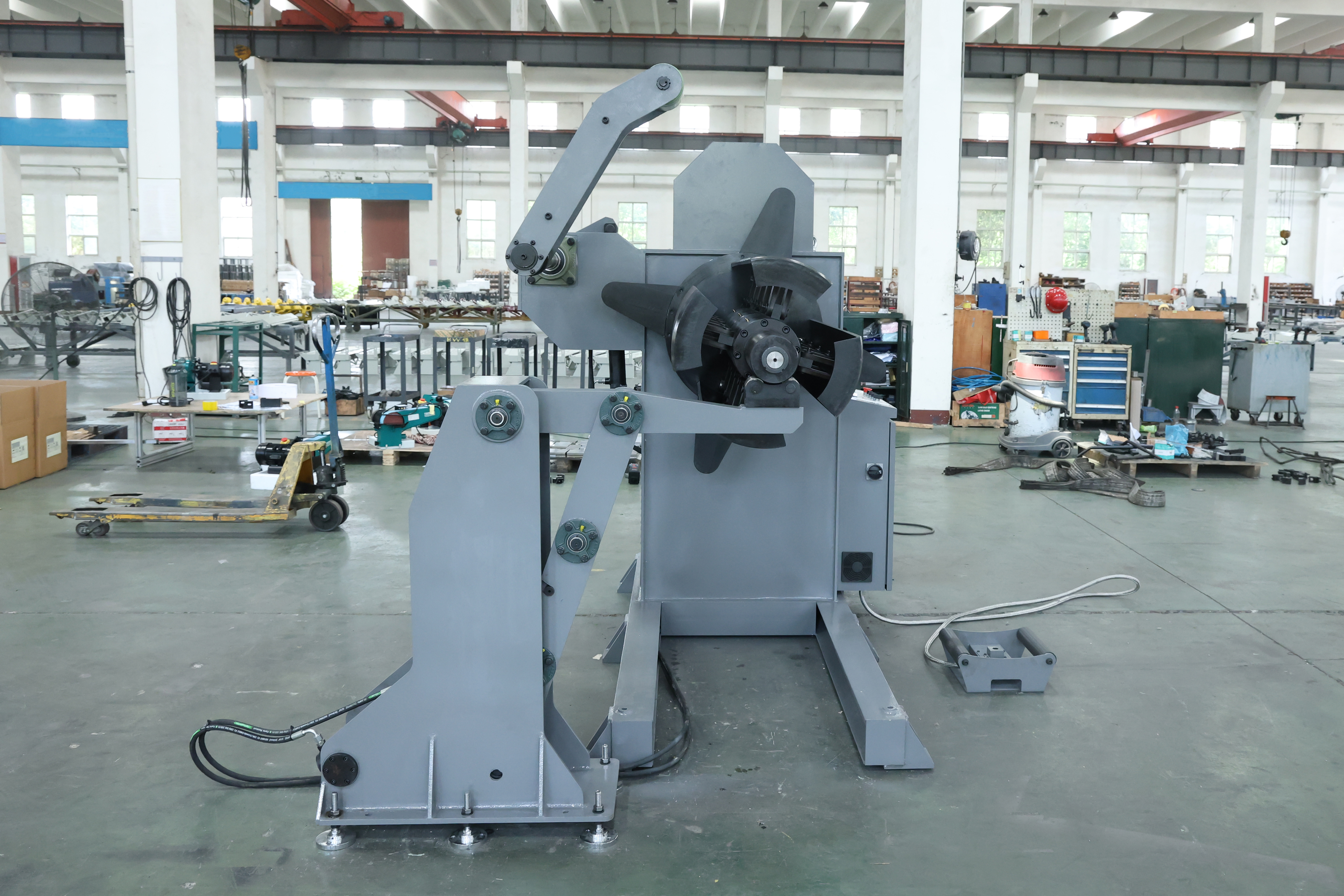

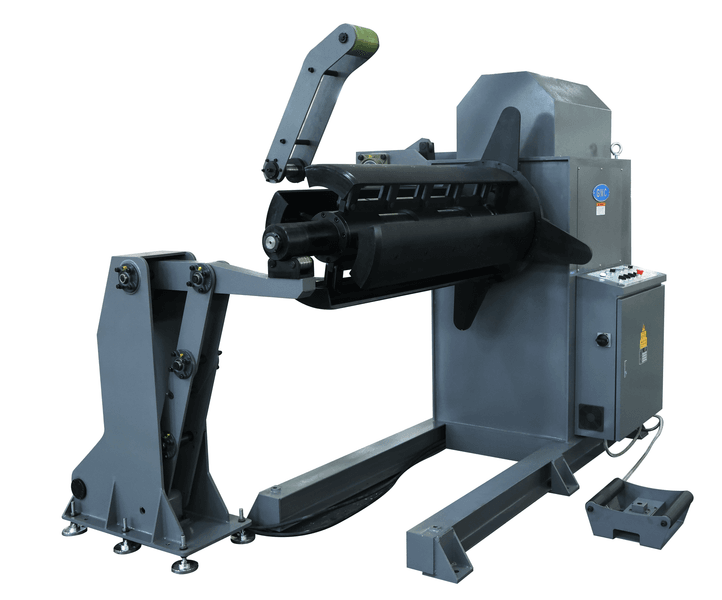

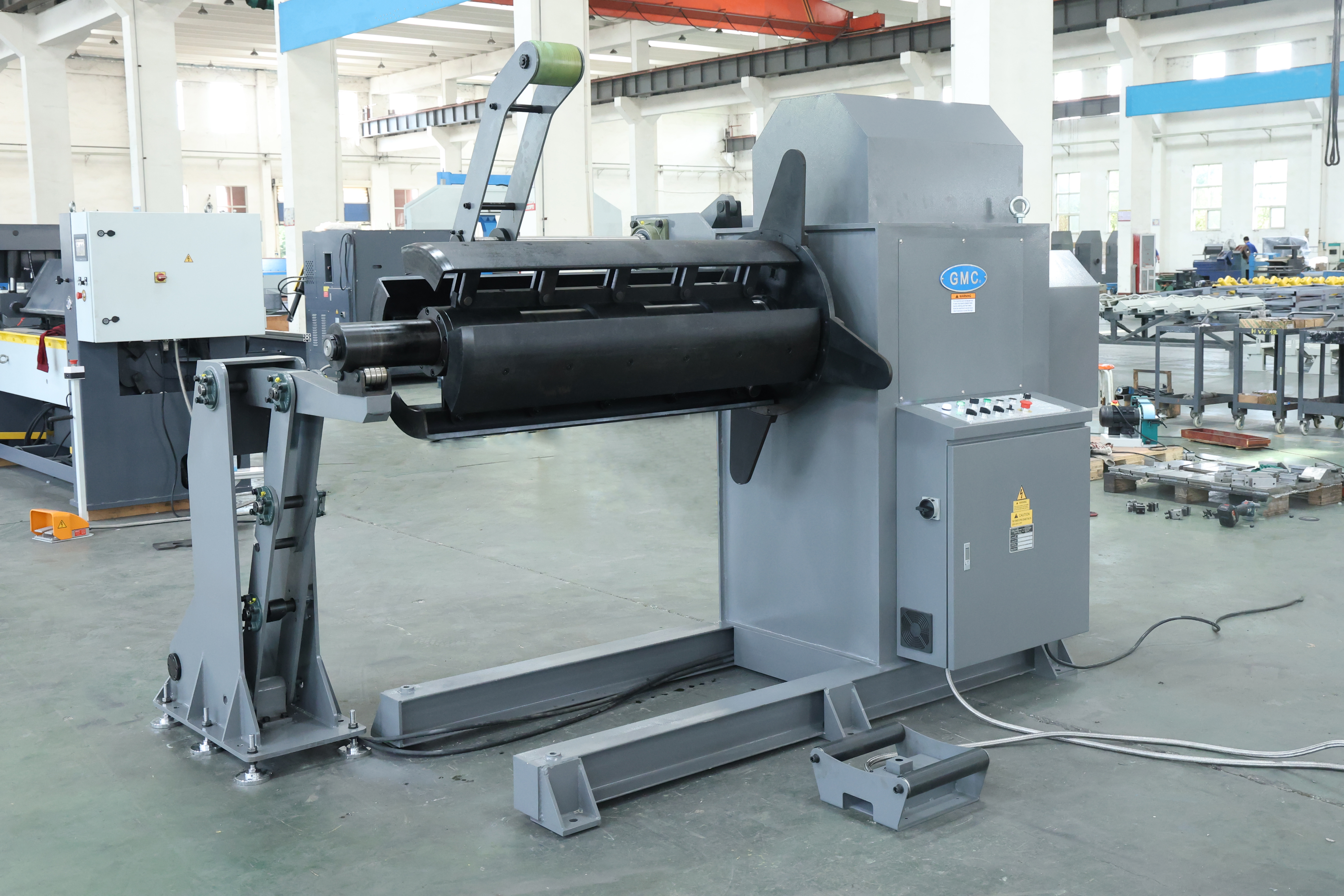

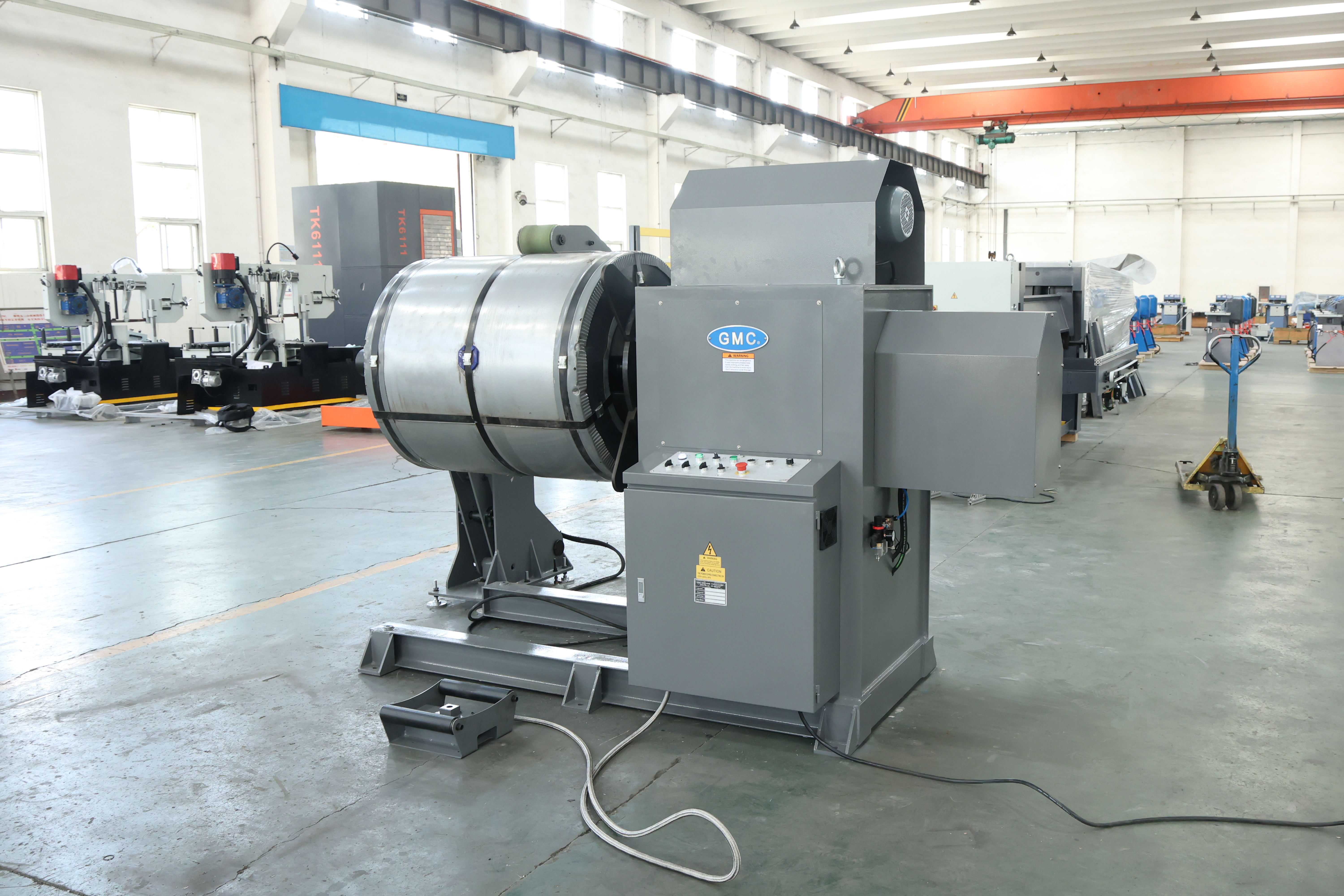

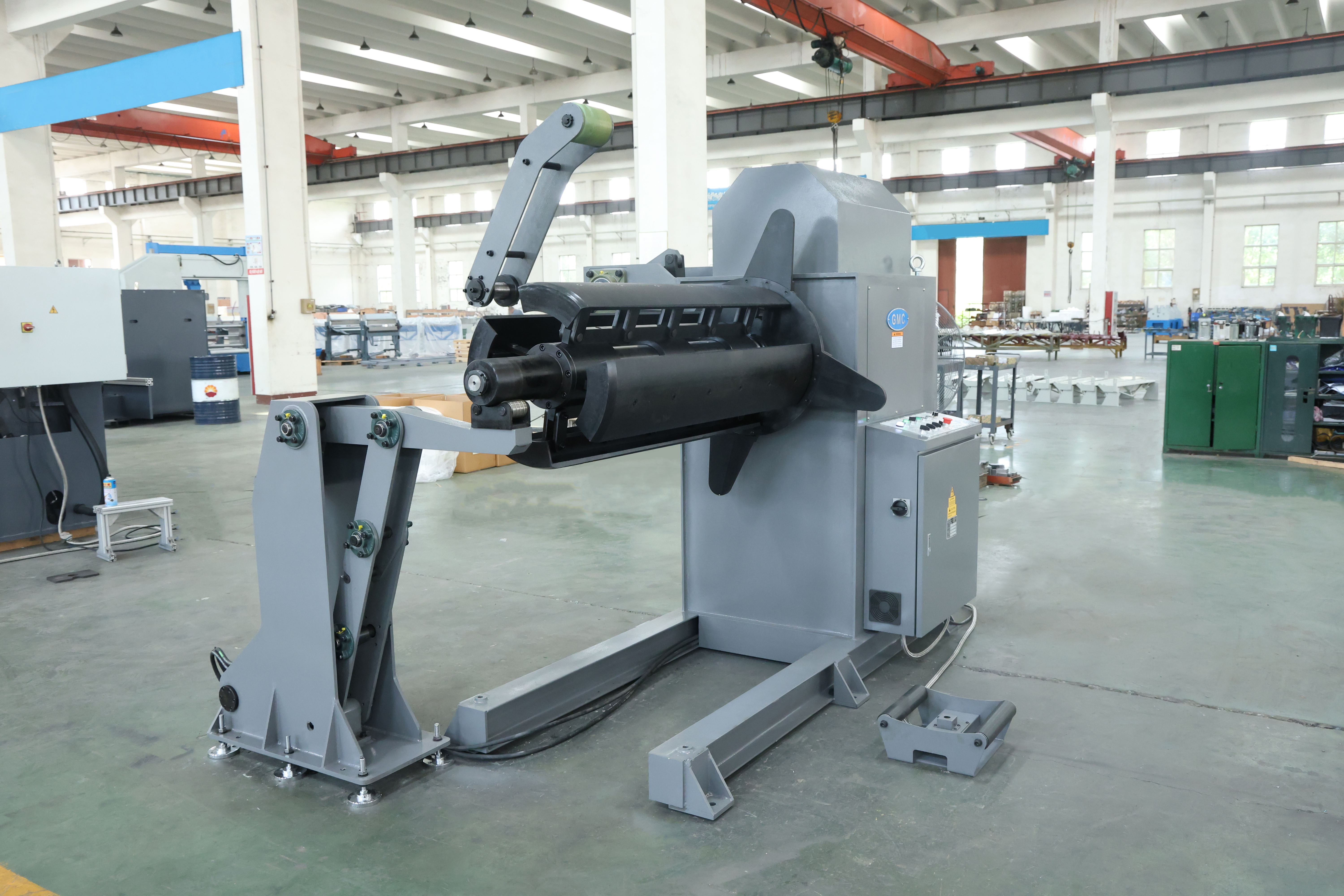

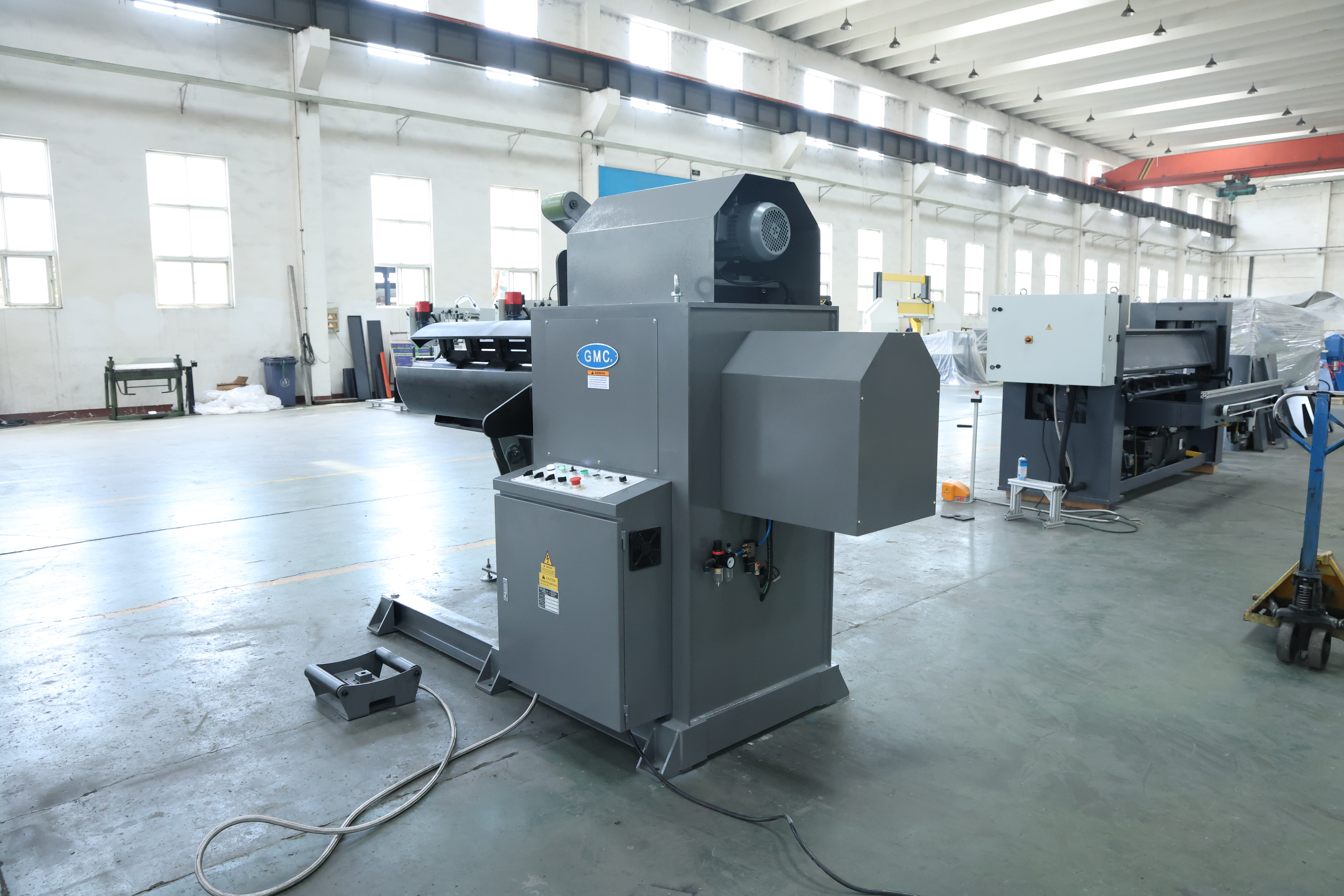

HDC-4820-3T Hydraulic Decoiler Machine – 3 Ton Heavy-Duty Coil Handling System
Brand
Category
Type
Model
HDC-4820-3T
Stock #
HDC-4820-3T
Year
Not specified
Condition
New
Location
Not specified
|
ISO 9001 certified
American design and Taiwan quality machine

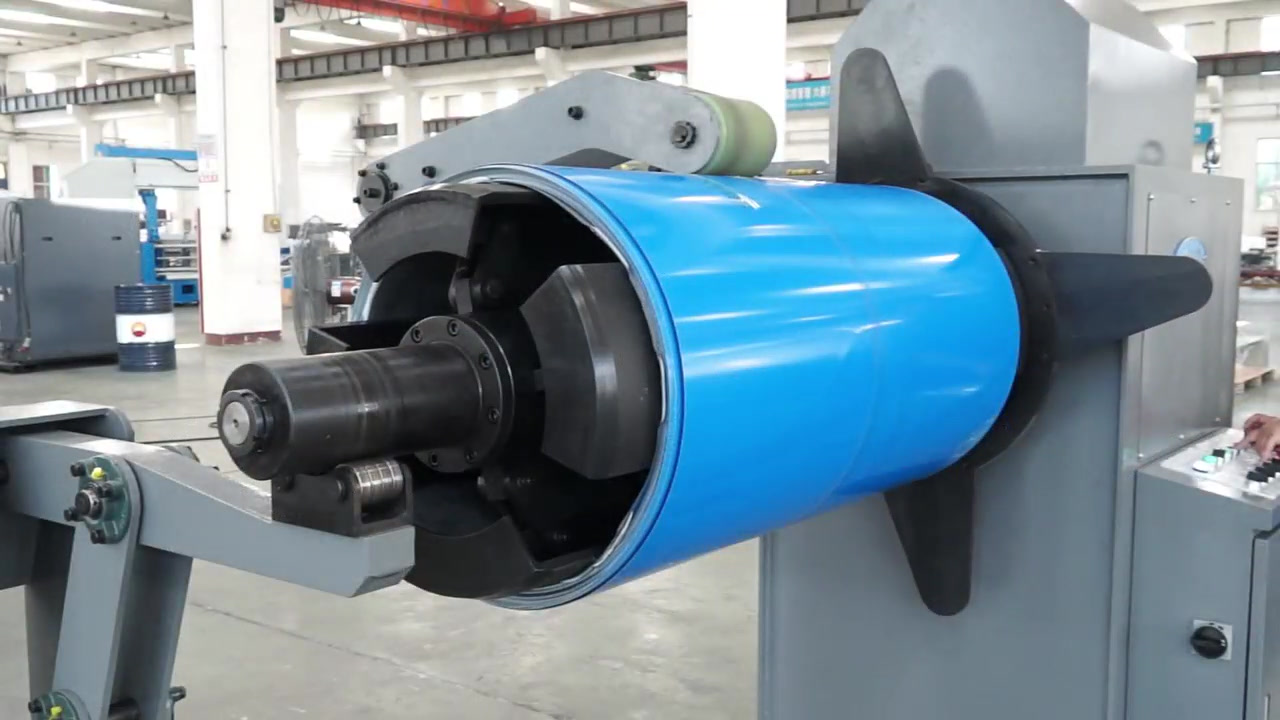

Hydraulic clamping for coil
With sensors to avoid the sheet metal touches the floor.
Hydraulic front support arm
Hydraulic top support arm
One year warranty for parts
Specifications
Coil size 48” wide
Coil ID 20” , hydraulic clamping range from 18-1/2” to 20-3/4”
Max coil OD 39”
Max coil weight 3Tons = 6,600LBS
Speed: 0-100’/min.
Hydraulic system pressure: 0-15Mpa
Main motor: 4HP, 220V only, 3phase
Hydraulic motor: 4HP, 220V, 3 phase
Hydraulic tank capacity: 10 Gal
Machine net Weight, LBS, approx.5,220LBS
Machine shipping weight, LBS: 5,810 LBS
Machine Dimensions: 122” x 73” x 78”
Packing dimensions: 126” x 71” x 85”
For more complete information: https://www.gmcmachinetools.com/catalog
|
