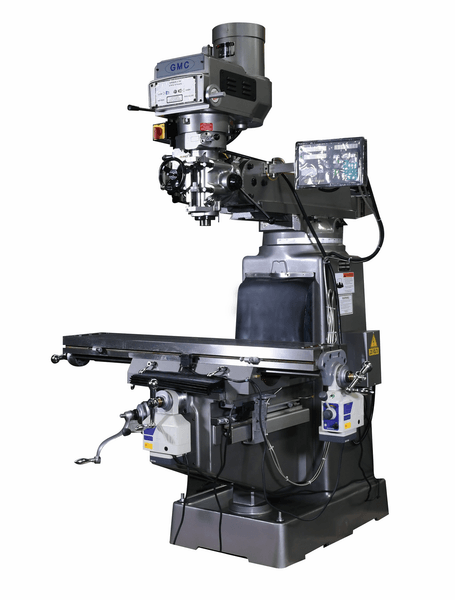

10"x50" Manual Knee Type Vertical Milling Machine with DRO

Made in Taiwan  “Meehanite” casting  Turcite “B” coating on X/Y ways like CNC mills ISO 9001 certified Mechanical variable spindle speeds from 60-4,200 rpm   Heavy duty 3 HP AC spindle motor, 3 phase   Heavy Duty high grade castings   Hardened & ground ways, dovetail ways on X & Z , square ways on Y knee  Hardened & ground table and Ground table T-slots   Precision ground ACME Leadscrews Chromed ground quill ( spindle )  Chromed dials Adjustable ways  Hand brake on mill head  Tilting & rotating head  Manual or automatic quill feeds 0.0015” , 0.003”, 0.006” per spindle revolution One shot lube system   front and rear rubber chip guards, and (1) manual draw bar  Tool box kit and leveling pads  Power source 220V OR 440V , 3 phase  One year industrial warranty for parts Specifications   GMM-1050VT Table Size  Table Load Capacity    10” x 50”                    727 LBS   X Axis TravelX travel with power feed Y Axis Travel Z Axis Travel Max. distance spindle to tableMax. distance spindle to columnMin.distance spindle to column                               33”                   28-3/4”        12-1/2” with power feed                      16”           1-11/16”-17-5/8”                   17-1/4”                   8-1/4” Spindle Taper Type    R8              AC Spindle Motor ,     3 HP, 220V/440V/3phase Variable spindle speeds                 60-4,200 rpm Quill ( Spindle ) diameter    3 3/8”  Quill ( Spindle ) travel     5”  Ram travel                     17”  Table T-slot size      5/8” x 3 slots Head Swivel, right to left  Head tilting                  90 degree                 45 degree Machine weight, approx LBS          2,830 LBS   Machine dimensions , inch      66x63x87” For more complete information: https://www.gmcmachinetools.com/catalog
