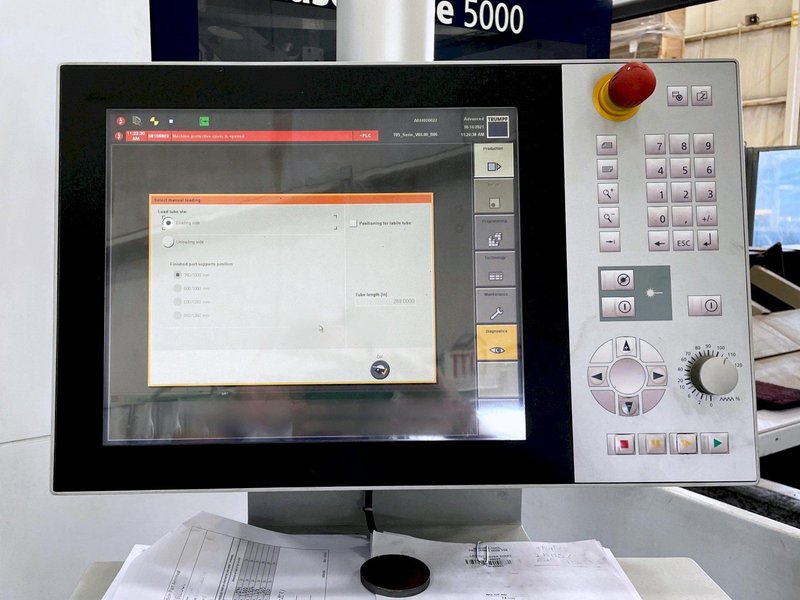

Control | Siemens Sinumerik 840D |
Type Of Laser | CO2 |
Resonator | Truflow 3200 |
Power Output | 3200 Watt |
Max. Thickness Steel | .251” |
Max. Thickness Stainless | .196” |
Max. Thickness Aluminum | .157” |
Max. OD Rectangular Tubes | 5.984” |
Max. OD Round Tubes | 5.984” |
Max. Tube Length | 255.90” |
Max. Length Automatic Loading | 255.90” |
Min. Length Automatic Loading | 118.11” |
Max. Length Finished Parts | 180.0” |
Max. Workpiece Weight | 264.55 Lbs |
Max. Tube Bundle Weight | 8,818 Lbs |
Longitudinal Travel X-Axis | 255.90” |
Cross Travel Y-Axis | 7.87” |
Hight Travel Z-Axis | 5.90” |
Travel Speed | 3,937 IPM |
Smallest Prog. Increment | +/- .0039” |
Power Consumption | 27-53 kW/h |
Dimensions | L 622” x W 319” x H 94” |
Machine Weight | 38,580 Lbs |

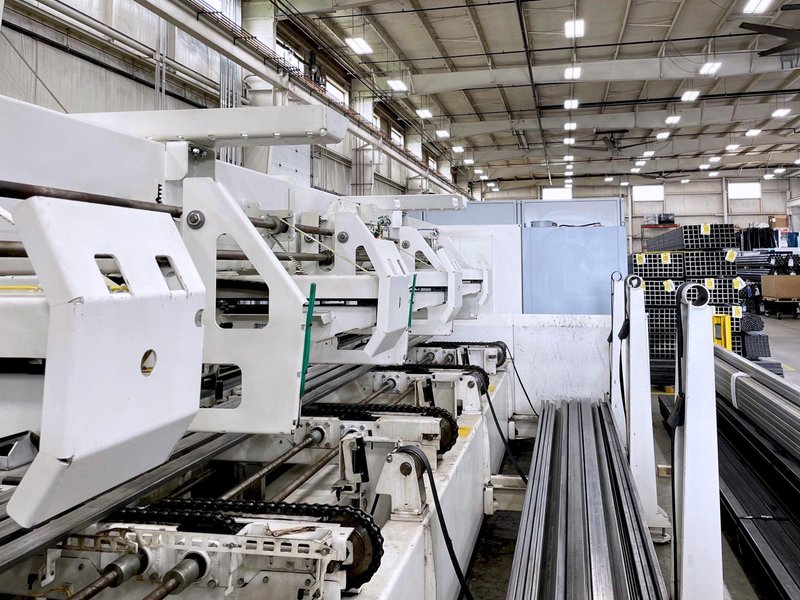

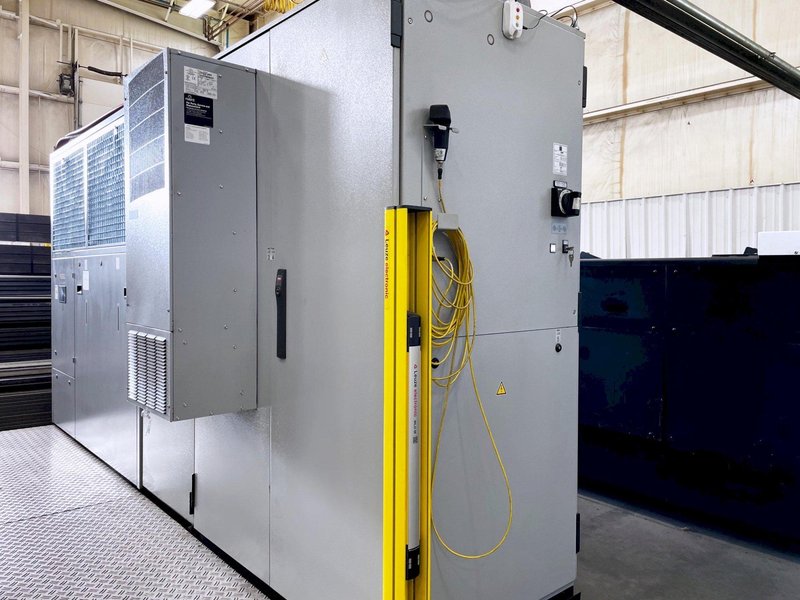

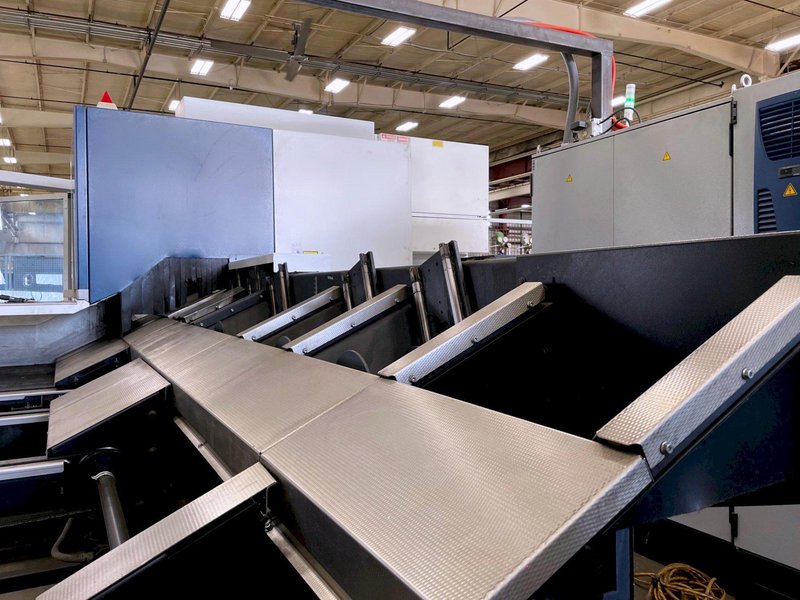

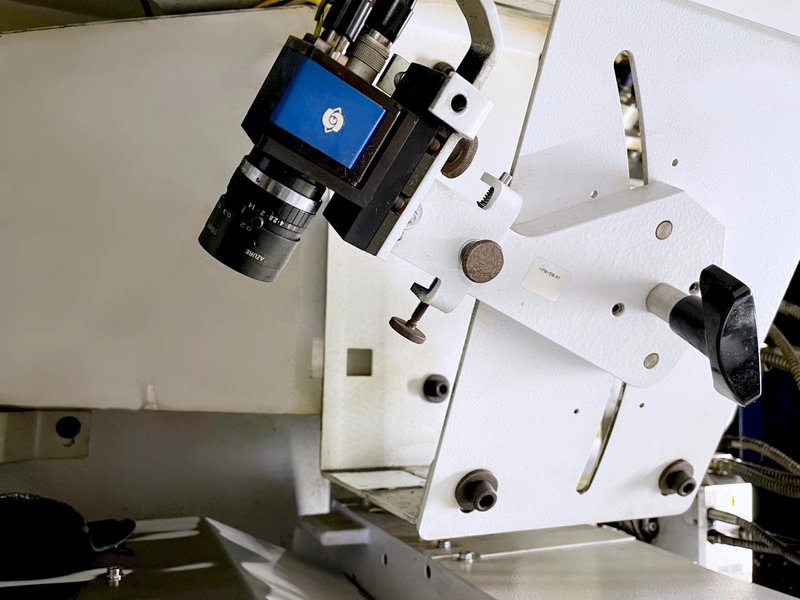

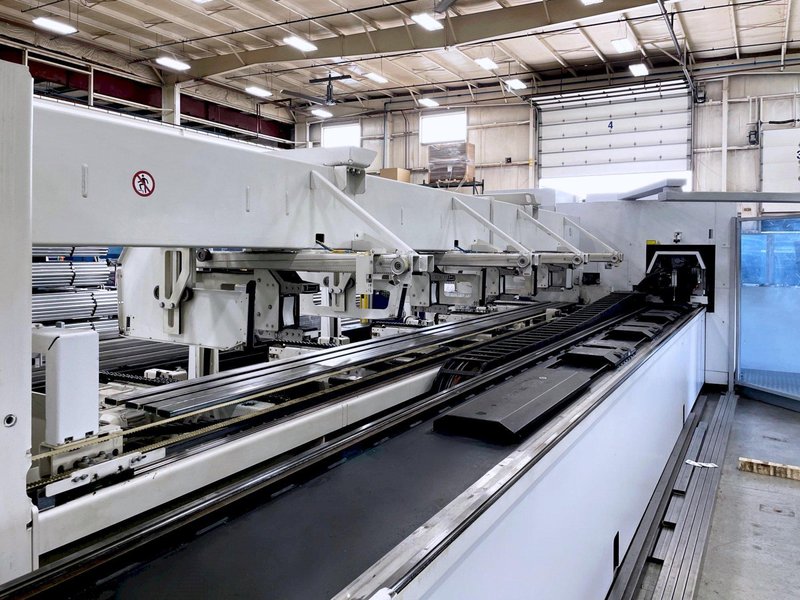

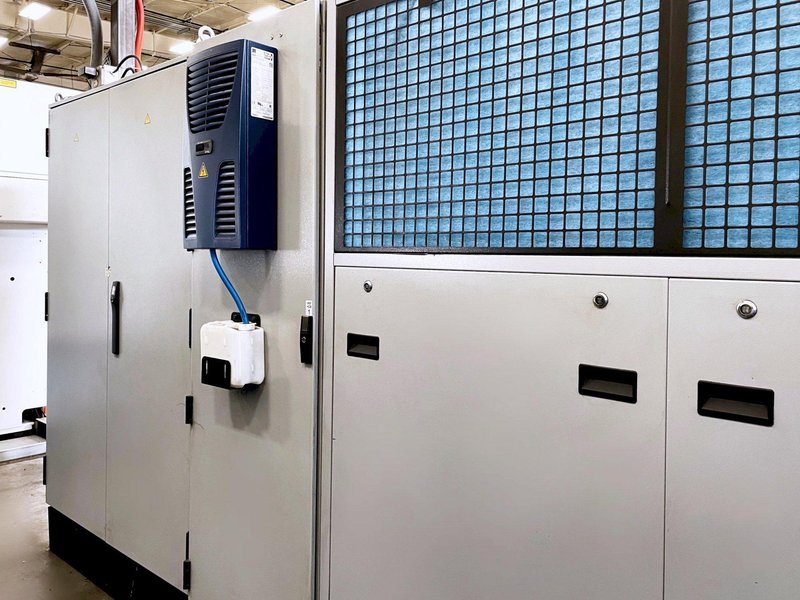

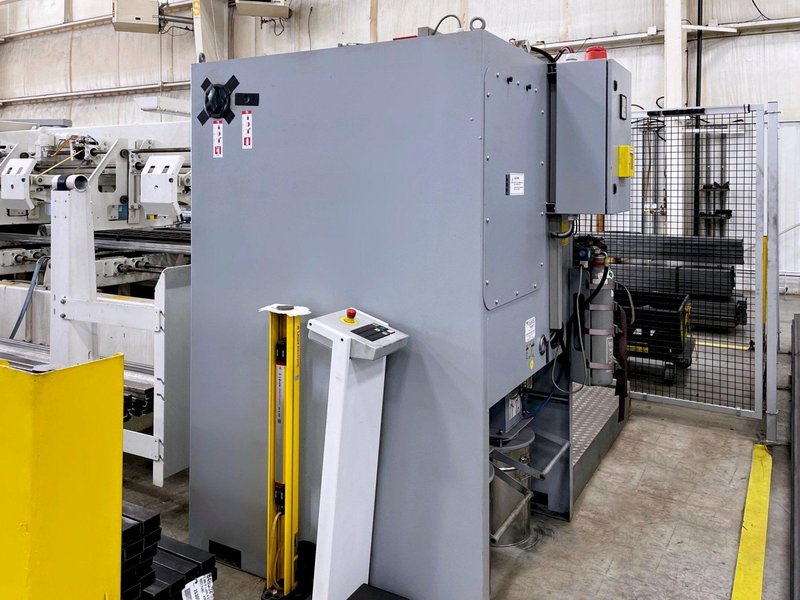

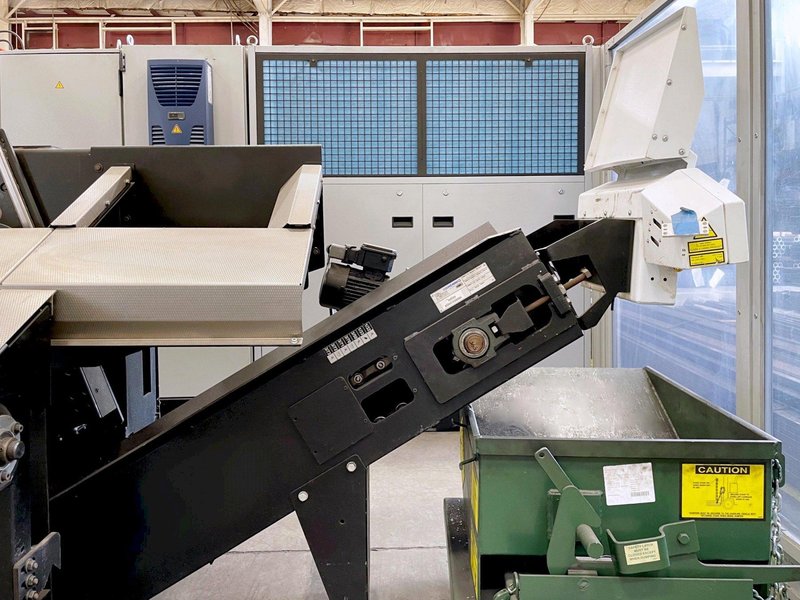

Equipped With: Sinumerik 840D Control TLF3200 Watt Co2 Power Source Programmable Cutting Pressure Maintenance-free 3-Phase Servo Motors NitroLine High pressure cutting Laser Power Control Automatic Shutdown Work Area Lighting Teleservice Connect Light Barriers & Safety Cabin Seam Detection Camera 21’ Automatic Tube Loader and Magazine 15’ Unload with Scrap Conveyor Soft Touch Rollers Wireless Operation Point Chiller Unit Dust Collection |
