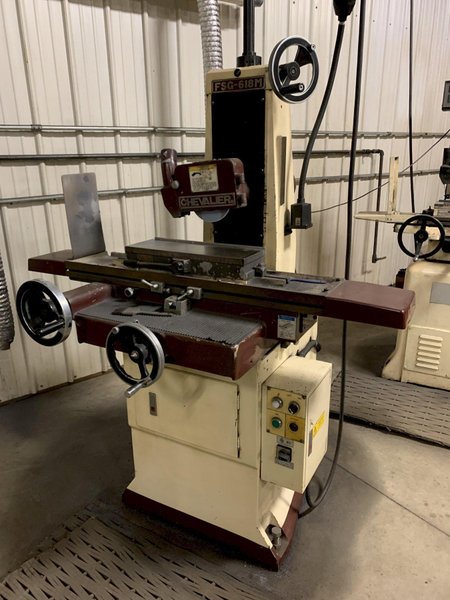

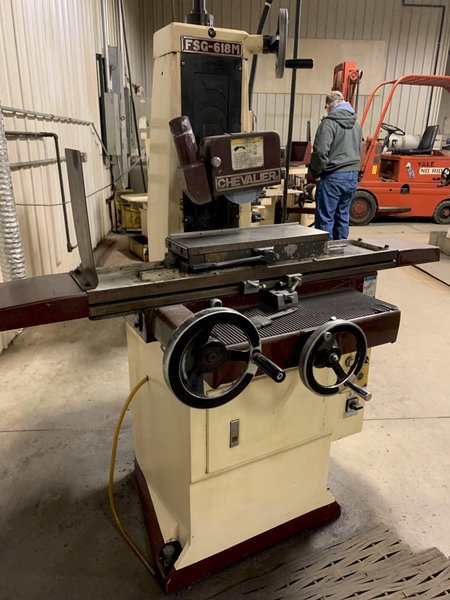

Chevalier FSG-618M Hand Feed Surface Grinder, S/N A3864016.
Brand
Category
Model
FSG-618M
Stock #
34604
Year
1997
Condition
Good
Location
Ohio
|
Specifications:
Table Size - 5-3/4" x 18" Maximum Grinding Length - 18" Maximum Grinding Width - 6" Max Distance, Table Top to Spdl Ctrl - 18" Max Longitudinal Travel of Table - 19" Max Transverse Travel of Table - 7" Crossfeed Travel per Rev of Handwheel - 0.100" Crossfeed Handwheel Graduation - 0.0005" Wheelhead Vertical Travel per Rev of Handwheel - 0.05" Wheelhead Handwheel Graduation - 0.0001" Standard Size Grinding Wheel - 8" x 1/2" x 1-1/4" Net Weight, Approx 1500 Lbs. Equipped with: 618 Permanent Magnetic Chuck Ball Roller Table Recently removed from service. https://youtube.com/shorts/sF8P7WIZqhU?feature=share replacement crossfeed screw and nut replacement pending. Buyer responsible for shipping. Nominal skidding fee if required for transport. |
