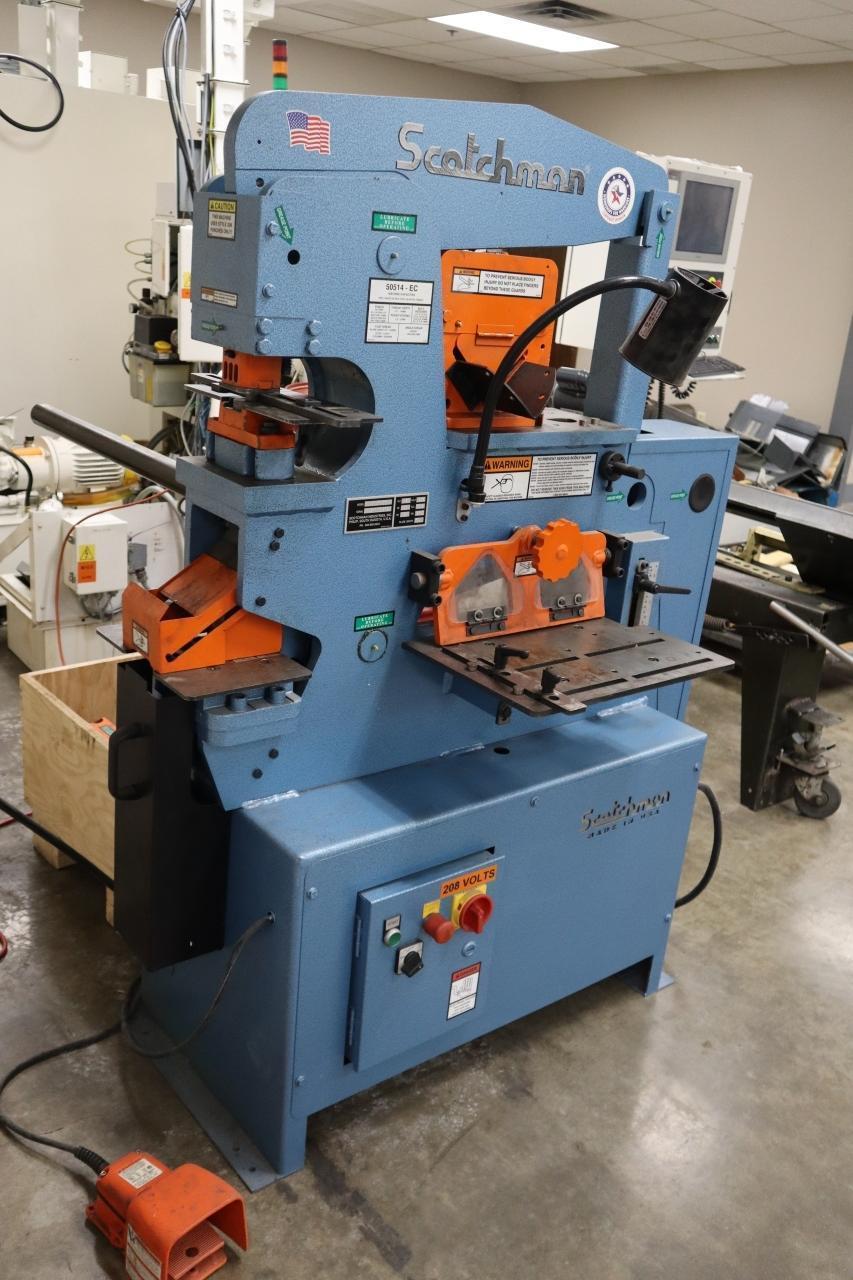

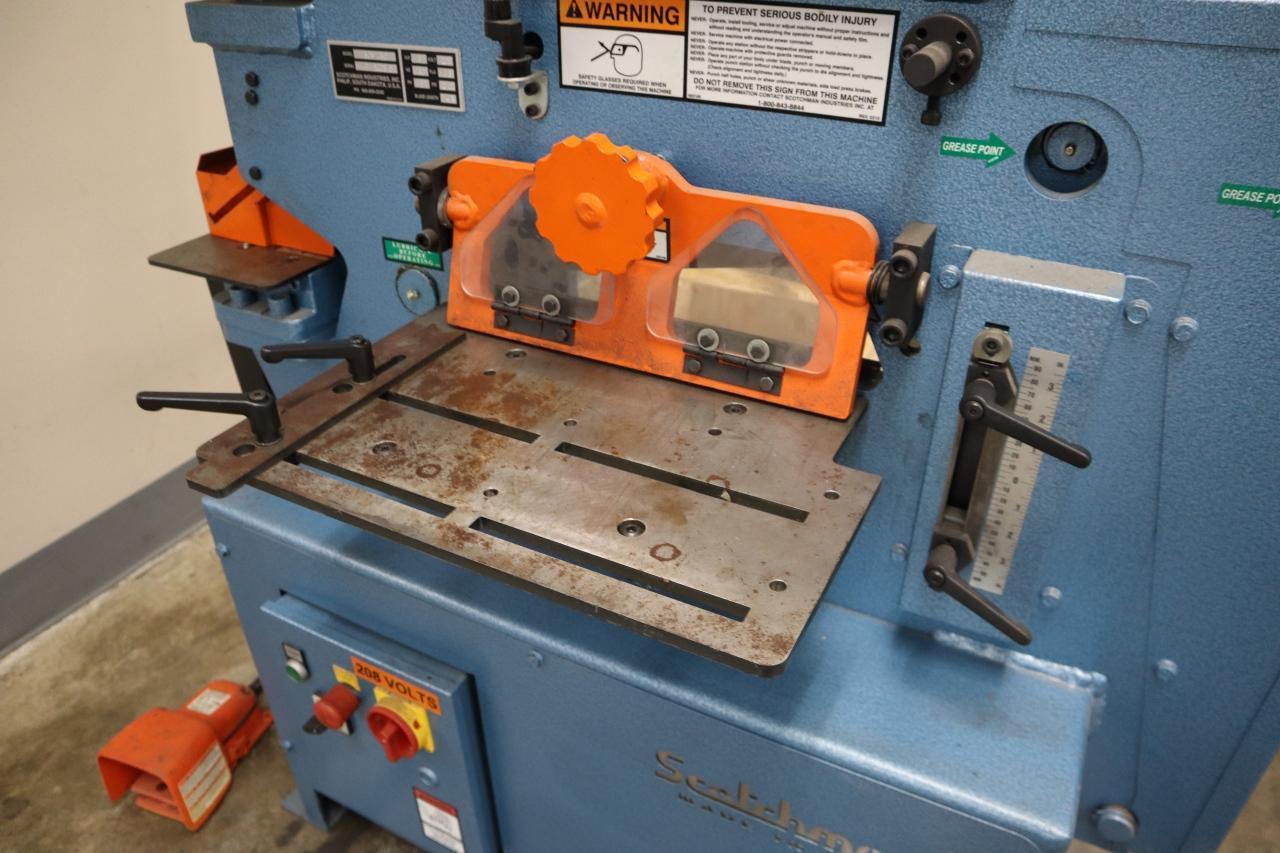

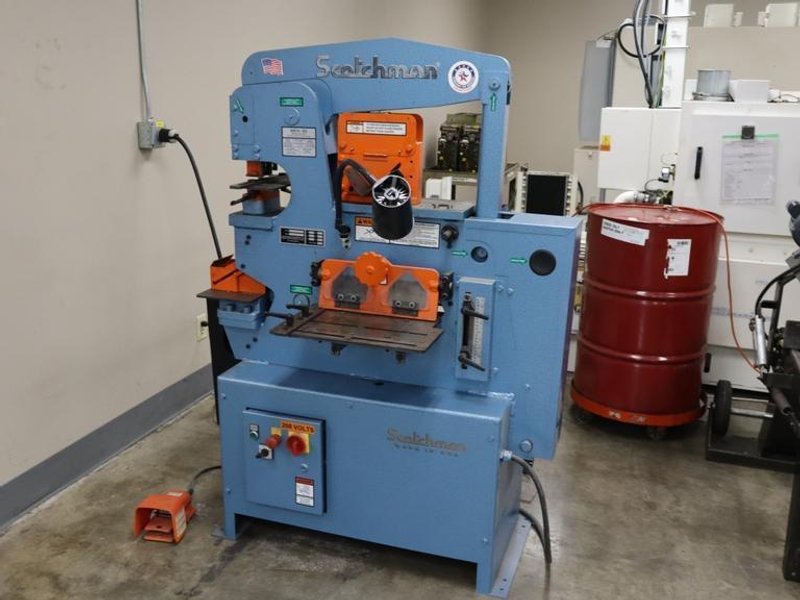

Scotchman 50514-EC 50 Ton Hydraulic Ironworker, Flat Shear, Angle Shear, Brake, Punch, Notcher

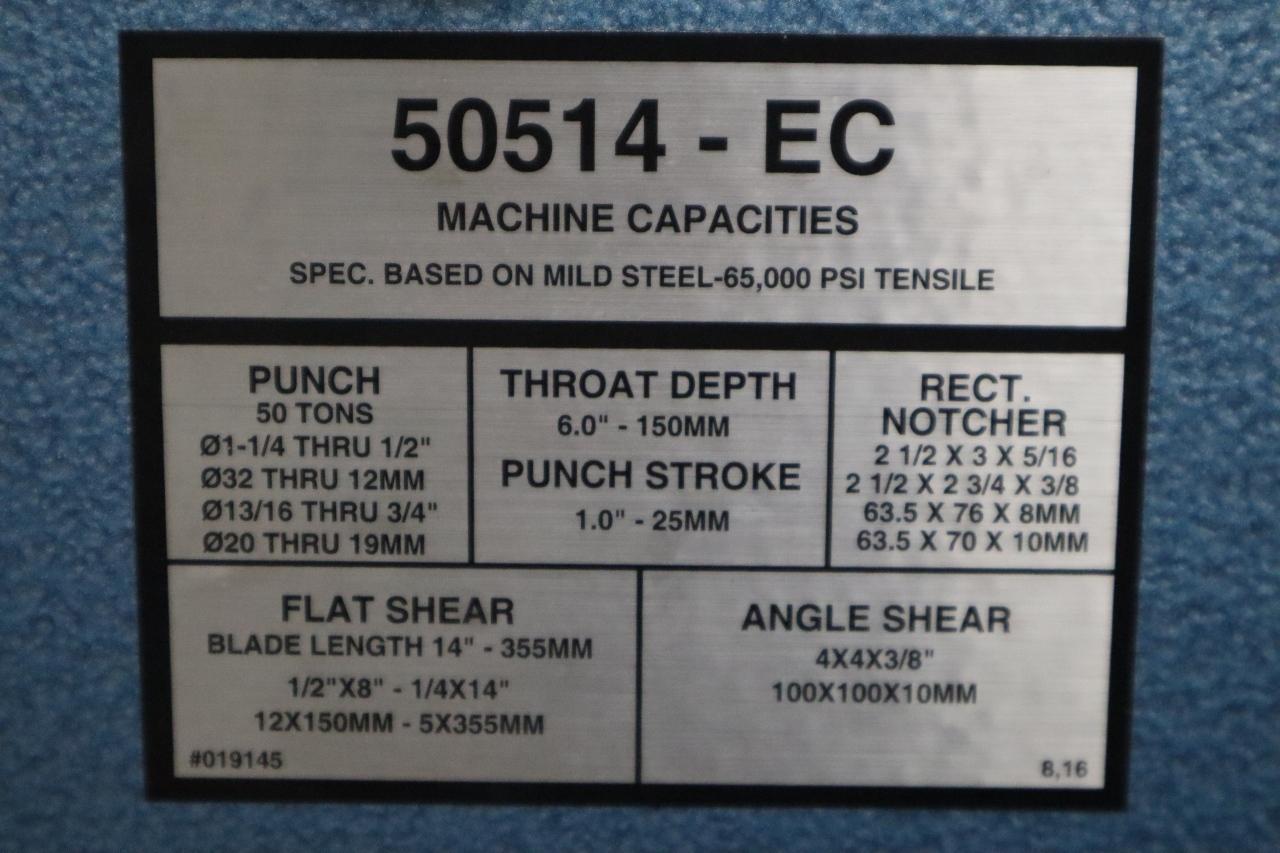

Max Tonnage Capacity: 50

Speed (Strokes Per Minute): 14(Heavy Material) 34(Light Material)

Drive Motor: 3 hp or 5 hp

Coper / Notcher Capacity: Rectangle Notcher- 2-1/2"x3"x5/16" & 2-1/2" x 2-3/4" x 3/8" 90 Deg V Notcher- 6" x 6" x 1/8" & 3" x 3" x 1/4"

Flat Shear Capacity: 14" Length 3/4"x4", 1/2" x 8", 3/8" x 10", 1/4"x 14"

Punch Capacity: 1-1/4" in 1/2"/ 13/16" in 3/4"

Angle Shear Capacity: 90 degree 4" x 4" x 3/8" 45 degree 2" x 2" x 1/4"

Brake 8": 30 ton

Brake 12": 25 ton

Open End Brake: Max. 1/4" x 3" [Flat or Angle Iron]

Pipe Notcher Schedule 40: 3/4", 1", 1-1/4", 1-1/2", 2"

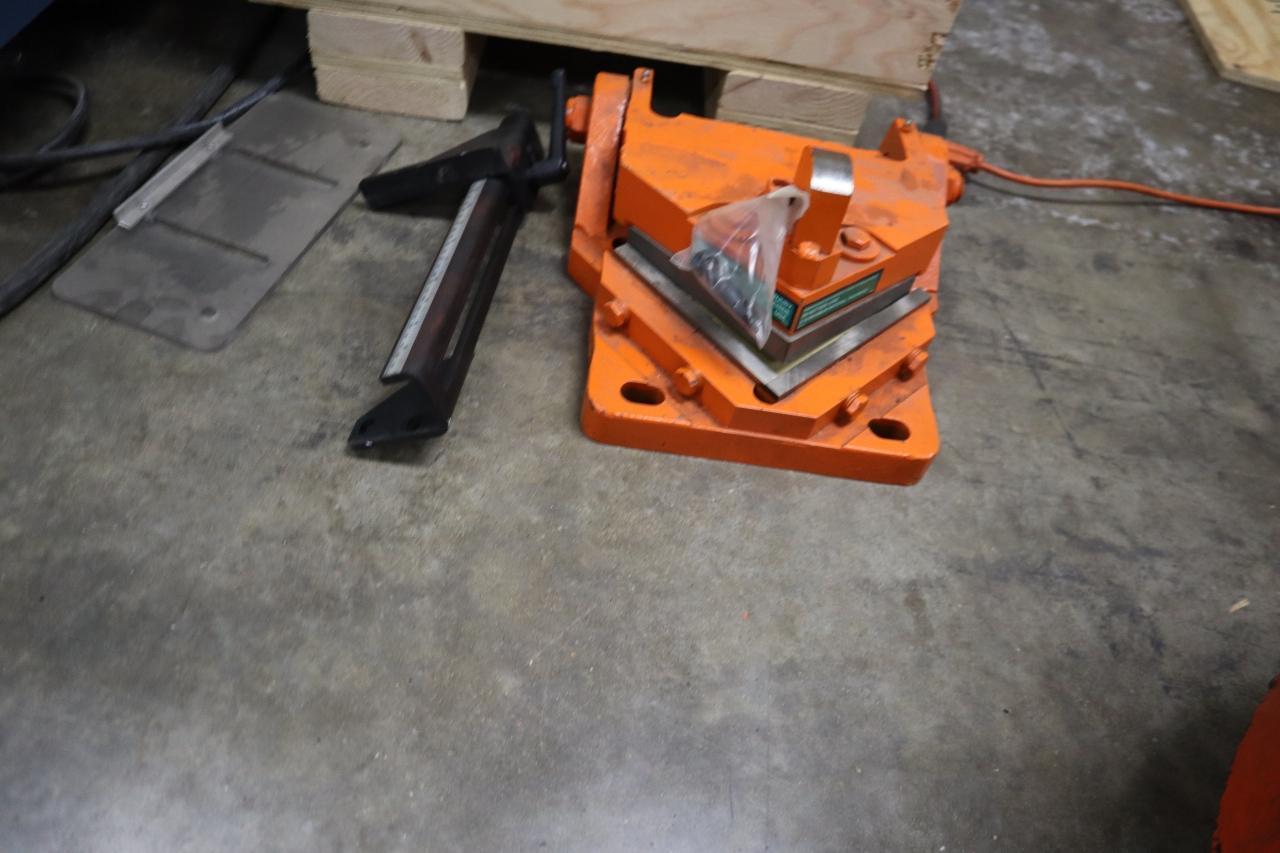

Rectangle Notcher: 2-1/2" x 3" x 5/16" 2-1/2" x 2-3/4" x 3/8"

90 degree V-Notcher: 6" x 6" x 1/8" 3" x 3" X 1/4"

Rod Shear Round (max.): 5 Cavity - 1/4" to 1"

Rod Shear Square (max.): 1 Cavity - 1/4" to 3/4"

Square Tube Shear: 1/2" to 1" 12 gauge

Picket Tool: 1/2", 3/4" & 1" 16 gauge

Weld Coupon Bender (max.): 2" wide x 3/8"

Hydraulics: 2,350 psi
