20 inch Minster Conventional Coil Feed Line Model MRH10-26S / MSH20-20-7 / MEMF5-20S / MTT

Coil Feed Line Specifications
10,000 lbs. Coil Capacity
20" Maximum Coil Width
.156" Maximum Coil Thickness at Full Width

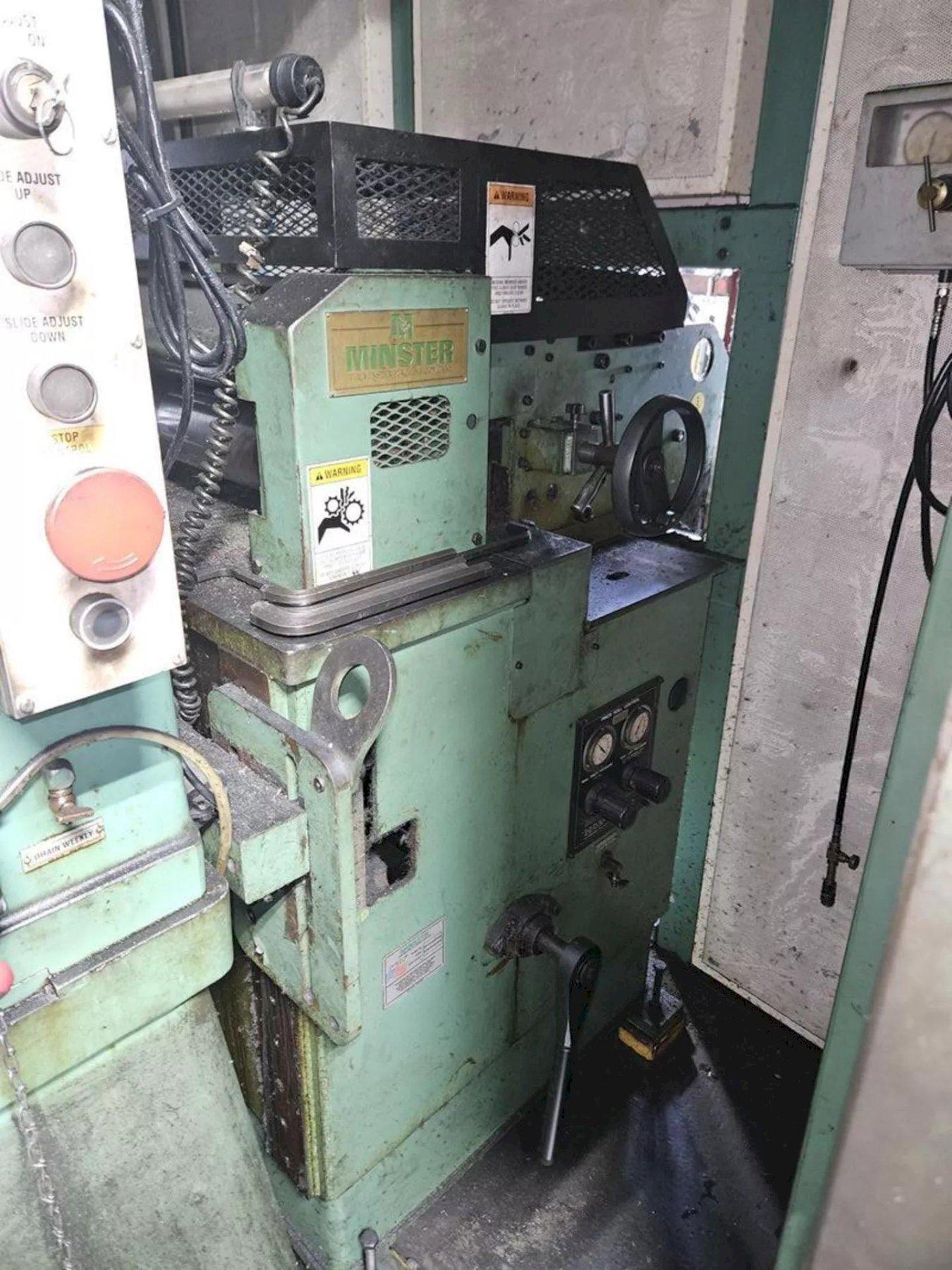

Minster MEMF5-20S Electric Servo Roll Feeder

The "MEMF5" represents a heavy-duty, high-torque electric servo feed series designed to process heavier stock at high performance.

• Max Material Width: 20" (508 mm)

• Feed Roll Diameter: 5.0 inches (Dual upper and lower hardened/ground rolls)

• Feed Length Range: Fully programmable (0 to 999.99")

• Pilot Release: High-speed pneumatic upper roll lift for material piloting.

• Edge Guides: Hand-crank adjustable dual-roll entry edge guides.

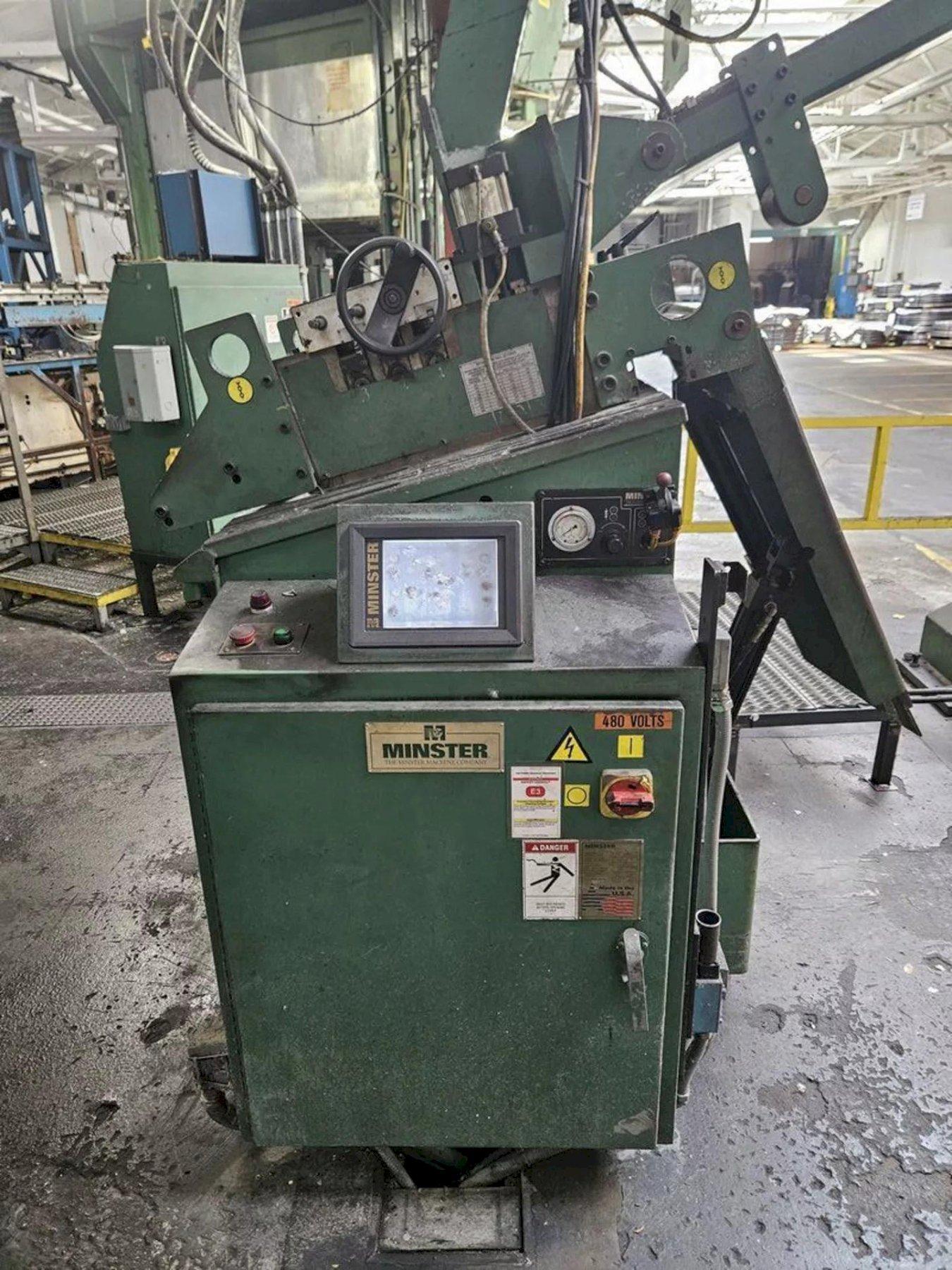

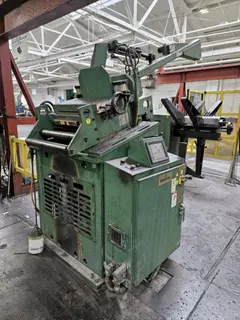

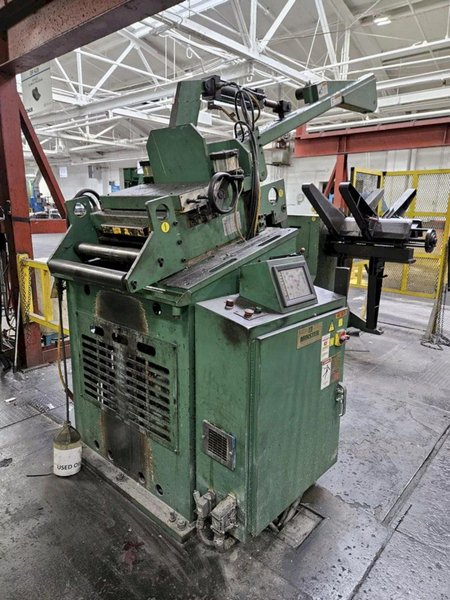

Minster MSH20-20-7 Powered Coil Straightener

The "MSH20" series indicates a high-heavy straightener option built for higher yield materials.

• Max Material Width: 20"

• Number of Work Rolls: 7 straightening rolls (4 lower rolls, 3 upper rolls)

• Roll Diameter: 2.0" nominal diameter work rolls

• Pinch Rolls: 3.33" Diameter - Driven entry and exit pinch rolls with pneumatic upper clamping.

• Adjustments: Manual hand-wheel or motorized upper roll bank adjustments with numerical indicators for precise setting retention.



  Straightener Capacity Table



  Stock	YIELD STRENGTH
  Thickness	40,000	50,000	60,000	70,000	80,000	90,000	100,000
  (inch)	Width	Width	Width	Width	Width	Width	Width
  0.02	20.00	20.00	20.00	20.00	20.00	20.00	20.00
  0.06	20.00	20.00	20.00	20.00	20.00	20.00	17.00
  0.09	20.00	20.00	20.00	15.25	11.25	8.50	6.50
  0.11	20.00	20.00	13.75	9.75	7.00	5.00	3.75
  0.18	11.25	6.50	4.00	*****	*****	*****	*****
  0.20	5.00	5.00	3.00	****	*****	*****	*****

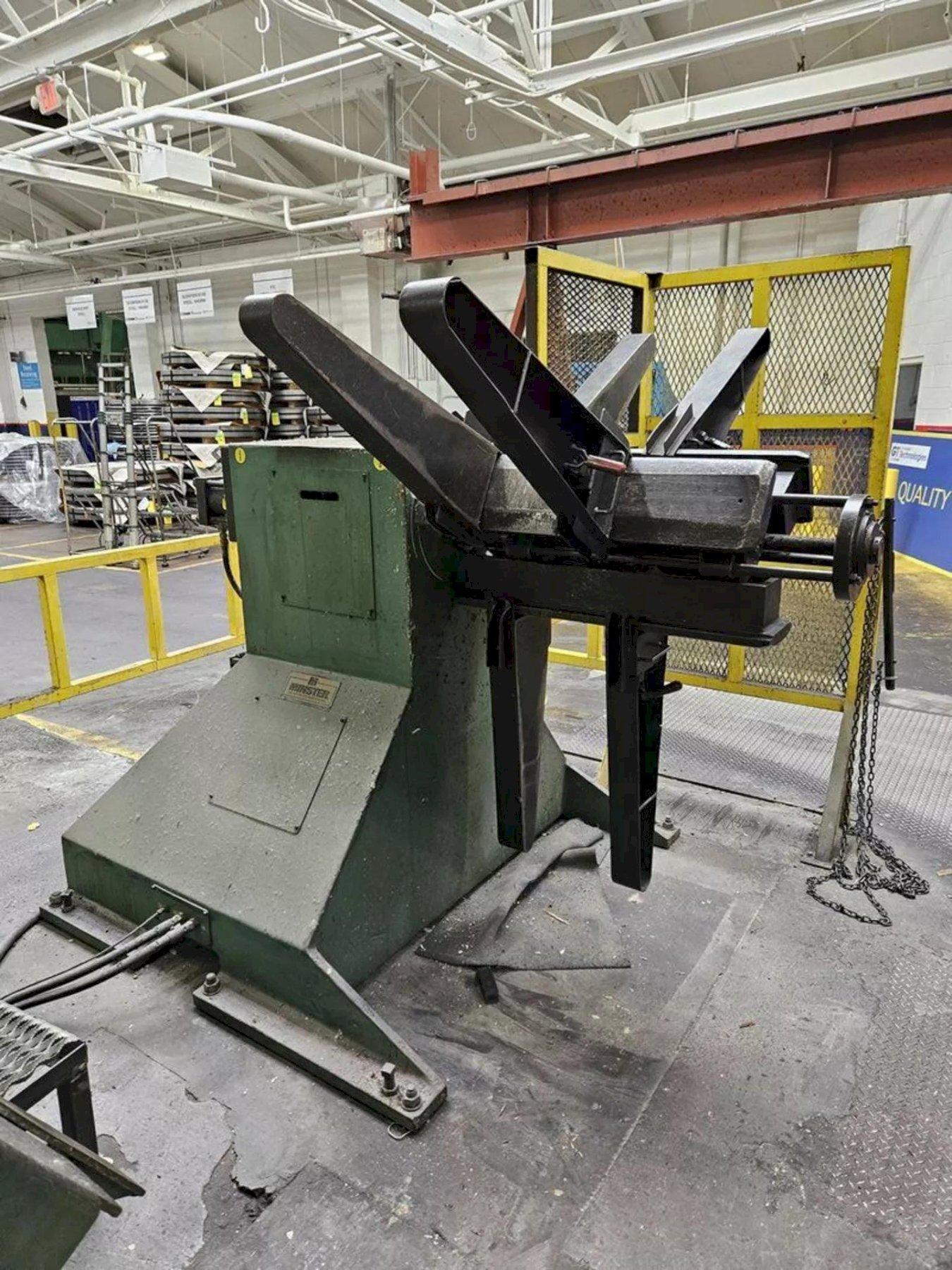

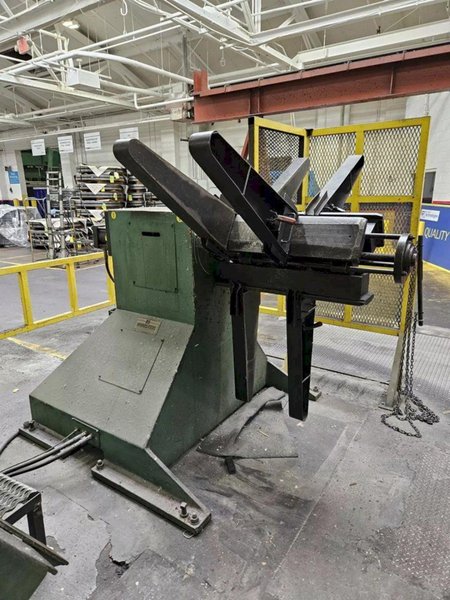

Minster MRH10-26S Heavy Duty Uncoiler / Reel

The "MRH10" designates a heavy-duty, single-end motorized/braked coil reel with a wide 26" mandrel clearance capacity.

• Maximum Coil Weight Capacity: 10,000 lbs.

• Maximum Coil Width Capacity: 26"

• Maximum Coil Outer Diameter (OD): 72"

• Coil Inner Diameter (ID) Expansion Range: 18" to 22" (or standard 20" to 24" wedge expansion depending on configuration)

• Mandrel Expansion: Hydraulic 3-leaf wedge design.

• Hold-Down: Heavy-duty pneumatic coil hold-down arm with a powered end wheel to facilitate safe threading and clock-spring prevention.

• Braking: Pneumatic adjustable tension brake with automatic fail-safe disconnect.

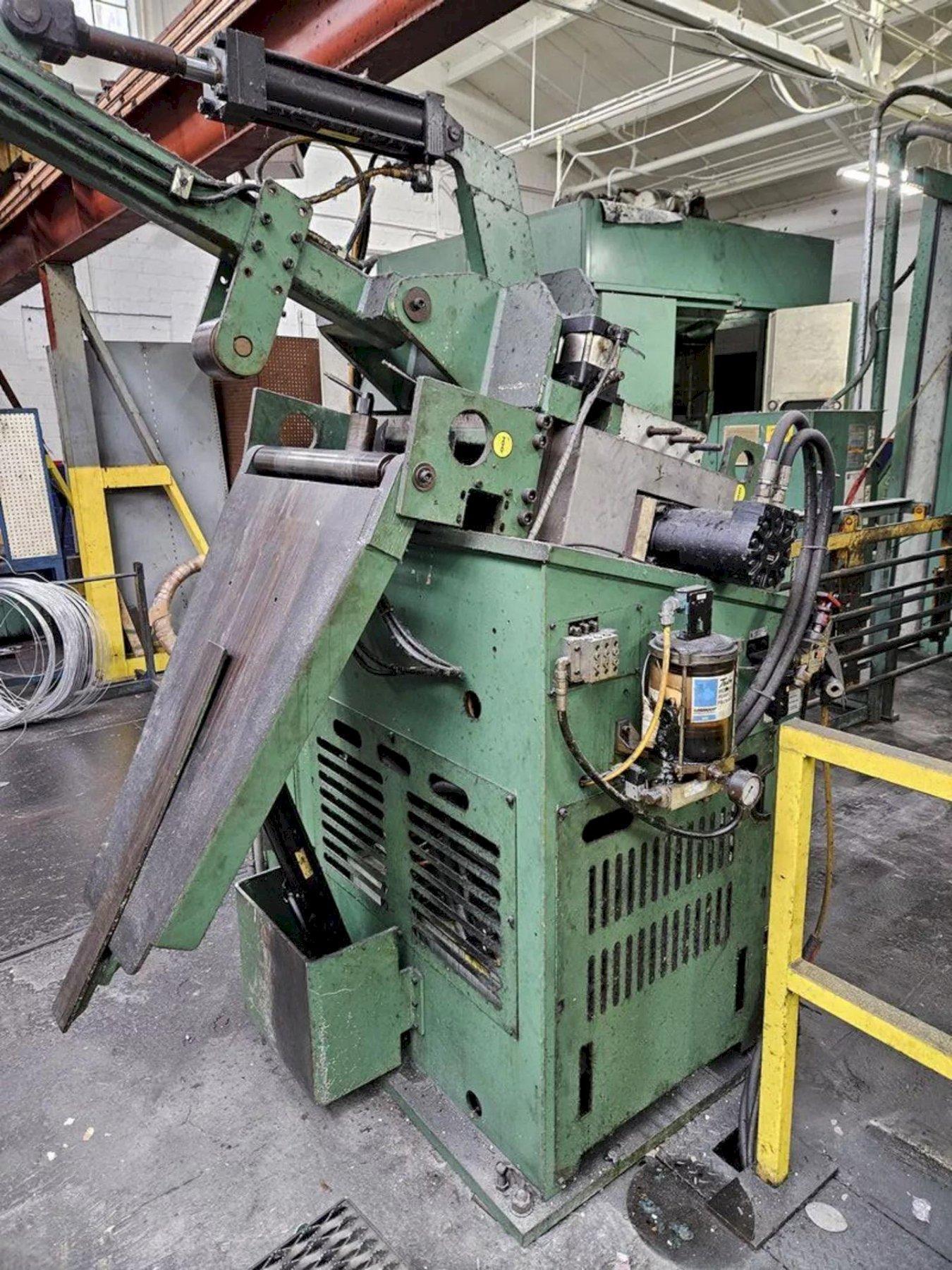

Minster Threading Table (Model MTT Series)

• Frame Width: 26" matching the reel frame.

• Features: Pneumatically actuated peeler blade and a telescoping/tilting thread table to seamlessly transition the heavy material leading edge from the uncoiler into the straightener pinch rolls without manual lifting.

Don't miss the opportunity to add this premium Minster coil feed line to your production floor. Contact an S&G Press sales associate today.

Optimize your pressroom productivity with this high-performance 10,000 lbs Minster Coil Feed Line for sale. Engineered for heavy-duty stamping operations, this integrated system handles up to a 20" maximum coil width and an impressive .156" maximum material thickness at full width. The lineup features a high-torque Minster MEMF5-20S Electric Servo Roll Feeder boasting dual 5.0" hardened rolls and a fully programmable feed length up to 999.99". Material conditioning is handled by the rugged Minster MSH20-20-7 Powered Coil Straightener, utilizing a 7-work-roll configuration with 2.0" nominal diameters to eliminate coil set from high-yield stock. This turn-key coil feed system ensures exceptional precision, minimal material deflection, and reduced setup times for your demanding high-volume progressive die operations.

Designed for maximum safety and efficient material handling, the line is anchored by a heavy-duty Minster MRH10-26S Uncoiler. This single-end motorized reel features a 10,000 lbs capacity, hydraulic 3-leaf wedge mandrel expansion, a pneumatic fail-safe tension brake, and a robust pneumatic hold-down arm with a powered end wheel. Threading thick material is safe and seamless thanks to the Minster MTT Series Threading Table, which utilizes a pneumatically actuated peeler blade and a tilting table to bridge the gap into the straightener pinch rolls without manual lifting. When you buy this premium Minster feed line from S&G Press, you benefit from over 26 years of trusted industry expertise and absolute transaction transparency.
