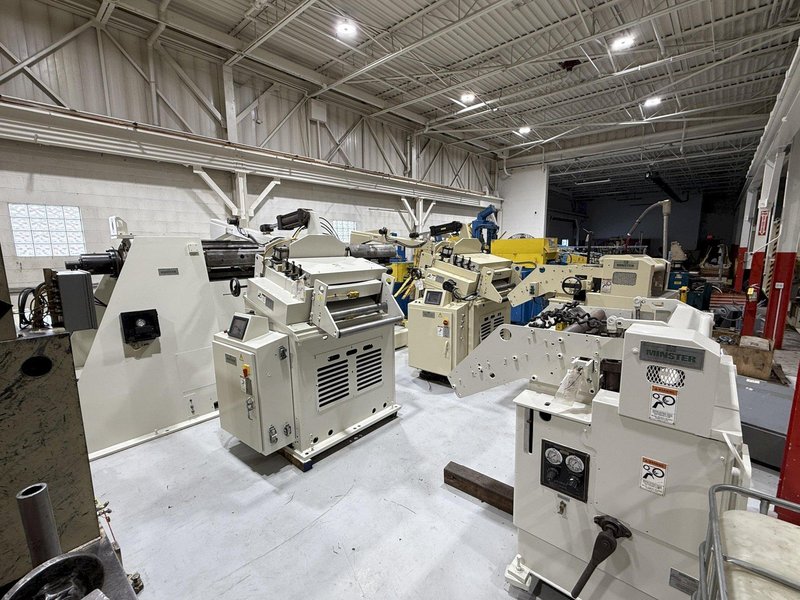

15,000 lbs. x 26" Wide Minster Conventional Servo Coil Feed Line, Year 1997
Brand
Category
Type
Model
MR15-26S / MSH30-26-7 / MEF5-26S
Stock #
2890
Year
1997
Condition
Used
Location
Michigan
| Coil Weight | 15000 pounds |
| Coil Width | 26 inches |
| Coil Thickness | .140 inches |
|
Standard Specifications
15,000 lbs. Maximum Coil Weight
26" Maximum Coil Width
.140" Material Thickness at Full Width
.350" x 5" Wide Maximum Material Thickness
.020" to .350" Thickness Capacity
20-24" I.D. Range
72" Capacity Coil Outside Diameter
40-1200 IPM Line Speed

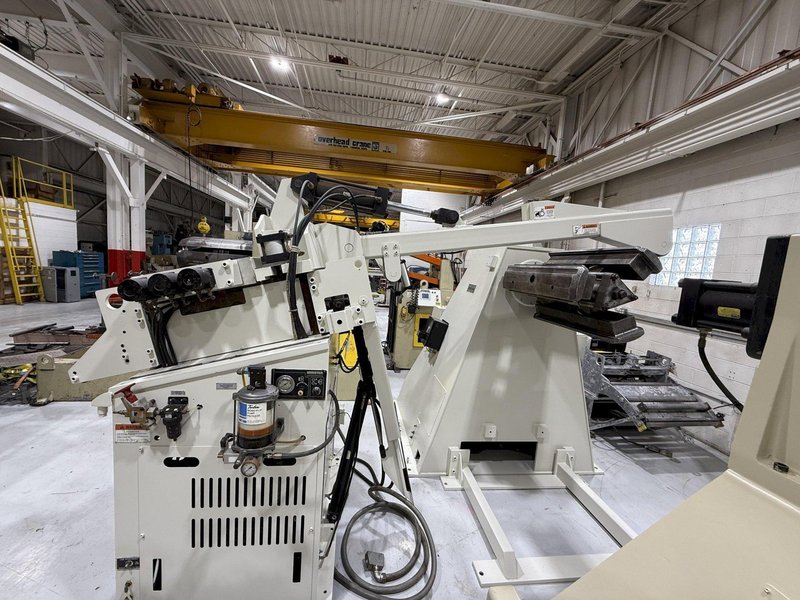

Minster Conventional Coil Feed Line Consisting of:

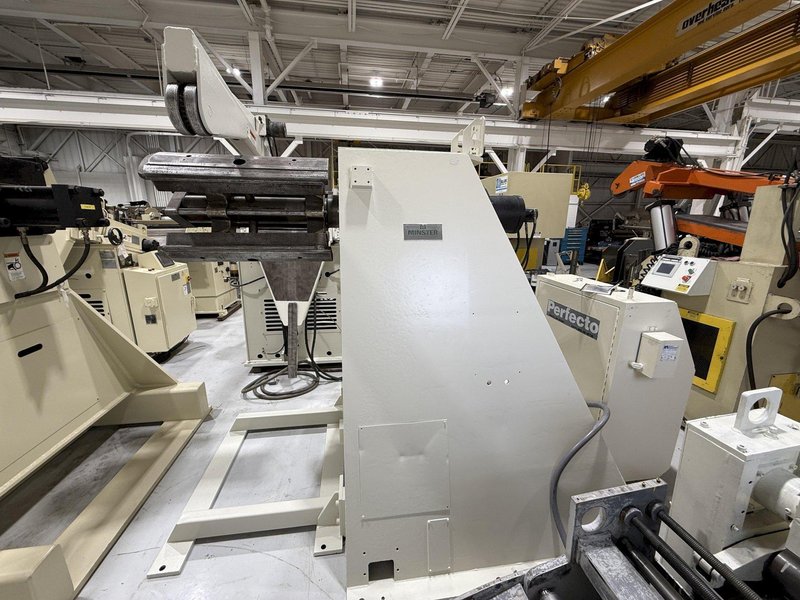

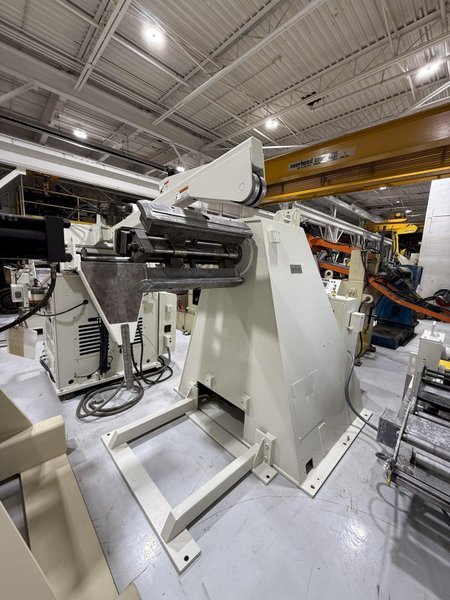

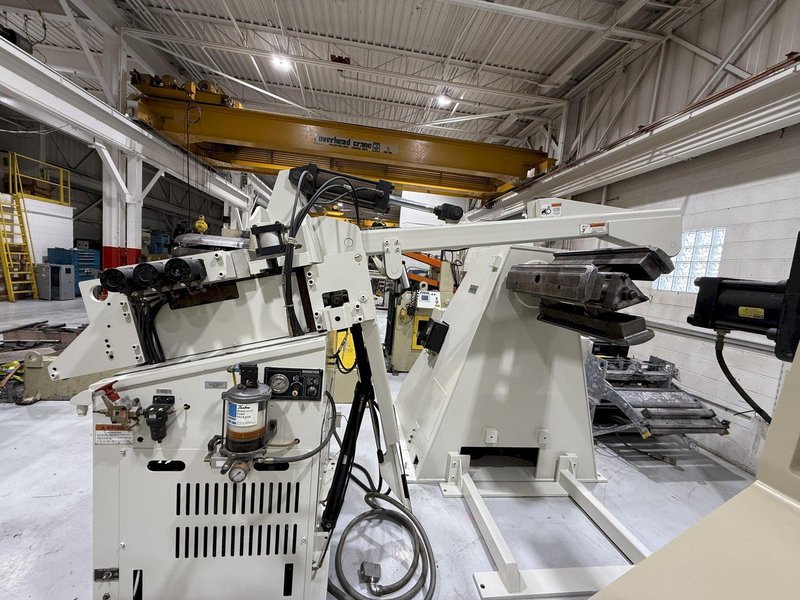

Minster Coil Reel Model MRH15-26S
Serial Number - 13-50814 Three Leaf Mandrel with Coil Keeper Arms
Hydraulic Mandrel Expansion
Air Brake Mounted on Main Spindle
Adjustable Tensioning
Threading Drive for Jog Forward / Reverse

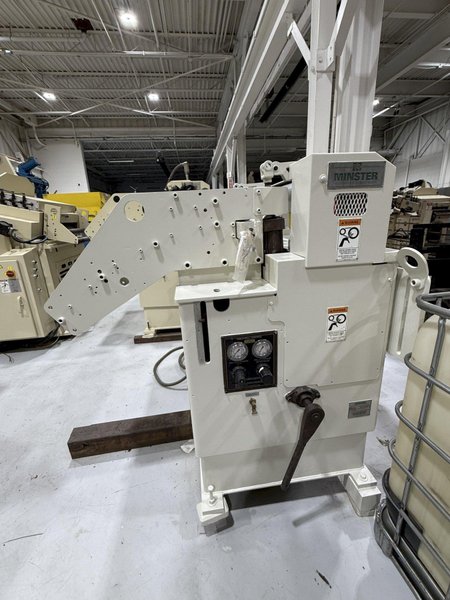

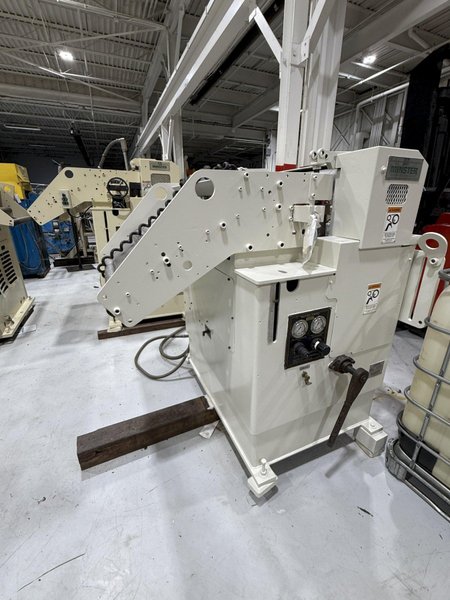

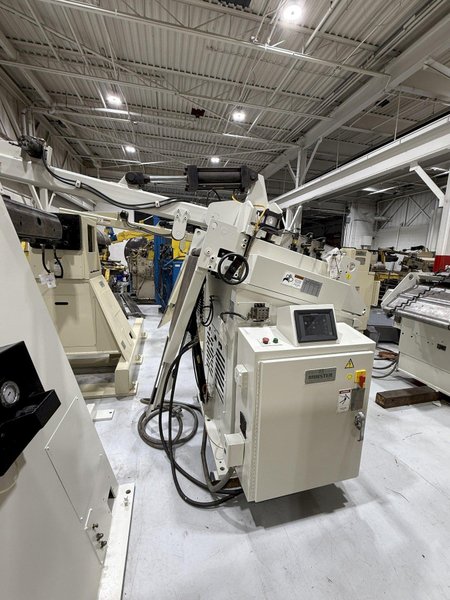

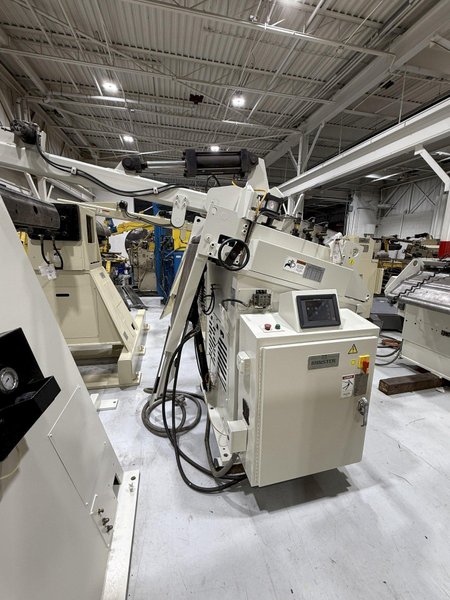

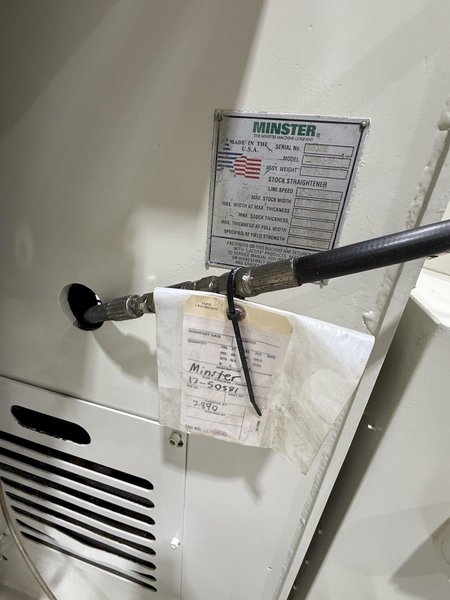

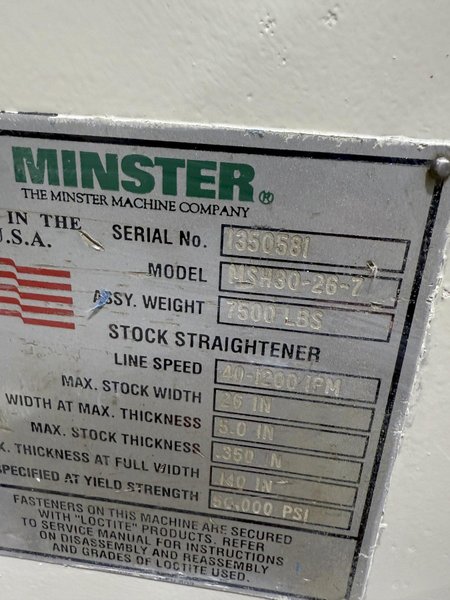

Minster Powered Straightener Model MSH-30-26-7
Serial Number - 13-50581 Seven Powered Straightening Rolls x 3" Diameter
Entry Pinch Roll Assembly x 5" Diameter
Motorized Upper Straightening Roll Adjustment
Air Operated Upper Pinch Roll Adjustment
Adjustable Stock Width Edge Guides
Coil Hold Down Arm with Motorized End Wheel
Stock Peeler Table with Spade Extension
Coil End De-bender Roll
40-1200 IPM Line Speed Exit Cascade Loop Support Rollers
Variable Speed Drive
Operator's Control Station
Jog Forward and Reverse with Pendant Remote
End of Stock Sensor
Auto / Run Cycle
Variable Speed Loop Controls
Minster Threading Table Model MTT-12-32-S
Serial Number - 13-81277 Air Actuated
144" Length of Table
32" Maximum Stock Width
Bomb Bay Type

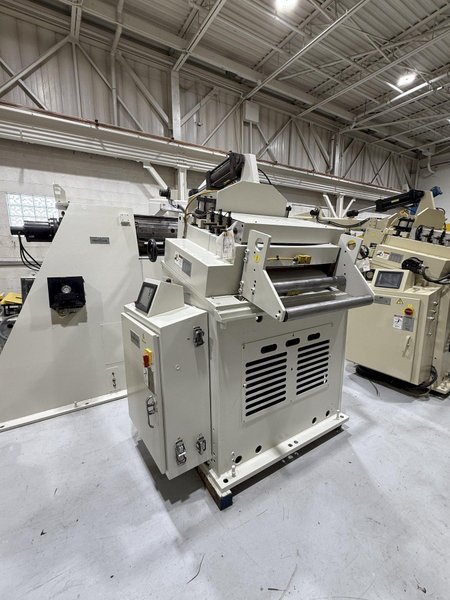

Minster Single Roll Servo Feed Model MEF5-26S
Serial Number - 15-50877 26" Maximum Coil Width
5.392" Feed Roll Diameter
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot
Entry side cascade material support section
Stock width edge guides
Centralized lubrication points
Solenoid controlled pilot release
Air pressure/regulator
Cabinet base mounted w/ adjustable pass line height
AC servo roll feed drive and controls
Job memory, batch counting, on the fly micro adjustment

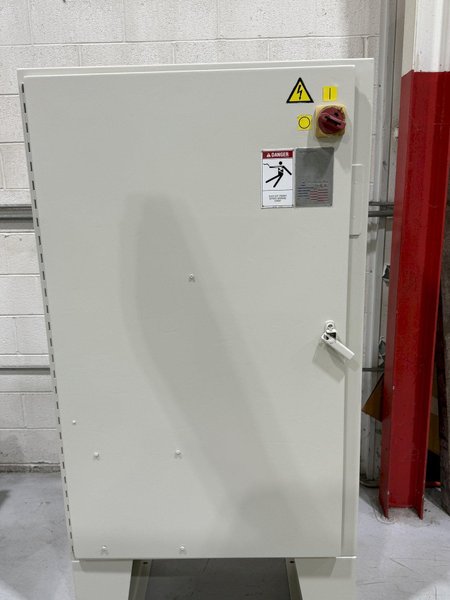

Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
Fused disconnect
480 Volt
This 15,000 lbs. x 26" Minster Conventional Coil Feed Line Can Be Seen Under Power Upon Request. |
|
