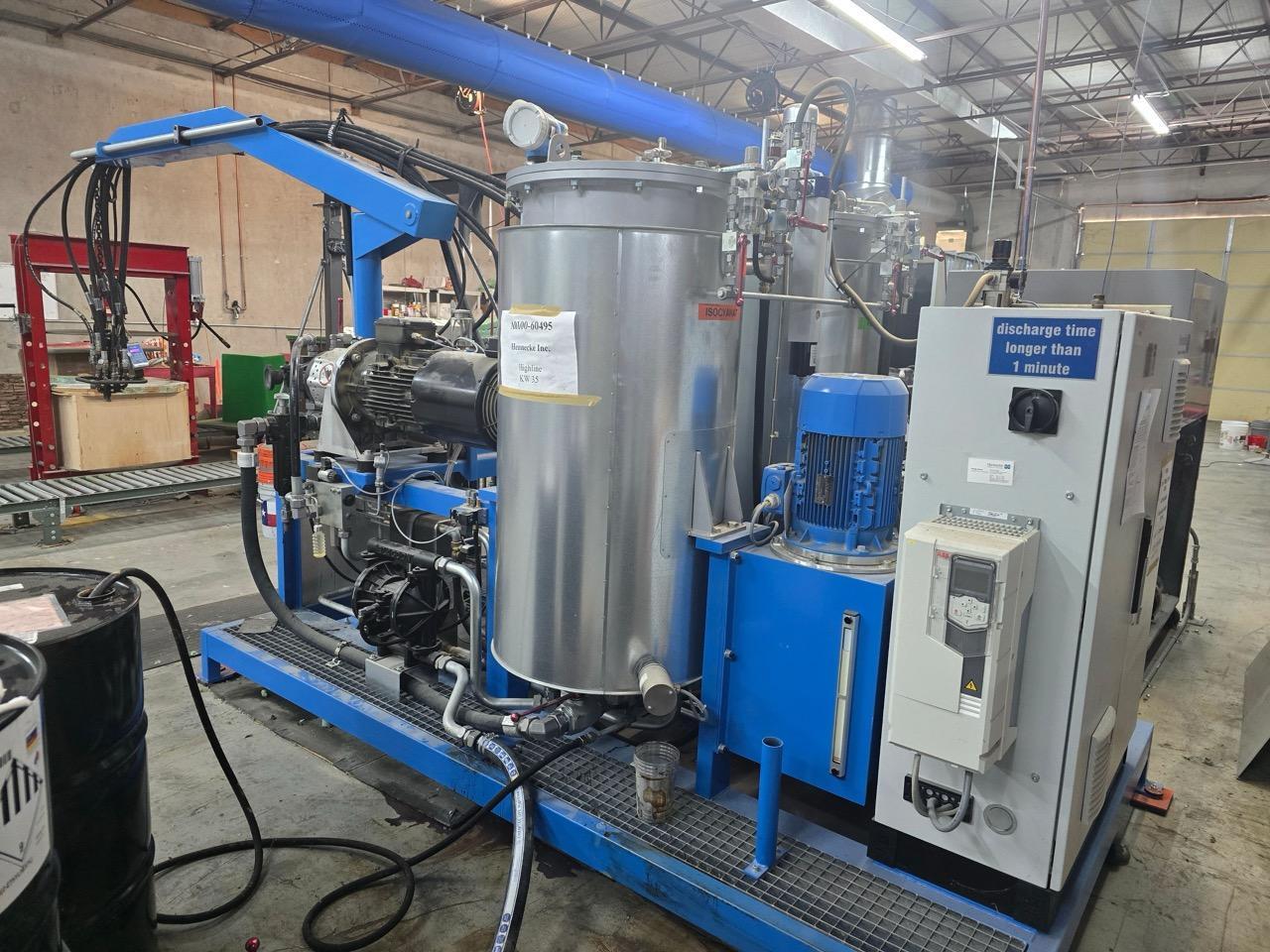

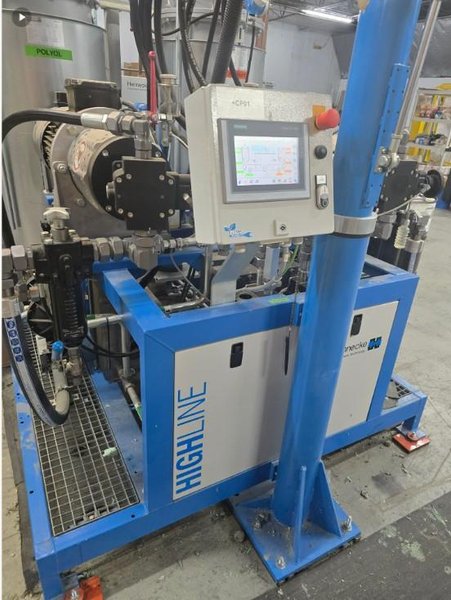

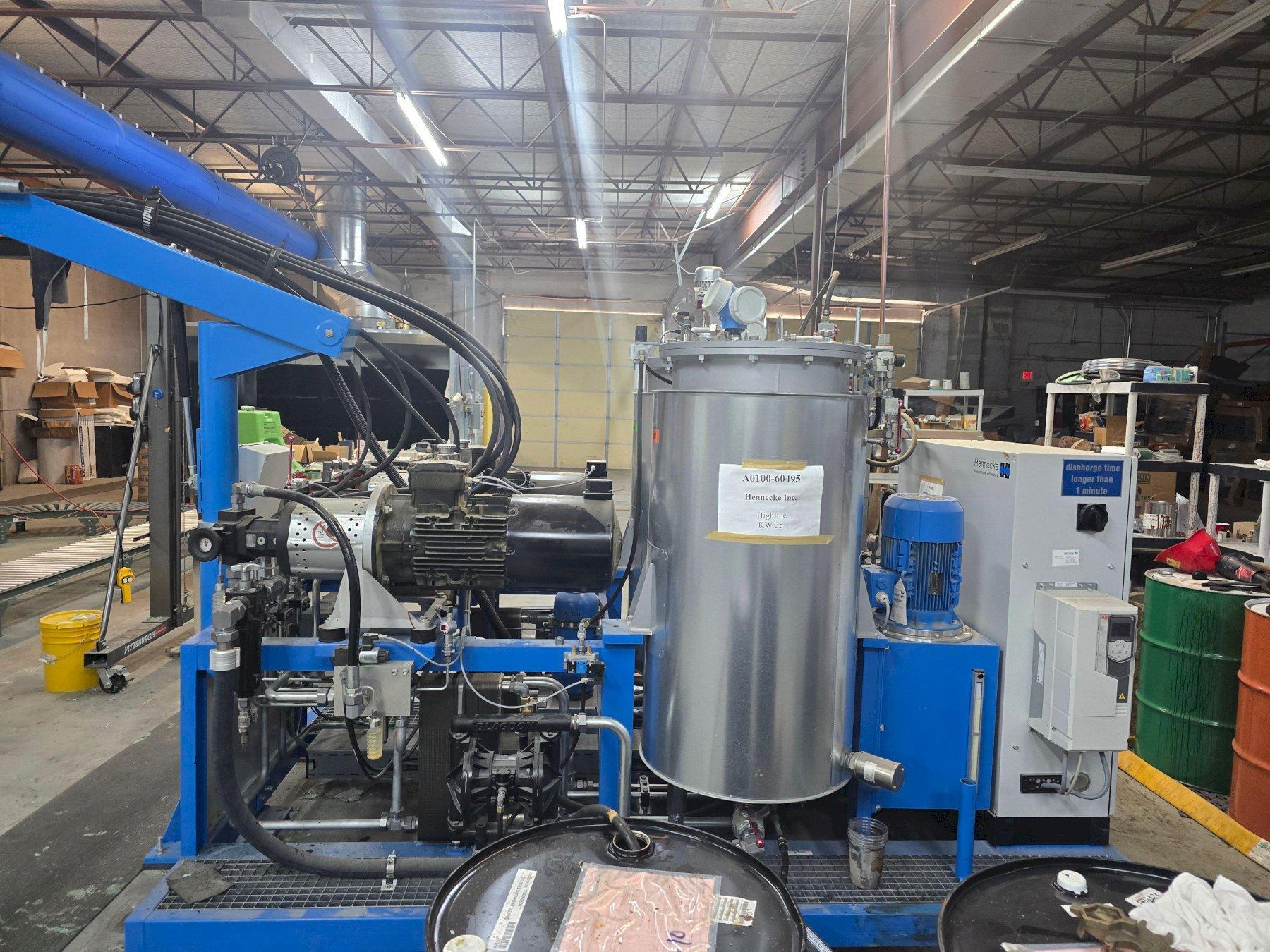

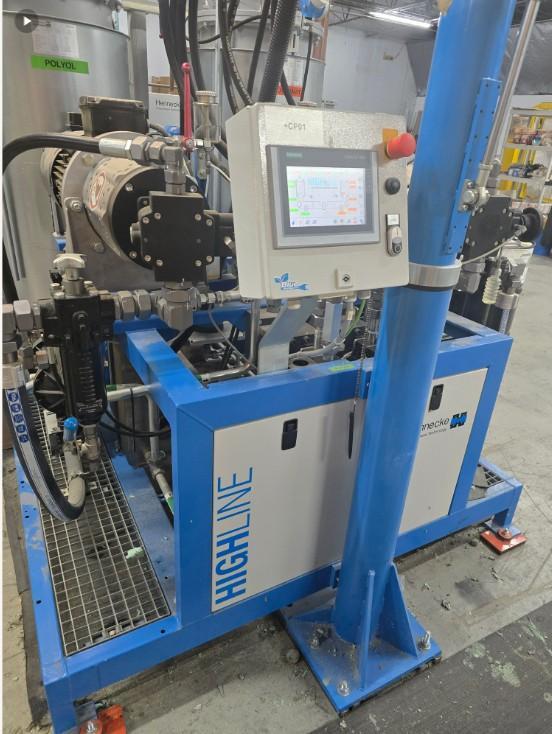

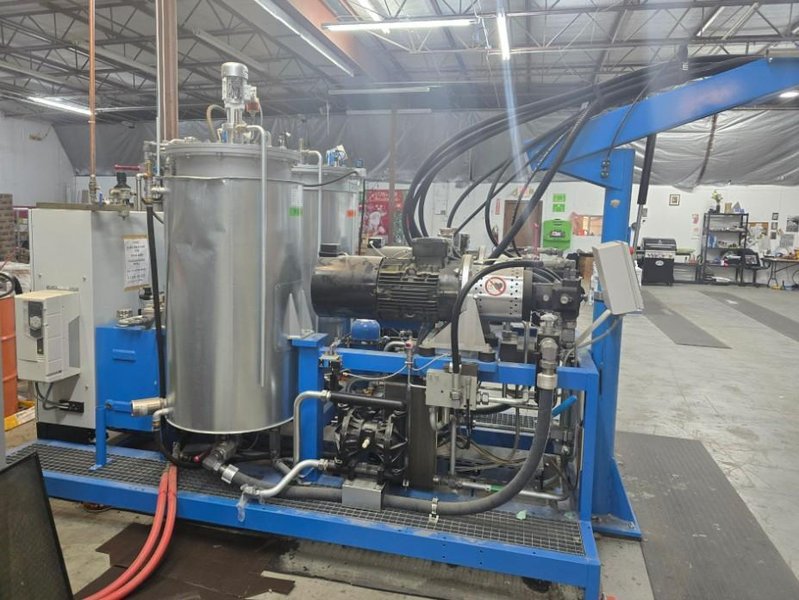

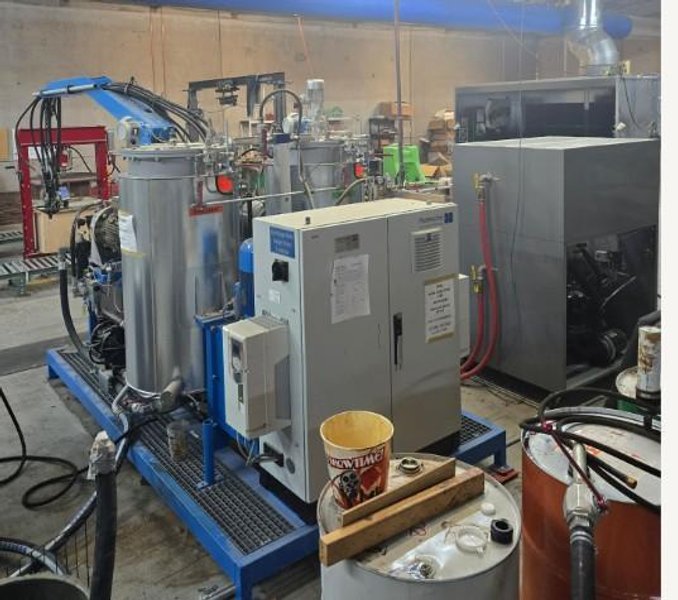

Hennecke HIGHLINE 650 Polyurethane Metering & Mixing System with MT 18-2 Mixhead, 2016

System Includes HIGHLINE 650 Polyol Metering Line HIGHLINE 650 Isocyanate Metering Line MT 18-2 Hydraulic Mixhead (2) 250 Liter Tank Stations Integrated Heat Exchanger Systems Pressure Monitoring & Safety Systems Low-Pressure Recirculation Circuits Metering Line – HIGHLINE 650 Polyol Component

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Includes:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,HQ 28 corrosion-resistant metering pump Max output: 650 cm³/sec at 50 Hz 780 cm³/sec at 60 Hz Approximate throughput: 103 lbs/min at material SG 1.0 (60 Hz) 15 kW / 1,500 RPM AC motor 18 kW / 1,800 RPM at 60 Hz Electronic suction-side pressure monitoring with digital display Electronic delivery-side pressure monitoring with digital display Stainless-steel safety valve Low-pressure recirculation system Metering Line – HIGHLINE 650 Isocyanate Component

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Includes:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,HQ 28 corrosion-resistant metering pump Max output: 650 cm³/sec at 50 Hz 780 cm³/sec at 60 Hz Approximate throughput: 103 lbs/min at material SG 1.0 (60 Hz) 15 kW / 1,500 RPM AC motor 18 kW / 1,800 RPM at 60 Hz Electronic suction-side pressure monitoring with digital display Electronic delivery-side pressure monitoring with digital display Stainless-steel safety valve Low-pressure recirculation system MT 18-2 Hydraulic Mixhead

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Designed as a 2-component high-pressure recirculation mixhead with single deflection.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Features include:

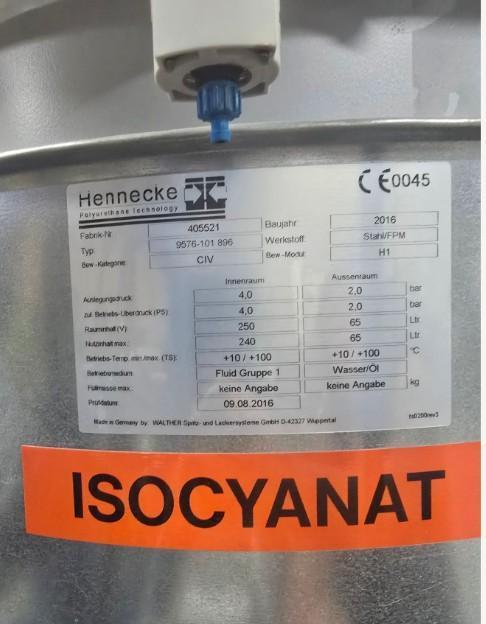

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Adjustable spring-loaded constant pressure injectors Control piston with recirculation grooves Cleaning piston Hydraulic unit with pressure accumulator, valves, and accessories European Pressure Equipment Directive compliant design Tank Stations Polyol Tank Station Capacity: 250 liters (66 gallons) Useful capacity: approx. 230 liters (60 gallons) Double-walled temperature-controlled tank Carbon steel modular construction Integrated stirrer with gear motor Guided microwave level measurement system Overfill prevention system Dry compressed air / nitrogen conditioning system Safety valves and suction shut-off valves Edge filter in suction line Manual refill opening Drain valve Pressure release connection Isocyanate Tank Station Capacity: 250 liters (66 gallons) Useful capacity: approx. 230 liters (60 gallons) Double-walled temperature-controlled tank Guided microwave level measurement system Overfill prevention system Dry compressed air / nitrogen conditioning system Safety valves and suction shut-off valves Edge filter in suction line Manual refill opening Drain valve Pressure release connection

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tank design complies with:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,European Pressure Equipment Directive 97/23/EG AD-2000 Technical Rules CE pressure vessel conformity standards Heat Exchanger Systems

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Mounted on machine frame and includes:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Stainless-steel plate heat exchangers Integrated piping systems Cooling water supply and recirculation connections Required valve assemblies
