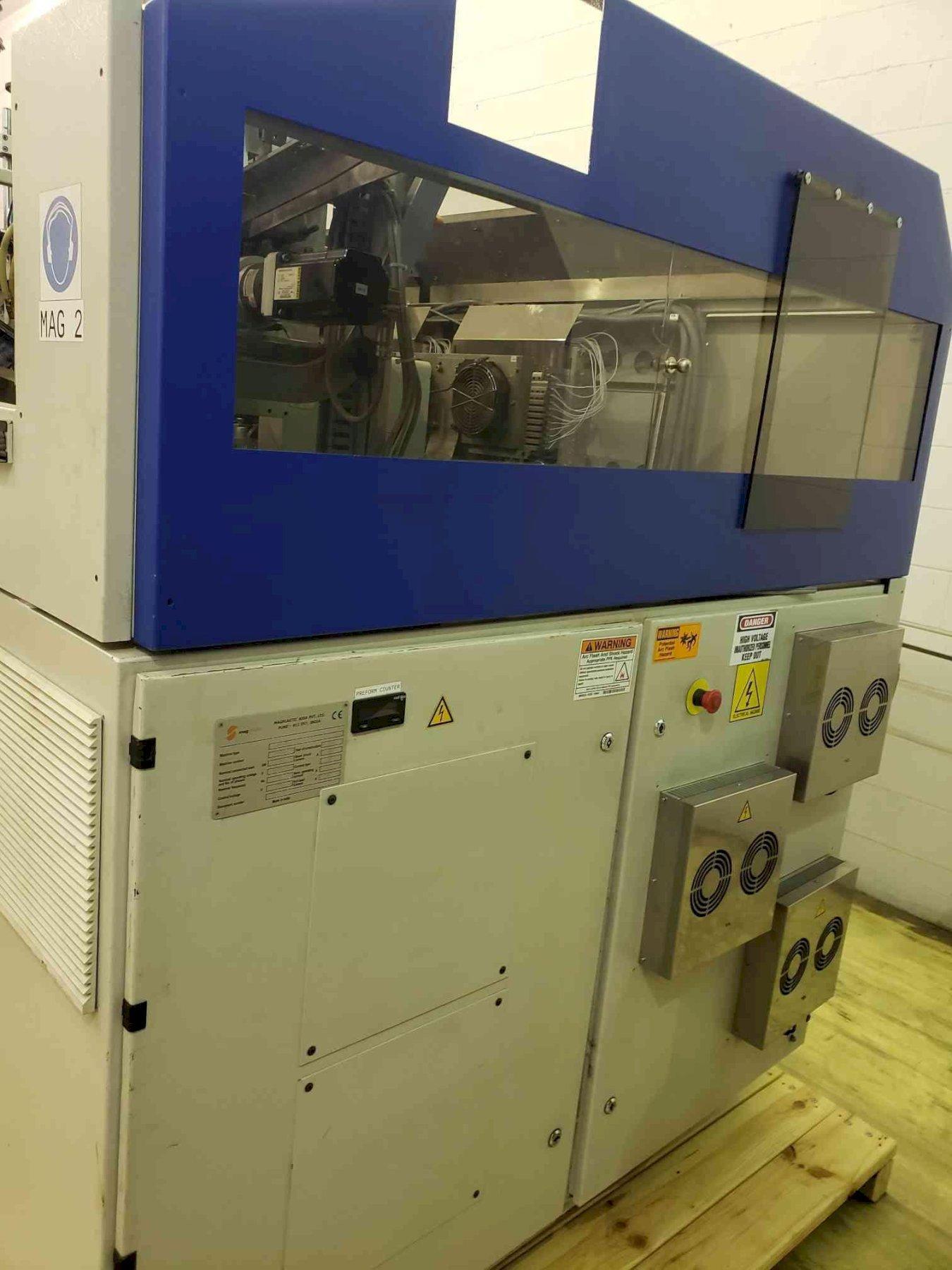

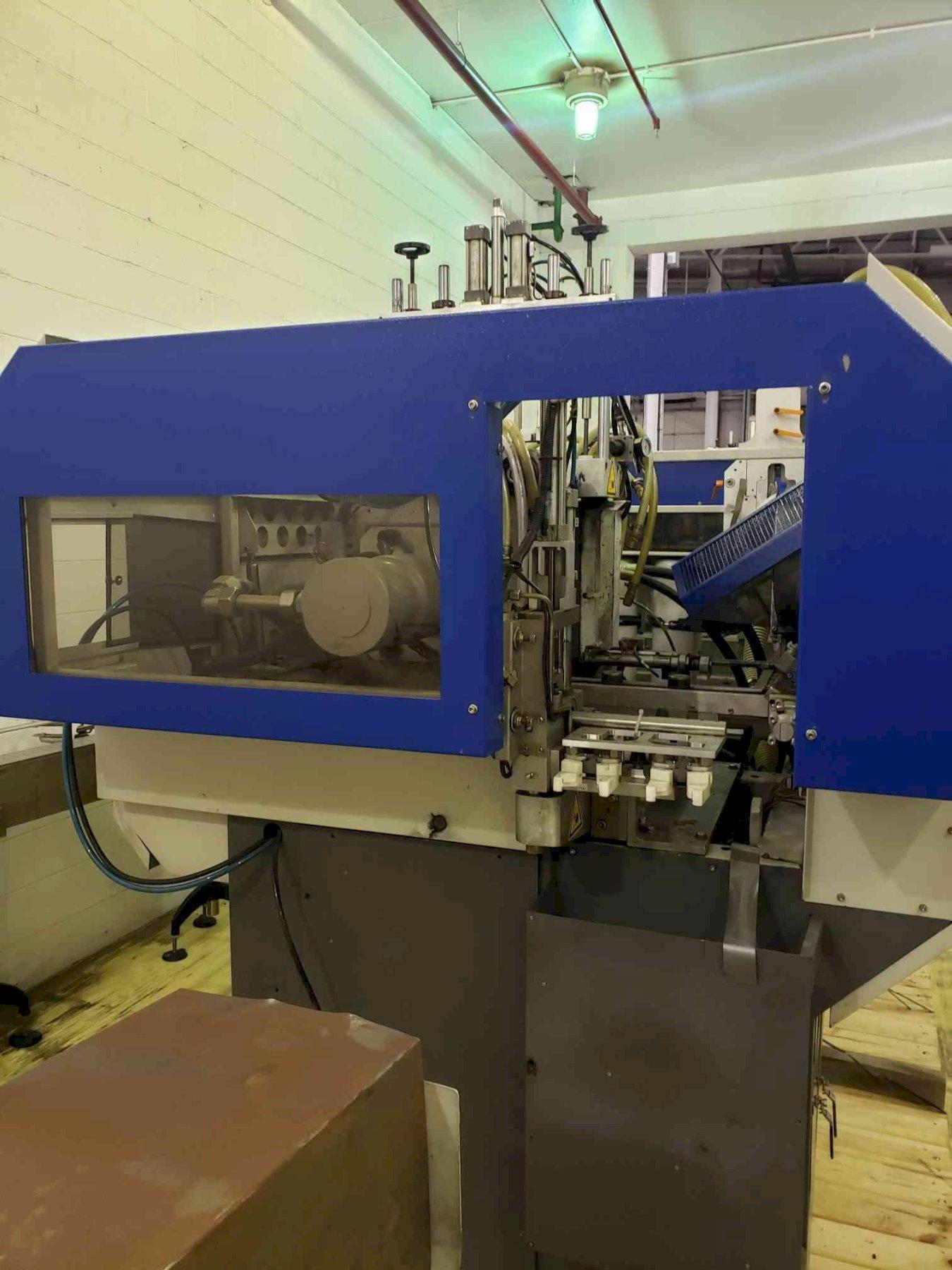

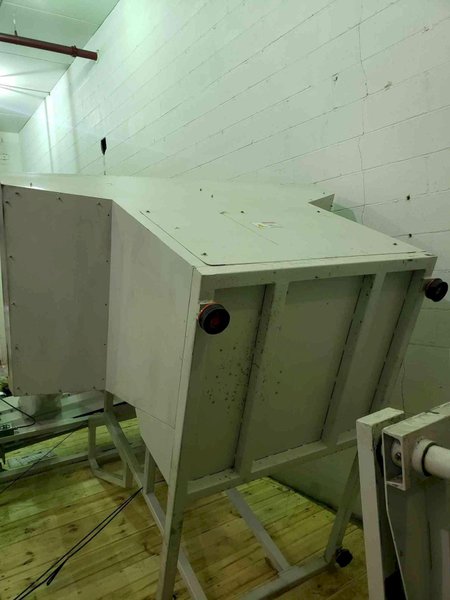

Magplastic SSB 02 PET Blow Molding Machine, 2009

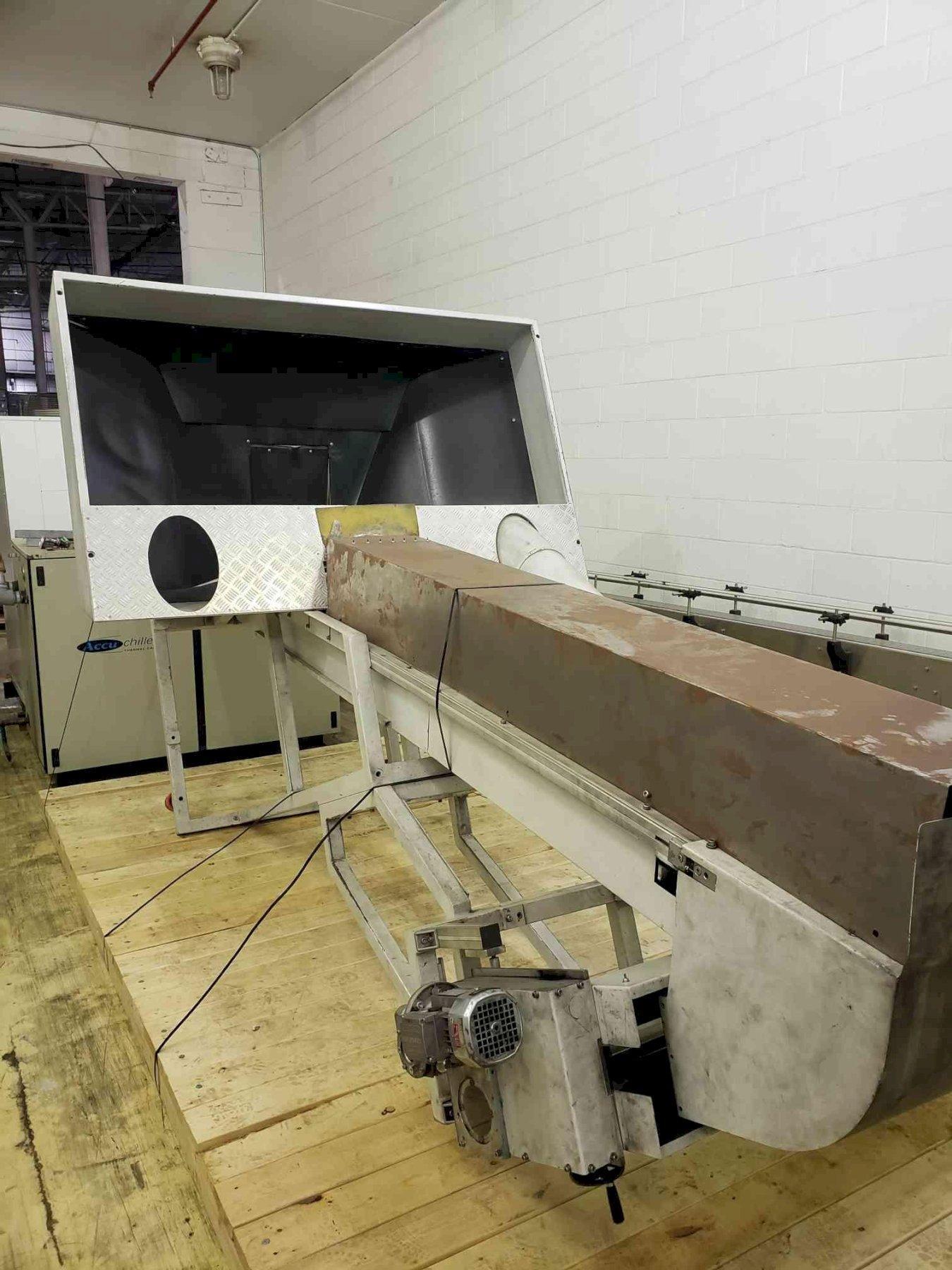

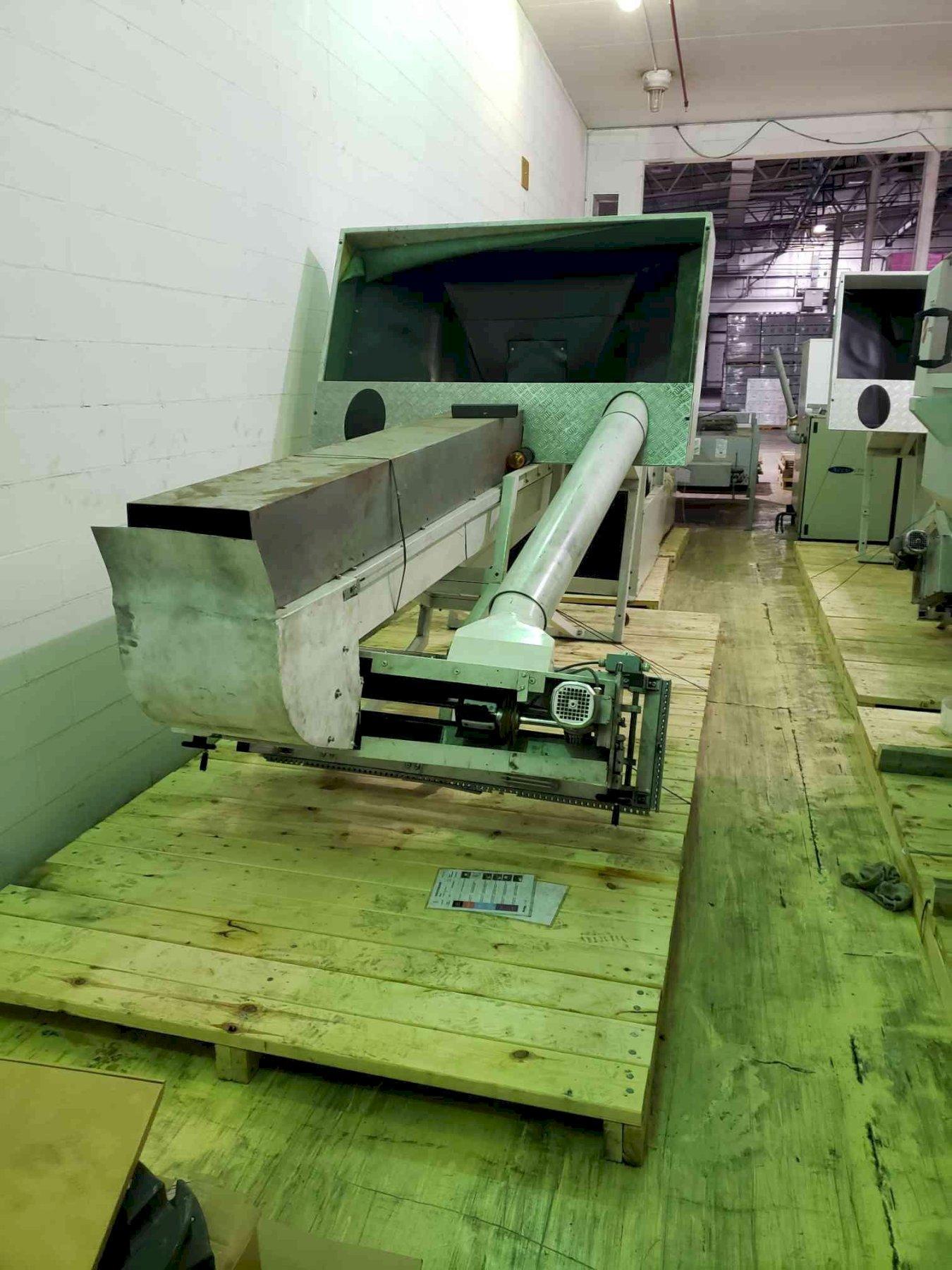

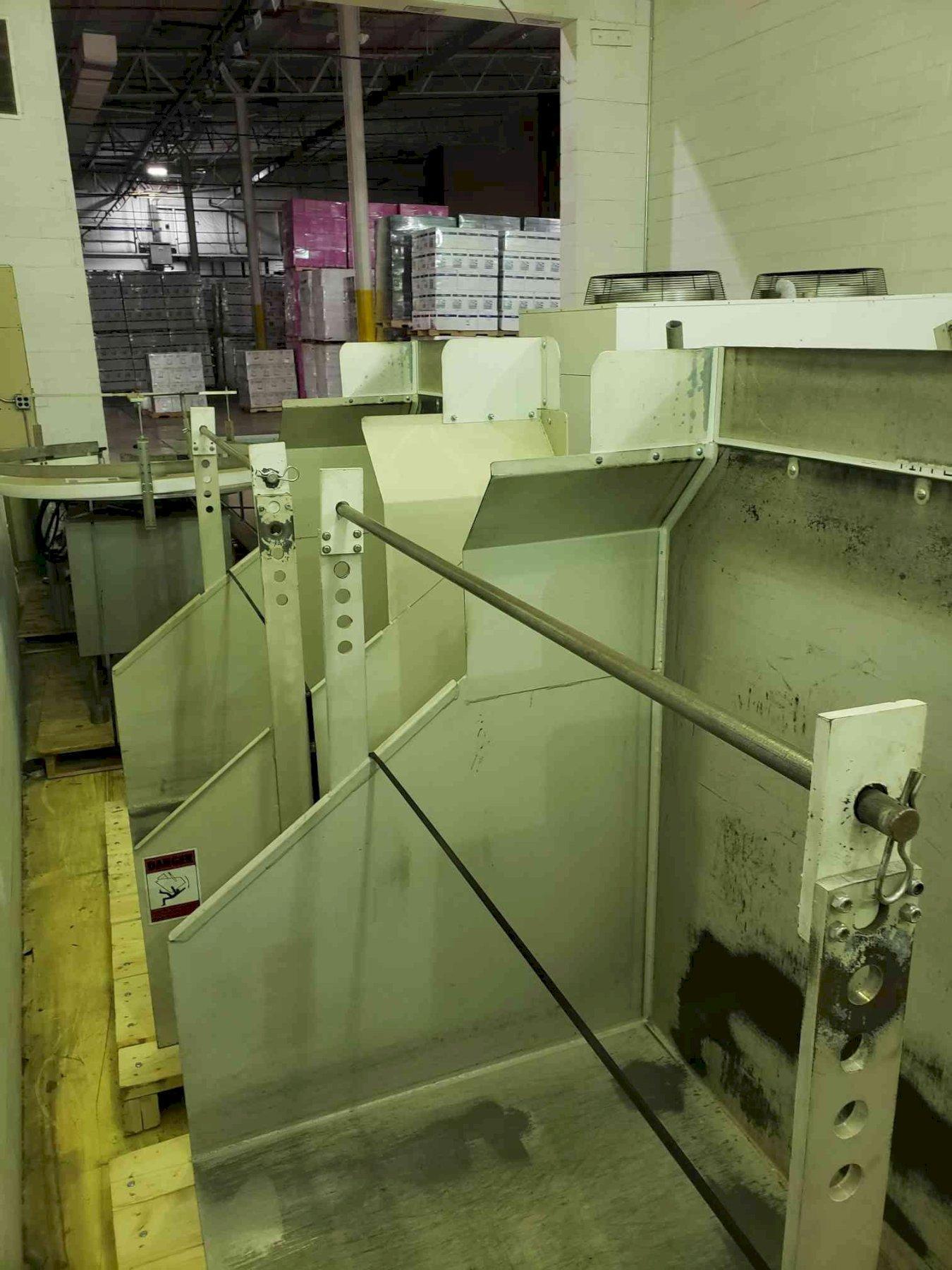

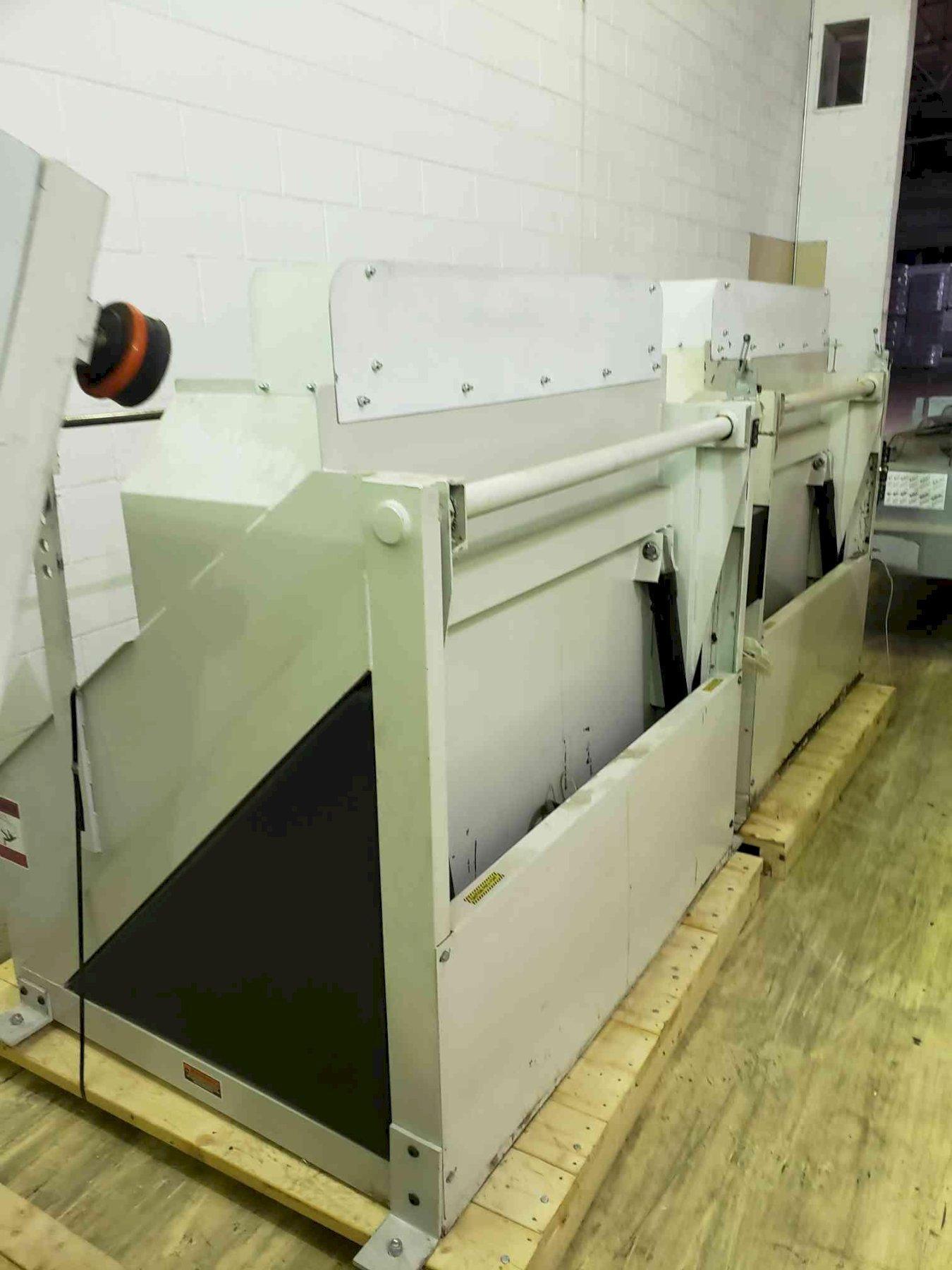

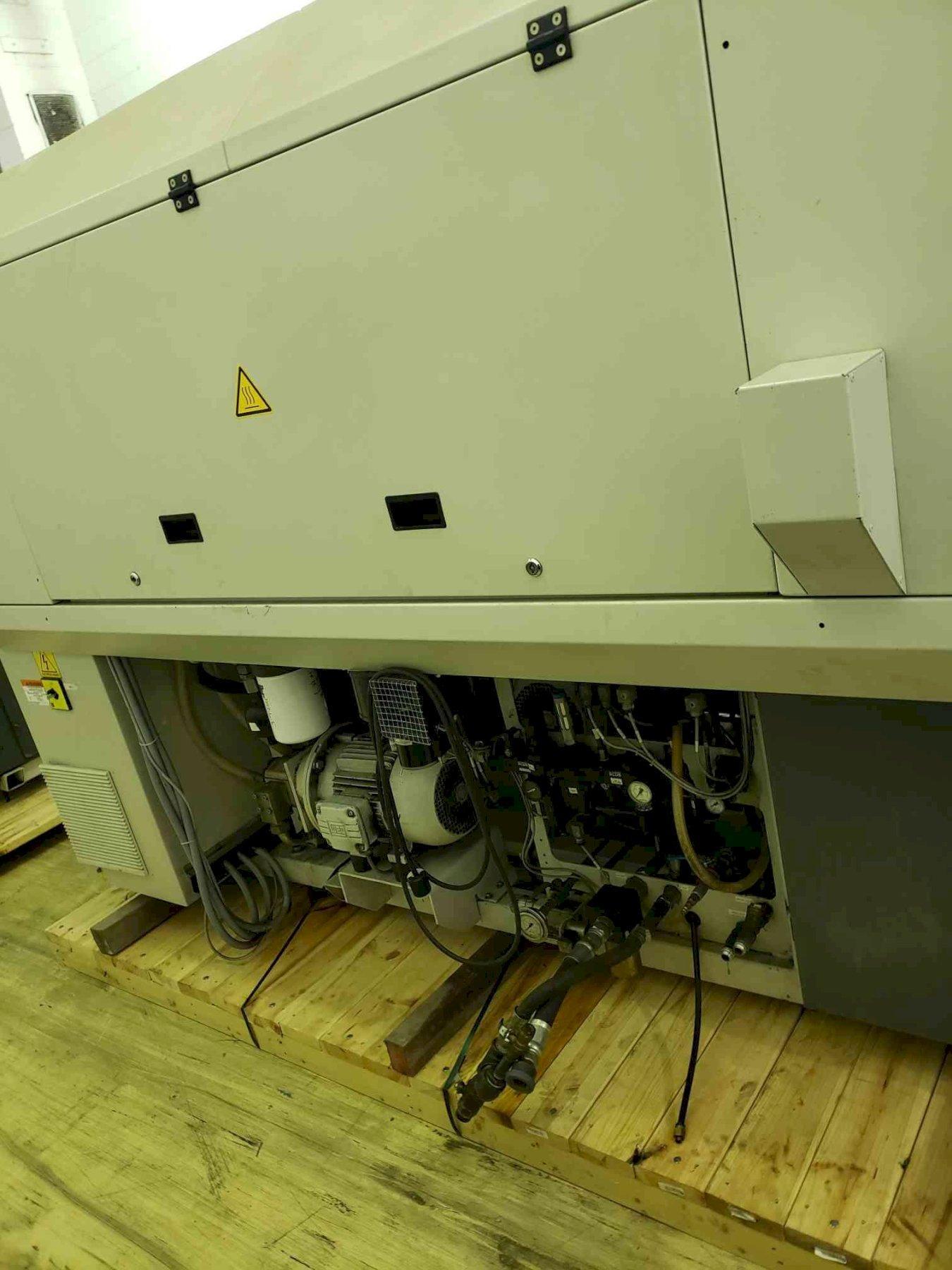

Magplastic SSB02 PET Bottle Blow Moulding Machine, 2009 – Previously used for 1.75L, 1L, and .75L PET bottles – System includes tote dumper, pre-form conveyor, and bottle blower

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine technical data: – Press closing force: 220 kN – Average electrical power with heating fully engaged: 37 kW (up to 66 kW with options). True electrical consumption depends on bottle shape, preform length and thickness. – Standard voltage / frequency: 3 x 400 to 480V equilibrated + E – 50Hz / 60Hz – Permissible fluctuations: +/- 5% – Distance between moulds: 118 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Heating system: One pre-heating box: – 9 lamps x 1500W – Total power: 13,500 kW – Adjustable regulation 2/3 of nominal power (1000 to 1500W) One profiler heating box: – 9 lamps x 1500W – Total power: 13,5 kW – 9 independently regulated zones

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Air Supply – Blowing air, “oil-free” (40** bar) : 2800 bt/h x 1 litre = 150 Nm3/h / 2800 bt/h x 2 litre = 320 Nm3/h – Working air (7 to 10 bar): 65 Nm3/h – Pressure range: 27 to 40 bar

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cooling water – Water chiller capacity: approx. 15’000 kcal/h – Water pressure range: 5 to 6 bar – Water temperature range: 6 to 10 ° C (42°F to 50°F) – Flow rate : 2.4 to 3.0 m3/h

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Bottle Production – Number of moulds : 2 – Production output : up to 2’800 bottled / hour depending on bottle size, shape and weight, altitude of production site

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Additional pictures available upon request
