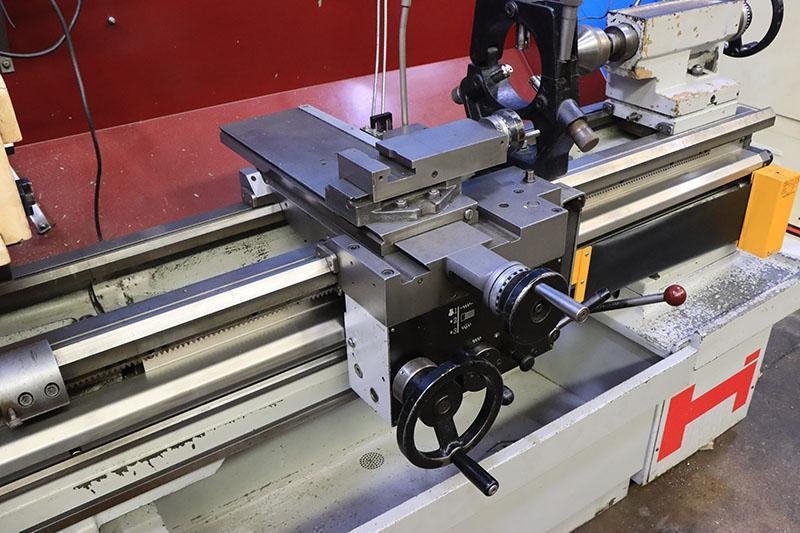

15"/23" x 50" HARRISON GAP BED ENGINE LATHE, MODEL M390

Brand
HARRISON
Category
Lathes & Turning Machines
Type
Engine Lathes
Model
M390
Stock #
5068
Year
1996
Condition
Used

Location

New Jersey
REQUEST FINANCING

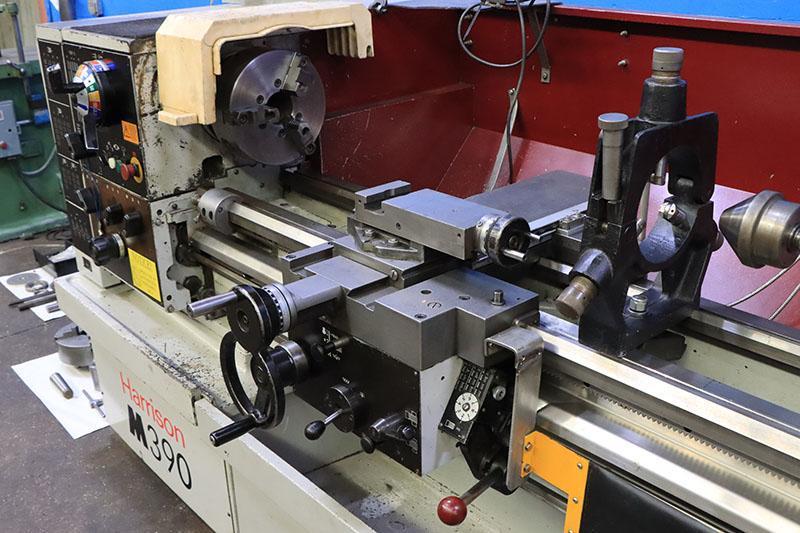

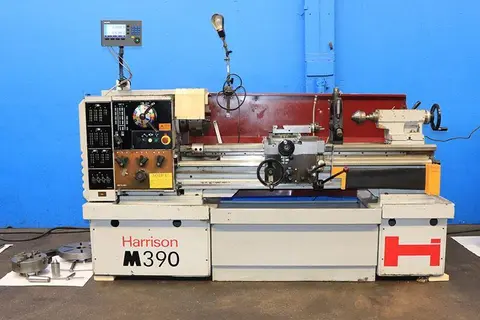

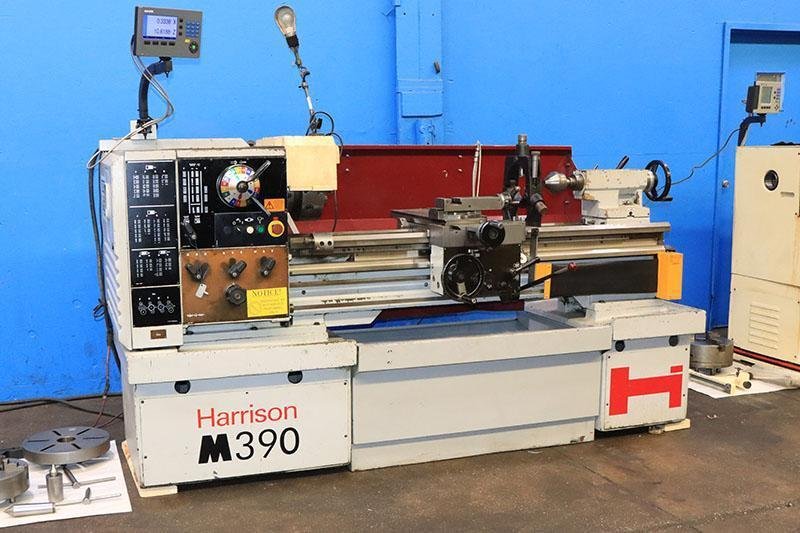

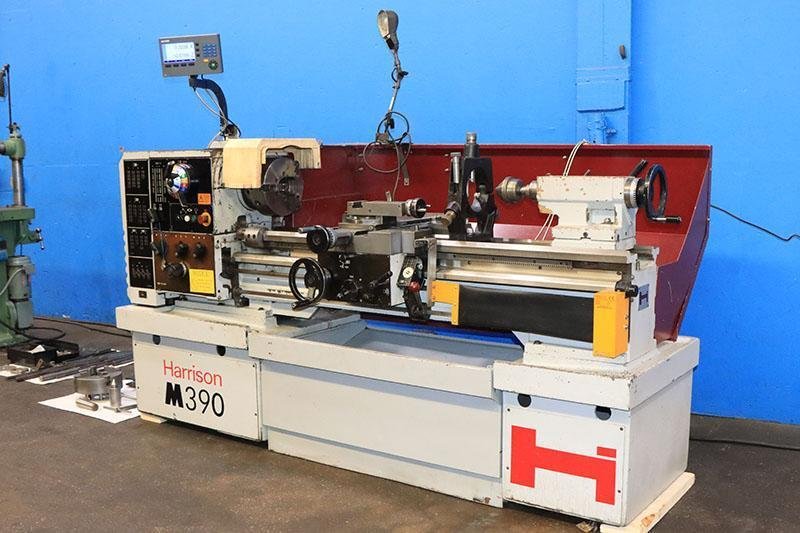

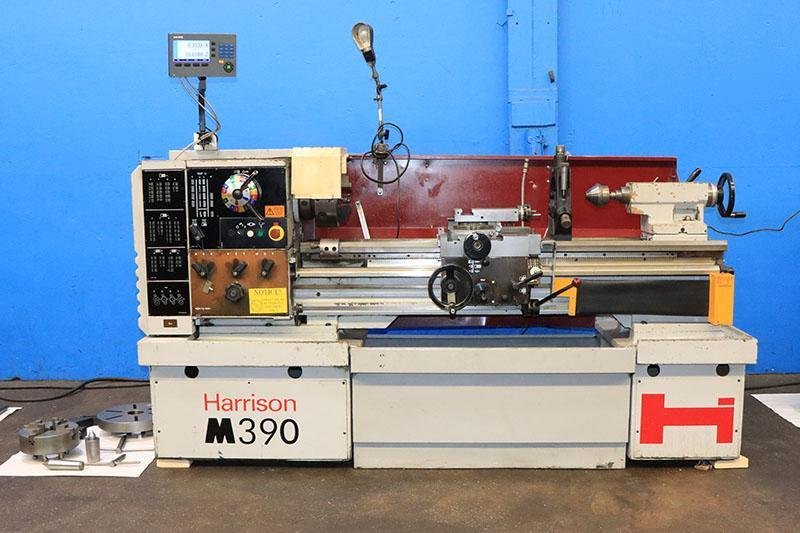

15"/23" x 50" HARRISON GAP BED ENGINE LATHE
MODEL: M390

SPECIFICATIONS:
SWING OVER BED .......................... 15.7"
SWING IN REMOVEABLE GAP ................. 23"
SWING OVER CROSS SLIDE .................. 9.7"
DISTANCE BETWEEN CENTERS ................ 50"
HOLE THROUGH SPINDLE .................... 2.125"
SPINDLE NOSE ............................ D1-6 CAMLOCK

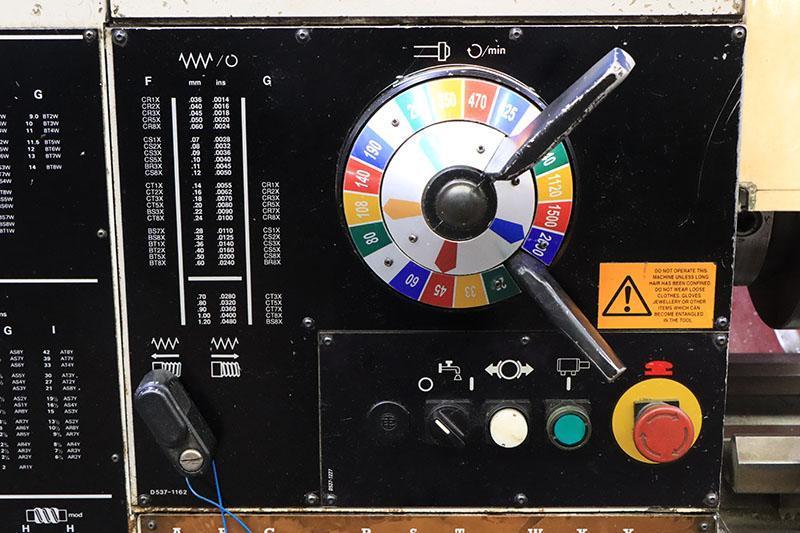

SPINDLE SPEED RANGE (16) ................ 25 - 2000 RPM

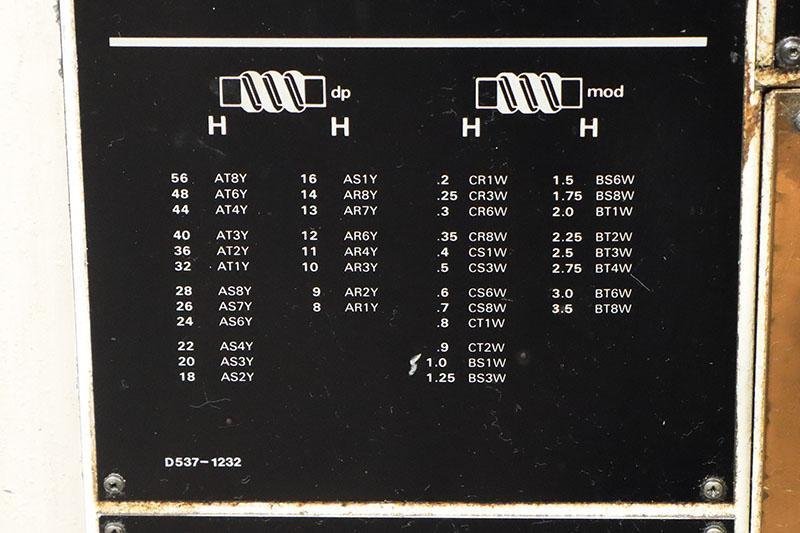

ENGLISH THREADING RANGE (56) ............ 2 - 56 TPI

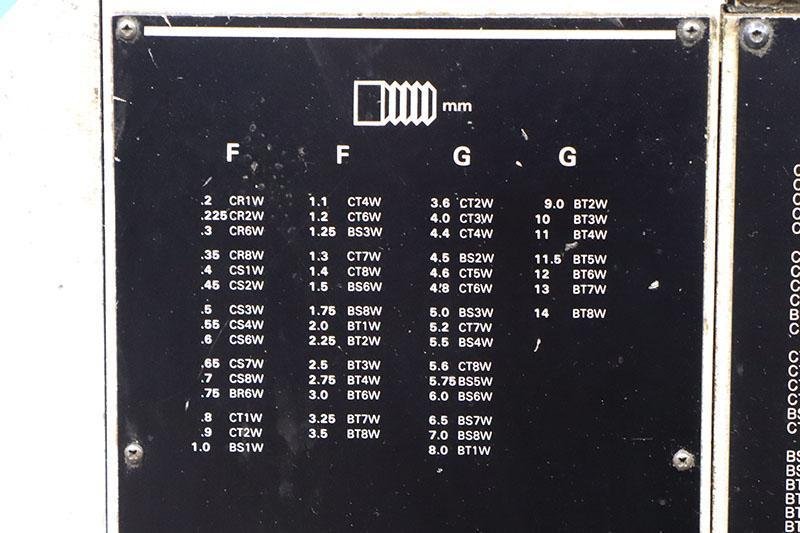

METRIC THREADING (51) ................... .2 - 14 mm
FEED RANGE LONGITUDINAL (42) ............ .0014 - .096 IPR
CROSS FEED 1/2 OF LONGITUDINAL SETTING
WIDTH OF BED ............................ 12.5"
CROSS SLIDE TRAVEL ...................... 9.8"
TOP SLIDE TRAVEL ........................ 5.1"
TAILSTOCK SPINDLE TRAVEL ................ 5.5"
TAILSTOCK SPINDLE TAPE .................. #5MT
APPROX DIMENSIONS ....................... 99"L x 49"W x 51"H
APPROX WEIGHT ........................... 3500 LBS

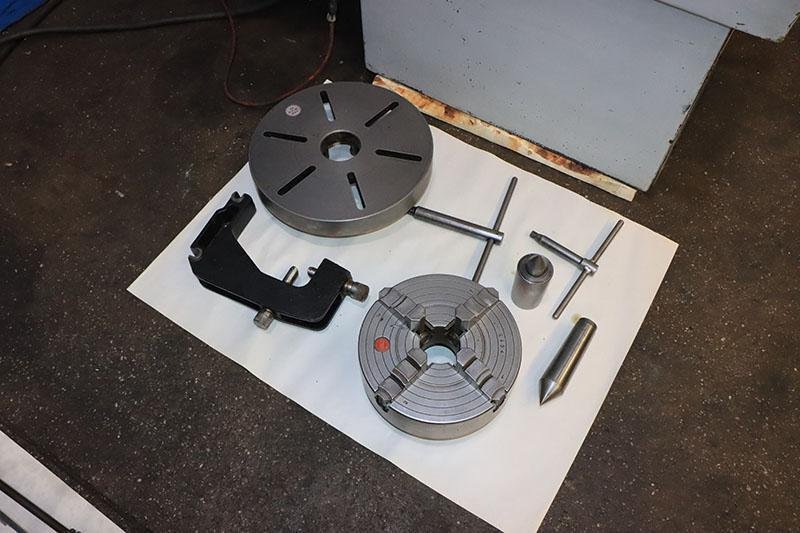

EQUIPPED WITH:

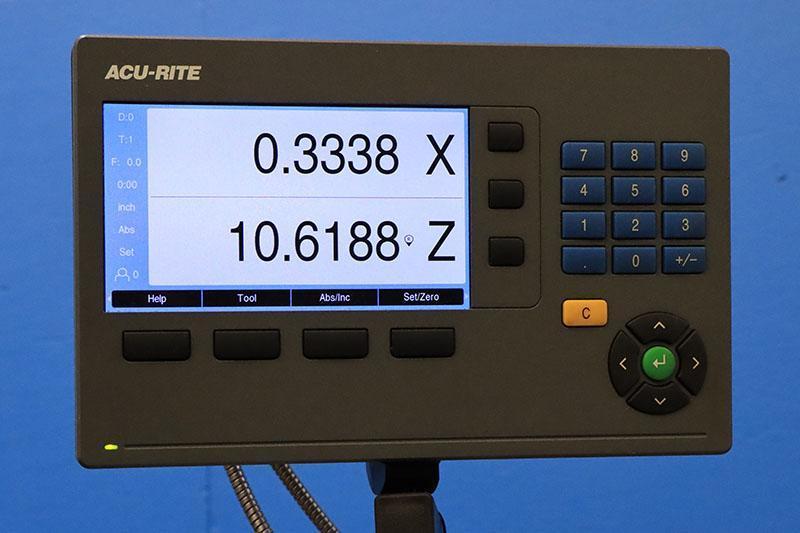

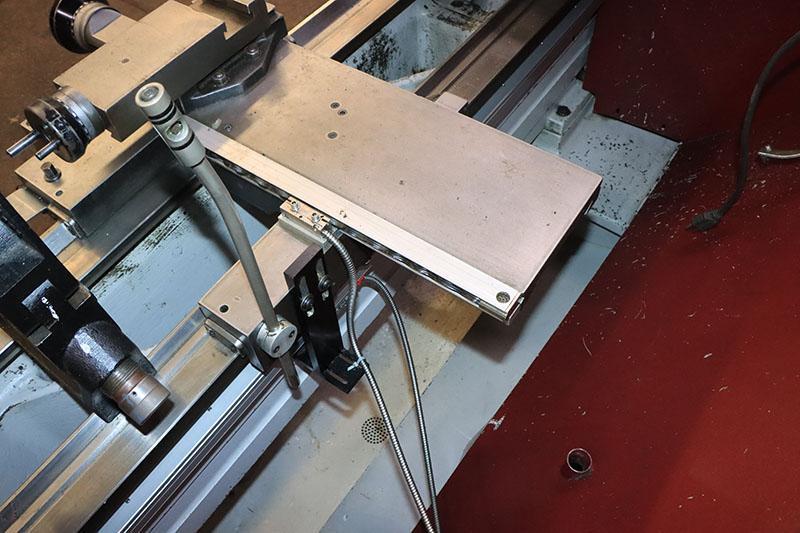

ACU-RITE DIGITAL READOUT

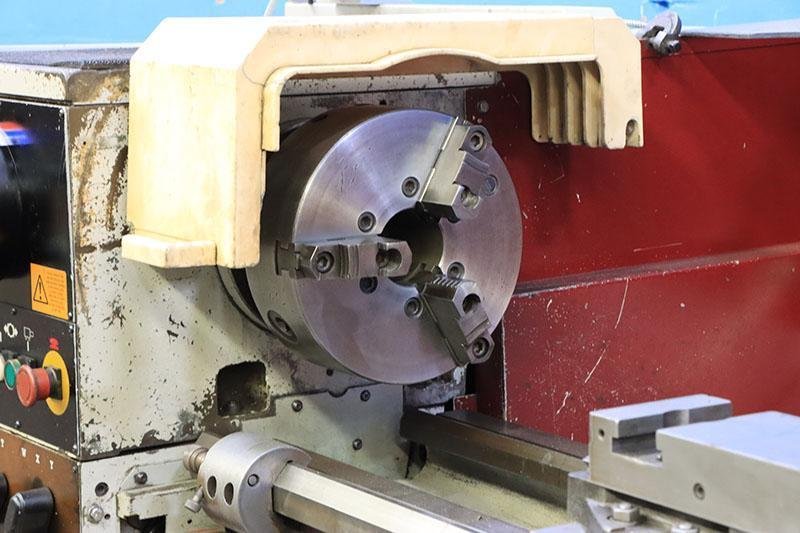

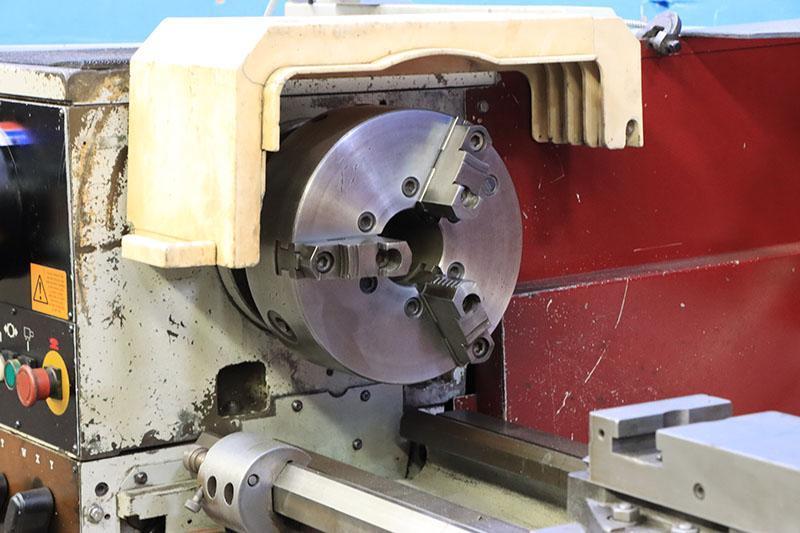

10" 3-JAW BUCK CHUCK
10" 4-JAW CHUCK
FACEPLATE

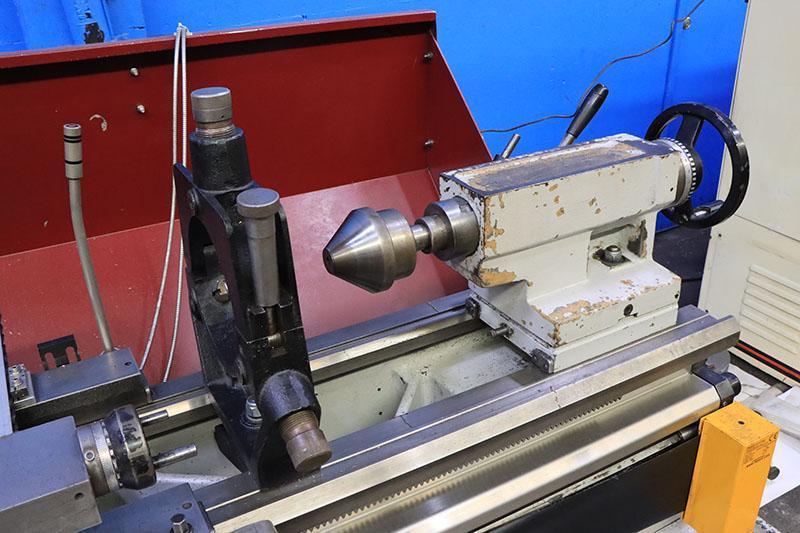

ROLLER TYPE STEADY REST
FOLLOW REST
HEADSTOCK CENTER SLEEVE & CENTER
DEAD CENTER FOR TAILSTOCK
LIVE CENTER FOR TAILSTOCK
MICROMETER CARRIAGE STOP
THREAD DIAL INDICATOR

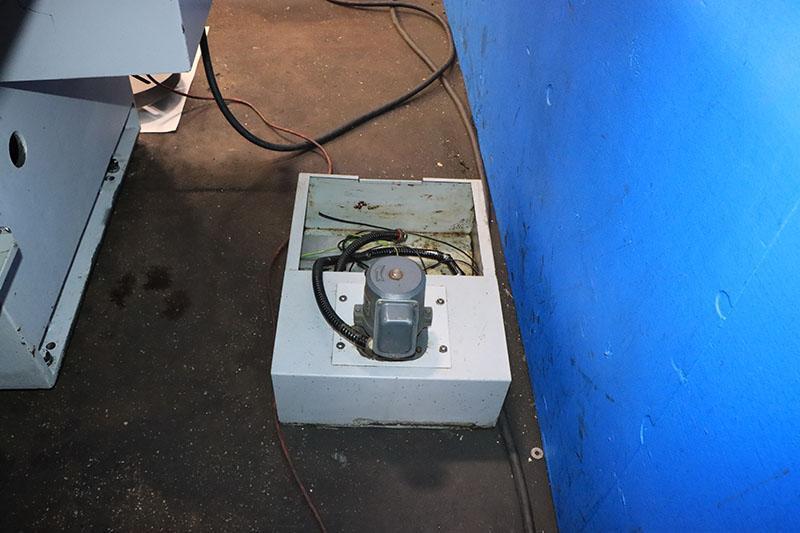

COOLANT SYSTEM WITH REMOVABLE CHIP PAN
7.5 HORSE POWER MAIN MOTOR

FOB: ORIGIN
