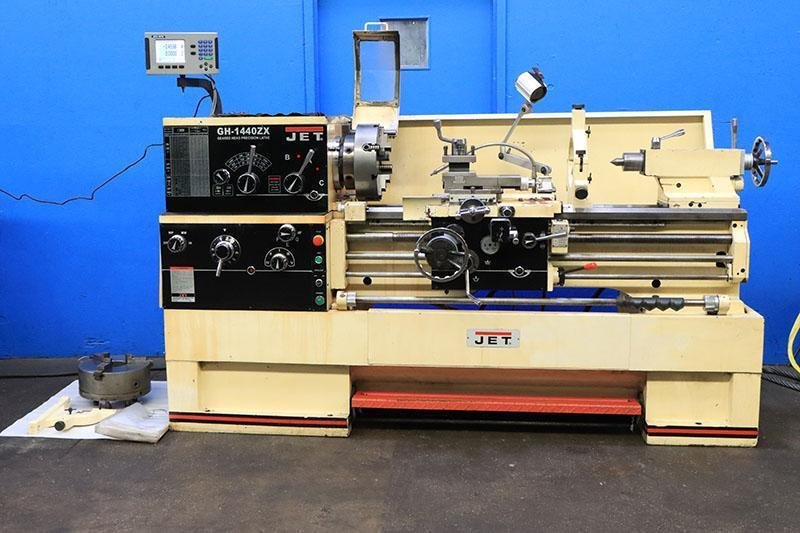

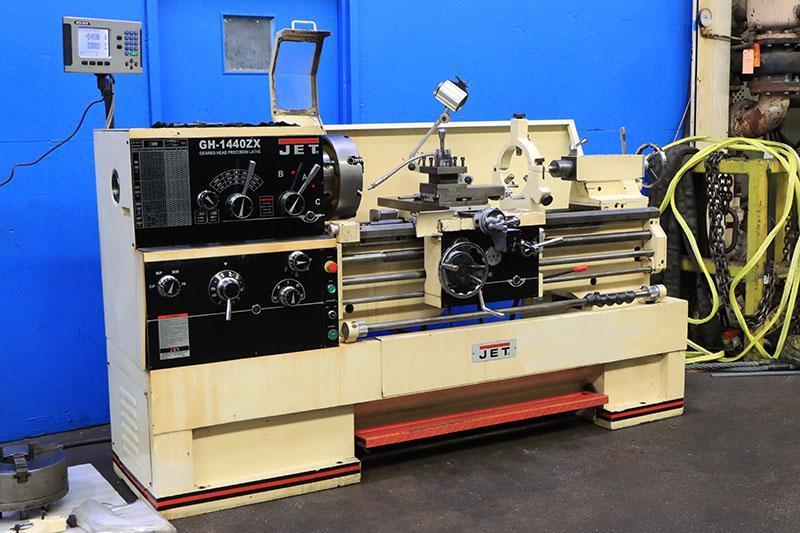

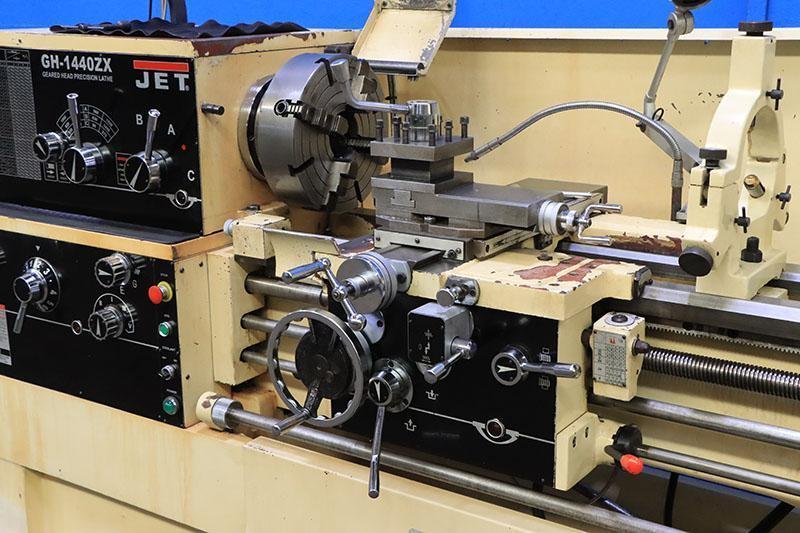

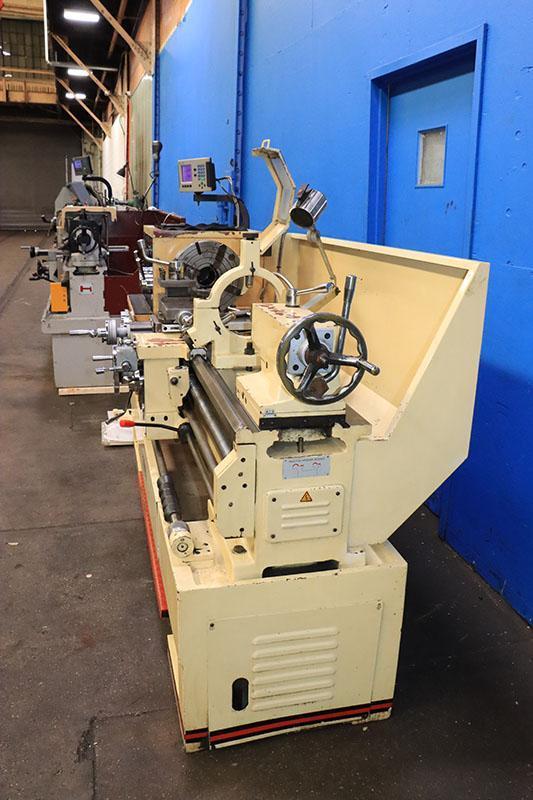

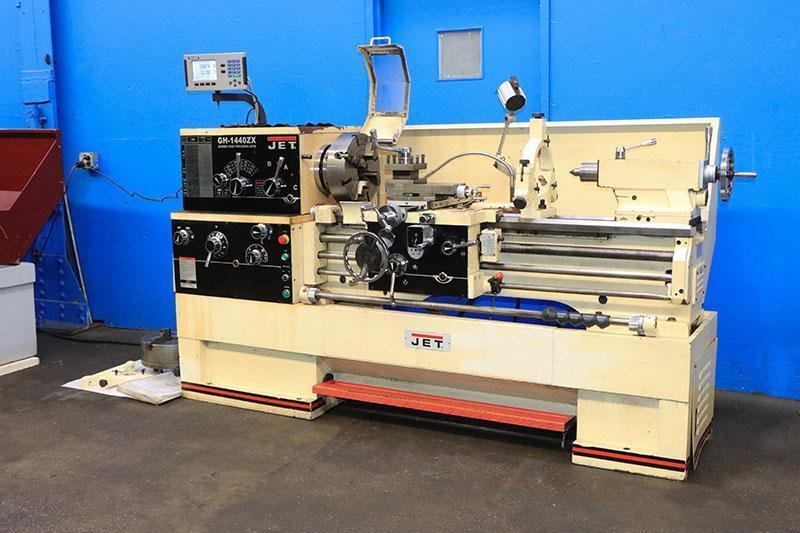

14"/23" X 40" JET GAP BED ENGINE LATHE, MODEL GH-1440

14"/23" x 40" JET GAP BED ENGINE LATHE

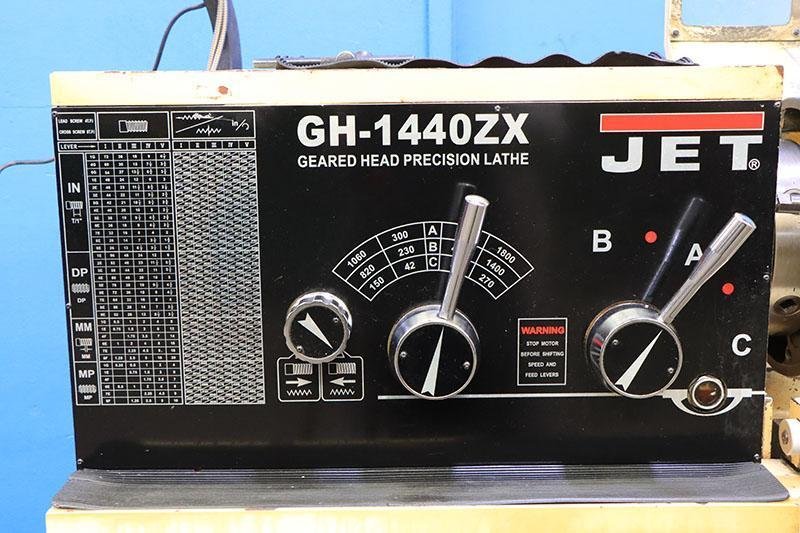

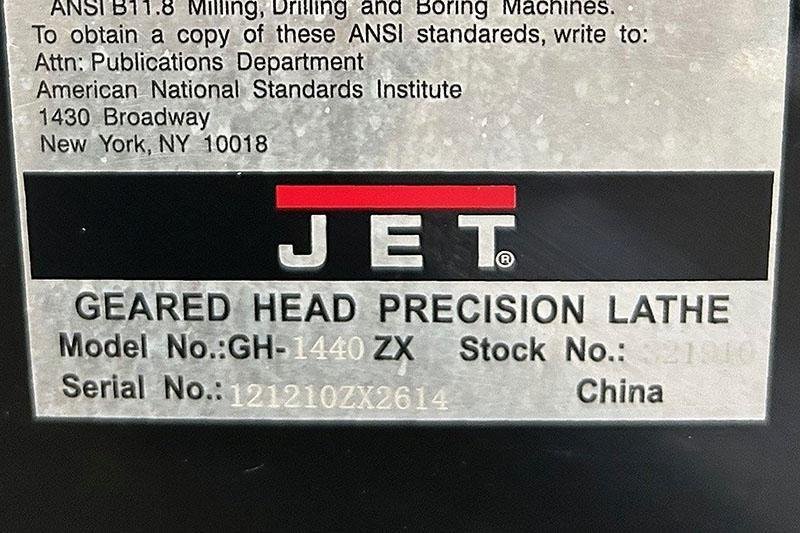

MODEL: GH-1440 ZX
NEW: 2012

SPECIFICATIONS:

SWING OVER BED ........................ 14"
SWING OVER GAP ........................ 23-5/8"
SWING OVER CROSS SLIDE ................ 10"
DISTANCE BETWEEN CENTERS .............. 40"

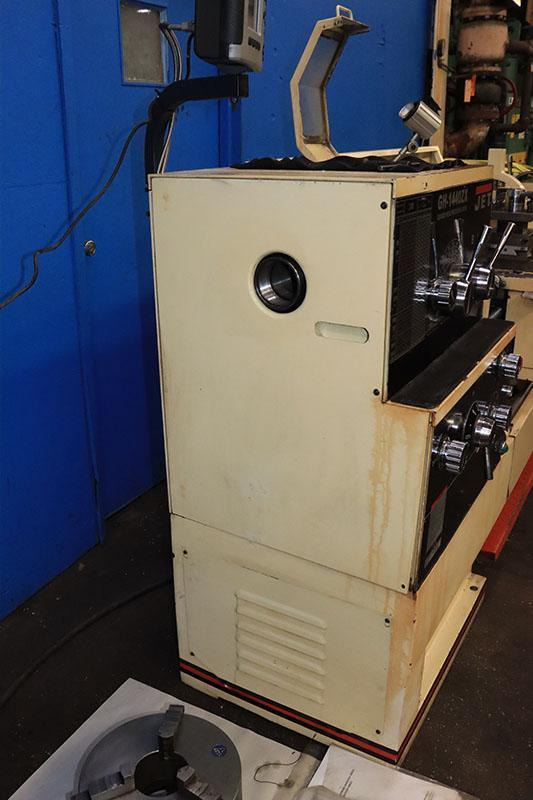

SPINDLE HOLE .......................... 3-1/8"
SPINDLE NOSE, CAMLOCK, SIZE ........... D1-8"
WIDTH OF BED .......................... 13-3/8"
SPINDLE SPEEDS (12) ................... 42 - 1,800 RPM
FEED CHANGES, LONGITUDINAL (122) ...... .0015 - .0913 IPR
FEED CHANGES, CROSS (122) ............. .0006 - .0365 IPR
THREADS, INCH (61) .................... 1-5/8 - 72 T.P.I.
METRIC (24) ........................... .5 - 20 MM
WIDTH OF BED .......................... 13-3/8"

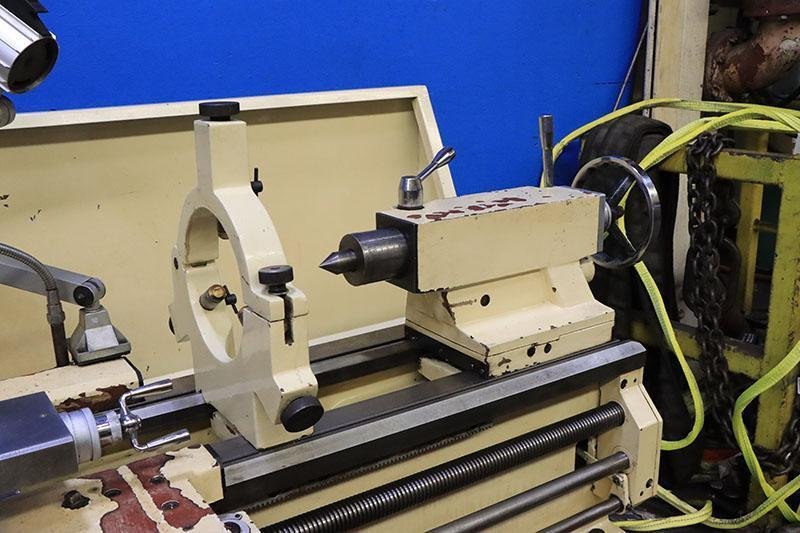

TAILSTOCK SPINDLE CENTER .............. #4 MORSE TAPER
TAILSTOCK SPINDLE TRAVEL .............. 5"
APPROXIMATE DIMENSIONS ................ 96" x 40" x 48"
APPROXIMATE WEIGHT .................... 5,500 LBS.

EQUIPPED WITH:

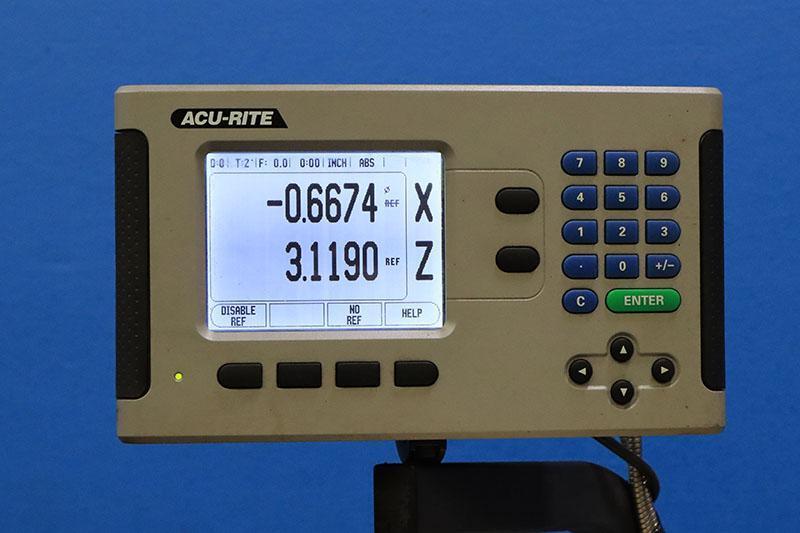

ACU-RITE MODEL: 200S TWO AXIS DIGITAL READOUT
REMOVABLE GAP BED
INCH AND METRIC THREADING CAPABILITY
HARDENED AND GROUND BED WAYS

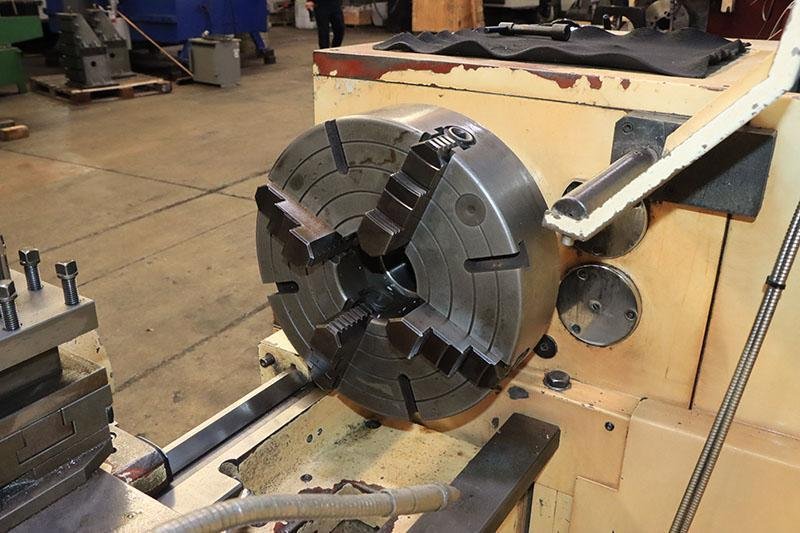

12" 4-JAW CHUCK

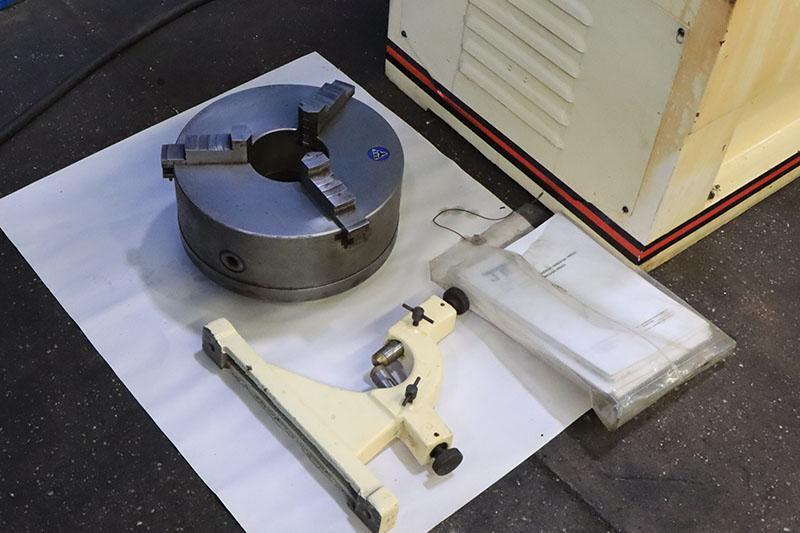

12" 3-JAW CHUCK
STEADY REST
FOLLOW REST

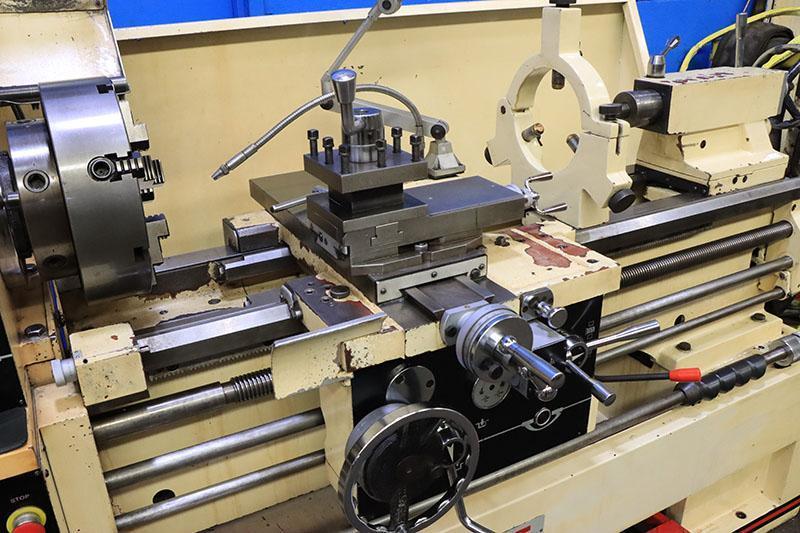

FOURWAY TURRET TOOLPOST
THREADING DIAL
MICROMETER CARRIAGE STOP
MULITPLE POSITION CARRIAGE STOP
FOOTBRAKE
SELF-CONTAINED COOLANT SYSTEM W/FULL LENGTH SPLASH GUARD
7-1/2 HORSEPOWER SPINDLE DRIVE MOTOR

FOB: ORIGIN
