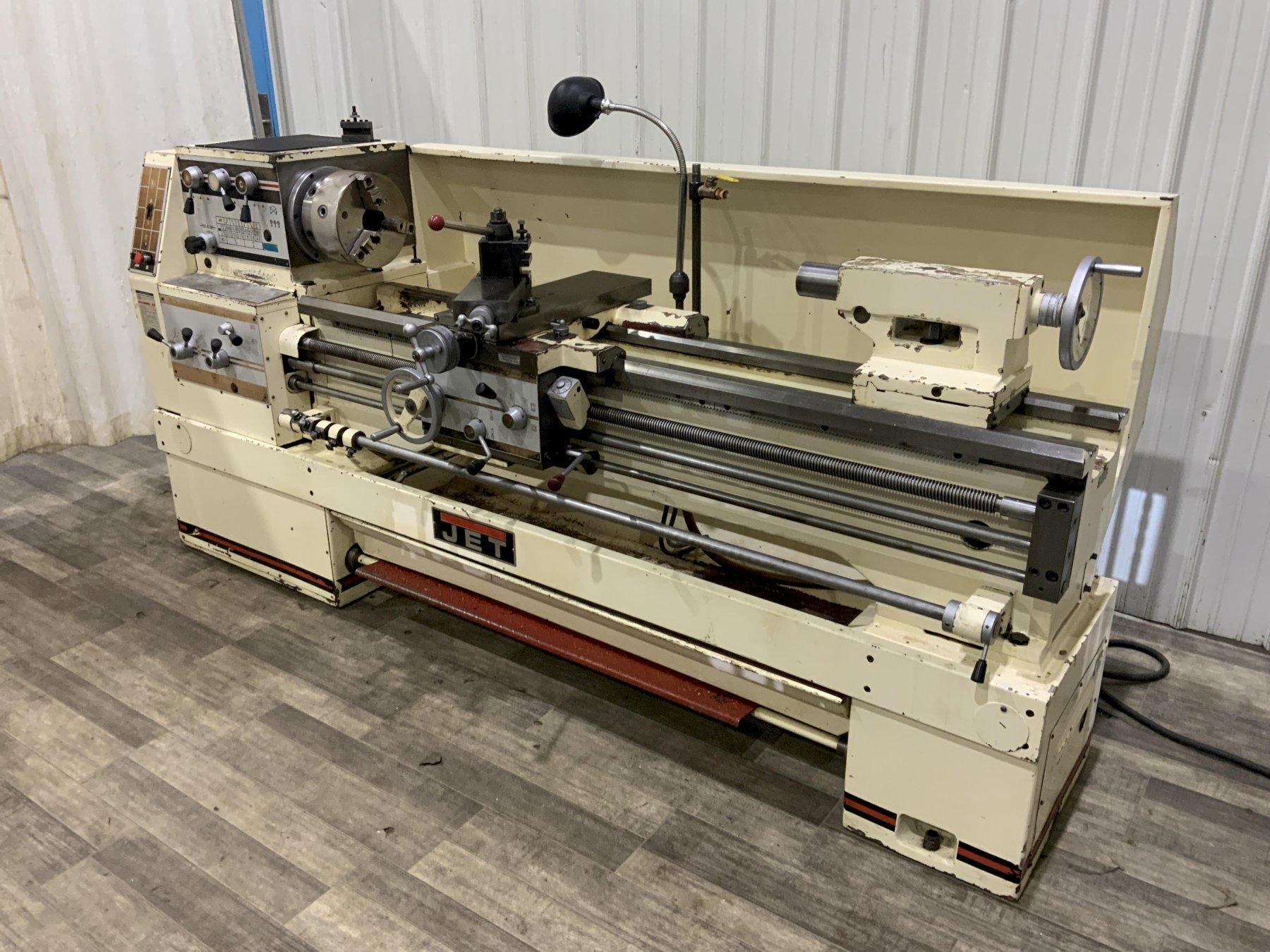

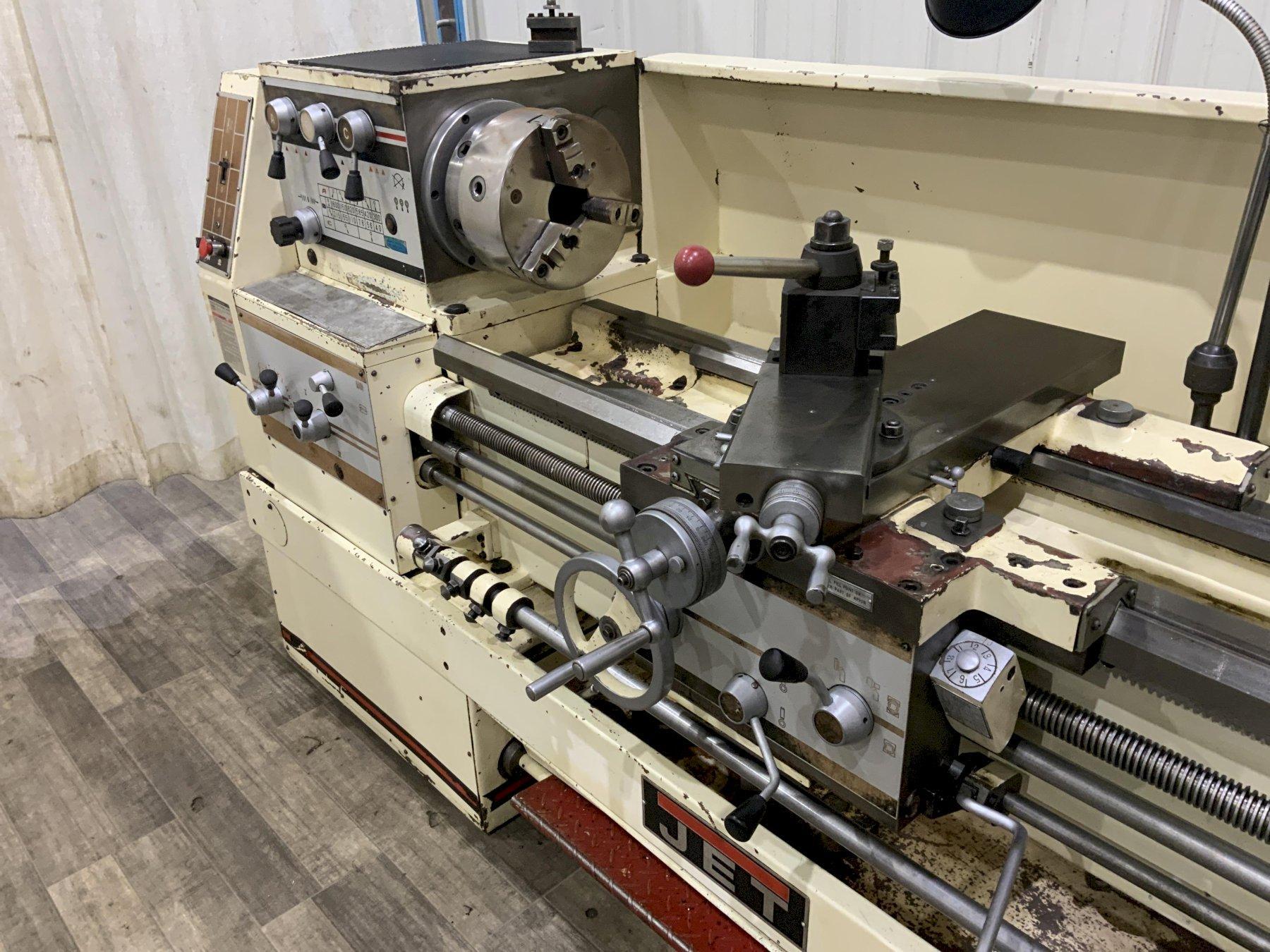

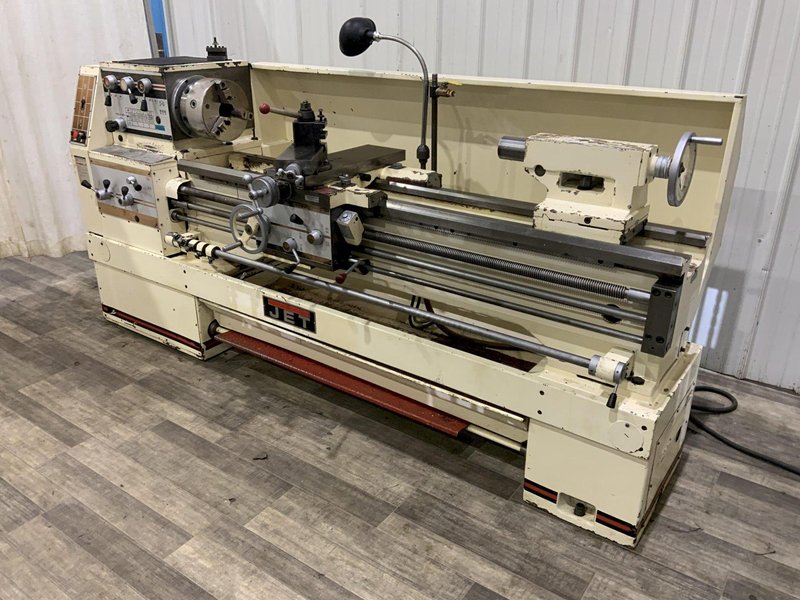

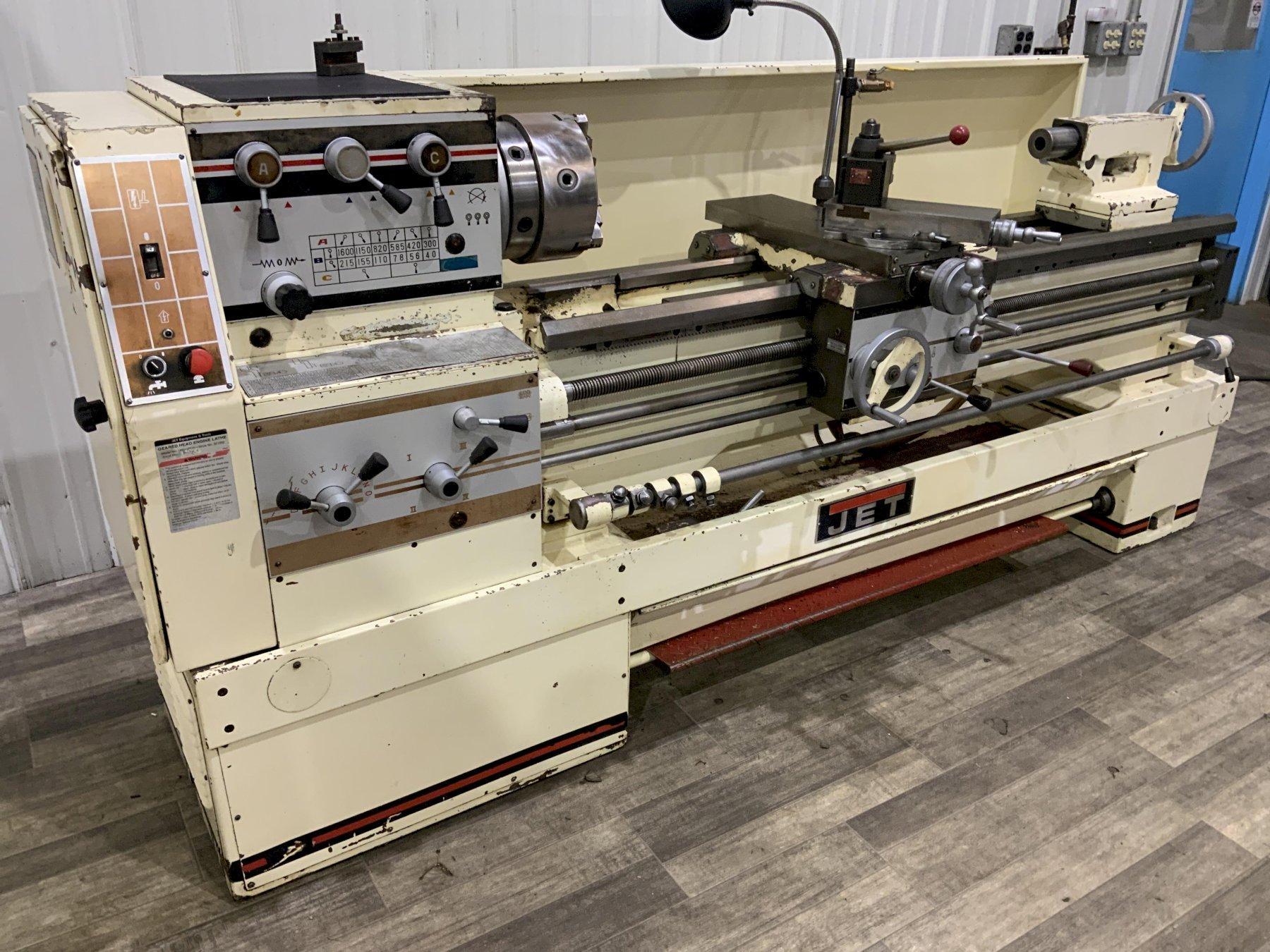

JET #1660-3PGH GAP BED ENGINE LATHE: STOCK #80918

SERIAL .......................... 9612GB249

MODEL ........................... GH1660 3PGH

SWING OVER WAYS ................. 16"

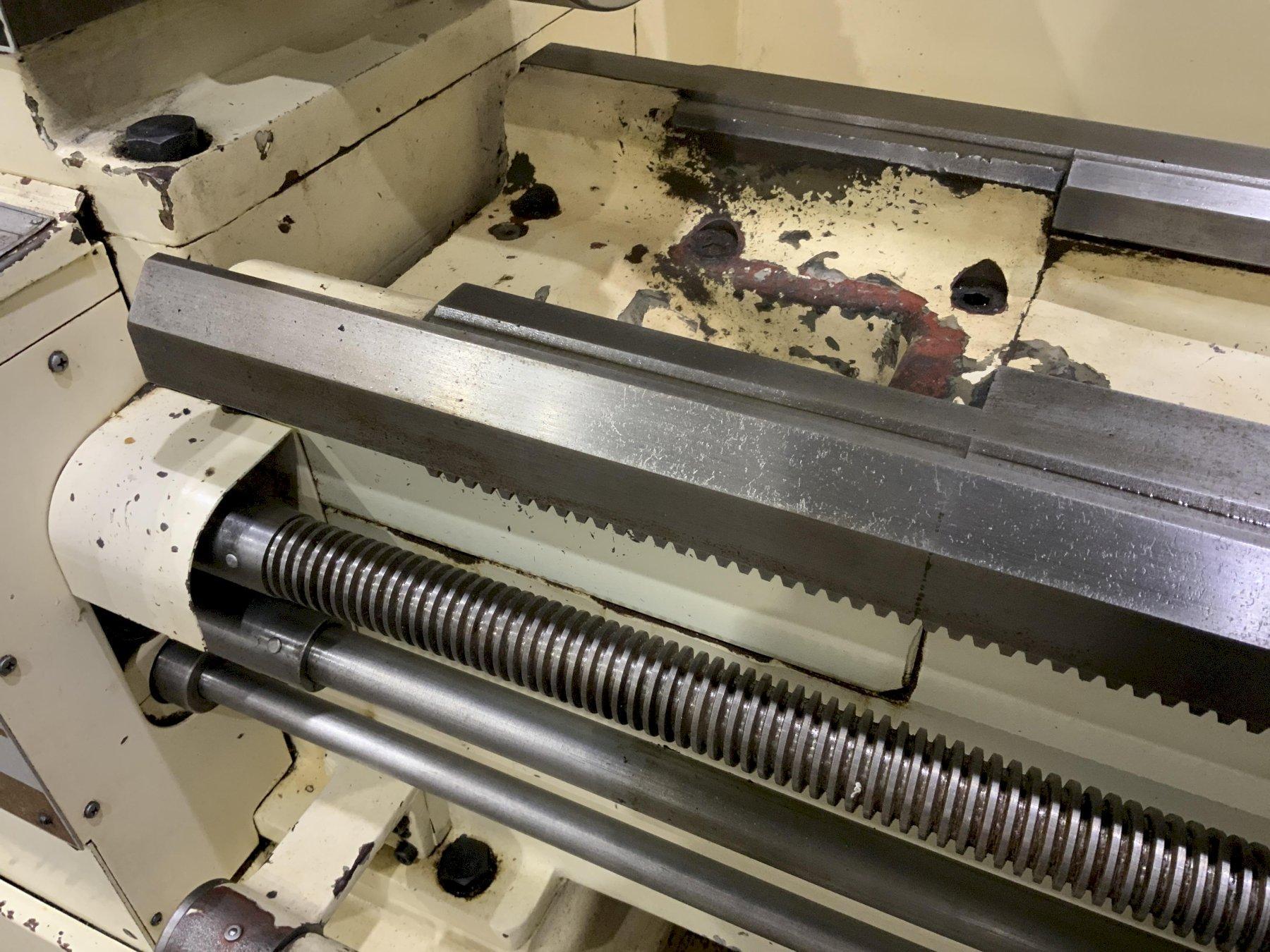

SWING IN GAP .................... 25-5/8"

SWING OVER CROSS SLIDE .......... 8-5/8

DISTANCE BETWEEN CENTERS ........ 60"

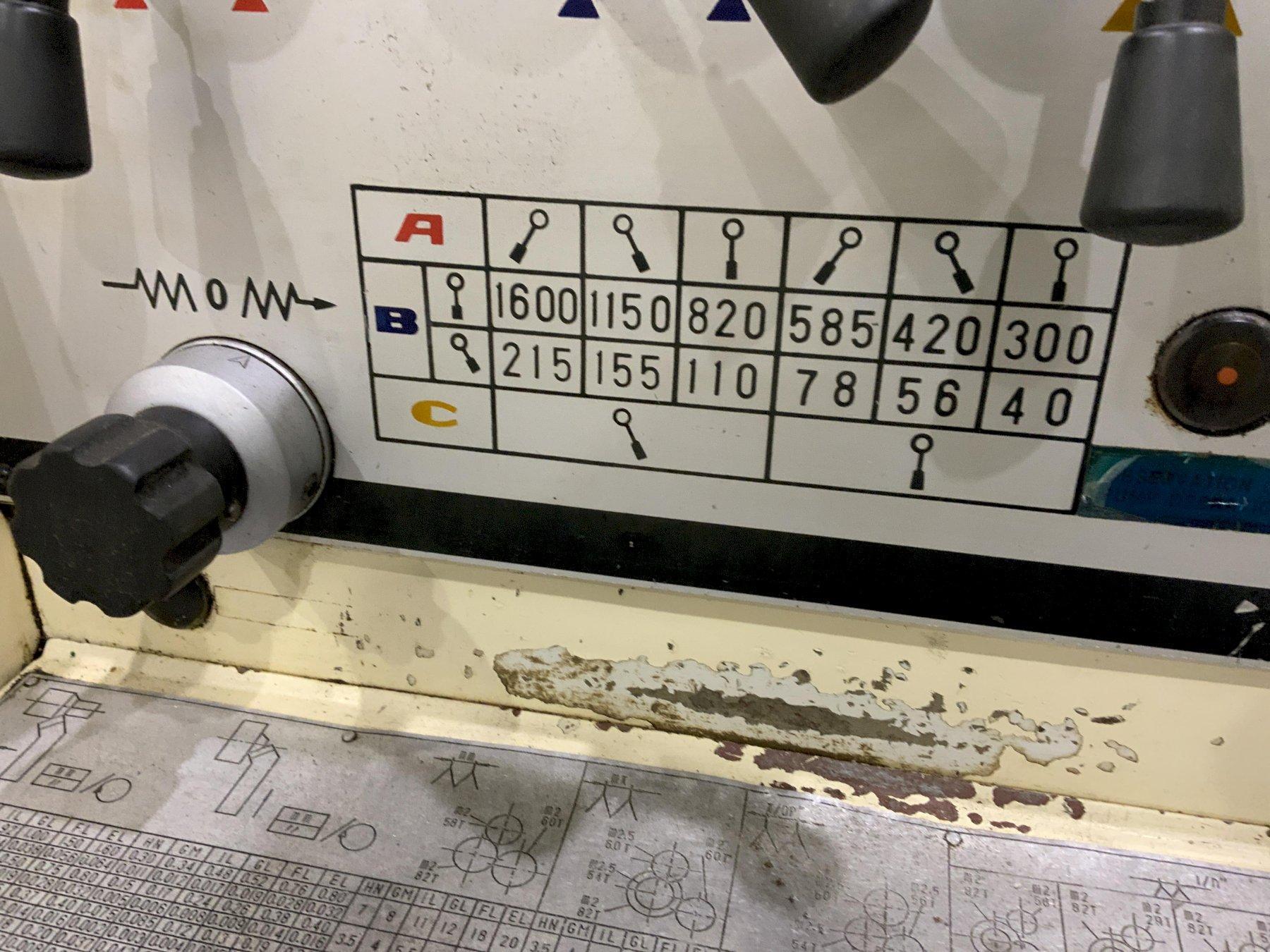

SPINDLE SPEEDS .................. 40 TO 1600 RPM

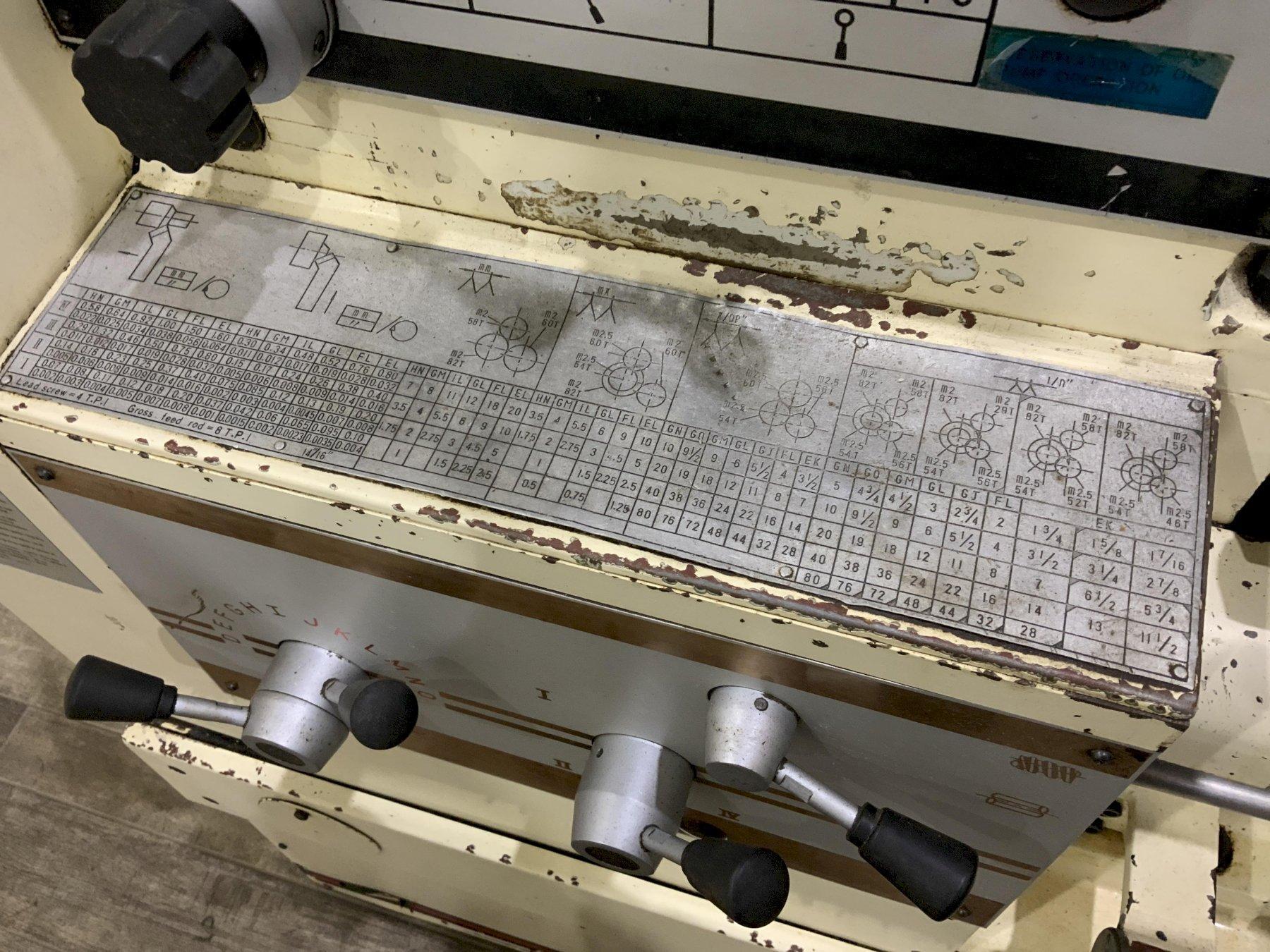

THREADS (ENGLISH) ............... 2 TO 112 TPI

FEEDS LONGITUDINAL .............. 0.011 TO .0316 IPR

CROSS FEEDS ..................... 0.00033 TO 0.0184 IPR

METRIC THREADS .................. .01 TO 14 MM PITCH

DIAMETER OF SPINDLE HOLE ........ 3-1/8"

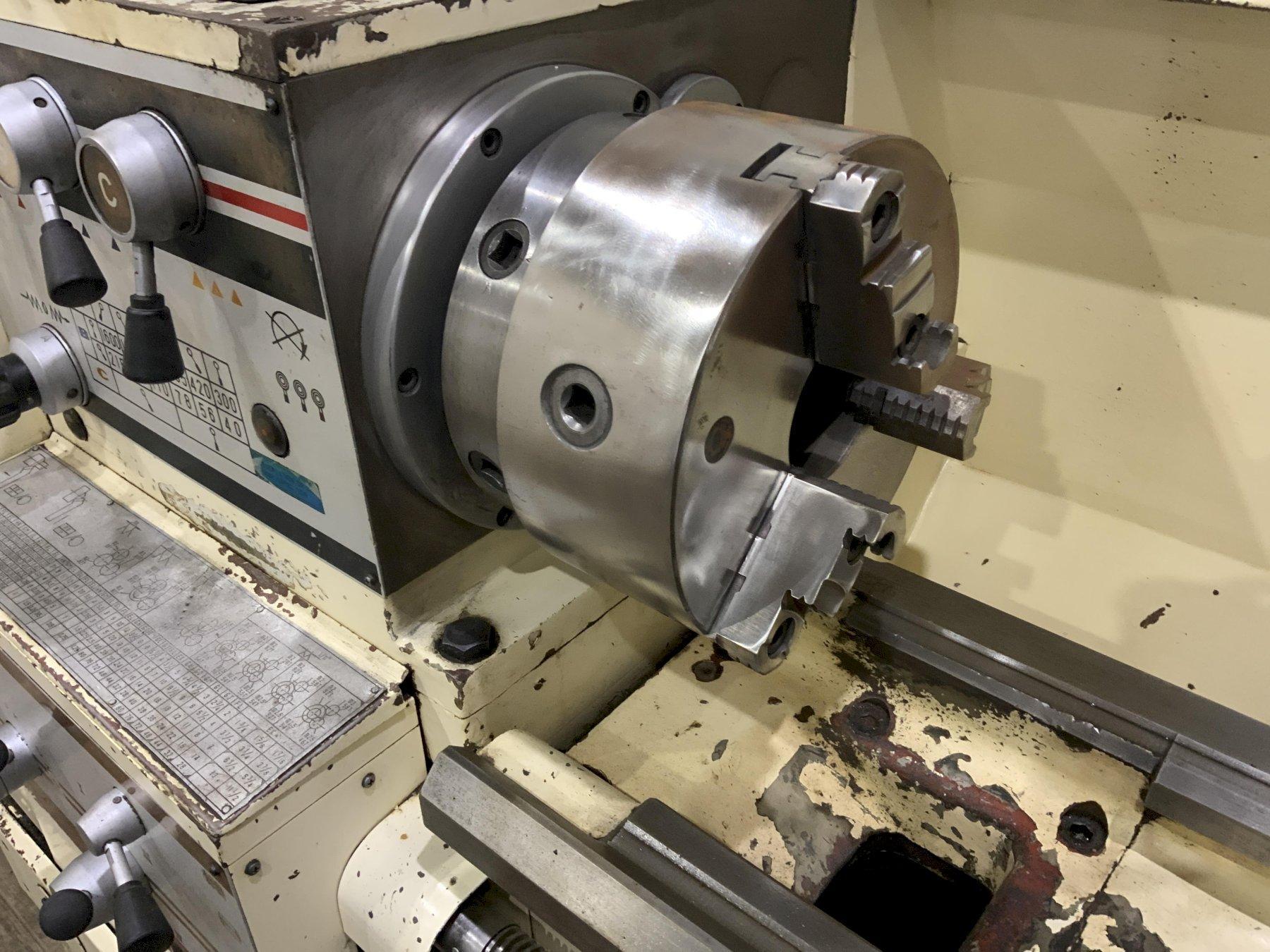

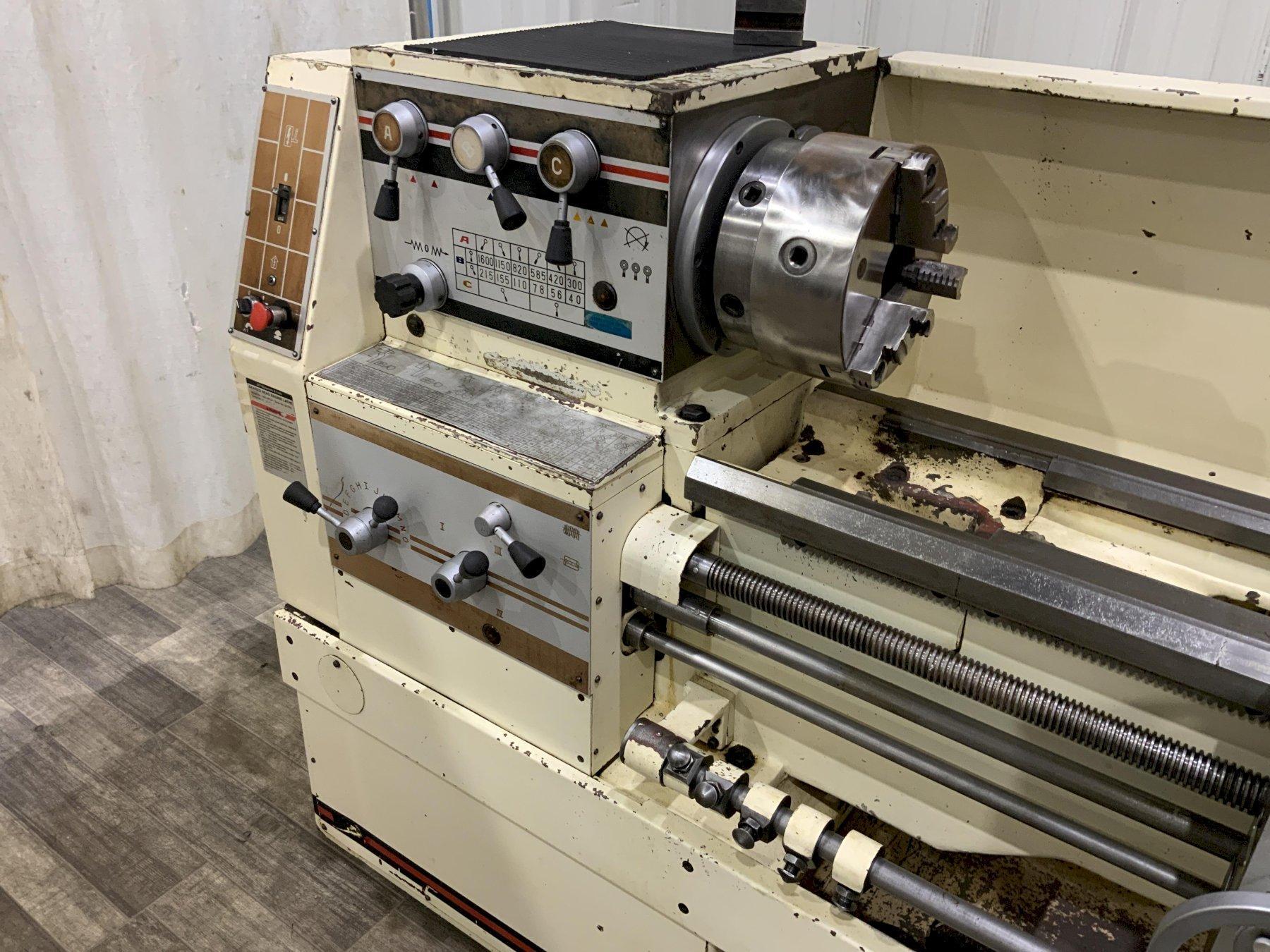

CHUCK ........................... 12" 3 JAW

THREAD DIAL ..................... YES

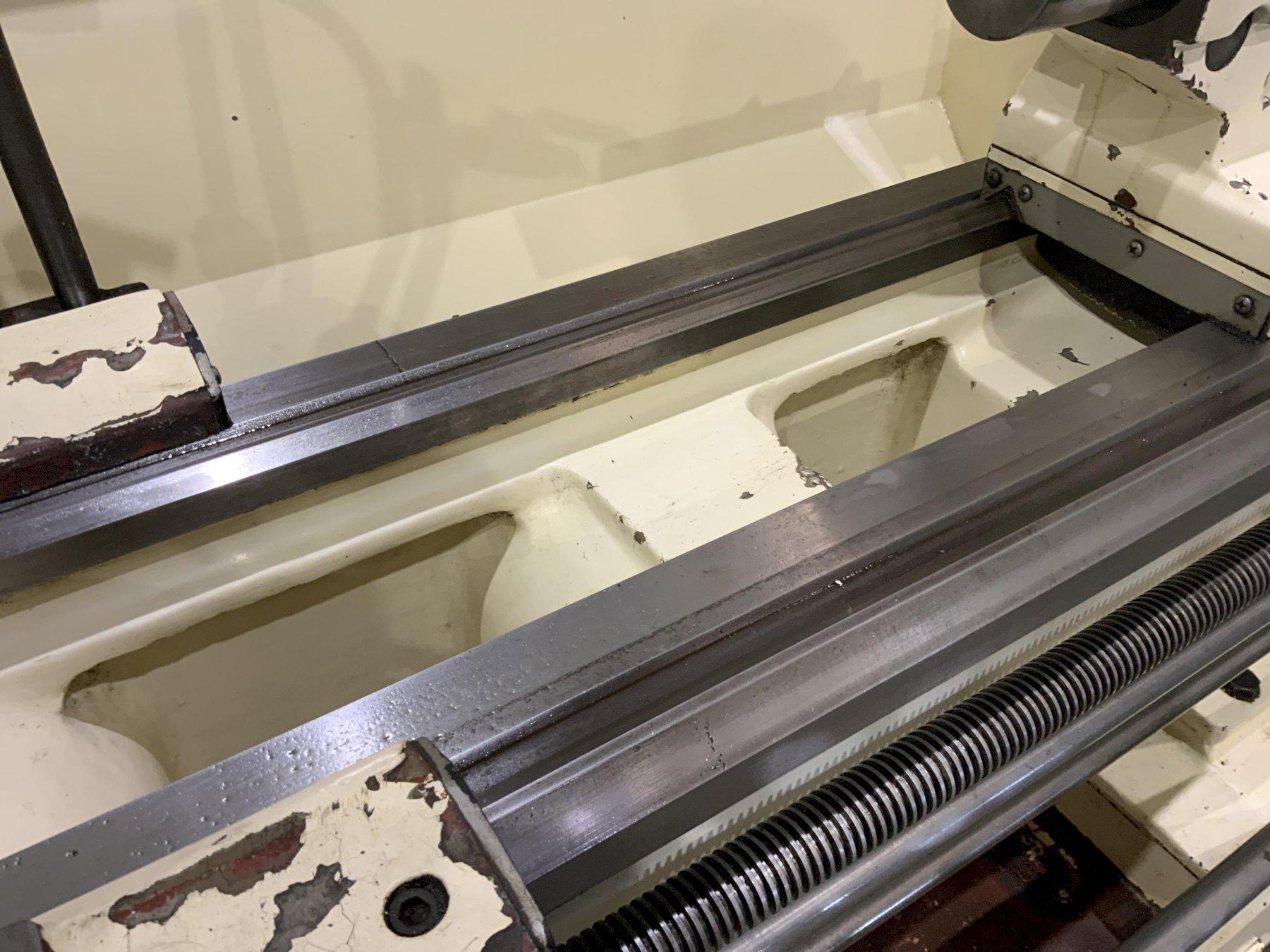

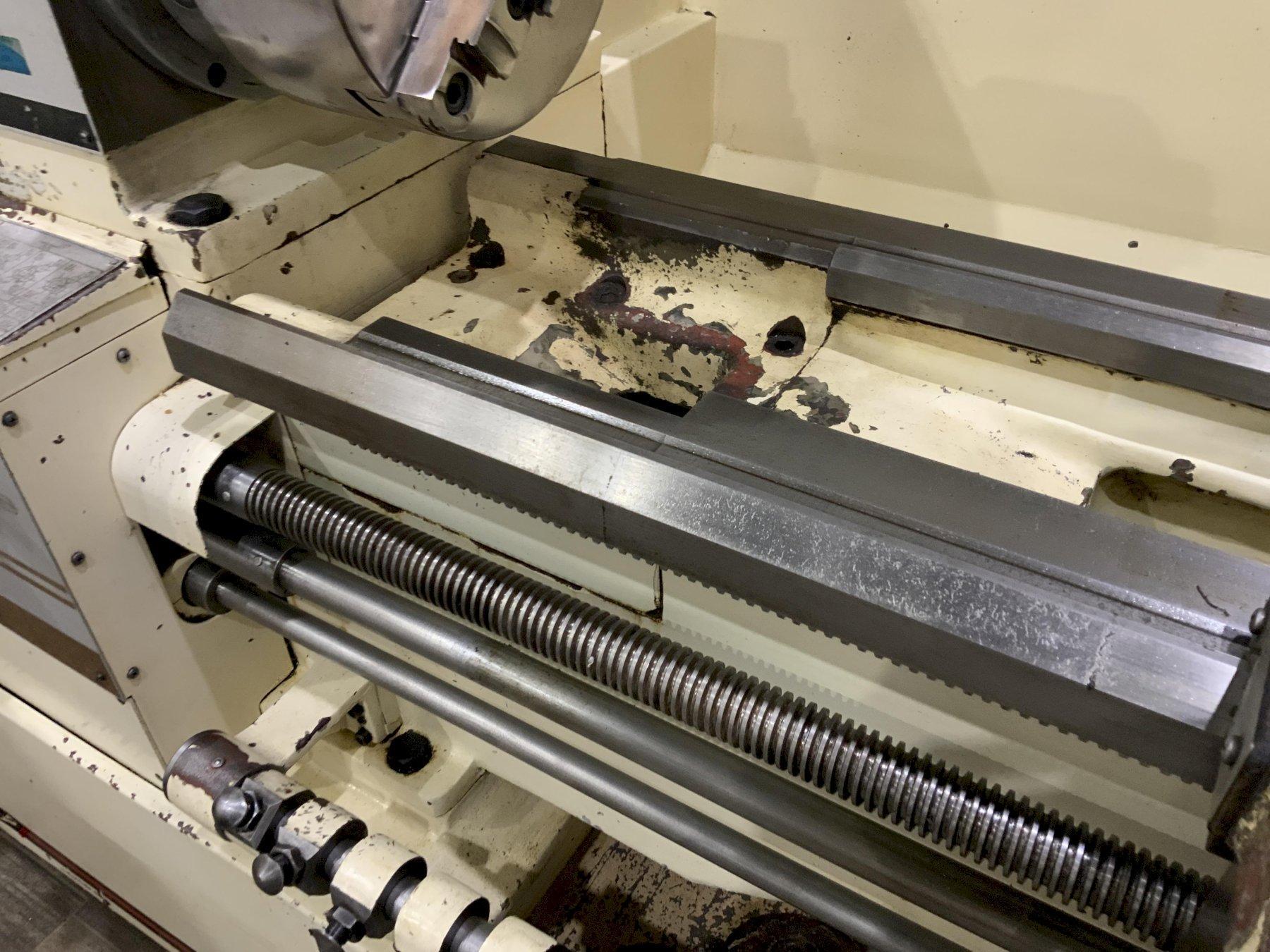

HARDENED BED WAYS ............... YES

FOOT BRAKE ...................... YES

COOLANT WITH CHIP PANS .......... YES

MOTOR ........................... 7-1/2 HORSEPOWER
