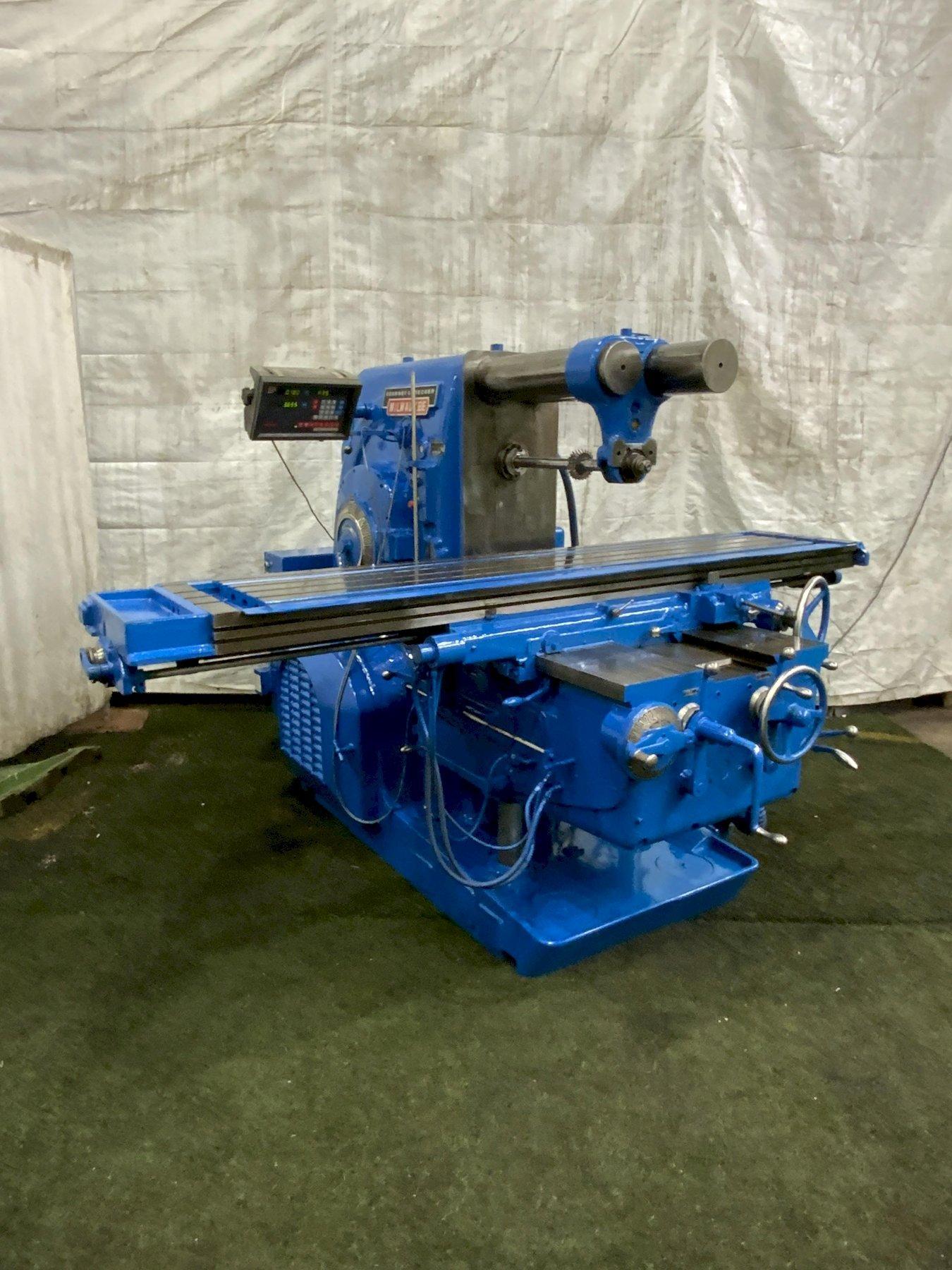

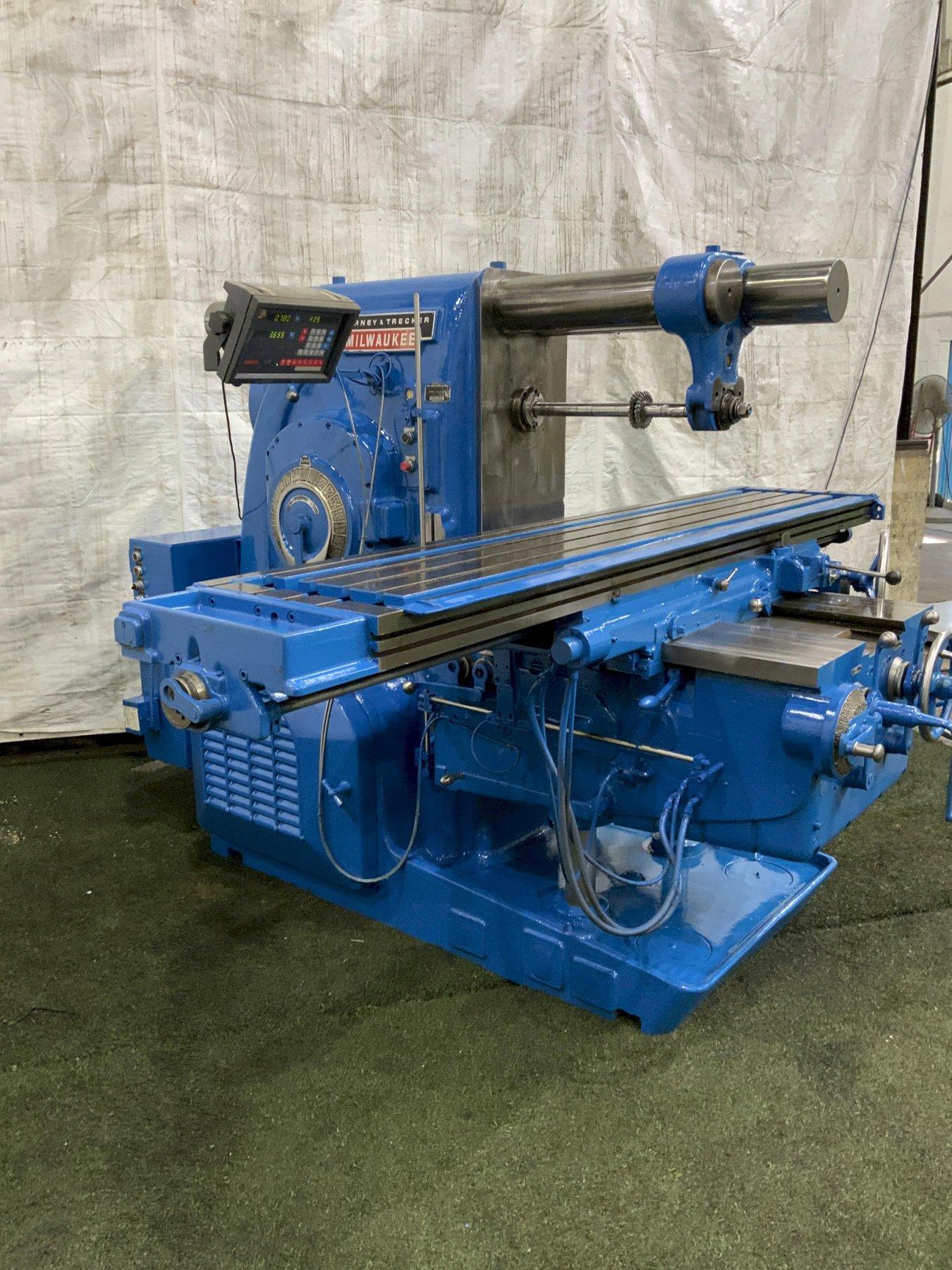

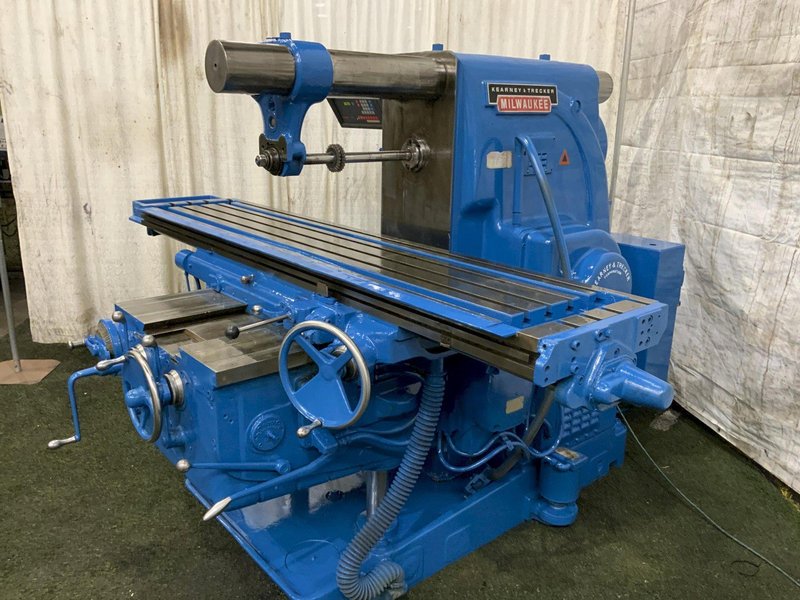

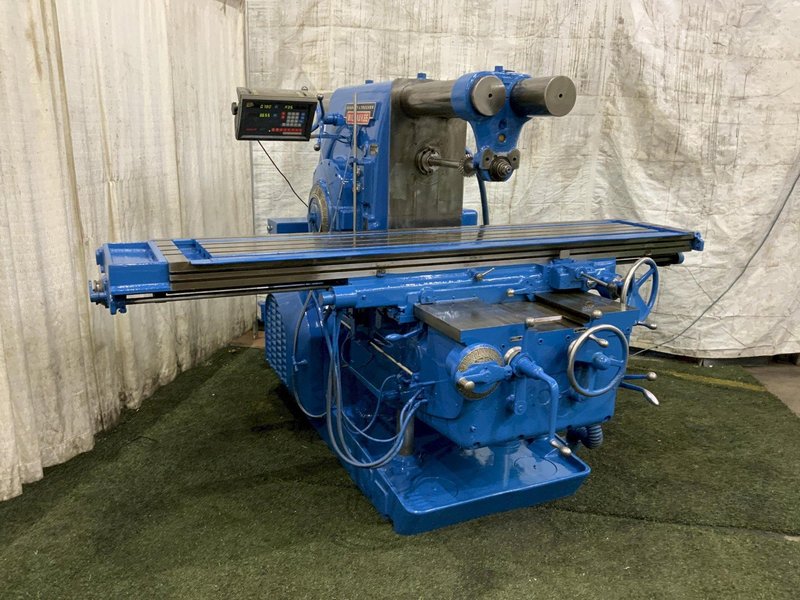

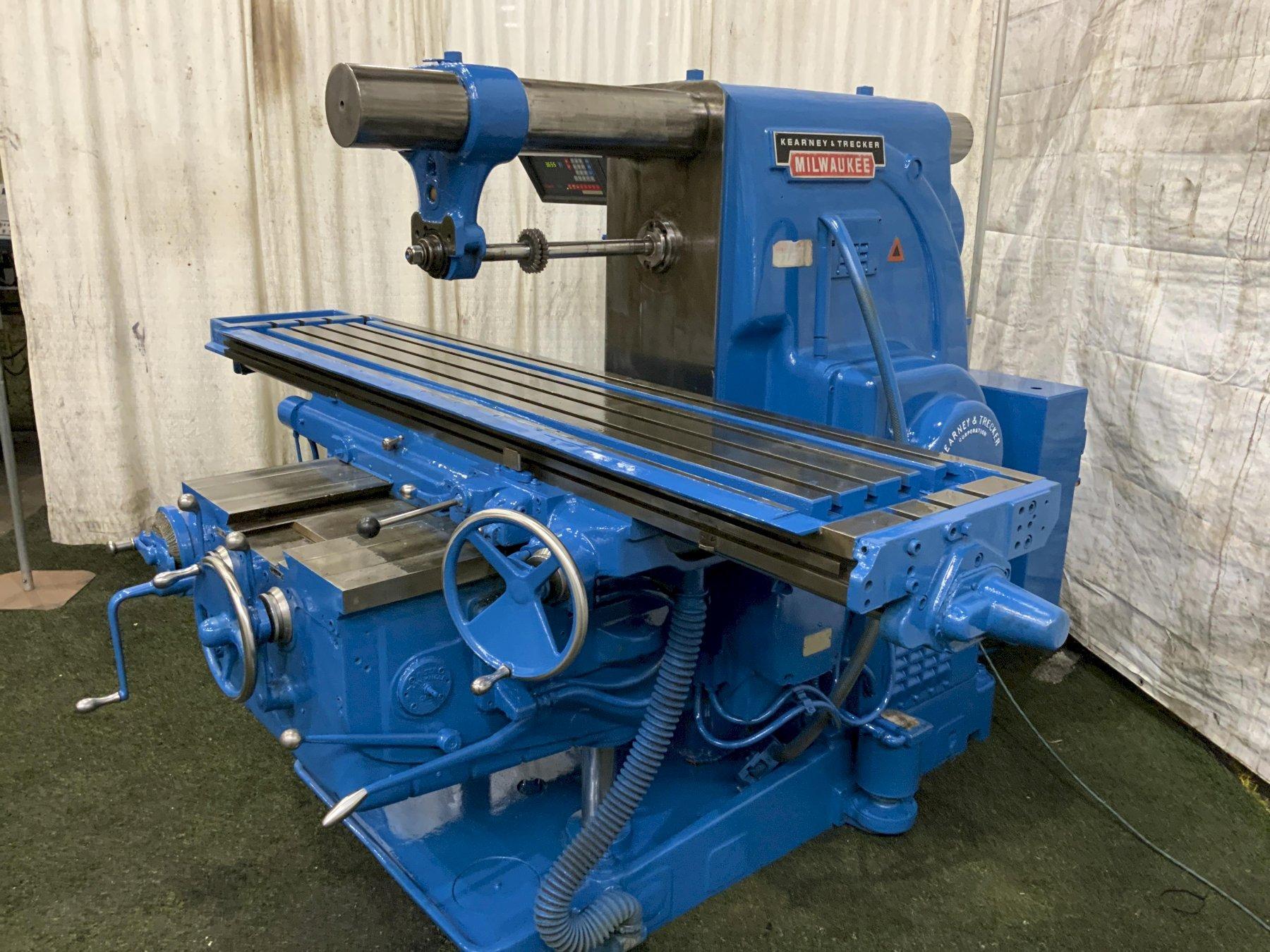

KEARNEY & TRECKER MODEL 530 TF HORIZONTAL MILL: STOCK #81193

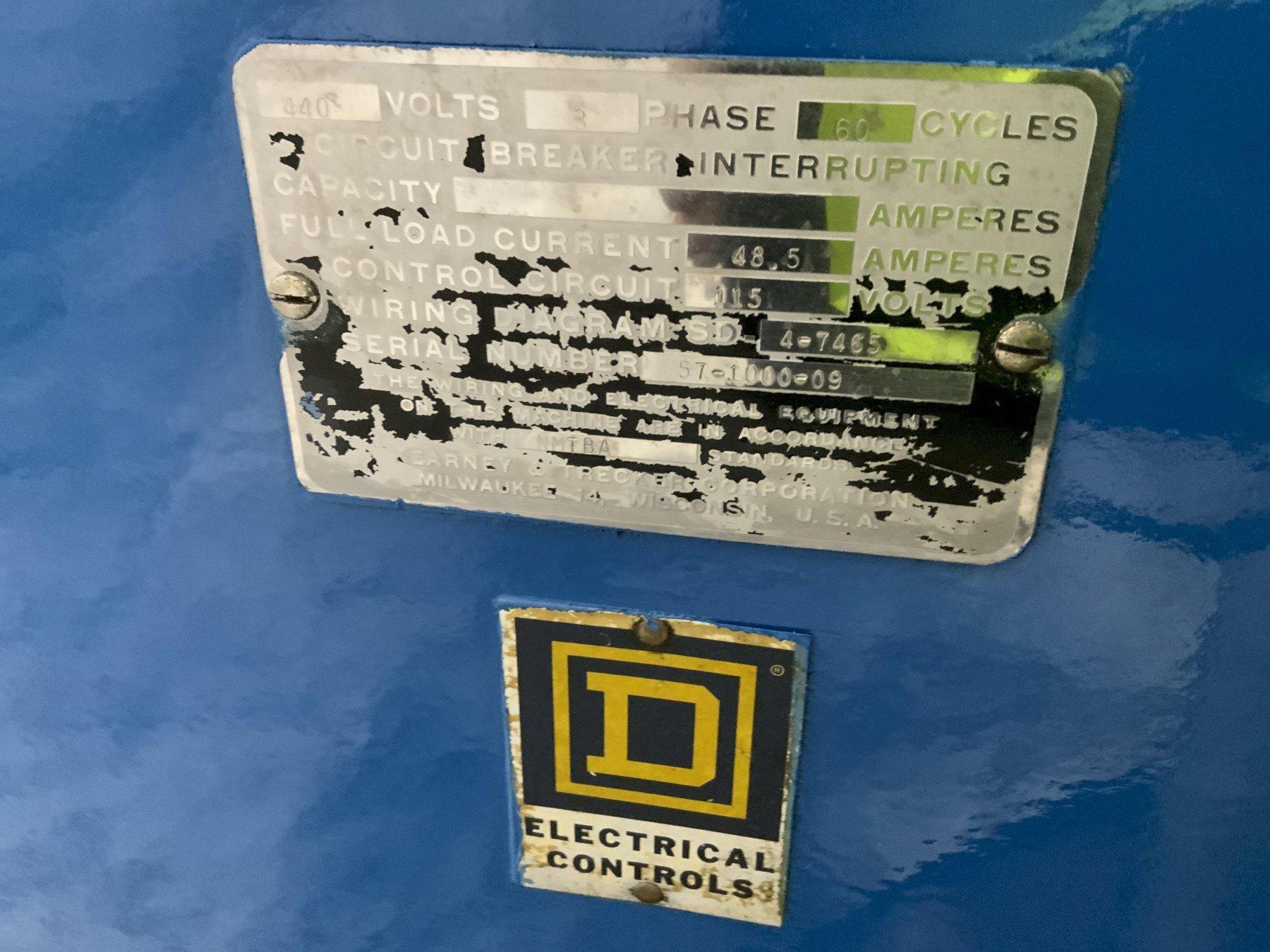

SERIAL ......................... 57-1000-09
MODEL .......................... 530TF-20

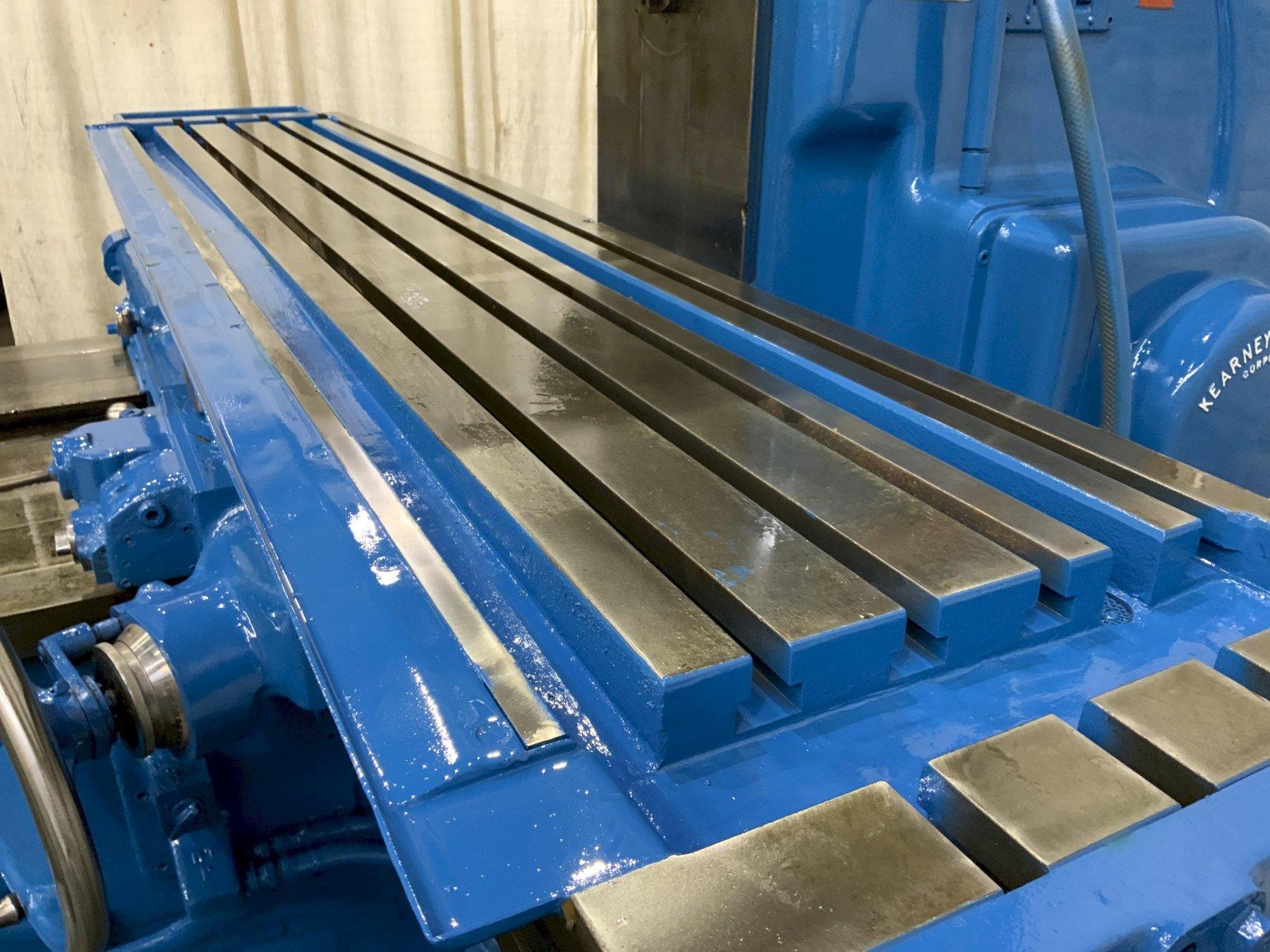

AREA OF TABLE .................. 96" X 25"

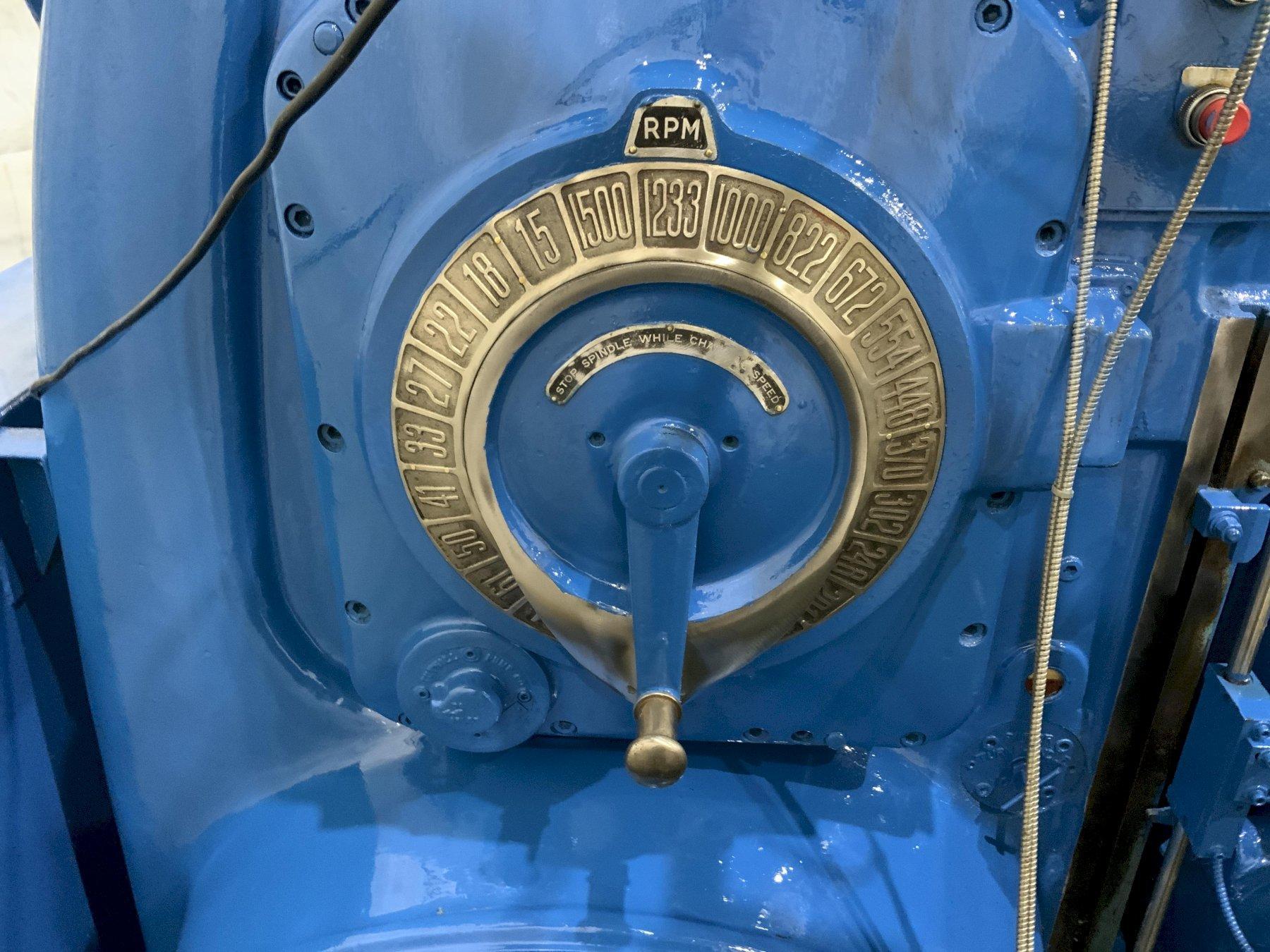

SPINDLE SPEEDS ................. (24) 15 TO 1500 RPM
LONGITUDINAL & CROSS FEEDS ..... (32) 3/8 TO 90 IPM
VERTICAL HEAD .................. (32) 3/16 TO 45 IPM
VERTICAL KNEE FEEDS ............ (32) 1/8" TO 30 IPM
LONGITUDINAL TABLE TRAVEL ...... 50"
CROSS TABLE TRAVEL ............. 16"
VERTICAL TRAVEL OF KNEE ........ 18"
VERTICAL TRAVEL OF HEAD ........ 8"
DISTANCE SPINDLE TO TABLE ...... 0" MINIMUM TO 23" MAXIMUM
SPINDLE TAPER .................. #50NS
THROAT ......................... 21"
RAPID TRAVERSE ................. 150 IPM
2 AXIS NEWALL DIGITAL REDOUTS .. DP7

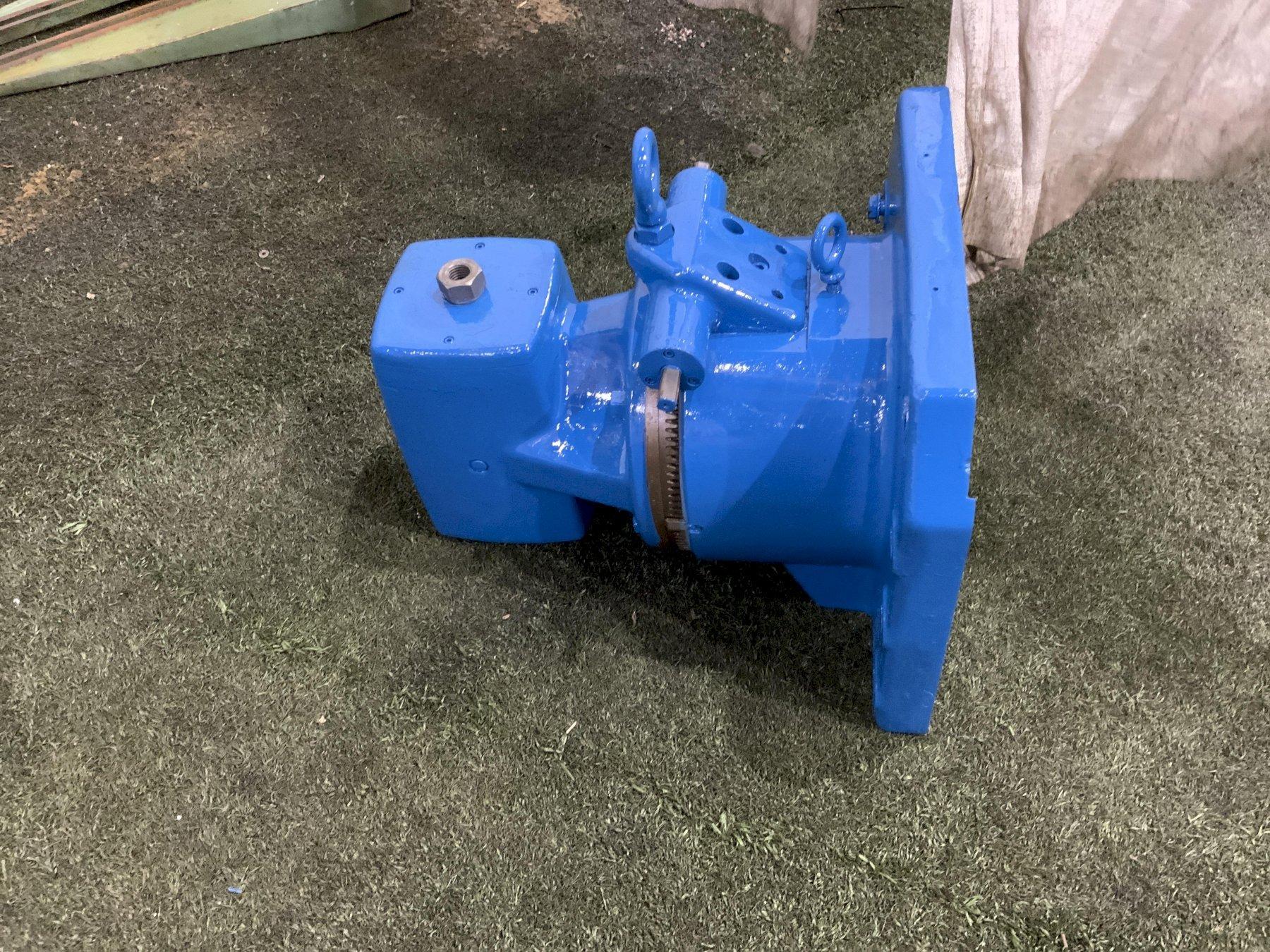

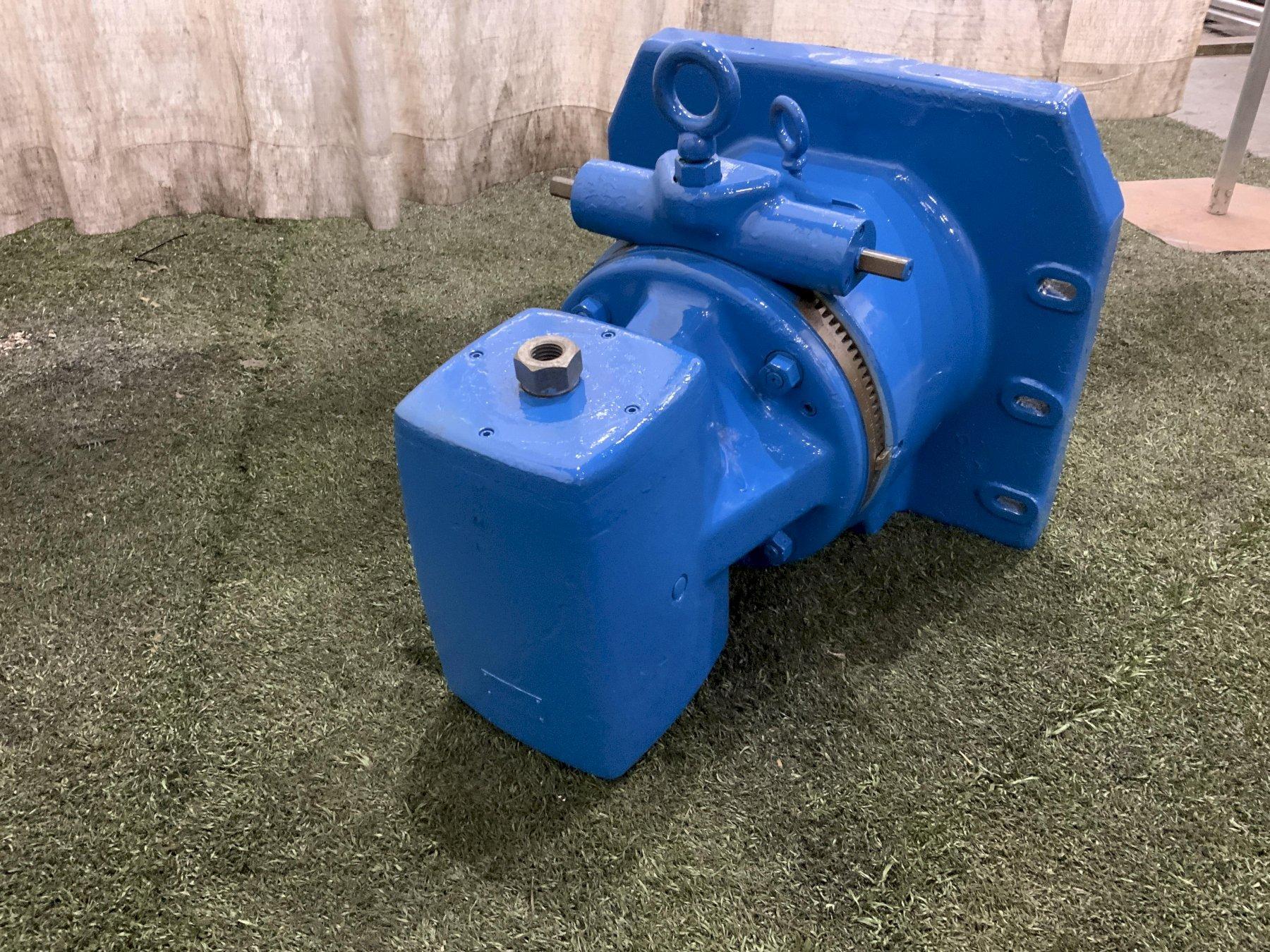

VERTICAL HEAD ATTACHMENT ....... YES
COOLANT ........................ YES
MOTOR .......................... 30 HORSEPOWER
FEED MOTOR ..................... 5 HORSEPOWER
