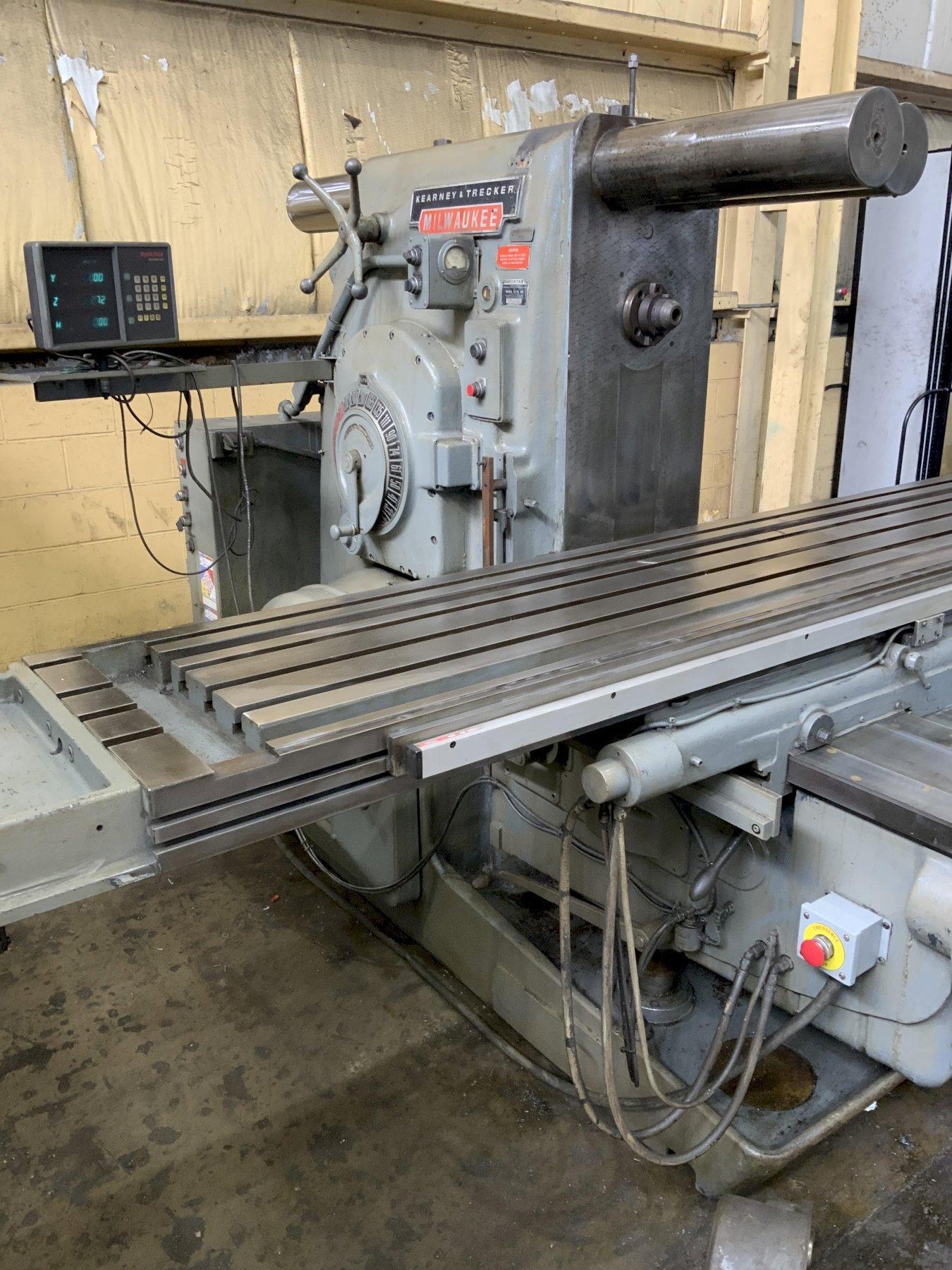

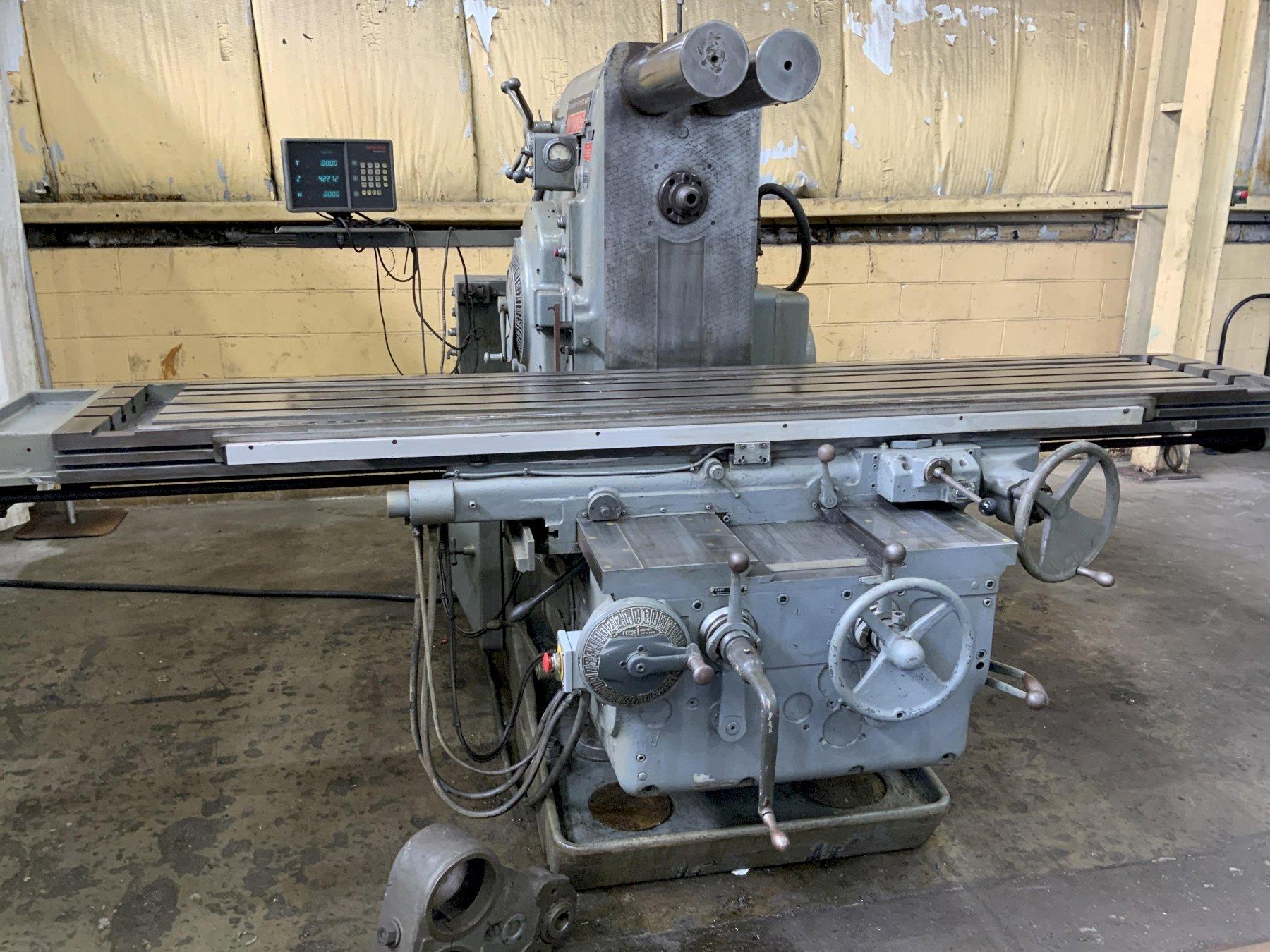

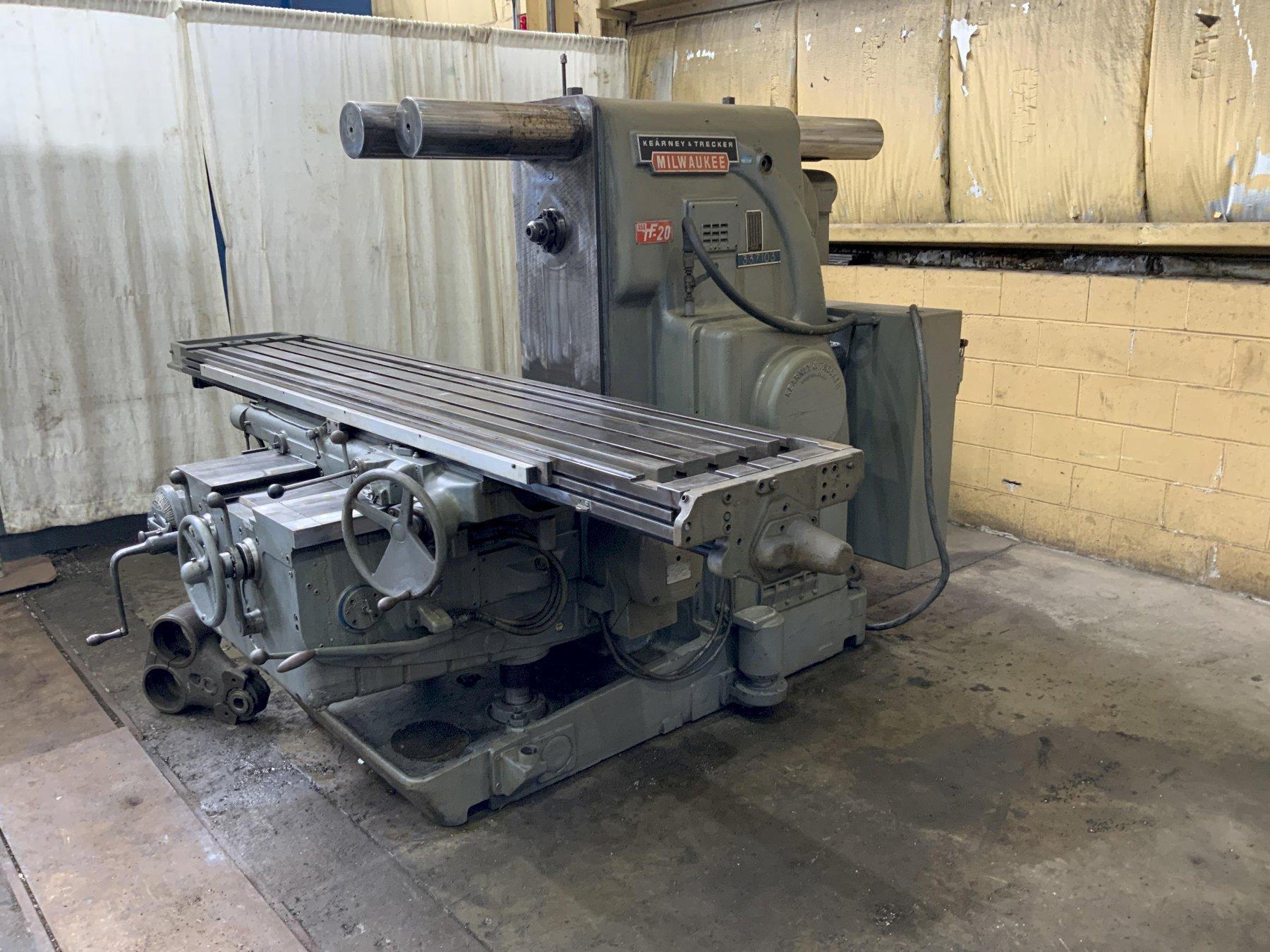

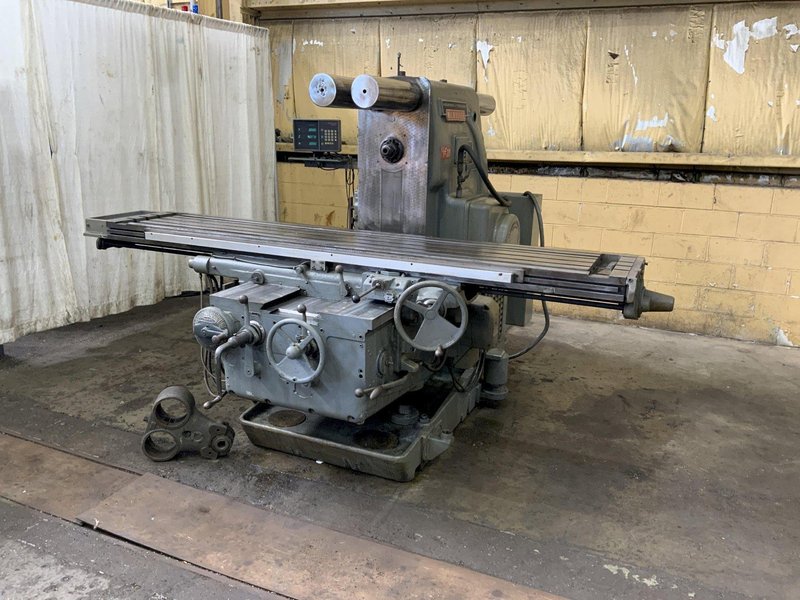

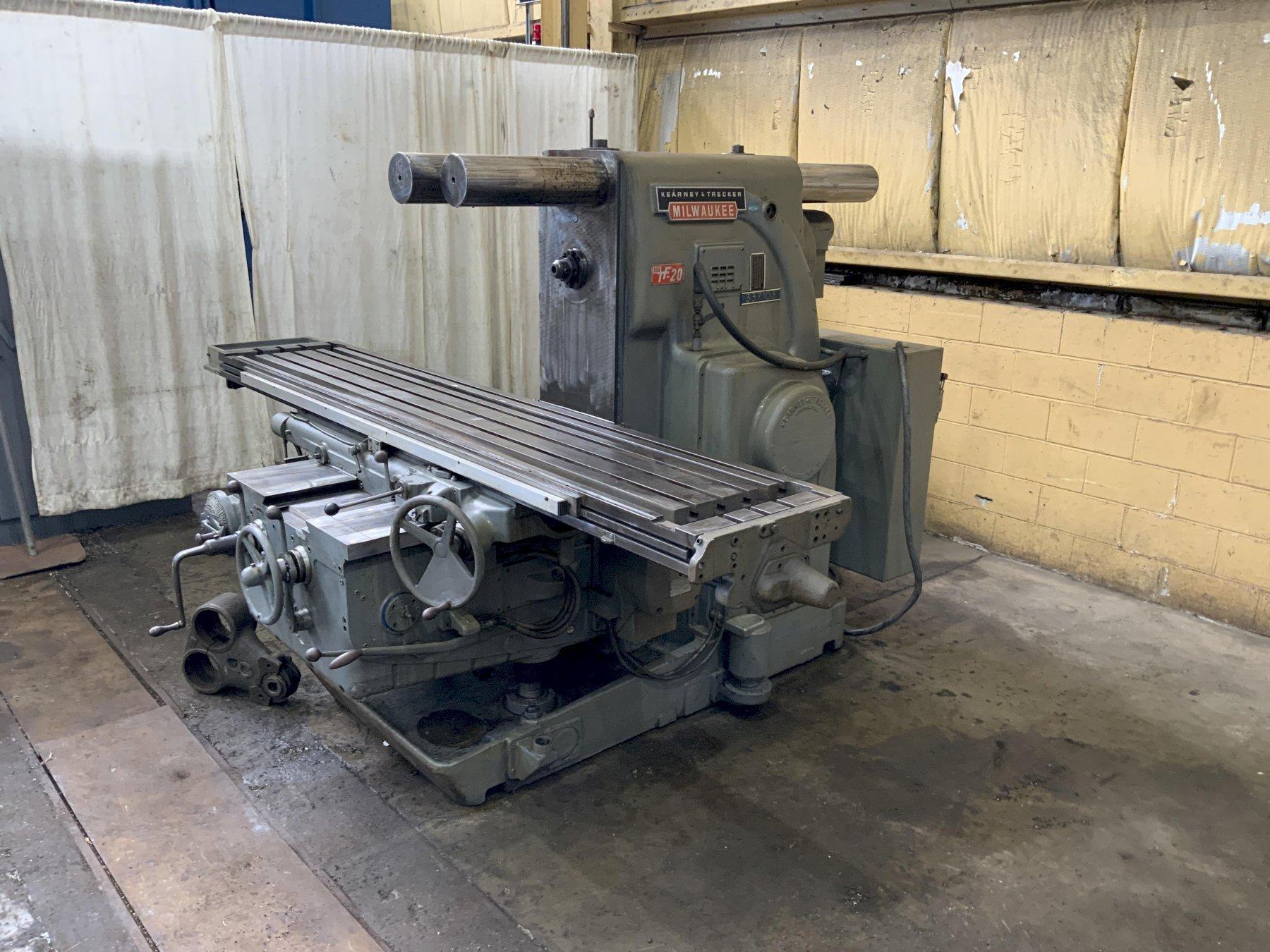

KEARNEY & TRECKER MODEL 650 TF 20 HORIZONTAL MILL: STOCK #81108: STOCK #81110

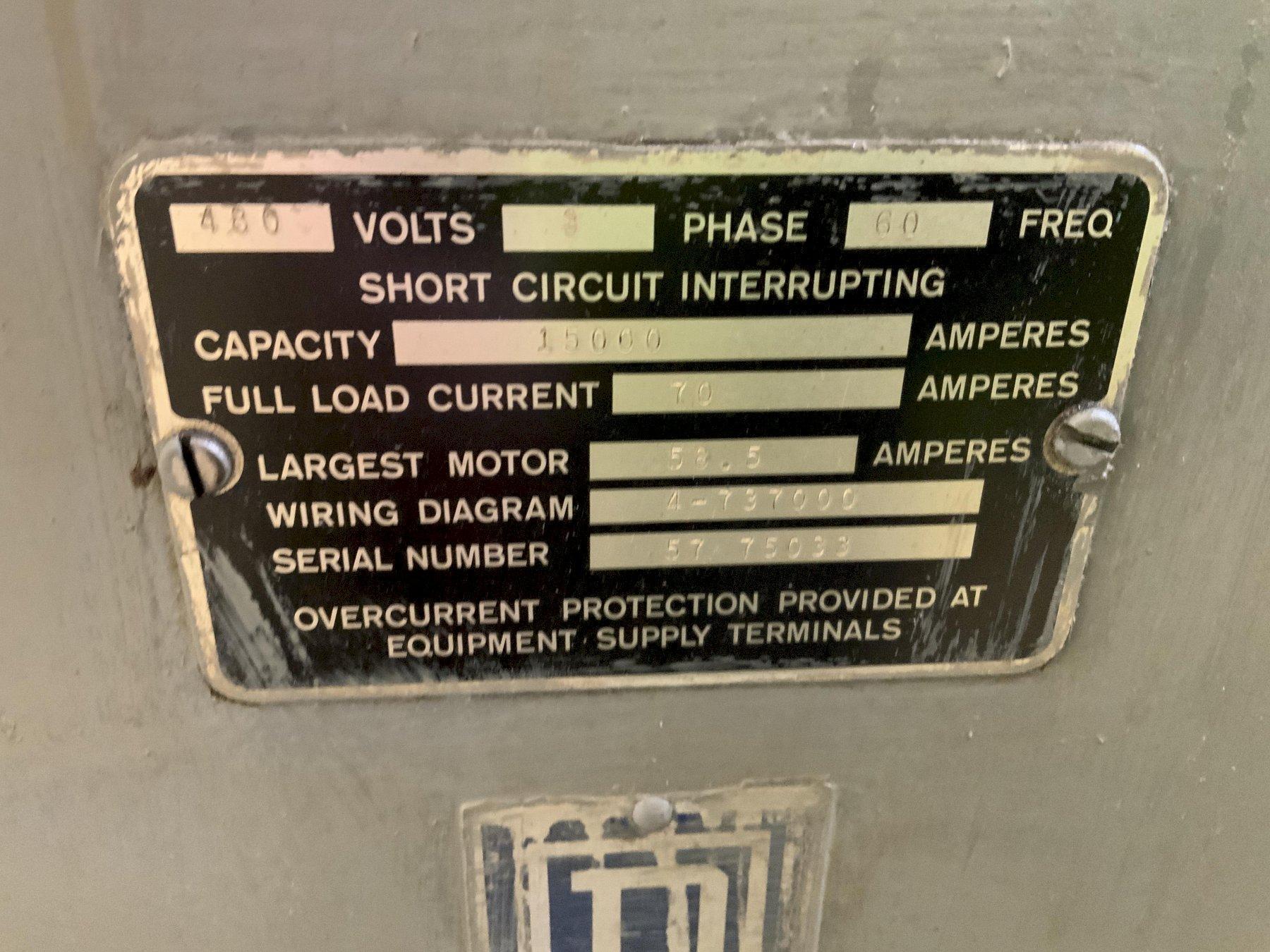

SERIAL ................................... 57-75037

MODEL .................................... 650TF-20

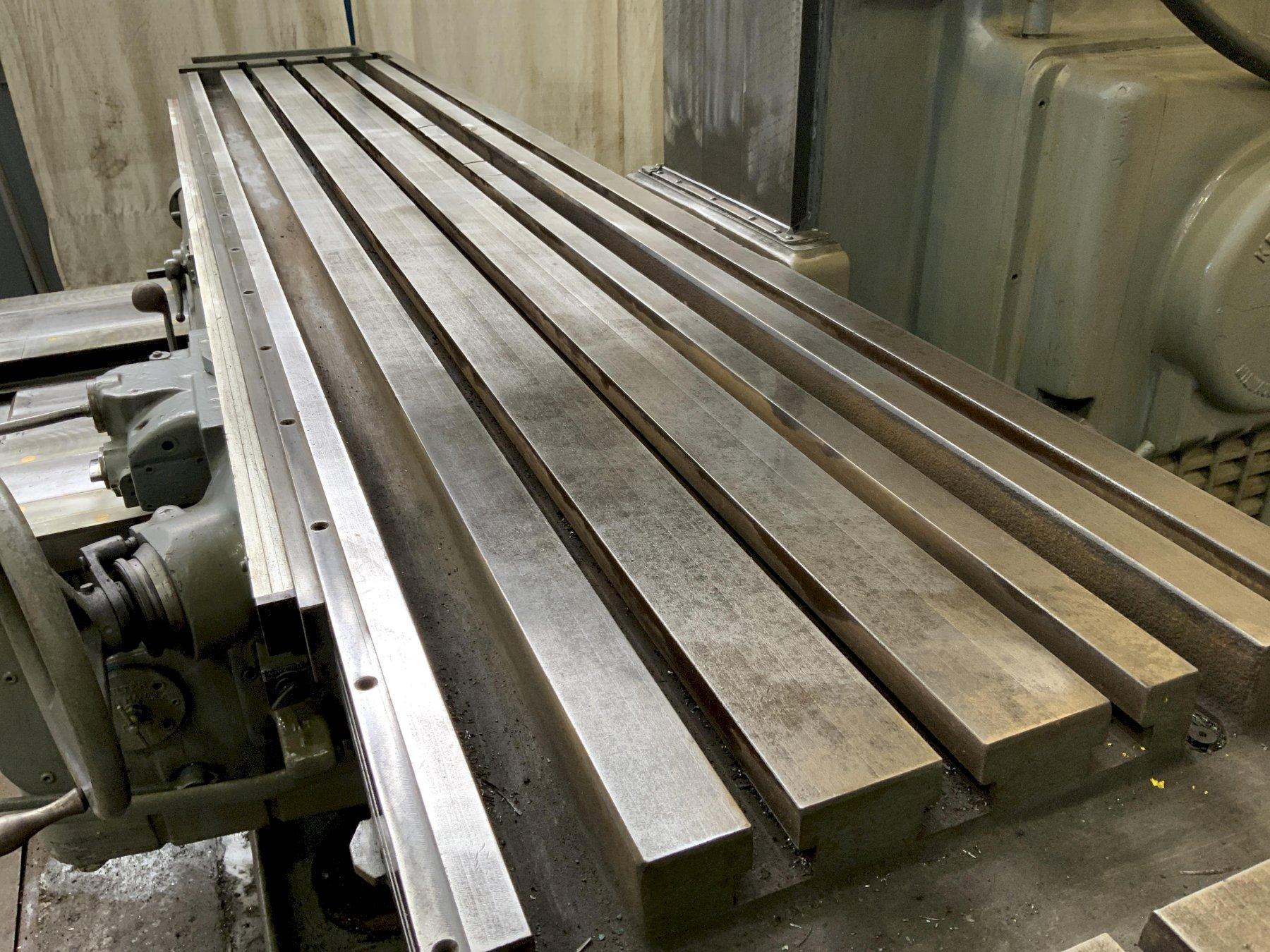

TABLE SIZE ............................... 20" x 106"

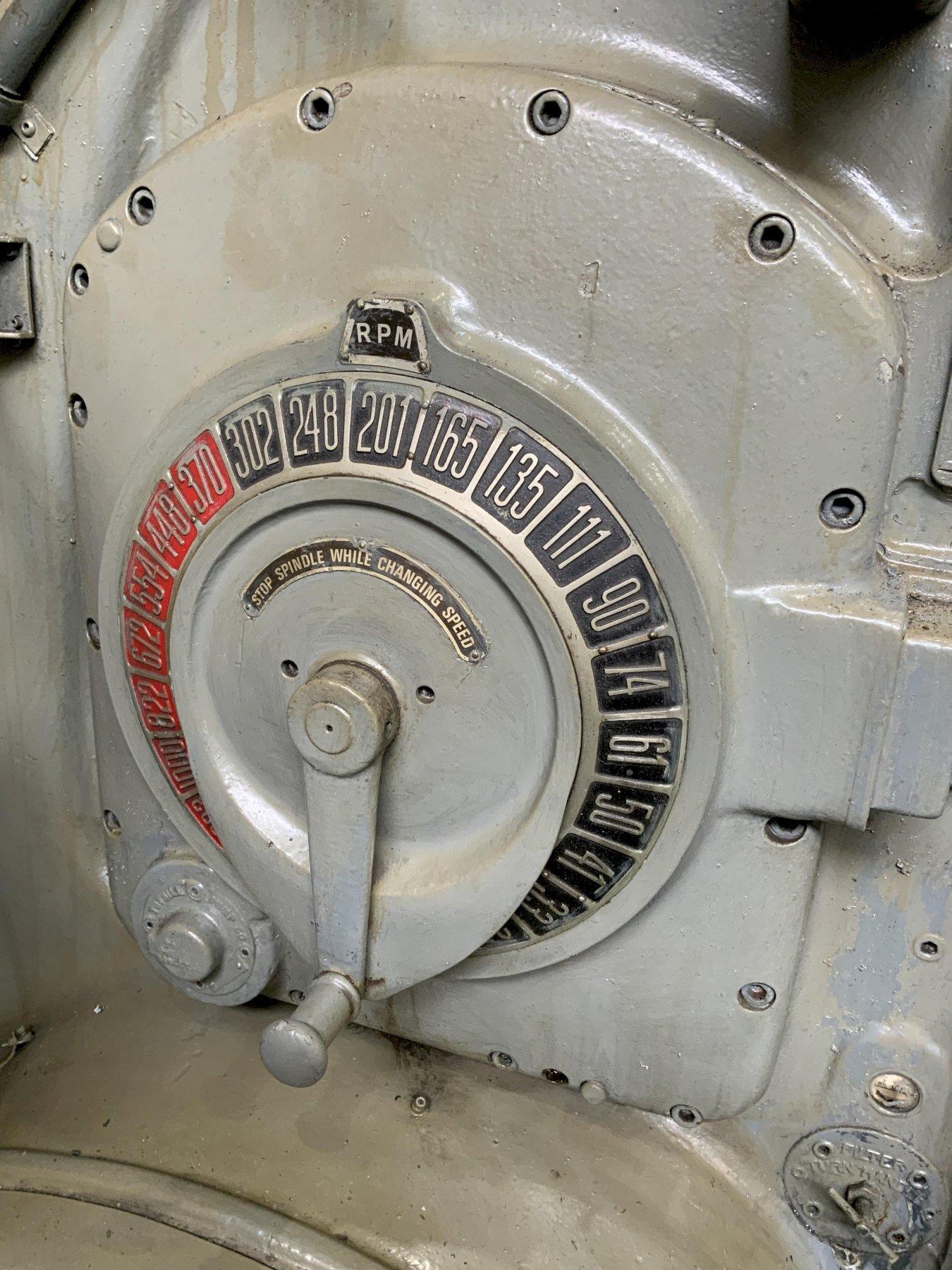

SPINDLE SPEEDS ........................... (24) 15 to 1500 RPM

LONGITUDINAL & CROSS FEEDS ............... (32) 3/8 to 90 IPM

VERTICAL FEEDS ........................... (32) 1/8 to 30 IPM

LONGITUDINAL TRAVEL ...................... 60"

CROSS TRAVEL ............................. 16"

VERTICAL TRAVEL .......................... 21"

POWER RAPID TRAVERSE ..................... 150 IPM

DISTANCE FROM SPINDLE TO TABLE ........... 0" MIN, 21" MAX

TAPER IN SPINDLE ......................... #50 NS

TWIN ELEVATING SCREWS .................... YES

BACKLASH ELIMINATOR ...................... YES

DUAL CONTROLS AND COOLANT ................ YES

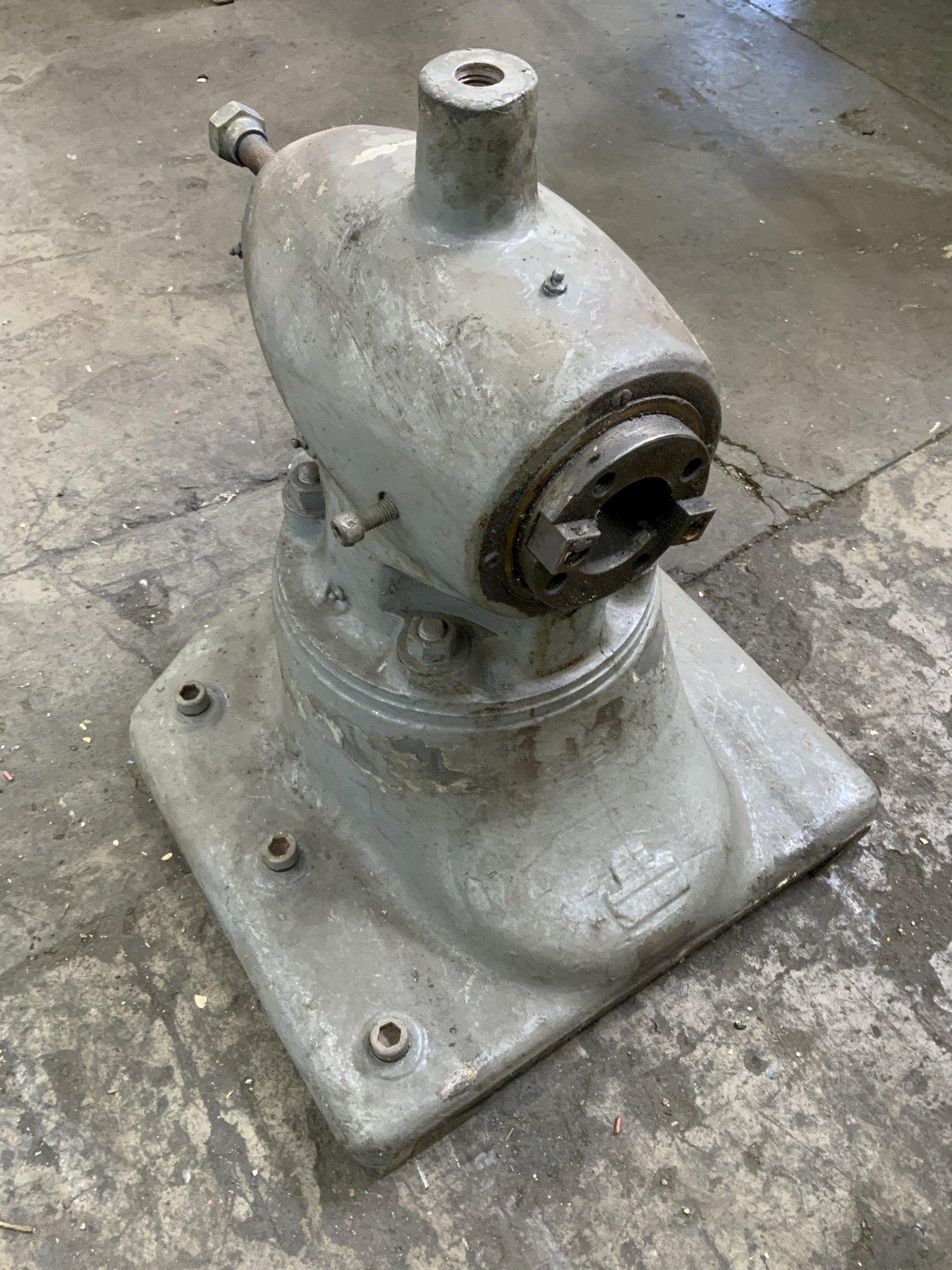

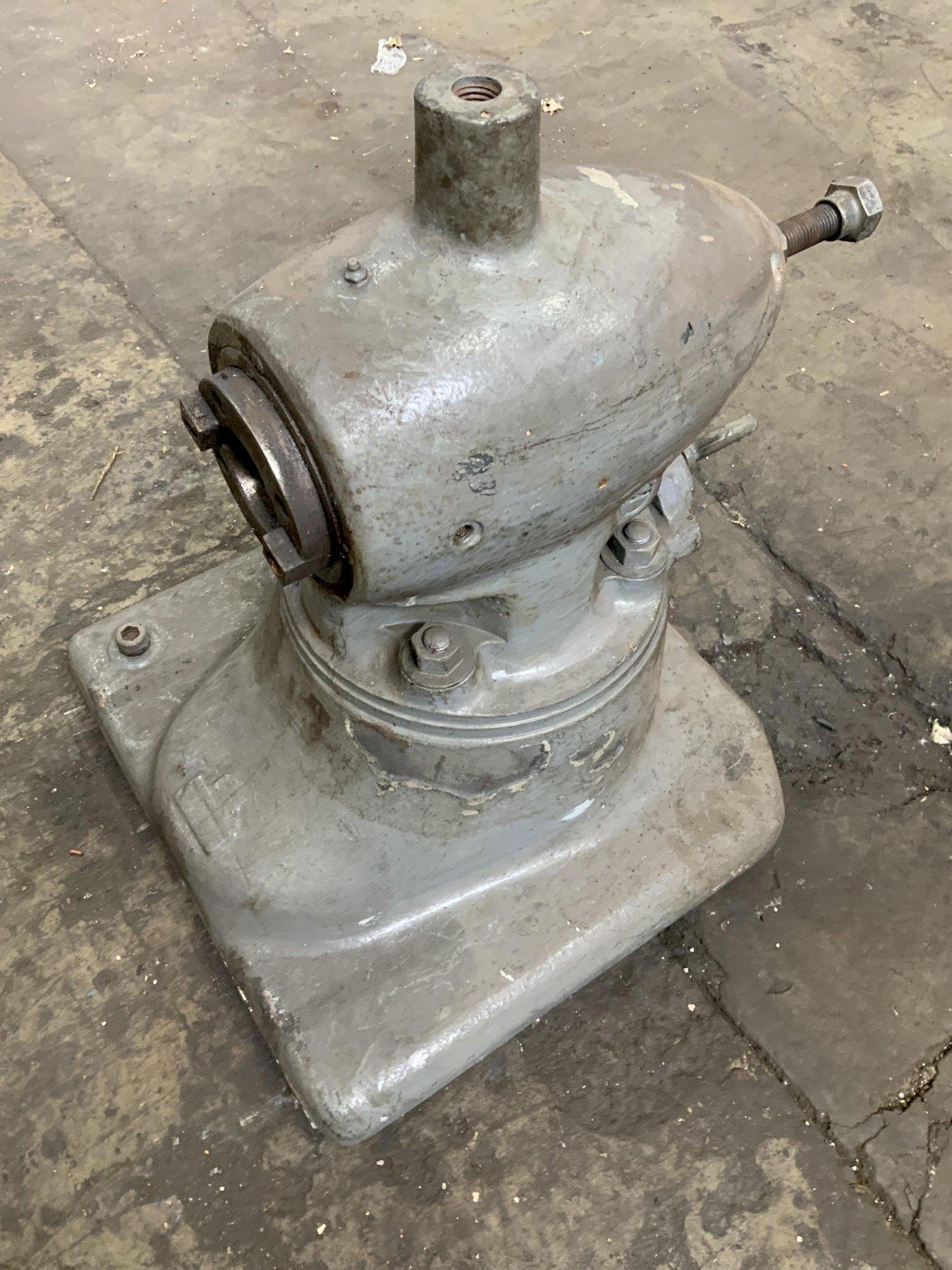

VERTICAL HEAD ATTACHMENT ................. YES

HORSEPOWER, MAIN MOTOR ................... 50

HORSEPOWER,FEED AND RAPID TRAVERSE MOTOR.. 5
