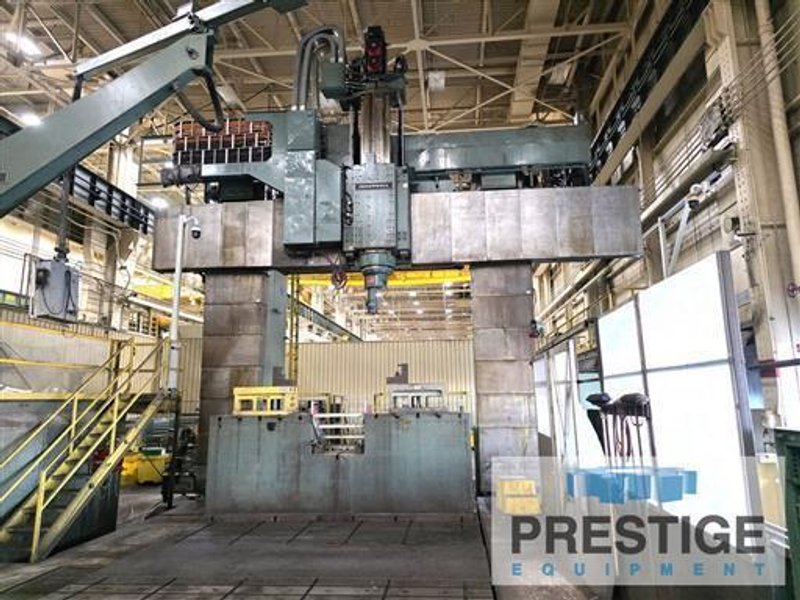

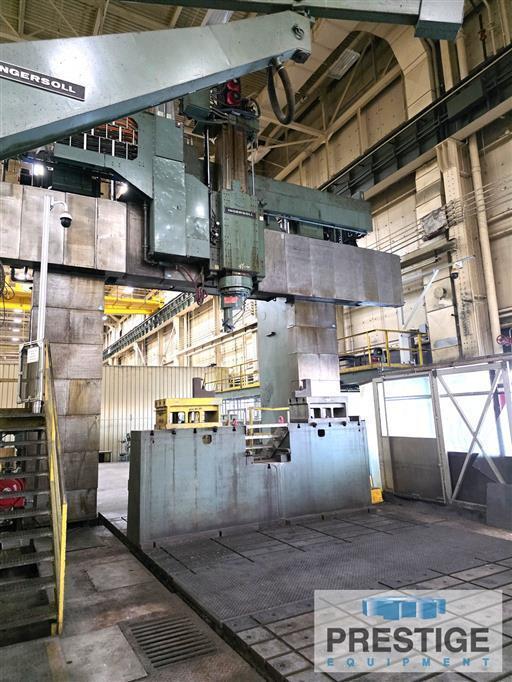

Machining Centers Vertical Bridge Type CNC

TRAVELS:
Table Travel, X-Axis 511.81"
Head Travel, Y-Axis 268.7"
Ram Stroke, Z-Axis 59.05"
Rail Travel, W-Axis 145.66"
B-Axis, Spindle Swivel, +/- 90 Deg. 1 Degree Increments
C-Axis, Head Rotation Cont & Rev 360 Degrees
SPECIFICATIONS:

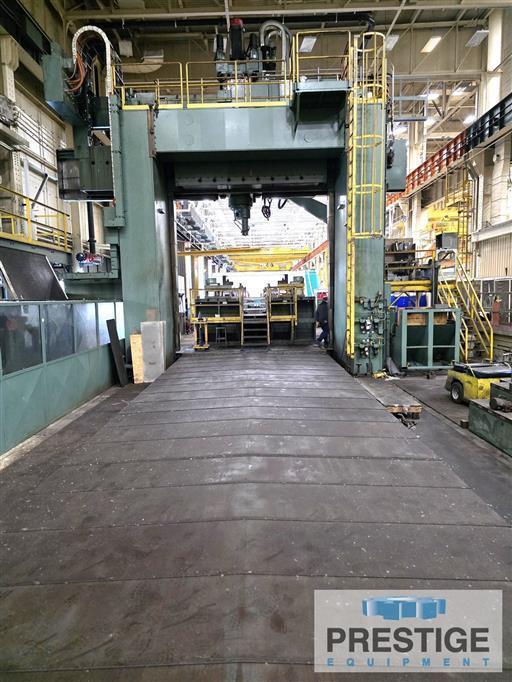

Table Size, Joined 168" x 500"
Table Size, Un-Coupled Front 168" x 309"
Table Size, Un-Coupled Back 168" x 152"
Distance Between Table Sections 39"
Distance Between Columns 177"
Ram Cross Section 23.62" x 23.62"
Maximum Height Table to Ram Face 177.16"
Spindle Motor 125 HP
Spindle Speeds 0-2000 RPM
Pallet Load Capacity 44,000 Lbs / Meter



Equipped With:

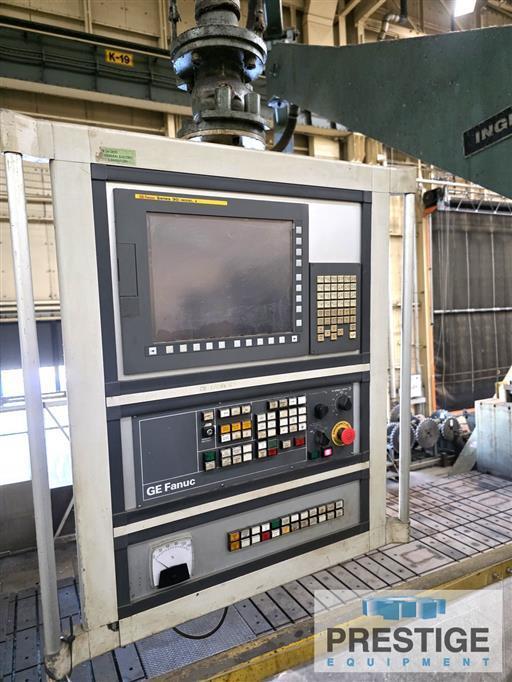

Fanuc 30i-A 5-Axis CNC Control
Adjustable Pendant Controls
Automatic Attachment Changer
Telescoping Steel Way Covers

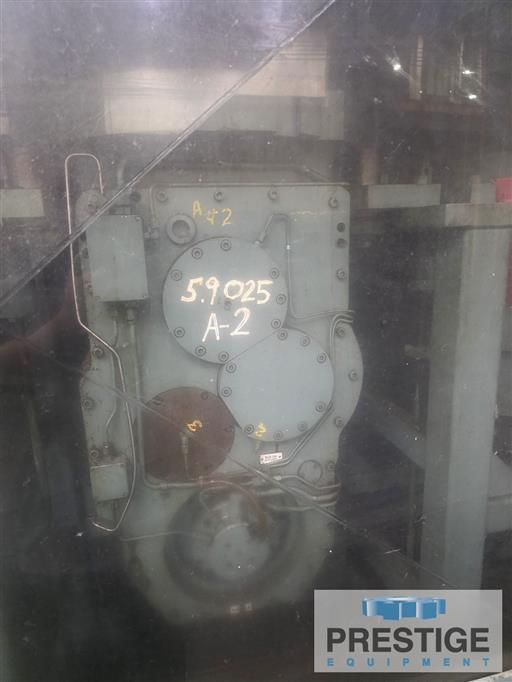

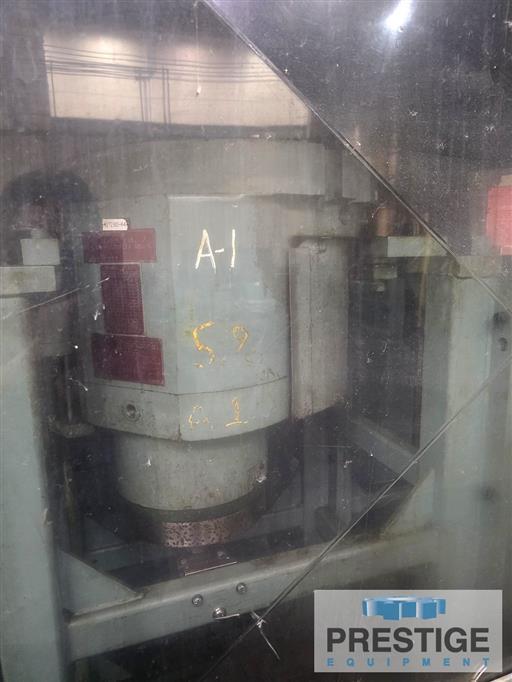

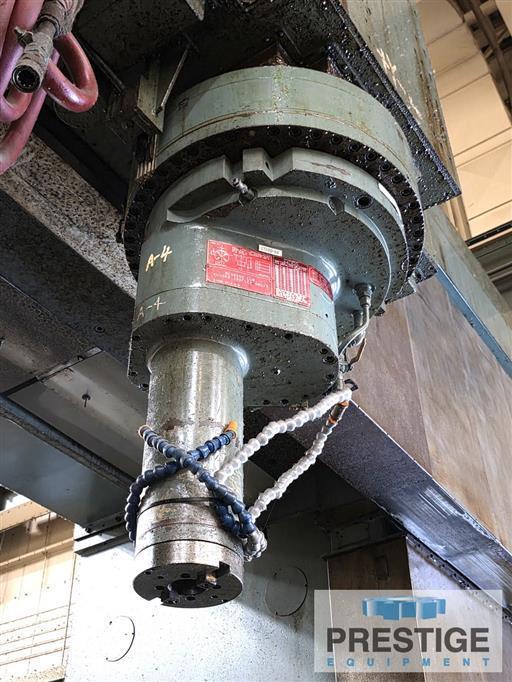

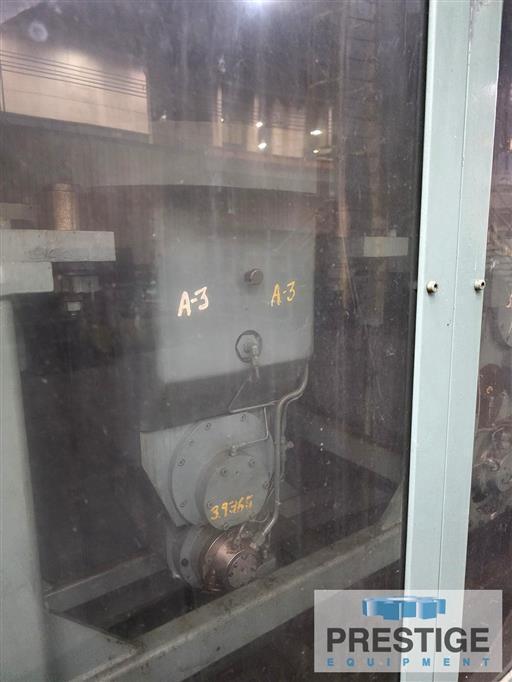

1 - Straight Milling Head, 6:1 Ratio
1 - Right Angle Milling Head, 6:1 Ratio
1 - Right Angle Milling Head, 1:1 Ratio
1 - Straight Milling Head, 2:1 Ratio
1 - Straight Milling Head, 3:1 Ratio
2 - 168" x 62" Workpiece Holders
Split Table
Dual Chip Conveyor
