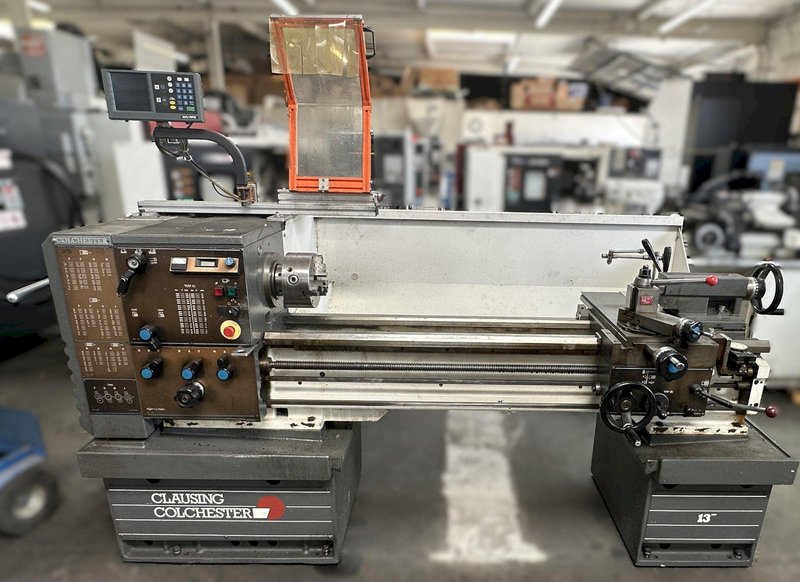

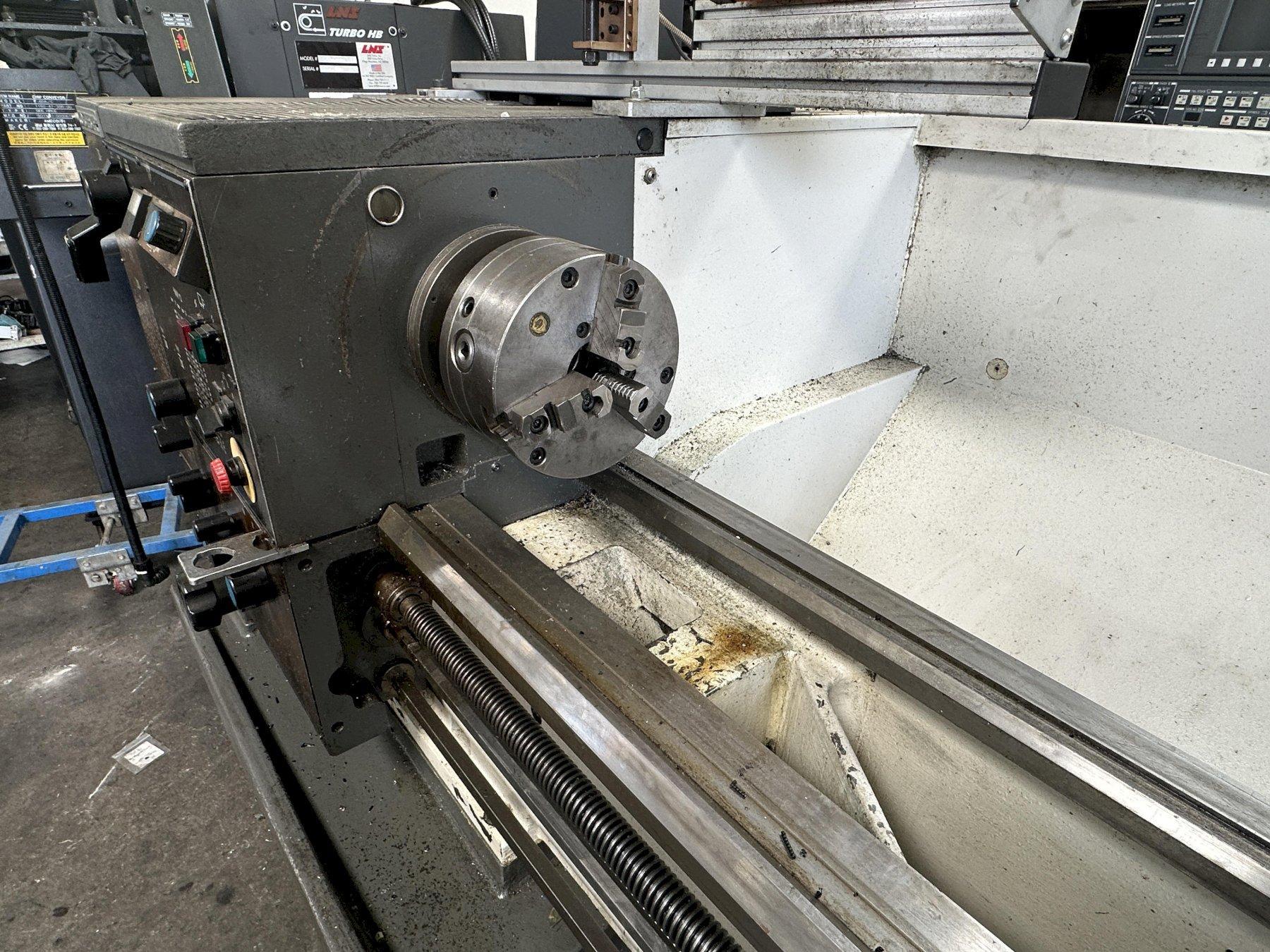

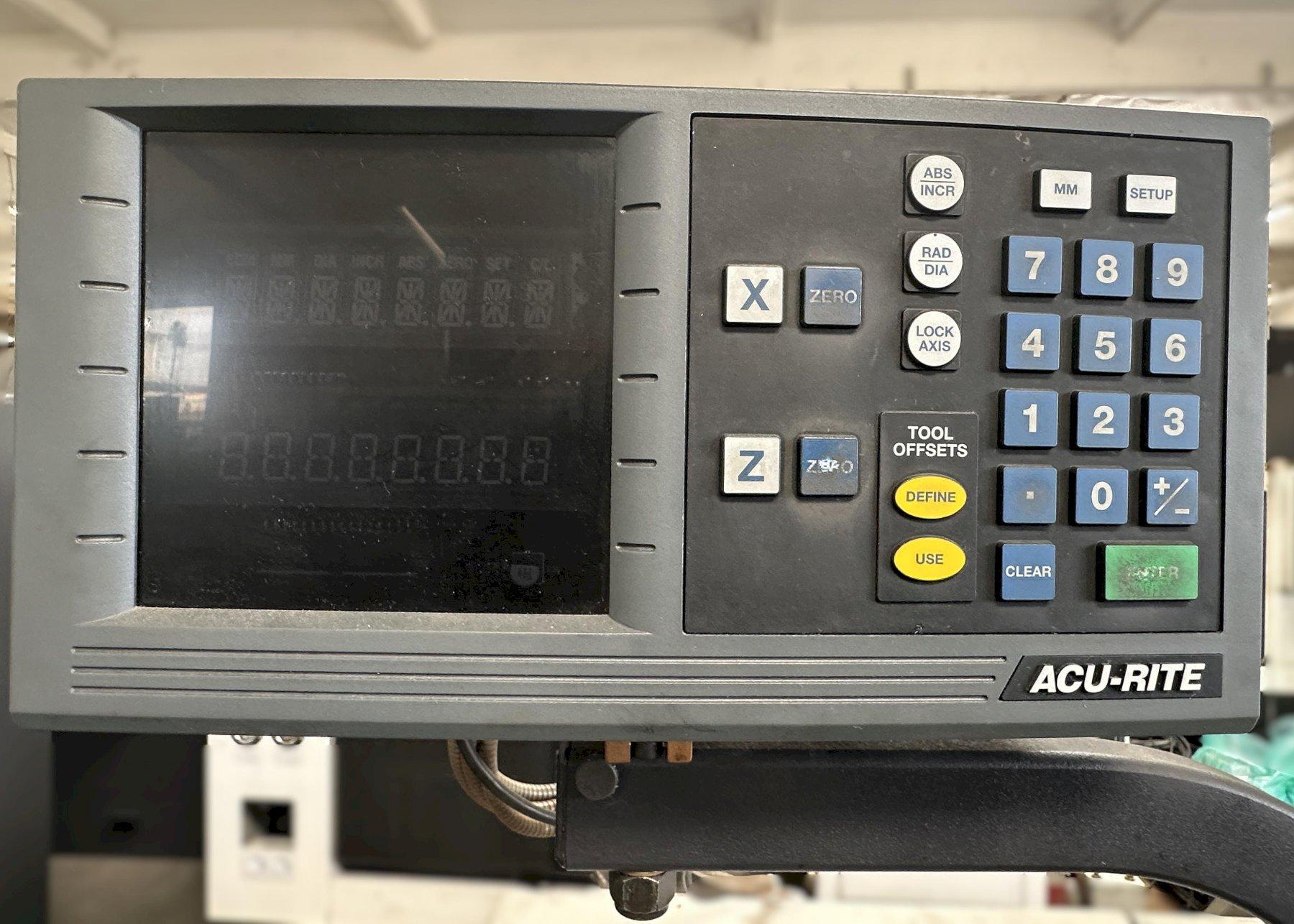

Clausing Colchester 13" Manual Lathe DRO 440 Volt w/ 8" 3 Jaw Chuck, 5C Collet, Guard Top, Dolores Tool Post, Tool Blocks, Trve Dial, and Tooling
Brand
Category
Type
Model
13" Manual Lathe
Stock #
7129
Year
Not specified
Condition
Not specified
Location
California
| Center Height | 6.7" |
| Swing Over Bed | 13.7" |
| Swing Over Cross Slide | 7.7" |
| Swing In Gap | 21" |
| Swing Width In Front Of Faceplate | 6.5" |
| Spindle Bored To Pass | 1.6" |
| Spindle Nose | D1-4" Camlock |
| Spindle Morse Taper In Bush | No.3 MT |

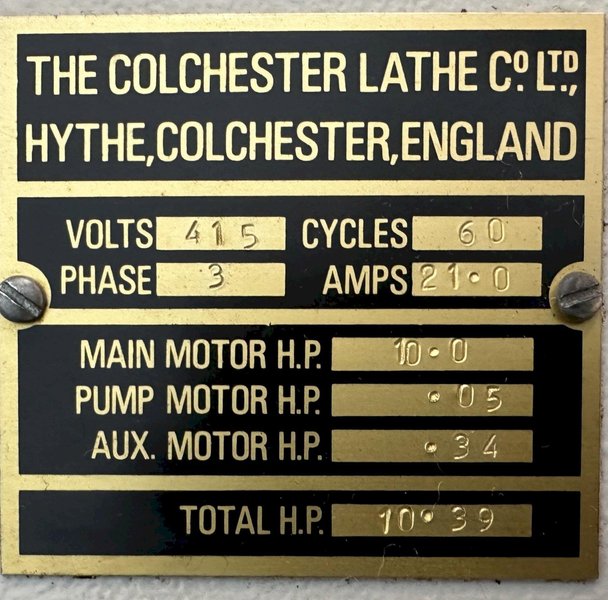

| Main Motor | 10 HP |
| Bed Width Of Ways | 12.5" |
| Bed Type Of Ways | Vee and Flat |

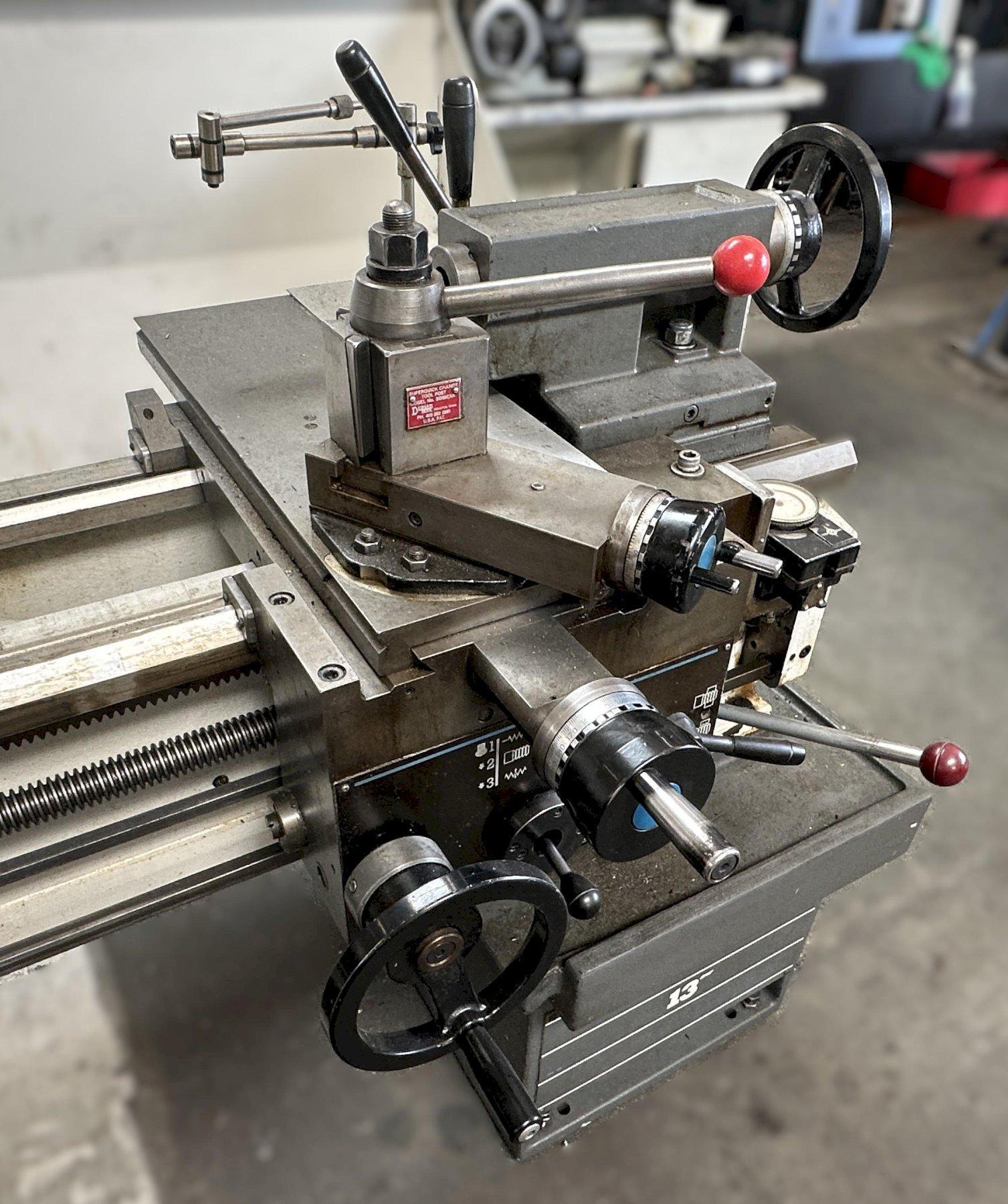

| Cross Slide Width And Length | 7" - 33.5" |
| Cross Slide Travel | 9.8" |
| Tailstock Quill Diameter | 2.5" (nominal) |
| Tailstock Travel | 5.5" |
| Tailstock Morse Taper | No.4MT |
| Lead Screw Diameter | 1.25" |
| Lead Screw Thread | 4 T.P.I. |
| Weight | 3,190 lbs |
|
Clausing Colchester 13" Manual Lathe DRO 440 Volt w/ 8" 3 Jaw Chuck, 5C Collet, Guard Top, Dolores Tool Post, Tool Blocks, Trve Dial, and Tooling |
|
