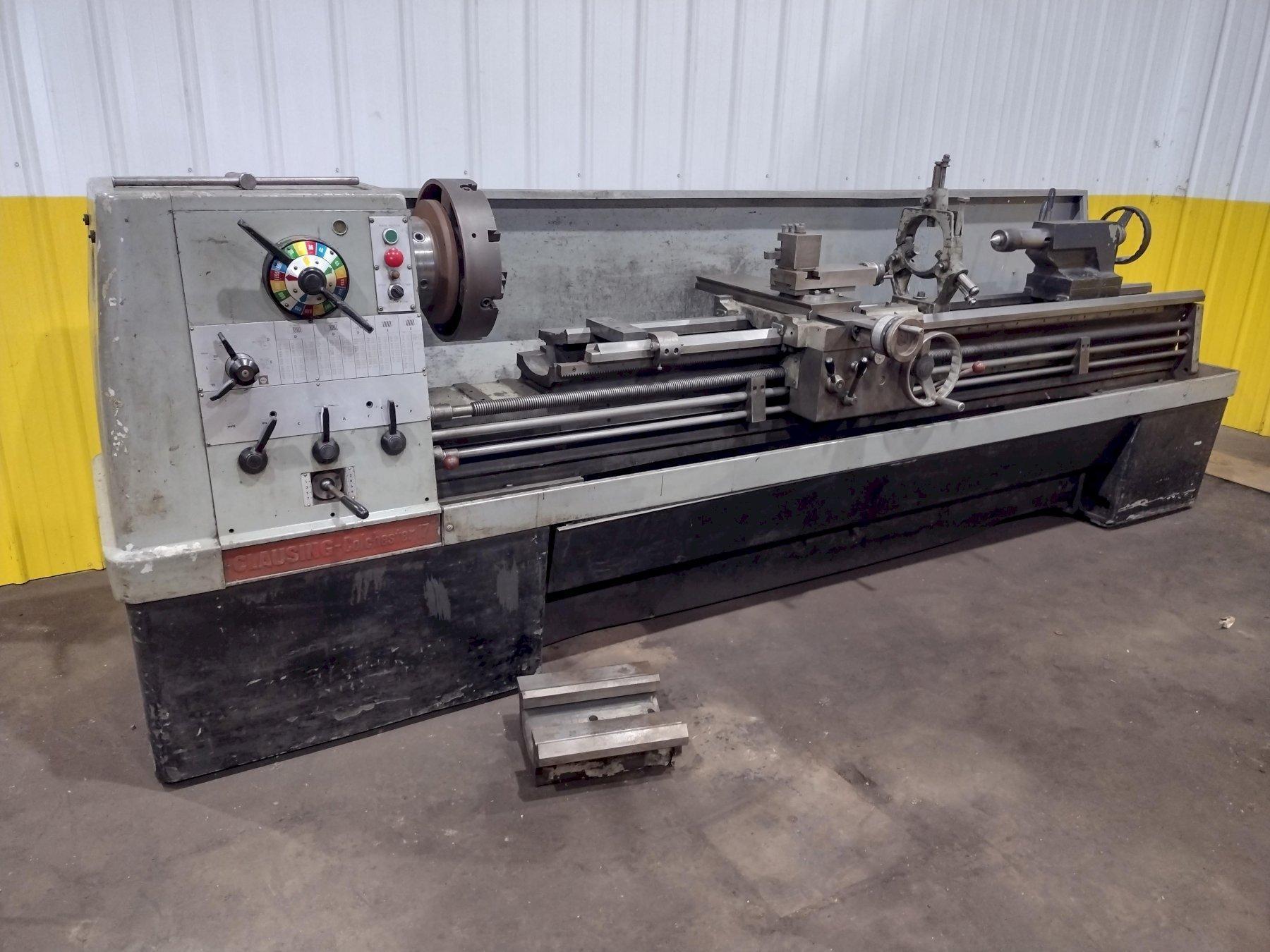

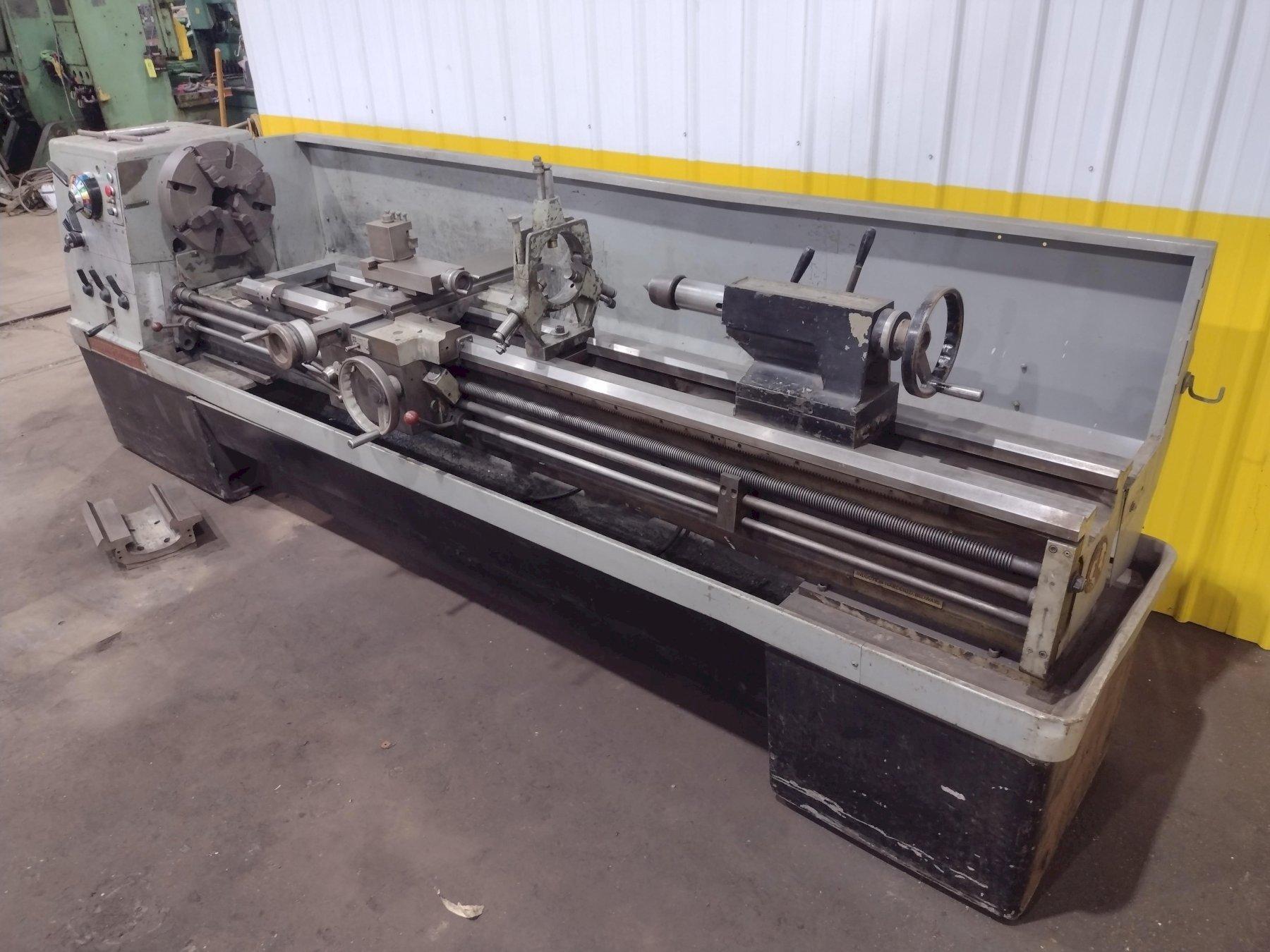

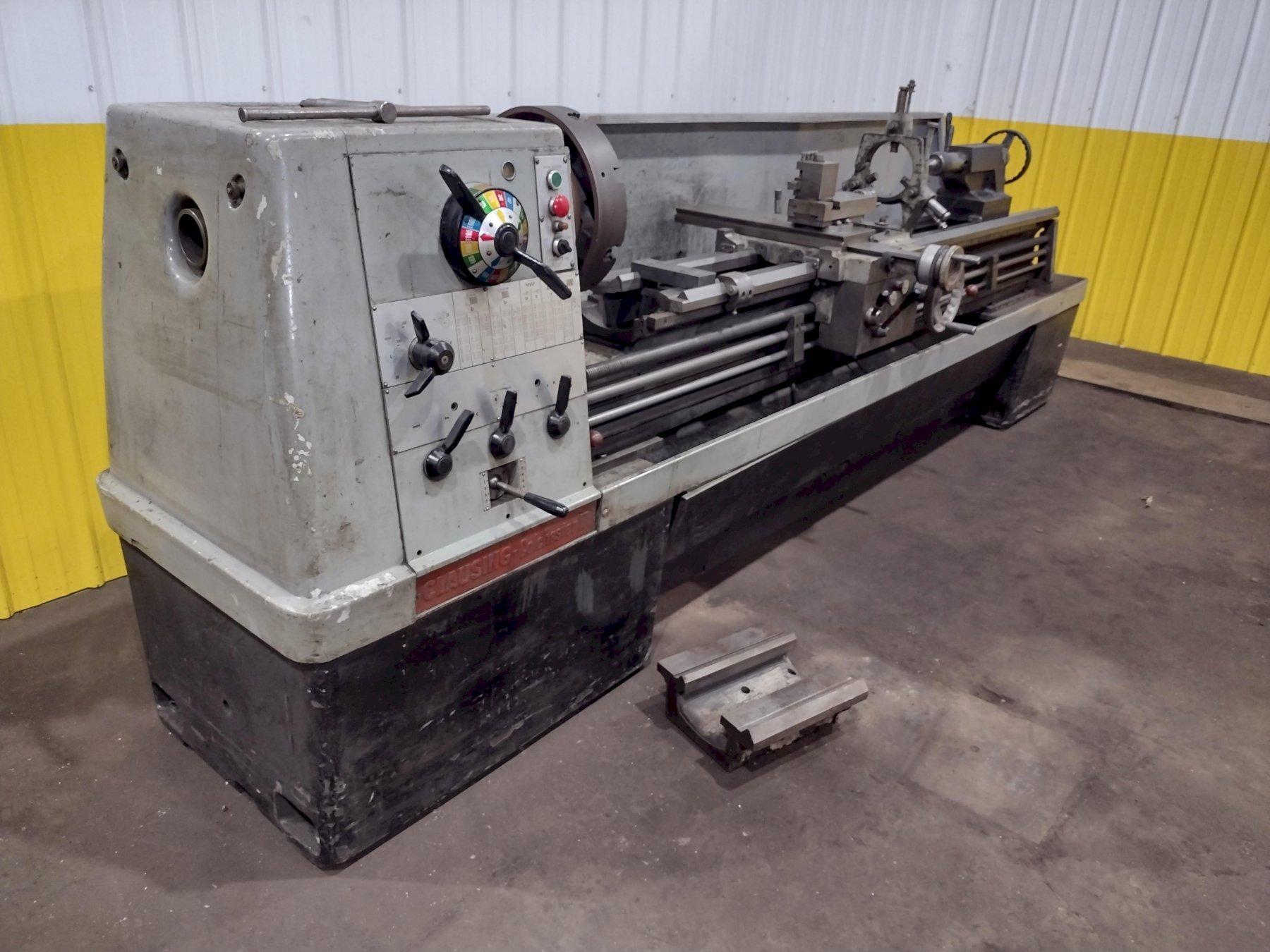

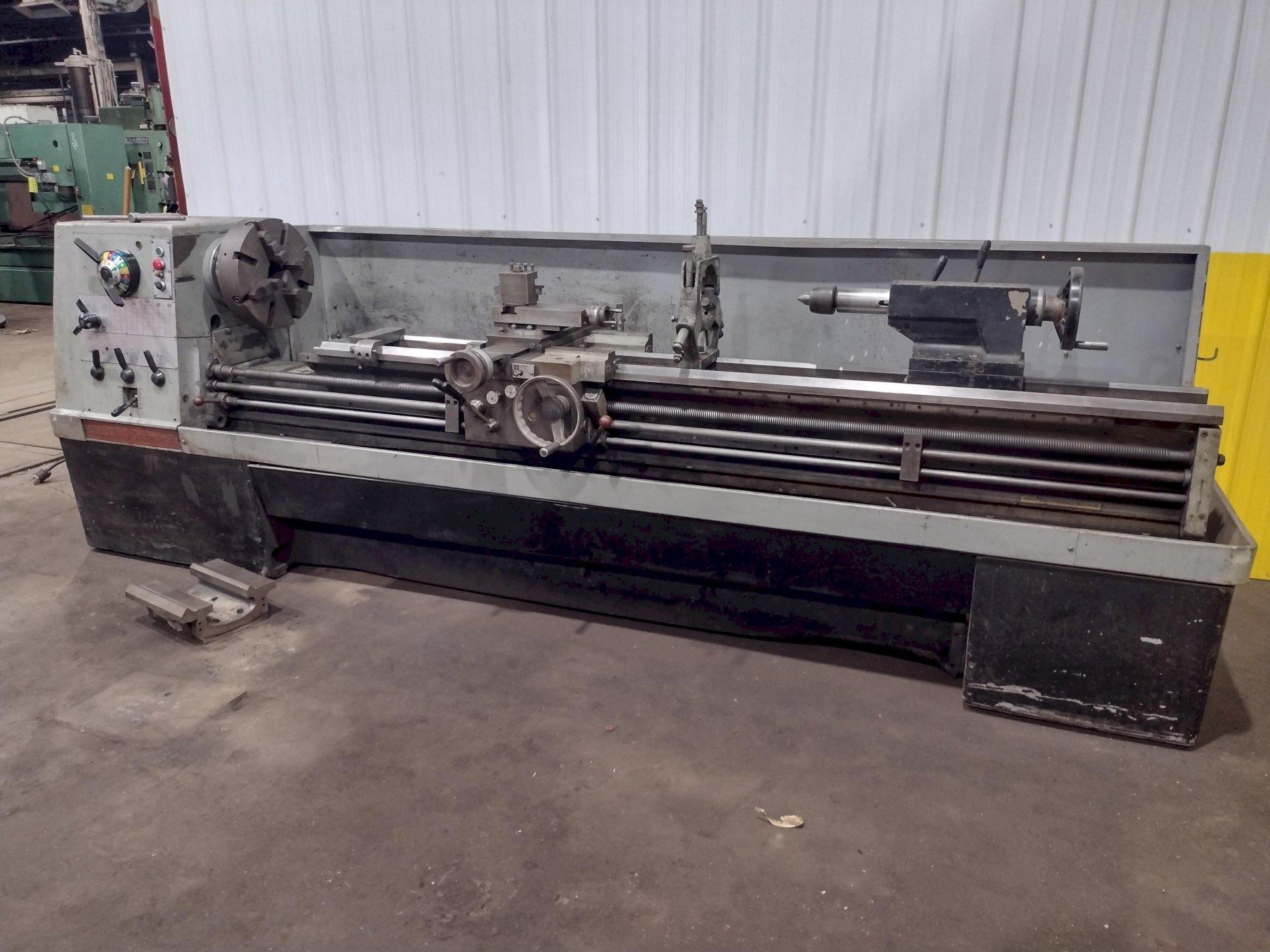

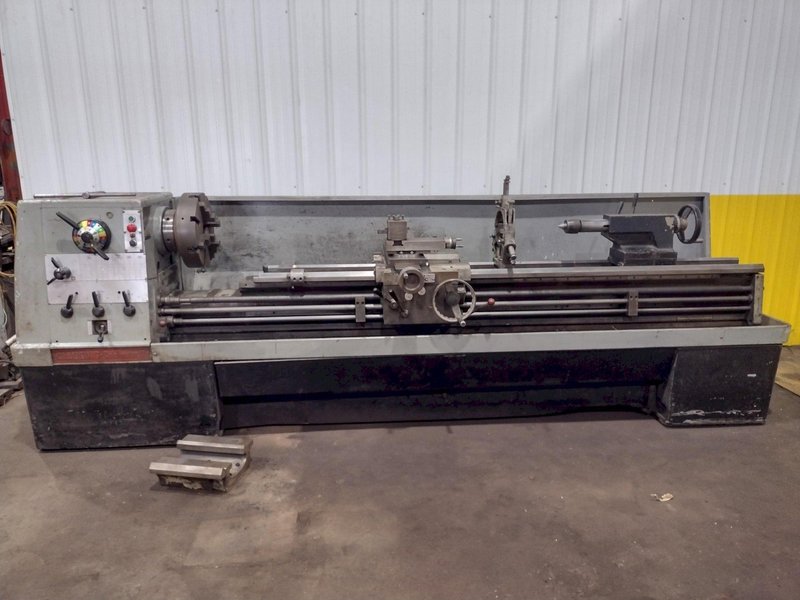

17" x 108" CLAUSING COLCHESTER MODEL #17 ENGINE LATHE, 3.25" HOLE
STOCK # 14660

Specifications:

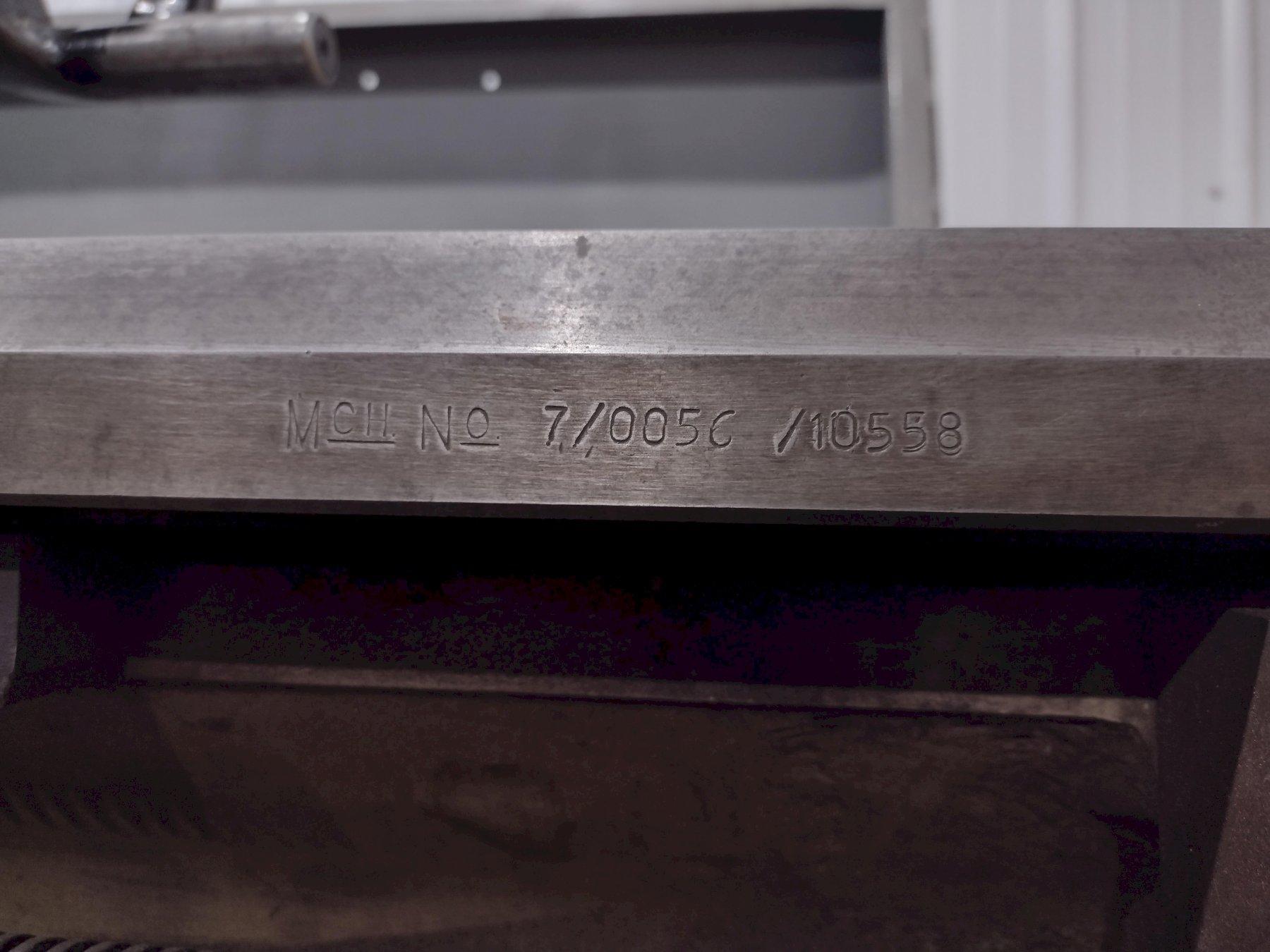

SERIAL ............................. 7/0056/10558
MODEL .............................. 17

SWING OVER WAYS .................... 18"
SWING OVER CROSS SLIDE ............. 10-1/2"
DISTANCE BETWEEN CENTERS ........... 108"

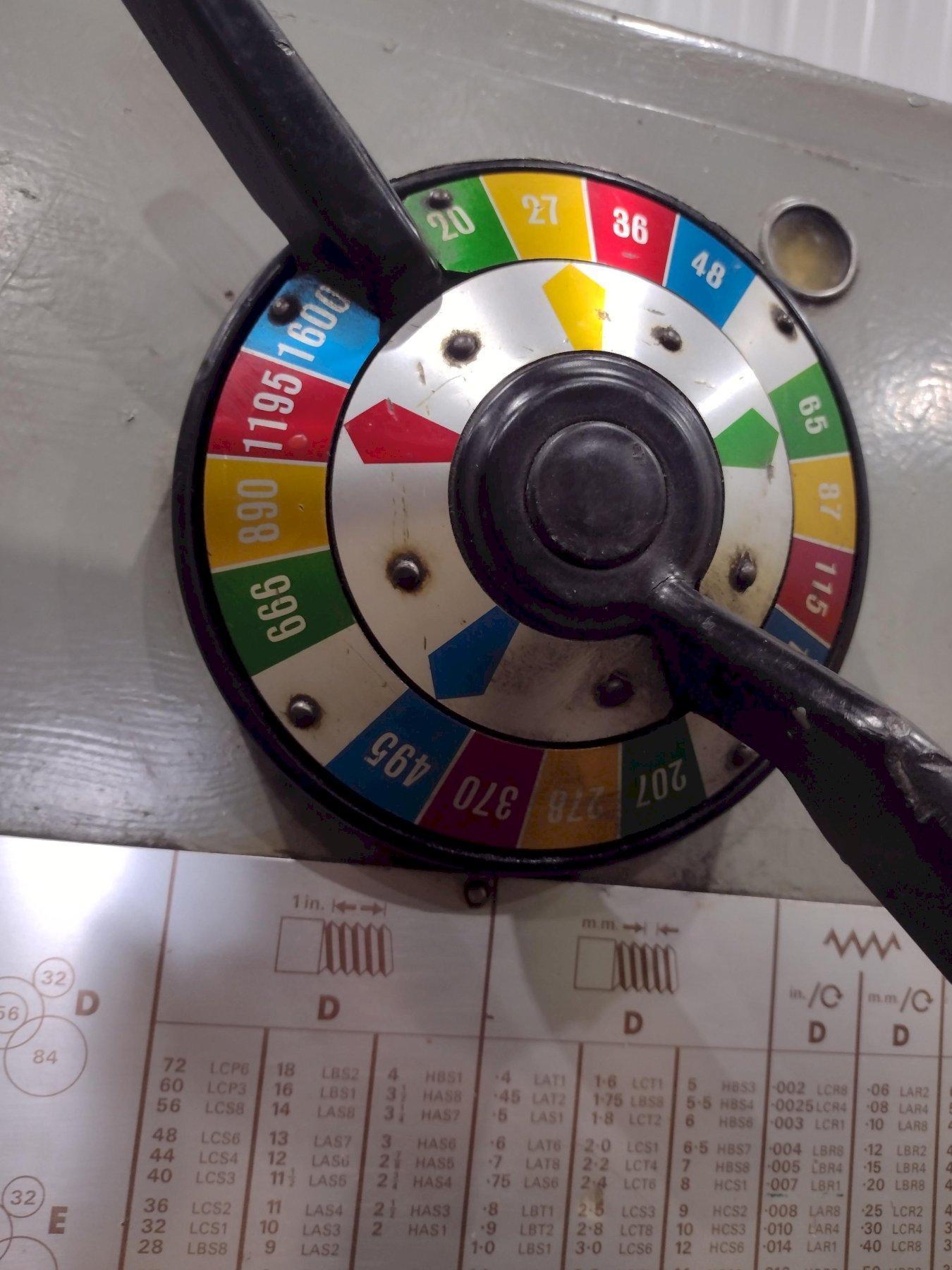

SPINDLE SPEEDS ..................... (16) 20 TO 1600 RPM
DIAMETER OF SPINDLE HOLE ........... 3-1/4"

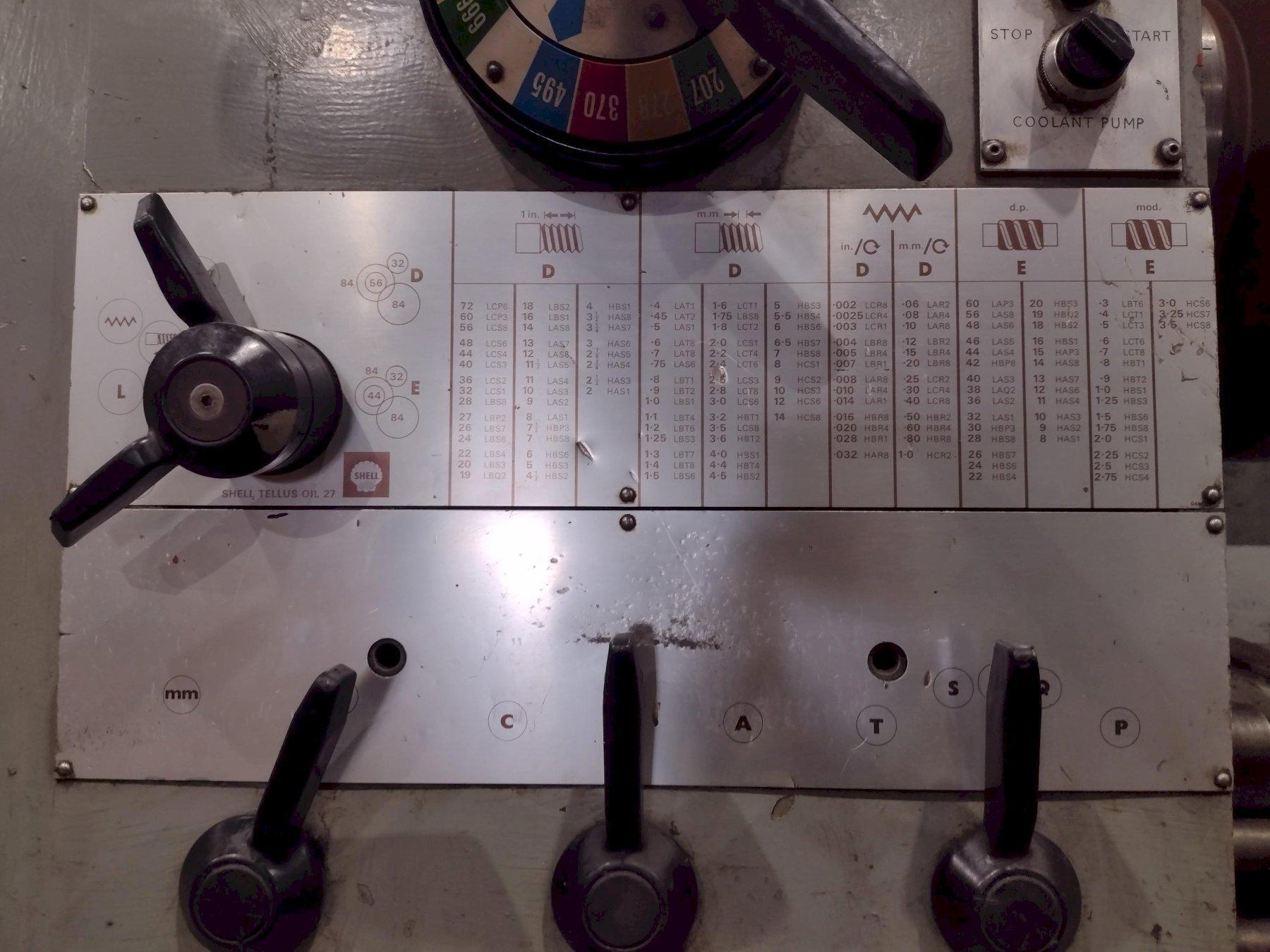

FEEDS LONGITUDINAL ................. (45) .002 TO .032 IPR
THREADS (ENGLISH) .................. (38) 2 TO 72 TPI
THREADS (METRIC) ................... (40) .4 TO 14 MMPI

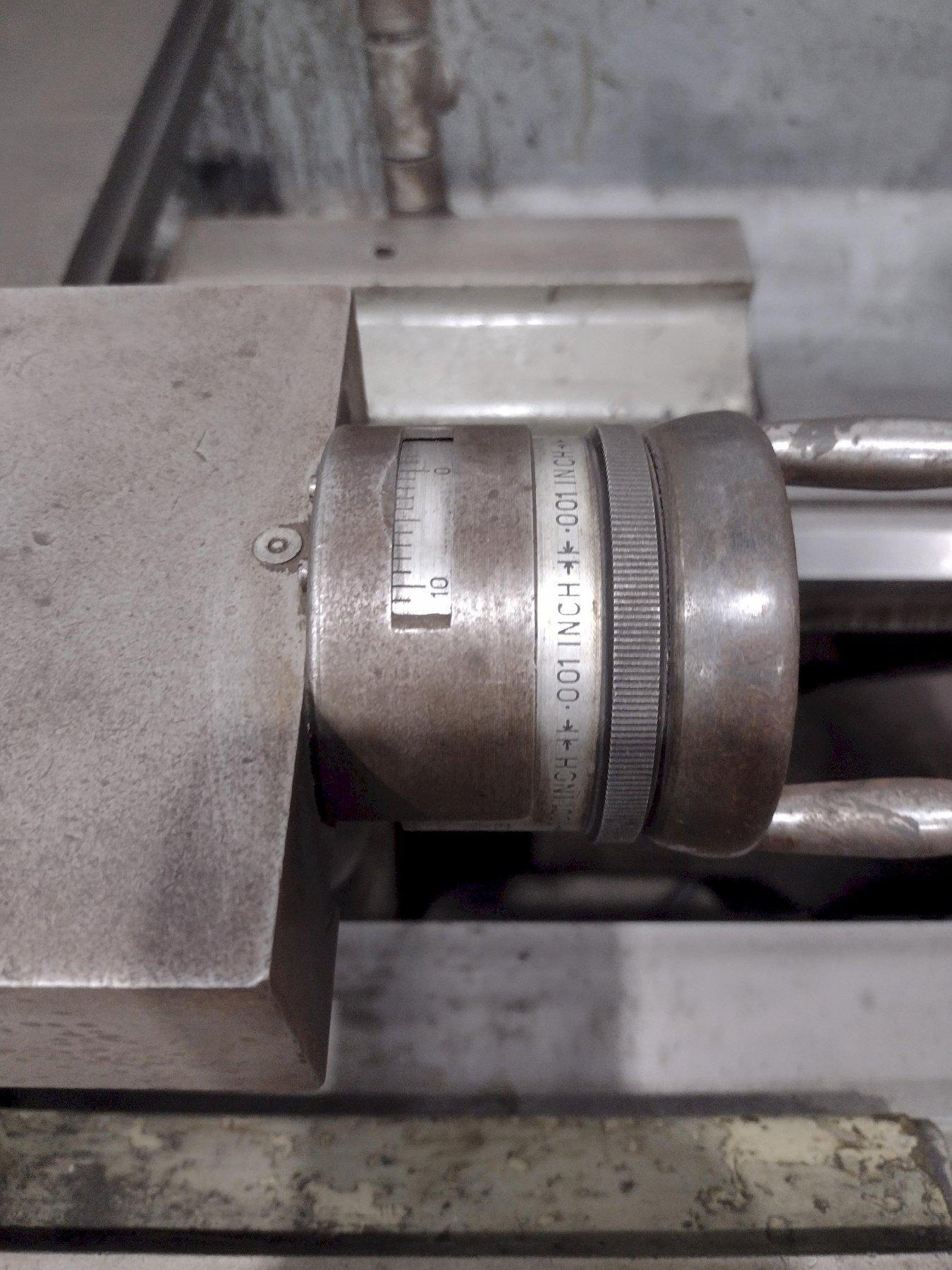

CROSS FEEDS ........................ .001 TO .016

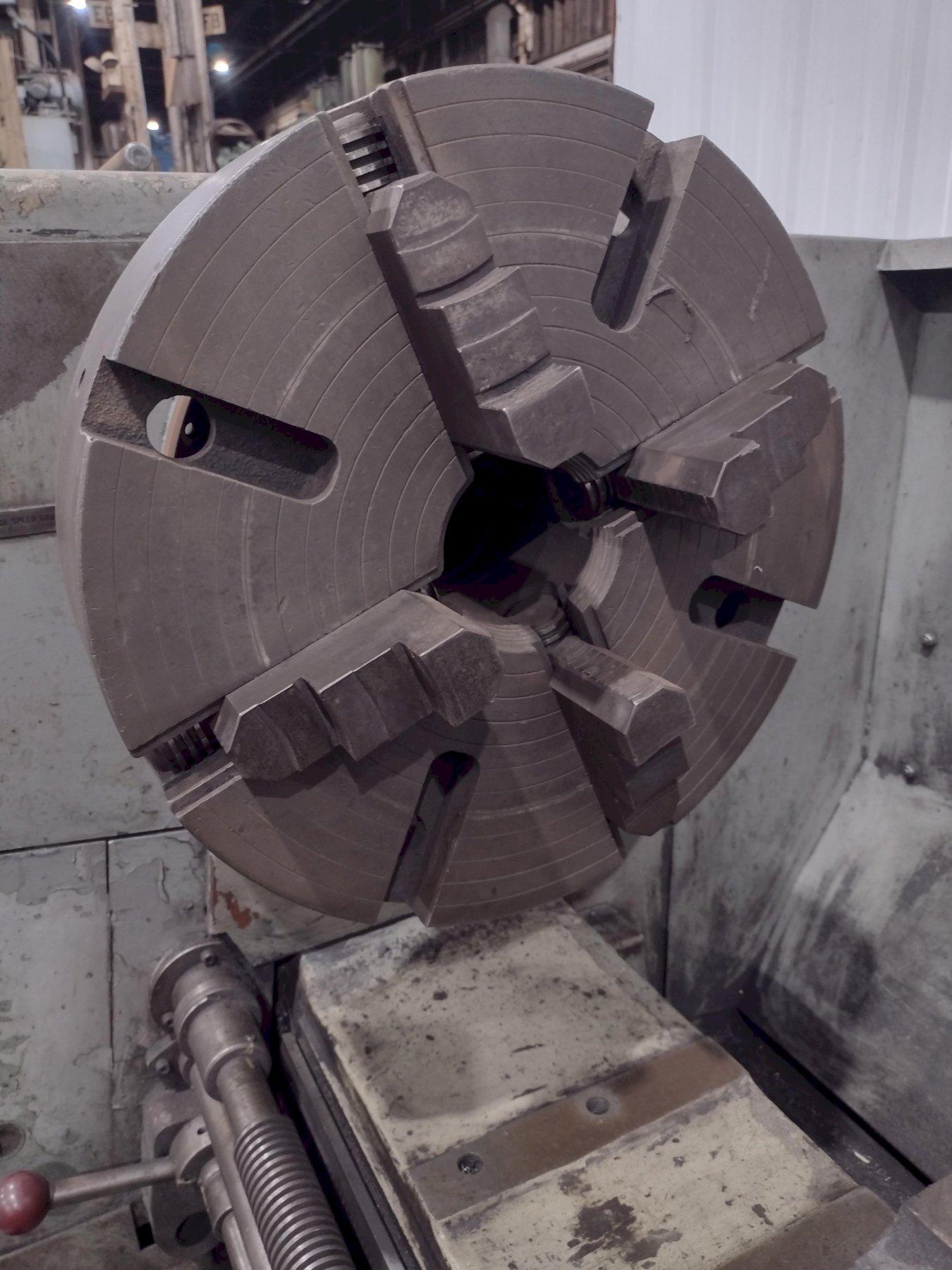

CHUCK .............................. 16" 4-Jaw Chuck

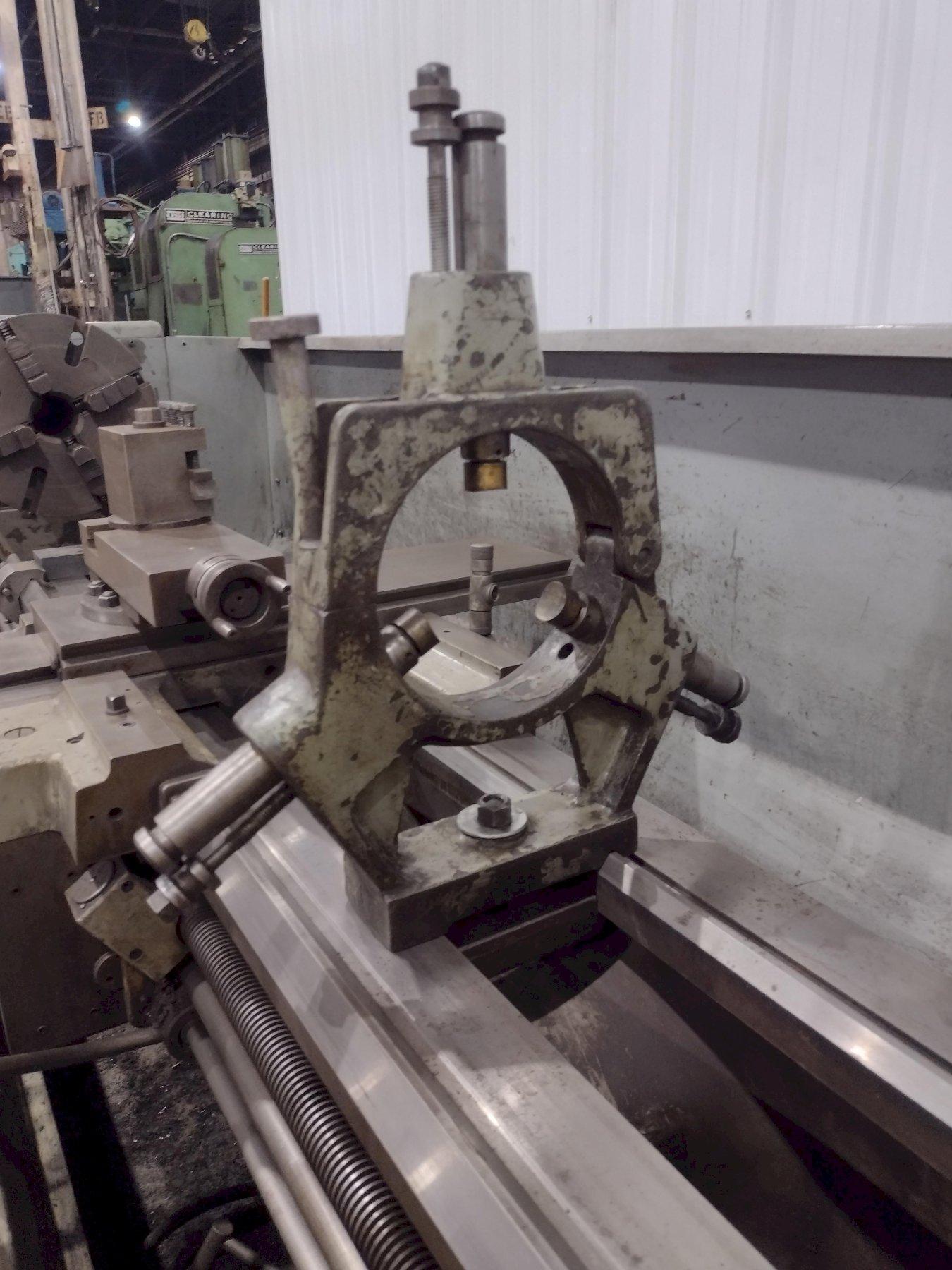

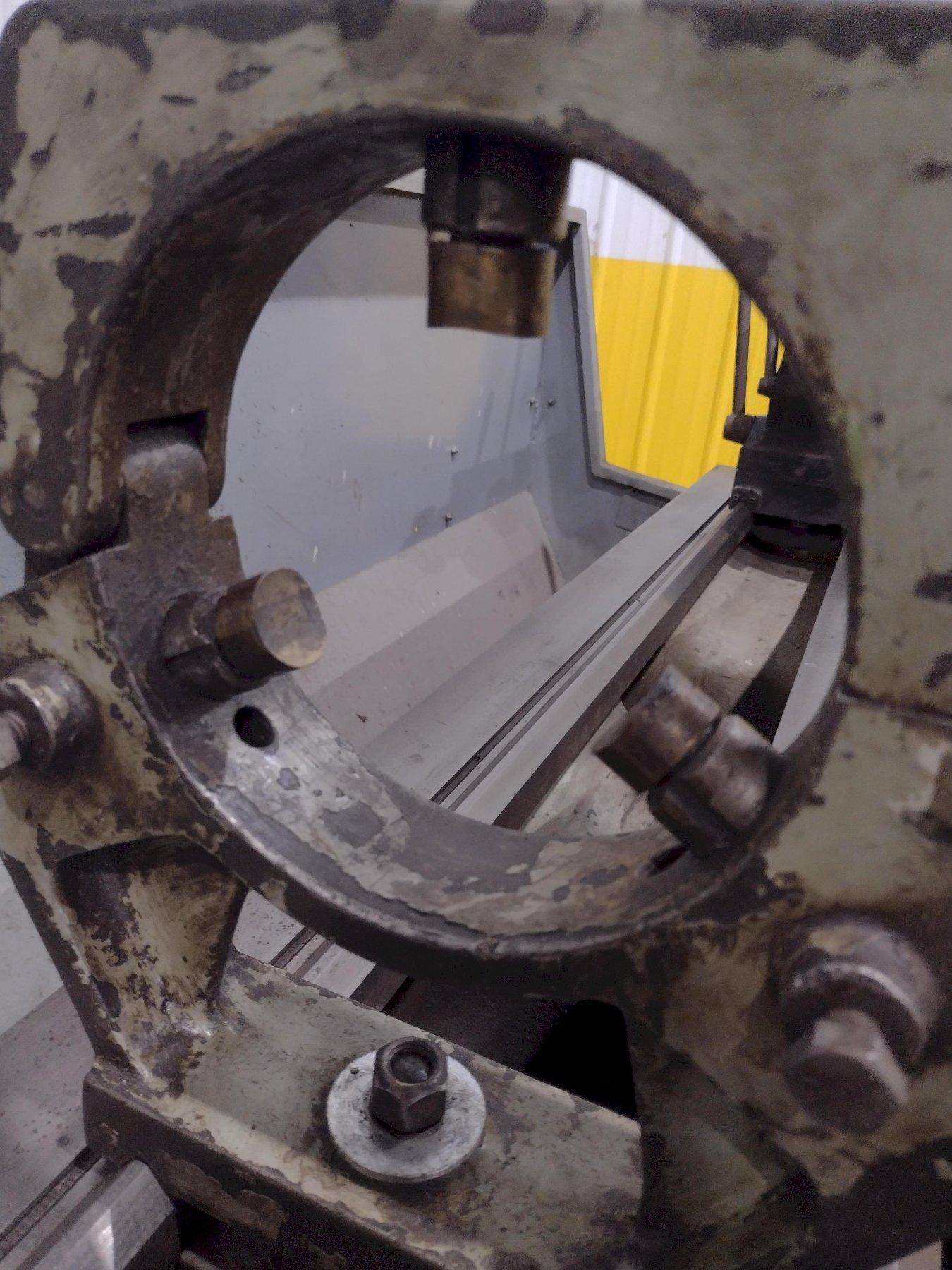

STEADY REST ........................ 7"

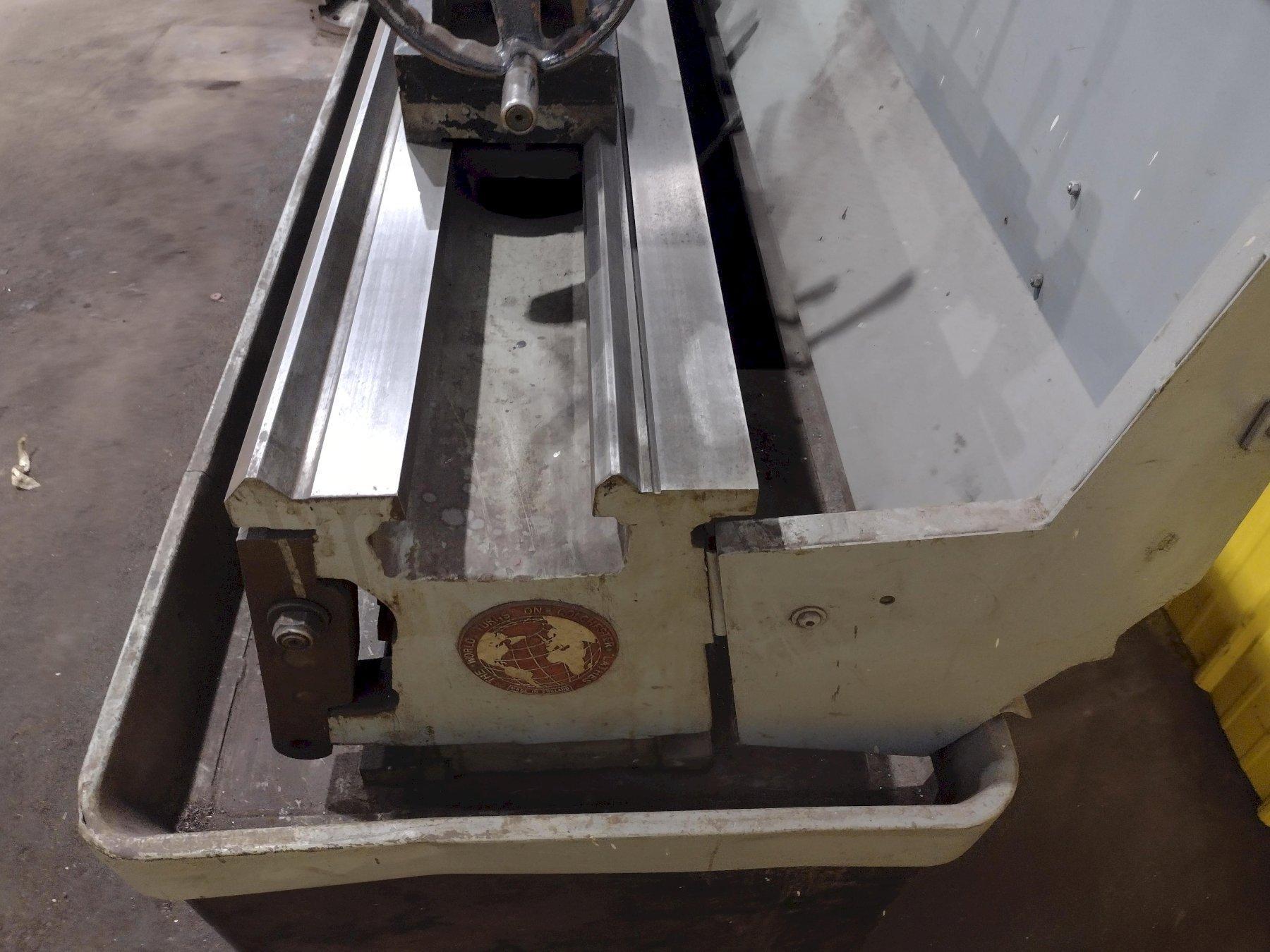

HARDEN WAYS ........................ YES
FORWARD & REVERSING ................ YES

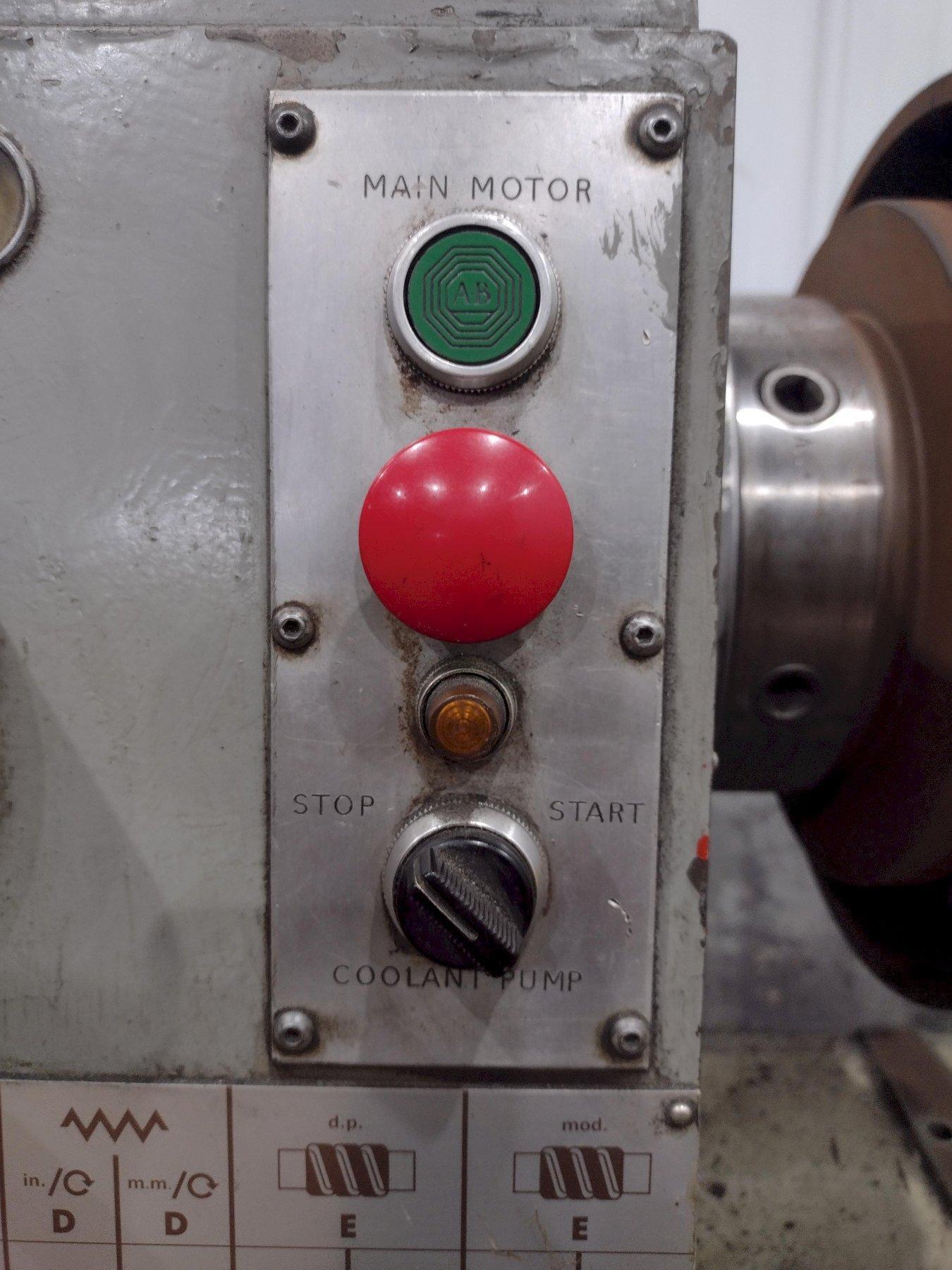

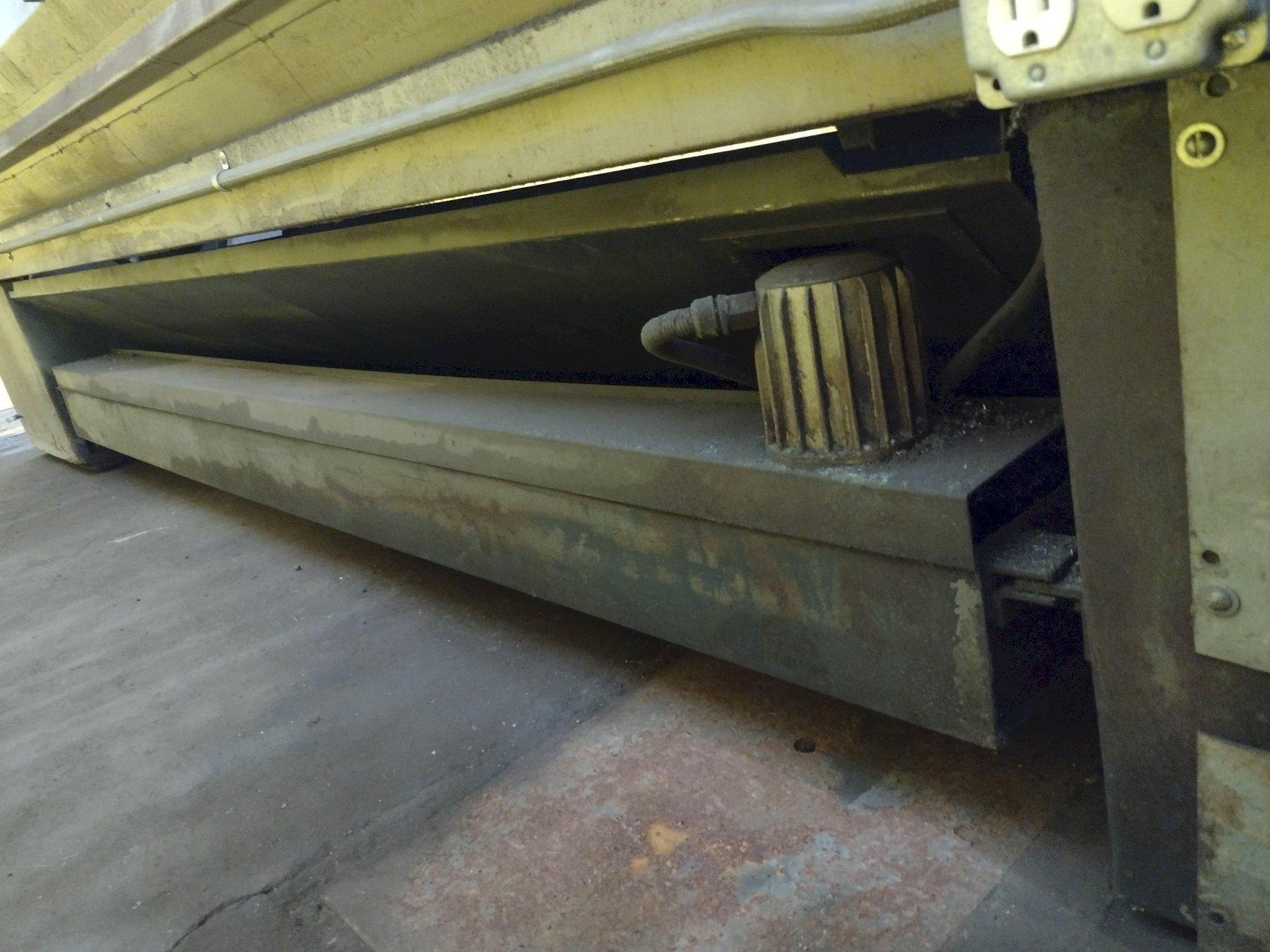

COOLANT ............................ YES

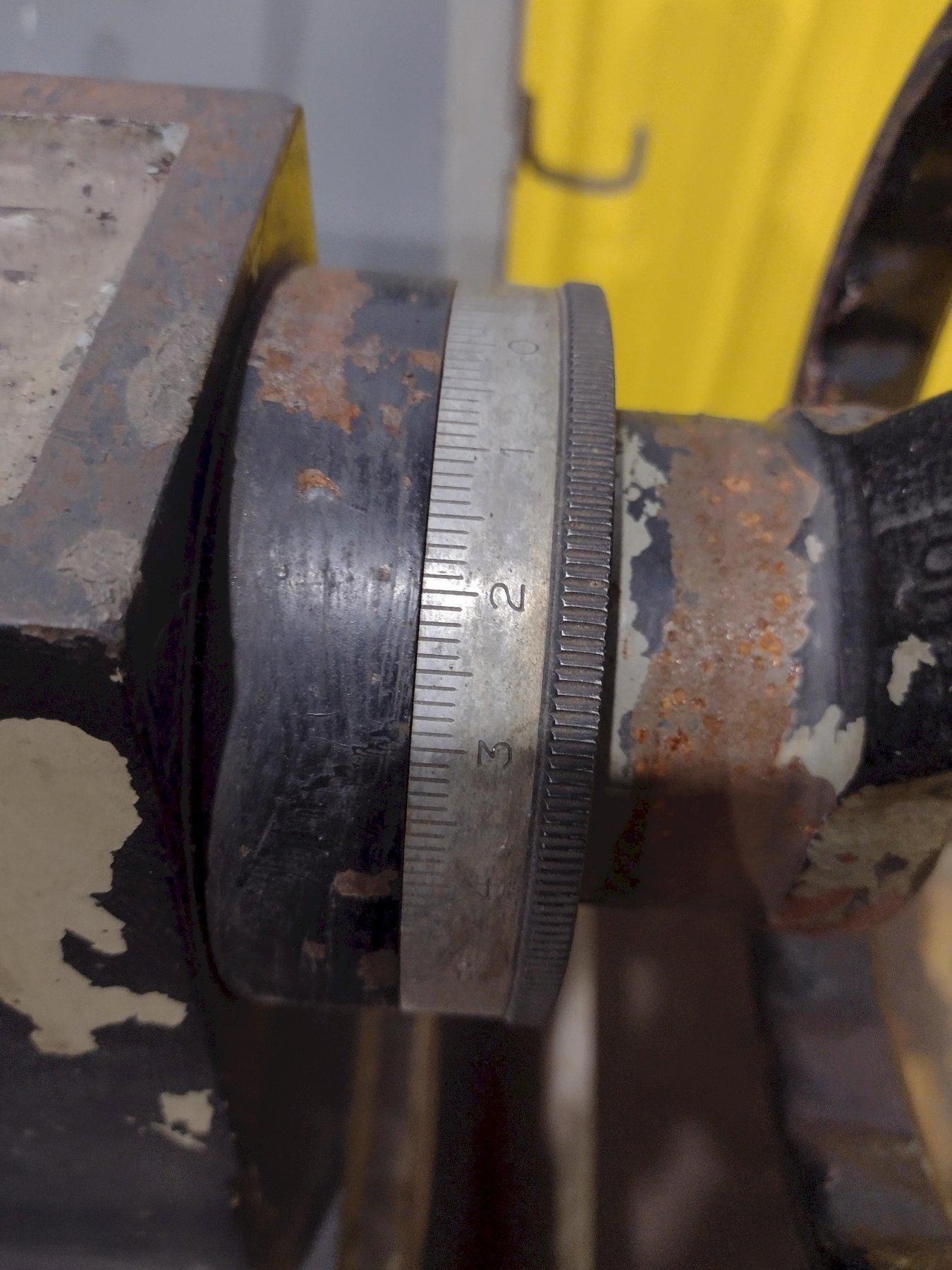

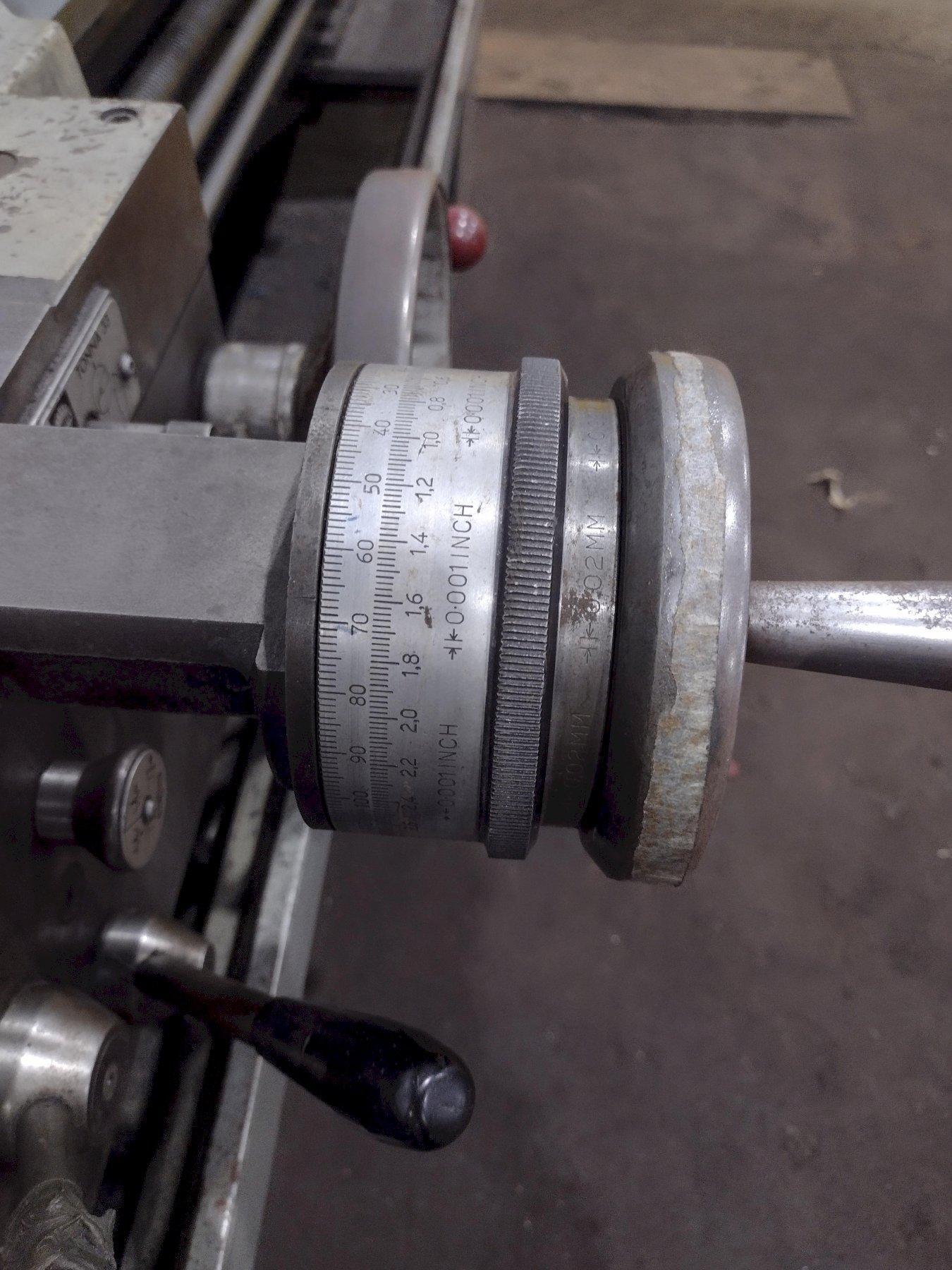

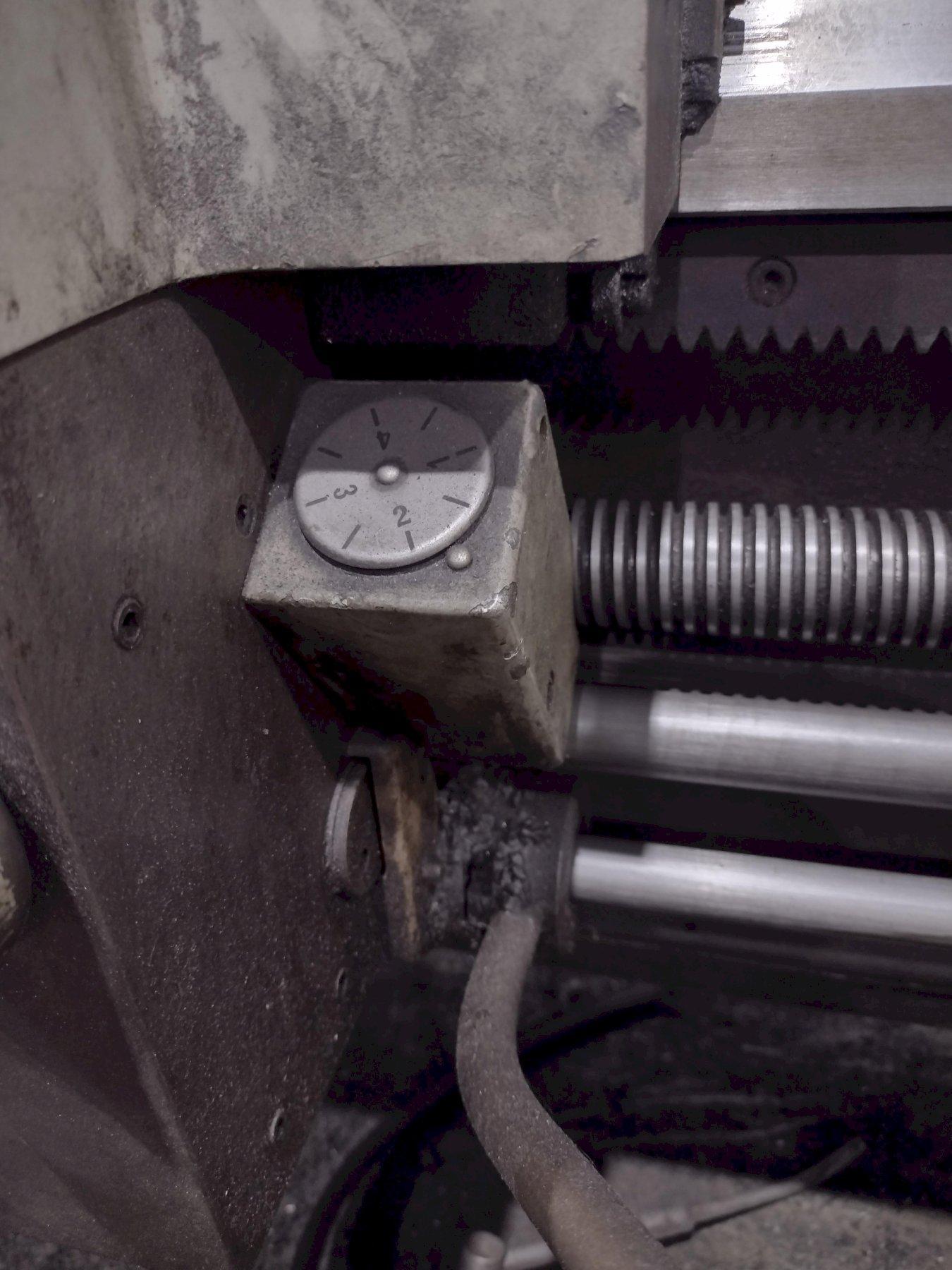

TRAVEL DIAL ........................ YES

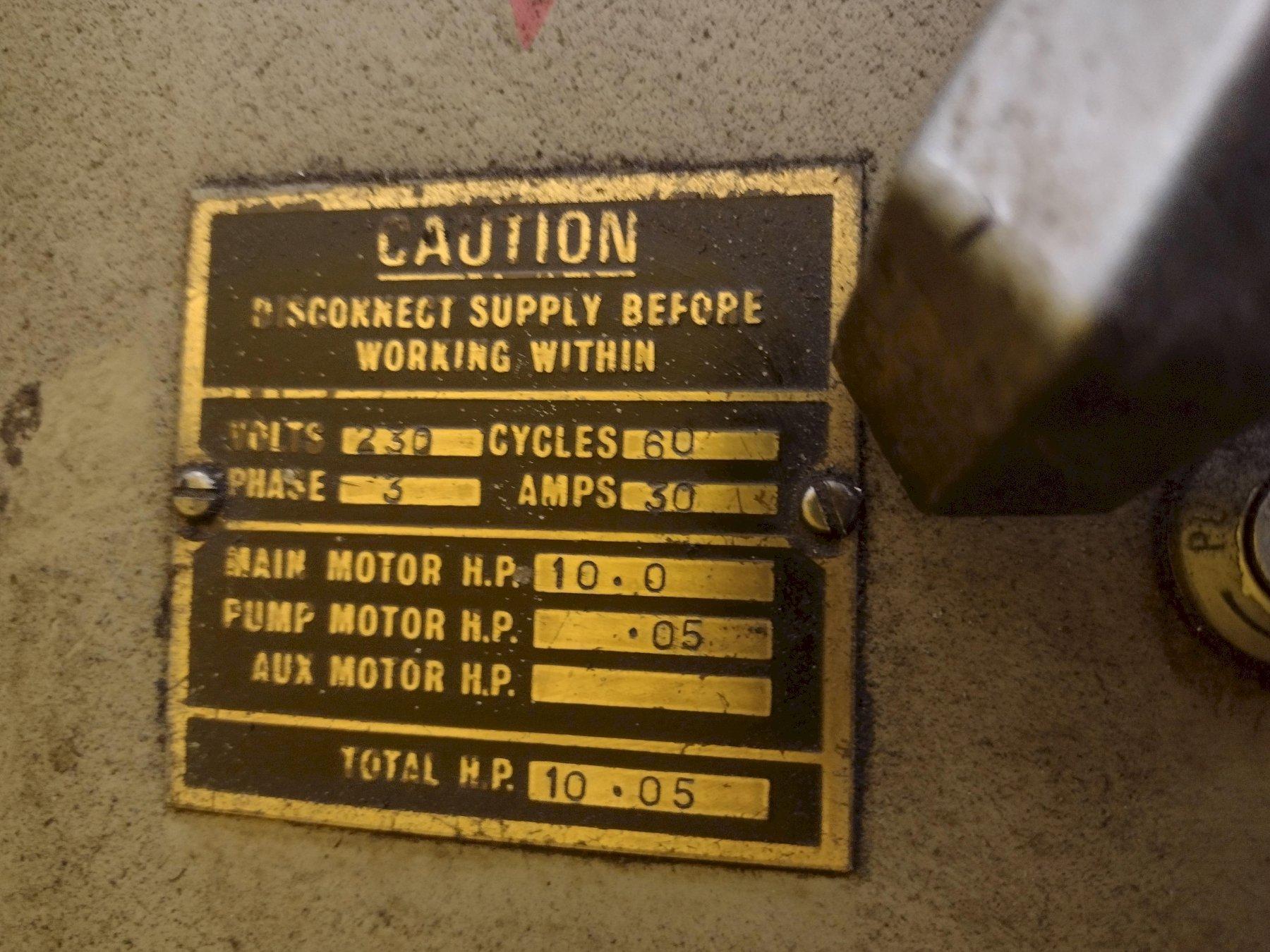

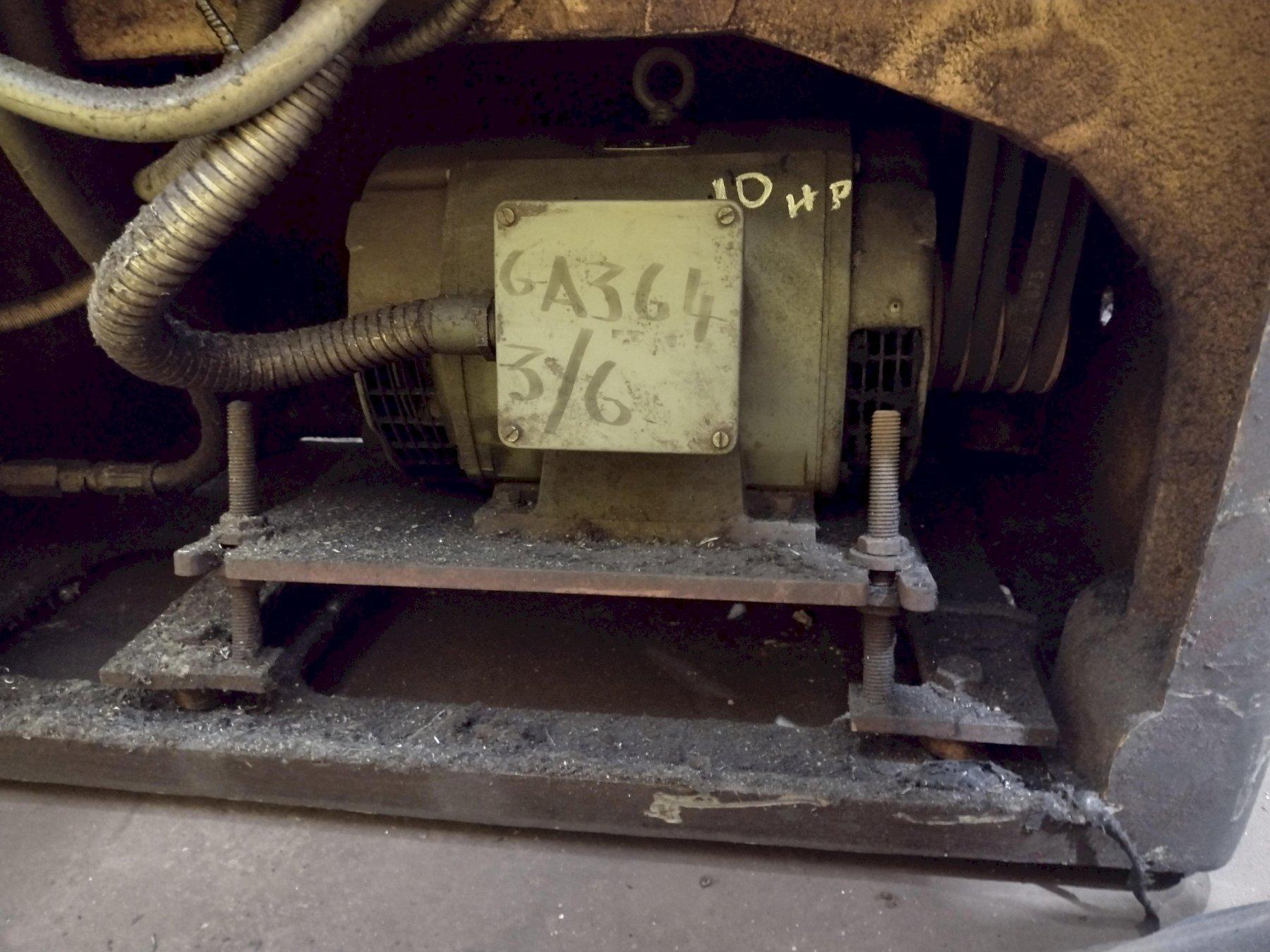

MOTOR .............................. 10 HORSEPOWER

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
