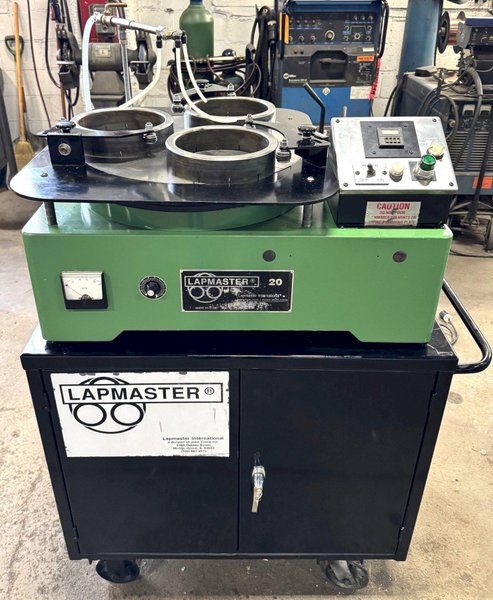

20" Lapmaster Lapping Machine No. 20G, (3) Rings, Open Face, Bench Model

Name: 20" Lapmaster Lapping Machine No. 20G, (3) Rings, Open Face, Bench Model
Brand: LAPMASTER
SKU: 32148
Availability: InStock

Brand

LAPMASTER

Ohio

CNC Control	no
Weight	435 pounds

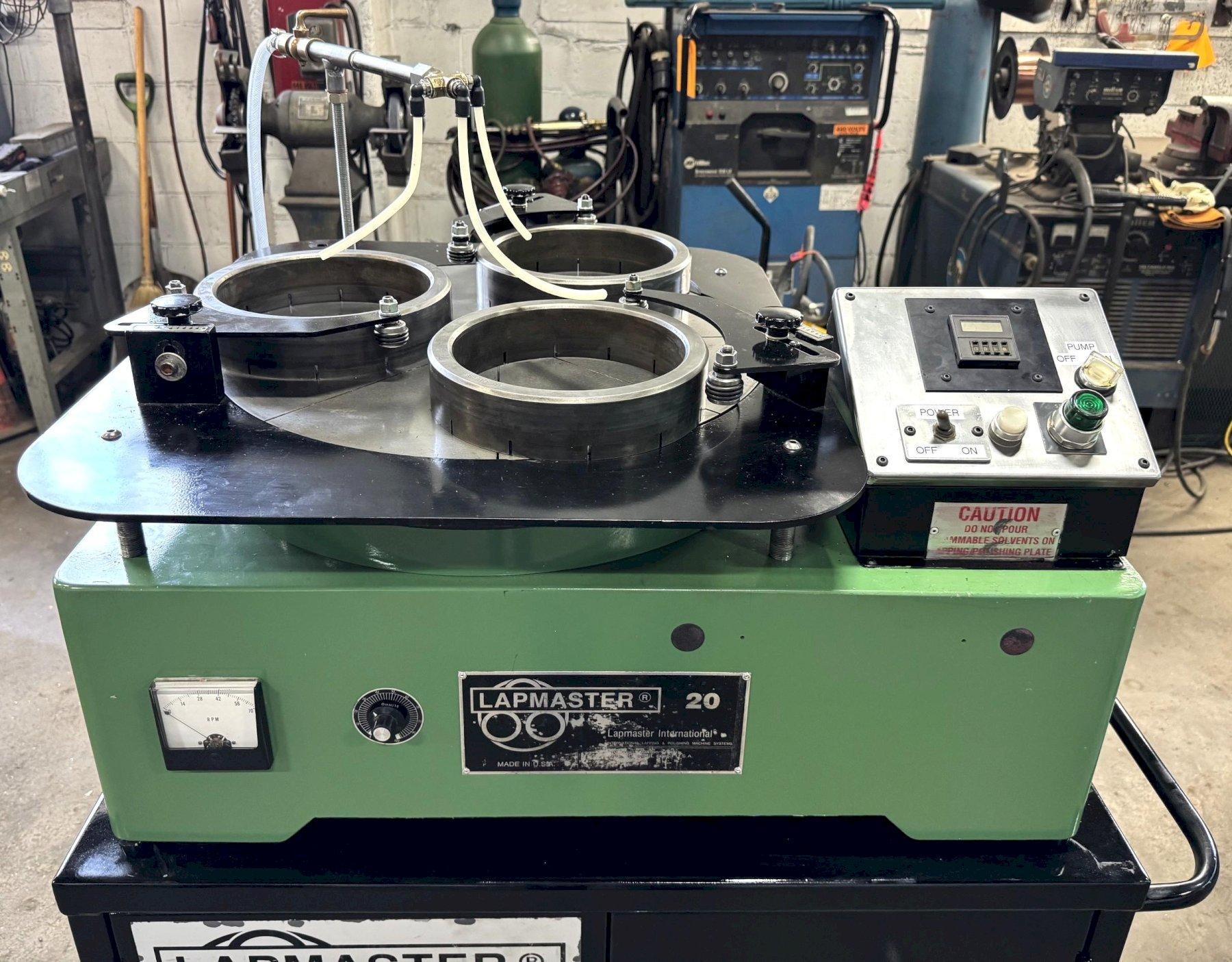

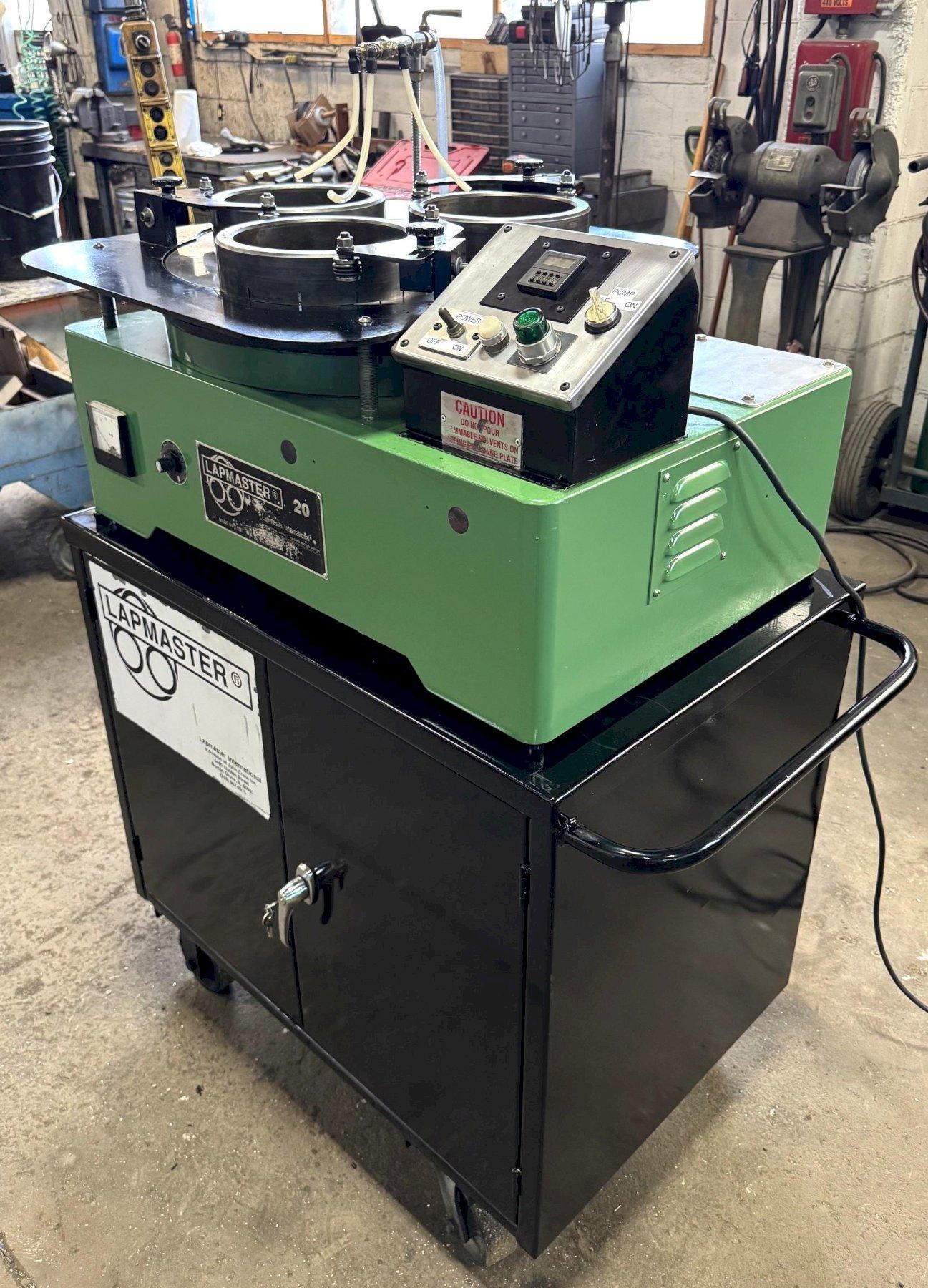

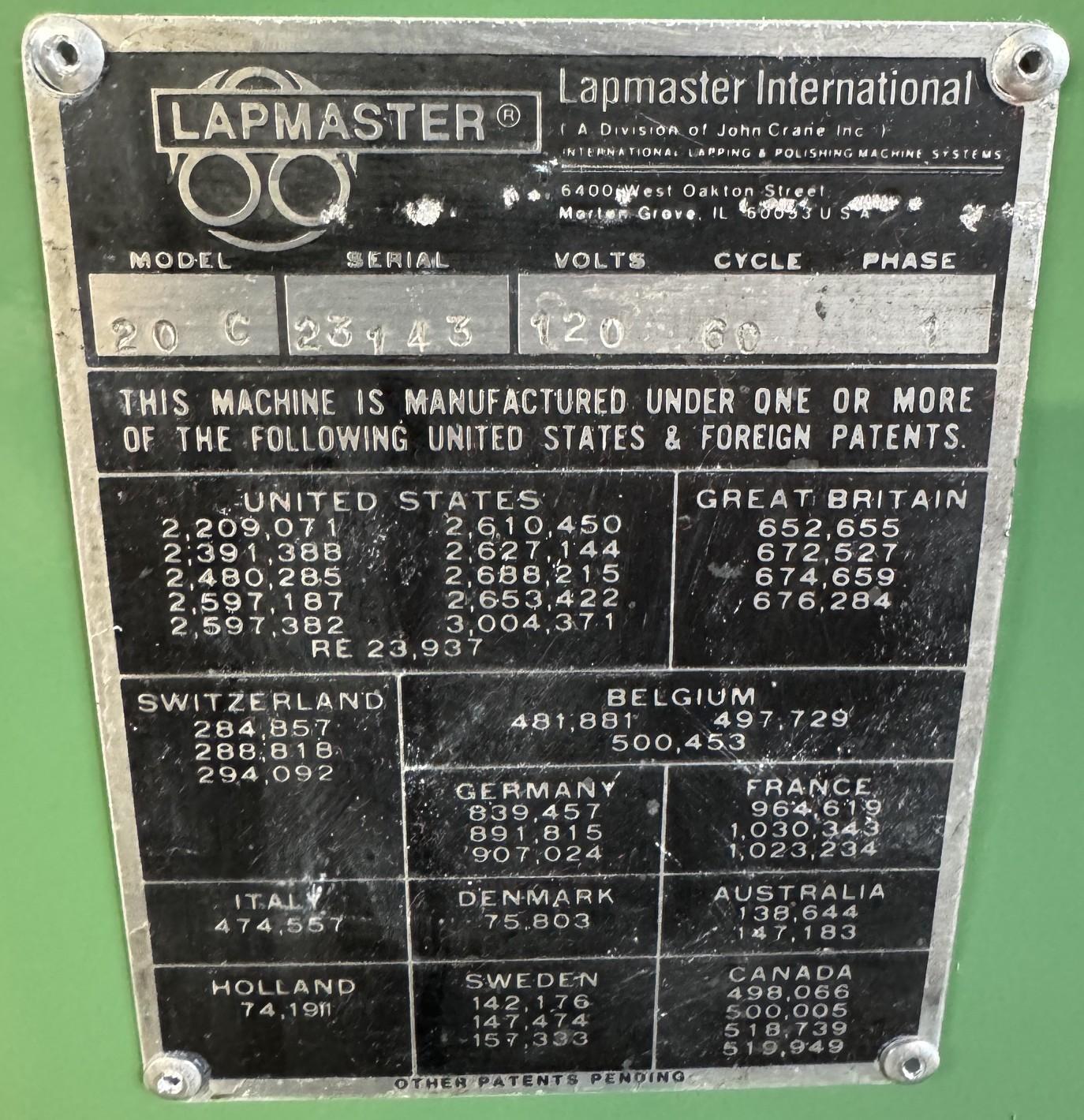

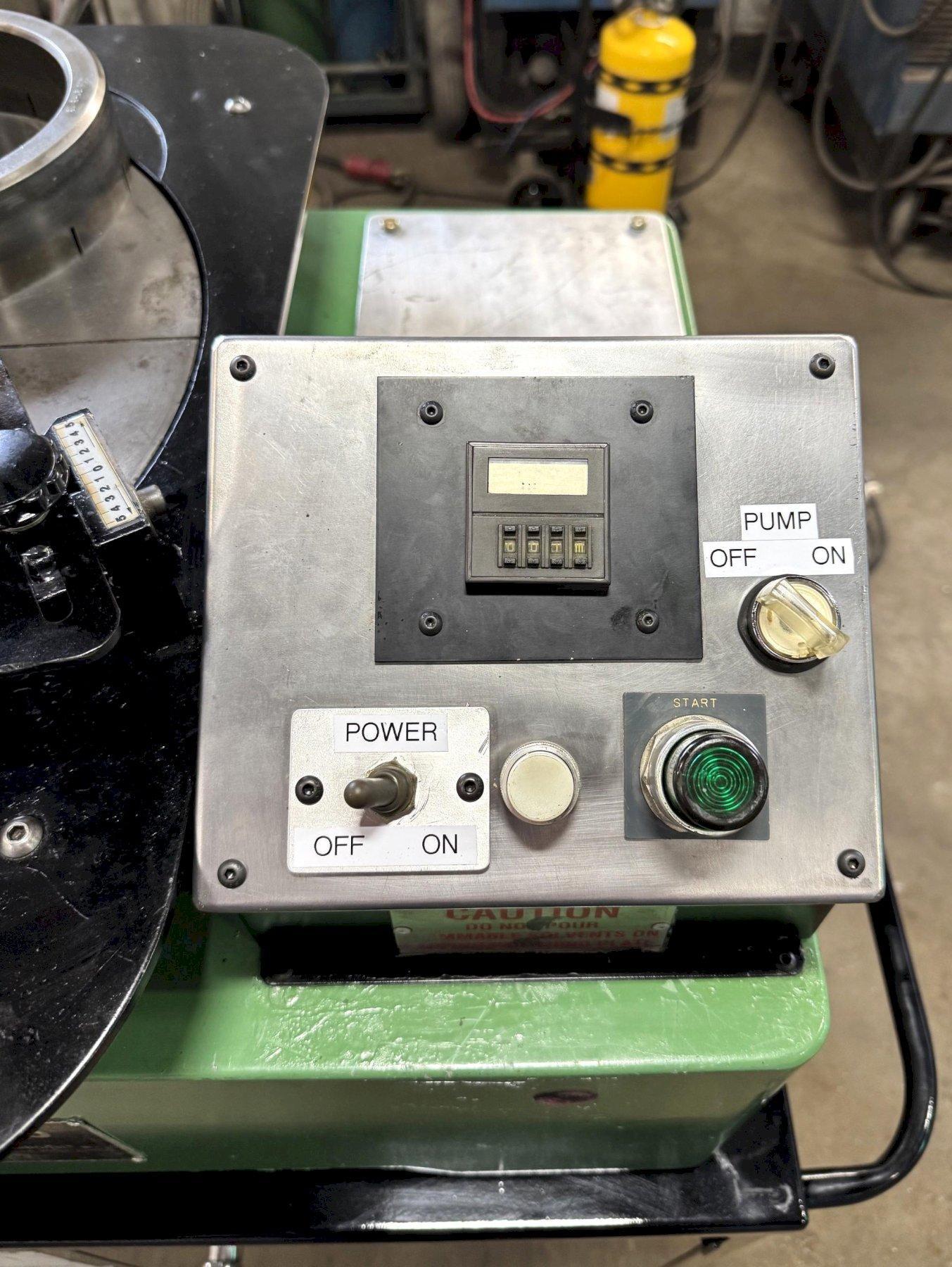

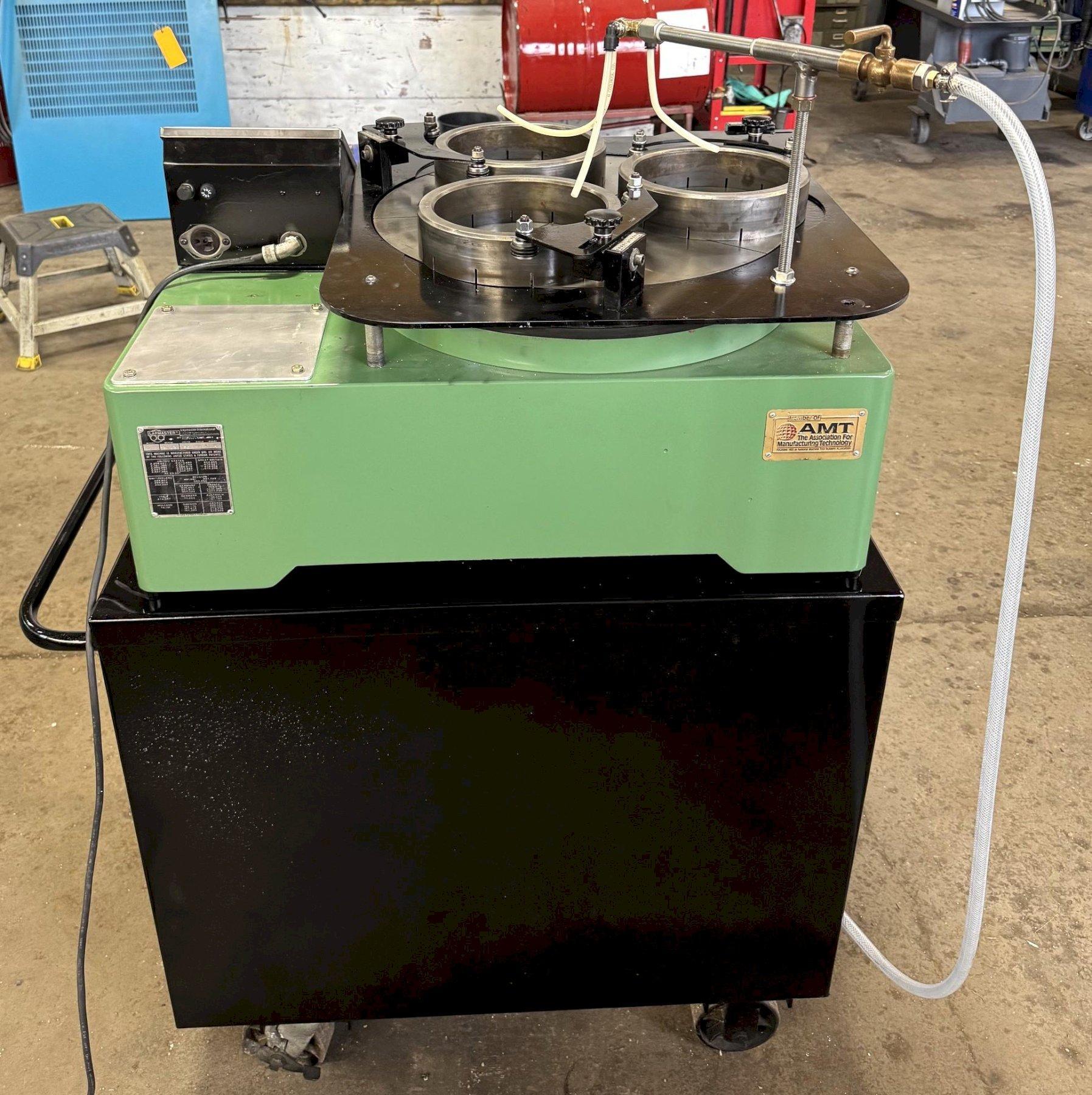

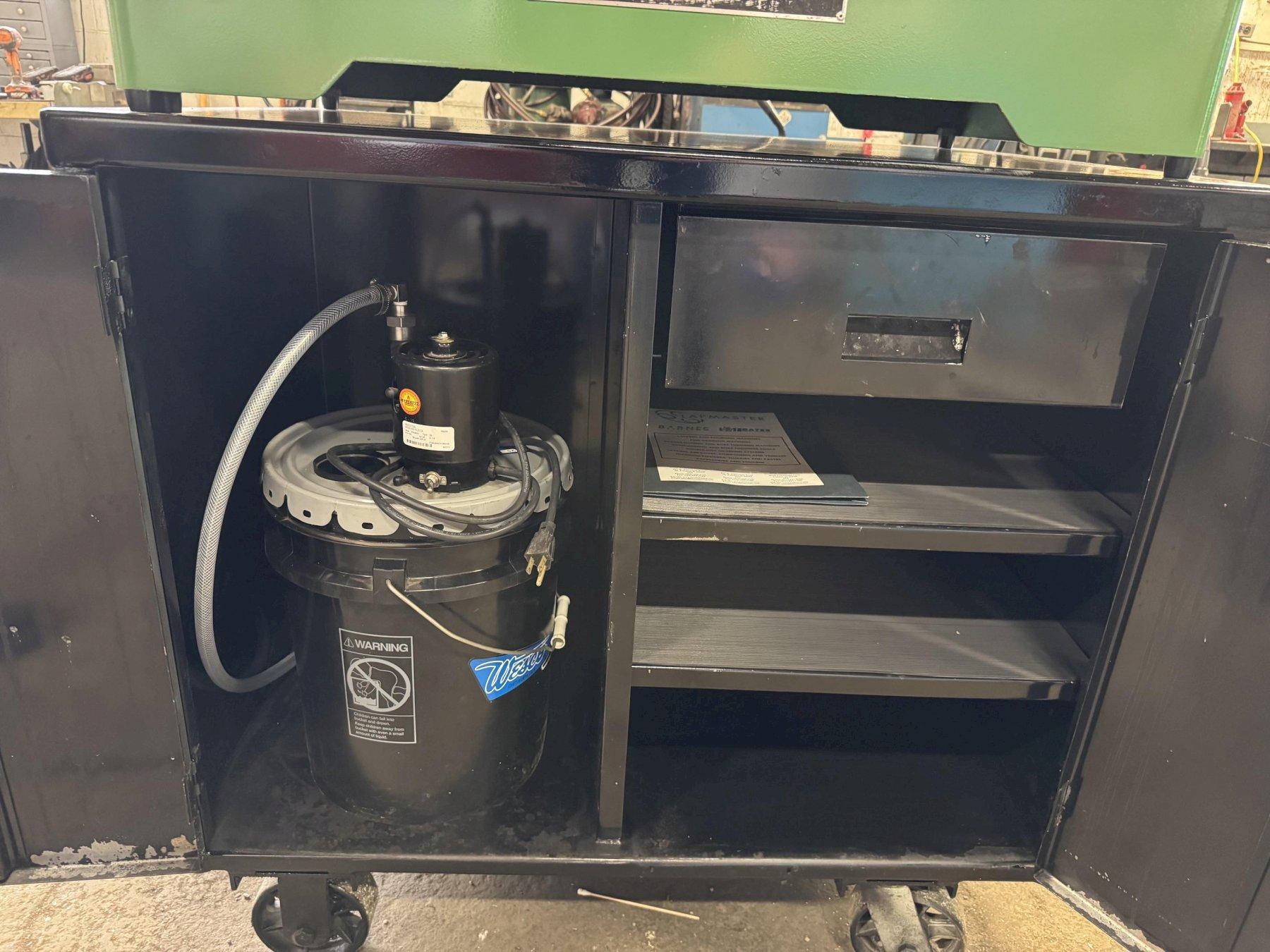

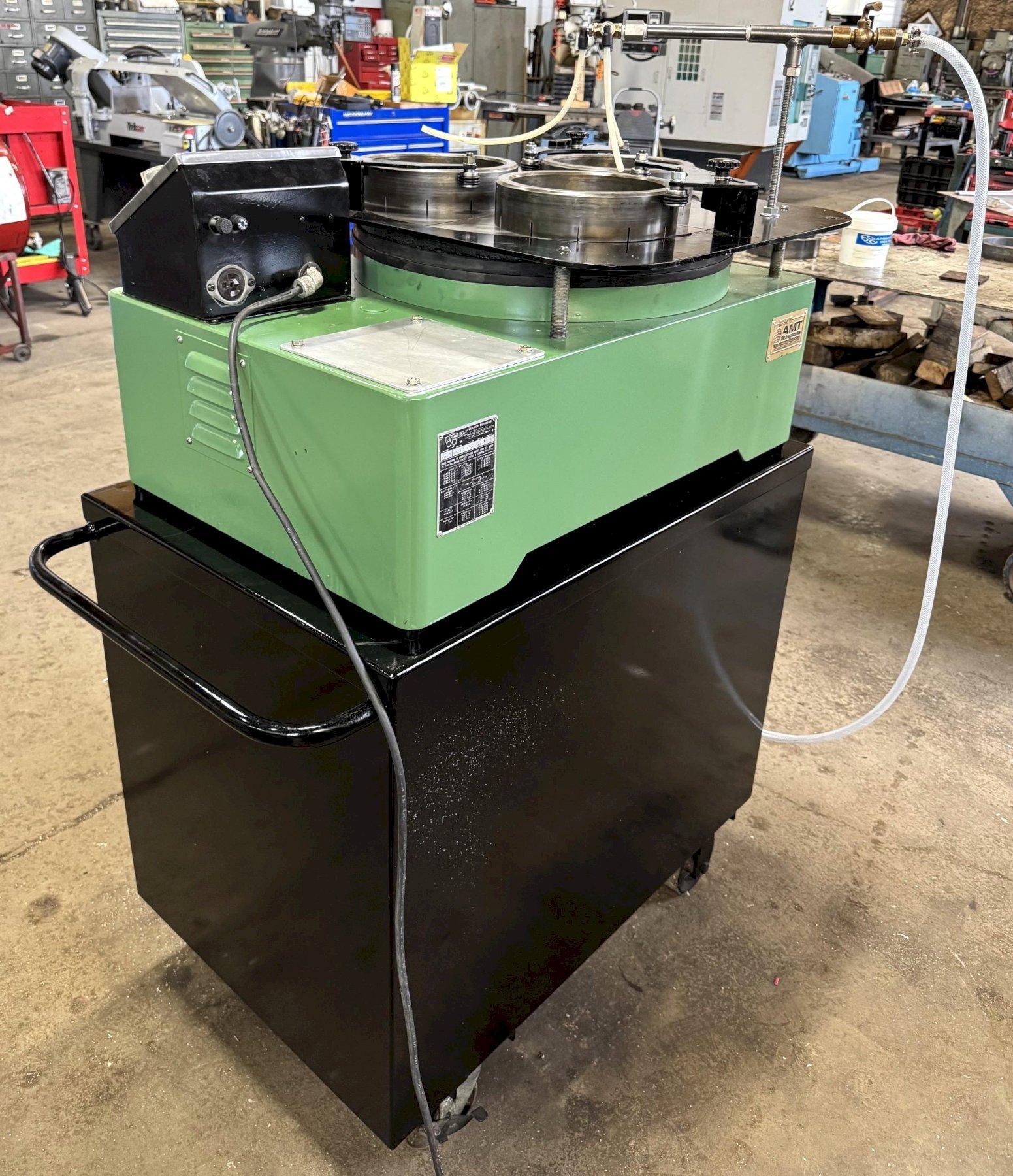

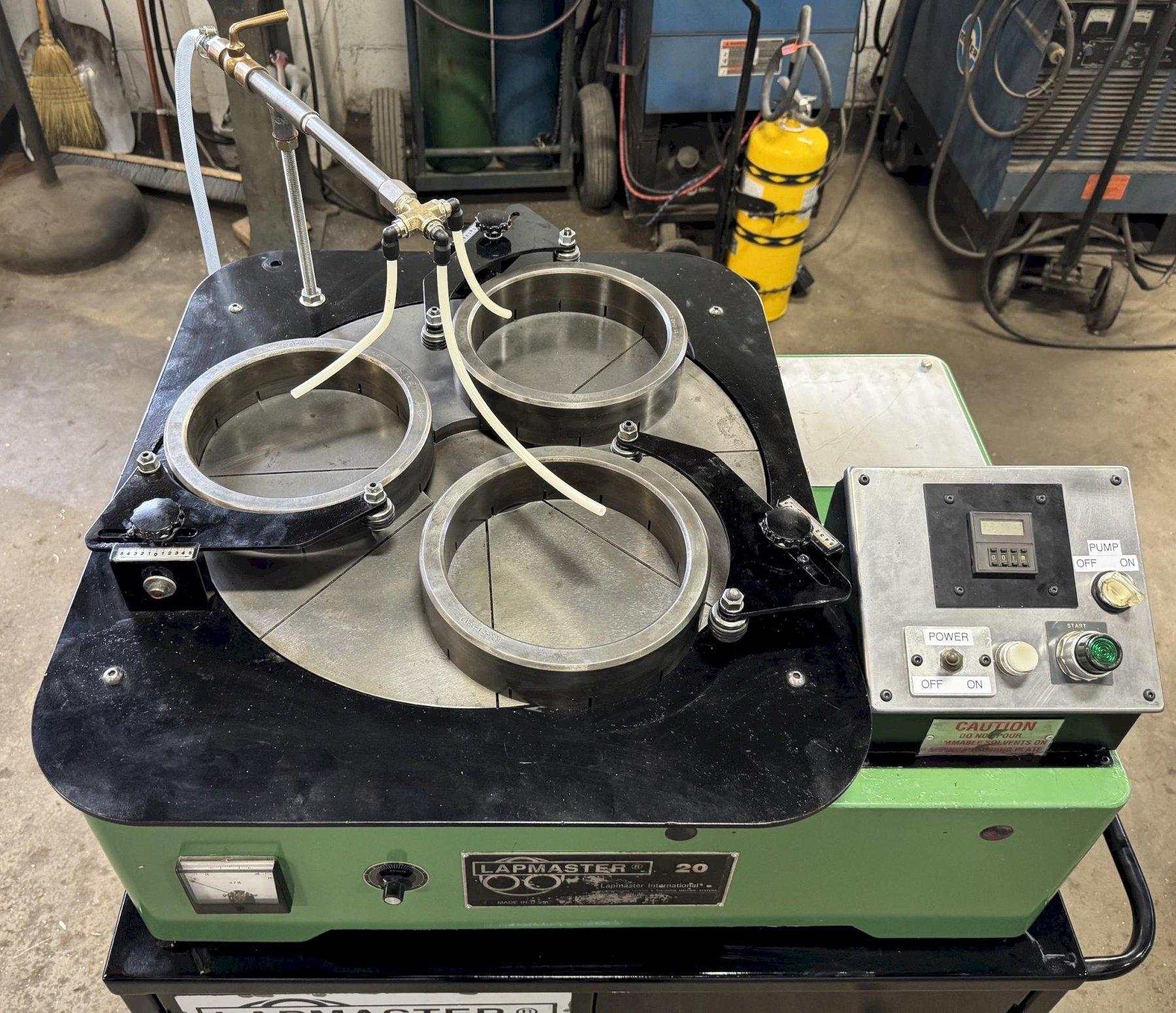

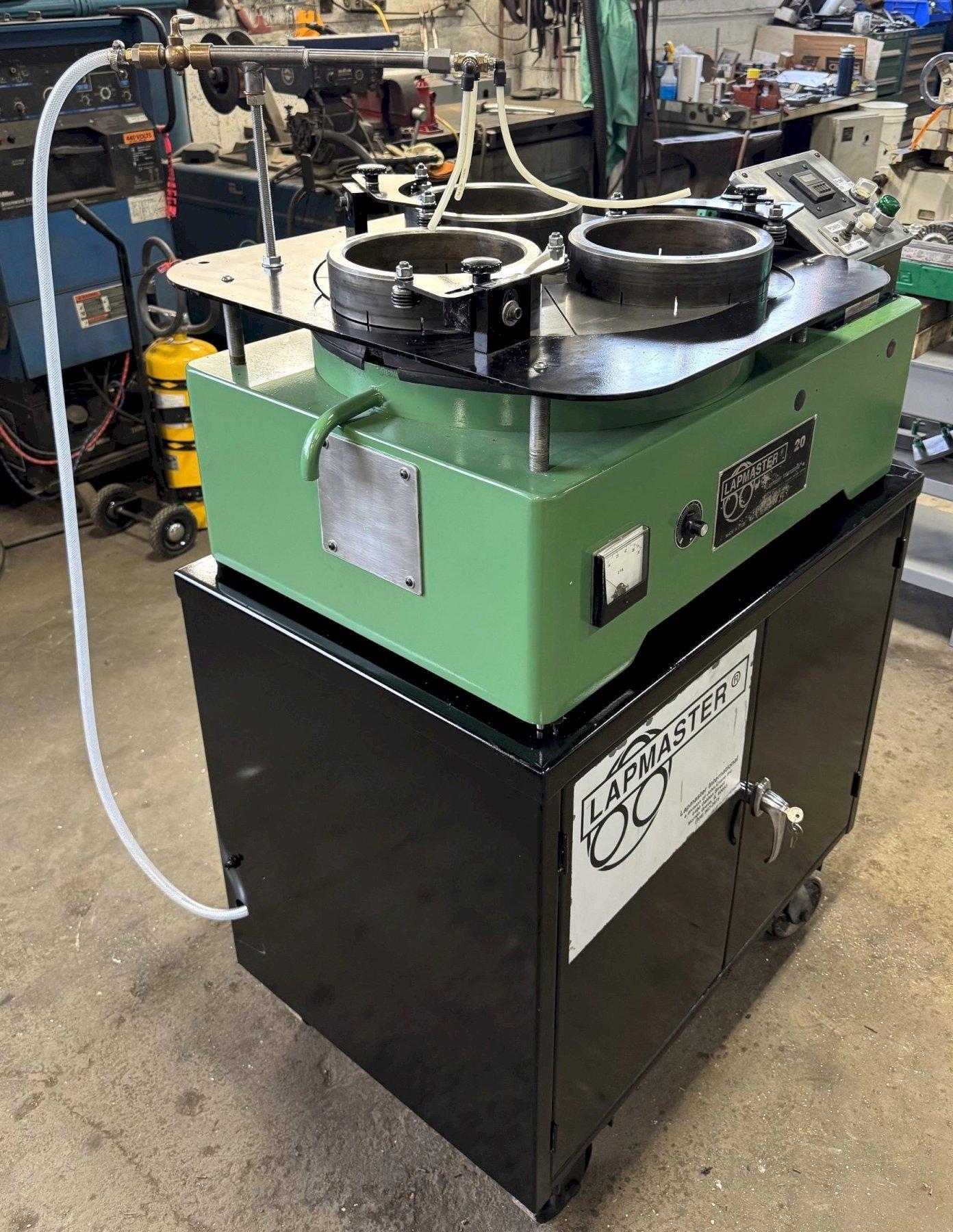

LAPMASTER HEAVY DUTY BENCH MODEL LAPPING MACHINE MODEL: 20 SERIAL NUMBER: 23143 GENERAL SPECIFICATIONS Three Ring Style Open Face Machine For Production Parts Up Yo: 7-3/8" Diameter Lapping Plate Dimensions: 20" O.D. x 5" I.D. Conditioning Ring Dimensions: 7-1/2" I.D. x 9" O.D. Parts Capacity Per Full Load: 1/2" Diameter - 528 Parts 1" Diameter - 120 Parts 2" Diameter - 27 Parts Lapping Plate Speed: 70 RPM EQUIPPED WITH 1 HP Main Drive Motor and Controls, 120/60/1 20" Diameter Serrated Cast Iron Lapping Plate (3) Cast Iron Conditioning Rings (3) Adjustable Ring Roller Guides (Yokes) Automatic Cycle Timer Control Wrap Around Work Table Slurry Feed System w/New Pump, Tank and New Distributor Heavy Duty Steel Weldment Base Lapmaster Rolling Cart Approximate Overall Dimensions: Approximate Weight: 500 Lbs. F.O.B. Cincinnati, Ohio ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
