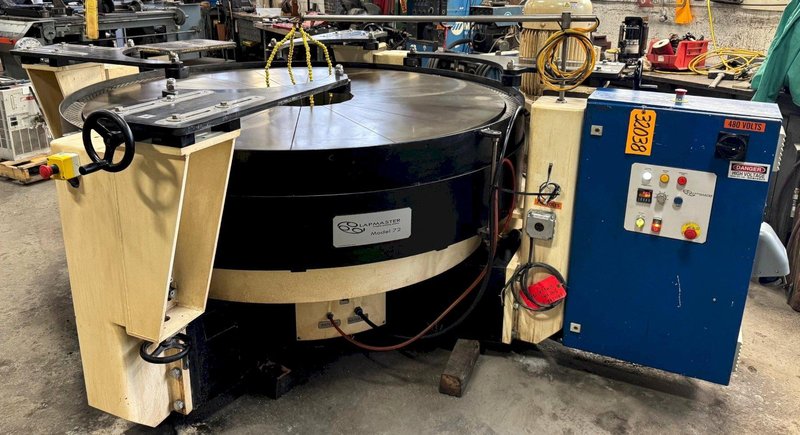

72" Lapmaster Lapping Machine, (4) Rings Open Face, V-Speed, 2011

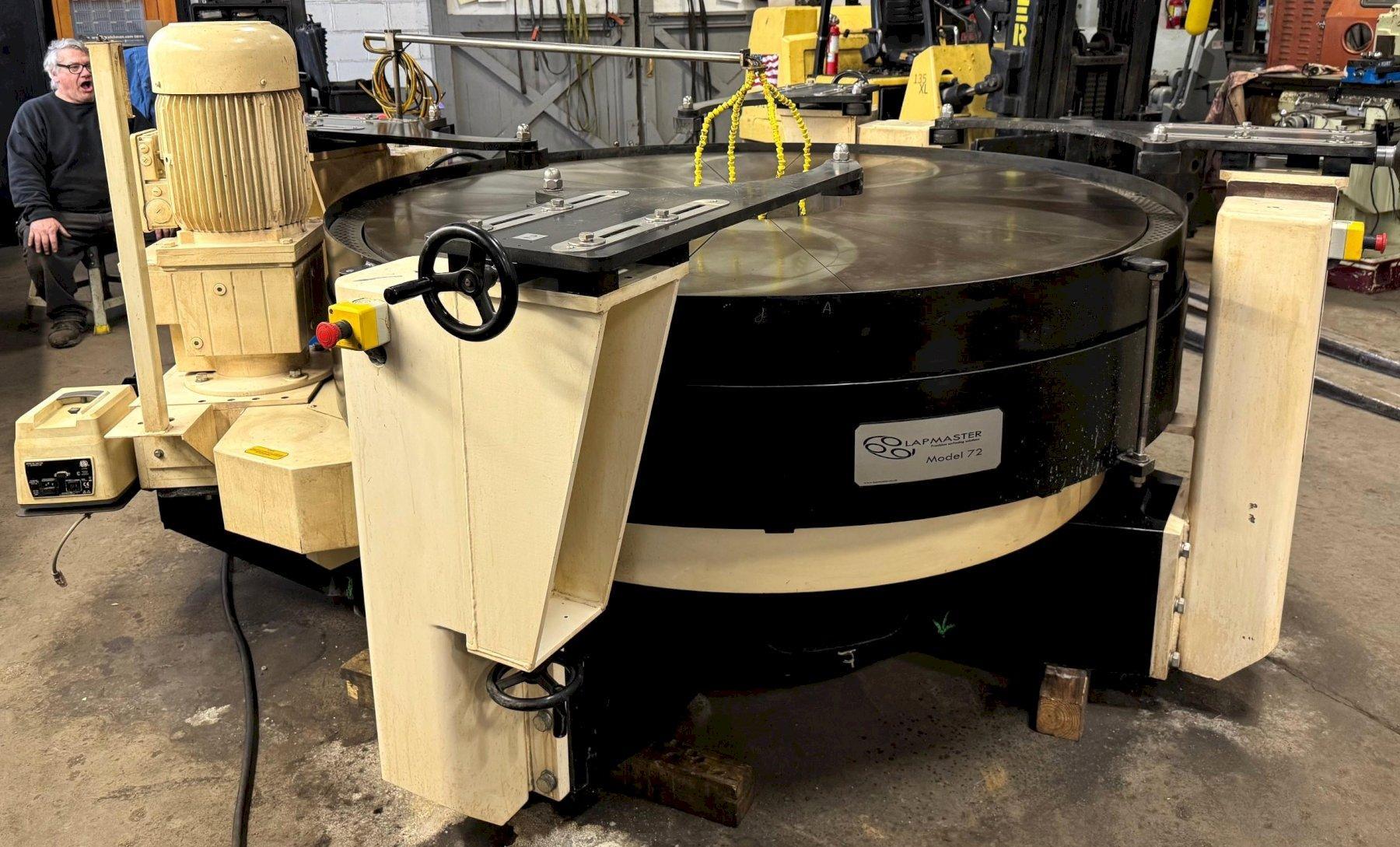

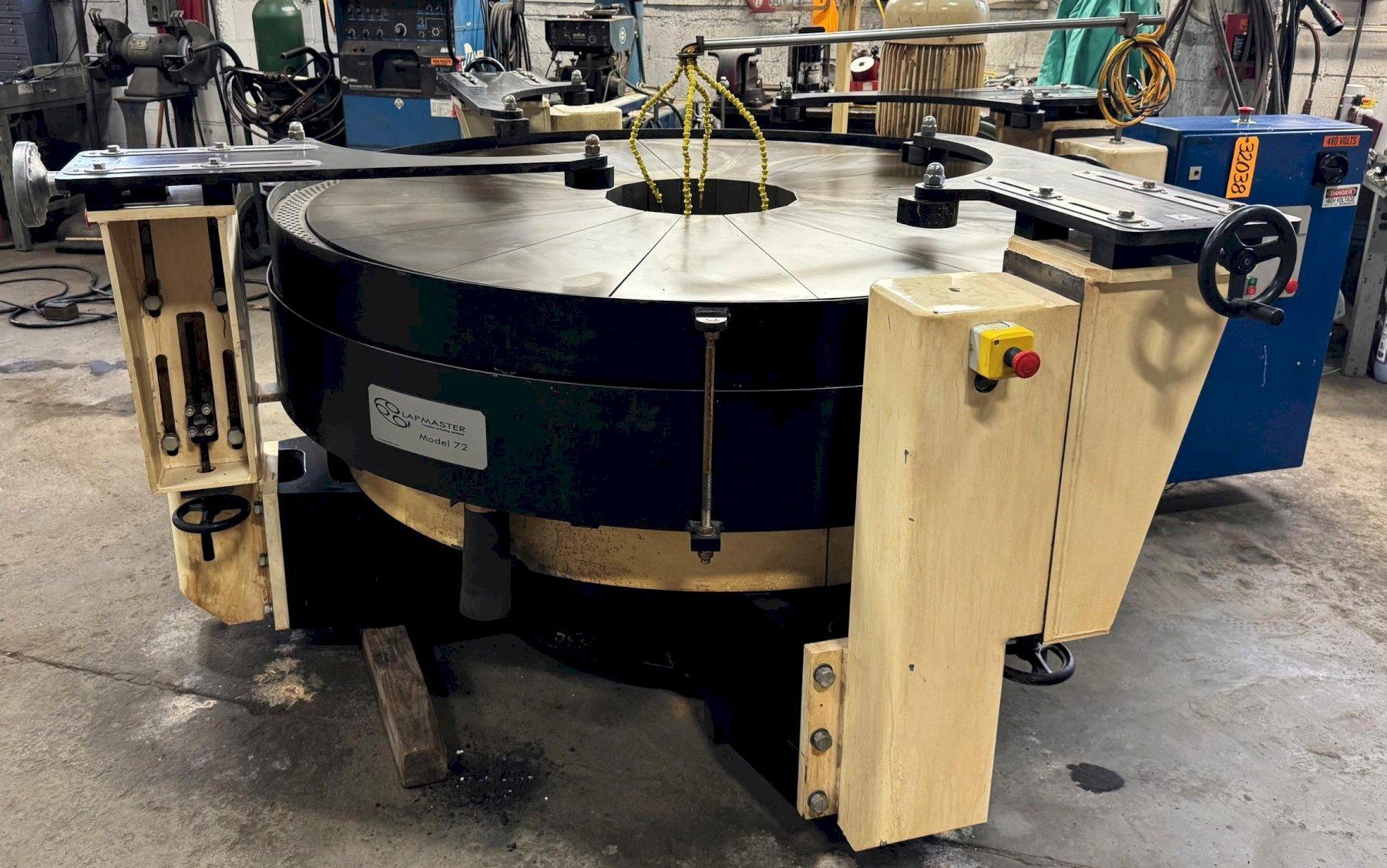

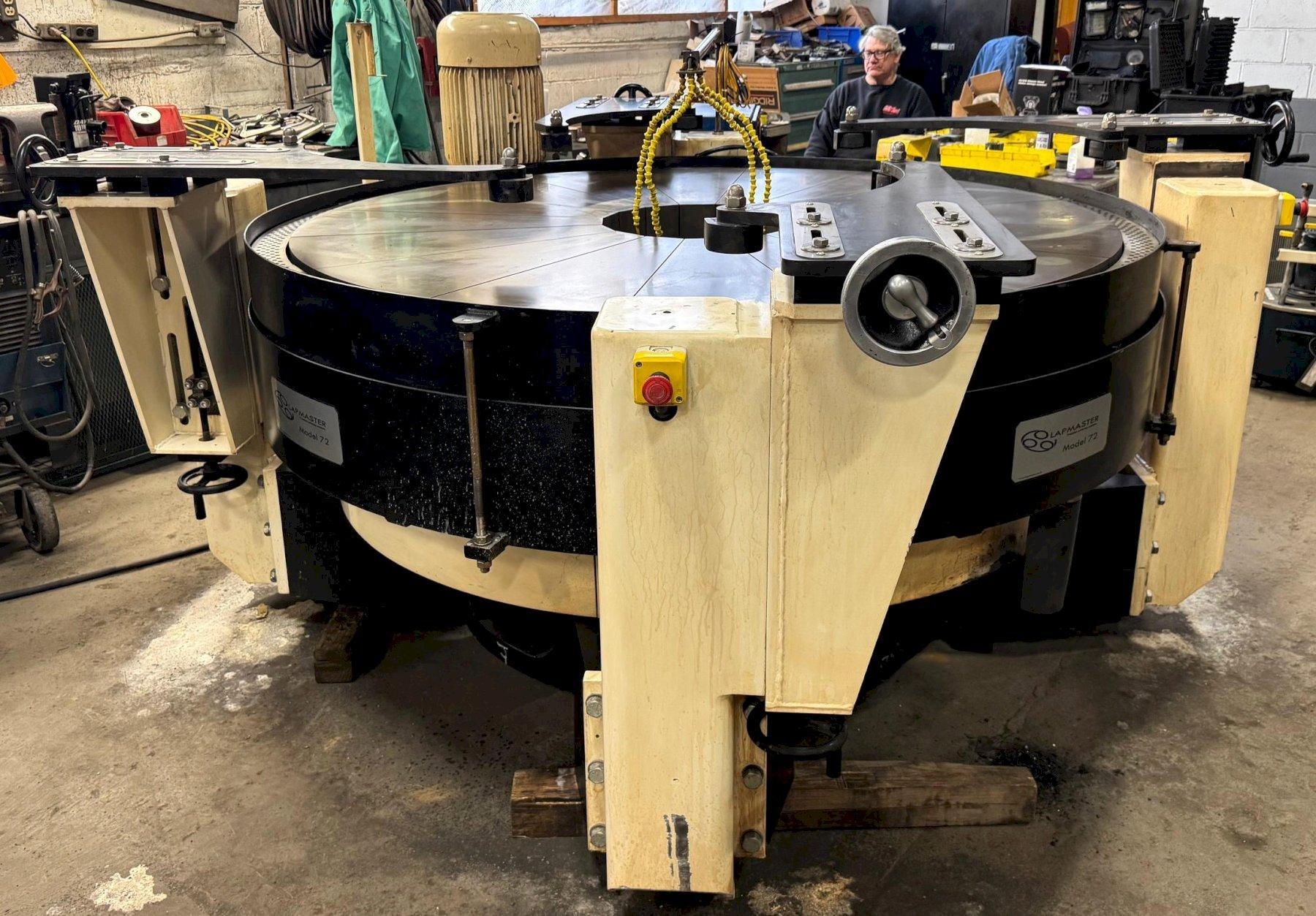

LAPMASTER PRECISION SINGLE LAPPING MACHINE

MODEL: 72
SERIAL NUMBER : 7200024   Year: 2011

GENERAL SPECIFICATIONS

Four Ring Style Open Face Machine
Heavy Duty Floor Standing Base
For Production Parts Up To: 27-3/16"
Lapping Plate Diameter: 72" O.D. x 18" I.D.
Conditioning Ring Size: 27-1/4" I.D. x 30" O.D.
Lap Plate Speed, Variable: 5 to 32 RPM

EQUIPPED WITH

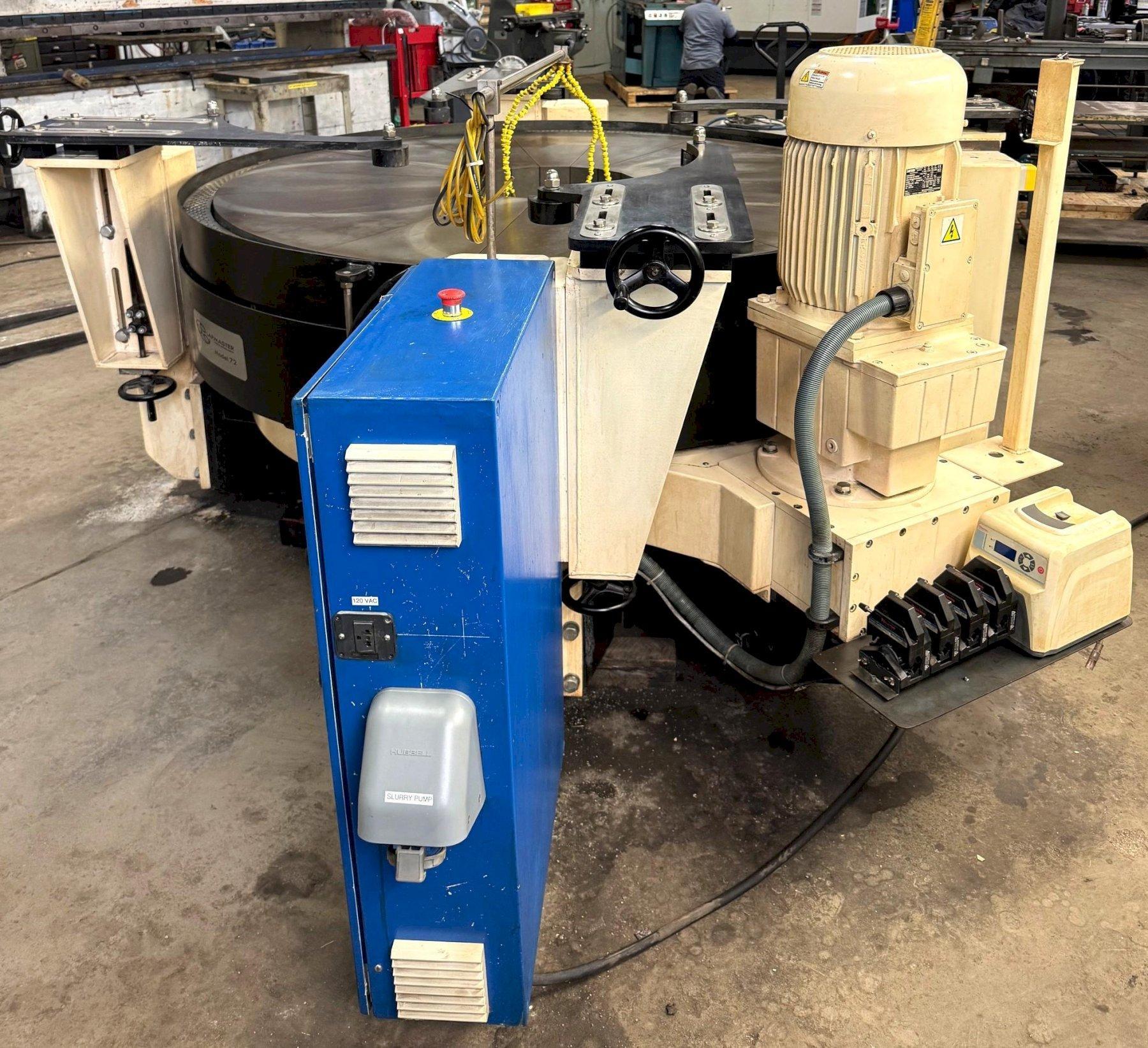

25 HP Main Drive Motor

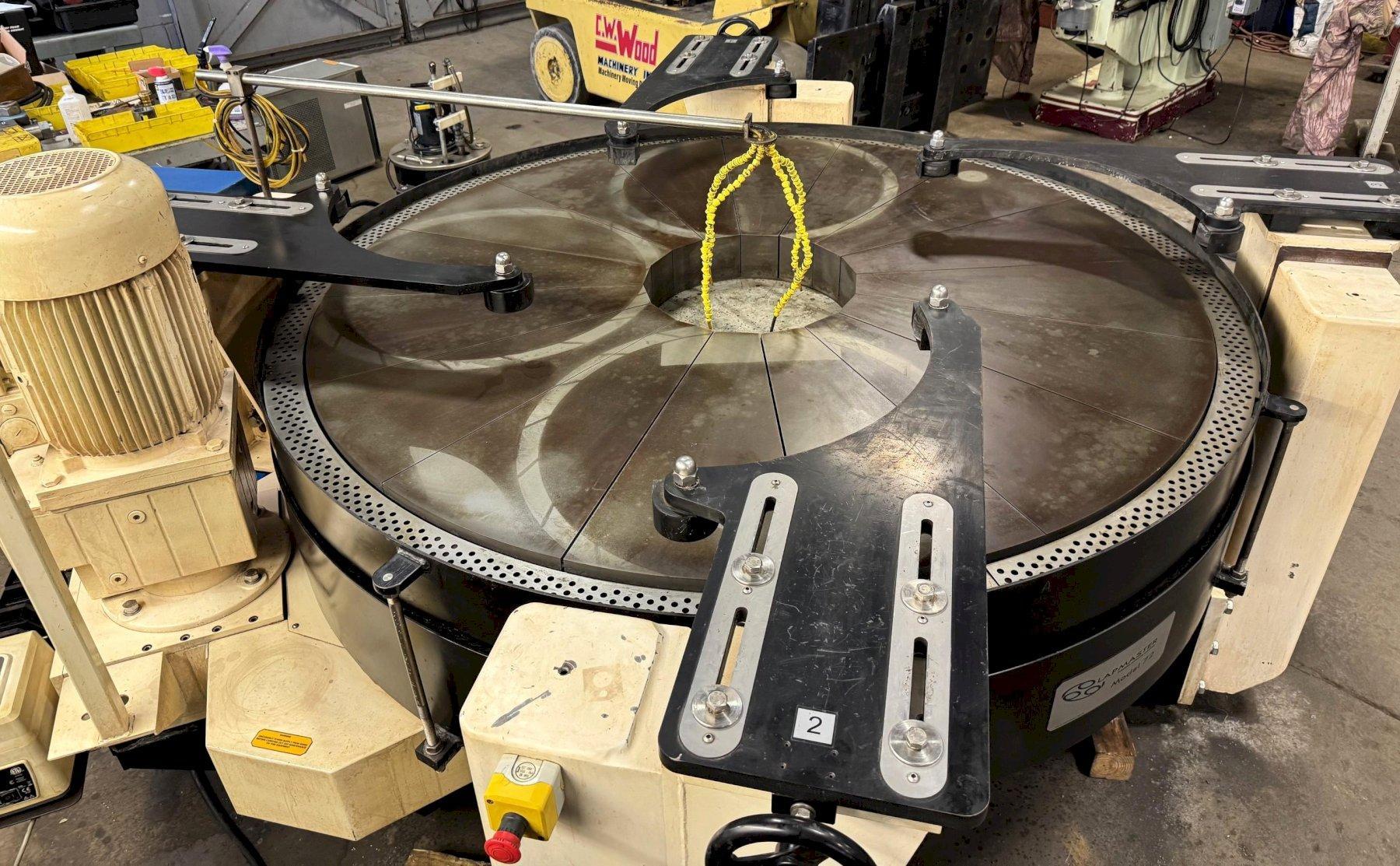

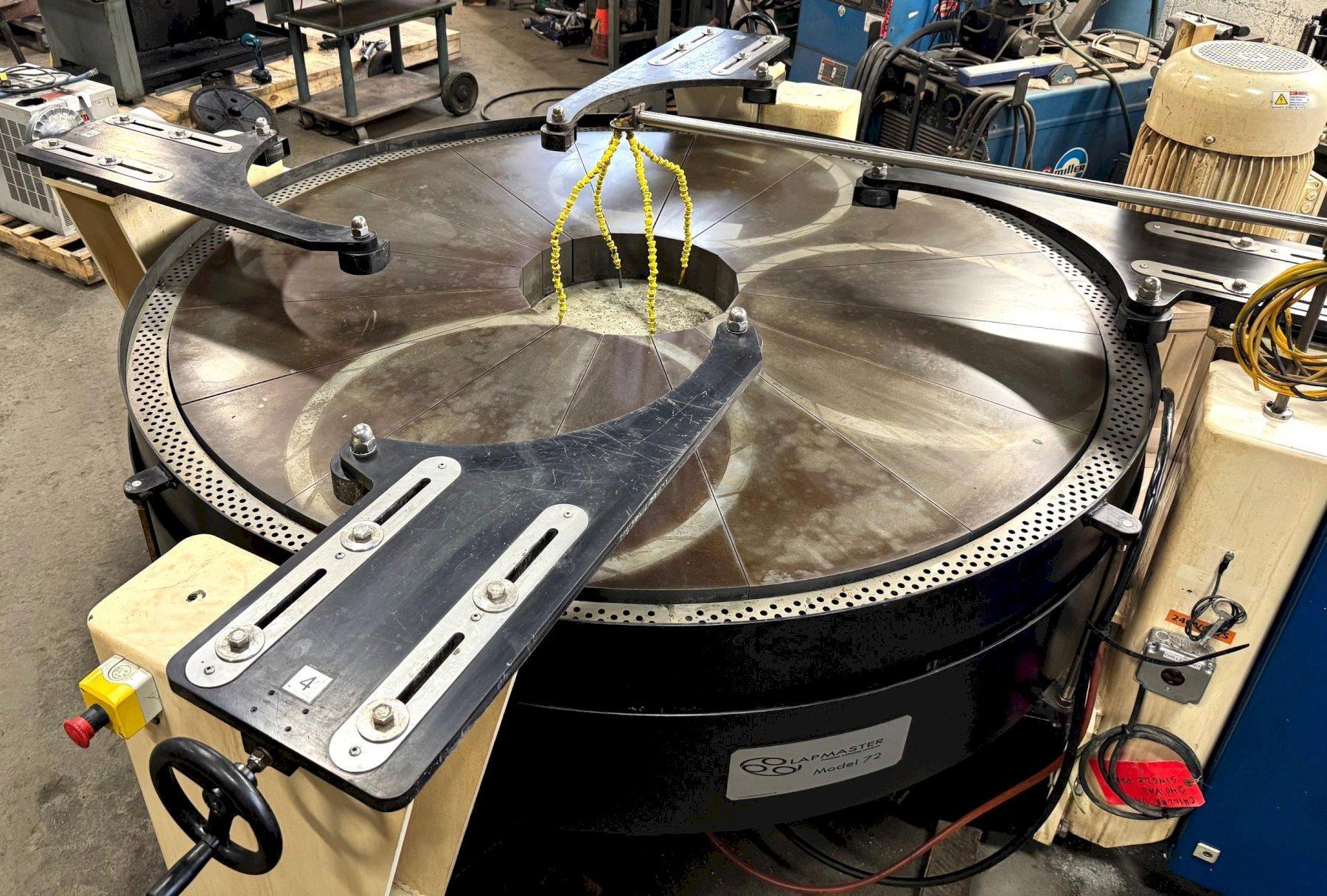

72" Diameter Cast Iron Segmented Lapping Plate (Approximately 4-1/2" Thick)

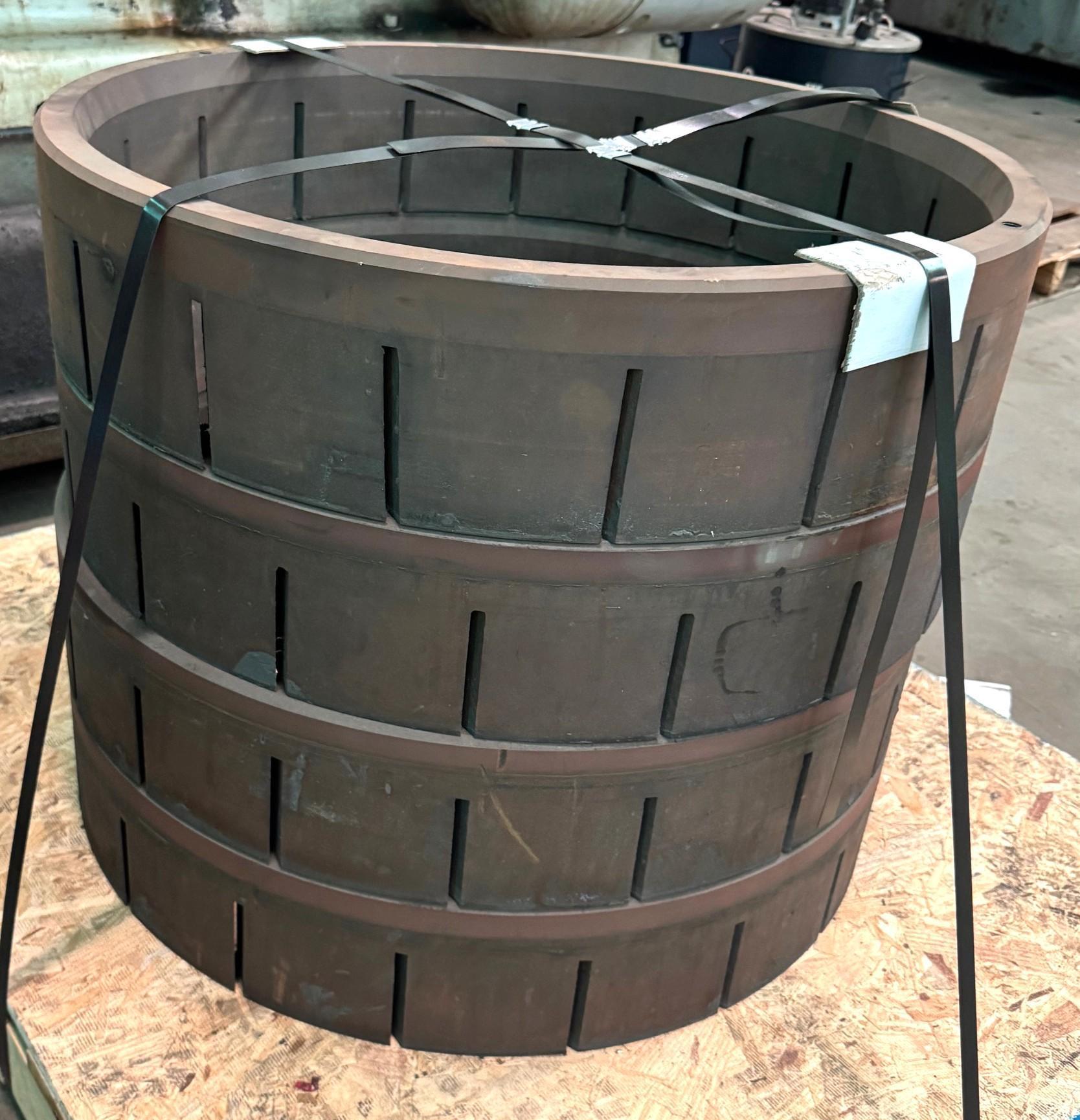

(4) Cast Iron Slotted Conditioning Rings (6" High)
(4) Adjustable Ring Roller Guides (Yokes)
Thermo Scientific Model 1400-1120Peristaltic Slurry Pump w/Four Way Slurry Feeder

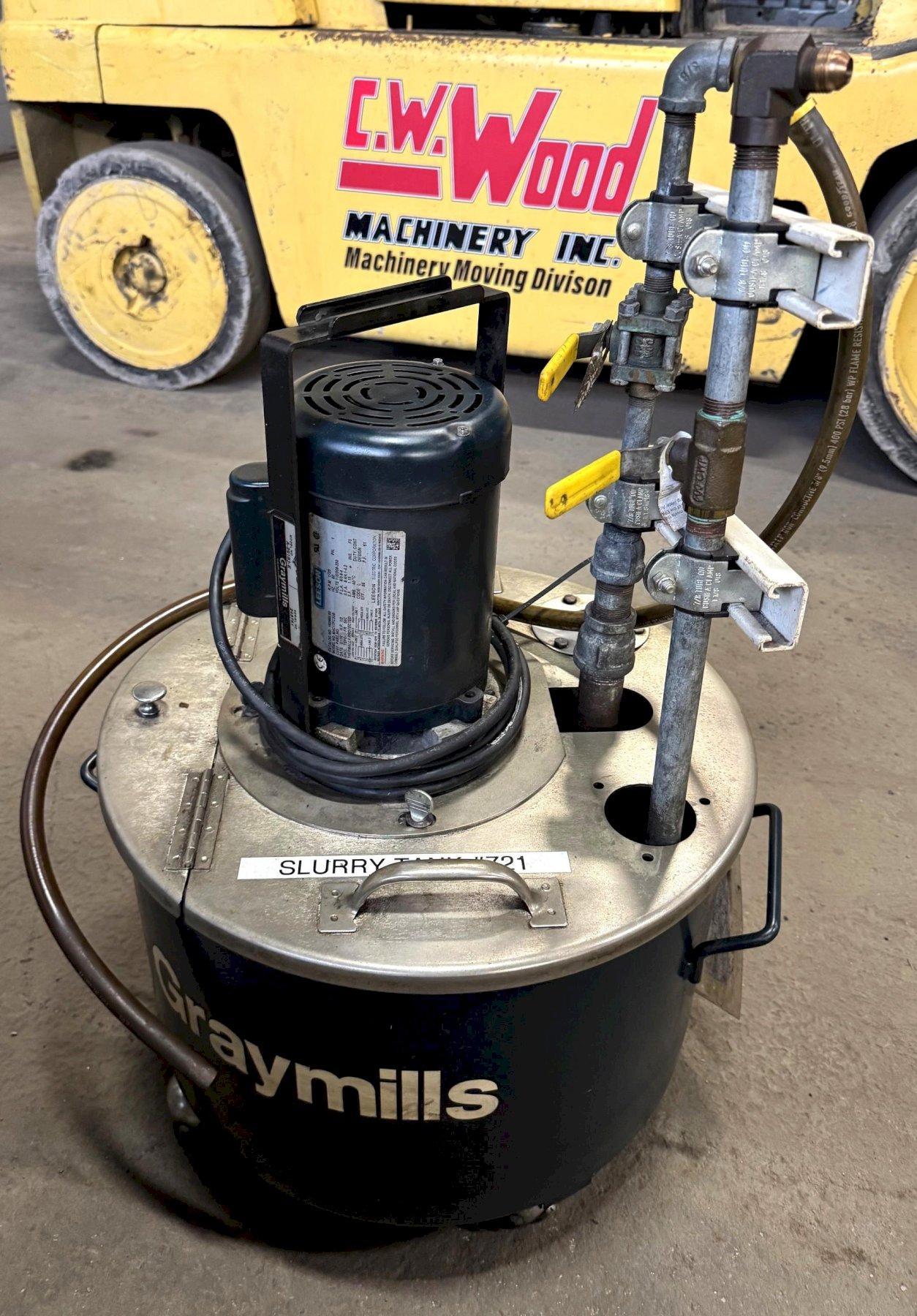

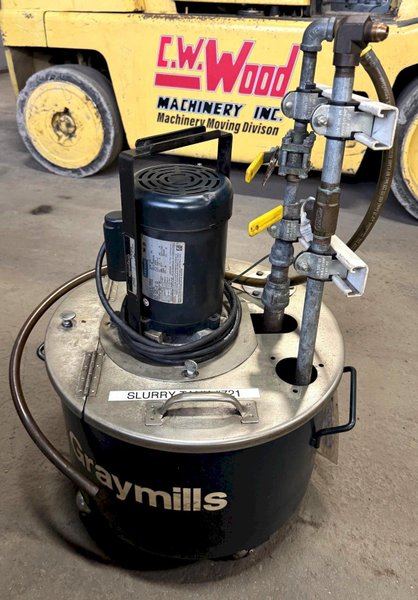

Graymills Slurry Pump and Tank Unit
Overhead Four-Way Slurry Distributor

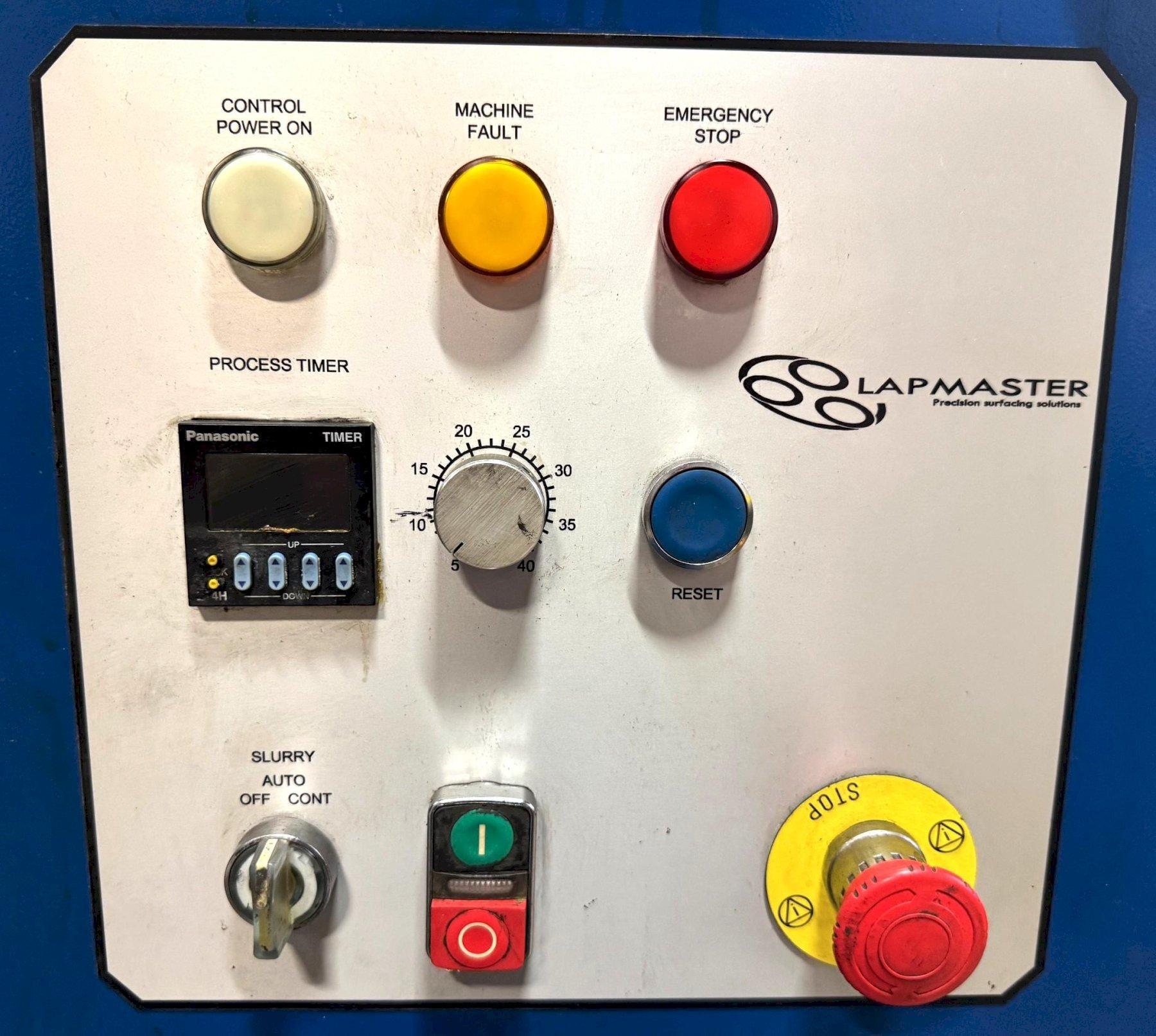

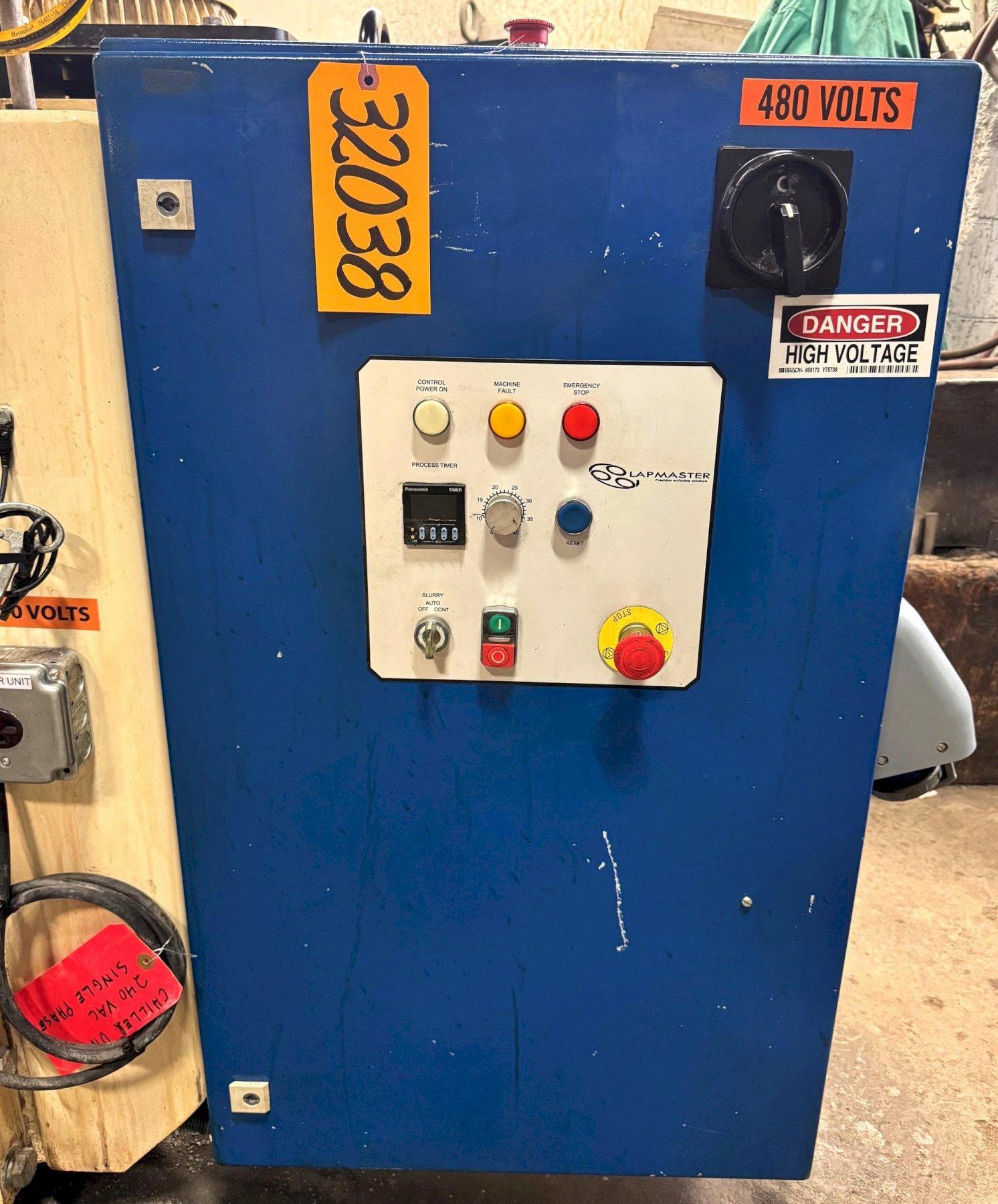

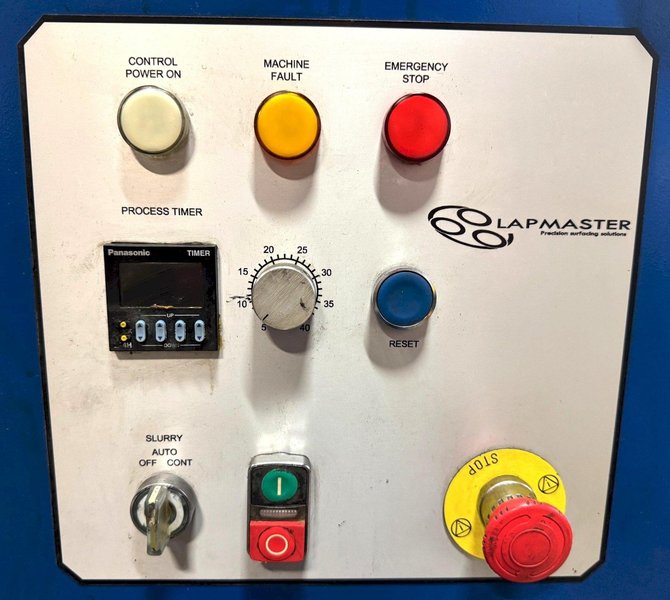

Automatic Cycle Timer Control
Variable Speed Control

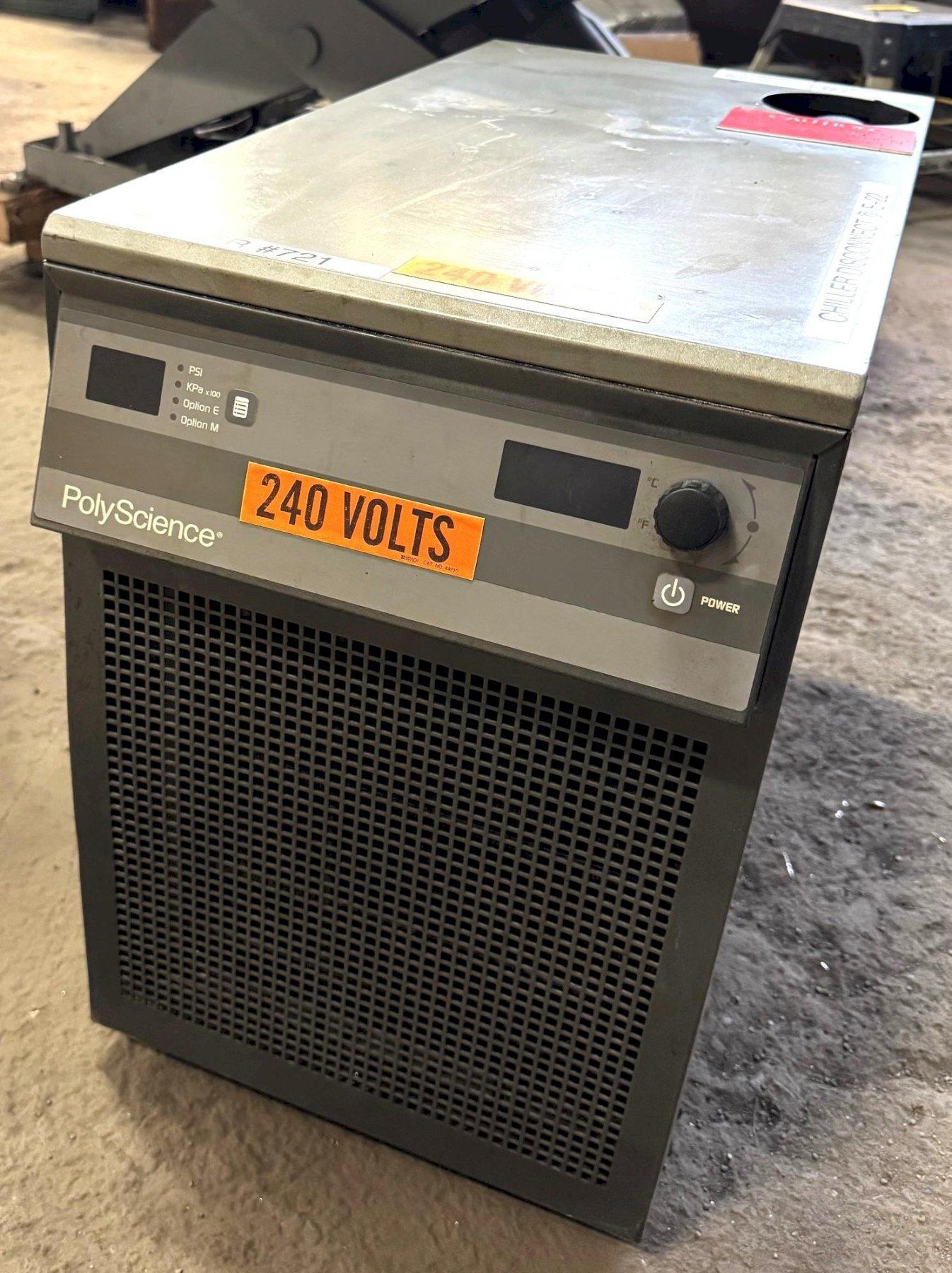

Inlet & Outlet Connections For Water Cooling Of Lap Plate

Approximate Machine Dimensions:
Approximate Machine Weight: 15,500 Lbs.

New price today as equipped is over $220,000.00 with minimum lead time of 20 to 22 weeks.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
