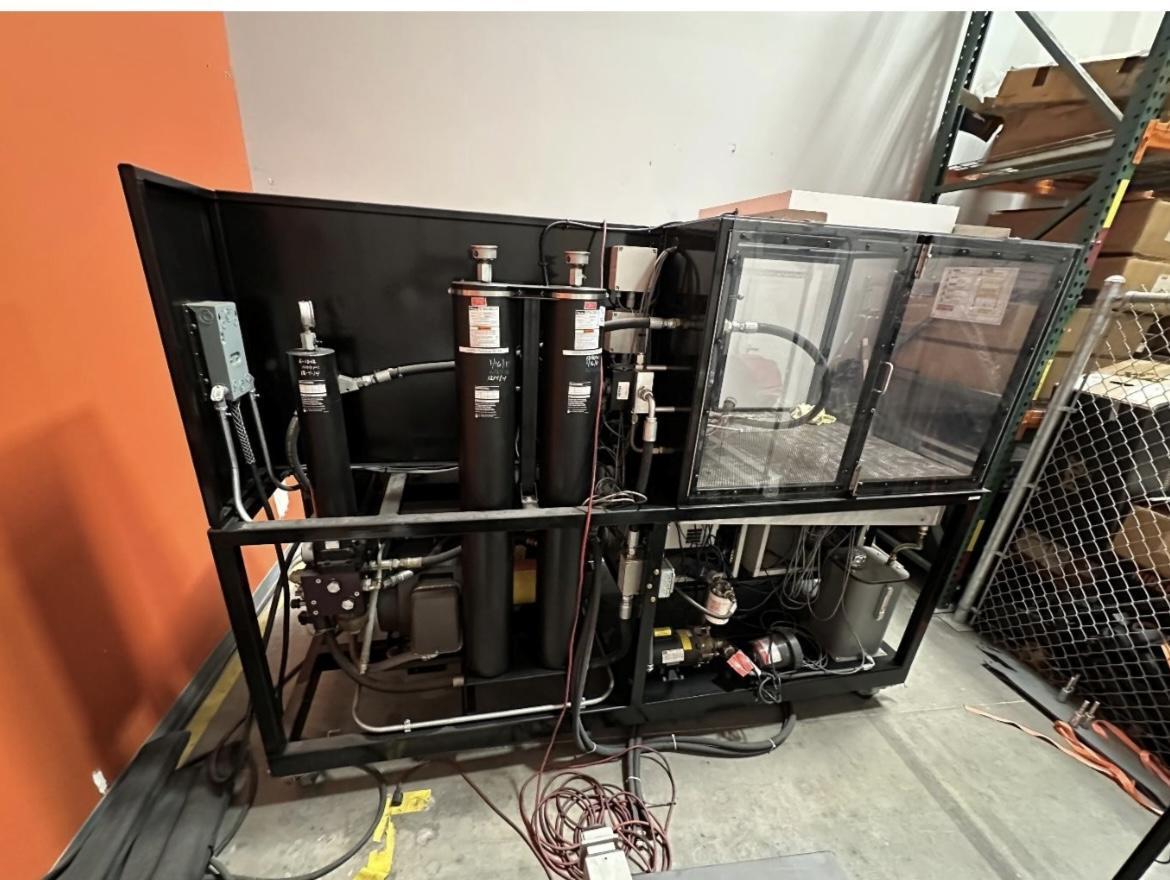

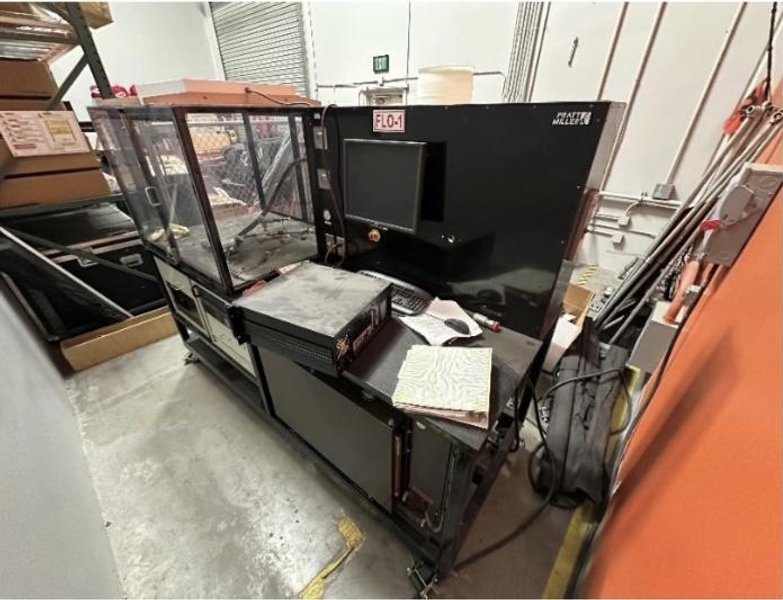

Pratt & Miller / MTS Hydraulic Flow Bench & Test System

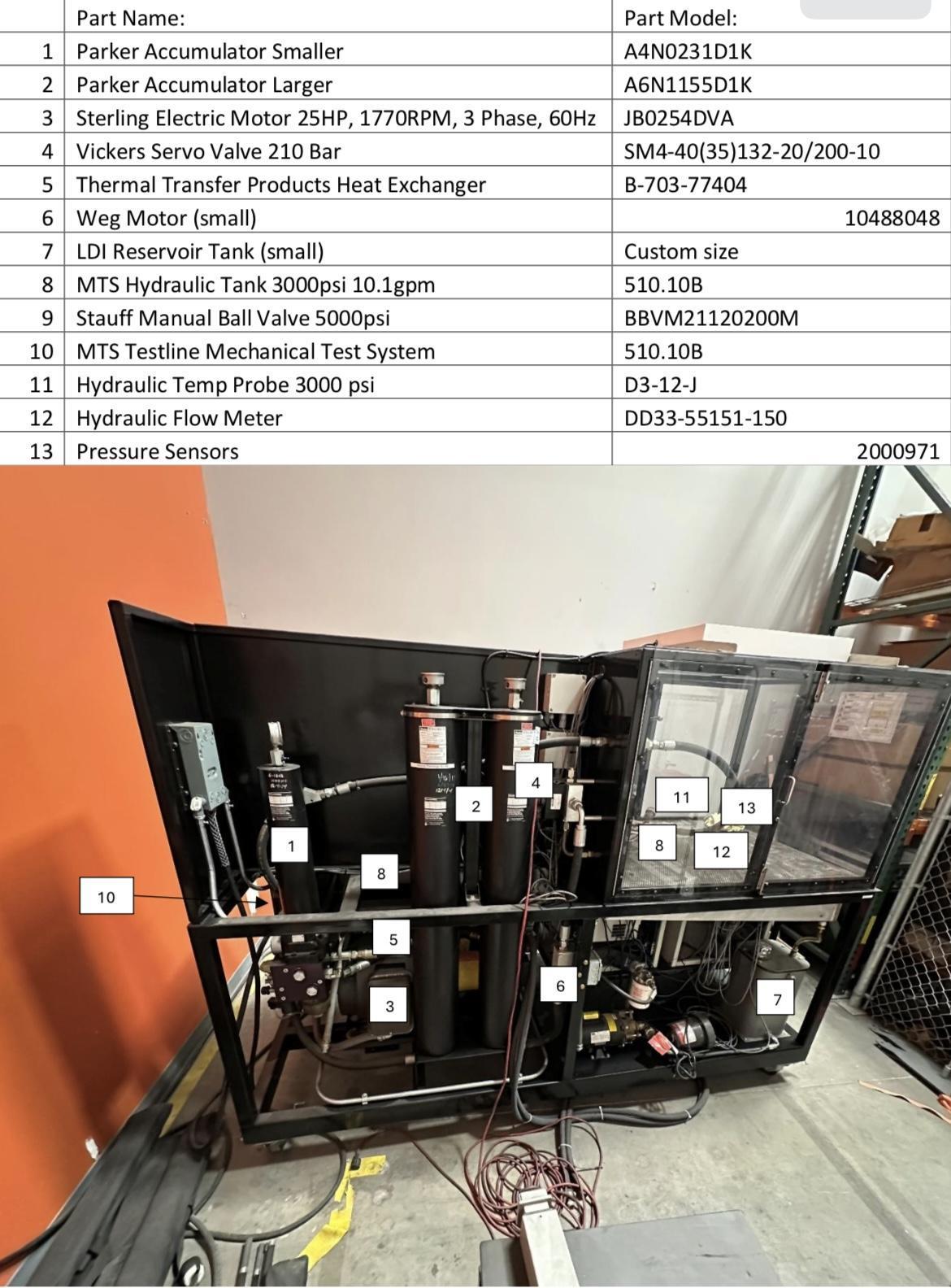

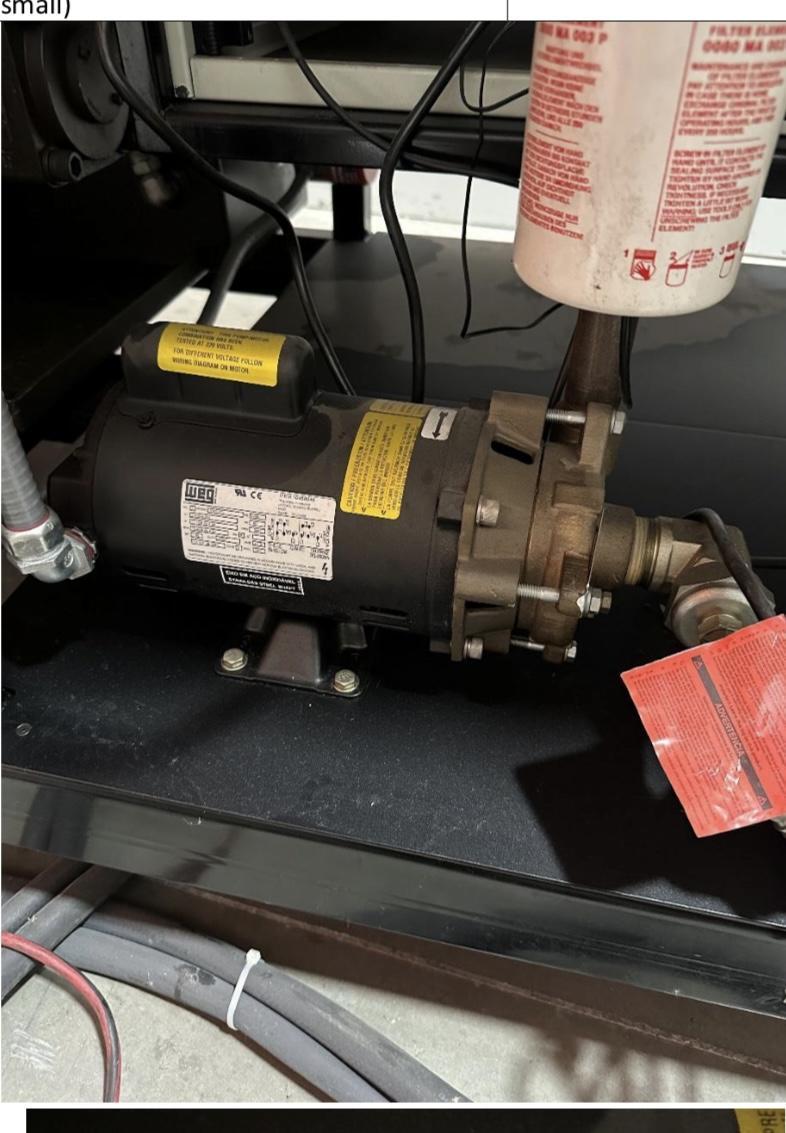

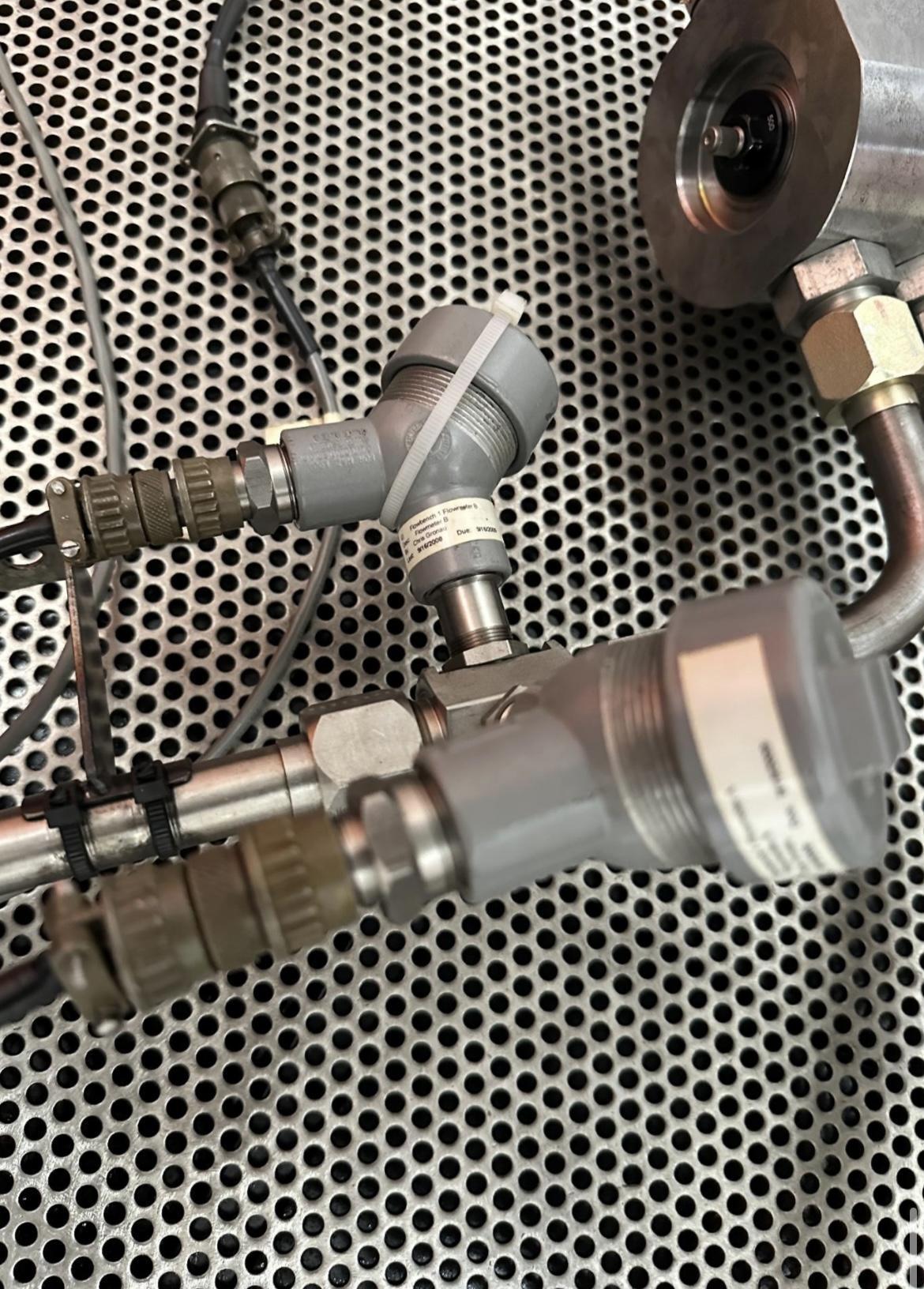

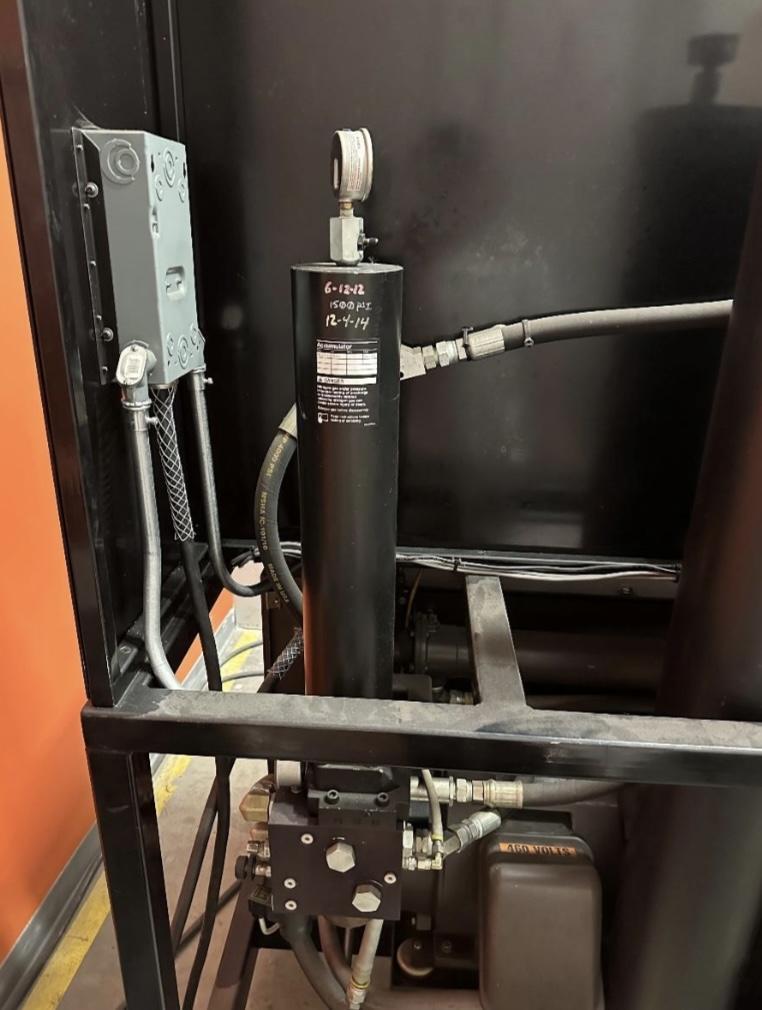

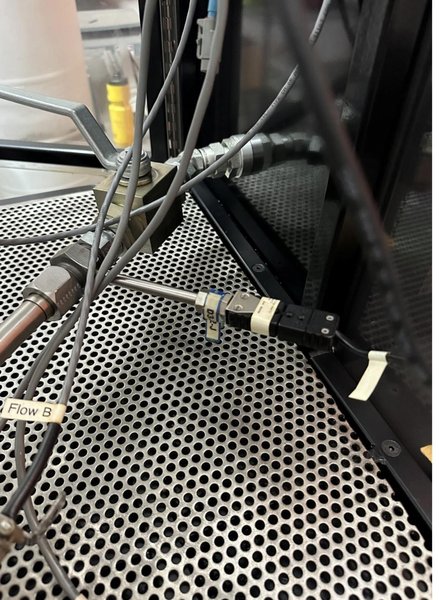

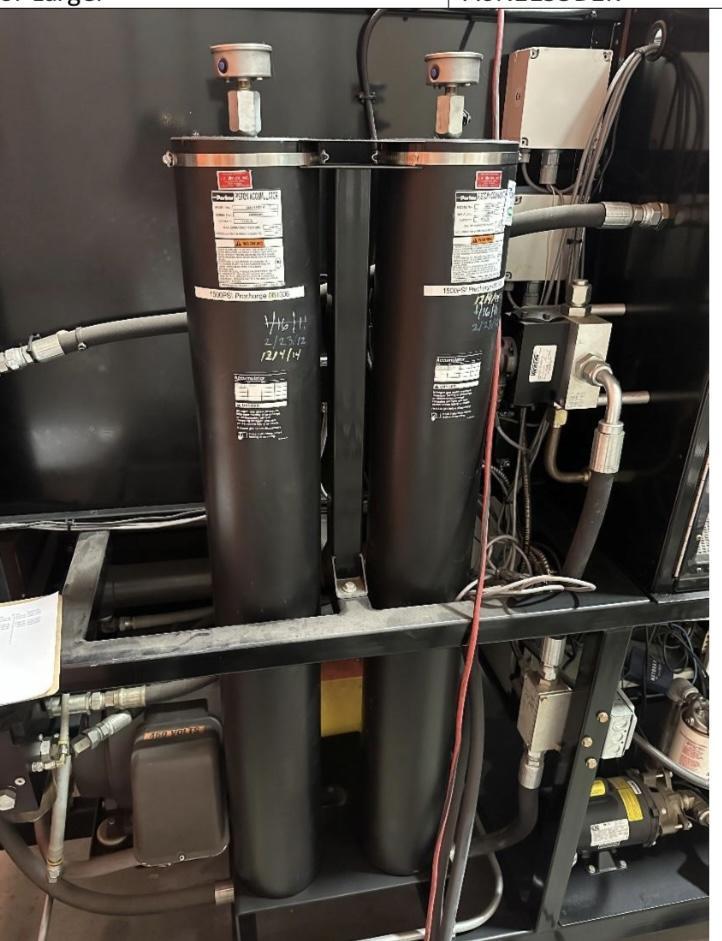

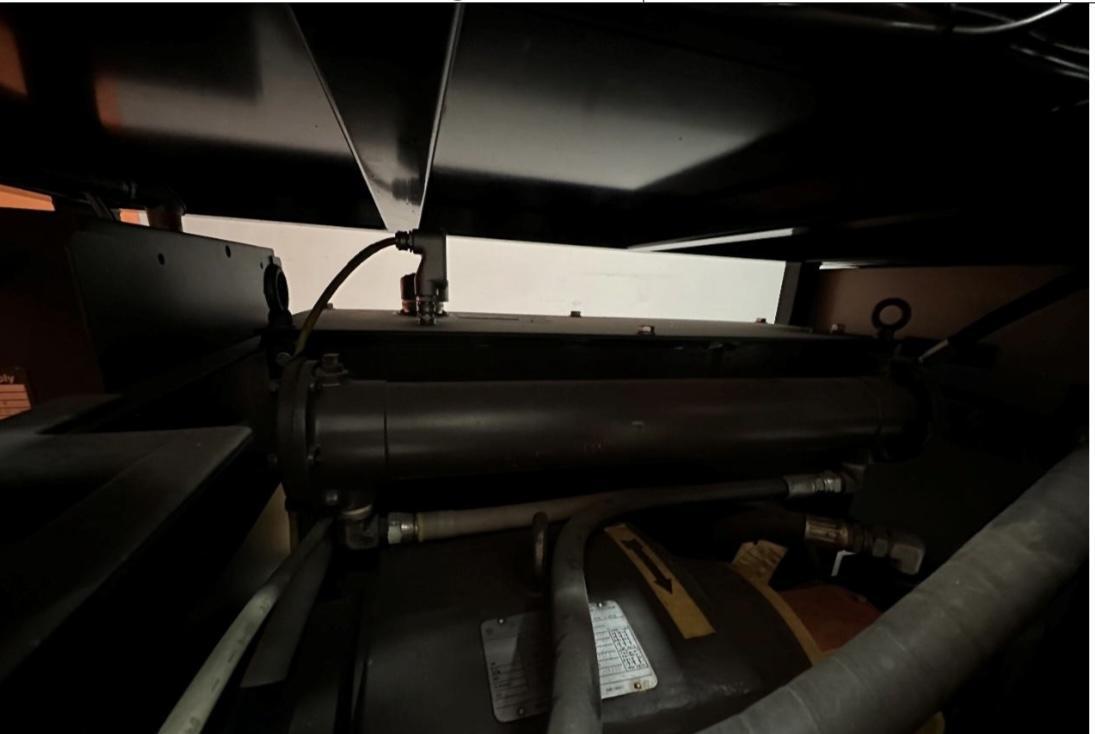

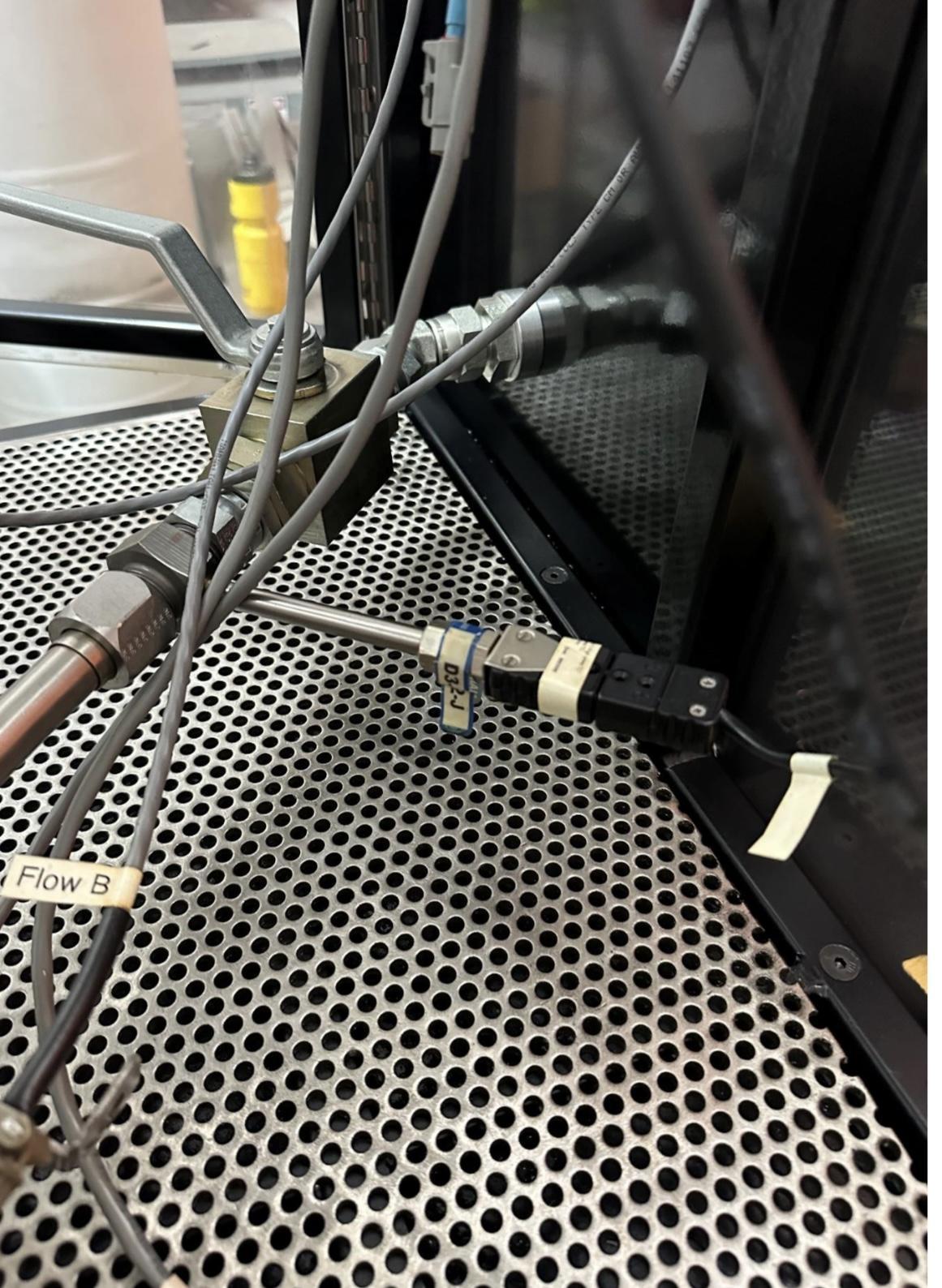

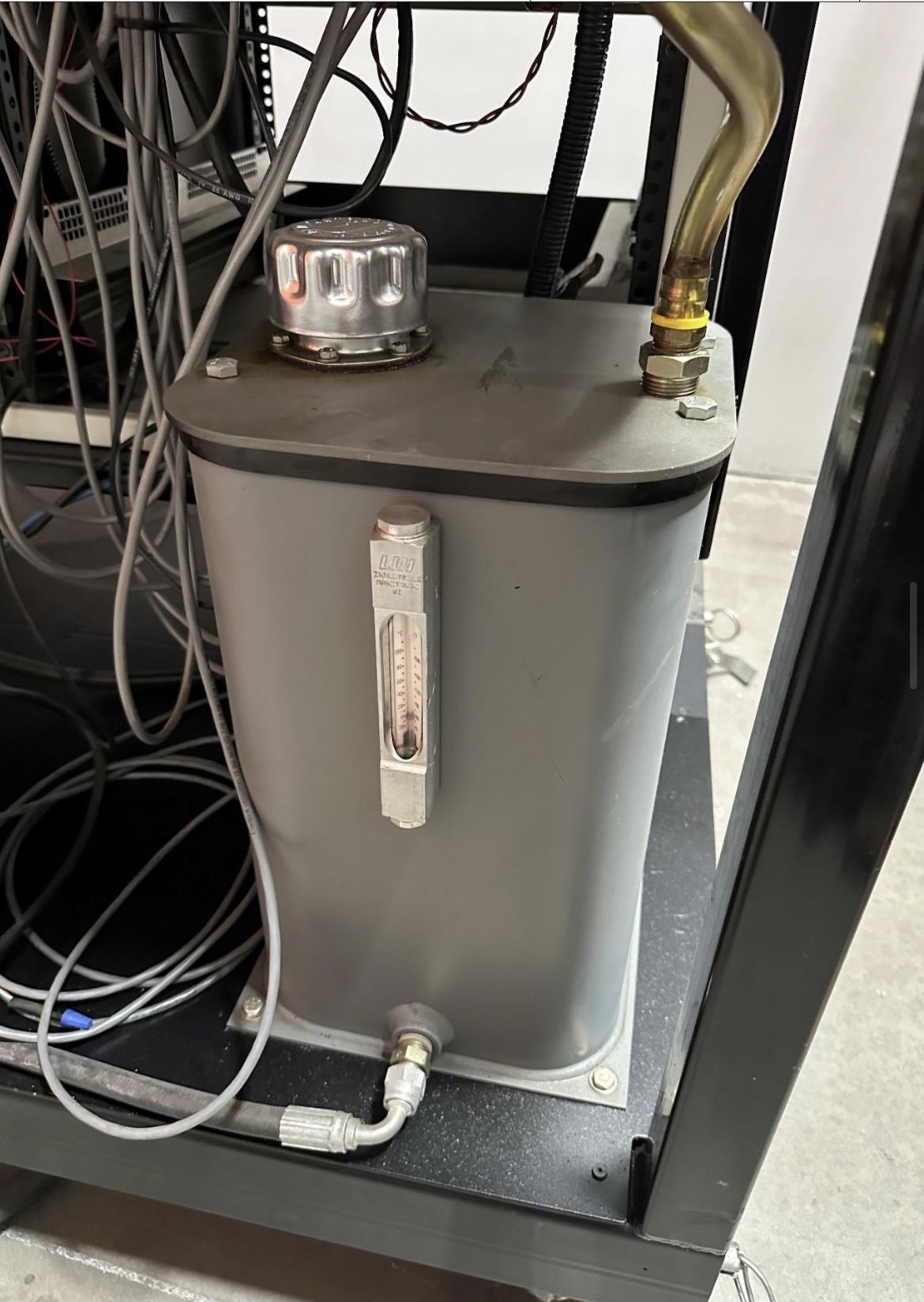

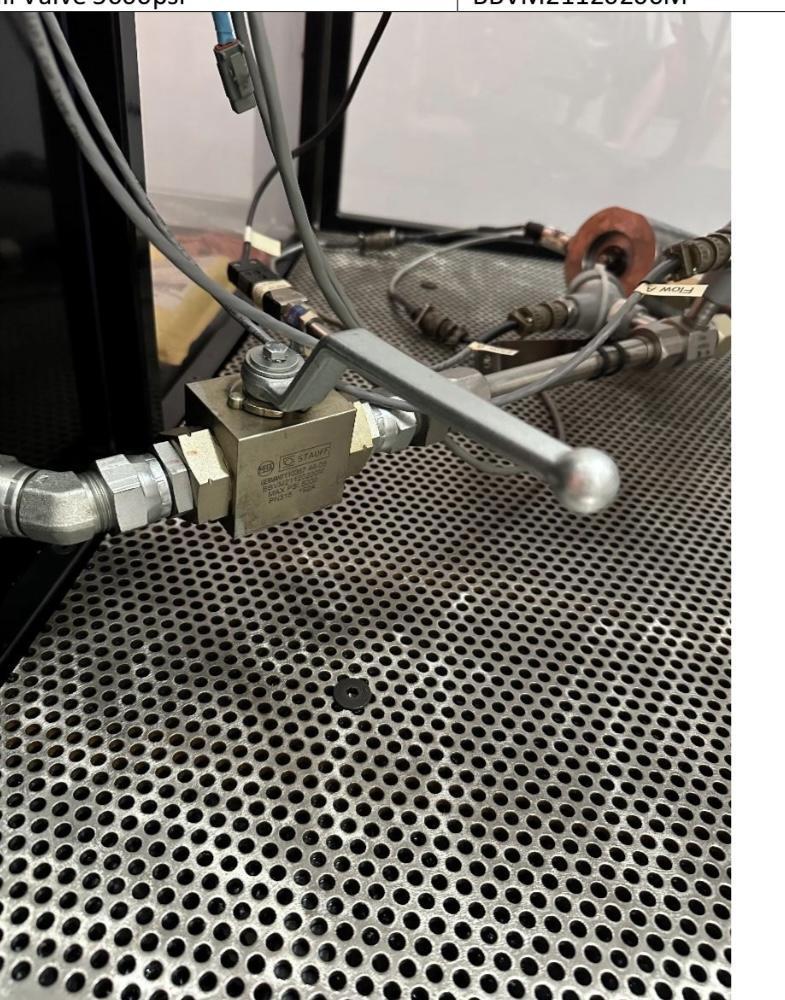

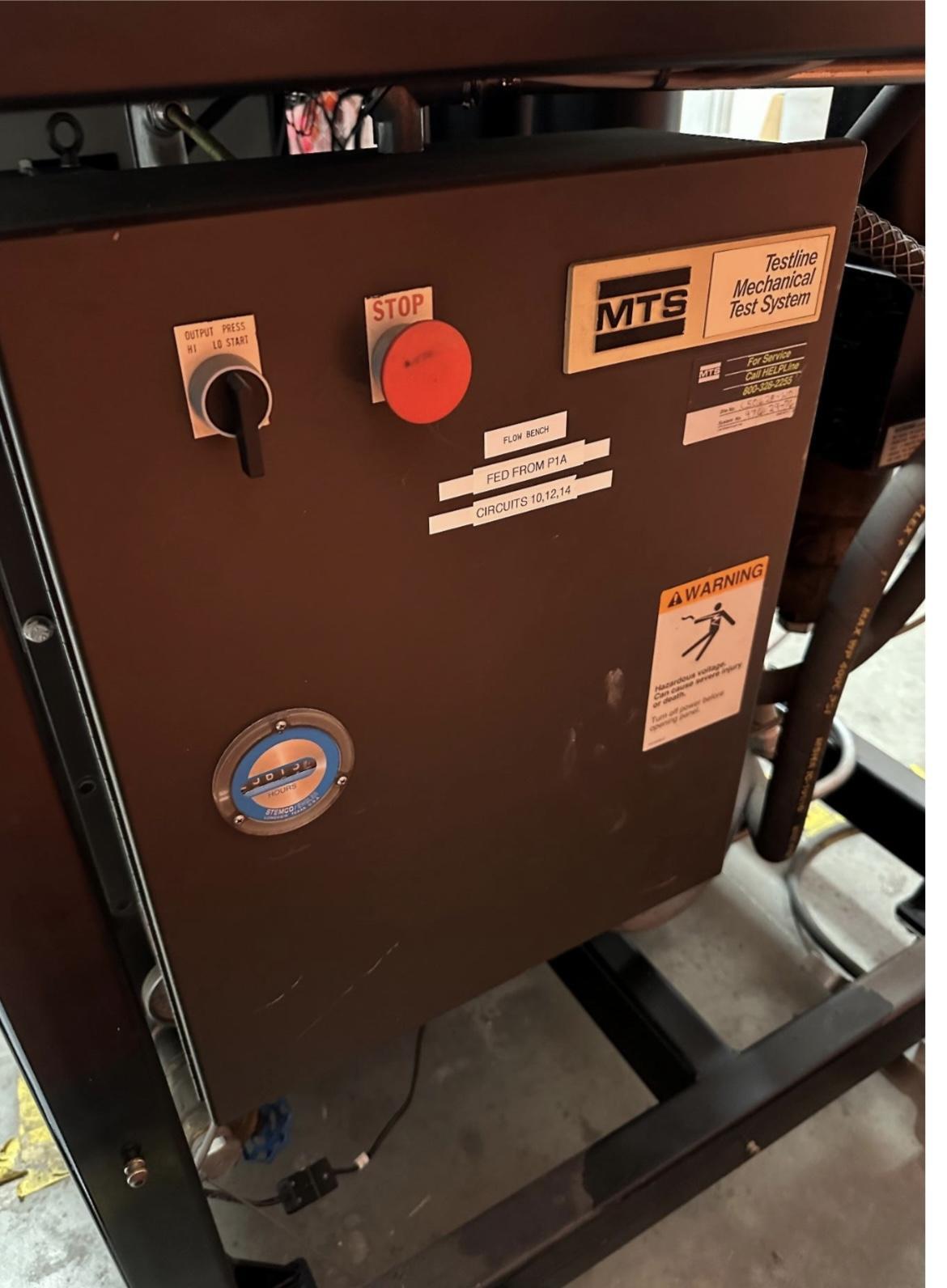

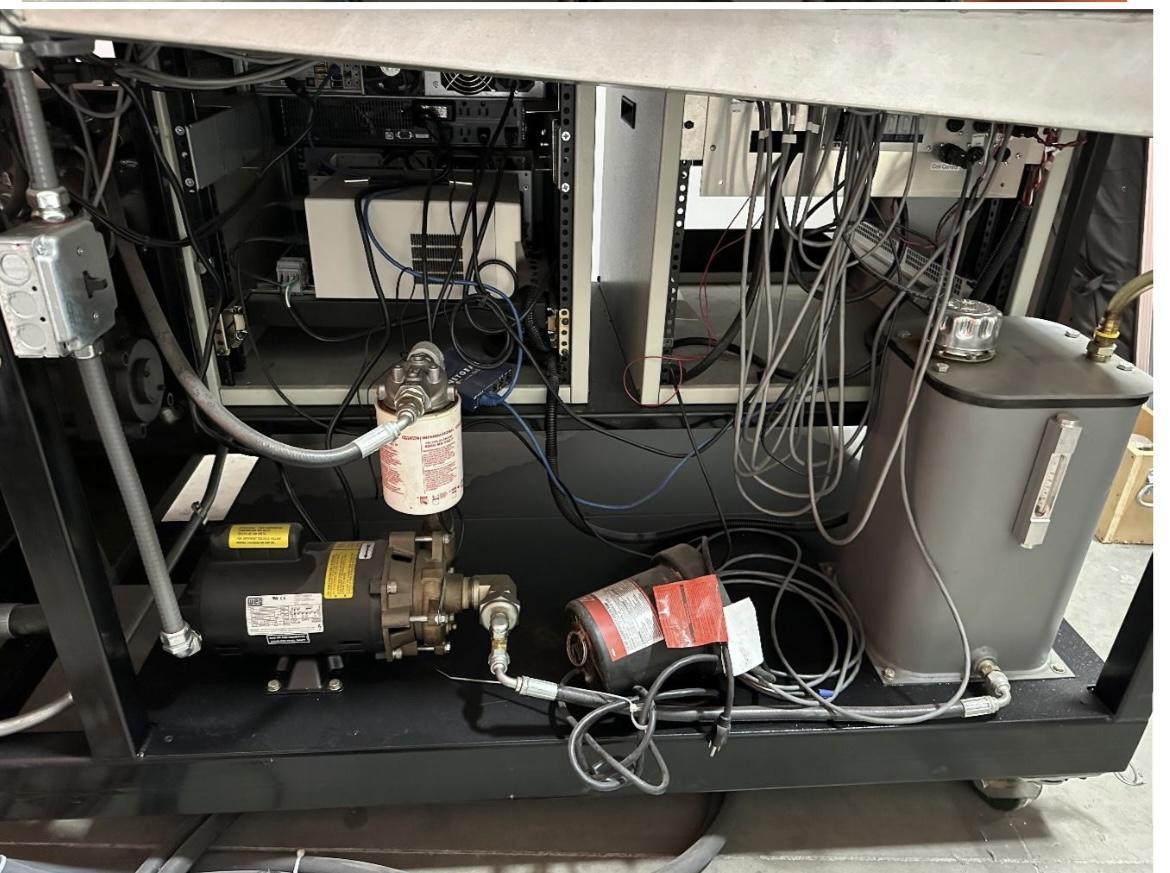

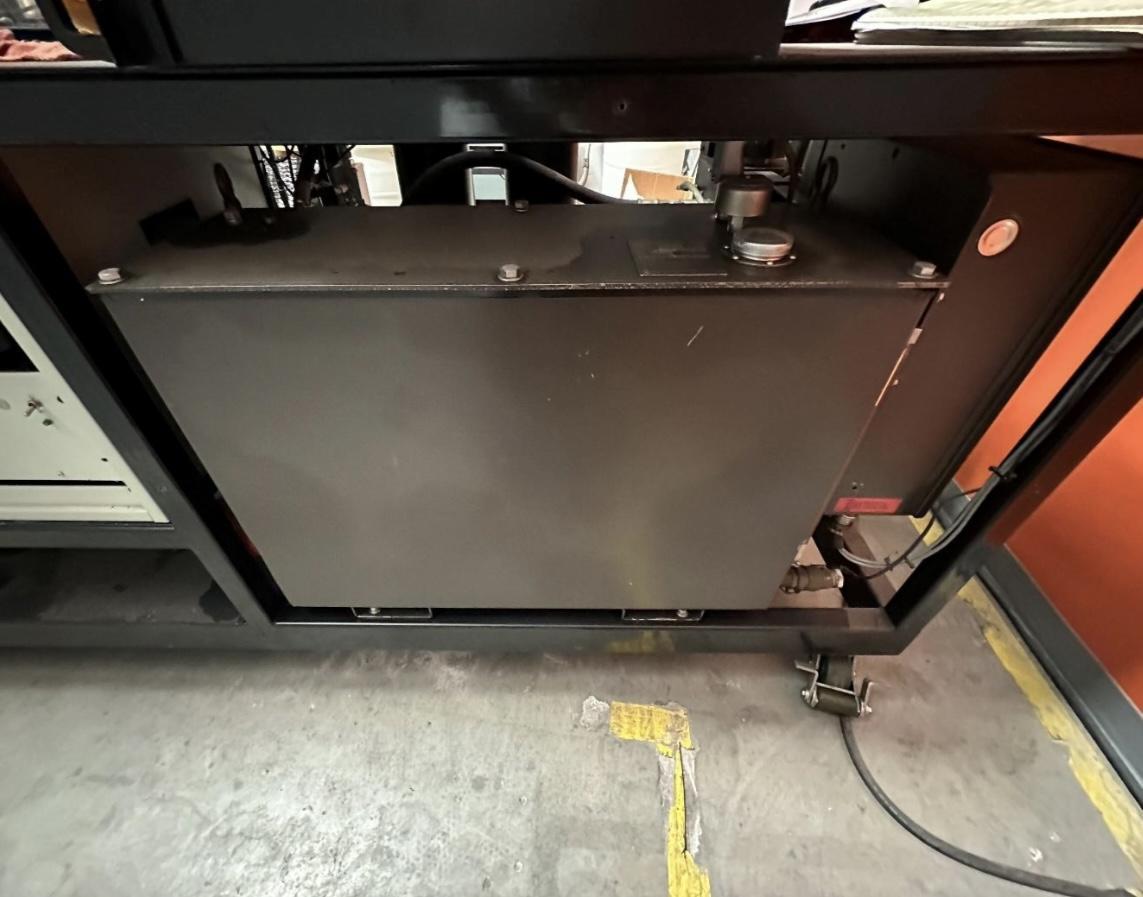

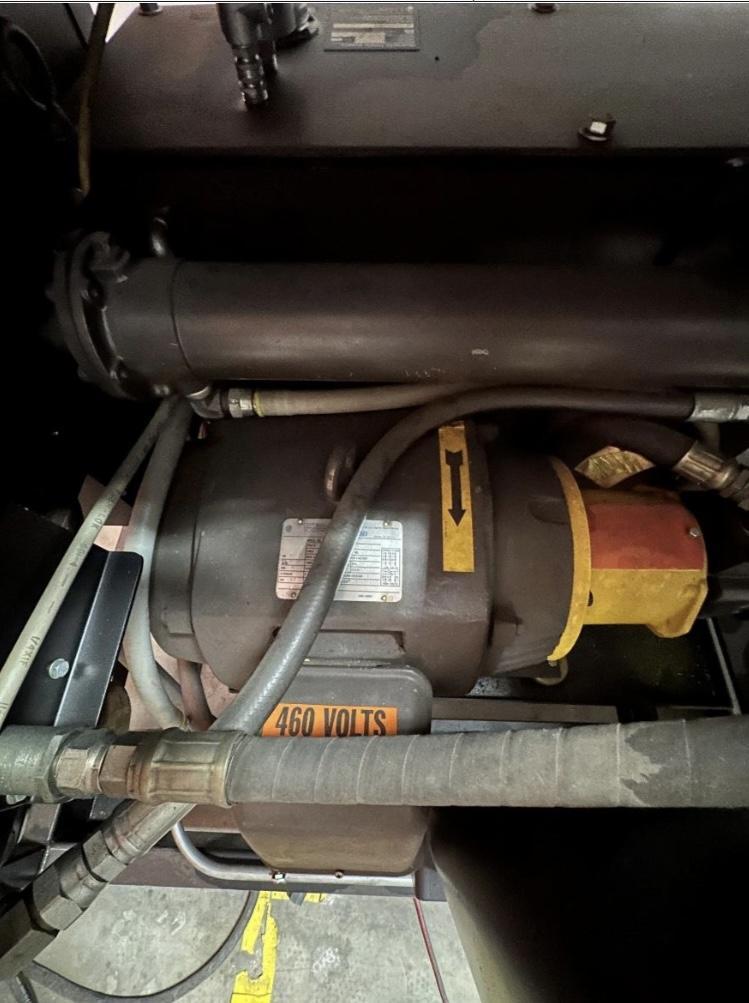

System Type: Servo-Hydraulic Flow Bench & Mechanical Test System Max System Pressure: 3,000 PSI Max Flow Rate: 10.1 GPM Equipped With: Parker Accumulator (Small) — A4N0231D1K (x2) Parker Accumulator (Large) — A6N1155D1K (x2) Sterling Electric Motor — 25 HP, 1,770 RPM, 3-Phase, 60Hz Vickers Servo Valve — 210 Bar, SM4-40(35)132-20/200-10 Thermal Transfer Products Heat Exchanger — B-703-77404 Weg Motor (Small) LDI Reservoir Tank (Custom Size) MTS Hydraulic Tank — 3,000 PSI, 10.1 GPM, 510.10B Stauff Manual Ball Valve — 5,000 PSI, BBVM21120200M (x2) Hydraulic Temp Probe — 3,000 PSI, D3-12-J Hydraulic Flow Meters — DD33-55151-150 (x2) Pressure Sensors — 2000971 (x2)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Known Issues: Computer controls cannot boot/run — machine requires controls repair or replacement prior to operation. All hydraulic components present and intact.
