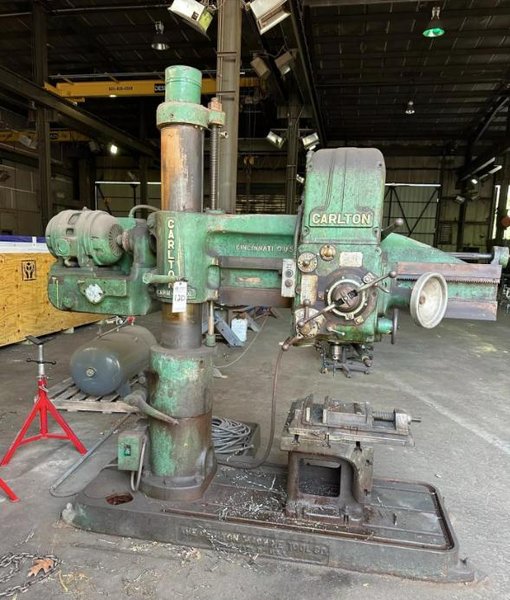

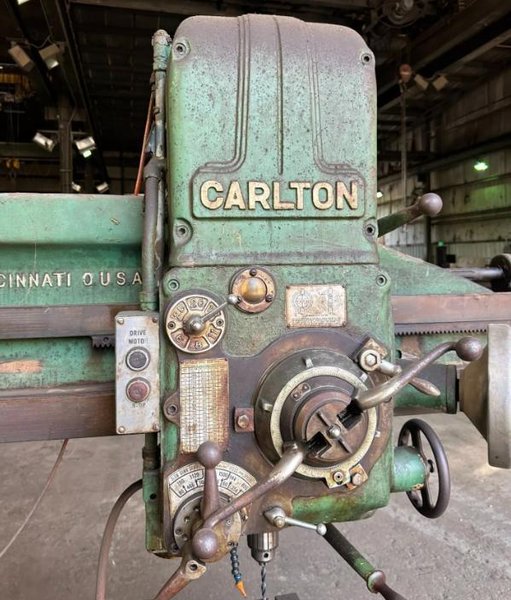

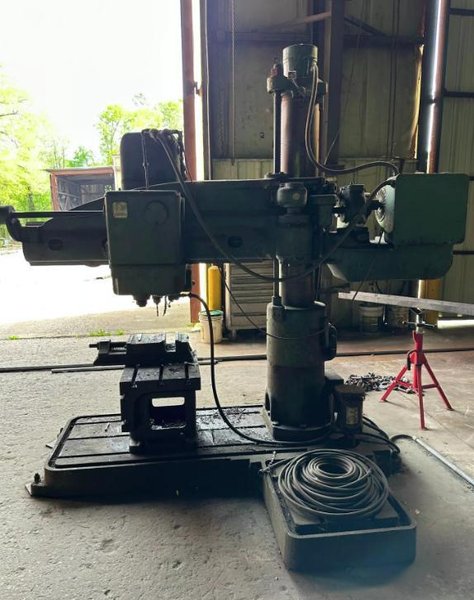

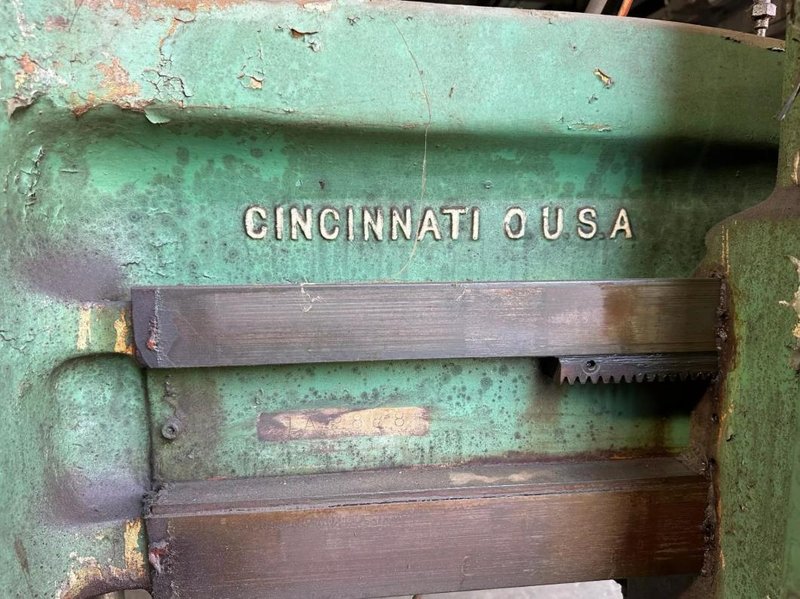

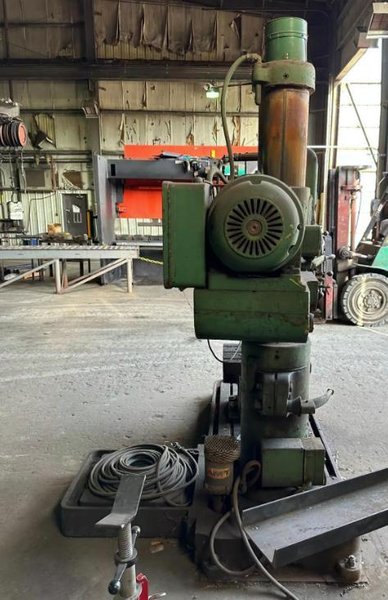

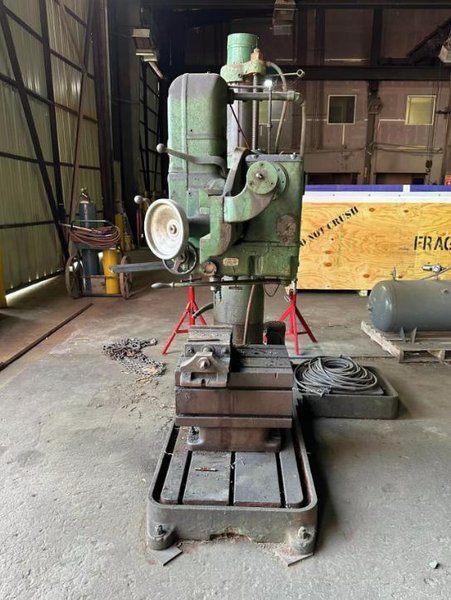

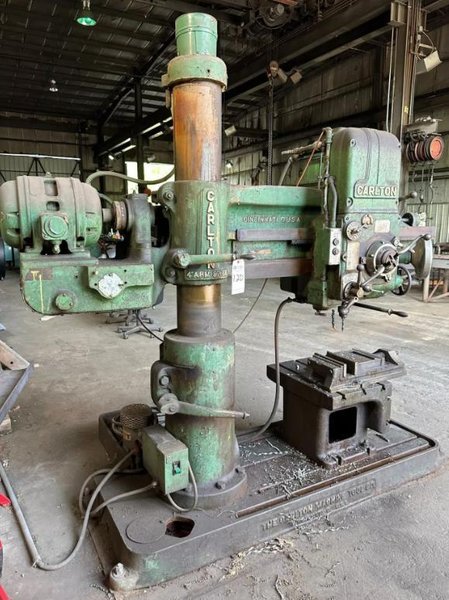

CARLTON 1A RADIAL ARM DRILL. STOCK # 0537526

MANUFACTURER...........................: CARLTON MACHINE TOOL CO.
MODEL..................................: 1A
ARM LENGTH.............................: 4' (48 INCHES)

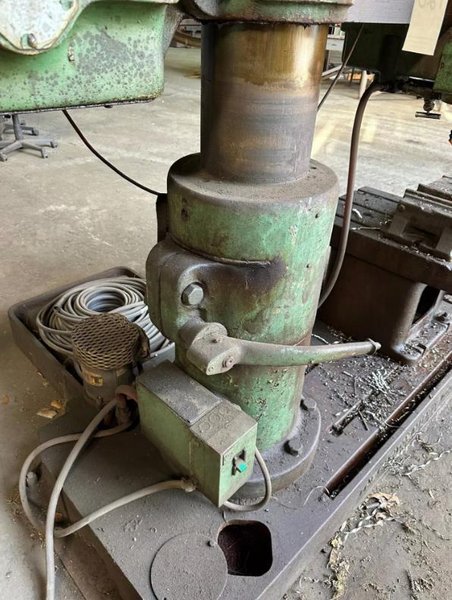

COLUMN DIAMETER........................: 11"
SPINDLE SPEEDS.........................: 12 SPEEDS (60 - 1500 RPM)
SPINDLE TAPER..........................: #4 MORSE TAPER (MT)
SPINDLE TRAVEL.........................: 10" - 12"
VERTICAL ARM TRAVEL....................: APPROX. 24" - 30"
SPINDLE FEEDS..........................: 4 TO 6 FEED RATES (.004 TO .025 IPR)
MAX DISTANCE SPINDLE TO BASE...........: APPROX. 55"
MIN DISTANCE SPINDLE TO BASE...........: APPROX. 14"
MAIN SPINDLE MOTOR.....................: 5 HP TO 7.5 HP (220/440V, 3-PHASE)
ELEVATION MOTOR........................: 2 HP
BASE DIMENSIONS........................: APPROX. 30" W X 80" L
MACHINE WEIGHT.........................: APPROX. 7,500 LBS - 8,500 LBS

EQUIPPED WITH

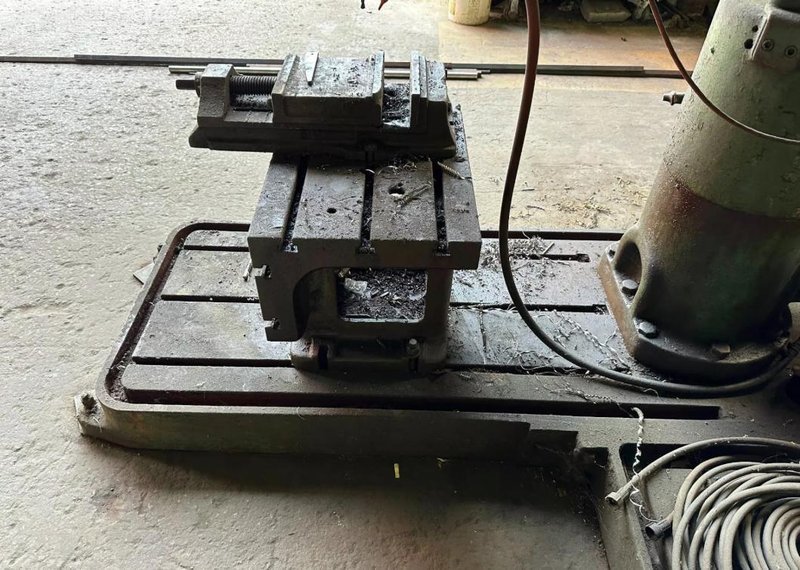

WORK HOLDING...........................: HEAVY-DUTY T-SLOTTED BOX TABLE (AS SHOWN IN PHOTOS)

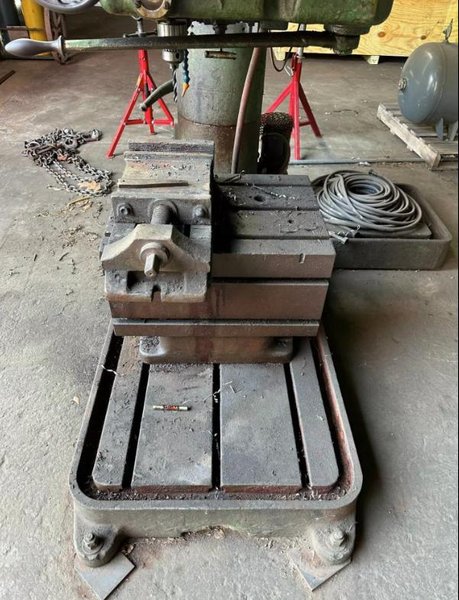

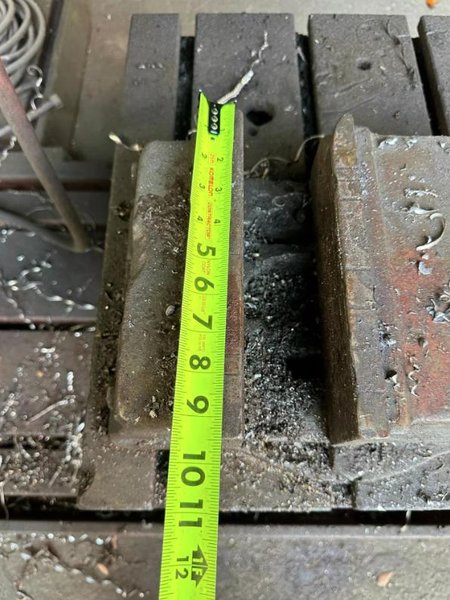

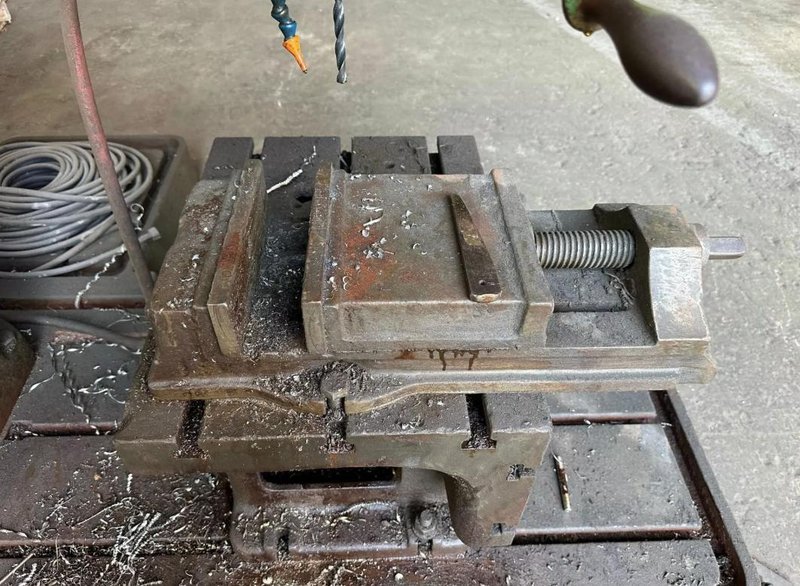

VISE...................................: SWIVEL BASE MACHINE VISE MOUNTED TO TABLE
