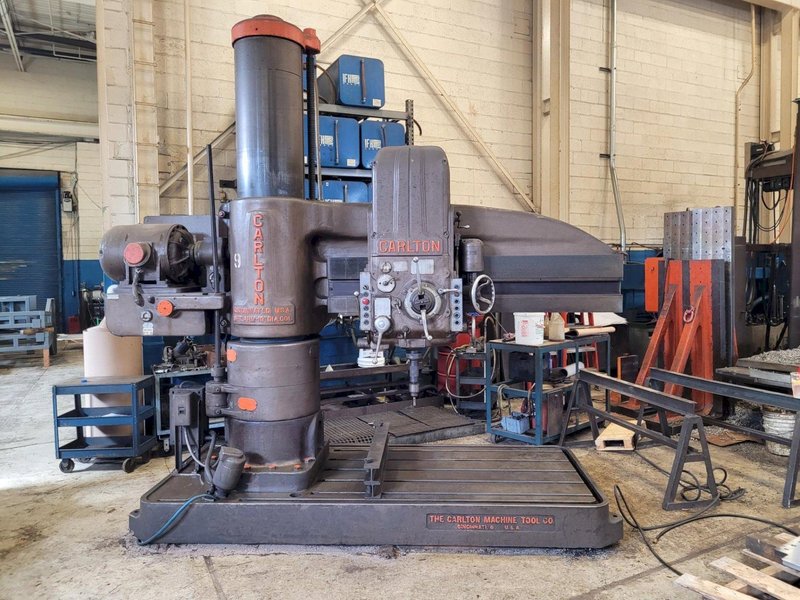

6' X 19" CARLTON 4A RADIAL ARM DRILL. STOCK # 0981926

Name: 6' X 19" CARLTON 4A RADIAL ARM DRILL. STOCK # 0981926
Brand: CARLTON
SKU: 0981926
Availability: InStock

Brand

CARLTON

Michigan

Model	4A
Working Surface Of Base (T-Slotted)	76 x 50
# Spindle Speeds	36
Spindle Speed Range	10 - 1000
# Feeds	18
Spindle Feeds Range	.004 - .125
THREADS	8, 11-1/2, 14, 18, 27
Maximum Spindle Travel	18
Spindle Diameter	3-3/16
Spindle Taper	#6
Min Distance Spindle To Base	15
Max Distance Spindle To Base	70
Min Distance Spindle To Column	18 inches
Max Distance Spindle To Column	72 inches
POWER ELEVATION	YES
POWER CLAMPING ON HEAD; ARM	YES
POWER HEAD TRAVERSE	YES
Motor Horsepower	15
MODEL................................: 4A AREA OF BASE.........................: 76" x 50" SPINDLE SPEEDS.......................: (36) 10 - 1000 RPM FEEDS................................: (18) .004 - .125 IPR THREADS..............................: 8, 11-1/2", 14, 18, 27 TPI SPINDLE TRAVEL.......................: 18" SPINDLE DIAMETER.....................: 3-3/16" TAPER IN SPINDLE.....................: #6 MT DISTANCE SPINDLE TO BASE.............: 15" MINIMUM to 70" MAXIMUM DISTANCE SPINDLE TO COLUMN...........: 18" MINIMUM to 72" MAXIUMUM POWER ELEVATION......................: YES POWER CLAMPING ON HEAD; ARM..........: YES POWER HEAD TRAVERSE..................: YES MOTOR, HORSEPOWER....................: 15 HP
